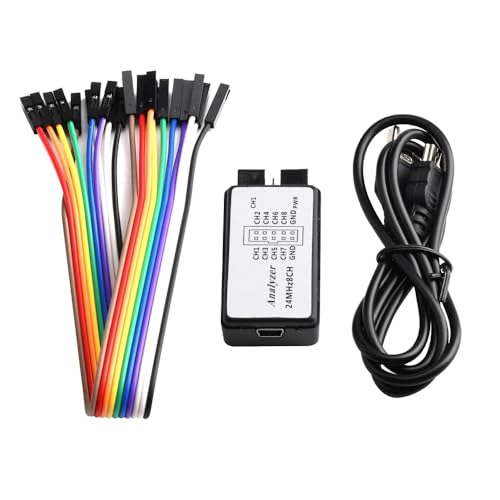

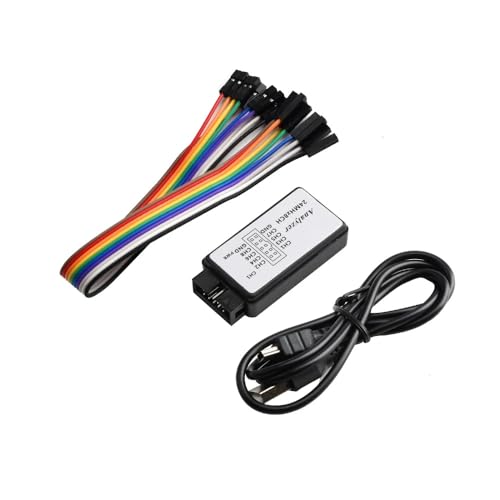

{"id":15859928662176,"title":"1PC USB Logic Analyzer 24MHz 8CH 8CH Debugger for ARM FPGA 24M 8CH","handle":"1pc-usb-logic-analyzer-24mhz-8ch-8ch-debugger-for-arm-fpga-24m-8ch","description":"\u003ch3\u003e1PC USB Logic Analyzer 24MHz 8CH 8CH Debugger for ARM FPGA 24M 8CH\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eUSB Logic Analyzer Device Set USB Cable 24MHz 8 Channel 24MHz For ARM FPGA\nM100 Descriptions: Sampling rate up to: 24 MHz, can be 24 MHz. 16MHz, 12MHz,\n8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz; The\nlogic for each channel sampling rate of 24M\/s. General applications around\n10M, enough to cope with a variety of occasions; 8-channel. Voltage range:\nInput voltage range: -0.5V to 5.25V Input Low Voltage: -0.5V to 0.8V Input\nhigh voltage: 2.0V to 5.25V. Works with 5V, 3.3V, 2.5V, 2.0V systems. May work\nwith 1.8V but not recommended. Input impedance: 1Mohm || 10pF (typical,\napproximate) Crystal: +\/-20ppm, 24MHz. Error\/Accuracy: pulse-width\nmeasurement: +\/- 42ns (at 24MHz) Package includes: 1 x analyser device. 1 x\nUSB cable. Free Dupont Line\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eUSB Logic AnalyzerUSB Logic Analyzer Device Kit, 24MHz, 8 Channels, 24MHz USB Cable for ARM FPGA M100.\u003c\/li\u003e\n \u003cli\u003eCompact Design Sampling rate up to: 24MHz, can be 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz; The logic for each channel has a sampling rate of 24 M\/s. General applications: approx. 10 million, enough for a variety of occasions; 8 channels;\u003c\/li\u003e\n \u003cli\u003eVoltage RangeInput voltage range: -0.5V to 5.25V; Low input voltage: -0.5V to 0.8V; High input voltage: 2.0V to 5.25V\u003c\/li\u003e\n \u003cli\u003eHigh performance: works with 5V, 3.3V, 2.5V and 2.0V systems. It can work with 1.8V, but is not recommended. Input impedance: 1 MOhm || 10 pF (typical, approximate); Quartz: +\/-20 ppm, 24 MHz; error\/accuracy: pulse width measurement: +\/- 42 ns (at 24 MHz)\u003c\/li\u003e\n \u003cli\u003ePackage includes: 1 x analyzer - 1 x Dupont line without USB cable\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-07T14:46:41+10:00","created_at":"2026-09-07T11:03:46+10:00","vendor":"TECNOIOT","type":"Logic Analysers","tags":["industrial_DE_Aug2026"],"price":12000,"price_min":12000,"price_max":12000,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":58817171194016,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B0D2D71W9C","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1PC USB Logic Analyzer 24MHz 8CH 8CH Debugger for ARM FPGA 24M 8CH","public_title":null,"options":["Default Title"],"price":12000,"weight":46,"compare_at_price":null,"inventory_management":"shopify","barcode":"A850-USBLogicAnalyzer-291-1PCS","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/files\/de-B0D2D71W9C.jpg?v=1788743028","\/\/dingoship.com.au\/cdn\/shop\/files\/41aaykF1nPL.jpg?v=1788743028","\/\/dingoship.com.au\/cdn\/shop\/files\/31Egd6AkkmL.jpg?v=1788743028","\/\/dingoship.com.au\/cdn\/shop\/files\/21Jr_ThxxiL.jpg?v=1788743028","\/\/dingoship.com.au\/cdn\/shop\/files\/21WosqARI4L.jpg?v=1788743028","\/\/dingoship.com.au\/cdn\/shop\/files\/316e_ML1k9L.jpg?v=1788743028","\/\/dingoship.com.au\/cdn\/shop\/files\/31fpGLj1sGL.jpg?v=1788743028"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B0D2D71W9C.jpg?v=1788743028","options":["Title"],"media":[{"alt":null,"id":70258127863968,"position":1,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B0D2D71W9C.jpg?v=1788743028"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B0D2D71W9C.jpg?v=1788743028","width":500},{"alt":null,"id":70258127896736,"position":2,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/41aaykF1nPL.jpg?v=1788743028"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/41aaykF1nPL.jpg?v=1788743028","width":500},{"alt":null,"id":70258127929504,"position":3,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/31Egd6AkkmL.jpg?v=1788743028"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/31Egd6AkkmL.jpg?v=1788743028","width":500},{"alt":null,"id":70258127962272,"position":4,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/21Jr_ThxxiL.jpg?v=1788743028"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/21Jr_ThxxiL.jpg?v=1788743028","width":500},{"alt":null,"id":70258127995040,"position":5,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/21WosqARI4L.jpg?v=1788743028"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/21WosqARI4L.jpg?v=1788743028","width":500},{"alt":null,"id":70258128027808,"position":6,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/316e_ML1k9L.jpg?v=1788743028"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/316e_ML1k9L.jpg?v=1788743028","width":500},{"alt":null,"id":70258128060576,"position":7,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/31fpGLj1sGL.jpg?v=1788743028"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/31fpGLj1sGL.jpg?v=1788743028","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e1PC USB Logic Analyzer 24MHz 8CH 8CH Debugger for ARM FPGA 24M 8CH\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eUSB Logic Analyzer Device Set USB Cable 24MHz 8 Channel 24MHz For ARM FPGA\nM100 Descriptions: Sampling rate up to: 24 MHz, can be 24 MHz. 16MHz, 12MHz,\n8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz; The\nlogic for each channel sampling rate of 24M\/s. General applications around\n10M, enough to cope with a variety of occasions; 8-channel. Voltage range:\nInput voltage range: -0.5V to 5.25V Input Low Voltage: -0.5V to 0.8V Input\nhigh voltage: 2.0V to 5.25V. Works with 5V, 3.3V, 2.5V, 2.0V systems. May work\nwith 1.8V but not recommended. Input impedance: 1Mohm || 10pF (typical,\napproximate) Crystal: +\/-20ppm, 24MHz. Error\/Accuracy: pulse-width\nmeasurement: +\/- 42ns (at 24MHz) Package includes: 1 x analyser device. 1 x\nUSB cable. Free Dupont Line\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eUSB Logic AnalyzerUSB Logic Analyzer Device Kit, 24MHz, 8 Channels, 24MHz USB Cable for ARM FPGA M100.\u003c\/li\u003e\n \u003cli\u003eCompact Design Sampling rate up to: 24MHz, can be 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz; The logic for each channel has a sampling rate of 24 M\/s. General applications: approx. 10 million, enough for a variety of occasions; 8 channels;\u003c\/li\u003e\n \u003cli\u003eVoltage RangeInput voltage range: -0.5V to 5.25V; Low input voltage: -0.5V to 0.8V; High input voltage: 2.0V to 5.25V\u003c\/li\u003e\n \u003cli\u003eHigh performance: works with 5V, 3.3V, 2.5V and 2.0V systems. It can work with 1.8V, but is not recommended. Input impedance: 1 MOhm || 10 pF (typical, approximate); Quartz: +\/-20 ppm, 24 MHz; error\/accuracy: pulse width measurement: +\/- 42 ns (at 24 MHz)\u003c\/li\u003e\n \u003cli\u003ePackage includes: 1 x analyzer - 1 x Dupont line without USB cable\u003c\/li\u003e\n \u003c\/ul\u003e"}
