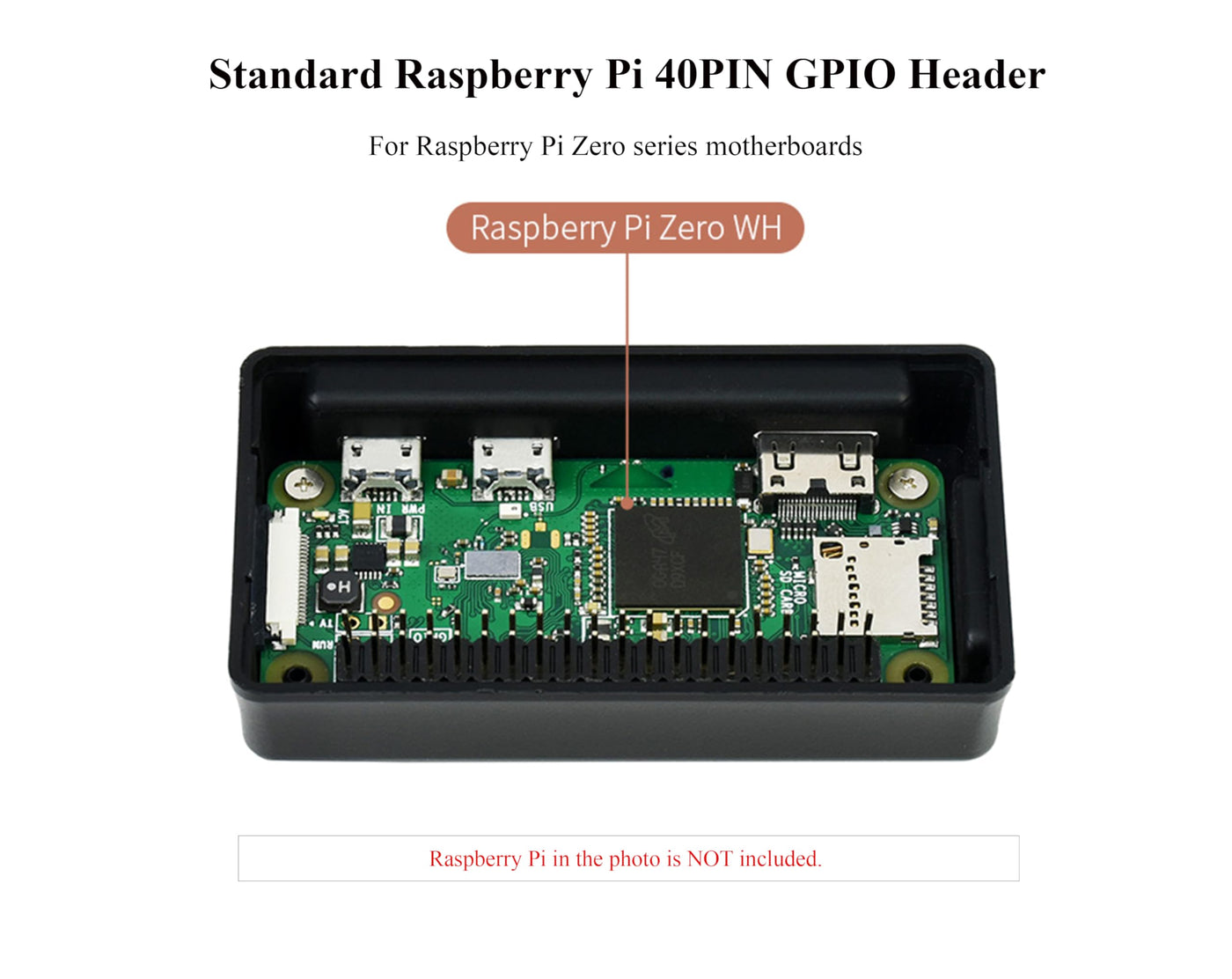

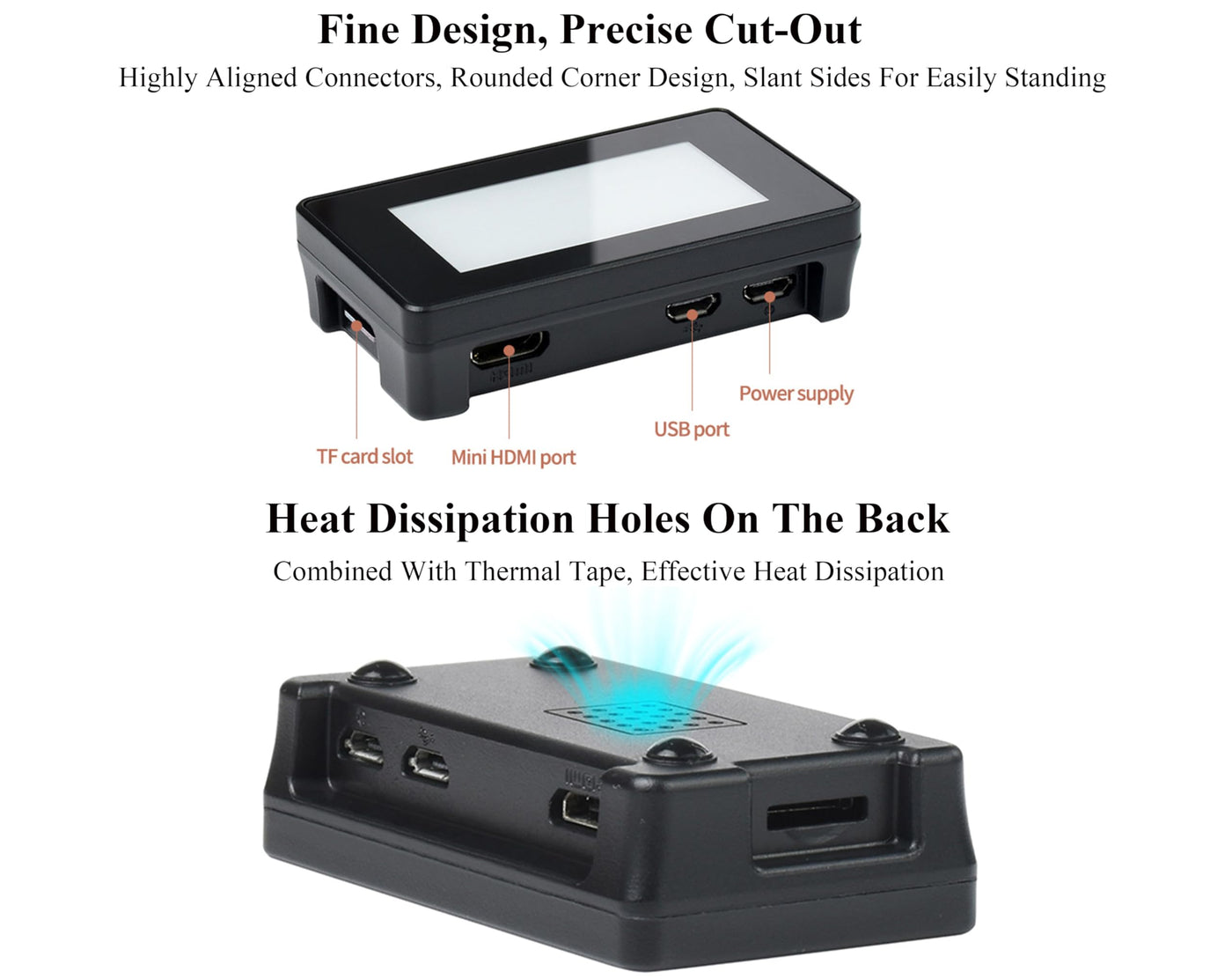

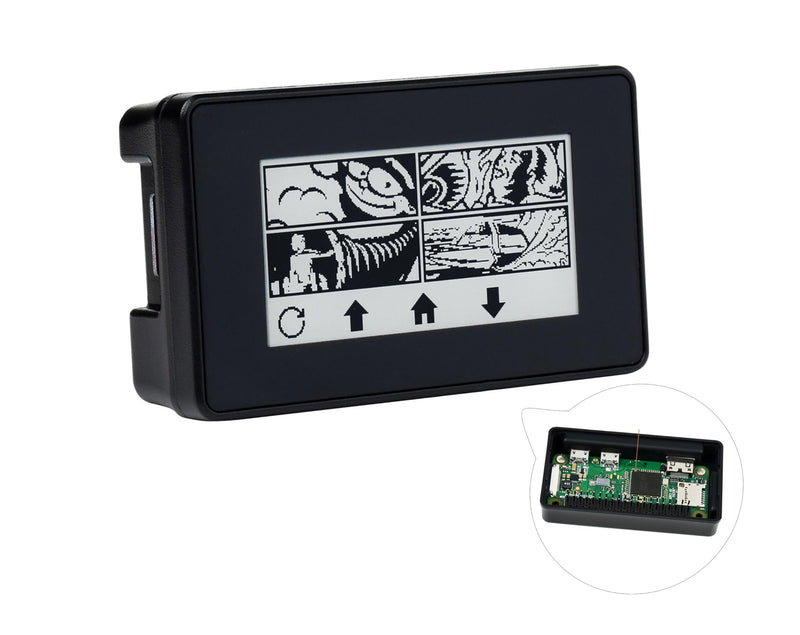

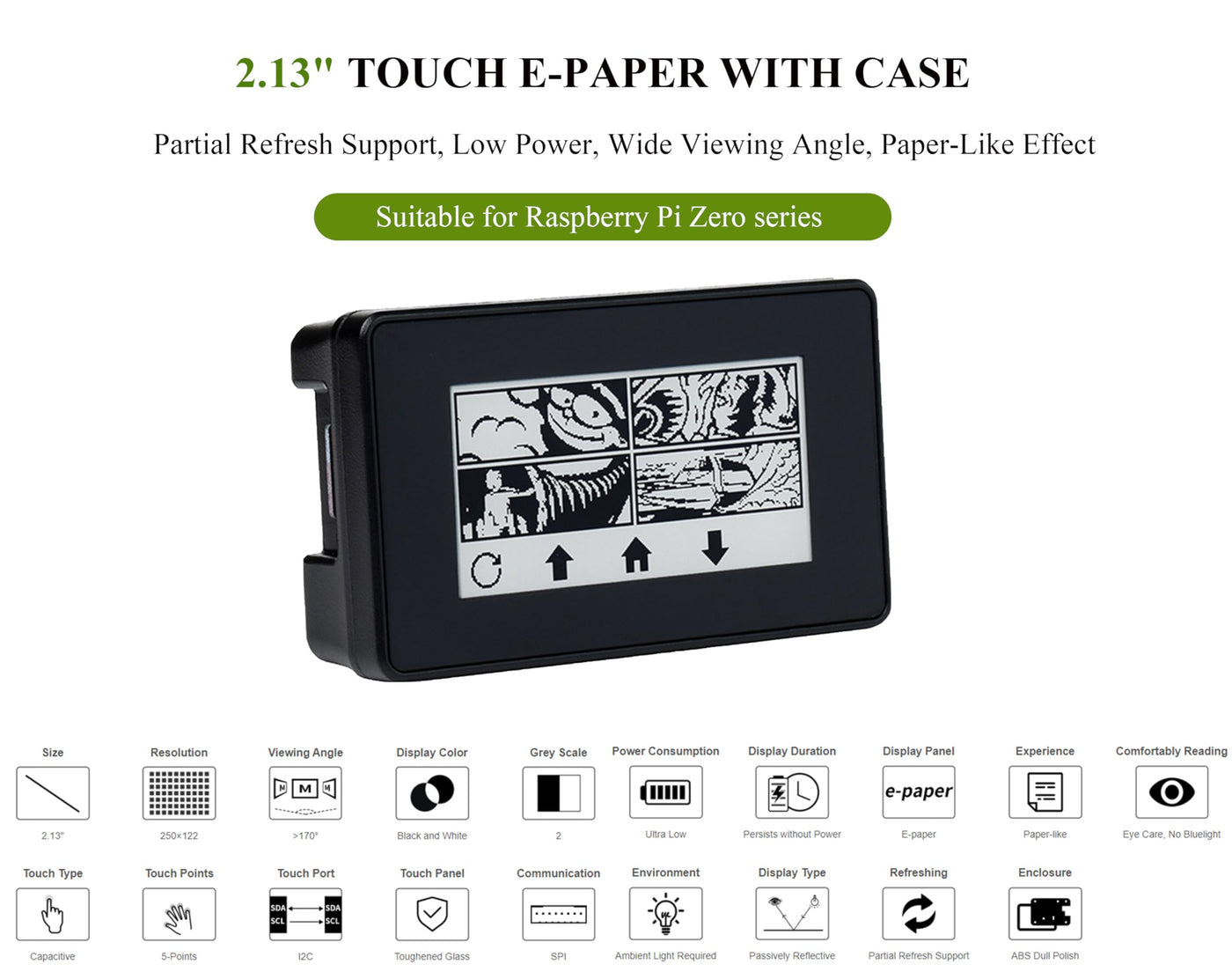

{"id":15201948074144,"title":"2.13inch Touch e-Paper Display with ABS Case for Raspberry Pi Zero 2 W\/Raspberry Pi Zero\/Pi Zero W\/Pi Zero WH, 250x122 Pixels E-Ink, Paper-Like Effect Support Partial Refresh 2.13\" Touch e-Paper with Case","handle":"2-13inch-touch-e-paper-display-with-abs-case-for-raspberry-pi-zero-2-w-raspberry-pi-zero-pi-zero-w-pi-zero-wh-250x122-pixels-e-ink-paper-like-effect-support-partial-refresh-2-13-touch-e-paper-with-case","description":"\u003ch3\u003e2.13inch Touch e-Paper Display with ABS Case for Raspberry Pi Zero 2 W\/Raspberry Pi Zero\/Pi Zero W\/Pi Zero WH, 250x122 Pixels E-Ink, Paper-Like Effect Support Partial Refresh\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eOverview 2.13\"capacitive touch e-Paper display, 5-point touch, 250×122\r\npixels.Display color: black, white Standard Raspberry Pi 40PIN GPIO extension\r\nheader, supports Raspberry Pi Zero \/ Zero W. Supports waken up by user-defined\r\ngesture. No backlight, keeps displaying last content for a long time even when\r\npower down. Ultra low power consumption, basically power is only required for\r\nrefreshing. Heat dissipation holes on the back,combined with thermal tape,\r\neffective heat dissipation. Specifications operating voltage--3.3V grey scale\r\n--2 interface--3-wire SPI, 4-wire SPI partial refresh time-- 0.3s full refresh\r\ntime --2s display size --48.55 × 23.70mm refresh power --26.4mW(typ.)\r\nresolution --250×122 pixels viewing angle --\u0026gt;170° display color --black, white\r\nTouch point --5 (max) outline dimensions-- 69.15 × 38.90mm dot pitch --0.194 ×\r\n0.194mm standby current --\u0026lt;0.01uA (almost none) Online Tutorial\/Online\r\nDocument: n9.cl\/wq54w Package Content 2.13inch Touch e-Paper HAT x1 ABS case\r\nx1 Screwdriver x1 Thermal tape x1 rubber feet 4PCS x1 Screws x2\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003e2.13\" capacitive touch e-Paper display, 5-point touch, 250122 pixels.Display color: black, white. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi Zero \/ Zero W. Supports waken up by user-defined gesture.\u003c\/li\u003e\r\n \u003cli\u003eNo backlight, keeps displaying last content for a long time even when power down. Ultra low power consumption, basically power is only required for refreshing. Heat dissipation holes on the back,combined with thermal tape, effective heat dissipation.\u003c\/li\u003e\r\n \u003cli\u003eOutline dimensions(Module): 69.15 38.90mm. Outline dimensions(Driver Board): 59.51mm 34.00mm. Display area: 48.55mm 23.71mm. Operating Voltage: 3.3V (V1.1 support 5V). Communication interface: SPI. Dot pitch: 0.194 0.194mm.\u003c\/li\u003e\r\n \u003cli\u003eGreyscale: 2. Partial refresh time: 0.3s. Full refresh time: 2s. Refresh power: 26.4mW(typ.). Touchpoints: 5 (MAX). Touch type: Capacitive touch. Touch interfaced: I2C. Touch panel: Toughened Glass .\u003c\/li\u003e\r\n \u003cli\u003eComes with development resources and manual (examples for Raspberry Pi).\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2025-10-17T02:59:25+11:00","created_at":"2025-10-17T02:59:20+11:00","vendor":"waveshare","type":"","tags":["electronics_selected_Oct2025"],"price":16300,"price_min":16300,"price_max":16300,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":52929324875936,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B09Q3P89JF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"2.13inch Touch e-Paper Display with ABS Case for Raspberry Pi Zero 2 W\/Raspberry Pi Zero\/Pi Zero W\/Pi Zero WH, 250x122 Pixels E-Ink, Paper-Like Effect Support Partial Refresh 2.13\" Touch e-Paper with Case","public_title":null,"options":["Default Title"],"price":16300,"weight":50,"compare_at_price":null,"inventory_management":"shopify","barcode":"H-2.13\"Touch e-Paper+Case-P","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/dingoship.com.au\/cdn\/shop\/files\/7118bnBffNL.jpg?v=1760630364","\/\/dingoship.com.au\/cdn\/shop\/files\/7193R7YbPTL.jpg?v=1760630363","\/\/dingoship.com.au\/cdn\/shop\/files\/71b-RJ4L_OL.jpg?v=1760630364","\/\/dingoship.com.au\/cdn\/shop\/files\/717mtNdtt0L.jpg?v=1760630364","\/\/dingoship.com.au\/cdn\/shop\/files\/71pz9WNB7IL.jpg?v=1760630364","\/\/dingoship.com.au\/cdn\/shop\/files\/71aerAXk3eL.jpg?v=1760630364","\/\/dingoship.com.au\/cdn\/shop\/files\/71NLQNMZTNL.jpg?v=1760630364","\/\/dingoship.com.au\/cdn\/shop\/files\/71AOGhZLGVL.jpg?v=1760630364","\/\/dingoship.com.au\/cdn\/shop\/files\/71e6leESDGL.jpg?v=1760630364"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/files\/7118bnBffNL.jpg?v=1760630364","options":["Title"],"media":[{"alt":null,"id":38460576563360,"position":1,"preview_image":{"aspect_ratio":1.259,"height":2033,"width":2560,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/7118bnBffNL.jpg?v=1760630364"},"aspect_ratio":1.259,"height":2033,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/7118bnBffNL.jpg?v=1760630364","width":2560},{"alt":null,"id":38460576596128,"position":2,"preview_image":{"aspect_ratio":1.259,"height":2033,"width":2560,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/7193R7YbPTL.jpg?v=1760630363"},"aspect_ratio":1.259,"height":2033,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/7193R7YbPTL.jpg?v=1760630363","width":2560},{"alt":null,"id":38460576628896,"position":3,"preview_image":{"aspect_ratio":1.259,"height":2033,"width":2560,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71b-RJ4L_OL.jpg?v=1760630364"},"aspect_ratio":1.259,"height":2033,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71b-RJ4L_OL.jpg?v=1760630364","width":2560},{"alt":null,"id":38460576661664,"position":4,"preview_image":{"aspect_ratio":1.259,"height":2033,"width":2560,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/717mtNdtt0L.jpg?v=1760630364"},"aspect_ratio":1.259,"height":2033,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/717mtNdtt0L.jpg?v=1760630364","width":2560},{"alt":null,"id":38460576694432,"position":5,"preview_image":{"aspect_ratio":1.259,"height":2033,"width":2560,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71pz9WNB7IL.jpg?v=1760630364"},"aspect_ratio":1.259,"height":2033,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71pz9WNB7IL.jpg?v=1760630364","width":2560},{"alt":null,"id":38460576727200,"position":6,"preview_image":{"aspect_ratio":1.259,"height":2033,"width":2560,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71aerAXk3eL.jpg?v=1760630364"},"aspect_ratio":1.259,"height":2033,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71aerAXk3eL.jpg?v=1760630364","width":2560},{"alt":null,"id":38460576759968,"position":7,"preview_image":{"aspect_ratio":1.259,"height":2033,"width":2560,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71NLQNMZTNL.jpg?v=1760630364"},"aspect_ratio":1.259,"height":2033,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71NLQNMZTNL.jpg?v=1760630364","width":2560},{"alt":null,"id":38460576792736,"position":8,"preview_image":{"aspect_ratio":1.259,"height":2033,"width":2560,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71AOGhZLGVL.jpg?v=1760630364"},"aspect_ratio":1.259,"height":2033,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71AOGhZLGVL.jpg?v=1760630364","width":2560},{"alt":null,"id":38460576825504,"position":9,"preview_image":{"aspect_ratio":1.259,"height":2033,"width":2560,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71e6leESDGL.jpg?v=1760630364"},"aspect_ratio":1.259,"height":2033,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71e6leESDGL.jpg?v=1760630364","width":2560}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e2.13inch Touch e-Paper Display with ABS Case for Raspberry Pi Zero 2 W\/Raspberry Pi Zero\/Pi Zero W\/Pi Zero WH, 250x122 Pixels E-Ink, Paper-Like Effect Support Partial Refresh\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eOverview 2.13\"capacitive touch e-Paper display, 5-point touch, 250×122\r\npixels.Display color: black, white Standard Raspberry Pi 40PIN GPIO extension\r\nheader, supports Raspberry Pi Zero \/ Zero W. Supports waken up by user-defined\r\ngesture. No backlight, keeps displaying last content for a long time even when\r\npower down. Ultra low power consumption, basically power is only required for\r\nrefreshing. Heat dissipation holes on the back,combined with thermal tape,\r\neffective heat dissipation. Specifications operating voltage--3.3V grey scale\r\n--2 interface--3-wire SPI, 4-wire SPI partial refresh time-- 0.3s full refresh\r\ntime --2s display size --48.55 × 23.70mm refresh power --26.4mW(typ.)\r\nresolution --250×122 pixels viewing angle --\u0026gt;170° display color --black, white\r\nTouch point --5 (max) outline dimensions-- 69.15 × 38.90mm dot pitch --0.194 ×\r\n0.194mm standby current --\u0026lt;0.01uA (almost none) Online Tutorial\/Online\r\nDocument: n9.cl\/wq54w Package Content 2.13inch Touch e-Paper HAT x1 ABS case\r\nx1 Screwdriver x1 Thermal tape x1 rubber feet 4PCS x1 Screws x2\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003e2.13\" capacitive touch e-Paper display, 5-point touch, 250122 pixels.Display color: black, white. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi Zero \/ Zero W. Supports waken up by user-defined gesture.\u003c\/li\u003e\r\n \u003cli\u003eNo backlight, keeps displaying last content for a long time even when power down. Ultra low power consumption, basically power is only required for refreshing. Heat dissipation holes on the back,combined with thermal tape, effective heat dissipation.\u003c\/li\u003e\r\n \u003cli\u003eOutline dimensions(Module): 69.15 38.90mm. Outline dimensions(Driver Board): 59.51mm 34.00mm. Display area: 48.55mm 23.71mm. Operating Voltage: 3.3V (V1.1 support 5V). Communication interface: SPI. Dot pitch: 0.194 0.194mm.\u003c\/li\u003e\r\n \u003cli\u003eGreyscale: 2. Partial refresh time: 0.3s. Full refresh time: 2s. Refresh power: 26.4mW(typ.). Touchpoints: 5 (MAX). Touch type: Capacitive touch. Touch interfaced: I2C. Touch panel: Toughened Glass .\u003c\/li\u003e\r\n \u003cli\u003eComes with development resources and manual (examples for Raspberry Pi).\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
