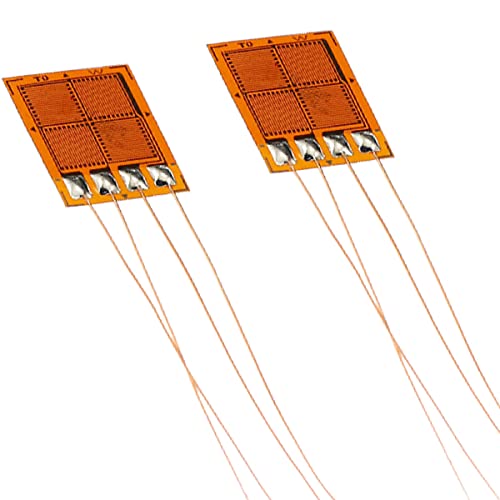

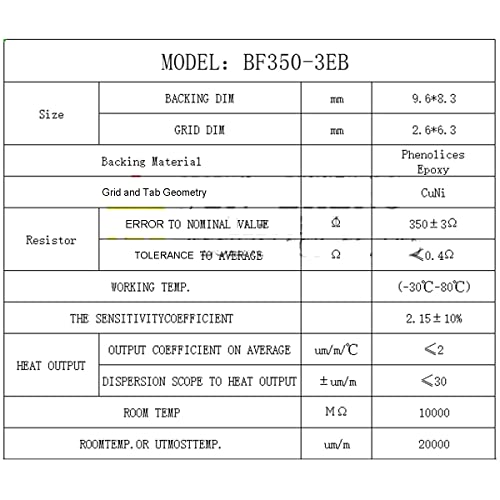

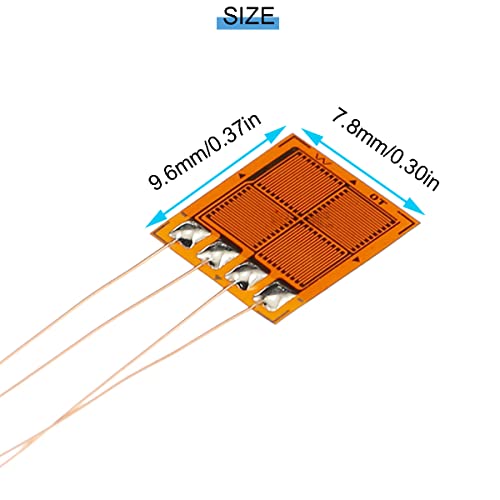

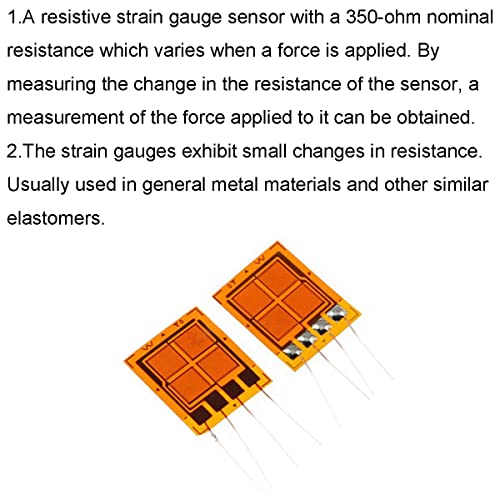

{"id":15863232987296,"title":"2 pcs Strain gauges BF350-3EB BF350 350 ohm Full Bridge Strain Gauge foil Strain Gauge high Precision Pressure Sensor","handle":"2-pcs-strain-gauges-bf350-3eb-bf350-350-ohm-full-bridge-strain-gauge-foil-strain-gauge-high-precision-pressure-sensor","description":"\u003ch3\u003e2 pcs Strain gauges BF350-3EB BF350 350 ohm Full Bridge Strain Gauge foil Strain Gauge high Precision Pressure Sensor\u003c\/h3\u003e\n\u003cp id=\"b\"\u003ePackage Includes: Foil Resistance Strain Gauge 1.A resistive strain gauge\nsensor with a 350-ohm nominal resistance which varies when a force is applied.\nBy measuring the change in the resistance of the sensor, a measurement of the\nforce applied to it can be obtained. 2.The strain gauges exhibit small changes\nin resistance. Usually used in general metal materials and other similar\nelastomers. Specification Model: BF350-3EB Size: base length base width\n(9.6mm7.8mm): grid length grid width (2.25mm6.8mm) Base Material:\nPhenolic-Epoxy Sensitive grid material: imported constantan Tolerance of\nresistance to nominal value: ±10%Ω Bridge zero balance (5V power on): greater\nthan or equal to 0.5Ω\/mV Applicable temperature: normal temperature (-30℃ ~\n+80℃) Sensitivity coefficient and dispersion: 2.1±1% Heat output: Heat output\ncoefficient: greater than or equal to 2 (um\/m\/°C); dispersion to average heat\noutput: greater than or equal to 30 (±um\/m) Insulation resistance at room\ntemperature: 10000\/MΩ Strain limit at room temperature: 20000 (um\/m)\nMechanical lag: 1.2 (um\/m) Package Includes: 2 x BF350-3EB Strain gauges\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e350 Ohm:A resistive strain gauge sensor with a 350 ohm nominal resistance which varies when a force is applied. By measuring the change in the sensors resistance, a measurement of the force applied to it can be obtained.\u003c\/li\u003e\n \u003cli\u003eConstantan Foil:The substrate is made of the modified phenolphthalein, and the grid is made of constantan foil.\u003c\/li\u003e\n \u003cli\u003eSize:The 9.6mm*7.8mm specification makes it easy to dissipate heat, consumes less power per unit area, and is easy to paste and solder.\u003c\/li\u003e\n \u003cli\u003eHigh Precision:With high precision and good static measurement stability\u003c\/li\u003e\n \u003cli\u003eTemperature Compensation:Simultaneous temperature self-compensation and creep compensation.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-12T14:07:35+10:00","created_at":"2026-09-10T10:36:58+10:00","vendor":"DKARDU","type":"Pressure Probes \u0026 Sensors","tags":["heavy_industrial_Sep2026"],"price":20400,"price_min":20400,"price_max":20400,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":58889145516192,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0B5GNDK6Z","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"2 pcs Strain gauges BF350-3EB BF350 350 ohm Full Bridge Strain Gauge foil Strain Gauge high Precision Pressure Sensor","public_title":null,"options":["Default Title"],"price":20400,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"JK-US-505","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/files\/B0B5GNDK6Z.jpg?v=1789000620","\/\/dingoship.com.au\/cdn\/shop\/files\/41a5R23F2XL.jpg?v=1789000620","\/\/dingoship.com.au\/cdn\/shop\/files\/41YrUyWuoIL.jpg?v=1789000620","\/\/dingoship.com.au\/cdn\/shop\/files\/41e4hfye6RL.jpg?v=1789000620","\/\/dingoship.com.au\/cdn\/shop\/files\/51aXDfwsOcL_8b658595-2d3b-432b-8662-131523da464a.jpg?v=1789000620","\/\/dingoship.com.au\/cdn\/shop\/files\/519tcPZITjL.jpg?v=1789000620","\/\/dingoship.com.au\/cdn\/shop\/files\/41zEU9iHx6L.jpg?v=1789000620"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/files\/B0B5GNDK6Z.jpg?v=1789000620","options":["Title"],"media":[{"alt":null,"id":70278412042400,"position":1,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/B0B5GNDK6Z.jpg?v=1789000620"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/B0B5GNDK6Z.jpg?v=1789000620","width":500},{"alt":null,"id":70278412075168,"position":2,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/41a5R23F2XL.jpg?v=1789000620"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/41a5R23F2XL.jpg?v=1789000620","width":500},{"alt":null,"id":70278412107936,"position":3,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/41YrUyWuoIL.jpg?v=1789000620"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/41YrUyWuoIL.jpg?v=1789000620","width":500},{"alt":null,"id":70278412140704,"position":4,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/41e4hfye6RL.jpg?v=1789000620"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/41e4hfye6RL.jpg?v=1789000620","width":500},{"alt":null,"id":70278412173472,"position":5,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51aXDfwsOcL_8b658595-2d3b-432b-8662-131523da464a.jpg?v=1789000620"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51aXDfwsOcL_8b658595-2d3b-432b-8662-131523da464a.jpg?v=1789000620","width":500},{"alt":null,"id":70278412206240,"position":6,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/519tcPZITjL.jpg?v=1789000620"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/519tcPZITjL.jpg?v=1789000620","width":500},{"alt":null,"id":70278412239008,"position":7,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/41zEU9iHx6L.jpg?v=1789000620"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/41zEU9iHx6L.jpg?v=1789000620","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e2 pcs Strain gauges BF350-3EB BF350 350 ohm Full Bridge Strain Gauge foil Strain Gauge high Precision Pressure Sensor\u003c\/h3\u003e\n\u003cp id=\"b\"\u003ePackage Includes: Foil Resistance Strain Gauge 1.A resistive strain gauge\nsensor with a 350-ohm nominal resistance which varies when a force is applied.\nBy measuring the change in the resistance of the sensor, a measurement of the\nforce applied to it can be obtained. 2.The strain gauges exhibit small changes\nin resistance. Usually used in general metal materials and other similar\nelastomers. Specification Model: BF350-3EB Size: base length base width\n(9.6mm7.8mm): grid length grid width (2.25mm6.8mm) Base Material:\nPhenolic-Epoxy Sensitive grid material: imported constantan Tolerance of\nresistance to nominal value: ±10%Ω Bridge zero balance (5V power on): greater\nthan or equal to 0.5Ω\/mV Applicable temperature: normal temperature (-30℃ ~\n+80℃) Sensitivity coefficient and dispersion: 2.1±1% Heat output: Heat output\ncoefficient: greater than or equal to 2 (um\/m\/°C); dispersion to average heat\noutput: greater than or equal to 30 (±um\/m) Insulation resistance at room\ntemperature: 10000\/MΩ Strain limit at room temperature: 20000 (um\/m)\nMechanical lag: 1.2 (um\/m) Package Includes: 2 x BF350-3EB Strain gauges\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e350 Ohm:A resistive strain gauge sensor with a 350 ohm nominal resistance which varies when a force is applied. By measuring the change in the sensors resistance, a measurement of the force applied to it can be obtained.\u003c\/li\u003e\n \u003cli\u003eConstantan Foil:The substrate is made of the modified phenolphthalein, and the grid is made of constantan foil.\u003c\/li\u003e\n \u003cli\u003eSize:The 9.6mm*7.8mm specification makes it easy to dissipate heat, consumes less power per unit area, and is easy to paste and solder.\u003c\/li\u003e\n \u003cli\u003eHigh Precision:With high precision and good static measurement stability\u003c\/li\u003e\n \u003cli\u003eTemperature Compensation:Simultaneous temperature self-compensation and creep compensation.\u003c\/li\u003e\n \u003c\/ul\u003e"}
