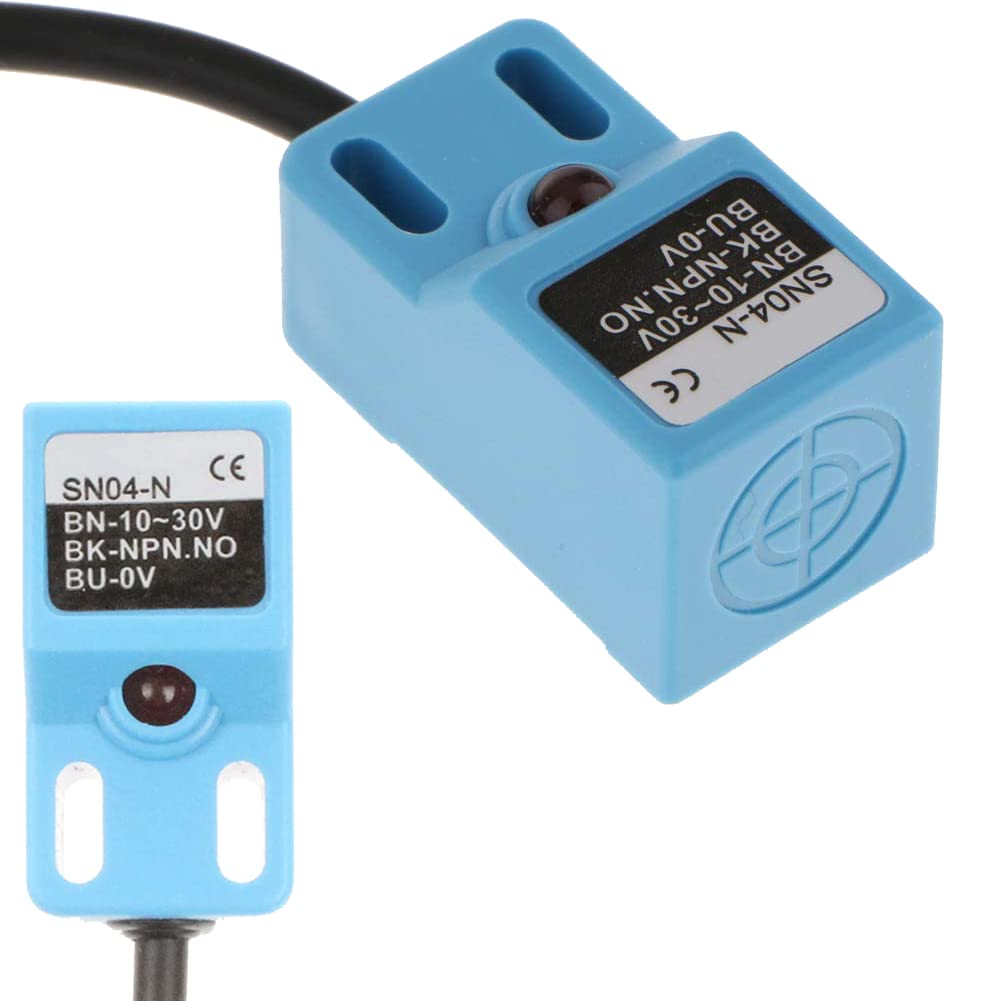

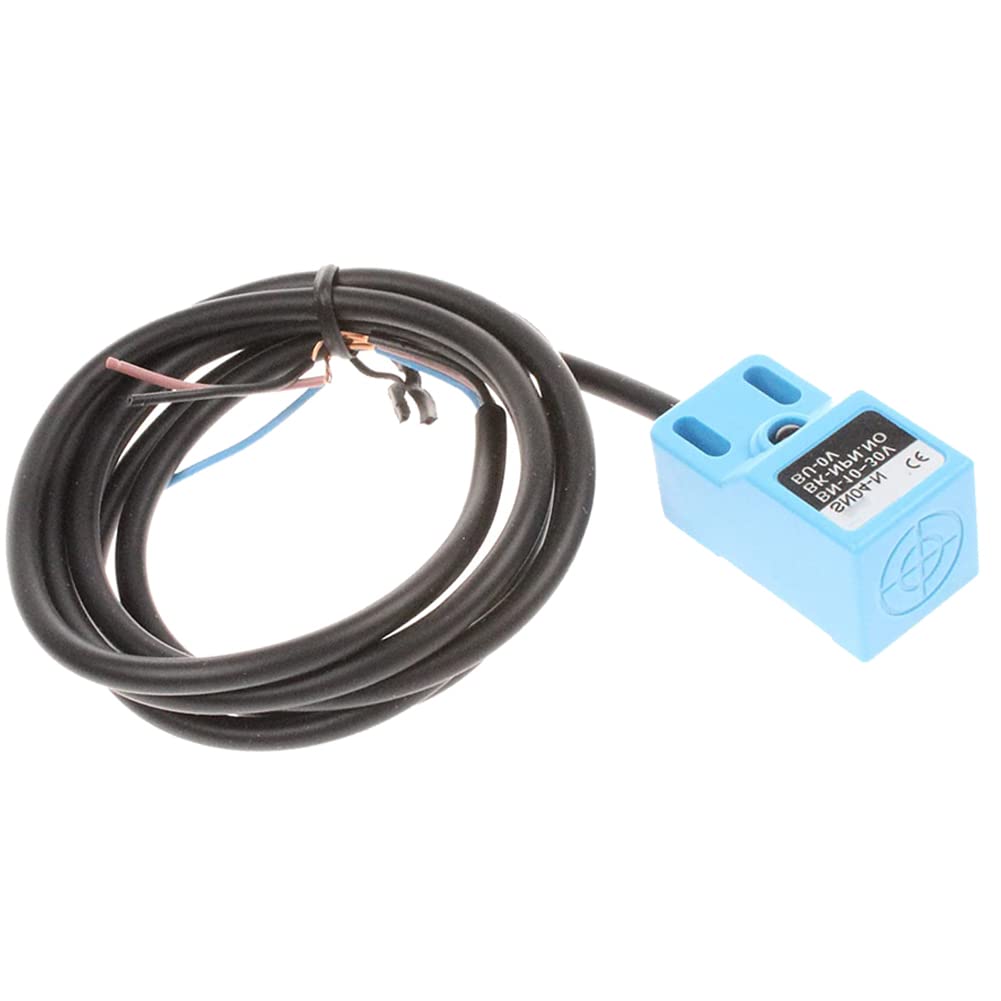

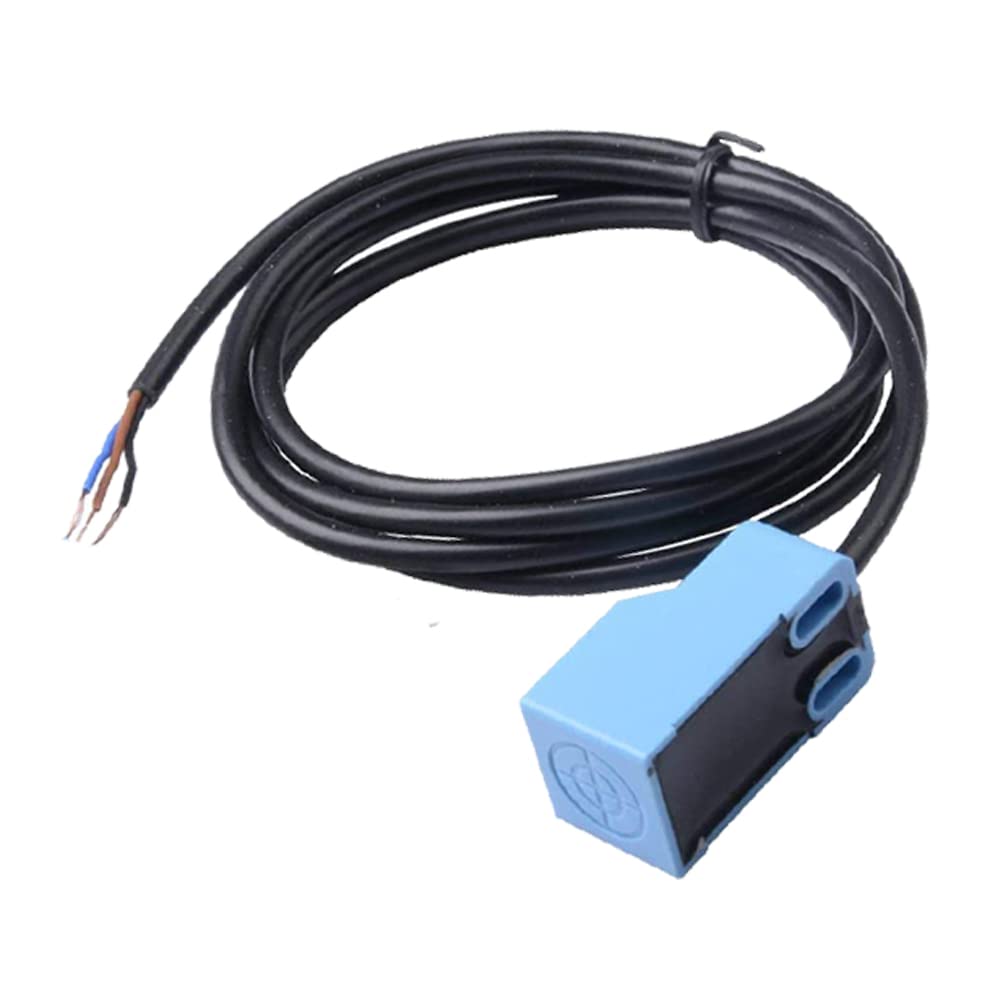

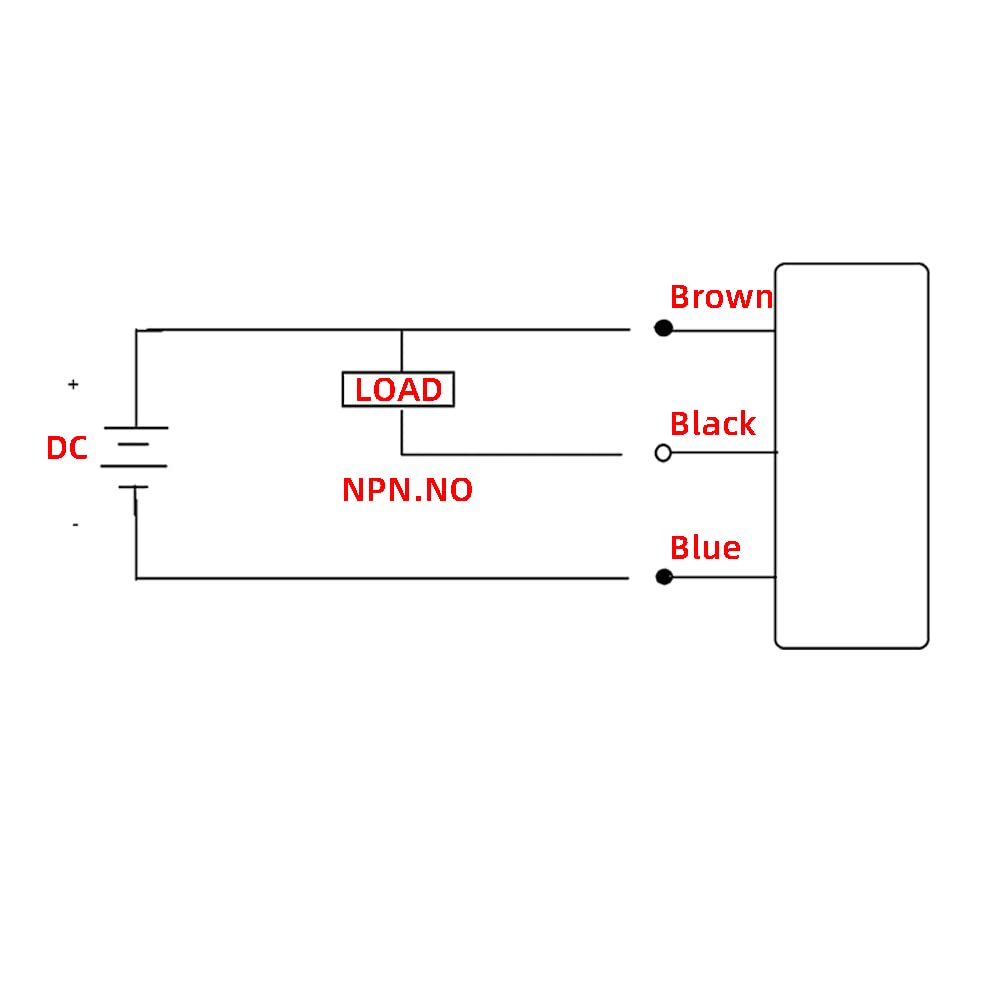

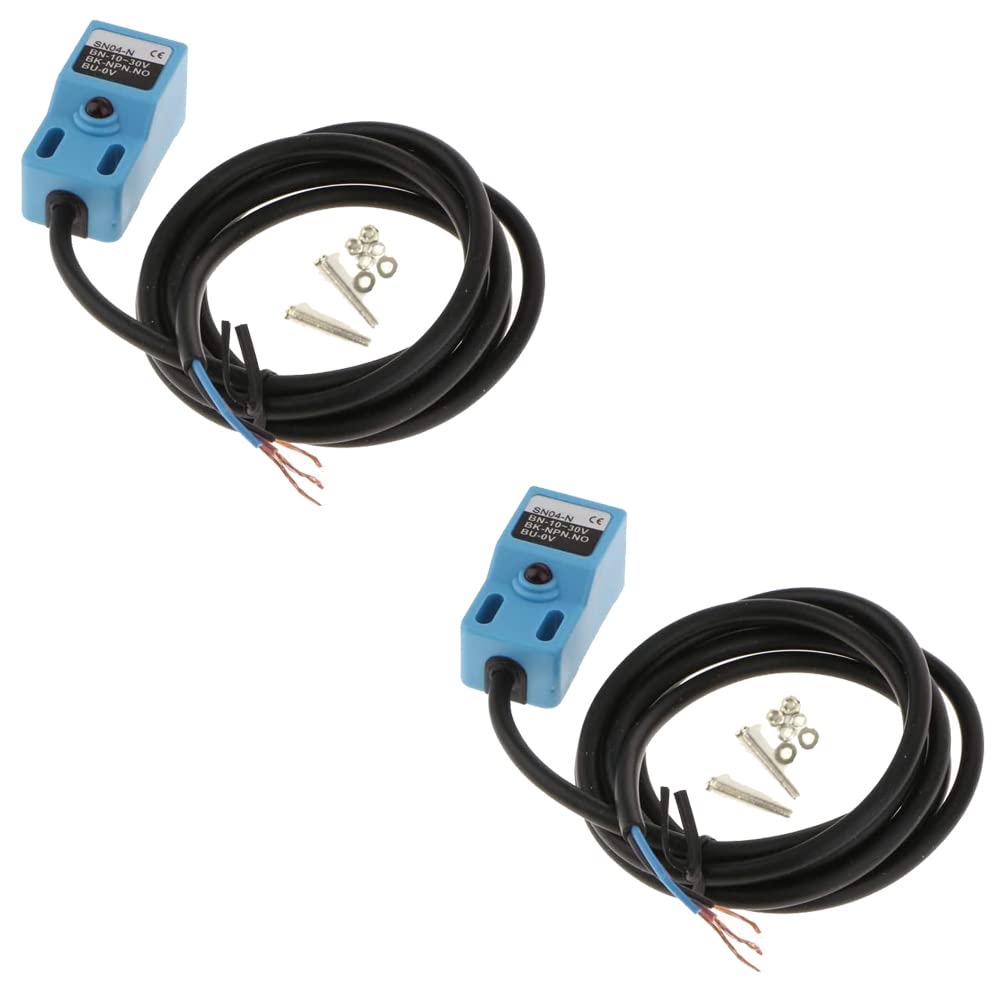

{"id":7414019326112,"title":"2PCS DC 10-30V 300mA Inductive Proximity Sensor Switch 3-Wire SN04-N NPN Normally Open NO Detection Distance 4mm Proximity Switch","handle":"2pcs-dc-10-30v-300ma-inductive-proximity-sensor-switch-3-wire-sn04-n-npn-normally-open-no-detection-distance-4mm-proximity-switch","description":"\u003ch3\u003e2PCS DC 10-30V 300mA Inductive Proximity Sensor Switch 3-Wire SN04-N NPN Normally Open NO Detection Distance 4mm Proximity Switch\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eNductive Proximity Switch Model SN04-N component widely used in automatic\ncontrol industry for detecting, controlling, and noncontact switching. When\nproximity switch is close to some target object, it will send out control\nsignal. It's widely used in machine, paper making, light industry for limiting\nstation, orientation taking count, speeding trial, ectThe proximity switch\nconsists of three major components: an oscillator, a switch circuit, and an\namplifier output circuitNormally open (NO): In the normal state, the signal\noutput line is in the disconnected state and no signal is output. When the\nobject is sensed, it is closed and the signal is output.Normally closed (NC):\nIn the normal state, the signal output line is in the closed state, and the\nsignal is output continuously. When the object is sensed, it is disconnected\nand the signal is closedParameter:Model Number: SN04-N.Output method: DC\nthree-wire NPN.NOOperating voltage: DC10-30V.Detection distance: 4mmDetection\nobject: metal \/ iron.Output current: 300mA.Package Included:2pcs Inductive\nProximity Sensor Switch\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eProduct Name : Inductive proximity switch; Model : SN04-N\u003c\/li\u003e\n \u003cli\u003eTotal Size : 35 x 18 x 18mm\/1.4\" x 0.7\" x 0.7\" (L*W*H);Cable length : 1.2m\/3.93ft\u003c\/li\u003e\n \u003cli\u003eExternal Material : Plastic, metal; Wire Type : 3 Wire Type (Brown, Black, Blue)\u003c\/li\u003e\n \u003cli\u003eDetecting Distance : 4mm(+\/-10%) ;Switch Appearance Type : Angular Column Type; Voltage : DC 10-30V ;Current Output : 300mA; Detect Object : Iron; Output Type : NPN, NC;\u003c\/li\u003e\n \u003cli\u003ePackage Content : 2 x Proximity Switch;Switch Appearance Type: Rectangle Type\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-06-14T14:40:37+10:00","created_at":"2022-06-14T14:40:41+10:00","vendor":"SYUAB","type":"Inductive","tags":["dingo"],"price":11600,"price_min":11600,"price_max":11600,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42194347655328,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B09TJ391FG","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"2PCS DC 10-30V 300mA Inductive Proximity Sensor Switch 3-Wire SN04-N NPN Normally Open NO Detection Distance 4mm Proximity Switch","public_title":null,"options":["Default Title"],"price":11600,"weight":91,"compare_at_price":null,"inventory_management":null,"barcode":"DGSJJKG","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/dingoship.com.au\/cdn\/shop\/products\/B09TJ391FG.jpg?v=1655250139","\/\/dingoship.com.au\/cdn\/shop\/products\/41lRfzBeJPL.jpg?v=1655181641","\/\/dingoship.com.au\/cdn\/shop\/products\/512qTf53giL.jpg?v=1655181641","\/\/dingoship.com.au\/cdn\/shop\/products\/51bnWBPQwLL.jpg?v=1655181641","\/\/dingoship.com.au\/cdn\/shop\/products\/510UVecvuqL.jpg?v=1655181641"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/products\/B09TJ391FG.jpg?v=1655250139","options":["Title"],"media":[{"alt":null,"id":24860222455968,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B09TJ391FG.jpg?v=1655250139"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B09TJ391FG.jpg?v=1655250139","width":1001},{"alt":null,"id":24853881061536,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/41lRfzBeJPL.jpg?v=1655181641"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/41lRfzBeJPL.jpg?v=1655181641","width":1001},{"alt":null,"id":24853881094304,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/512qTf53giL.jpg?v=1655181641"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/512qTf53giL.jpg?v=1655181641","width":1001},{"alt":null,"id":24853881127072,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51bnWBPQwLL.jpg?v=1655181641"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51bnWBPQwLL.jpg?v=1655181641","width":1001},{"alt":null,"id":24853881159840,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/510UVecvuqL.jpg?v=1655181641"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/510UVecvuqL.jpg?v=1655181641","width":1001}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e2PCS DC 10-30V 300mA Inductive Proximity Sensor Switch 3-Wire SN04-N NPN Normally Open NO Detection Distance 4mm Proximity Switch\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eNductive Proximity Switch Model SN04-N component widely used in automatic\ncontrol industry for detecting, controlling, and noncontact switching. When\nproximity switch is close to some target object, it will send out control\nsignal. It's widely used in machine, paper making, light industry for limiting\nstation, orientation taking count, speeding trial, ectThe proximity switch\nconsists of three major components: an oscillator, a switch circuit, and an\namplifier output circuitNormally open (NO): In the normal state, the signal\noutput line is in the disconnected state and no signal is output. When the\nobject is sensed, it is closed and the signal is output.Normally closed (NC):\nIn the normal state, the signal output line is in the closed state, and the\nsignal is output continuously. When the object is sensed, it is disconnected\nand the signal is closedParameter:Model Number: SN04-N.Output method: DC\nthree-wire NPN.NOOperating voltage: DC10-30V.Detection distance: 4mmDetection\nobject: metal \/ iron.Output current: 300mA.Package Included:2pcs Inductive\nProximity Sensor Switch\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eProduct Name : Inductive proximity switch; Model : SN04-N\u003c\/li\u003e\n \u003cli\u003eTotal Size : 35 x 18 x 18mm\/1.4\" x 0.7\" x 0.7\" (L*W*H);Cable length : 1.2m\/3.93ft\u003c\/li\u003e\n \u003cli\u003eExternal Material : Plastic, metal; Wire Type : 3 Wire Type (Brown, Black, Blue)\u003c\/li\u003e\n \u003cli\u003eDetecting Distance : 4mm(+\/-10%) ;Switch Appearance Type : Angular Column Type; Voltage : DC 10-30V ;Current Output : 300mA; Detect Object : Iron; Output Type : NPN, NC;\u003c\/li\u003e\n \u003cli\u003ePackage Content : 2 x Proximity Switch;Switch Appearance Type: Rectangle Type\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
