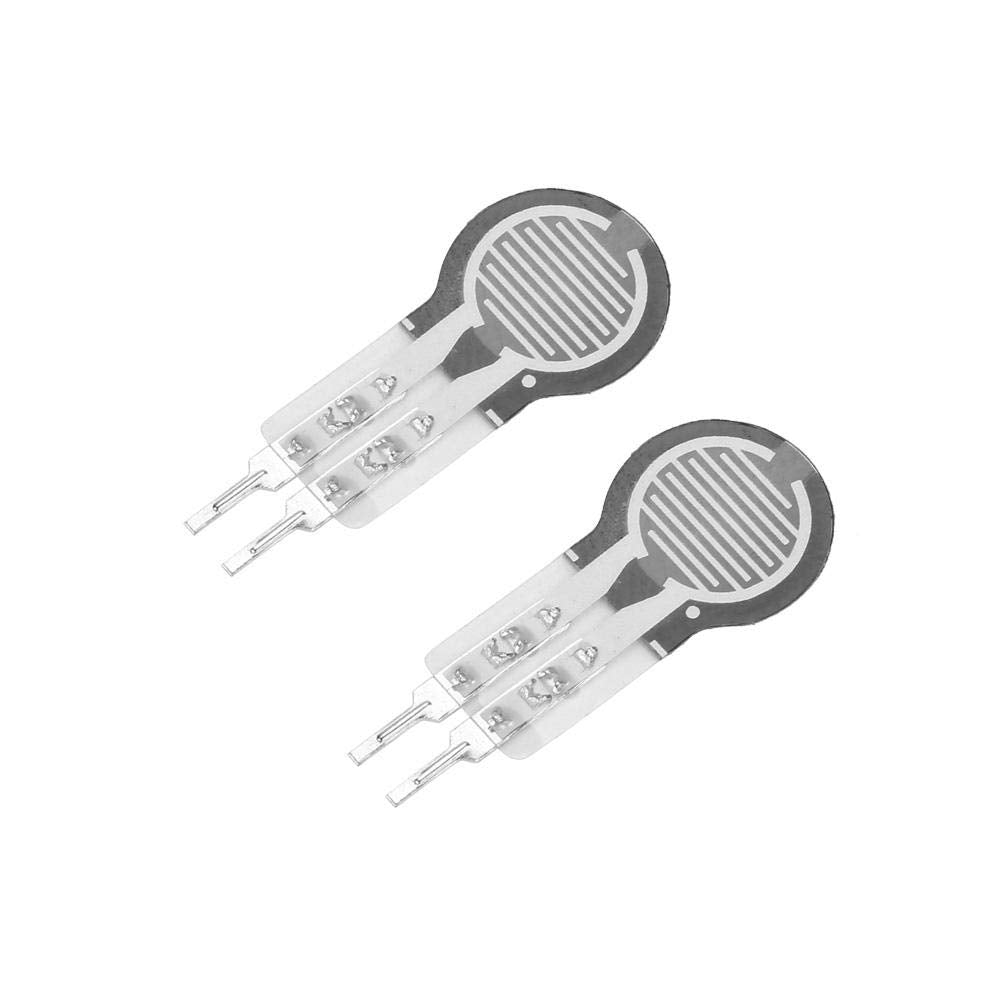

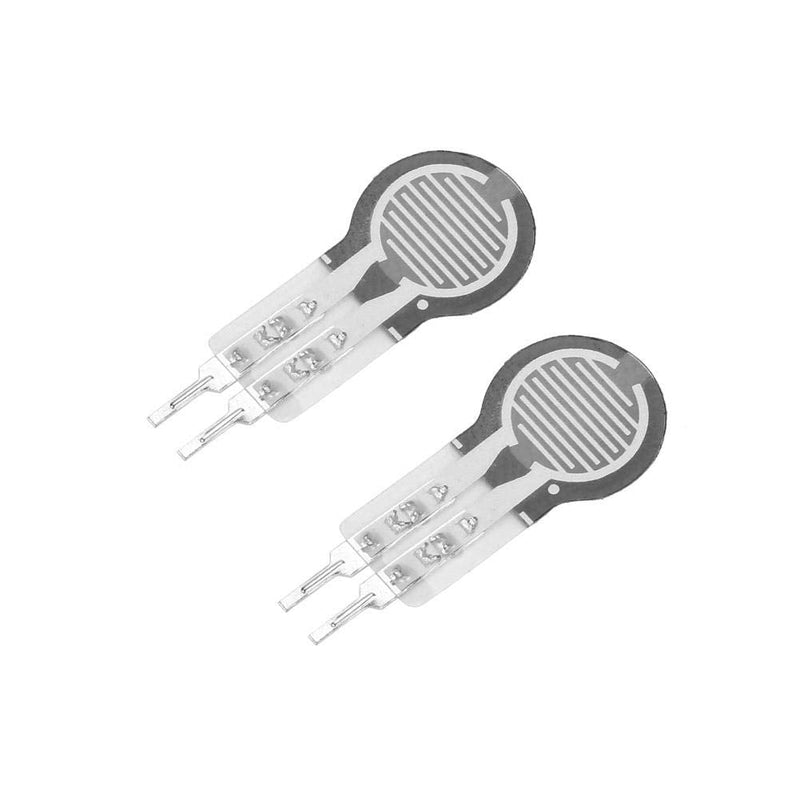

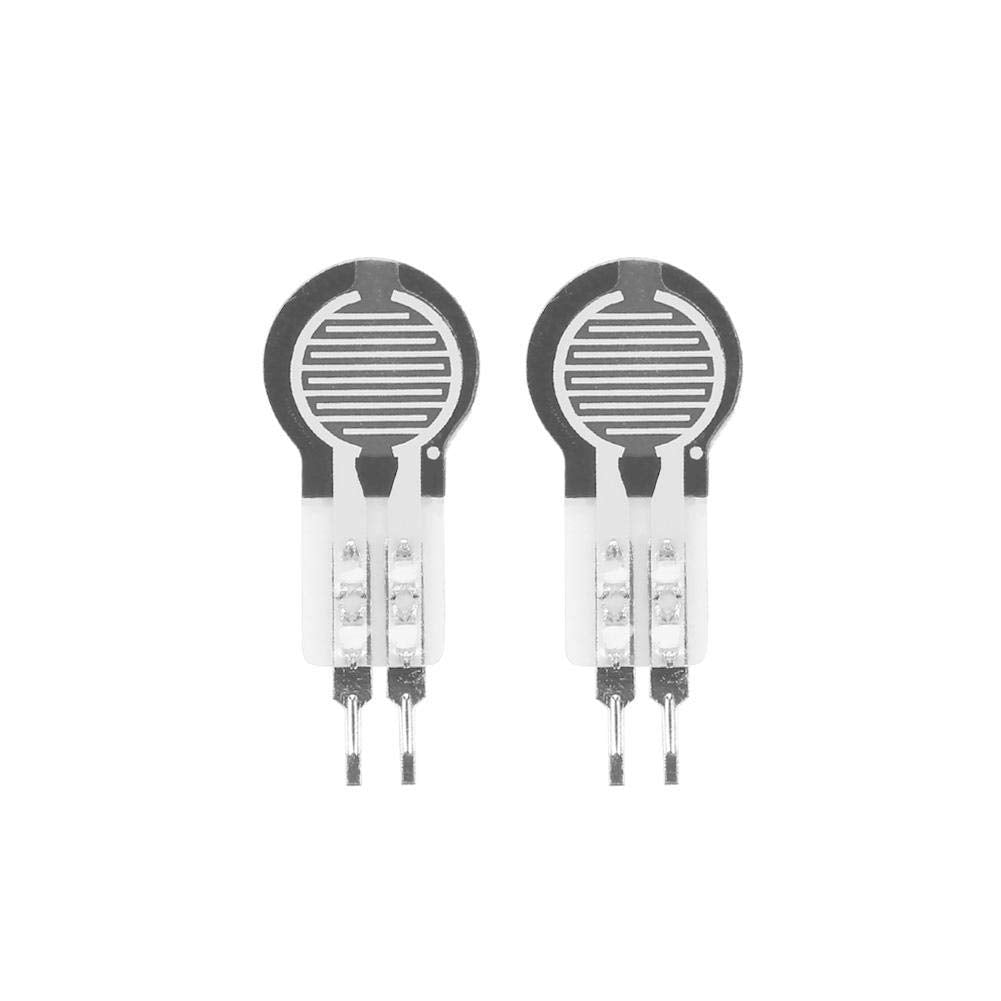

{"id":12966453969056,"title":"2pcs pressure sensor High precision resistance type thin film pressure sensor 20g-2000g","handle":"2pcs-pressure-sensor-high-precision-resistance-type-thin-film-pressure-sensor-20g-2000g","description":"\u003ch3\u003e2pcs pressure sensor High precision resistance type thin film pressure sensor 20g-2000g\u003c\/h3\u003e \u003cp id=\"b\"\u003eThe flexible RP-C thin film pressure sensor is made of polyester film with excellent comprehensive mechanical properties, high conductive material and pressure sensitive material in the Nanoscale.The top is a flexible film and a pressure-sensitive layer on top, the bottom is a flexible film and a conductive circuit on top. Both are bonded with double-sided adhesive and the insulation sensitive zoneThe lower part is connected by the upper pressure sensitive layer, and the output resistance of the connector changes with the pressure Specification: Model: RP-C10-ST Thickness: 0.4mm Trigger force: 20g, Triggered when the resistance is less than 200KΩ by default Pressure measurement range: 20g ~ 2kg Pressure application mode: Static or dynamic (frequency within 10Hz) Non-triggering resistance: More than 10MΩ Activation time: less than 0.01S Operating temperature: -40 ~ +85 Lag: + 10% (RF + - RF -) \/ FR +, 1000g Force Reaction Time: \u0026amp; \u0026lt;10 ms Drifting: \u0026amp; \u0026lt;; 5%, static load of 1 kg, 24 hours Weight: 1 g (approx.) Package list: 2 × pressure sensors\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eThe RP -C resistance pressure sensor is a flexible thin film sensor whose resistance decreases with increasing pressure. The pressure sensor supports static\/dynamic pressure measurement and has a fast response speed\u003c\/li\u003e \u003cli\u003eWidely used for bed monitoring, sleep monitoring, smart shoes, smart switches, counters and medical devices\u003c\/li\u003e \u003cli\u003eThe pressure sensor with a sensitive area corresponds to a two-terminal variable resistor whose resistance is controlled by pressure. For a switch with a specific threshold, the threshold is determined by setting pressure and device parameters\u003c\/li\u003e \u003cli\u003eModel: RP-C10-ST; Thickness: 0.4mm; Trigger force: 20g, triggered when resistance is less than 200k by default; Pressure measurement range: 20g ~ 2kg; Pressure action mode: static or dynamic (frequency within 10Hz); Non-triggering resistance: More than 10M;\u003c\/li\u003e \u003cli\u003eThe sensor made of high-quality material is durable and has a long service life\u003c\/li\u003e \u003c\/ul\u003e","published_at":"2024-04-07T04:51:29+10:00","created_at":"2024-04-07T04:51:40+10:00","vendor":"YWBL-WH","type":"Pressure probes \u0026 pressure sensors","tags":["industryDE"],"price":16500,"price_min":16500,"price_max":16500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":49431234019488,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B07X4794BB","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"2pcs pressure sensor High precision resistance type thin film pressure sensor 20g-2000g","public_title":null,"options":["Default Title"],"price":16500,"weight":700,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/files\/de-B07X4794BB.jpg?v=1712448521","\/\/dingoship.com.au\/cdn\/shop\/files\/51KC6HfLFXL_04628e86-c43a-440b-b1c9-33c6b3883fd8.jpg?v=1712429500","\/\/dingoship.com.au\/cdn\/shop\/files\/61Z3zncEHLL_dd361e05-cde2-4d05-9401-b11effed05ce.jpg?v=1712429500","\/\/dingoship.com.au\/cdn\/shop\/files\/61xV3UreArL_88d89a12-9a85-4203-affd-63c4653823bb.jpg?v=1712429500","\/\/dingoship.com.au\/cdn\/shop\/files\/510y8aR8LpL_21854f3b-f981-4474-b858-4936d1605e2d.jpg?v=1712429500","\/\/dingoship.com.au\/cdn\/shop\/files\/51gQ6TnKHgL.jpg?v=1712429500","\/\/dingoship.com.au\/cdn\/shop\/files\/51F_5roNX5L_062c2c35-06b3-4cdd-ab58-147bdca12e6c.jpg?v=1712429500","\/\/dingoship.com.au\/cdn\/shop\/files\/51IcsCInJYL.jpg?v=1712429500"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B07X4794BB.jpg?v=1712448521","options":["Title"],"media":[{"alt":null,"id":33794228846752,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B07X4794BB.jpg?v=1712448521"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B07X4794BB.jpg?v=1712448521","width":1001},{"alt":null,"id":33790400266400,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51KC6HfLFXL_04628e86-c43a-440b-b1c9-33c6b3883fd8.jpg?v=1712429500"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51KC6HfLFXL_04628e86-c43a-440b-b1c9-33c6b3883fd8.jpg?v=1712429500","width":1001},{"alt":null,"id":33790400299168,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61Z3zncEHLL_dd361e05-cde2-4d05-9401-b11effed05ce.jpg?v=1712429500"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61Z3zncEHLL_dd361e05-cde2-4d05-9401-b11effed05ce.jpg?v=1712429500","width":1001},{"alt":null,"id":33790400331936,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61xV3UreArL_88d89a12-9a85-4203-affd-63c4653823bb.jpg?v=1712429500"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61xV3UreArL_88d89a12-9a85-4203-affd-63c4653823bb.jpg?v=1712429500","width":1001},{"alt":null,"id":33790400364704,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/510y8aR8LpL_21854f3b-f981-4474-b858-4936d1605e2d.jpg?v=1712429500"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/510y8aR8LpL_21854f3b-f981-4474-b858-4936d1605e2d.jpg?v=1712429500","width":1001},{"alt":null,"id":33790400397472,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51gQ6TnKHgL.jpg?v=1712429500"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51gQ6TnKHgL.jpg?v=1712429500","width":1001},{"alt":null,"id":33790400430240,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51F_5roNX5L_062c2c35-06b3-4cdd-ab58-147bdca12e6c.jpg?v=1712429500"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51F_5roNX5L_062c2c35-06b3-4cdd-ab58-147bdca12e6c.jpg?v=1712429500","width":1001},{"alt":null,"id":33790400463008,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51IcsCInJYL.jpg?v=1712429500"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51IcsCInJYL.jpg?v=1712429500","width":1001}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e2pcs pressure sensor High precision resistance type thin film pressure sensor 20g-2000g\u003c\/h3\u003e \u003cp id=\"b\"\u003eThe flexible RP-C thin film pressure sensor is made of polyester film with excellent comprehensive mechanical properties, high conductive material and pressure sensitive material in the Nanoscale.The top is a flexible film and a pressure-sensitive layer on top, the bottom is a flexible film and a conductive circuit on top. Both are bonded with double-sided adhesive and the insulation sensitive zoneThe lower part is connected by the upper pressure sensitive layer, and the output resistance of the connector changes with the pressure Specification: Model: RP-C10-ST Thickness: 0.4mm Trigger force: 20g, Triggered when the resistance is less than 200KΩ by default Pressure measurement range: 20g ~ 2kg Pressure application mode: Static or dynamic (frequency within 10Hz) Non-triggering resistance: More than 10MΩ Activation time: less than 0.01S Operating temperature: -40 ~ +85 Lag: + 10% (RF + - RF -) \/ FR +, 1000g Force Reaction Time: \u0026amp; \u0026lt;10 ms Drifting: \u0026amp; \u0026lt;; 5%, static load of 1 kg, 24 hours Weight: 1 g (approx.) Package list: 2 × pressure sensors\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eThe RP -C resistance pressure sensor is a flexible thin film sensor whose resistance decreases with increasing pressure. The pressure sensor supports static\/dynamic pressure measurement and has a fast response speed\u003c\/li\u003e \u003cli\u003eWidely used for bed monitoring, sleep monitoring, smart shoes, smart switches, counters and medical devices\u003c\/li\u003e \u003cli\u003eThe pressure sensor with a sensitive area corresponds to a two-terminal variable resistor whose resistance is controlled by pressure. For a switch with a specific threshold, the threshold is determined by setting pressure and device parameters\u003c\/li\u003e \u003cli\u003eModel: RP-C10-ST; Thickness: 0.4mm; Trigger force: 20g, triggered when resistance is less than 200k by default; Pressure measurement range: 20g ~ 2kg; Pressure action mode: static or dynamic (frequency within 10Hz); Non-triggering resistance: More than 10M;\u003c\/li\u003e \u003cli\u003eThe sensor made of high-quality material is durable and has a long service life\u003c\/li\u003e \u003c\/ul\u003e"}
