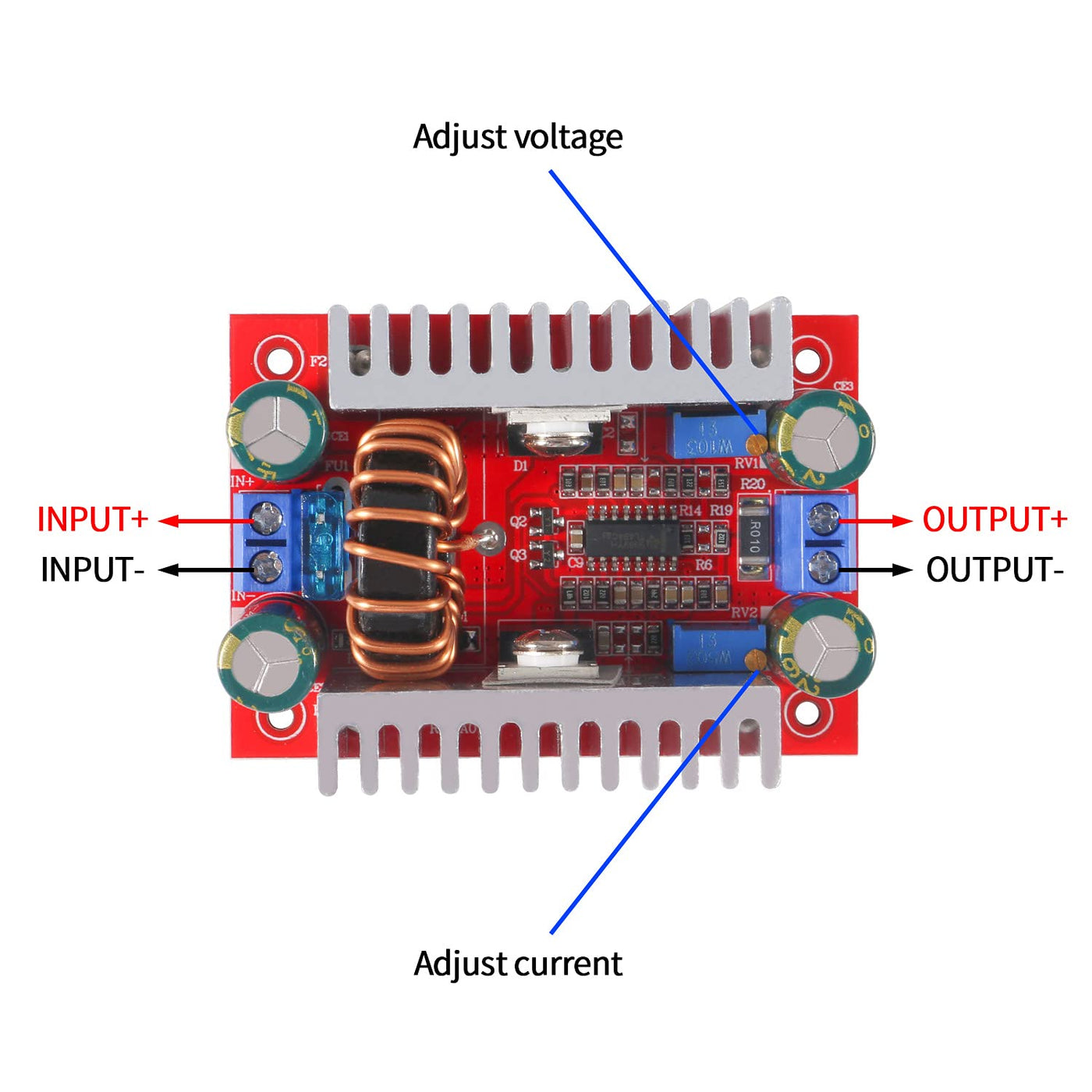

{"id":15193045434528,"title":"400W DC-DC Constant Current Boost Converter Boost Power Module 15A LED Driver 8.5-50V to 10-60V Boost Power Converter Power Supply Voltage Charger Boost Module","handle":"400w-dc-dc-constant-current-boost-converter-boost-power-module-15a-led-driver-8-5-50v-to-10-60v-boost-power-converter-power-supply-voltage-charger-boost-module","description":"\u003ch3\u003e400W DC-DC Constant Current Boost Converter Boost Power Module 15A LED Driver 8.5-50V to 10-60V Boost Power Converter Power Supply Voltage Charger Boost Module\u003c\/h3\u003e \u003cp id=\"b\"\u003eSpecifications: Type: Not isolated boost module Input voltage: DC8.5V to 50V Output voltage: DC 10V to 60V (continuously adjustable, standard 19V) Input current: Max. 15A (please increase heat dissipation if more than 8A) Output current: Max. 12A ( related to the input and output voltage difference, the larger the voltage difference, the smaller the output current. Please increase the heat dissipation when the current is over 7A) Quiescent current: 10mA (increases when converting 12V to 20V) Constant current range: 0.2A to 12A Operating temperature: -40℃ to 85℃ (if the temperature is too high, please improve heat dissipation) Frequency: 150KHz Conversion efficiency: 96% (Efficiency refers to input\/output voltage, current and voltage difference ) Overcurrent protection: Yes (when the input current is more than 15A, the output will automatically reduce voltage) Output voltage\/current adjustment: Turn potentiometer \"\"\"\"CV-ADJ\"\"\"\" clockwise to reduce v voltage, against which Clockwise to increase tension. Adjust the potentiometer \"\"\"\"CC-ADJ\"\"\"\" counterclockwise by about 30 circles to minimize the output current before connecting it to the load (clockwise to increase the current, counterclockwise to reduce the current). . Then adjust \"\"\"\"CC-ADJ\"\"\"\" clockwise to the current value you need. If you use the module to charge the battery, connect it to the output after the battery is completely discharged. Because the more energy remains in the battery, the lower the charging current. Package includes: 1 x 400W DC-DC boost converter boost converter module\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003e400W DC-DC boost converter module Working range: DC 8 .5V to 50V input voltage, 10V to 60V continuously adjustable output voltage, 15A maximum input current, 12A maximum output current The input current of the boost voltage converter is 15A (MAX) and exceeds 8A.\u003c\/li\u003e \u003cli\u003e Please strengthen heat dissipation. The quiescent working current is 10 mA (12 V liter 20 V, the higher the output voltage, the larger the static current). The output current is 12A MAX. More than 7A, please increase the heat\u003c\/li\u003e \u003cli\u003eUpward converter module easy to connect and disconnect: input and output are equipped with screw terminals, you can connect or disconnect the wire conveniently\u003c\/li\u003e \u003cli\u003eThe upward converter module is an excellent 400W DC to DC power module for electrical devices, digital products, laptops and more, equipped with dual radiators and better dissipation performance. The maximum conversion efficiency can reach 96%.\u003c\/li\u003e \u003cli\u003ePlease do not adjust the current by short circuit. The circuit structure of the boost module cannot be adjusted by short circuit. It can also be used to regulate solar panels. Charge the battery, lithium battery, etc. Drive high power LED lights\u003c\/li\u003e\n\u003c\/ul\u003e","published_at":"2025-10-03T10:46:14+10:00","created_at":"2025-10-03T10:46:11+10:00","vendor":"DORHEA","type":"Power converter","tags":["industryDE"],"price":16200,"price_min":16200,"price_max":16200,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":52876495585440,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B09L48S2HM","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"400W DC-DC Constant Current Boost Converter Boost Power Module 15A LED Driver 8.5-50V to 10-60V Boost Power Converter Power Supply Voltage Charger Boost Module","public_title":null,"options":["Default Title"],"price":16200,"weight":700,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/files\/de-B09L48S2HM.jpg?v=1775753879","\/\/dingoship.com.au\/cdn\/shop\/files\/61SxSrpoDAL.jpg?v=1759452373","\/\/dingoship.com.au\/cdn\/shop\/files\/61prg8Z8HnL.jpg?v=1759452373","\/\/dingoship.com.au\/cdn\/shop\/files\/612hXHaWWjL.jpg?v=1759452374","\/\/dingoship.com.au\/cdn\/shop\/files\/61n8H8sZvAL.jpg?v=1759452374","\/\/dingoship.com.au\/cdn\/shop\/files\/71naX_pbaAL.jpg?v=1759452373"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B09L48S2HM.jpg?v=1775753879","options":["Title"],"media":[{"alt":null,"id":38388101939360,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B09L48S2HM.jpg?v=1775753879"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B09L48S2HM.jpg?v=1775753879","width":1600},{"alt":null,"id":38388101972128,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61SxSrpoDAL.jpg?v=1759452373"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61SxSrpoDAL.jpg?v=1759452373","width":1500},{"alt":null,"id":38388102004896,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61prg8Z8HnL.jpg?v=1759452373"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61prg8Z8HnL.jpg?v=1759452373","width":1500},{"alt":null,"id":38388102037664,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/612hXHaWWjL.jpg?v=1759452374"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/612hXHaWWjL.jpg?v=1759452374","width":1500},{"alt":null,"id":38388102070432,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61n8H8sZvAL.jpg?v=1759452374"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61n8H8sZvAL.jpg?v=1759452374","width":1500},{"alt":null,"id":38388102103200,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71naX_pbaAL.jpg?v=1759452373"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71naX_pbaAL.jpg?v=1759452373","width":1500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e400W DC-DC Constant Current Boost Converter Boost Power Module 15A LED Driver 8.5-50V to 10-60V Boost Power Converter Power Supply Voltage Charger Boost Module\u003c\/h3\u003e \u003cp id=\"b\"\u003eSpecifications: Type: Not isolated boost module Input voltage: DC8.5V to 50V Output voltage: DC 10V to 60V (continuously adjustable, standard 19V) Input current: Max. 15A (please increase heat dissipation if more than 8A) Output current: Max. 12A ( related to the input and output voltage difference, the larger the voltage difference, the smaller the output current. Please increase the heat dissipation when the current is over 7A) Quiescent current: 10mA (increases when converting 12V to 20V) Constant current range: 0.2A to 12A Operating temperature: -40℃ to 85℃ (if the temperature is too high, please improve heat dissipation) Frequency: 150KHz Conversion efficiency: 96% (Efficiency refers to input\/output voltage, current and voltage difference ) Overcurrent protection: Yes (when the input current is more than 15A, the output will automatically reduce voltage) Output voltage\/current adjustment: Turn potentiometer \"\"\"\"CV-ADJ\"\"\"\" clockwise to reduce v voltage, against which Clockwise to increase tension. Adjust the potentiometer \"\"\"\"CC-ADJ\"\"\"\" counterclockwise by about 30 circles to minimize the output current before connecting it to the load (clockwise to increase the current, counterclockwise to reduce the current). . Then adjust \"\"\"\"CC-ADJ\"\"\"\" clockwise to the current value you need. If you use the module to charge the battery, connect it to the output after the battery is completely discharged. Because the more energy remains in the battery, the lower the charging current. Package includes: 1 x 400W DC-DC boost converter boost converter module\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003e400W DC-DC boost converter module Working range: DC 8 .5V to 50V input voltage, 10V to 60V continuously adjustable output voltage, 15A maximum input current, 12A maximum output current The input current of the boost voltage converter is 15A (MAX) and exceeds 8A.\u003c\/li\u003e \u003cli\u003e Please strengthen heat dissipation. The quiescent working current is 10 mA (12 V liter 20 V, the higher the output voltage, the larger the static current). The output current is 12A MAX. More than 7A, please increase the heat\u003c\/li\u003e \u003cli\u003eUpward converter module easy to connect and disconnect: input and output are equipped with screw terminals, you can connect or disconnect the wire conveniently\u003c\/li\u003e \u003cli\u003eThe upward converter module is an excellent 400W DC to DC power module for electrical devices, digital products, laptops and more, equipped with dual radiators and better dissipation performance. The maximum conversion efficiency can reach 96%.\u003c\/li\u003e \u003cli\u003ePlease do not adjust the current by short circuit. The circuit structure of the boost module cannot be adjusted by short circuit. It can also be used to regulate solar panels. Charge the battery, lithium battery, etc. Drive high power LED lights\u003c\/li\u003e\n\u003c\/ul\u003e"}
