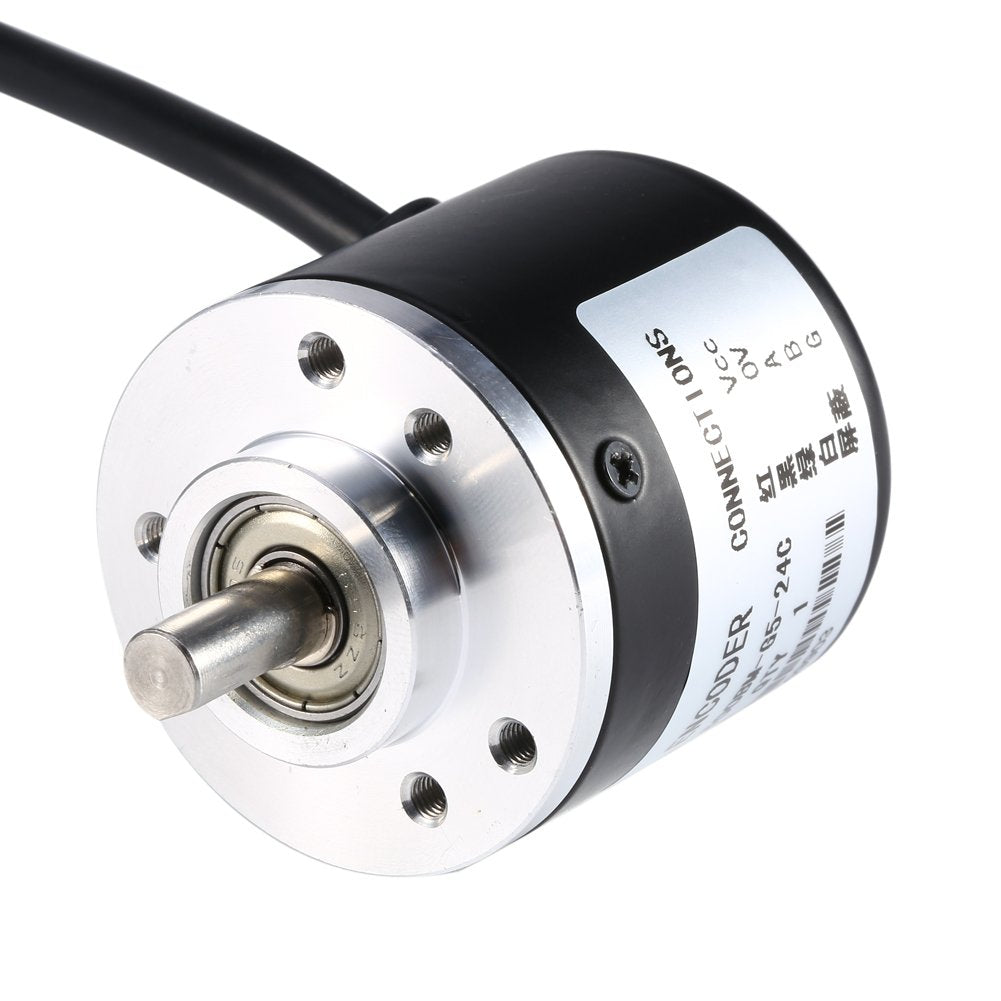

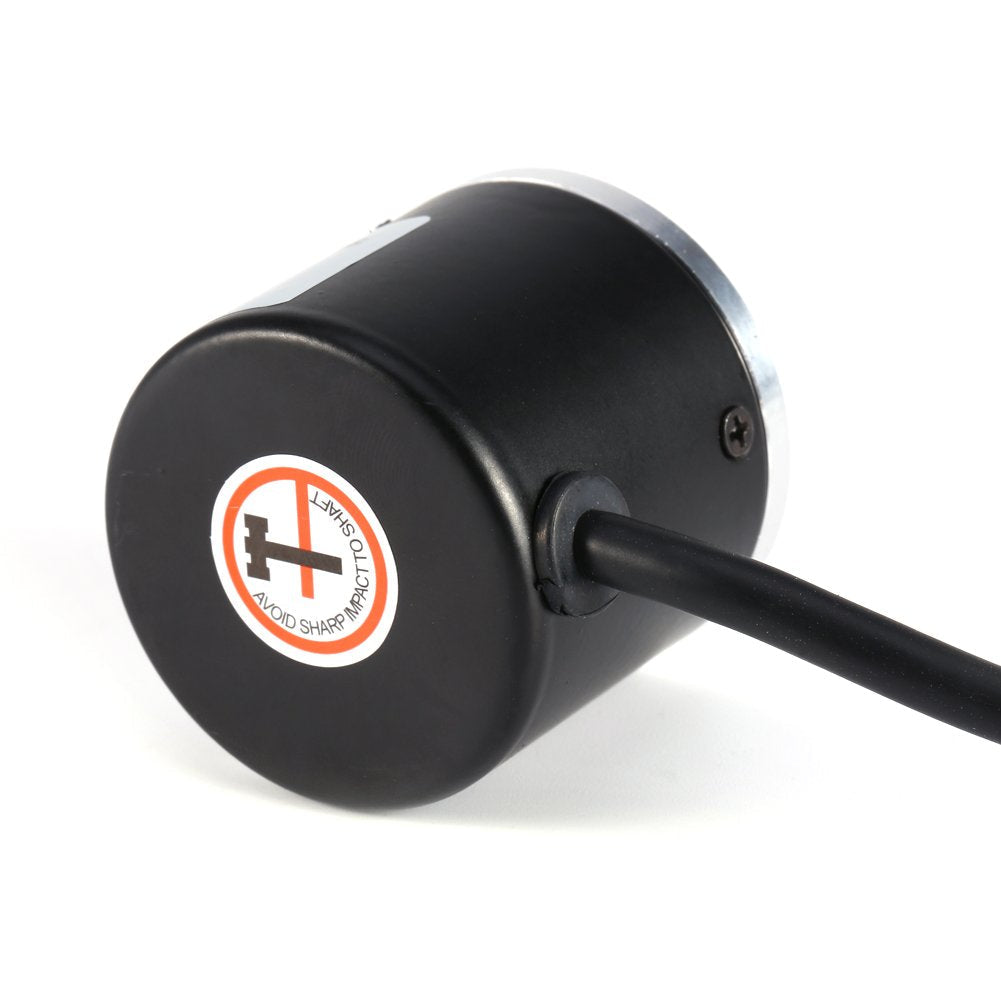

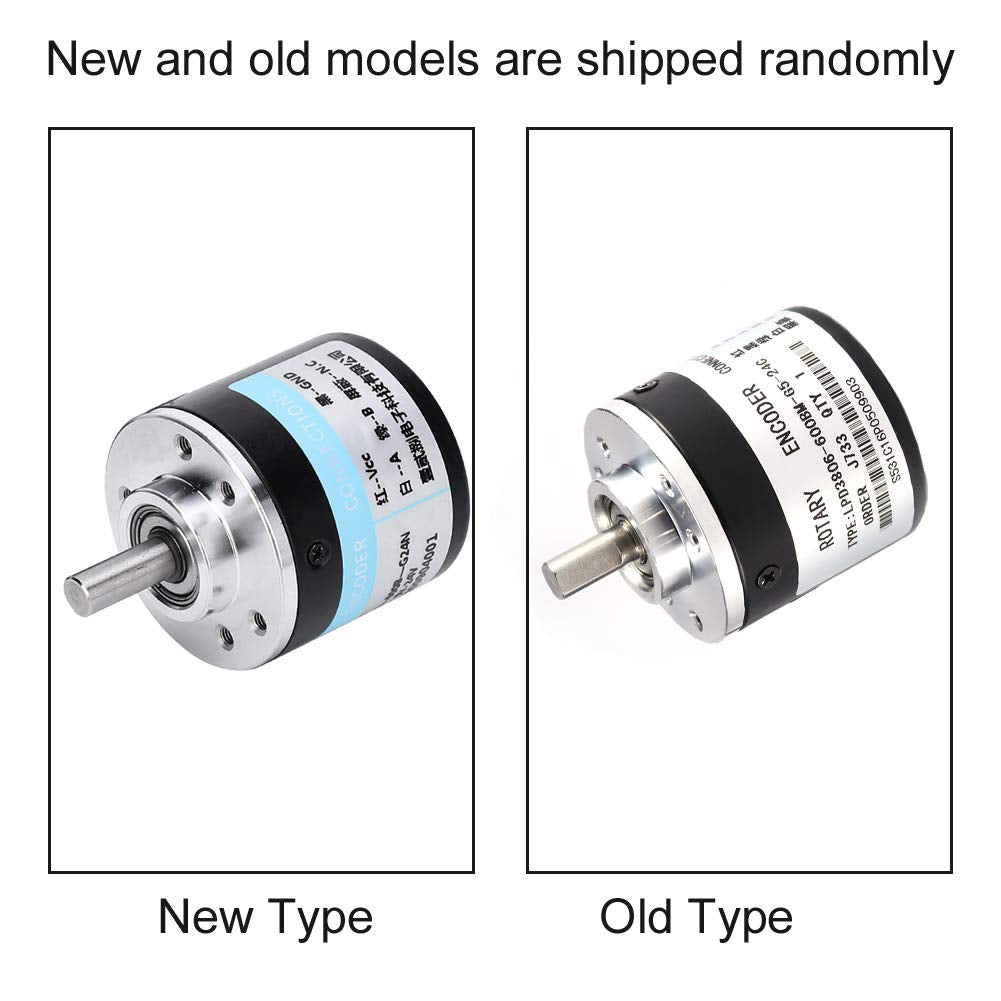

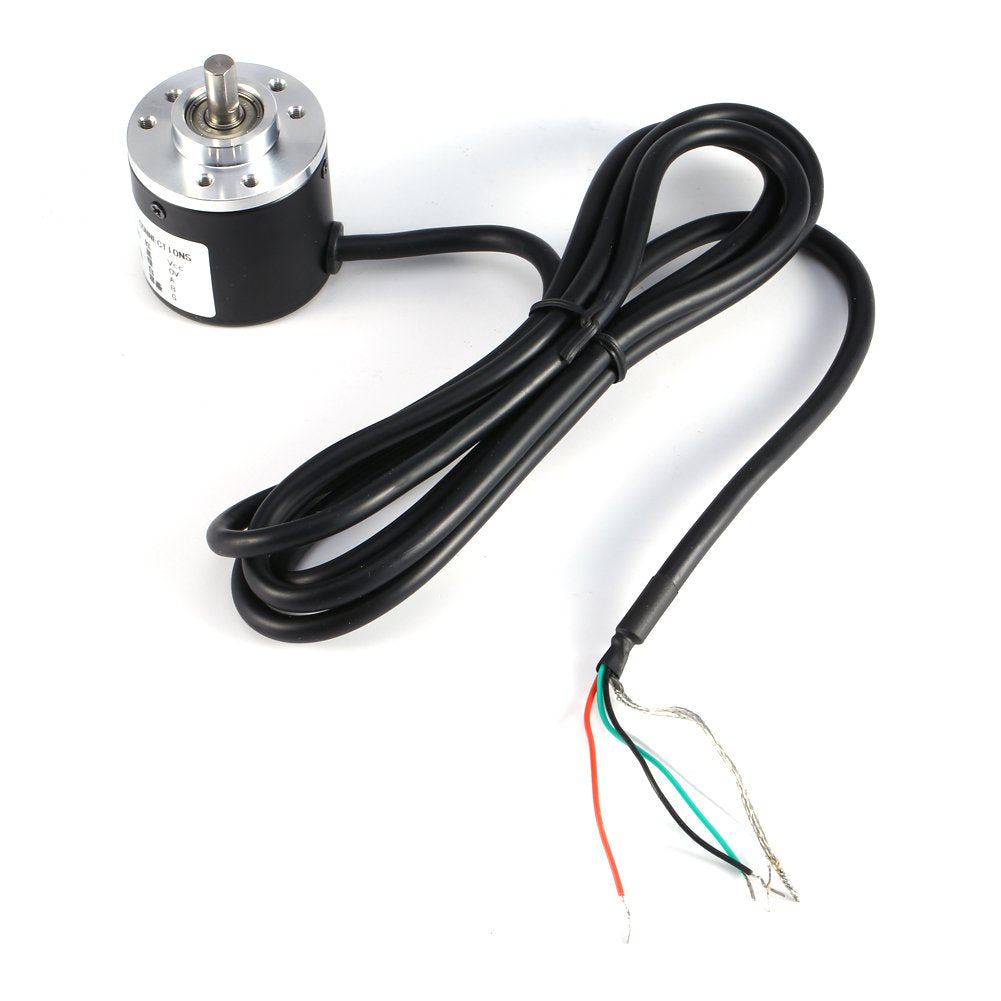

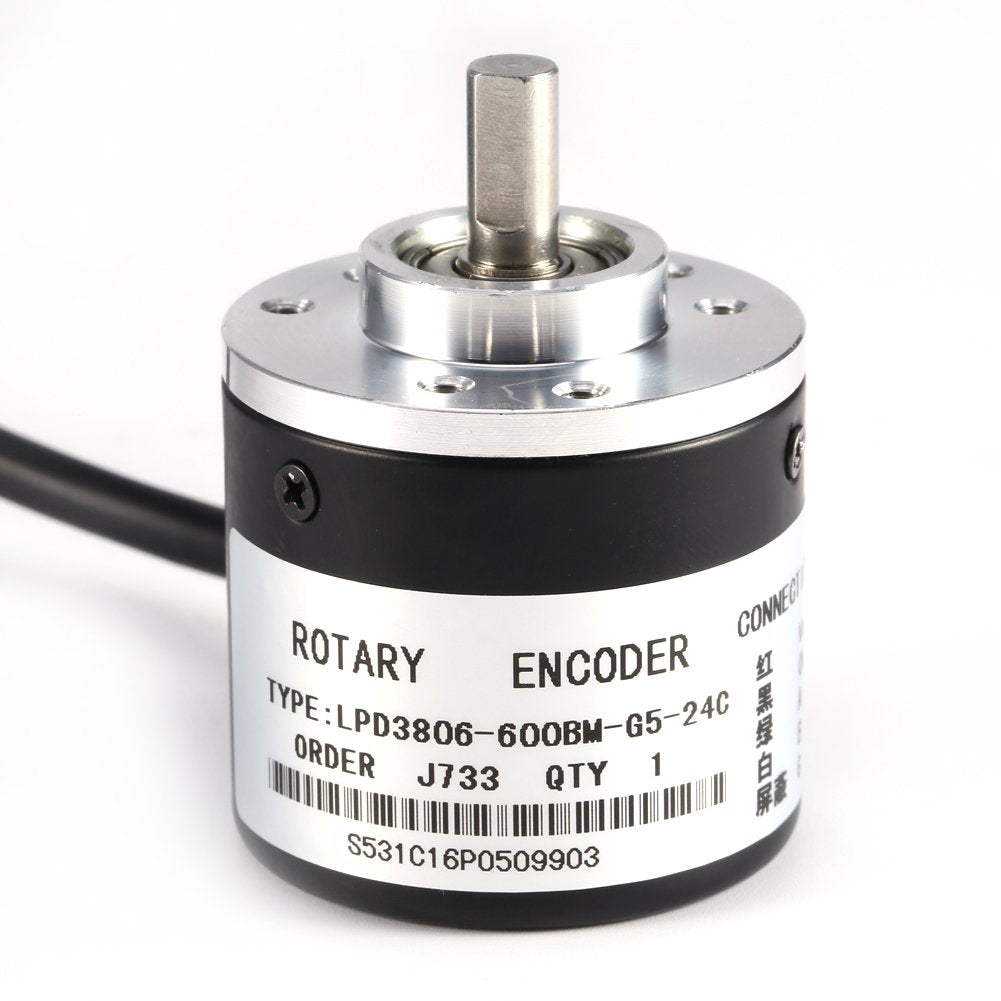

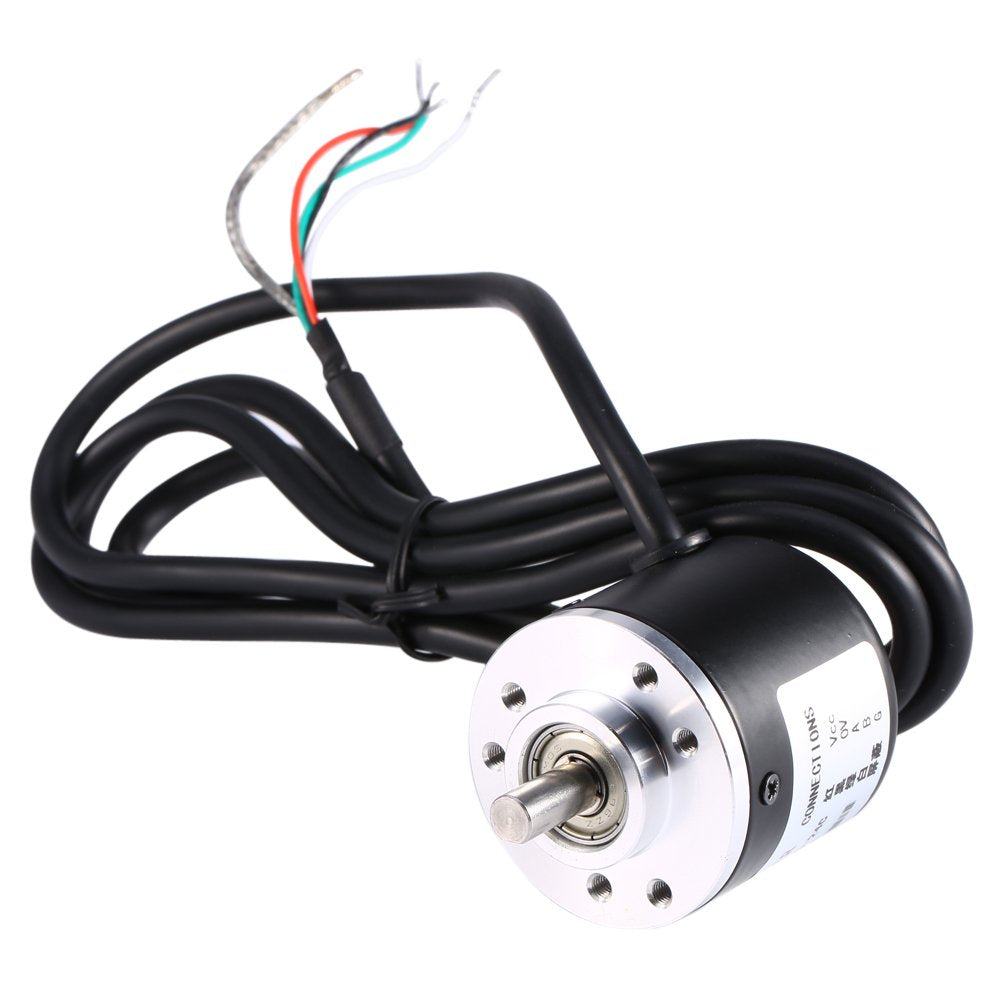

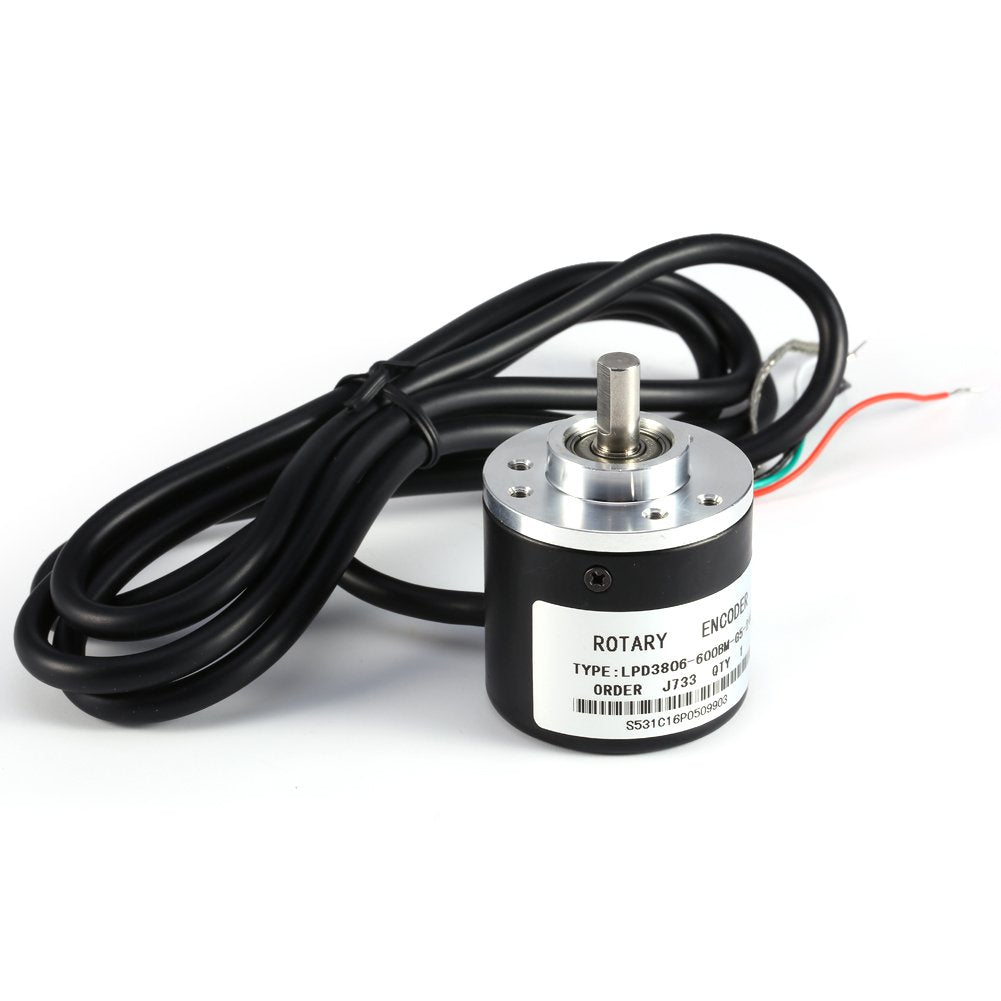

{"id":12640517193888,"title":"600P\/R Rotary Encoder 5V - 24V AB 2 - Phase Shaft 6mm Photoelectric Incremental Rotary Encoder","handle":"600p-r-rotary-encoder-5v-24v-ab-2-phase-shaft-6mm-photoelectric-incremental-rotary-encoder","description":"\u003ch3\u003e600P\/R rotary encoder 5V - 24V AB 2 - phase shaft 6mm photoelectric incremental rotary encoder\u003c\/h3\u003e \u003cp id=\"b\"\u003eTechnical data: 100% brand new Pulses: 600 p\/r (single phase 600 pulses\/R, two-phase 4 frequency doubling to 2400 pulses) Power source: DC5-24V Shaft: 6 13mm\/0.23 0.51\" Size: 38 35.5mm\/1.49 1.39\" Output: Rectangular orthogonal pulse circuit with AB 2- Phase output, the output for NPN open collector output type Maximum mechanical speed: 5000 rpm Response frequency: 0-20 kHz Cable length: 1.5 meters Uses: 1. It can be used to control the rotation rate, angle and measure the acceleration of the object as well as the length measurement 2. Suitable for intelligent control of various displacement measurements, leather fixed length automatic guillotine machines, steel cutting length control, civil human scale with measured height, student racing robot Note: The AB 2- Phase output must not be connected to VCC directly, otherwise the output triode will be burned, as there are different batches and may not have the terminal. (Green = A phase, White = B phase, Red = Vcc power +, Black = V0 ) Package included: 1 x Encoder 600P\/R Incremental Rotary Encoder\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eIncremental encoder: This product has 600 p\/r (single phase 600 pulses\/R, two phase 4 times frequency up to 2400 pulses). AB 2-phase output rectangular quadrature pulse circuit, the output is NPN open collector output type.\u003c\/li\u003e \u003cli\u003eMain function: measuring the speed, angle and acceleration of the object and length measurement.\u003c\/li\u003e \u003cli\u003eConnection: Green = Phase A, White = Phase B, Red = Vcc power +, Black = V0. Note: The two-phase AB output must not be connected to VCC directly, otherwise the output transistor will be burned.\u003c\/li\u003e \u003cli\u003eParameters: Power supply: DC5-24V; Axis: 6 13mm\/0.23 0.51\"\"; Size: 38 35.5mm\/1.49 1.39\"\"; maximum mechanical speed: 5000 rpm; Response frequency: 0-20 kHz; Cable length: 1.5 meters.\u003c\/li\u003e \u003cli\u003eWidely used: Suitable for intelligent control of various displacement measurements, automatic leather length fixed guillotine machines, steel cutting length control, civil human body height measurement and Schuler racing robots, etc.\u003c\/li\u003e \u003cli\u003e li\u0026gt;\u003c\/li\u003e\n\u003c\/ul\u003e","published_at":"2024-03-07T03:13:59+11:00","created_at":"2024-03-07T03:14:08+11:00","vendor":"Akozon","type":"Switching encoder","tags":["industryDE"],"price":16800,"price_min":16800,"price_max":16800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":48972893618336,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B08H29RBJK","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"600P\/R Rotary Encoder 5V - 24V AB 2 - Phase Shaft 6mm Photoelectric Incremental Rotary Encoder","public_title":null,"options":["Default Title"],"price":16800,"weight":140,"compare_at_price":null,"inventory_management":"shopify","barcode":"Akozongmhpg9dvxo","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/files\/de-B08H29RBJK.jpg?v=1709771460","\/\/dingoship.com.au\/cdn\/shop\/products\/61C0Cj7TiUL_a9144dc5-f663-44fa-9d40-248badb0758c.jpg?v=1709741648","\/\/dingoship.com.au\/cdn\/shop\/products\/61hcjBKoPOL_3c1cb093-1fcc-407c-ab01-392bfbc91d27.jpg?v=1709741648","\/\/dingoship.com.au\/cdn\/shop\/products\/51KwvqsV8EL_00afc9a9-8fd3-4d19-9ac4-edec8038fea4.jpg?v=1709741648","\/\/dingoship.com.au\/cdn\/shop\/products\/61ycqTgksVL_a6d2f134-f58e-4090-8321-1538b08ce6c6.jpg?v=1709741648","\/\/dingoship.com.au\/cdn\/shop\/products\/61roaasMM0L_e8bbf5f6-9a00-40d7-8f87-7cab4b1490cd.jpg?v=1709741648","\/\/dingoship.com.au\/cdn\/shop\/products\/61WHADi5OXL_19d5d569-f312-4a75-a138-fa1aedba756a.jpg?v=1709741648"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B08H29RBJK.jpg?v=1709771460","options":["Title"],"media":[{"alt":null,"id":32684066144416,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B08H29RBJK.jpg?v=1709771460"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B08H29RBJK.jpg?v=1709771460","width":1001},{"alt":null,"id":32677345296544,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61C0Cj7TiUL_a9144dc5-f663-44fa-9d40-248badb0758c.jpg?v=1709741648"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61C0Cj7TiUL_a9144dc5-f663-44fa-9d40-248badb0758c.jpg?v=1709741648","width":1001},{"alt":null,"id":32677345329312,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61hcjBKoPOL_3c1cb093-1fcc-407c-ab01-392bfbc91d27.jpg?v=1709741648"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61hcjBKoPOL_3c1cb093-1fcc-407c-ab01-392bfbc91d27.jpg?v=1709741648","width":1001},{"alt":null,"id":32677345394848,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51KwvqsV8EL_00afc9a9-8fd3-4d19-9ac4-edec8038fea4.jpg?v=1709741648"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51KwvqsV8EL_00afc9a9-8fd3-4d19-9ac4-edec8038fea4.jpg?v=1709741648","width":1001},{"alt":null,"id":32677345427616,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61ycqTgksVL_a6d2f134-f58e-4090-8321-1538b08ce6c6.jpg?v=1709741648"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61ycqTgksVL_a6d2f134-f58e-4090-8321-1538b08ce6c6.jpg?v=1709741648","width":1001},{"alt":null,"id":32677345460384,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61roaasMM0L_e8bbf5f6-9a00-40d7-8f87-7cab4b1490cd.jpg?v=1709741648"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61roaasMM0L_e8bbf5f6-9a00-40d7-8f87-7cab4b1490cd.jpg?v=1709741648","width":1001},{"alt":null,"id":32677345493152,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61WHADi5OXL_19d5d569-f312-4a75-a138-fa1aedba756a.jpg?v=1709741648"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61WHADi5OXL_19d5d569-f312-4a75-a138-fa1aedba756a.jpg?v=1709741648","width":1001}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e600P\/R rotary encoder 5V - 24V AB 2 - phase shaft 6mm photoelectric incremental rotary encoder\u003c\/h3\u003e \u003cp id=\"b\"\u003eTechnical data: 100% brand new Pulses: 600 p\/r (single phase 600 pulses\/R, two-phase 4 frequency doubling to 2400 pulses) Power source: DC5-24V Shaft: 6 13mm\/0.23 0.51\" Size: 38 35.5mm\/1.49 1.39\" Output: Rectangular orthogonal pulse circuit with AB 2- Phase output, the output for NPN open collector output type Maximum mechanical speed: 5000 rpm Response frequency: 0-20 kHz Cable length: 1.5 meters Uses: 1. It can be used to control the rotation rate, angle and measure the acceleration of the object as well as the length measurement 2. Suitable for intelligent control of various displacement measurements, leather fixed length automatic guillotine machines, steel cutting length control, civil human scale with measured height, student racing robot Note: The AB 2- Phase output must not be connected to VCC directly, otherwise the output triode will be burned, as there are different batches and may not have the terminal. (Green = A phase, White = B phase, Red = Vcc power +, Black = V0 ) Package included: 1 x Encoder 600P\/R Incremental Rotary Encoder\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eIncremental encoder: This product has 600 p\/r (single phase 600 pulses\/R, two phase 4 times frequency up to 2400 pulses). AB 2-phase output rectangular quadrature pulse circuit, the output is NPN open collector output type.\u003c\/li\u003e \u003cli\u003eMain function: measuring the speed, angle and acceleration of the object and length measurement.\u003c\/li\u003e \u003cli\u003eConnection: Green = Phase A, White = Phase B, Red = Vcc power +, Black = V0. Note: The two-phase AB output must not be connected to VCC directly, otherwise the output transistor will be burned.\u003c\/li\u003e \u003cli\u003eParameters: Power supply: DC5-24V; Axis: 6 13mm\/0.23 0.51\"\"; Size: 38 35.5mm\/1.49 1.39\"\"; maximum mechanical speed: 5000 rpm; Response frequency: 0-20 kHz; Cable length: 1.5 meters.\u003c\/li\u003e \u003cli\u003eWidely used: Suitable for intelligent control of various displacement measurements, automatic leather length fixed guillotine machines, steel cutting length control, civil human body height measurement and Schuler racing robots, etc.\u003c\/li\u003e \u003cli\u003e li\u0026gt;\u003c\/li\u003e\n\u003c\/ul\u003e"}
