AC 50-300V 100A Multi Function Voltage Amperage Power Meter, Din Rail LCD Digital Backlight Energy Monitor, Built-in Current Transformer Ammeter Voltmeter, Single Phase Tester AC 100A Din Rail Meter
AC 50-300V 100A Multi Function Voltage Amperage Power Meter, Din Rail LCD Digital Backlight Energy Monitor, Built-in Current Transformer Ammeter Voltmeter, Single Phase Tester

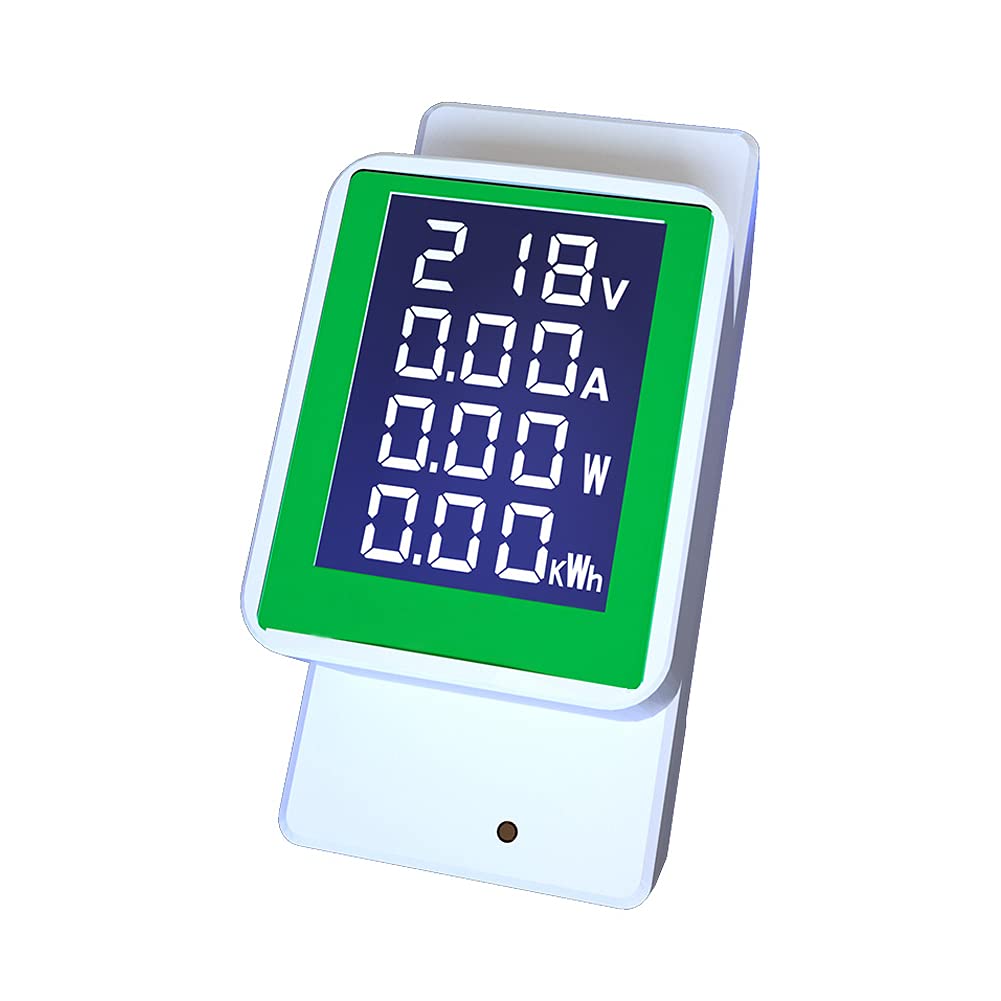

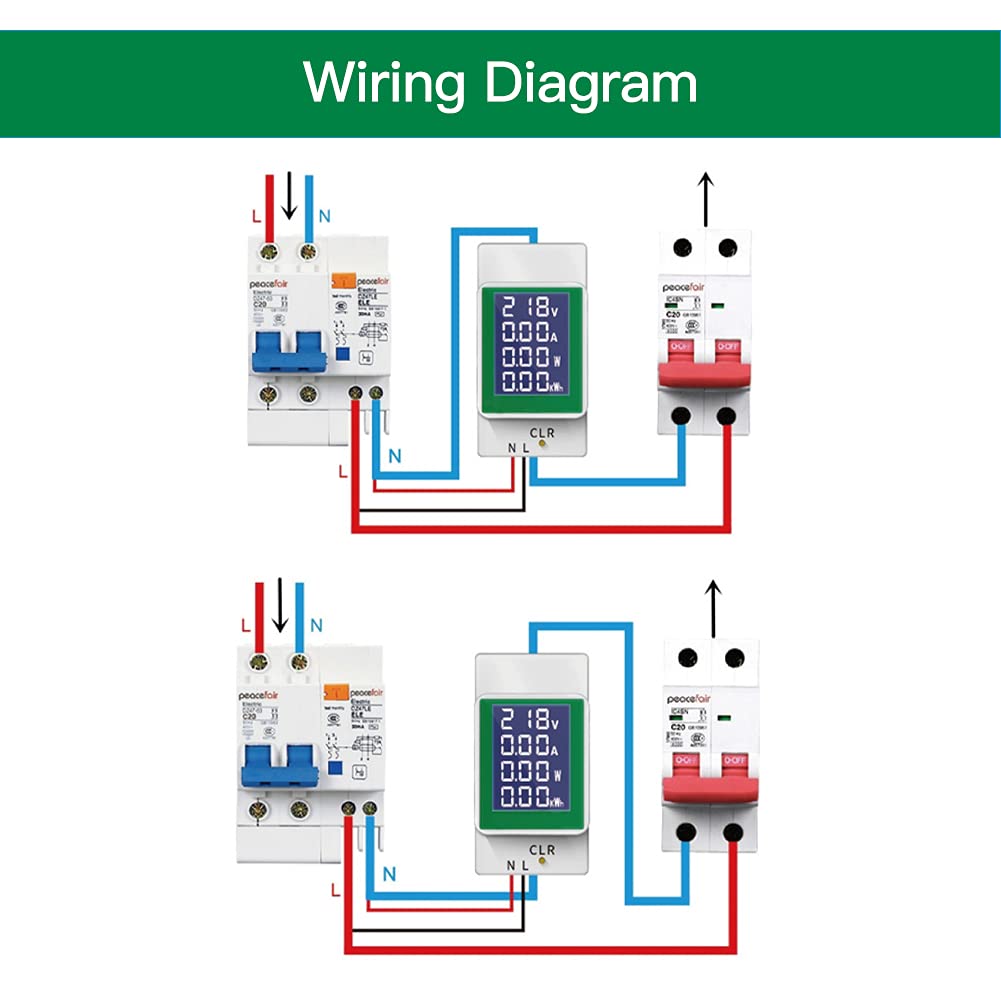

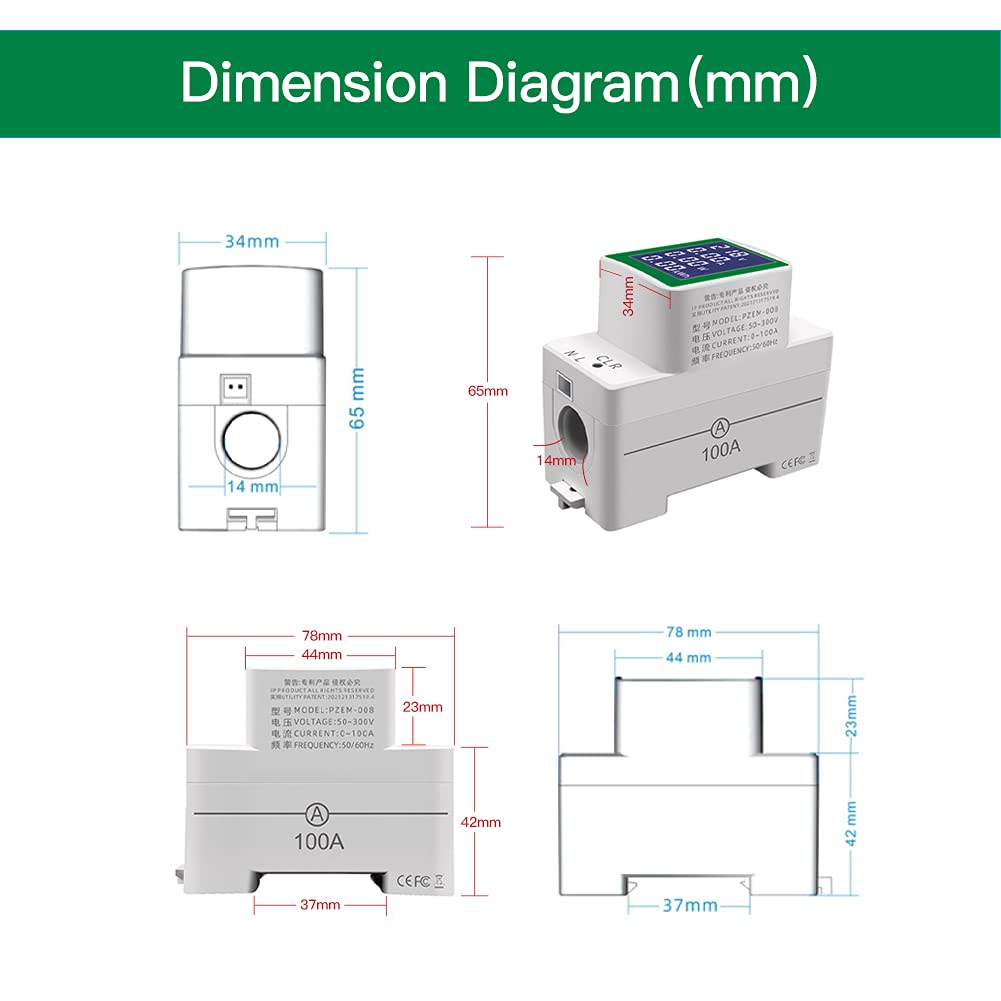

Specification parameters 1. Working voltage: 50~300VAC 2. Test voltage: 50~300VAC 3. Rated power: 100A/30000W 4. Measurement accuracy: 1.0 grade Main Function 1. Measure AC voltage, current, active power, energy and display with LCD. 2. The backlight can be turned on or off by short press the key. 3. The energy can be reset use the key. 4. When the power off, the energy data and backlight status can be saved. Read more Display interface is large-screen LCD, it can display four parameters at the same time. 1. Power: test range: 0~30000W, Starting measure power: 0.5W 2. Energy: test range: 0~1999kWh 3. Voltage: test range: 50~300V 4. Current: test range: 0~100A,Starting measure current: 0.02A Read more Feed Material PC flame retardant,high temperature resistance. Wiring Diagram Product Size Chart Read more
Product Features
- 1.Digital multi-function meter:This power energy meter can measure AC voltage, current, active power, energy with all-in-one device and clearly display with LCD screen.(Note:This product is suitable for AC and indoor use only)

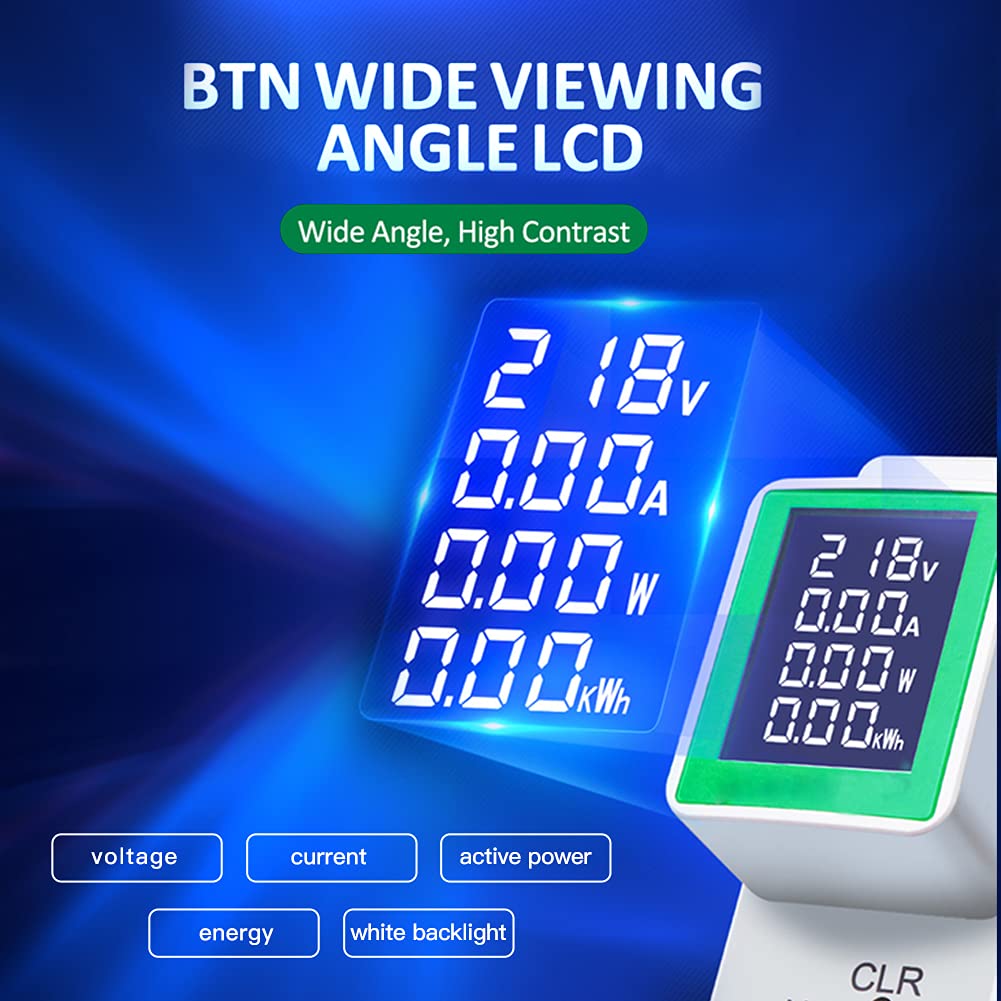

- 2.BTN wide viewing angle LCD with real-time wide testing range 50~300V for voltage,0-100A for current,0~30kW for active power, 0~1999kWh for energy and 1% accuracy,a really powerful update point for a real-sense of multi-functional with high contrast.

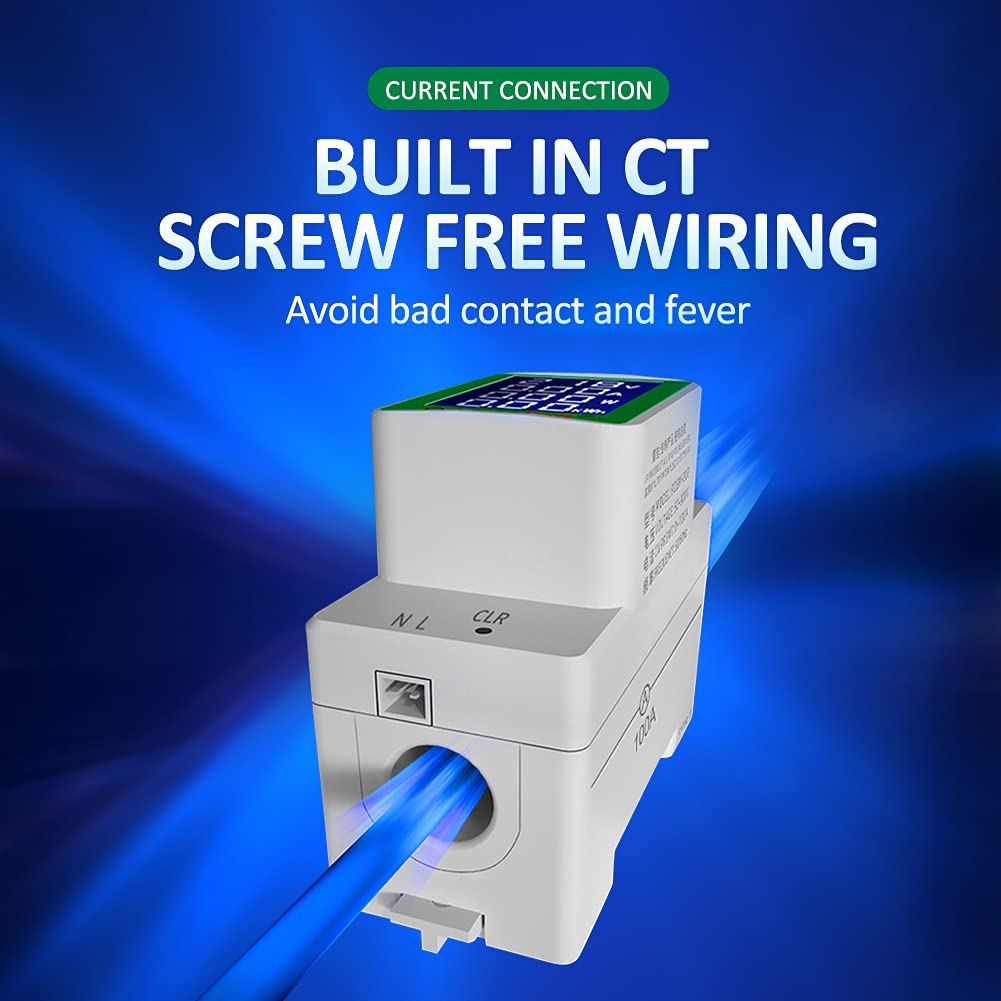

- 3.Extremely simple wiring mode is designed for added convenience as built-in CT no-screw wiring featured,no contact installation ensures its high security to a large extent.

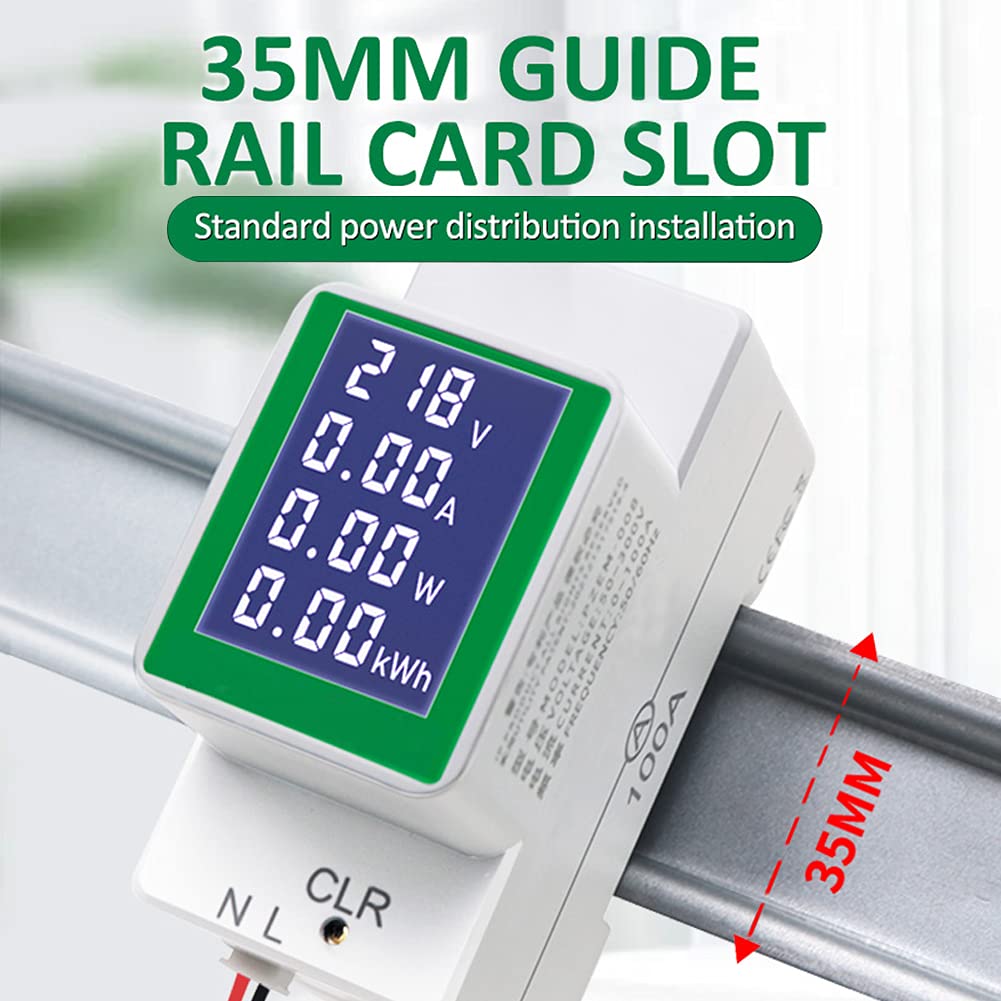

- 4.Backlight adjustable manually by short pressing the key to on/off on the meter and data preservation when power off.The width is only 1.34 inches, saving din rail space.
- 5.PC Flame Retardant with high temperature resistance ensures its wide application for high and low distribution cabinet,display cabinets,photovoltaic inverter, assembly line test, electronic maintenance and rental housing.(Note:The measurement voltage and ampere shall not exceed the calibration range and please confirm the wiring is correct before use)
