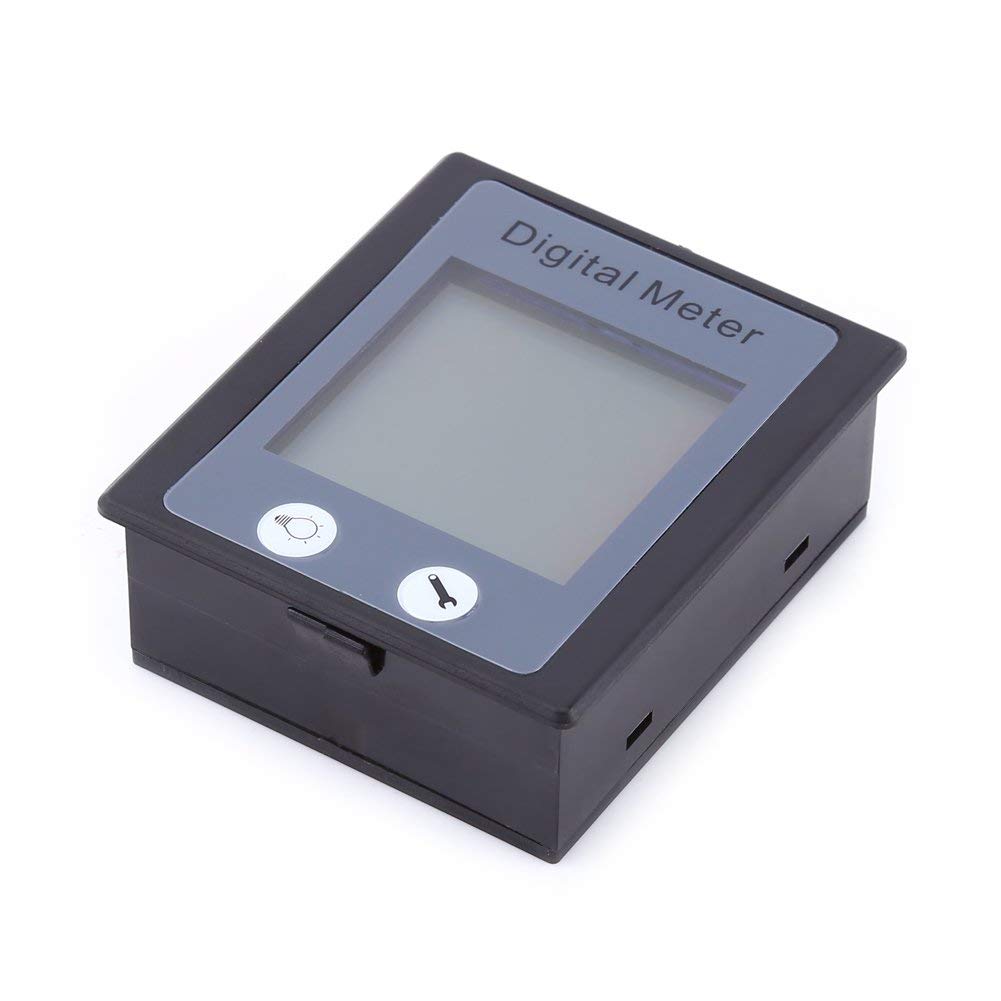

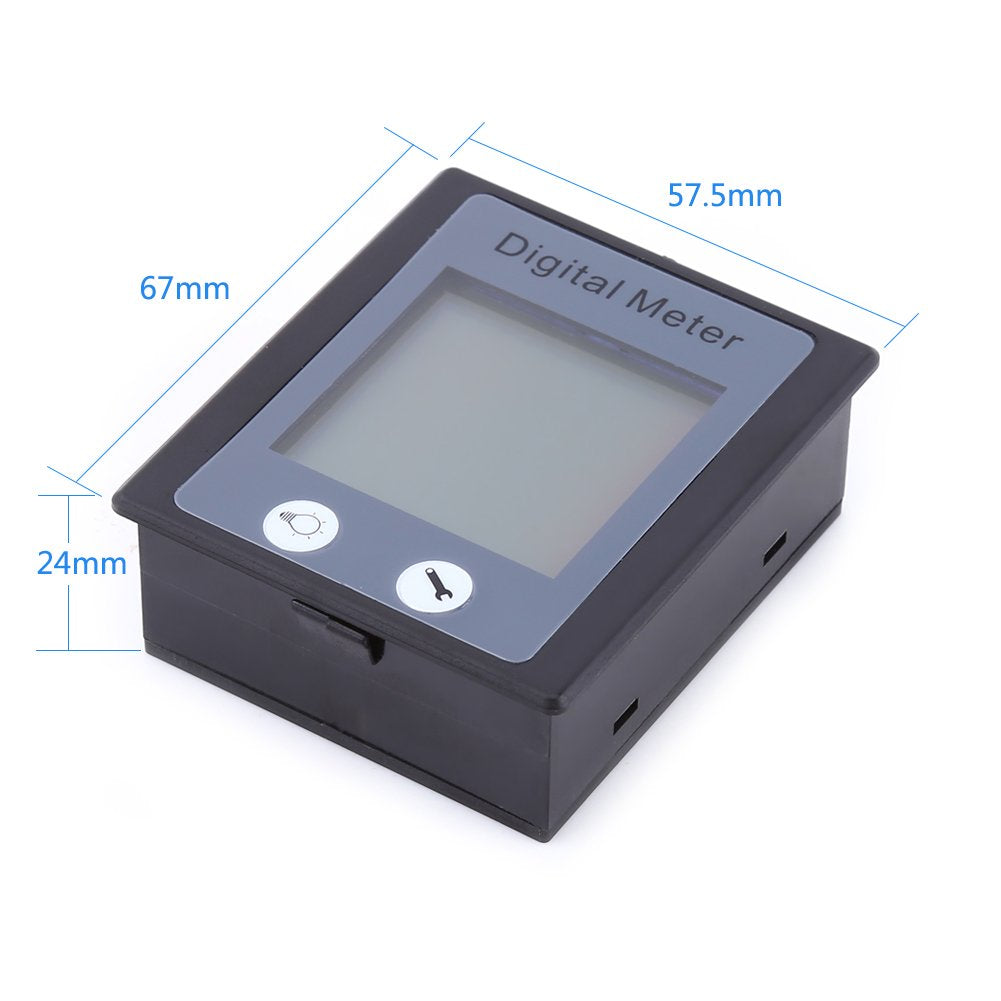

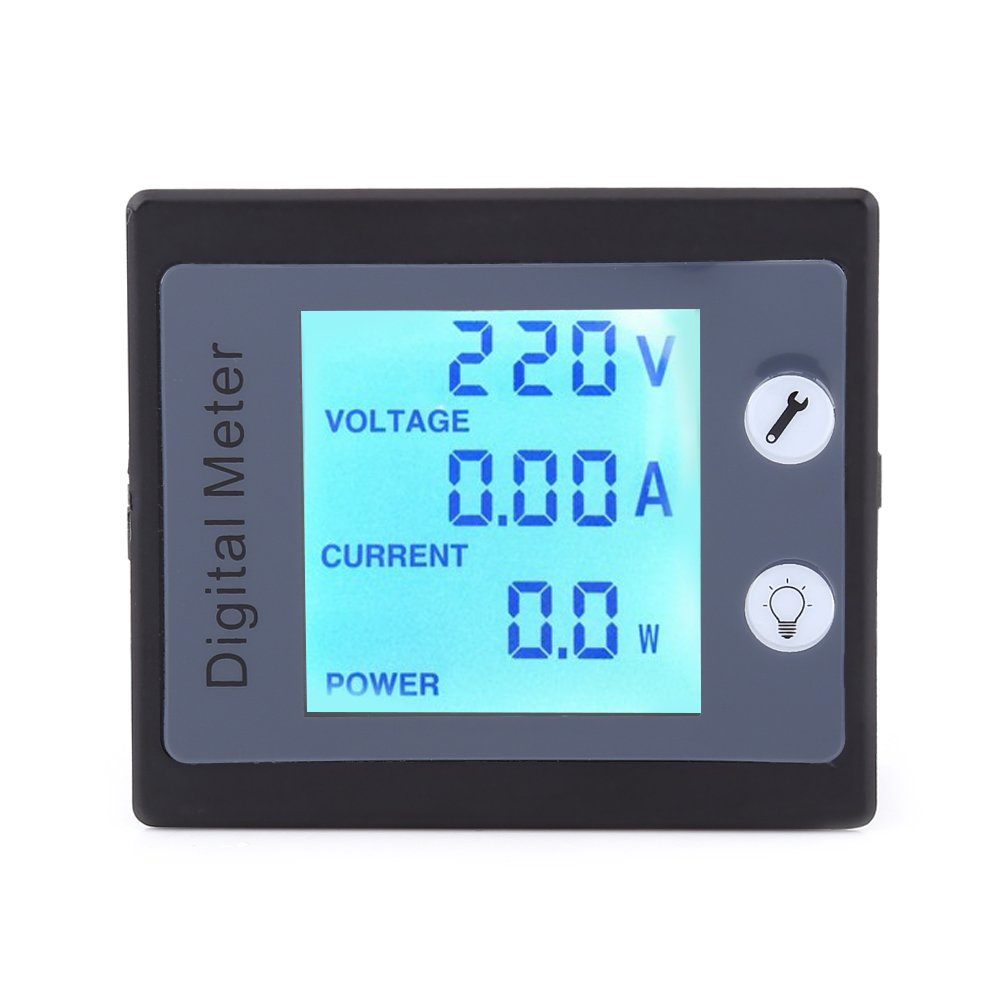

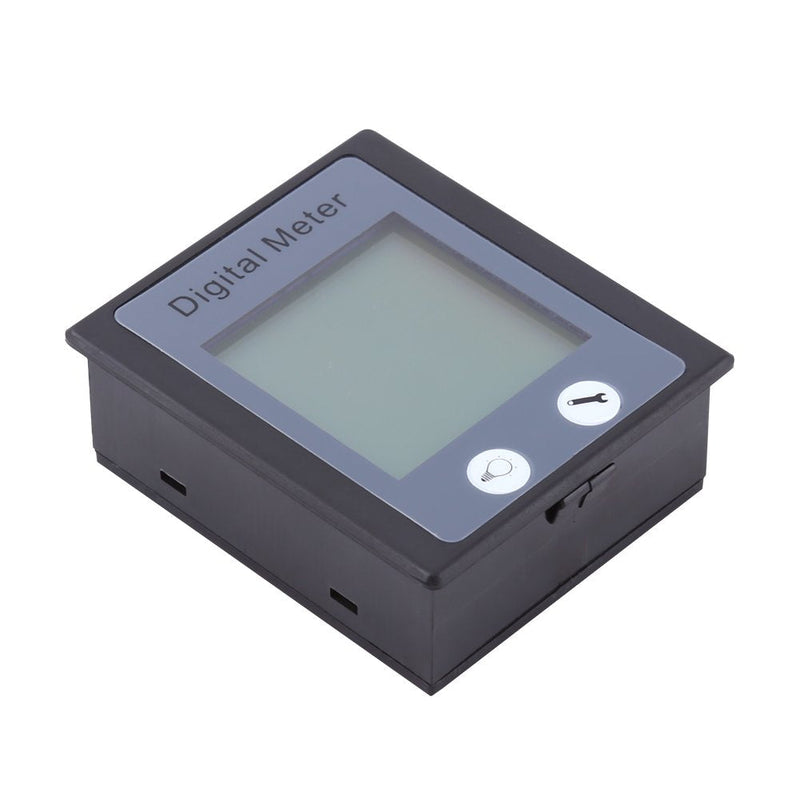

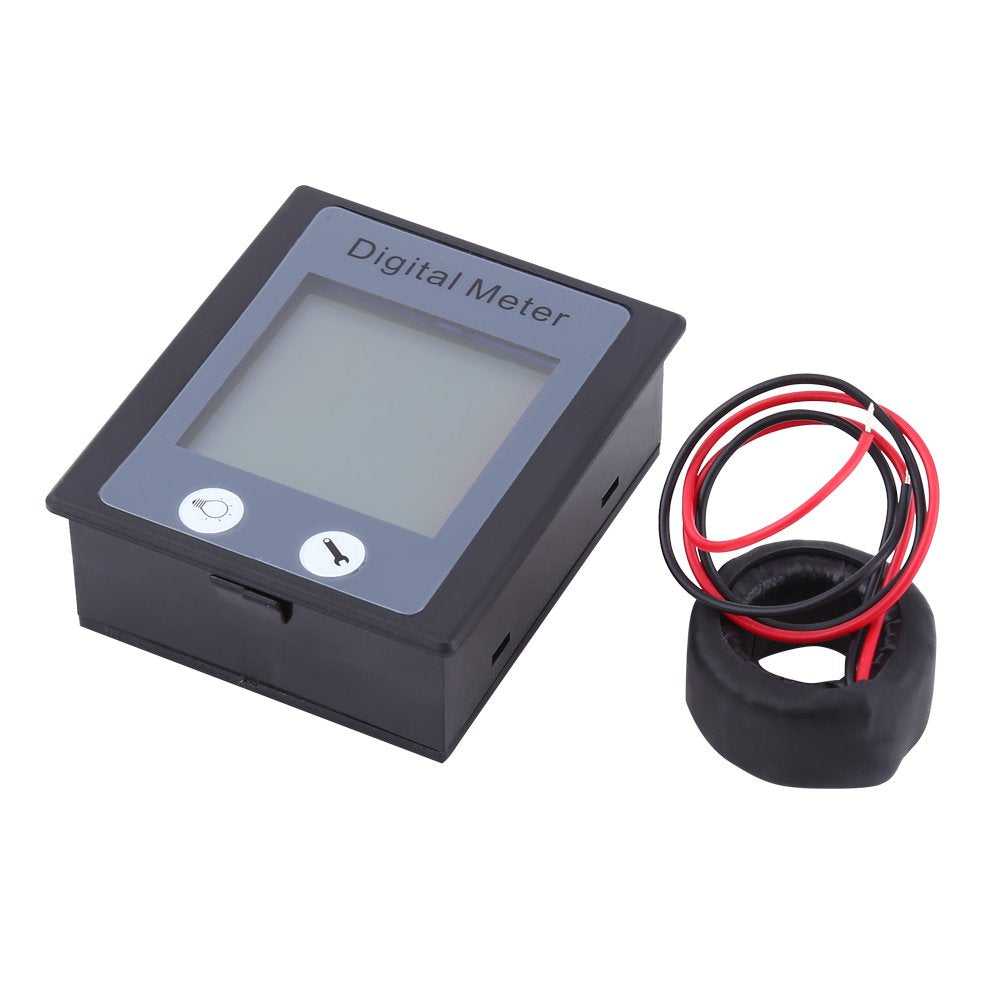

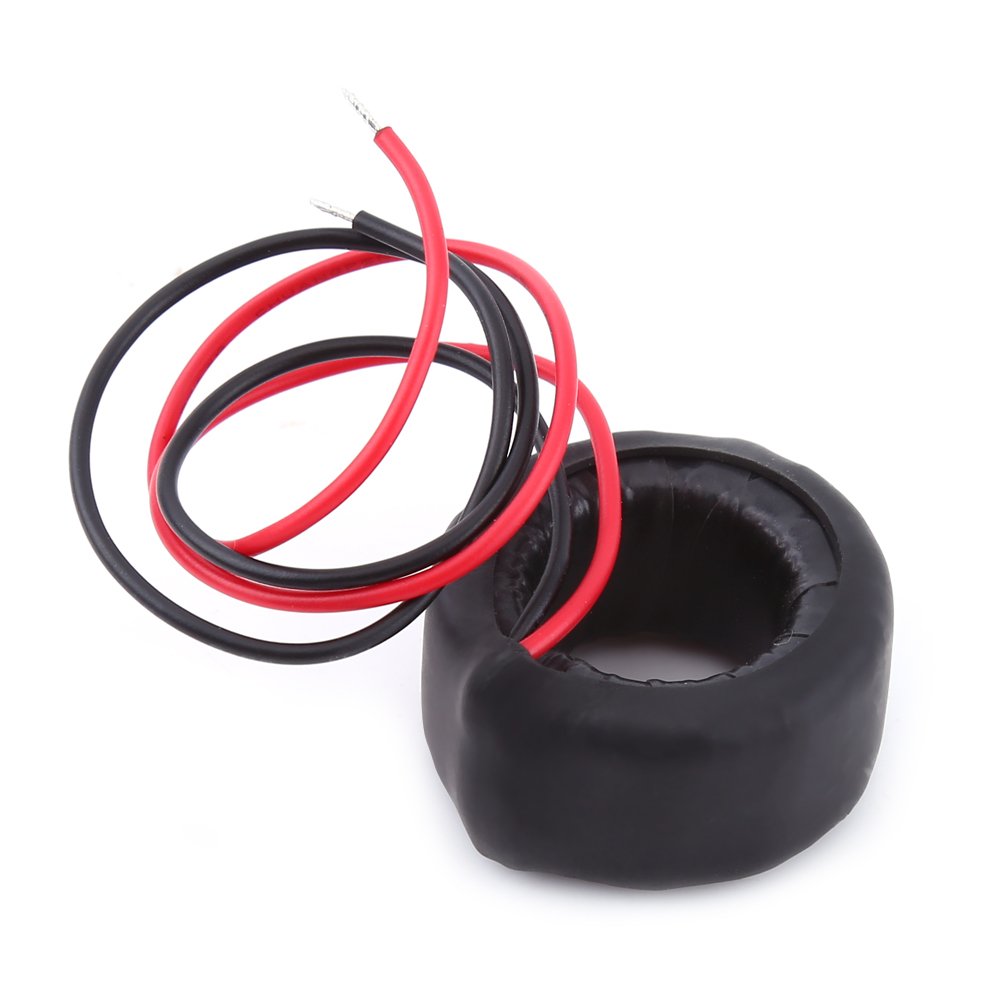

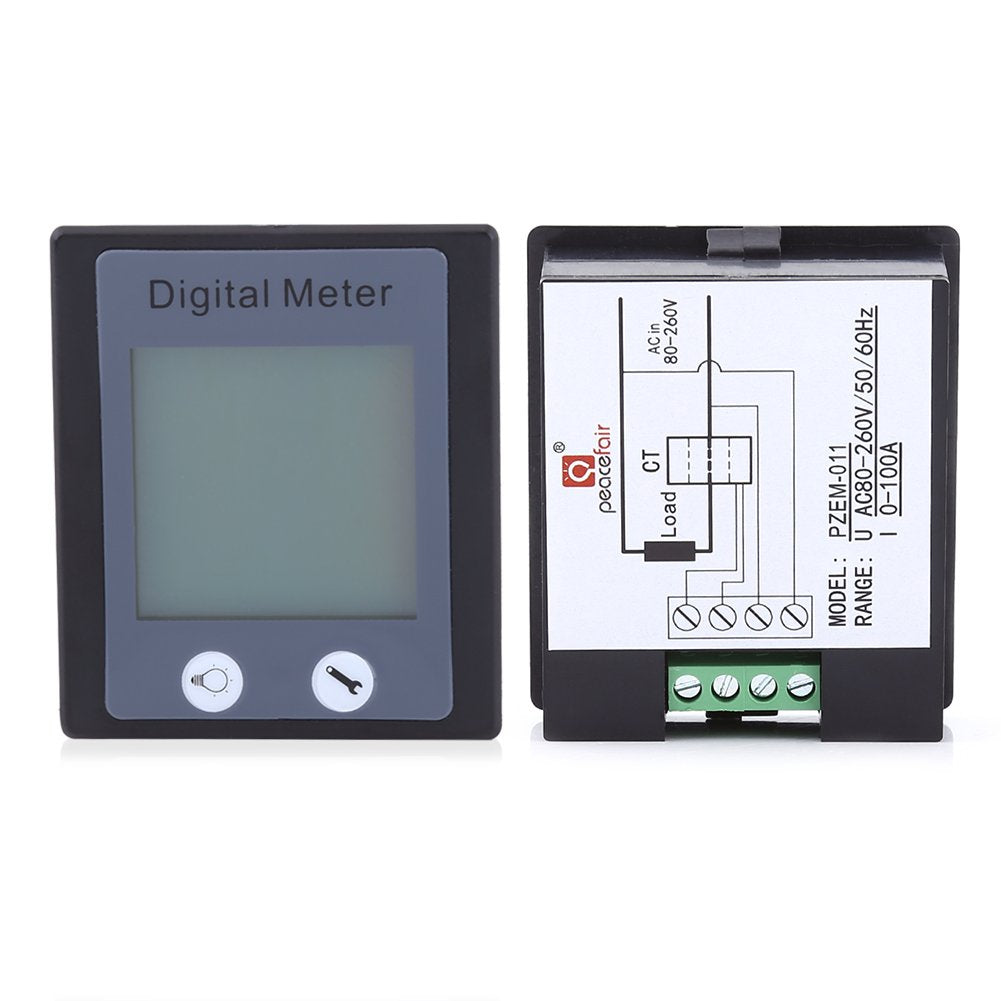

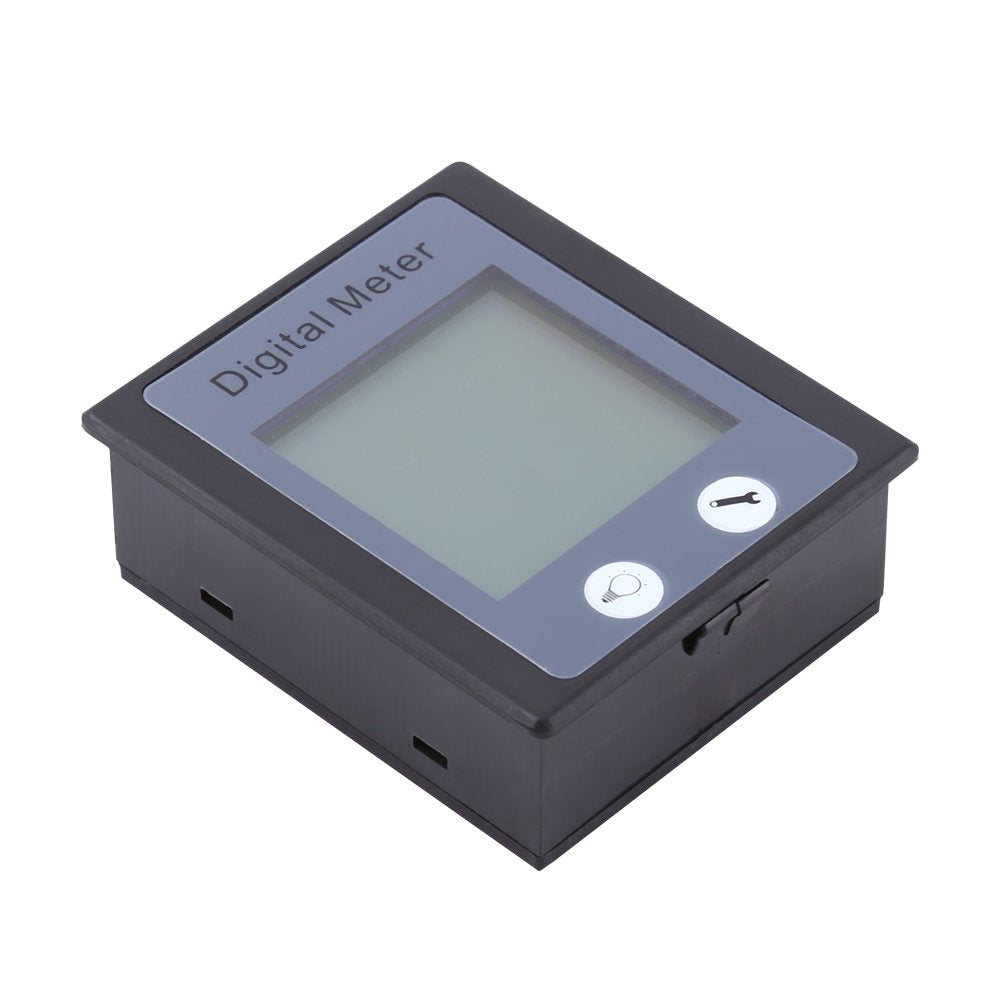

{"id":7411802144928,"title":"AC Power Meter Digital Monitoring Multimeter Ammeter 100A 80-260V Voltmeter Energy Voltage Current Electrical Tester with CT","handle":"ac-power-meter-digital-monitoring-multimeter-ammeter-100a-80-260v-voltmeter-energy-voltage-current-electrical-tester-with-ct","description":"\u003ch3\u003eAC Power Meter Digital Monitoring Multimeter Ammeter 100A 80-260V Voltmeter Energy Voltage Current Electrical Tester with CT\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eInput Voltage: 80~260VAC Test Voltage: 80~260VAC Rated Power: 22kW Frequency:\n45-65Hz Measuring Accuracy: ±1.0% Size: 67 x 57.5 x 24mm \/ 2.63 x 2.26 x 0.94\"\nPower Test Range: 0~22kW Display Format: 0.0~999.9W when \u0026lt;1kW; 1000~9999W when\n1kW and \u0026lt;10kW; 10.0~22.0kW when 10kW and 22kW. Energy Test Range: 0~9999kWh\nDisplay Format: 0~9999Wh when \u0026lt;10kWh; 10~9999kWh when 10kWh and 9999kWh.\nAutomatically back to zero if over test range. Voltage Test Range \u0026amp; Display\nFormat: 80~260V Current Test Range: 0~100A Display Format: 0.00~99.99A\nInstruction: 1. Backlight: Press \"light\" button to open or close. 2. Energy\nReset: Step 1:Press and hold \"set\" button for more than 3 seconds until the\nenergy display flashes; Step 2:If press \"set\" button again, reset energy data\nand exit the reset state; If press \"light\" button, exit the reset state\nwithout resetting energy data; If no button is pressed for 10 seconds, exit\nthe reset state without resetting energy data. 3. Power Alarm Value Reset:\nStep 1:Press and hold \"light\" button for more than 3 seconds until the power\ndisplay flashes; Step 2:When the last digit of power display alarm value\nflashes, press \"set\" button to +1, press \"light\" button to switch to other\ndigit. Alarm value cannot be more than 2.5kW Step 3:Press and hold \"light\"\nbutton for more than 3 seconds or not press any button for more than 10\nseconds to save value and exit. 4. Power\/Energy Display Switch: Press \"set\"\nbutton to switch display of power or cumulative energy data Note: This indoor\nmeter cannot be used in autotransformer, silicon controlled rectifier circuit\nor load. Package Includes: 1 x Multimeter 1 x Current Transformer\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eMULTIFUNCTIONAL: This is a multifunctional AC electric meter that can test current, voltage, power and energy with wide voltage range from 80V to 260V.\u003c\/li\u003e\n \u003cli\u003eBACK LIGHT LCD DISPLAY: This multimeter adopted a large LCD display with backlight function and the digits can be read clearly from various angles.\u003c\/li\u003e\n \u003cli\u003eSHOW 3 DATA THE SAME TIME: This power monitor could show 3 measured data at the same time, and you can simply press one button to switch power and energy data.\u003c\/li\u003e\n \u003cli\u003eALARM SYSTEM: The meter support overload alarm function, reset energy function, power alarm threshold preset function, etc.\u003c\/li\u003e\n \u003cli\u003eWIRING DIAGRAM: The wiring diagram is on the back of this multimeter for convenient wiring.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-06-12T05:25:32+10:00","created_at":"2022-06-12T05:25:41+10:00","vendor":"Hilitand","type":"Multi Testers","tags":["dingo","sold2024","sold2025","sold2026"],"price":14100,"price_min":14100,"price_max":14100,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42180698603680,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07DC359Q9","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"AC Power Meter Digital Monitoring Multimeter Ammeter 100A 80-260V Voltmeter Energy Voltage Current Electrical Tester with CT","public_title":null,"options":["Default Title"],"price":14100,"weight":109,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/products\/B07DC359Q9.jpg?v=1654995180","\/\/dingoship.com.au\/cdn\/shop\/products\/51vnpJGR_0L.jpg?v=1654975541","\/\/dingoship.com.au\/cdn\/shop\/products\/51g4-x09VtL.jpg?v=1654975541","\/\/dingoship.com.au\/cdn\/shop\/products\/61Rs7Ky8f6L.jpg?v=1654975541","\/\/dingoship.com.au\/cdn\/shop\/products\/61NF9TxywsL.jpg?v=1654975541","\/\/dingoship.com.au\/cdn\/shop\/products\/51XfS2mQsmL.jpg?v=1654975541","\/\/dingoship.com.au\/cdn\/shop\/products\/612wIxYoGHL.jpg?v=1654975541","\/\/dingoship.com.au\/cdn\/shop\/products\/51hDC6gPSFL.jpg?v=1654975541","\/\/dingoship.com.au\/cdn\/shop\/products\/51n3j5pZOfL.jpg?v=1654975541"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/products\/B07DC359Q9.jpg?v=1654995180","options":["Title"],"media":[{"alt":null,"id":24842118856864,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B07DC359Q9.jpg?v=1654995180"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B07DC359Q9.jpg?v=1654995180","width":1001},{"alt":null,"id":24840609890464,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51vnpJGR_0L.jpg?v=1654975541"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51vnpJGR_0L.jpg?v=1654975541","width":1001},{"alt":null,"id":24840609923232,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51g4-x09VtL.jpg?v=1654975541"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51g4-x09VtL.jpg?v=1654975541","width":1001},{"alt":null,"id":24840609956000,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61Rs7Ky8f6L.jpg?v=1654975541"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61Rs7Ky8f6L.jpg?v=1654975541","width":1001},{"alt":null,"id":24840609988768,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61NF9TxywsL.jpg?v=1654975541"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61NF9TxywsL.jpg?v=1654975541","width":1001},{"alt":null,"id":24840610021536,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51XfS2mQsmL.jpg?v=1654975541"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51XfS2mQsmL.jpg?v=1654975541","width":1001},{"alt":null,"id":24840610054304,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/612wIxYoGHL.jpg?v=1654975541"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/612wIxYoGHL.jpg?v=1654975541","width":1001},{"alt":null,"id":24840610087072,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51hDC6gPSFL.jpg?v=1654975541"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51hDC6gPSFL.jpg?v=1654975541","width":1001},{"alt":null,"id":24840610119840,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51n3j5pZOfL.jpg?v=1654975541"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51n3j5pZOfL.jpg?v=1654975541","width":1001}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eAC Power Meter Digital Monitoring Multimeter Ammeter 100A 80-260V Voltmeter Energy Voltage Current Electrical Tester with CT\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eInput Voltage: 80~260VAC Test Voltage: 80~260VAC Rated Power: 22kW Frequency:\n45-65Hz Measuring Accuracy: ±1.0% Size: 67 x 57.5 x 24mm \/ 2.63 x 2.26 x 0.94\"\nPower Test Range: 0~22kW Display Format: 0.0~999.9W when \u0026lt;1kW; 1000~9999W when\n1kW and \u0026lt;10kW; 10.0~22.0kW when 10kW and 22kW. Energy Test Range: 0~9999kWh\nDisplay Format: 0~9999Wh when \u0026lt;10kWh; 10~9999kWh when 10kWh and 9999kWh.\nAutomatically back to zero if over test range. Voltage Test Range \u0026amp; Display\nFormat: 80~260V Current Test Range: 0~100A Display Format: 0.00~99.99A\nInstruction: 1. Backlight: Press \"light\" button to open or close. 2. Energy\nReset: Step 1:Press and hold \"set\" button for more than 3 seconds until the\nenergy display flashes; Step 2:If press \"set\" button again, reset energy data\nand exit the reset state; If press \"light\" button, exit the reset state\nwithout resetting energy data; If no button is pressed for 10 seconds, exit\nthe reset state without resetting energy data. 3. Power Alarm Value Reset:\nStep 1:Press and hold \"light\" button for more than 3 seconds until the power\ndisplay flashes; Step 2:When the last digit of power display alarm value\nflashes, press \"set\" button to +1, press \"light\" button to switch to other\ndigit. Alarm value cannot be more than 2.5kW Step 3:Press and hold \"light\"\nbutton for more than 3 seconds or not press any button for more than 10\nseconds to save value and exit. 4. Power\/Energy Display Switch: Press \"set\"\nbutton to switch display of power or cumulative energy data Note: This indoor\nmeter cannot be used in autotransformer, silicon controlled rectifier circuit\nor load. Package Includes: 1 x Multimeter 1 x Current Transformer\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eMULTIFUNCTIONAL: This is a multifunctional AC electric meter that can test current, voltage, power and energy with wide voltage range from 80V to 260V.\u003c\/li\u003e\n \u003cli\u003eBACK LIGHT LCD DISPLAY: This multimeter adopted a large LCD display with backlight function and the digits can be read clearly from various angles.\u003c\/li\u003e\n \u003cli\u003eSHOW 3 DATA THE SAME TIME: This power monitor could show 3 measured data at the same time, and you can simply press one button to switch power and energy data.\u003c\/li\u003e\n \u003cli\u003eALARM SYSTEM: The meter support overload alarm function, reset energy function, power alarm threshold preset function, etc.\u003c\/li\u003e\n \u003cli\u003eWIRING DIAGRAM: The wiring diagram is on the back of this multimeter for convenient wiring.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
