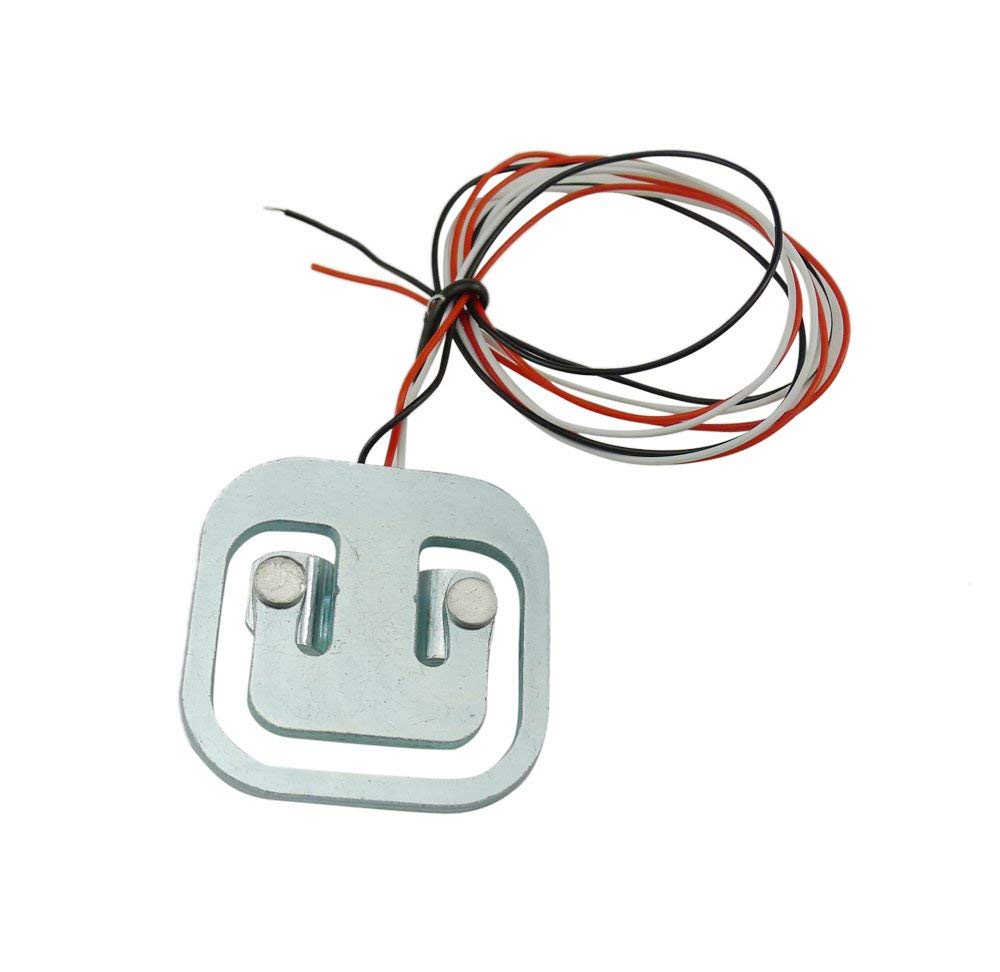

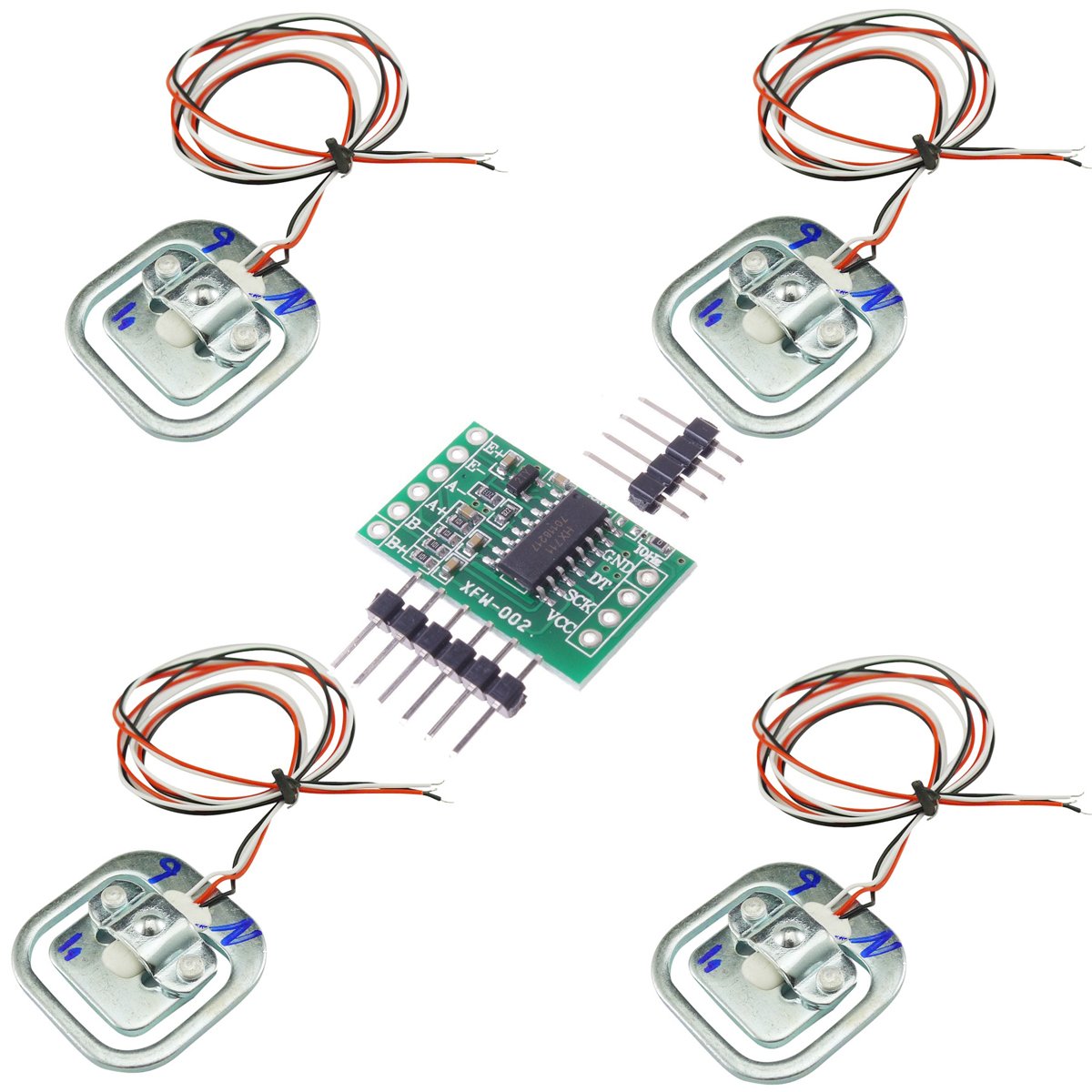

{"id":12633497960608,"title":"Aihasd 4PCS Human Body Weight of Load Cell Weighting Sensor 50KG Half Bridge with Amplifier HX711 AD Module Strain Gauge Personal Scales","handle":"aihasd-4pcs-human-body-weight-of-load-cell-weighting-sensor-50kg-half-bridge-with-amplifier-hx711-ad-module-strain-gauge-personal-scales","description":"\u003ch3\u003eAihasd 4PCS Human Body Weight Load Cell Weighting Sensor 50KG Half Bridge with Amplifier HX711 AD Module Strain Gauge Bathroom Scale\u003c\/h3\u003e \u003cp id=\"b\"\u003eDescription: This load sensor, sometimes called a strain gauge, is the same one found in digital bathroom scales (you know, the ones you use in January for your New Year's resolutions, and then forget about a month later). The sensor is a group of half-bridge strain gauge, there are 3 ways to use it: 1. Use one sensor with an external resistor to form a full-bridge measurement, the range of a sensor range: 50kg. External resistance on the higher requirements. 2.Use two sensors to form a full-bridge measurement, measuring range for the sum of the two sensors: 50kgx2 = 100kg 3.Use four sensors to form a full-bridge measurement, measuring range for the sum of four sensors: 50kgx4 = 200kg Package Includes: 4 X Human Scale Load Cell 50kg 1 X HX711 AD Module\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eThis load sensor, sometimes called a strain gauge, is the same one found in digital bathroom scales (you know, the ones you use in January for your New Year s resolutions, and then forget about a month later).\u003c\/li\u003e \u003cli\u003eThe sensor is a group of half- bridge strain gauge, there are 3 ways to use it\u003c\/li\u003e \u003cli\u003eUse one sensor with an external resistor to form a full-bridge measurement, the range of a sensor range: 50kg. External resistance on the higher requirements.\u003c\/li\u003e \u003cli\u003eUse two sensors to form a full-bridge measurement, measuring range for the sum of the two sensors: 50kgx2 = 100kg\u003c\/li\u003e \u003cli\u003eUse four sensors to form a full-bridge measurement, measuring range for the sum of four sensors: 50kgx4 = 200kg\u003c\/li\u003e\n\u003c\/ul\u003e","published_at":"2024-03-06T02:30:51+11:00","created_at":"2024-03-06T02:30:59+11:00","vendor":"Aihasd","type":"Scale accessories","tags":["industryDE"],"price":13200,"price_min":13200,"price_max":13200,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":48962587492512,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B07F5FT17R","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Aihasd 4PCS Human Body Weight of Load Cell Weighting Sensor 50KG Half Bridge with Amplifier HX711 AD Module Strain Gauge Personal Scales","public_title":null,"options":["Default Title"],"price":13200,"weight":80,"compare_at_price":null,"inventory_management":"shopify","barcode":"Kawayy","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/files\/de-B07F5FT17R.jpg?v=1709686165","\/\/dingoship.com.au\/cdn\/shop\/products\/61o-tV4tupL.jpg?v=1709652659","\/\/dingoship.com.au\/cdn\/shop\/products\/51vm1G_xwSL.jpg?v=1709652659","\/\/dingoship.com.au\/cdn\/shop\/products\/51Ab0R0xULL.jpg?v=1709652659","\/\/dingoship.com.au\/cdn\/shop\/products\/51K20lVMZ6L.jpg?v=1709652659"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B07F5FT17R.jpg?v=1709686165","options":["Title"],"media":[{"alt":null,"id":32666744029344,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B07F5FT17R.jpg?v=1709686165"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B07F5FT17R.jpg?v=1709686165","width":1200},{"alt":null,"id":32661649981600,"position":2,"preview_image":{"aspect_ratio":0.97,"height":1031,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61o-tV4tupL.jpg?v=1709652659"},"aspect_ratio":0.97,"height":1031,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61o-tV4tupL.jpg?v=1709652659","width":1000},{"alt":null,"id":32661650014368,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51vm1G_xwSL.jpg?v=1709652659"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51vm1G_xwSL.jpg?v=1709652659","width":1000},{"alt":null,"id":32661650047136,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51Ab0R0xULL.jpg?v=1709652659"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51Ab0R0xULL.jpg?v=1709652659","width":1000},{"alt":null,"id":32661650079904,"position":5,"preview_image":{"aspect_ratio":1.029,"height":972,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51K20lVMZ6L.jpg?v=1709652659"},"aspect_ratio":1.029,"height":972,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51K20lVMZ6L.jpg?v=1709652659","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eAihasd 4PCS Human Body Weight Load Cell Weighting Sensor 50KG Half Bridge with Amplifier HX711 AD Module Strain Gauge Bathroom Scale\u003c\/h3\u003e \u003cp id=\"b\"\u003eDescription: This load sensor, sometimes called a strain gauge, is the same one found in digital bathroom scales (you know, the ones you use in January for your New Year's resolutions, and then forget about a month later). The sensor is a group of half-bridge strain gauge, there are 3 ways to use it: 1. Use one sensor with an external resistor to form a full-bridge measurement, the range of a sensor range: 50kg. External resistance on the higher requirements. 2.Use two sensors to form a full-bridge measurement, measuring range for the sum of the two sensors: 50kgx2 = 100kg 3.Use four sensors to form a full-bridge measurement, measuring range for the sum of four sensors: 50kgx4 = 200kg Package Includes: 4 X Human Scale Load Cell 50kg 1 X HX711 AD Module\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eThis load sensor, sometimes called a strain gauge, is the same one found in digital bathroom scales (you know, the ones you use in January for your New Year s resolutions, and then forget about a month later).\u003c\/li\u003e \u003cli\u003eThe sensor is a group of half- bridge strain gauge, there are 3 ways to use it\u003c\/li\u003e \u003cli\u003eUse one sensor with an external resistor to form a full-bridge measurement, the range of a sensor range: 50kg. External resistance on the higher requirements.\u003c\/li\u003e \u003cli\u003eUse two sensors to form a full-bridge measurement, measuring range for the sum of the two sensors: 50kgx2 = 100kg\u003c\/li\u003e \u003cli\u003eUse four sensors to form a full-bridge measurement, measuring range for the sum of four sensors: 50kgx4 = 200kg\u003c\/li\u003e\n\u003c\/ul\u003e"}
