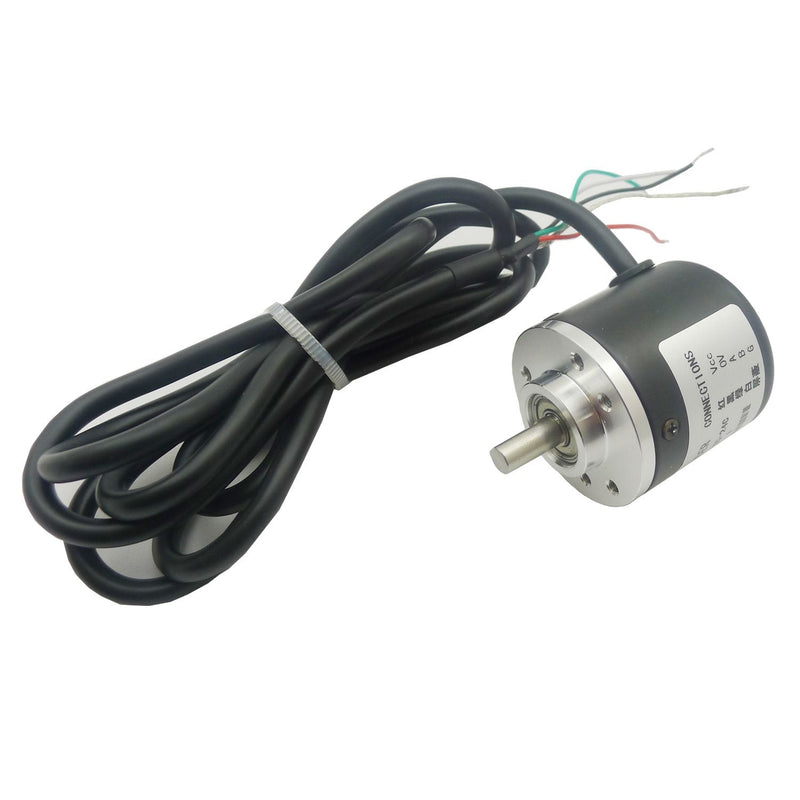

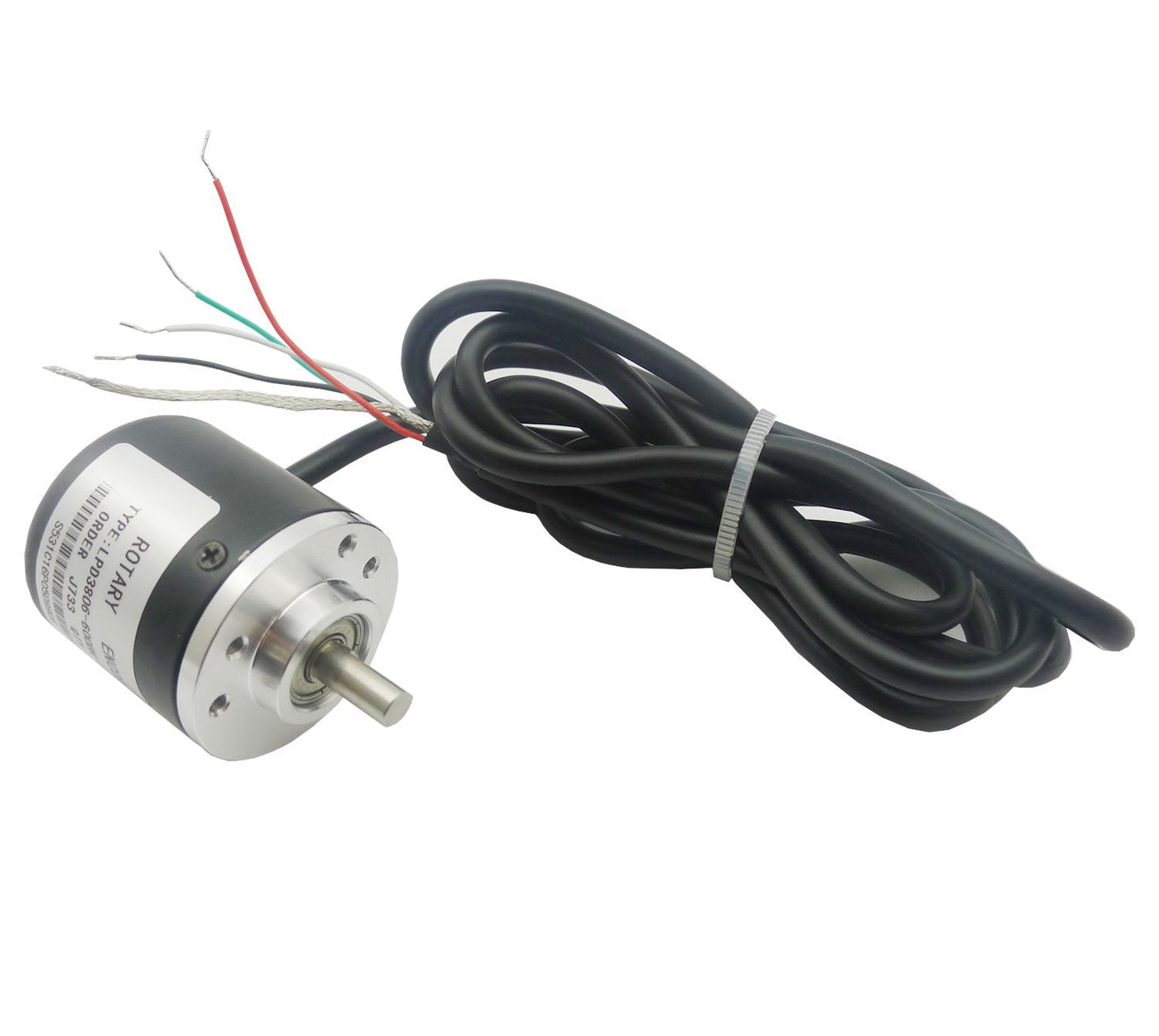

{"id":15193075974304,"title":"Aihasd AB Two-Phase 5-24V 400 Pulses Incremental Optical Rotary Encoder","handle":"aihasd-ab-two-phase-5-24v-400-pulses-incremental-optical-rotary-encoder","description":"\u003ch3\u003eAihasd AB Two-Phase 5-24V 400 Pulses Incremental Optical Rotary Encoder\u003c\/h3\u003e \u003cp id=\"b\"\u003eFeature: AB two-phase incremental optical rotary encoder 400 pulses,including NPN open collector output and voltage output two kinds of output. Standard with 1.5 m cable Performance: 400 pulses\/rev. Operating voltage: DC5-24V Maximum mechanical speed 5000 rev \/ min The electrical response frequency 20K \/ sec Integrated speed 2000 rev \/ min Size: Encoder body size: φ38mm; shaft φ6 × 13mm; axis platform: High 5mm, φ20mm; fixing holes for: M3 screws Three mounting holes on the circle 30, and the other three mounting holes on the 28 circle ; side qualifying Wiring: Green = A phase, white = B phase, red = Vcc positive supply, black = V0, please wiring as described above. Another metal shielding layer interference. Output: AB rectangular two-phase quadrature pulse output circuit output NPN open collector output type, this output type can and with internal pull-up resistor connected directly to the microcontroller or PLC, such as 51 single or PLC (PLC's input to switch connected to 0V should work), Note: If the encoder is not connected to the device can not be directly oscilloscope oscilloscope (open collector output when there is no pull-up resistor, there is no voltage output) to oscilloscope please plus two pull-up resistor AB two-phase output; Uses: for measuring the rotational speed of the object, angle, acceleration, and length measurements. Scope of use: suitable for intelligent control of various displacement measurement, automatic fixed-length leather automatic guillotine machine, steel fixed length cutting controller, civil measured height human scale, college game with robots. Note: A phase and B-phase output lines must not be directly connected to VCC, otherwise, it will burn the output three pipe. Package included: 1 x AB Two-phase 5-24V 400 Pulses Incremental Optical Rotary Encoder\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003esmall size, light weight, easy installation , high cost significant advantage.\u003c\/li\u003e \u003cli\u003eAB two-phase incremental optical rotary encoder 400 pulses,including NPN open collector output and voltage output two kinds of output.\u003c\/li\u003e \u003cli\u003eStandard with 1.5 m cable\u0026lt; \/li\u0026gt; \u003c\/li\u003e\n\u003cli\u003ePerformance: 400 pulses \/ rev.\u003c\/li\u003e \u003cli\u003eOperating voltage: DC5-24V\u003c\/li\u003e \u003c\/ul\u003e","published_at":"2025-10-03T11:21:12+10:00","created_at":"2025-10-03T11:21:09+10:00","vendor":"Aihasd","type":"Switching encoder","tags":["industryDE"],"price":20000,"price_min":20000,"price_max":20000,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":52876563087520,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B01KXQKRXU","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Aihasd AB Two-Phase 5-24V 400 Pulses Incremental Optical Rotary Encoder","public_title":null,"options":["Default Title"],"price":20000,"weight":700,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/dingoship.com.au\/cdn\/shop\/files\/61RFb_ua2mL.jpg?v=1759454471","\/\/dingoship.com.au\/cdn\/shop\/files\/61rHCr7z8oL.jpg?v=1759454471","\/\/dingoship.com.au\/cdn\/shop\/files\/61IUcfnWwcL.jpg?v=1759454471","\/\/dingoship.com.au\/cdn\/shop\/files\/61P9kitrl9L.jpg?v=1759454471","\/\/dingoship.com.au\/cdn\/shop\/files\/61h-yiLJTCL.jpg?v=1759454471","\/\/dingoship.com.au\/cdn\/shop\/files\/61zXqdL1LGL.jpg?v=1759454471"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/files\/61RFb_ua2mL.jpg?v=1759454471","options":["Title"],"media":[{"alt":null,"id":38388284522656,"position":1,"preview_image":{"aspect_ratio":1.119,"height":1341,"width":1500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61RFb_ua2mL.jpg?v=1759454471"},"aspect_ratio":1.119,"height":1341,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61RFb_ua2mL.jpg?v=1759454471","width":1500},{"alt":null,"id":38388284555424,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61rHCr7z8oL.jpg?v=1759454471"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61rHCr7z8oL.jpg?v=1759454471","width":1500},{"alt":null,"id":38388284588192,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61IUcfnWwcL.jpg?v=1759454471"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61IUcfnWwcL.jpg?v=1759454471","width":1500},{"alt":null,"id":38388284620960,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61P9kitrl9L.jpg?v=1759454471"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61P9kitrl9L.jpg?v=1759454471","width":1500},{"alt":null,"id":38388284653728,"position":5,"preview_image":{"aspect_ratio":1.035,"height":1297,"width":1343,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61h-yiLJTCL.jpg?v=1759454471"},"aspect_ratio":1.035,"height":1297,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61h-yiLJTCL.jpg?v=1759454471","width":1343},{"alt":null,"id":38388284686496,"position":6,"preview_image":{"aspect_ratio":2.136,"height":891,"width":1903,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61zXqdL1LGL.jpg?v=1759454471"},"aspect_ratio":2.136,"height":891,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61zXqdL1LGL.jpg?v=1759454471","width":1903}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eAihasd AB Two-Phase 5-24V 400 Pulses Incremental Optical Rotary Encoder\u003c\/h3\u003e \u003cp id=\"b\"\u003eFeature: AB two-phase incremental optical rotary encoder 400 pulses,including NPN open collector output and voltage output two kinds of output. Standard with 1.5 m cable Performance: 400 pulses\/rev. Operating voltage: DC5-24V Maximum mechanical speed 5000 rev \/ min The electrical response frequency 20K \/ sec Integrated speed 2000 rev \/ min Size: Encoder body size: φ38mm; shaft φ6 × 13mm; axis platform: High 5mm, φ20mm; fixing holes for: M3 screws Three mounting holes on the circle 30, and the other three mounting holes on the 28 circle ; side qualifying Wiring: Green = A phase, white = B phase, red = Vcc positive supply, black = V0, please wiring as described above. Another metal shielding layer interference. Output: AB rectangular two-phase quadrature pulse output circuit output NPN open collector output type, this output type can and with internal pull-up resistor connected directly to the microcontroller or PLC, such as 51 single or PLC (PLC's input to switch connected to 0V should work), Note: If the encoder is not connected to the device can not be directly oscilloscope oscilloscope (open collector output when there is no pull-up resistor, there is no voltage output) to oscilloscope please plus two pull-up resistor AB two-phase output; Uses: for measuring the rotational speed of the object, angle, acceleration, and length measurements. Scope of use: suitable for intelligent control of various displacement measurement, automatic fixed-length leather automatic guillotine machine, steel fixed length cutting controller, civil measured height human scale, college game with robots. Note: A phase and B-phase output lines must not be directly connected to VCC, otherwise, it will burn the output three pipe. Package included: 1 x AB Two-phase 5-24V 400 Pulses Incremental Optical Rotary Encoder\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003esmall size, light weight, easy installation , high cost significant advantage.\u003c\/li\u003e \u003cli\u003eAB two-phase incremental optical rotary encoder 400 pulses,including NPN open collector output and voltage output two kinds of output.\u003c\/li\u003e \u003cli\u003eStandard with 1.5 m cable\u0026lt; \/li\u0026gt; \u003c\/li\u003e\n\u003cli\u003ePerformance: 400 pulses \/ rev.\u003c\/li\u003e \u003cli\u003eOperating voltage: DC5-24V\u003c\/li\u003e \u003c\/ul\u003e"}
