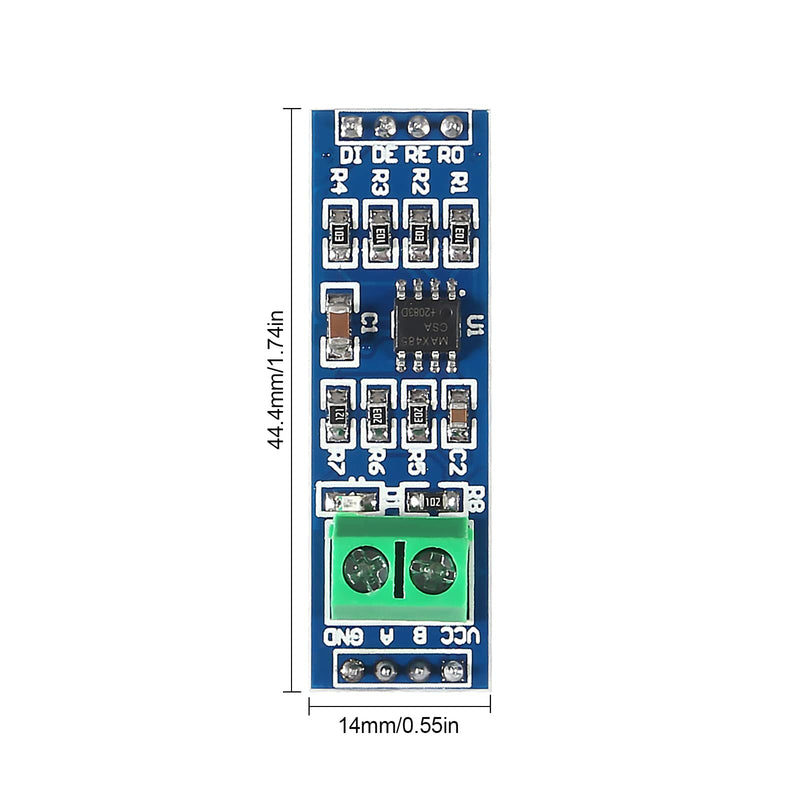

{"id":7618584412320,"title":"Alinan 15pcs MAX485 RS485 Transceiver Module TTL UART Serial to RS-485 MCU Development Board","handle":"alinan-15pcs-max485-rs485-transceiver-module-ttl-uart-serial-to-rs-485-mcu-development-board","description":"\u003ch3\u003eAlinan 15pcs MAX485 RS485 Transceiver Module TTL UART Serial to RS-485 MCU Development Board\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFeature : Working Voltage: 5V Main Chip: MAX485 Speeds: up to 2.5Mbit\/Sec\nDistances: up to 1200 meters Multi-drop Supports: up to 32 devices on same bus\nUses differential signaling for noise immunity On board 5.08(mm) 2P connector\nfor RS 485 wires All the pins of the chip are brought out, can be controlled\nby MCUPIN: VCC: 5V A: Non-inverting receiver input and no-ninverting driver\noutput B: Inverting receiver input and inverting driver output GND: 0V R0:\nReceiver output (to rx pin of micro controller) RE: Receiver output enable\n(low to enable) DE: Driver output enable (high to enable) DI: Driver input (to\nTx pin of micro controller)\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eSerial data can be transmitted in both directions (half duplex) at a data rate up to 2.5Mbps.\u003c\/li\u003e\n \u003cli\u003eThe low power transceiver module is based on the MAX485 IC to allow serial communication over very long cable runs (up 4000 feet \/ 1200 meters).\u003c\/li\u003e\n \u003cli\u003eCan connect multiple modules together for communication between 2 or more devices(up to 32). For even greater distances two modules can be configured as a repeater.\u003c\/li\u003e\n \u003cli\u003eData connections to the modules are provided by a standard 0.1\" pitch header pins which can also be soldered into standard prototyping PCB and breadboards. Screw terminals provide convention connection to the actual data cable.\u003c\/li\u003e\n \u003cli\u003eApplication: Use to Low-Power RS-485 Transceivers, Low-Power RS-422 Transceivers, Level Translators, Transceivers for EMI-Sensitive Applications, Industrial-Control Local Area Networks.\u003c\/li\u003e\n \u003c\/ul\u003e\n\u003chr class=\"py-vbody\" style=\"display: none\"\u003e\n\n\n","published_at":"2022-11-25T17:36:42+11:00","created_at":"2022-11-25T17:36:48+11:00","vendor":"Alinan","type":"","tags":["electronics_new_Nov2022"],"price":10700,"price_min":10700,"price_max":10700,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42803373572256,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0B7N65VKX","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Alinan 15pcs MAX485 RS485 Transceiver Module TTL UART Serial to RS-485 MCU Development Board","public_title":null,"options":["Default Title"],"price":10700,"weight":82,"compare_at_price":null,"inventory_management":null,"barcode":"701715521735","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/dingoship.com.au\/cdn\/shop\/products\/B0B7N65VKX.jpg?v=1669418650","\/\/dingoship.com.au\/cdn\/shop\/products\/61u_PVJ7wYL.jpg?v=1669358208","\/\/dingoship.com.au\/cdn\/shop\/products\/61g97pLzqxL.jpg?v=1669358208","\/\/dingoship.com.au\/cdn\/shop\/products\/51cpgM2LtVL.jpg?v=1669358208","\/\/dingoship.com.au\/cdn\/shop\/products\/614cjmfN-2L.jpg?v=1669358208"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/products\/B0B7N65VKX.jpg?v=1669418650","options":["Title"],"media":[{"alt":null,"id":25893961990304,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B0B7N65VKX.jpg?v=1669418650"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B0B7N65VKX.jpg?v=1669418650","width":1600},{"alt":null,"id":25890057912480,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61u_PVJ7wYL.jpg?v=1669358208"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61u_PVJ7wYL.jpg?v=1669358208","width":1600},{"alt":null,"id":25890057945248,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61g97pLzqxL.jpg?v=1669358208"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61g97pLzqxL.jpg?v=1669358208","width":1600},{"alt":null,"id":25890057978016,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51cpgM2LtVL.jpg?v=1669358208"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51cpgM2LtVL.jpg?v=1669358208","width":1600},{"alt":null,"id":25890058010784,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/614cjmfN-2L.jpg?v=1669358208"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/614cjmfN-2L.jpg?v=1669358208","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eAlinan 15pcs MAX485 RS485 Transceiver Module TTL UART Serial to RS-485 MCU Development Board\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFeature : Working Voltage: 5V Main Chip: MAX485 Speeds: up to 2.5Mbit\/Sec\nDistances: up to 1200 meters Multi-drop Supports: up to 32 devices on same bus\nUses differential signaling for noise immunity On board 5.08(mm) 2P connector\nfor RS 485 wires All the pins of the chip are brought out, can be controlled\nby MCUPIN: VCC: 5V A: Non-inverting receiver input and no-ninverting driver\noutput B: Inverting receiver input and inverting driver output GND: 0V R0:\nReceiver output (to rx pin of micro controller) RE: Receiver output enable\n(low to enable) DE: Driver output enable (high to enable) DI: Driver input (to\nTx pin of micro controller)\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eSerial data can be transmitted in both directions (half duplex) at a data rate up to 2.5Mbps.\u003c\/li\u003e\n \u003cli\u003eThe low power transceiver module is based on the MAX485 IC to allow serial communication over very long cable runs (up 4000 feet \/ 1200 meters).\u003c\/li\u003e\n \u003cli\u003eCan connect multiple modules together for communication between 2 or more devices(up to 32). For even greater distances two modules can be configured as a repeater.\u003c\/li\u003e\n \u003cli\u003eData connections to the modules are provided by a standard 0.1\" pitch header pins which can also be soldered into standard prototyping PCB and breadboards. Screw terminals provide convention connection to the actual data cable.\u003c\/li\u003e\n \u003cli\u003eApplication: Use to Low-Power RS-485 Transceivers, Low-Power RS-422 Transceivers, Level Translators, Transceivers for EMI-Sensitive Applications, Industrial-Control Local Area Networks.\u003c\/li\u003e\n \u003c\/ul\u003e\n\u003chr class=\"py-vbody\" style=\"display: none\"\u003e\n\n\n"}
