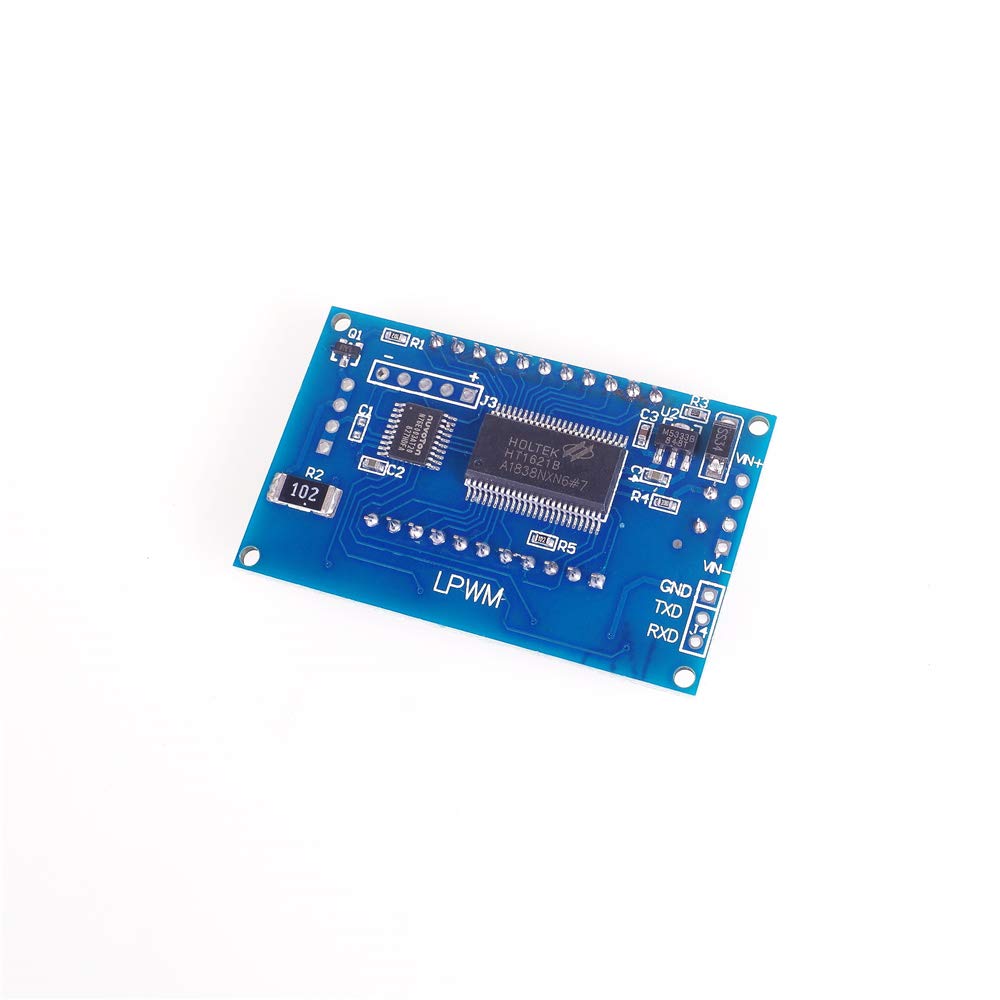

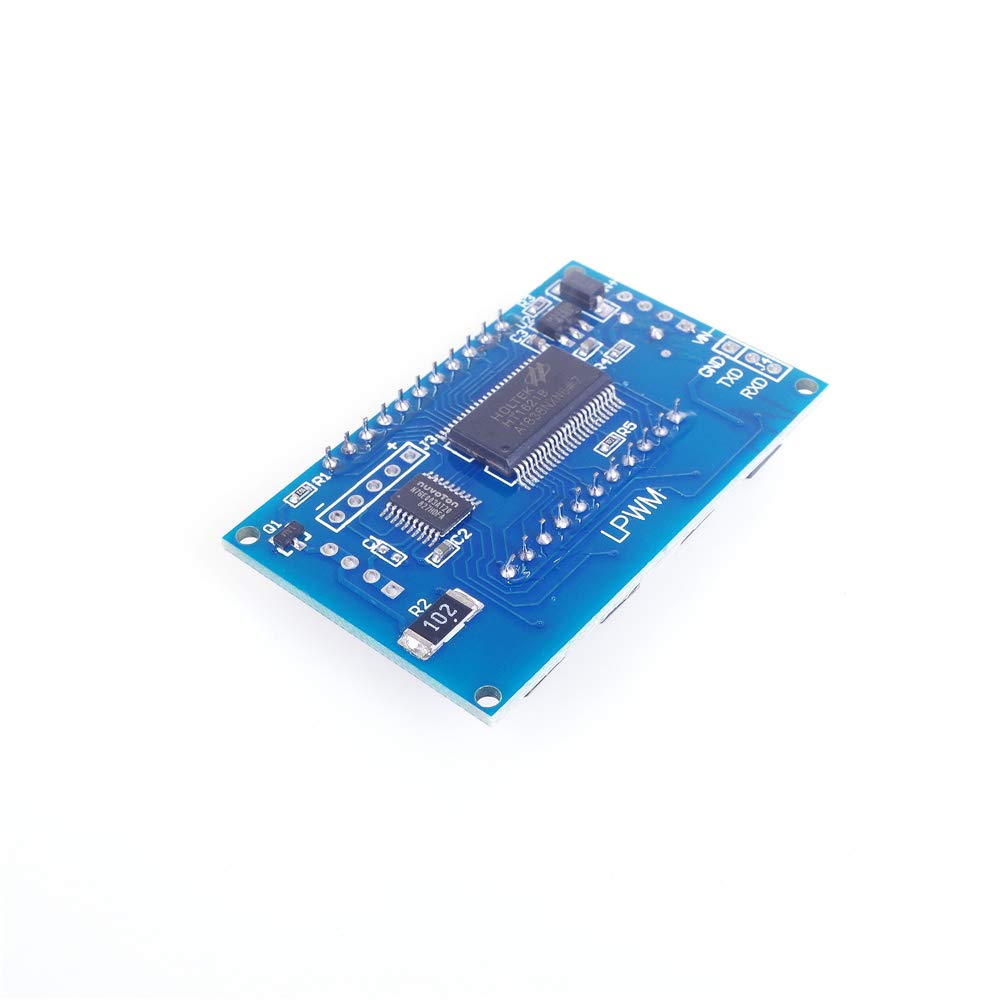

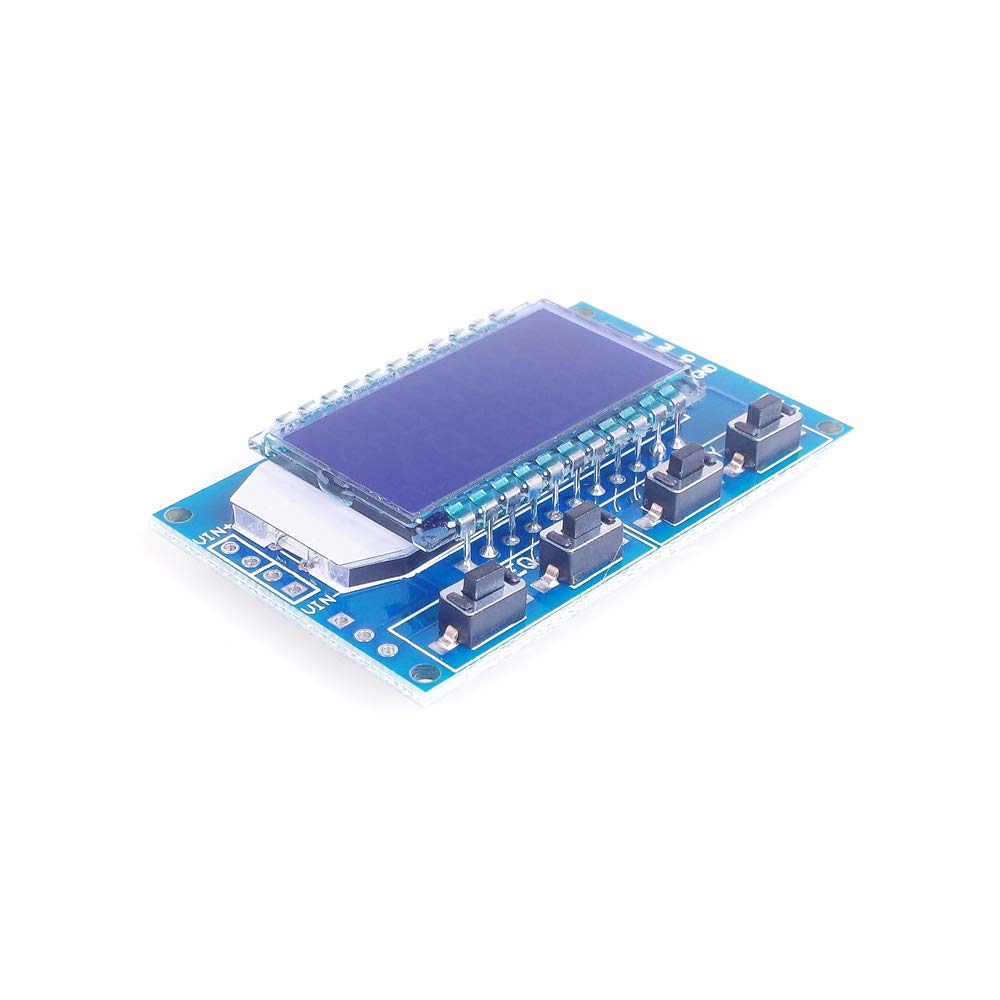

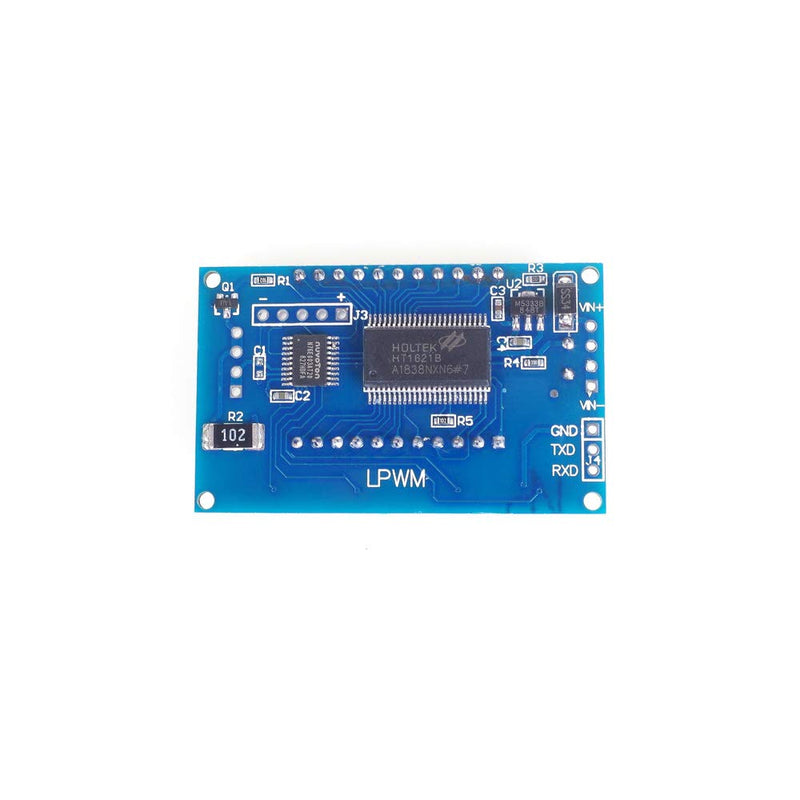

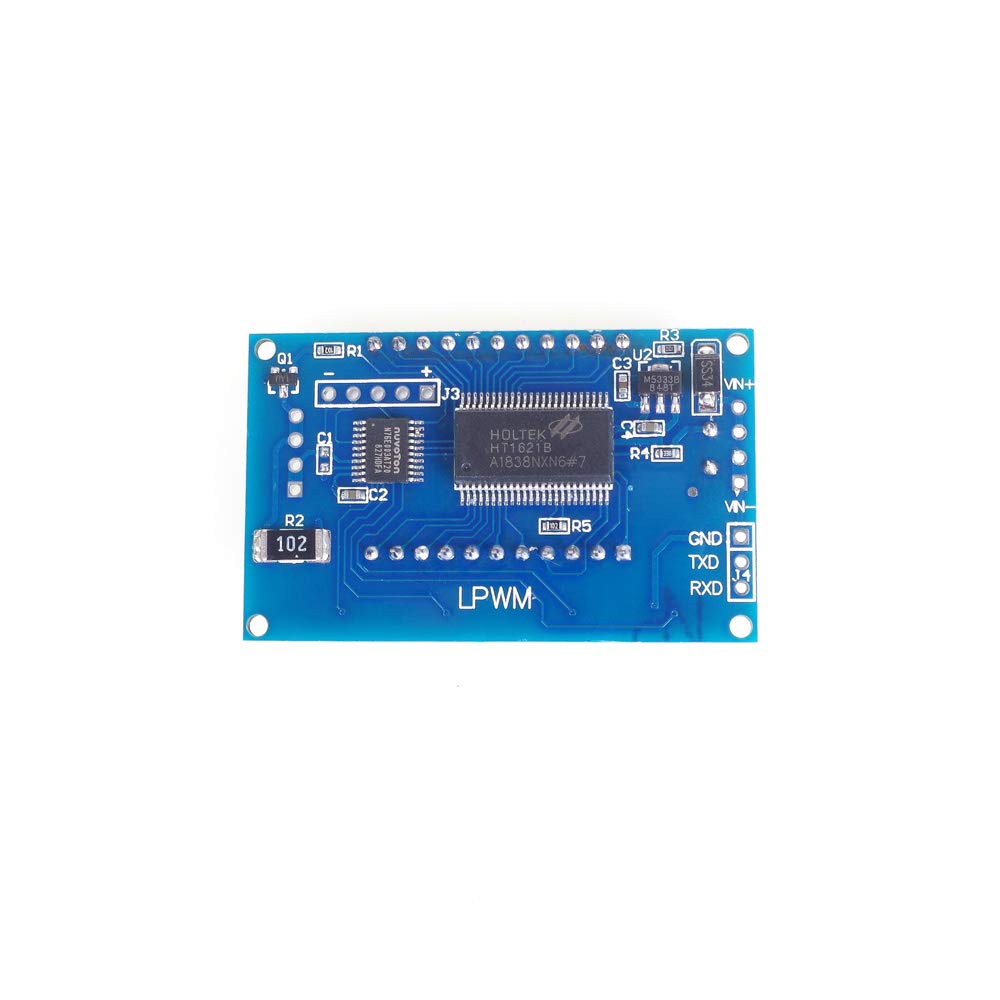

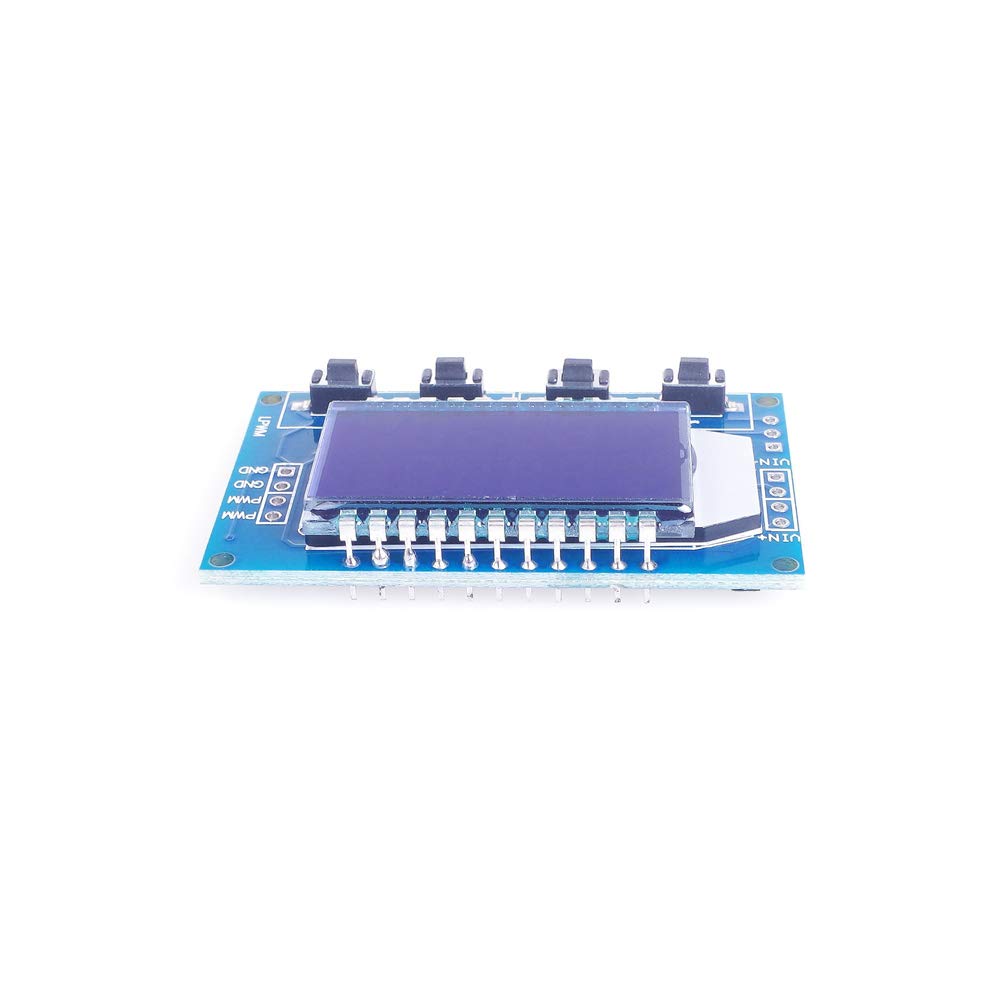

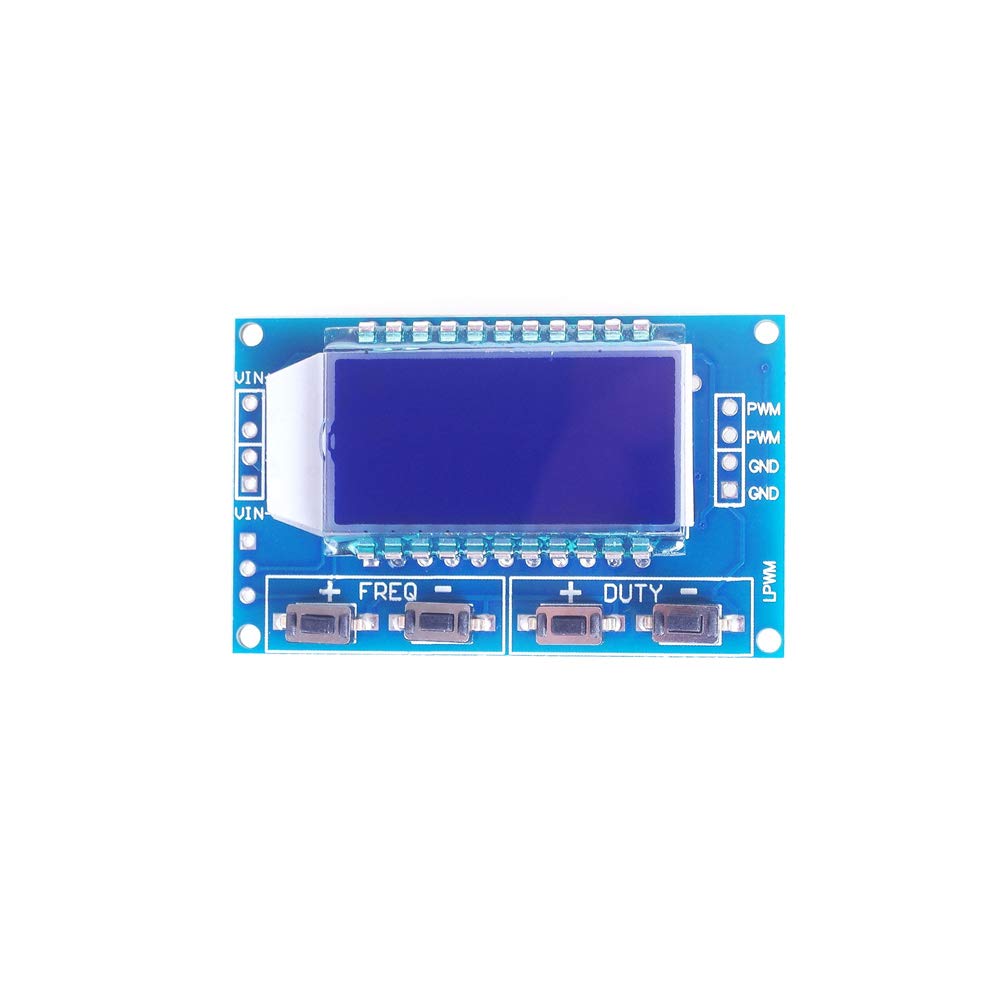

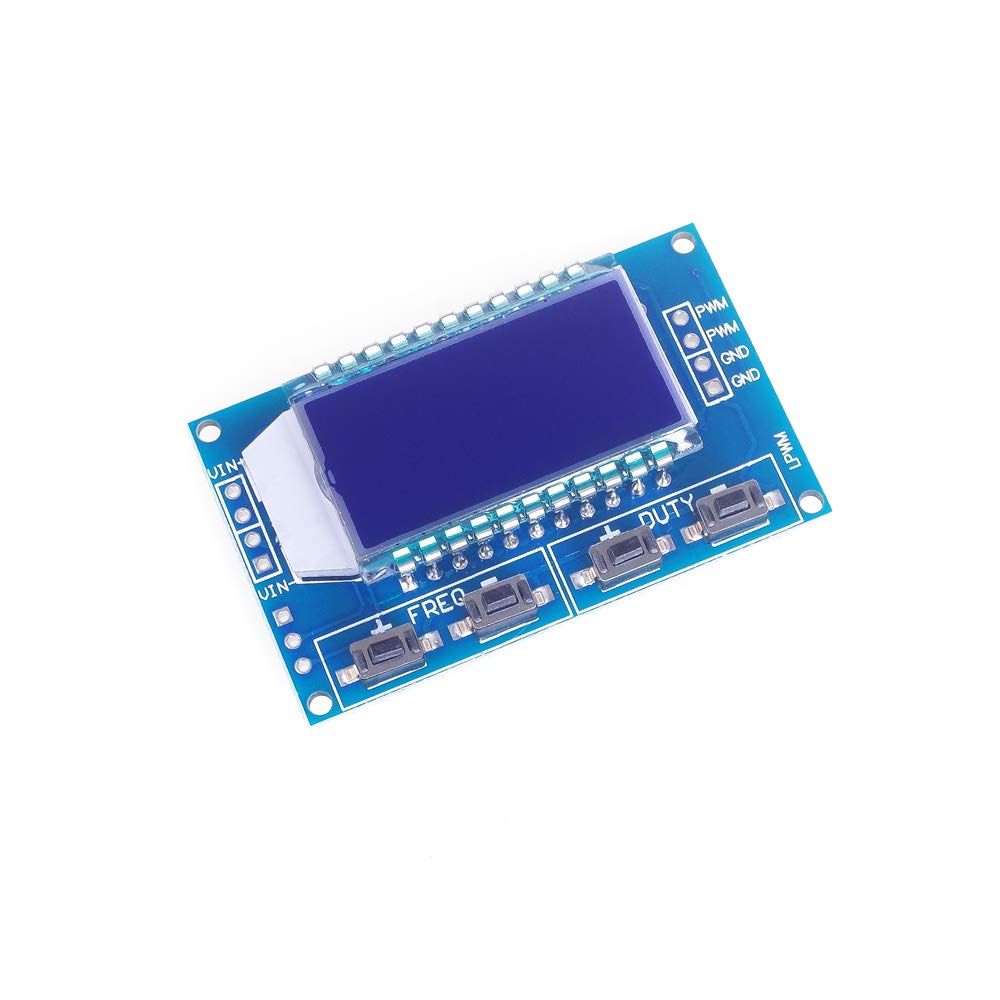

{"id":12966544179360,"title":"ANGEEK Signal Generator PWM Pulse Frequency Duty Cycle Adjustable Module LCD Display 1Hz-150Khz 3.3V-30V PWM Board Module","handle":"angeek-signal-generator-pwm-pulse-frequency-duty-cycle-adjustable-module-lcd-display-1hz-150khz-3-3v-30v-pwm-board-module","description":"\u003ch3\u003eANGEEK Signal Generator PWM Pulse Frequency Duty Cycle Adjustable Module LCD Display 1Hz-150Khz 3.3V-30V PWM Board Module\u003c\/h3\u003e \u003cp id=\"b\"\u003eDescription:Working voltage: 3.3 ~ 30VFrequency range: 1Hz ~ 150KHzFrequency accuracy: the accuracy in each range is about 2%Signal load capacity: the output current can be about 5 ~ 30maOutput amplitude: PWM amplitude equal to the supply voltageAmbient temperature: -20 ~ +70 °Frequency is divided into four ranges, automatic switching :1. XXX (no decimal point): the smallest unit is 1Hz, the value range of 1Hz ~ 999Hz;2. X.XX (decimal point in the hundred) the smallest unit is 0.01Khz, the range of 1.00Khz ~ 9.99Khz;3. XX.X (decimal point in ten): the smallest unit is 0.1Khz; value range of 10.0KHz ~ 99.9KHz4. XXX (decimal point in ten and hundred): the smallest unit is 1Khz; value range 1KHz ~ 150KHz5. eg frequency display: 100 indicates PWM output 100Hz pulse; 1.01 indicates PWM output 1.01K pulse; 54.1 indicates that the PWM output has a pulse of 54.1 kHz; 1.2.4 indicates that the PWM output is 124 kHz pulse;6. Duty cycle range: 0 ~ 100%Package Included:1 x Signal Generator Module\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eLCD display frequency and duty cycle, very clear, PWM output can be set to the frequency and duty cycle\u003c\/li\u003e \u003cli\u003eWide frequency range, high precision\u003c\/li\u003e \u003cli\u003eSerial communication, TTL level\u003c\/li\u003e \u003cli\u003eSupport touch (increase or decrease a unit) and long press (fast increase or decrease)\u003c\/li\u003e \u003cli\u003eThe parameters automatically save, power down Not lost\u003c\/li\u003e \u003c\/ul\u003e","published_at":"2024-04-07T05:06:54+10:00","created_at":"2024-04-07T05:07:05+10:00","vendor":"ANGEEK","type":"Function generator","tags":["industryDE"],"price":16400,"price_min":16400,"price_max":16400,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":49431334027424,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B07XY8S8Z4","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ANGEEK Signal Generator PWM Pulse Frequency Duty Cycle Adjustable Module LCD Display 1Hz-150Khz 3.3V-30V PWM Board Module","public_title":null,"options":["Default Title"],"price":16400,"weight":700,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/files\/de-B07XY8S8Z4.jpg?v=1712449021","\/\/dingoship.com.au\/cdn\/shop\/files\/51WpeobCpNL.jpg?v=1712430425","\/\/dingoship.com.au\/cdn\/shop\/files\/51Z9DMZBzoL.jpg?v=1712430425","\/\/dingoship.com.au\/cdn\/shop\/files\/51XCZ-UPhmL.jpg?v=1712430426","\/\/dingoship.com.au\/cdn\/shop\/files\/51cQcLhW3xL.jpg?v=1712430426","\/\/dingoship.com.au\/cdn\/shop\/files\/51t1lhNiyaL.jpg?v=1712430426","\/\/dingoship.com.au\/cdn\/shop\/files\/51bYsqs5ZYL.jpg?v=1712430426","\/\/dingoship.com.au\/cdn\/shop\/files\/71-Si3NCaBL.jpg?v=1712430426"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B07XY8S8Z4.jpg?v=1712449021","options":["Title"],"media":[{"alt":null,"id":33794353660064,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B07XY8S8Z4.jpg?v=1712449021"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B07XY8S8Z4.jpg?v=1712449021","width":1000},{"alt":null,"id":33790549917856,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51WpeobCpNL.jpg?v=1712430425"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51WpeobCpNL.jpg?v=1712430425","width":1000},{"alt":null,"id":33790549950624,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51Z9DMZBzoL.jpg?v=1712430425"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51Z9DMZBzoL.jpg?v=1712430425","width":1000},{"alt":null,"id":33790549983392,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51XCZ-UPhmL.jpg?v=1712430426"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51XCZ-UPhmL.jpg?v=1712430426","width":1000},{"alt":null,"id":33790550016160,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51cQcLhW3xL.jpg?v=1712430426"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51cQcLhW3xL.jpg?v=1712430426","width":1000},{"alt":null,"id":33790550048928,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51t1lhNiyaL.jpg?v=1712430426"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51t1lhNiyaL.jpg?v=1712430426","width":1000},{"alt":null,"id":33790550114464,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51bYsqs5ZYL.jpg?v=1712430426"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51bYsqs5ZYL.jpg?v=1712430426","width":1000},{"alt":null,"id":33790550147232,"position":8,"preview_image":{"aspect_ratio":0.75,"height":2560,"width":1920,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71-Si3NCaBL.jpg?v=1712430426"},"aspect_ratio":0.75,"height":2560,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71-Si3NCaBL.jpg?v=1712430426","width":1920}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eANGEEK Signal Generator PWM Pulse Frequency Duty Cycle Adjustable Module LCD Display 1Hz-150Khz 3.3V-30V PWM Board Module\u003c\/h3\u003e \u003cp id=\"b\"\u003eDescription:Working voltage: 3.3 ~ 30VFrequency range: 1Hz ~ 150KHzFrequency accuracy: the accuracy in each range is about 2%Signal load capacity: the output current can be about 5 ~ 30maOutput amplitude: PWM amplitude equal to the supply voltageAmbient temperature: -20 ~ +70 °Frequency is divided into four ranges, automatic switching :1. XXX (no decimal point): the smallest unit is 1Hz, the value range of 1Hz ~ 999Hz;2. X.XX (decimal point in the hundred) the smallest unit is 0.01Khz, the range of 1.00Khz ~ 9.99Khz;3. XX.X (decimal point in ten): the smallest unit is 0.1Khz; value range of 10.0KHz ~ 99.9KHz4. XXX (decimal point in ten and hundred): the smallest unit is 1Khz; value range 1KHz ~ 150KHz5. eg frequency display: 100 indicates PWM output 100Hz pulse; 1.01 indicates PWM output 1.01K pulse; 54.1 indicates that the PWM output has a pulse of 54.1 kHz; 1.2.4 indicates that the PWM output is 124 kHz pulse;6. Duty cycle range: 0 ~ 100%Package Included:1 x Signal Generator Module\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eLCD display frequency and duty cycle, very clear, PWM output can be set to the frequency and duty cycle\u003c\/li\u003e \u003cli\u003eWide frequency range, high precision\u003c\/li\u003e \u003cli\u003eSerial communication, TTL level\u003c\/li\u003e \u003cli\u003eSupport touch (increase or decrease a unit) and long press (fast increase or decrease)\u003c\/li\u003e \u003cli\u003eThe parameters automatically save, power down Not lost\u003c\/li\u003e \u003c\/ul\u003e"}
