ARCELI JSN-SR04T Integrated ultrasonic measuring module, parking sensor ultrasonic sensor module Applicable for obstacle avoidance, automatic control, object detection, traffic control

In Stock. Leaves warehouse within 2 - 3 business days

150.00 AUD
Maximum quantity available reached.
Enter 5DINGO at Checkout for 5% OFF & Free Shipping in Australia
More detailed product descriptions
Free Shipping Australia Wide
100% Safe & Secure Checkout
100 Days Return Policy *
1 Year Warranty *

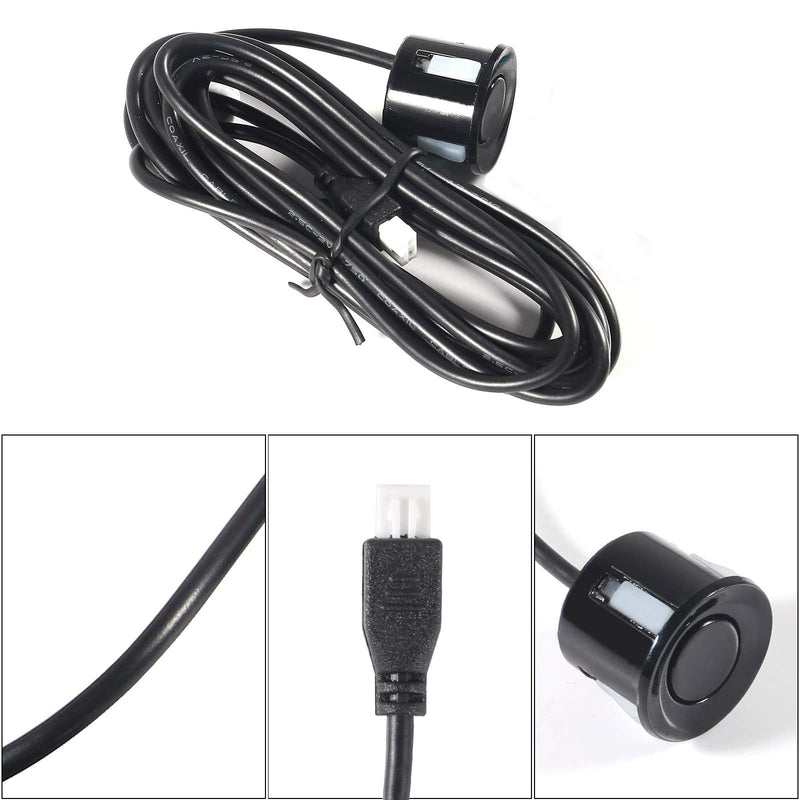

ARCELI JSN-SR04T Integrated Ultrasonic Measuring Module, Parking Sensor Ultrasonic Sensor Module Applicable to Obstacle Avoidance, Automatic Control, Object Detection, Traffic Control

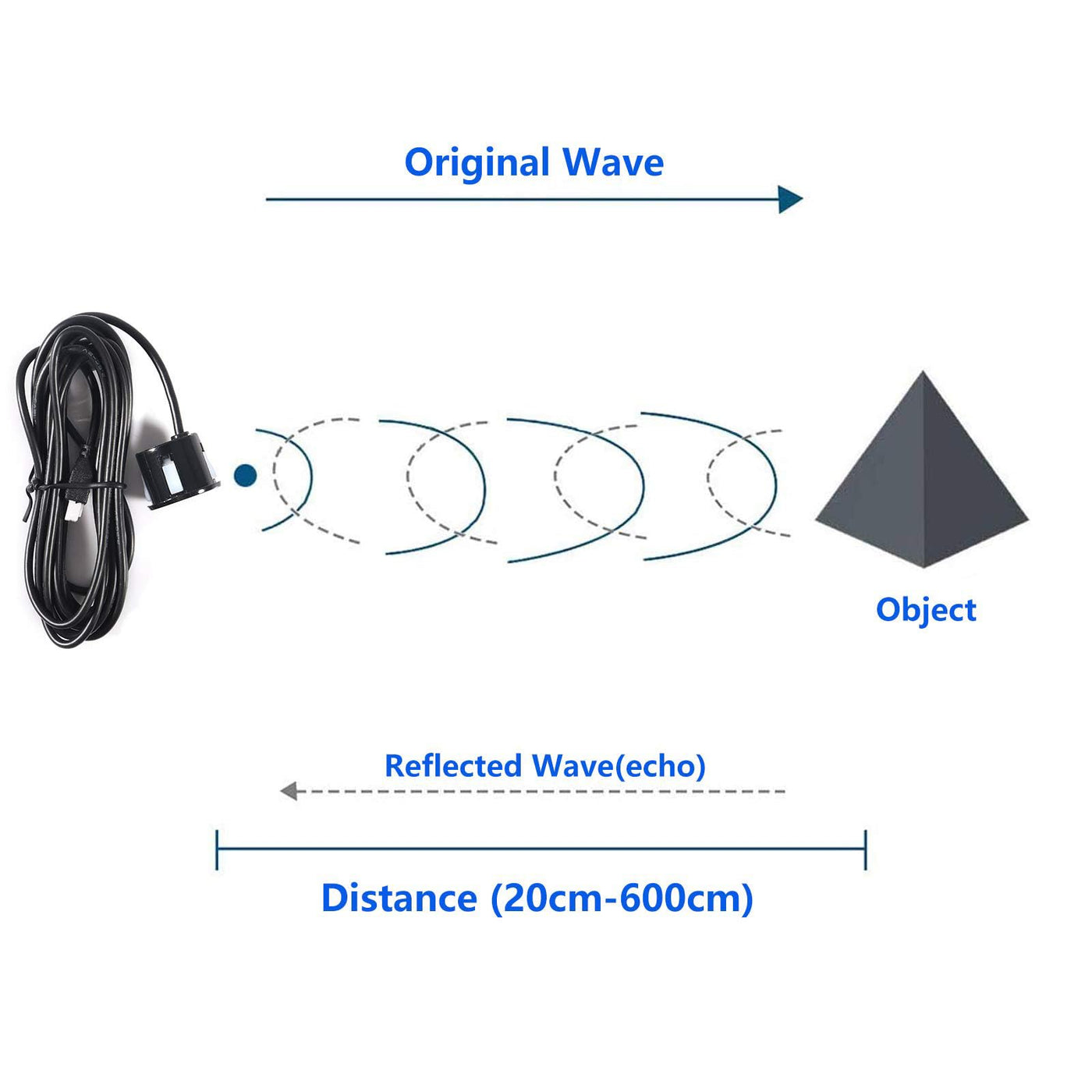

Functional Principle:(1) Use the IO port TRIG to To trigger the measurement range, give at least 10us high-level signal; (2) The module automatically sends 8 40khz square waves to automatically detect whether there is a signal back; (3) There is a signal back through the IO Port ECHO output a high level, the duration of the high level is the ultrasonic time from start to return. Test distance = (High-level time sound speed (340M/S))/2. Parameters: Operating voltage: DC 5Vstatic working current: 5MAGESAMBERSTAUTSST! gnaw : less than 50 degreesOperating temperature: -10-70°CStorage temperature: -20-80°C

Product Features

  • Compact and user-friendly JSN-SR04T ultrasound -Distance sensor module for precise and simple parking assistance.
  • Low voltage and low power consumption make the use of the module particularly energy-saving.
  • High measurement accuracy and strong interference resistance ensure reliable results.
  • li>
  • Integrated closed design, can be used in wet and harsh environments.
  • Versatile applications in areas such as obstacle avoidance, automatic control, object detection, traffic control, security engineering, industrial control, artificial intelligence and research.< /li>
