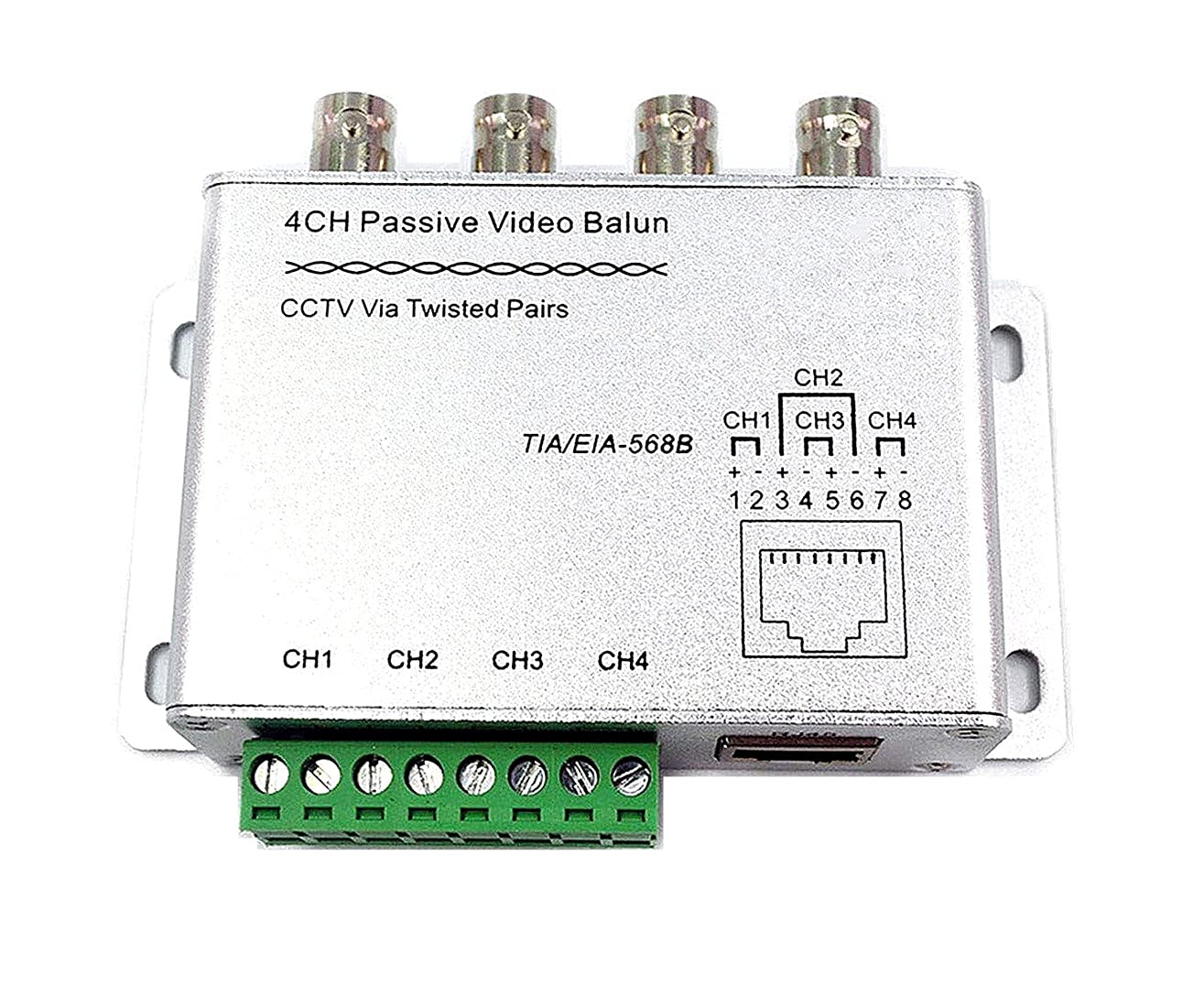

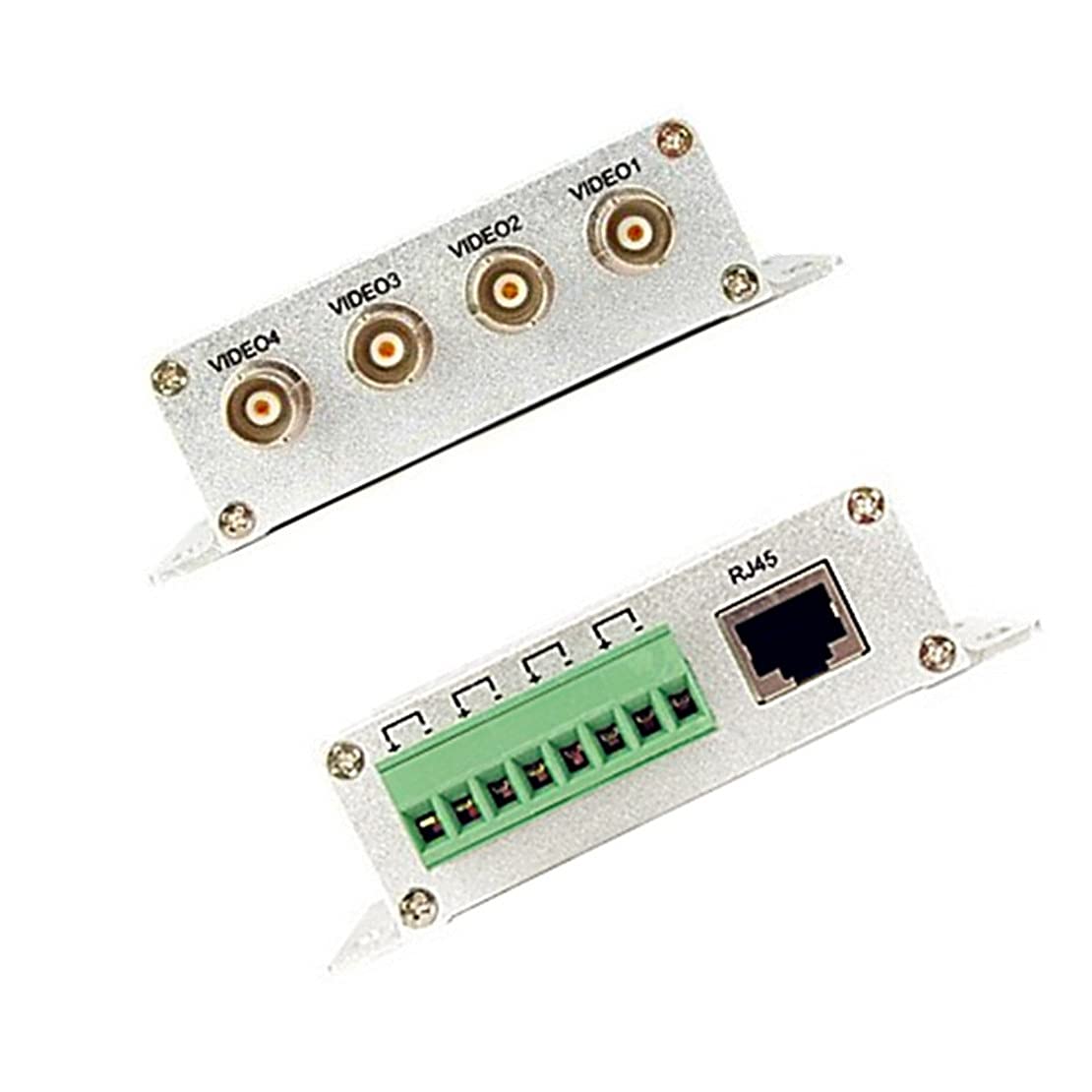

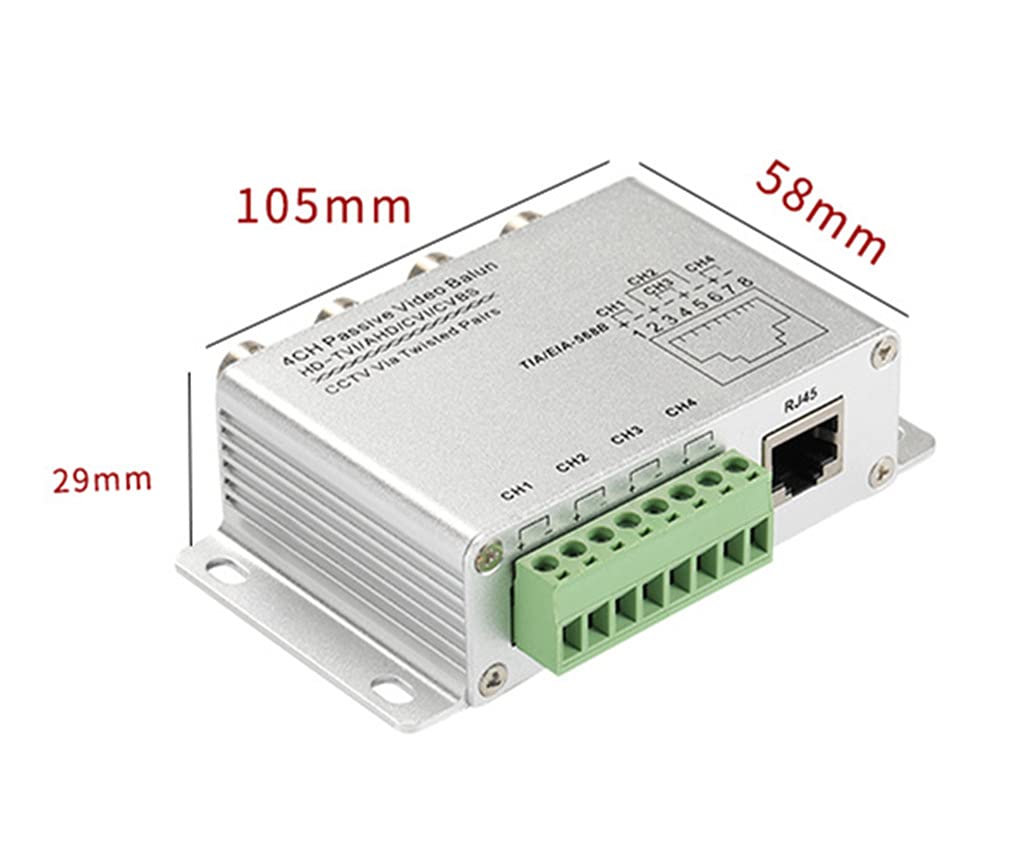

{"id":7347601703072,"title":"BeElion UTP 4 Channel Passive Video Balun Transceiver, BNC to Cat5\/5E\/6 RJ45(T568B) UTP Cable Converter for CCTV Surveillance Camera System","handle":"beelion-utp-4-channel-passive-video-balun-transceiver-bnc-to-cat5-5e-6-rj45t568b-utp-cable-converter-for-cctv-surveillance-camera-system","description":"\u003ch3\u003eBeElion UTP 4 Channel Passive Video Balun Transceiver, BNC to Cat5\/5E\/6 RJ45(T568B) UTP Cable Converter for CCTV Surveillance Camera System\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eBNC to Cat5\/5E\/6 RJ45 UTP Cable Converter Product\nDescriptions Material: ABS + Copper + Rron Galvanized (shell)Interface name:\nNetwork cable connection port + RJ45 + BNCTransmission Signal: 4\nChannelSupport format: analog video signalNo power required, Built-in\ntransient suppression protection Product Parameters Built-in transient\nsuppression protection.Applicable to NTSC, PAL, SECAM and CCIR systems\nFrequency response: DC - 8MHzCMRR (Common Mode Rejection Ratio):\n60DBImpedance: BNC terminal: 75ohm, Connection terminal: 100ohmWorking\ntemperature: -10°C - 70°C Storage temperature: -30°C - 70°CSize: 10.3 x 5.7 x\n2.8cm; Weight: 184g Wire Requirements Unshielded Cat-5 or above twisted pair\nwire(please use standard Cat-5 or above twisted pair wire. The wire quality\nwill directly affect the transmitted image effect and transmission\ndistance.)Characteristic impedance: 100Ω±20Ω DC loop resistance:\n18Ω\/100m(328ft)Differential capacitance:62pf(Maximum) Read more Connection\nmethod: Clamp modular plugs for a Cat-5 unshield twisted pair wire according\nto the connection order of TIA-EIA-568B, connect the clamped modular plugs to\nthe RJ45 socket,connect the coax to the BNC. Read more Passive Video Balun\nTransmitter Receiver BNC Male to UTP Cable for CCTV System More Product\nIntroductions With working with passive transceiver and active transmitters\nallow signals transmission up to 330m and 1500m respectively.The unparalleled\ninterference rejection and low emissions of the UTP allow video signals to co-\nexist in the same wire bundle as telephone, datacom, or low-voltage power\ncircuits.This 4 Channel Video Balun allows the use of a shared or existing\ncable plant.Video balun is to convert the video signal into the signal\napplicable to be transmitted on common Cat-5 unshielded twisted pair wire with\nperfect transmission effect, which can be applied in the occasions such as\nvideo monitoring and video meeting and can transmit four channels of video\nimage simultaneously on an 8-core Cat-5 twisted pair wire.Video Balun\nTransceiver can simplify the wiring project and save wire use .4 Channel UTP\nBalun adopt differential signal transmission with excellent anti-jamming\nability. Save project wire expenses. each a pair of twisted pair wire\ntransmits one channel of video signal and one common Cat-5 unshielded twisted\npair wire can simultaneously transmit four channels of video signal.Full\nmotion CCTV video at distances up to 330m when used with any passive UTP video\ntransceiver.Up to 1500m with any UTP video receiver. No power required.\nSuggest to use this product indoors. When installing the video balun in\noutdoor,please install it in a waterproof place.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eNo power required, Built-in transient suppression protection,Size: 10.3 x 5.7 x 2.8cm ;Weight: 184g;# CMRR (Common Mode Rejection Ratio): 60DB .\u003c\/li\u003e\n \u003cli\u003eImpedance: BNC terminal: 75ohm;Connection terminal: 100ohm ;Frequency response: DC - 8MHz\u003c\/li\u003e\n \u003cli\u003eWorking temperature: -10C - 70C;Storage temperature: -30C - 70C.Package Content : 1 x UTP Passive Balun;1 x Manual\u003c\/li\u003e\n \u003cli\u003eFull motion CCTV video at distances up to 330m when used with any passive UTP video transceiver.\u003c\/li\u003e\n \u003cli\u003eVideo Balun Transceiver can simplify the wiring project and save wire use quantity. 4 Channel UTP Balun adopt differential signal transmission with excellent anti-jamming ability.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-04-20T18:15:20+10:00","created_at":"2022-04-20T18:15:24+10:00","vendor":"BeElion","type":"Surveillance Camera Cables","tags":["electronics2022"],"price":15500,"price_min":15500,"price_max":15500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42001782407328,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B098B5393T","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"BeElion UTP 4 Channel Passive Video Balun Transceiver, BNC to Cat5\/5E\/6 RJ45(T568B) UTP Cable Converter for CCTV Surveillance Camera System","public_title":null,"options":["Default Title"],"price":15500,"weight":168,"compare_at_price":null,"inventory_management":null,"barcode":"BE369091ELECTRONICS","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/products\/B098B5393T.jpg?v=1650500449","\/\/dingoship.com.au\/cdn\/shop\/products\/51832BAI0_S.jpg?v=1650442524","\/\/dingoship.com.au\/cdn\/shop\/products\/51krk0Vx_AS_8799a388-2385-48c7-a50c-dd91d6d6348d.jpg?v=1650442524","\/\/dingoship.com.au\/cdn\/shop\/products\/61rUlNpsa4S_47307592-c6d7-49e2-b785-c6ebb84c0370.jpg?v=1650442524"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/products\/B098B5393T.jpg?v=1650500449","options":["Title"],"media":[{"alt":null,"id":24514538569888,"position":1,"preview_image":{"aspect_ratio":1.195,"height":1100,"width":1315,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B098B5393T.jpg?v=1650500449"},"aspect_ratio":1.195,"height":1100,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B098B5393T.jpg?v=1650500449","width":1315},{"alt":null,"id":24508989014176,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1110,"width":1110,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51832BAI0_S.jpg?v=1650442524"},"aspect_ratio":1.0,"height":1110,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51832BAI0_S.jpg?v=1650442524","width":1110},{"alt":null,"id":24508989046944,"position":3,"preview_image":{"aspect_ratio":1.218,"height":850,"width":1035,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51krk0Vx_AS_8799a388-2385-48c7-a50c-dd91d6d6348d.jpg?v=1650442524"},"aspect_ratio":1.218,"height":850,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51krk0Vx_AS_8799a388-2385-48c7-a50c-dd91d6d6348d.jpg?v=1650442524","width":1035},{"alt":null,"id":24508989079712,"position":4,"preview_image":{"aspect_ratio":0.996,"height":1104,"width":1100,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61rUlNpsa4S_47307592-c6d7-49e2-b785-c6ebb84c0370.jpg?v=1650442524"},"aspect_ratio":0.996,"height":1104,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61rUlNpsa4S_47307592-c6d7-49e2-b785-c6ebb84c0370.jpg?v=1650442524","width":1100}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eBeElion UTP 4 Channel Passive Video Balun Transceiver, BNC to Cat5\/5E\/6 RJ45(T568B) UTP Cable Converter for CCTV Surveillance Camera System\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eBNC to Cat5\/5E\/6 RJ45 UTP Cable Converter Product\nDescriptions Material: ABS + Copper + Rron Galvanized (shell)Interface name:\nNetwork cable connection port + RJ45 + BNCTransmission Signal: 4\nChannelSupport format: analog video signalNo power required, Built-in\ntransient suppression protection Product Parameters Built-in transient\nsuppression protection.Applicable to NTSC, PAL, SECAM and CCIR systems\nFrequency response: DC - 8MHzCMRR (Common Mode Rejection Ratio):\n60DBImpedance: BNC terminal: 75ohm, Connection terminal: 100ohmWorking\ntemperature: -10°C - 70°C Storage temperature: -30°C - 70°CSize: 10.3 x 5.7 x\n2.8cm; Weight: 184g Wire Requirements Unshielded Cat-5 or above twisted pair\nwire(please use standard Cat-5 or above twisted pair wire. The wire quality\nwill directly affect the transmitted image effect and transmission\ndistance.)Characteristic impedance: 100Ω±20Ω DC loop resistance:\n18Ω\/100m(328ft)Differential capacitance:62pf(Maximum) Read more Connection\nmethod: Clamp modular plugs for a Cat-5 unshield twisted pair wire according\nto the connection order of TIA-EIA-568B, connect the clamped modular plugs to\nthe RJ45 socket,connect the coax to the BNC. Read more Passive Video Balun\nTransmitter Receiver BNC Male to UTP Cable for CCTV System More Product\nIntroductions With working with passive transceiver and active transmitters\nallow signals transmission up to 330m and 1500m respectively.The unparalleled\ninterference rejection and low emissions of the UTP allow video signals to co-\nexist in the same wire bundle as telephone, datacom, or low-voltage power\ncircuits.This 4 Channel Video Balun allows the use of a shared or existing\ncable plant.Video balun is to convert the video signal into the signal\napplicable to be transmitted on common Cat-5 unshielded twisted pair wire with\nperfect transmission effect, which can be applied in the occasions such as\nvideo monitoring and video meeting and can transmit four channels of video\nimage simultaneously on an 8-core Cat-5 twisted pair wire.Video Balun\nTransceiver can simplify the wiring project and save wire use .4 Channel UTP\nBalun adopt differential signal transmission with excellent anti-jamming\nability. Save project wire expenses. each a pair of twisted pair wire\ntransmits one channel of video signal and one common Cat-5 unshielded twisted\npair wire can simultaneously transmit four channels of video signal.Full\nmotion CCTV video at distances up to 330m when used with any passive UTP video\ntransceiver.Up to 1500m with any UTP video receiver. No power required.\nSuggest to use this product indoors. When installing the video balun in\noutdoor,please install it in a waterproof place.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eNo power required, Built-in transient suppression protection,Size: 10.3 x 5.7 x 2.8cm ;Weight: 184g;# CMRR (Common Mode Rejection Ratio): 60DB .\u003c\/li\u003e\n \u003cli\u003eImpedance: BNC terminal: 75ohm;Connection terminal: 100ohm ;Frequency response: DC - 8MHz\u003c\/li\u003e\n \u003cli\u003eWorking temperature: -10C - 70C;Storage temperature: -30C - 70C.Package Content : 1 x UTP Passive Balun;1 x Manual\u003c\/li\u003e\n \u003cli\u003eFull motion CCTV video at distances up to 330m when used with any passive UTP video transceiver.\u003c\/li\u003e\n \u003cli\u003eVideo Balun Transceiver can simplify the wiring project and save wire use quantity. 4 Channel UTP Balun adopt differential signal transmission with excellent anti-jamming ability.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
