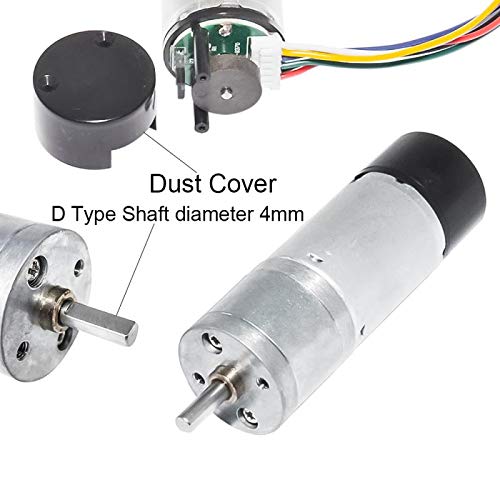

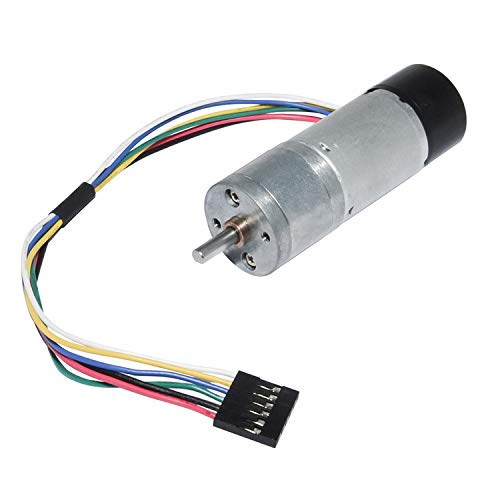

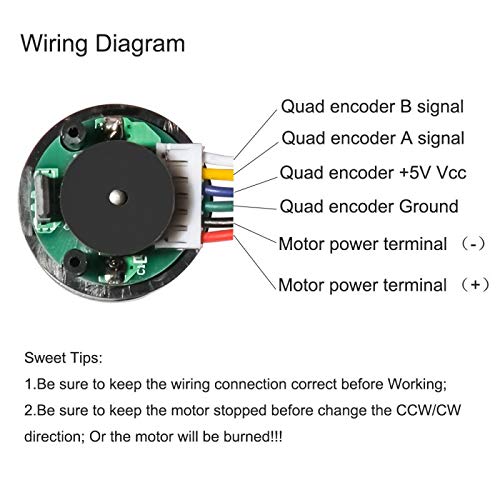

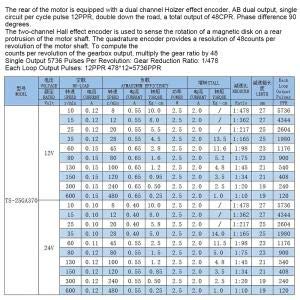

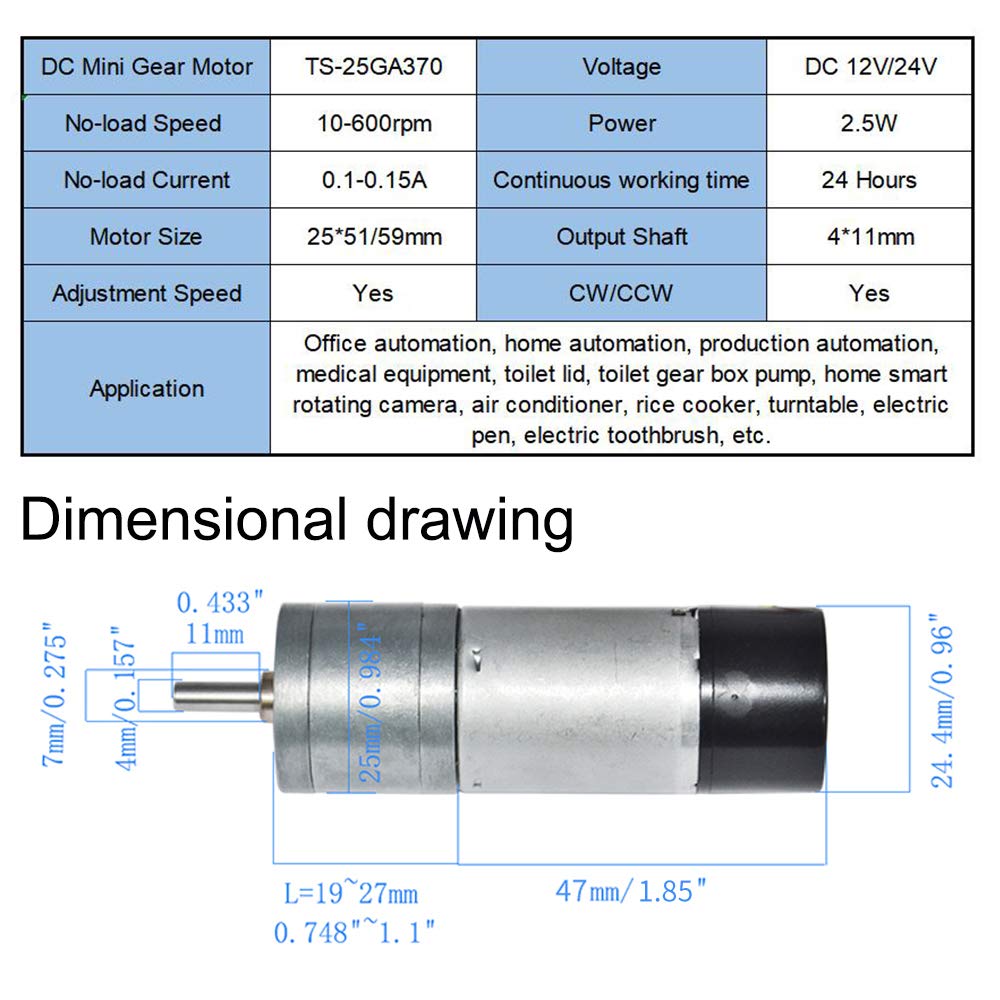

{"id":7414005203104,"title":"BEMONOC 25GA370 DC Encoder Metal Gearmotor 12V High Speed 150RPM Gear Motor with Two-channel Hall Effect Encoder for DIY Parts","handle":"bemonoc-25ga370-dc-encoder-metal-gearmotor-12v-high-speed-150rpm-gear-motor-with-two-channel-hall-effect-encoder-for-diy-parts","description":"\u003ch3\u003eBEMONOC 25GA370 DC Encoder Metal Gearmotor 12V High Speed 150RPM Gear Motor with Two-channel Hall Effect Encoder for DIY Parts\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eProduct type: DC Gear motor with two-channel Hall effect encoder;Rated Voltage: 12V; No-Load Speed: 150RPM; No-Load Current: 0.15A;Rated Torque: 0.95kg.cm;\u003c\/li\u003e\n \u003cli\u003eMain Body Dimensions:74.8 x 25mm \/ 2.95in x 0.99in (L*D); Out Shaft Dimensions: 11 x 4mm \/ 0.433 x 0.1575in (L*D) with 10 x 0.5mm \/ 0.39 * 0.017inches flat cut off;\u003c\/li\u003e\n \u003cli\u003eSingle Output 408 Pulses Per Revolution: Gear Reduction Ratio: 1\/34, Each Loop Output Pulses: 12PPR 34*12=408PPR;\u003c\/li\u003e\n \u003cli\u003eWiring Diagram: Red - Motor power terminal (+);Black - Motor power terminal(-);Green - Quad encoder Ground;Blue - Quad encoder +5V Vcc;Yellow - Quad encoder A signal;White - Quad encoder B signal;\u003c\/li\u003e\n \u003cli\u003eApplication:Suit for Projects Such as Robotics,RC Car Model,Custom Servo, Arduino and 3D Printers,DIY Engine Toy.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-06-14T14:12:52+10:00","created_at":"2022-06-14T14:12:57+10:00","vendor":"Bemonoc","type":"Switch Encoders","tags":["dingo"],"price":12900,"price_min":12900,"price_max":12900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42194297421984,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07GNFYGYQ","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"BEMONOC 25GA370 DC Encoder Metal Gearmotor 12V High Speed 150RPM Gear Motor with Two-channel Hall Effect Encoder for DIY Parts","public_title":null,"options":["Default Title"],"price":12900,"weight":104,"compare_at_price":null,"inventory_management":null,"barcode":"734779751251","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/products\/B07GNFYGYQ.jpg?v=1655248713","\/\/dingoship.com.au\/cdn\/shop\/products\/61BJfrJXlFL_86629eee-7fb0-44a3-975c-61fb865474f4.jpg?v=1655179977","\/\/dingoship.com.au\/cdn\/shop\/products\/31Ljw8FgB9L_26b490e9-b93d-4aaf-b217-600cacca0949.jpg?v=1655179977","\/\/dingoship.com.au\/cdn\/shop\/products\/41JslBkTNnL_5acf99a2-9a69-4815-96dc-d25b498b8e6d.jpg?v=1655179977","\/\/dingoship.com.au\/cdn\/shop\/products\/51CyoZRTbiL_8d4bd873-c678-4ad6-a2f2-bb00643b31fe.jpg?v=1655179977","\/\/dingoship.com.au\/cdn\/shop\/products\/41imT1QSD4L_0fc6fe41-ab53-4e1e-89b1-141fb261c292.jpg?v=1655179977","\/\/dingoship.com.au\/cdn\/shop\/products\/41B4WsN7XHL.jpg?v=1655179977","\/\/dingoship.com.au\/cdn\/shop\/products\/31r5_i-6zSL.jpg?v=1655179977"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/products\/B07GNFYGYQ.jpg?v=1655248713","options":["Title"],"media":[{"alt":null,"id":24860192047264,"position":1,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B07GNFYGYQ.jpg?v=1655248713"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B07GNFYGYQ.jpg?v=1655248713","width":500},{"alt":null,"id":24853784068256,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61BJfrJXlFL_86629eee-7fb0-44a3-975c-61fb865474f4.jpg?v=1655179977"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61BJfrJXlFL_86629eee-7fb0-44a3-975c-61fb865474f4.jpg?v=1655179977","width":1000},{"alt":null,"id":24853784101024,"position":3,"preview_image":{"aspect_ratio":1.0,"height":300,"width":300,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/31Ljw8FgB9L_26b490e9-b93d-4aaf-b217-600cacca0949.jpg?v=1655179977"},"aspect_ratio":1.0,"height":300,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/31Ljw8FgB9L_26b490e9-b93d-4aaf-b217-600cacca0949.jpg?v=1655179977","width":300},{"alt":null,"id":24853784133792,"position":4,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/41JslBkTNnL_5acf99a2-9a69-4815-96dc-d25b498b8e6d.jpg?v=1655179977"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/41JslBkTNnL_5acf99a2-9a69-4815-96dc-d25b498b8e6d.jpg?v=1655179977","width":500},{"alt":null,"id":24853784166560,"position":5,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51CyoZRTbiL_8d4bd873-c678-4ad6-a2f2-bb00643b31fe.jpg?v=1655179977"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51CyoZRTbiL_8d4bd873-c678-4ad6-a2f2-bb00643b31fe.jpg?v=1655179977","width":500},{"alt":null,"id":24853784199328,"position":6,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/41imT1QSD4L_0fc6fe41-ab53-4e1e-89b1-141fb261c292.jpg?v=1655179977"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/41imT1QSD4L_0fc6fe41-ab53-4e1e-89b1-141fb261c292.jpg?v=1655179977","width":500},{"alt":null,"id":24853784232096,"position":7,"preview_image":{"aspect_ratio":1.0,"height":300,"width":300,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/41B4WsN7XHL.jpg?v=1655179977"},"aspect_ratio":1.0,"height":300,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/41B4WsN7XHL.jpg?v=1655179977","width":300},{"alt":null,"id":24853784264864,"position":8,"preview_image":{"aspect_ratio":1.0,"height":300,"width":300,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/31r5_i-6zSL.jpg?v=1655179977"},"aspect_ratio":1.0,"height":300,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/31r5_i-6zSL.jpg?v=1655179977","width":300}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eBEMONOC 25GA370 DC Encoder Metal Gearmotor 12V High Speed 150RPM Gear Motor with Two-channel Hall Effect Encoder for DIY Parts\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eProduct type: DC Gear motor with two-channel Hall effect encoder;Rated Voltage: 12V; No-Load Speed: 150RPM; No-Load Current: 0.15A;Rated Torque: 0.95kg.cm;\u003c\/li\u003e\n \u003cli\u003eMain Body Dimensions:74.8 x 25mm \/ 2.95in x 0.99in (L*D); Out Shaft Dimensions: 11 x 4mm \/ 0.433 x 0.1575in (L*D) with 10 x 0.5mm \/ 0.39 * 0.017inches flat cut off;\u003c\/li\u003e\n \u003cli\u003eSingle Output 408 Pulses Per Revolution: Gear Reduction Ratio: 1\/34, Each Loop Output Pulses: 12PPR 34*12=408PPR;\u003c\/li\u003e\n \u003cli\u003eWiring Diagram: Red - Motor power terminal (+);Black - Motor power terminal(-);Green - Quad encoder Ground;Blue - Quad encoder +5V Vcc;Yellow - Quad encoder A signal;White - Quad encoder B signal;\u003c\/li\u003e\n \u003cli\u003eApplication:Suit for Projects Such as Robotics,RC Car Model,Custom Servo, Arduino and 3D Printers,DIY Engine Toy.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
