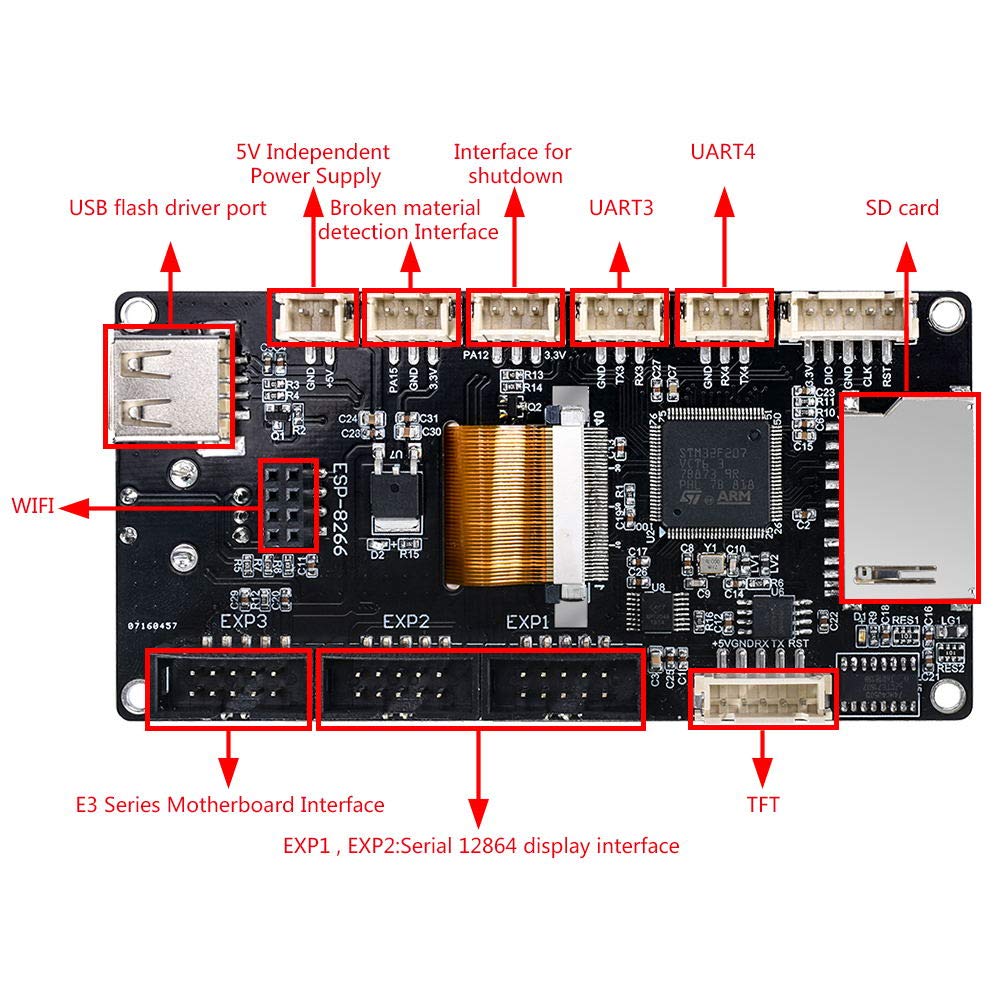

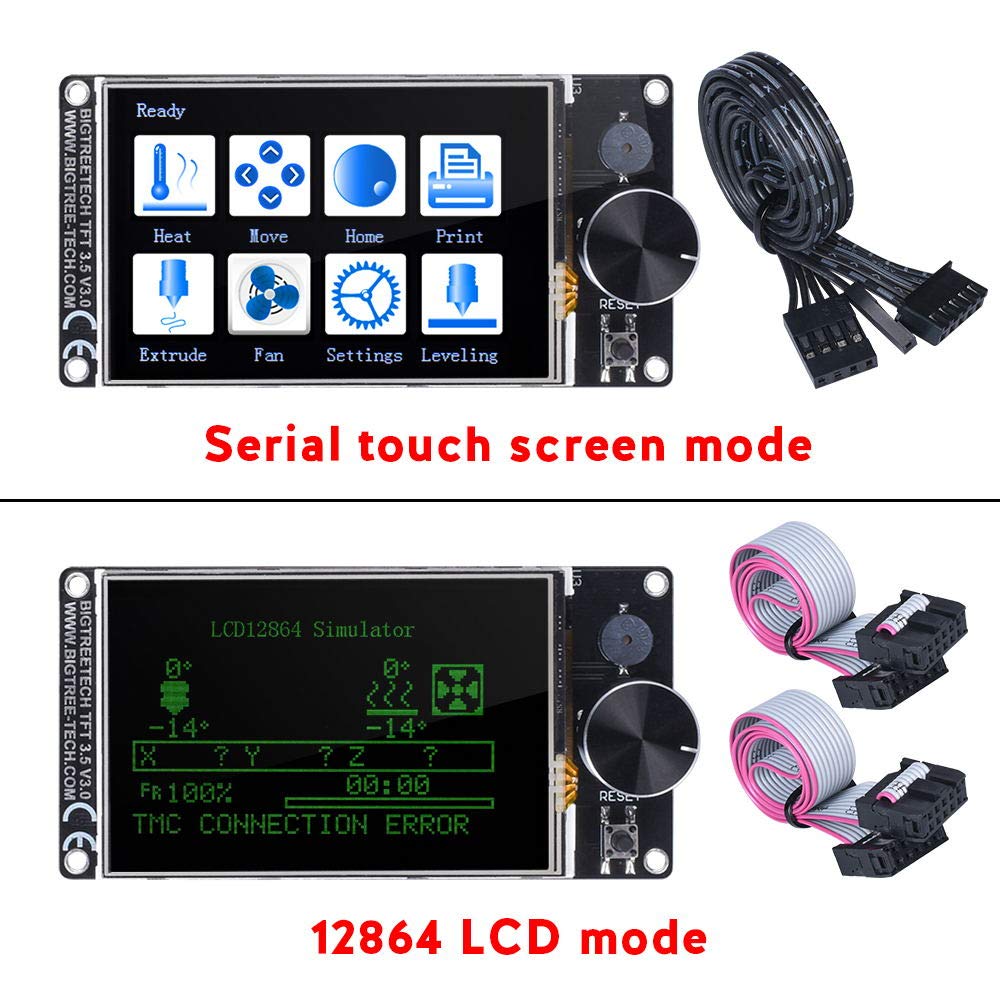

{"id":7568463823008,"title":"BIGTREETECH TFT35 V3.0.1 Graphic Smart Display Controller Board for 3D Printer Ramps 1.4 RepRap 3D Printer Can Select Two Work Modes","handle":"bigtreetech-tft35-v3-0-1-graphic-smart-display-controller-board-for-3d-printer-ramps-1-4-reprap-3d-printer-can-select-two-work-modes","description":"\u003ch3\u003eBIGTREETECH TFT35 V3.0.1 Graphic Smart Display Controller Board for 3D Printer Ramps 1.4 RepRap 3D Printer Can Select Two Work Modes\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eARM Cortex-M3 series STM32F207VCT6 chip with 32-bit CPU 120MHz;Power\nInput：DC5VSD card logic voltage：3.3V or 5V, support MEGA2560 motherboard, with\nhigher compatibilityLCD12864 mode uses EXP1, EXP2 and EXP3. EXP1 and EXP2 are\nLCD screen ports of normal motherboard, EXP3 is the LCD screen port used by\nSKR MINI E3 and SKR E3 DIP;Note：1. When using 12864 screen mode, connect the\nport EXP1 and EXP2 to the motherboard. (If user uses the SKR MINI E3 or SKR E3\nDIP, just connect EXP3 to the motherboard.)There is no touch function in this\nmode.2. When using serial port screen mode, connect with TFT or aux-2 on the\nmotherboard via RS232. This mode has touch function；3. Two work modes can be\nchanged by one key. Press the encoder about 3 seconds until the mode selection\npage appears, then press the encoder after selecting the mode.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e1.Upgrade the firmware by SD card. It is easy and convenient to operate.This display board has higher compatibility. Users can select two work modes,they are UART serial port screen mode and 12864 screen mode.\u003c\/li\u003e\n \u003cli\u003e2.Serial port screen mode supports two printing modes: SD card and U disk.\u003c\/li\u003e\n \u003cli\u003e3.Reserve WIFI port, and WIFI function is realized by external WIFI module;\u003c\/li\u003e\n \u003cli\u003e4.Reserve the extension port of filament breaking detection (FIL-DET);Reserve the extension port of automatic shutdown after printing (PS-ON);\u003c\/li\u003e\n \u003cli\u003e5.2 sets of UART serial port extension ports are reserved for DIY use.\u003c\/li\u003e\n \u003c\/ul\u003e\n\u003chr class=\"py-vbody\" style=\"display: none\"\u003e\n\n\n","published_at":"2022-10-06T22:00:01+11:00","created_at":"2022-10-06T22:00:07+11:00","vendor":"BIGTREETECH","type":"3D Printer Accessories","tags":["industrial2"],"price":23500,"price_min":23500,"price_max":23500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42644332708000,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07VWF4W3J","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"BIGTREETECH TFT35 V3.0.1 Graphic Smart Display Controller Board for 3D Printer Ramps 1.4 RepRap 3D Printer Can Select Two Work Modes","public_title":null,"options":["Default Title"],"price":23500,"weight":136,"compare_at_price":null,"inventory_management":null,"barcode":"TFT35 V3.0.1","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/products\/B07VWF4W3J.jpg?v=1665102781","\/\/dingoship.com.au\/cdn\/shop\/products\/518EjO_z9OL.jpg?v=1665054007","\/\/dingoship.com.au\/cdn\/shop\/products\/71DowIhd_KL.jpg?v=1665054007","\/\/dingoship.com.au\/cdn\/shop\/products\/61dZ2yxxH1L.jpg?v=1665054007","\/\/dingoship.com.au\/cdn\/shop\/products\/61CCvB_3XUL.jpg?v=1665054008","\/\/dingoship.com.au\/cdn\/shop\/products\/71YMg0Rhs2L.jpg?v=1665054008"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/products\/B07VWF4W3J.jpg?v=1665102781","options":["Title"],"media":[{"alt":null,"id":25614316667040,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B07VWF4W3J.jpg?v=1665102781"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B07VWF4W3J.jpg?v=1665102781","width":1000},{"alt":null,"id":25609228058784,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/518EjO_z9OL.jpg?v=1665054007"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/518EjO_z9OL.jpg?v=1665054007","width":1000},{"alt":null,"id":25609228091552,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71DowIhd_KL.jpg?v=1665054007"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71DowIhd_KL.jpg?v=1665054007","width":1000},{"alt":null,"id":25609228124320,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61dZ2yxxH1L.jpg?v=1665054007"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61dZ2yxxH1L.jpg?v=1665054007","width":1000},{"alt":null,"id":25609228157088,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61CCvB_3XUL.jpg?v=1665054008"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61CCvB_3XUL.jpg?v=1665054008","width":1000},{"alt":null,"id":25609228189856,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71YMg0Rhs2L.jpg?v=1665054008"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71YMg0Rhs2L.jpg?v=1665054008","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eBIGTREETECH TFT35 V3.0.1 Graphic Smart Display Controller Board for 3D Printer Ramps 1.4 RepRap 3D Printer Can Select Two Work Modes\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eARM Cortex-M3 series STM32F207VCT6 chip with 32-bit CPU 120MHz;Power\nInput：DC5VSD card logic voltage：3.3V or 5V, support MEGA2560 motherboard, with\nhigher compatibilityLCD12864 mode uses EXP1, EXP2 and EXP3. EXP1 and EXP2 are\nLCD screen ports of normal motherboard, EXP3 is the LCD screen port used by\nSKR MINI E3 and SKR E3 DIP;Note：1. When using 12864 screen mode, connect the\nport EXP1 and EXP2 to the motherboard. (If user uses the SKR MINI E3 or SKR E3\nDIP, just connect EXP3 to the motherboard.)There is no touch function in this\nmode.2. When using serial port screen mode, connect with TFT or aux-2 on the\nmotherboard via RS232. This mode has touch function；3. Two work modes can be\nchanged by one key. Press the encoder about 3 seconds until the mode selection\npage appears, then press the encoder after selecting the mode.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e1.Upgrade the firmware by SD card. It is easy and convenient to operate.This display board has higher compatibility. Users can select two work modes,they are UART serial port screen mode and 12864 screen mode.\u003c\/li\u003e\n \u003cli\u003e2.Serial port screen mode supports two printing modes: SD card and U disk.\u003c\/li\u003e\n \u003cli\u003e3.Reserve WIFI port, and WIFI function is realized by external WIFI module;\u003c\/li\u003e\n \u003cli\u003e4.Reserve the extension port of filament breaking detection (FIL-DET);Reserve the extension port of automatic shutdown after printing (PS-ON);\u003c\/li\u003e\n \u003cli\u003e5.2 sets of UART serial port extension ports are reserved for DIY use.\u003c\/li\u003e\n \u003c\/ul\u003e\n\u003chr class=\"py-vbody\" style=\"display: none\"\u003e\n\n\n"}
