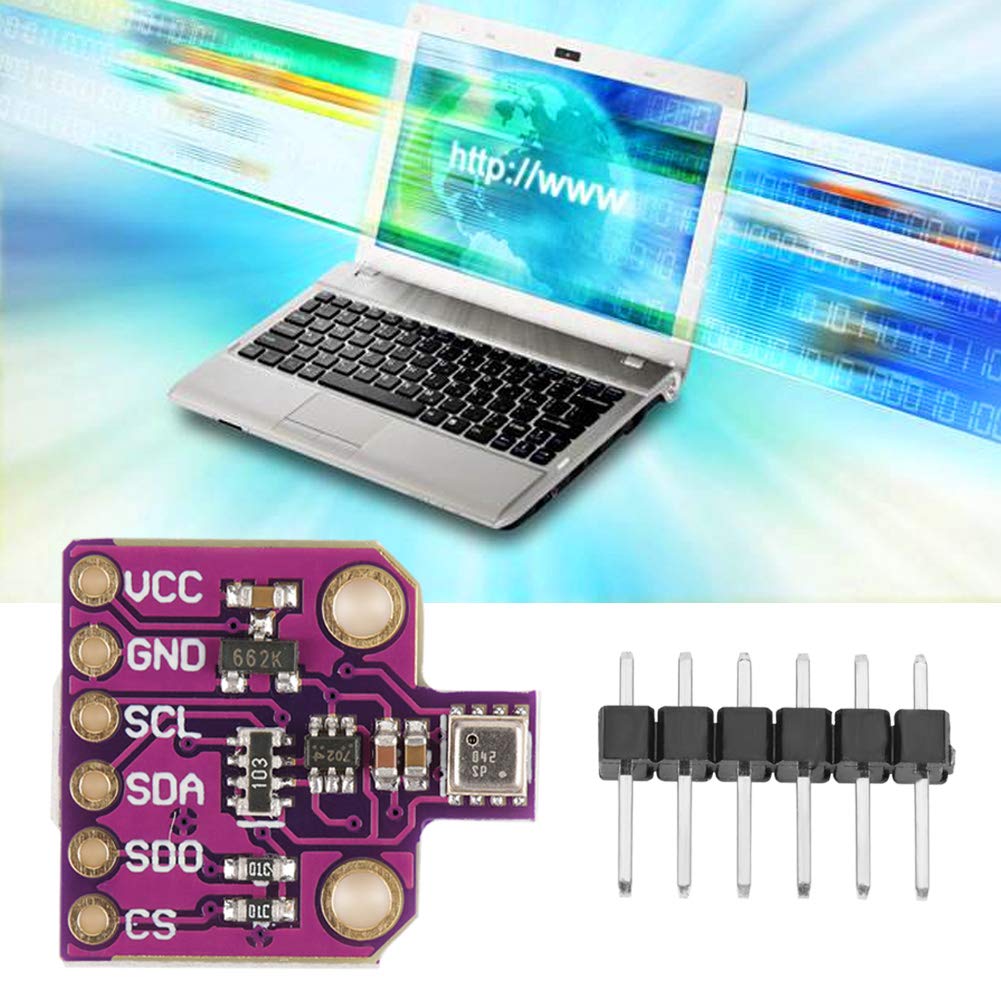

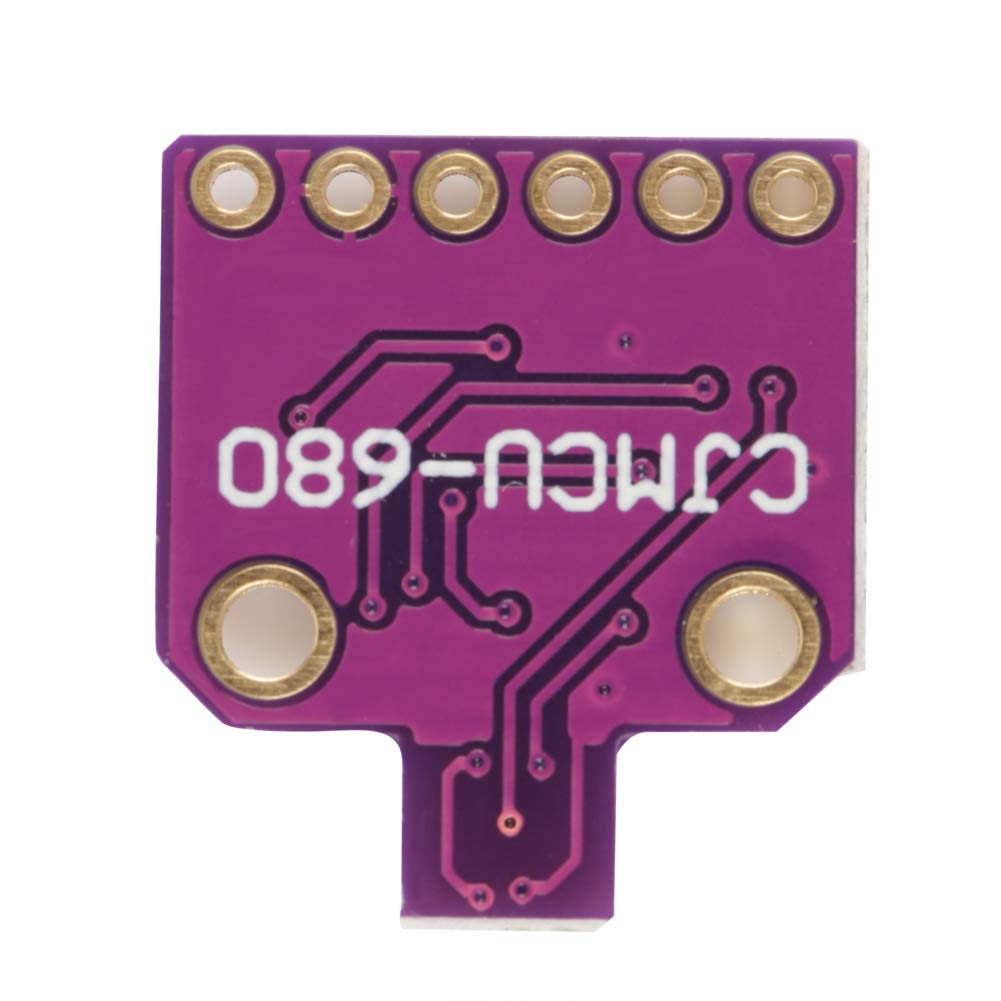

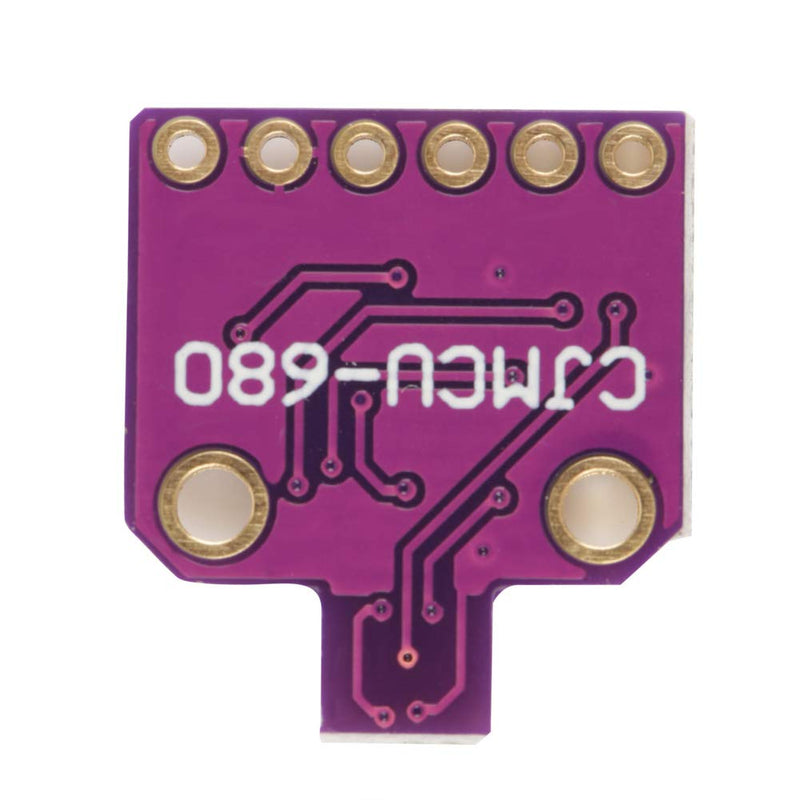

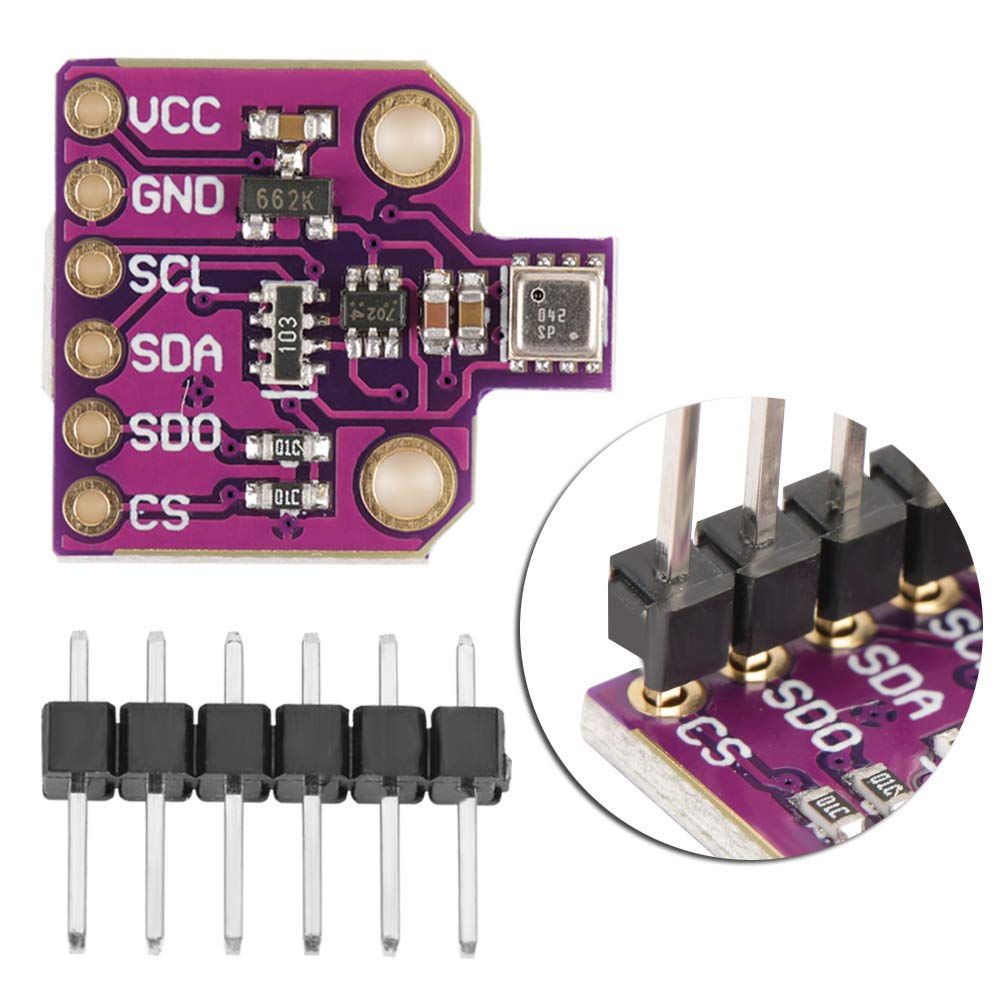

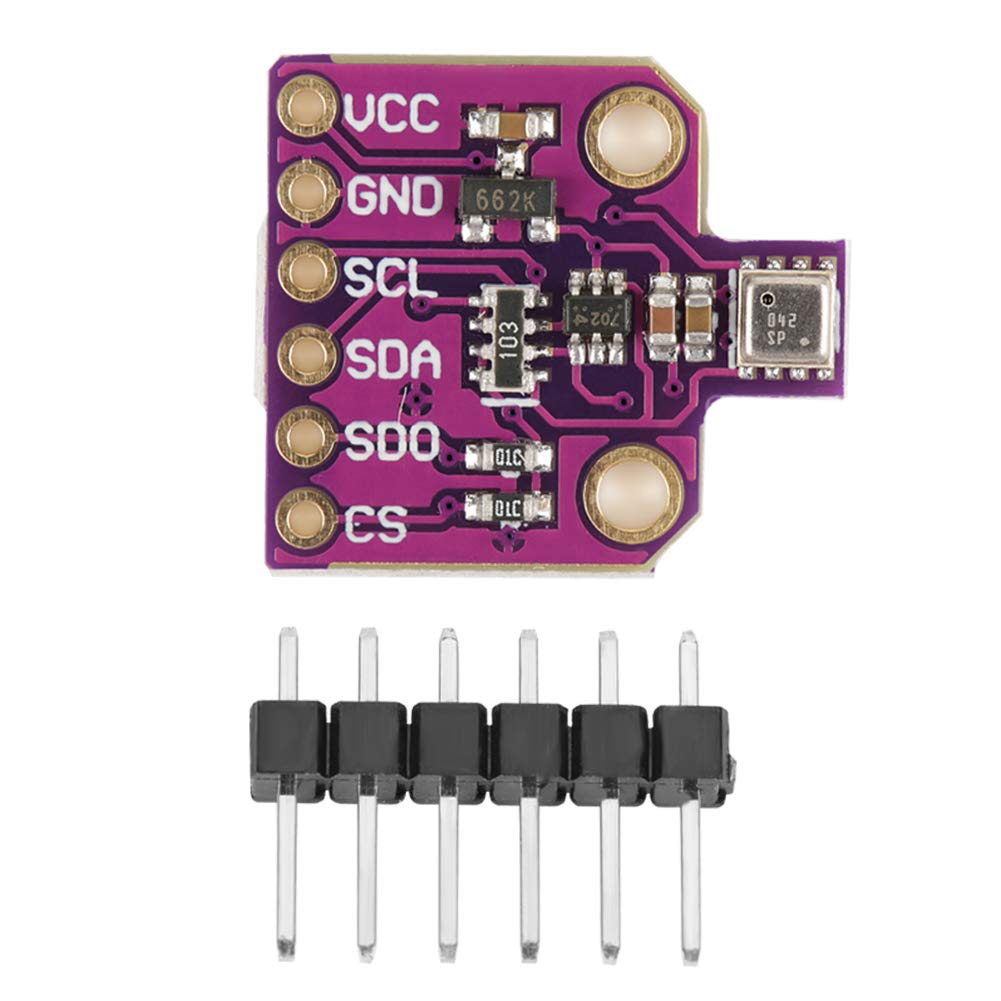

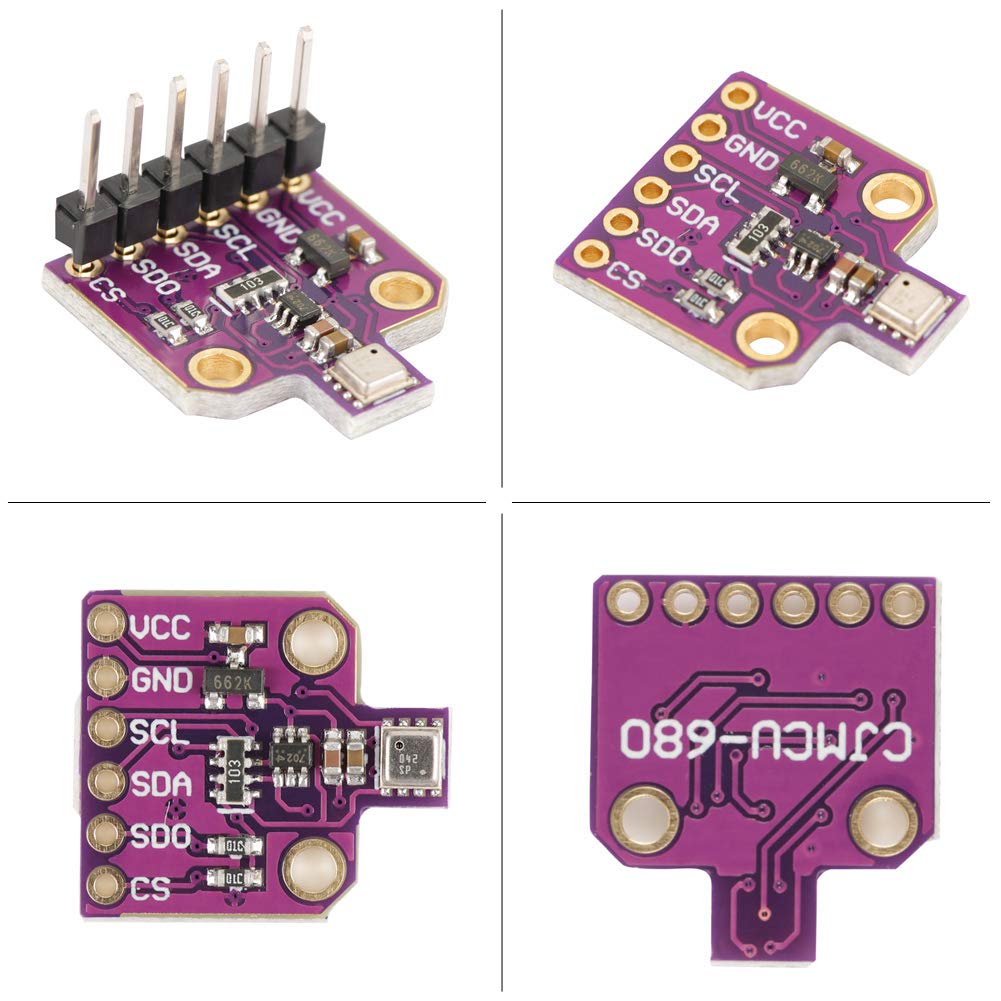

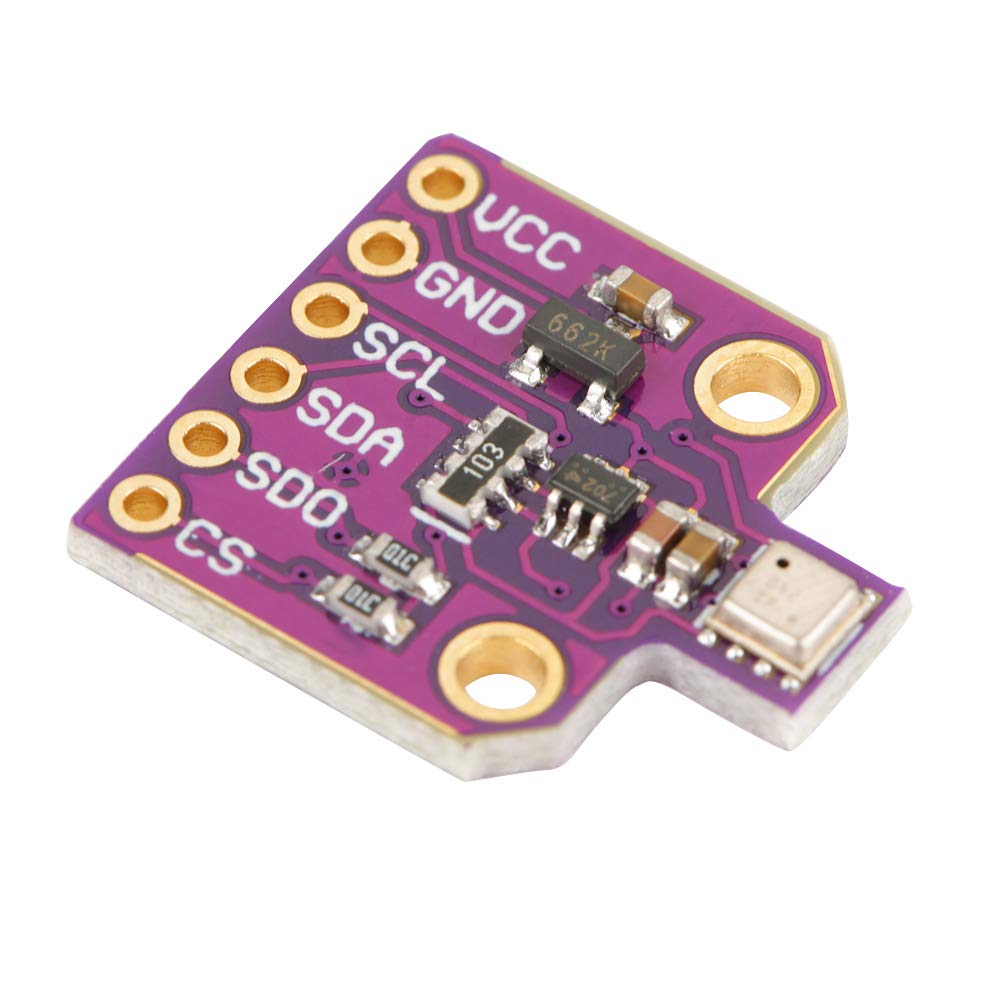

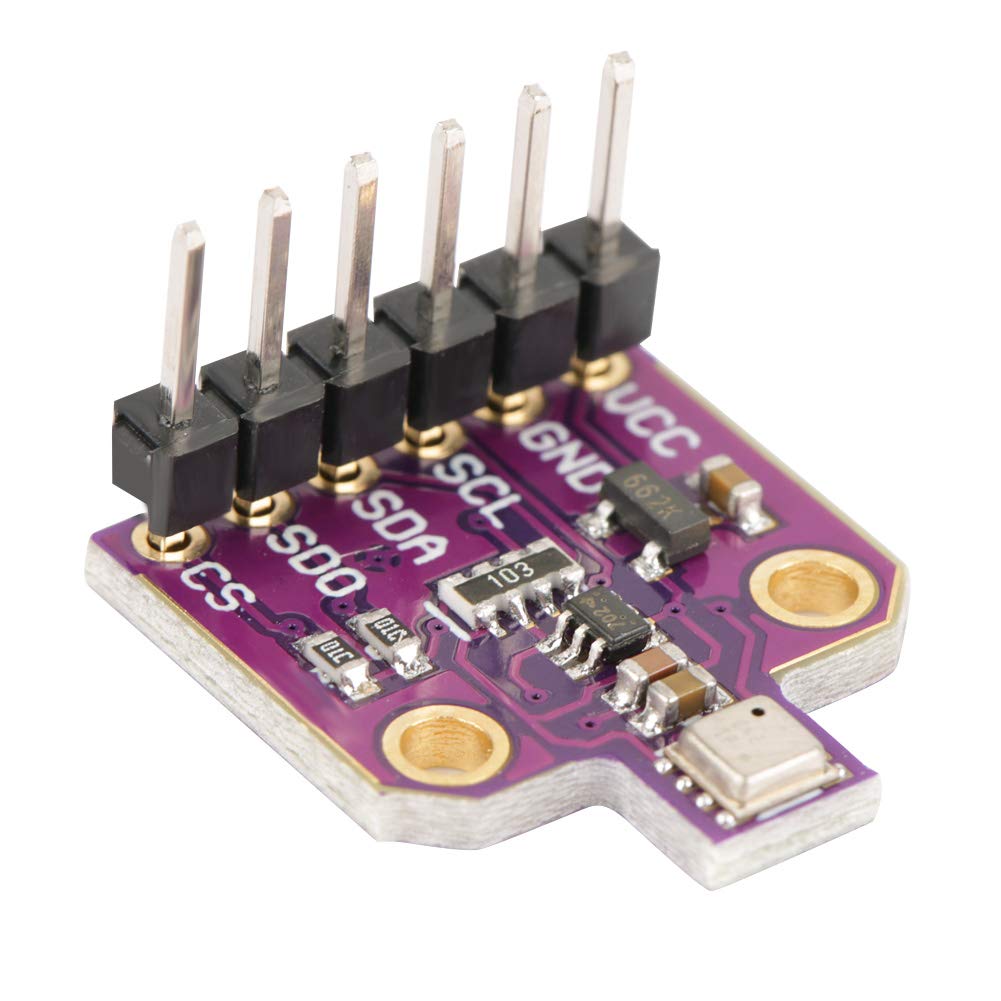

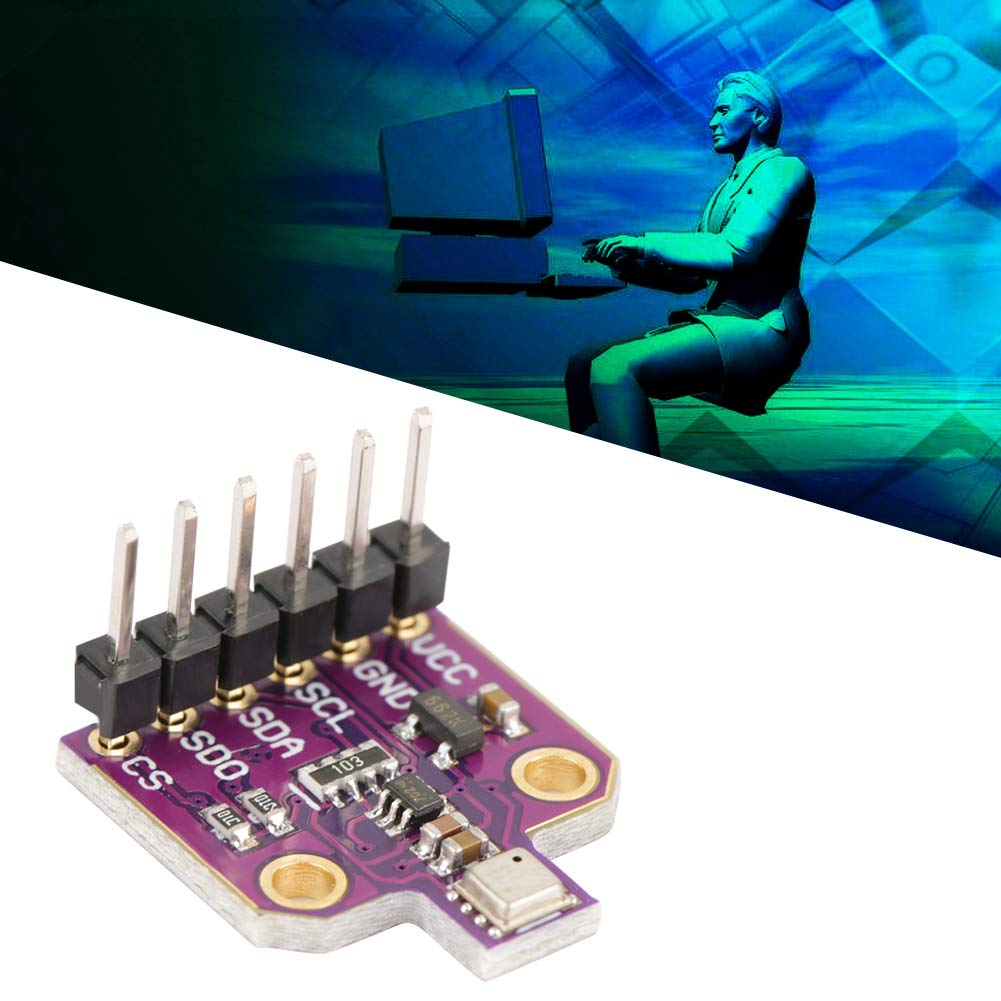

{"id":7410722996384,"title":"BME680 Sensor, CJMCU-680 BME680 Temperature Humidity Pressure and Gas VoC Sensor Breakout Board Module","handle":"bme680-sensor-cjmcu-680-bme680-temperature-humidity-pressure-and-gas-voc-sensor-breakout-board-module","description":"\u003ch3\u003eBME680 Sensor, CJMCU-680 BME680 Temperature Humidity Pressure and Gas VoC Sensor Breakout Board Module\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eRead more Specifications: Model: CJMCU-680 BME680Type:\nSensorWeight: 5g(approx.)Working voltage: 1.7V-3.6VWorking temperature:\n-40℃~+85℃Communication interface: I2C (up to 3.4 MHz) and SPI (3 and 4 wires,\nup to 10 MHz), humidity, pressure and gas sensors can be individually\nenabled\/disabled.Current consumption: Current consumption at 1 Hz humidity and\ntemperature is 2.1uA, Current consumption at 1 Hz pressure and temperature is\n3.1uA, Current consumption at 1 Hz humidity, pressure and temperature is\n3.7uA.Gas sensor parameters: Response time (33-63%) \u0026lt;1s (for new sensors),\npower consumption in ultra-low power mode \u0026lt;0.1 mA output data processing\ndirect indoor air quality (IAQ) index output.Humidity sensor parameters:\nresponse time (0-63%) ~8s.Accuracy tolerance: ±3%r.h. Hysteresis: ±1.5%r.h.\nRead more Features: The BME680 is a digital 4-in-1 sensor with gas, humidity,\npressure and temperature measurement based on proven sensing principles. Its\nsmall dimensions and its low power consumption enable the integration in\nbattery-powered or frequency-coupled devices, such as handsets or\nwearables.BEM680 environmental sensor adopts 12C interface, onboard power\nsupply voltage regulator chip and level signal conversion chip, which has good\ncompatibility and can be directly compatible with 3.3V and 5V systems; SPI\ninterface is reserved for easy expansion.It is highly integrated and can\ndetect four environmental parameters at the same time. It is an ideal choice\nfor scenarios such as weather stations, smart homes, and the Internet of\nThings. Read more Key Features: Digital interface I²C (up to 3.4 MHz) and SPI\n(3 and 4 wire, up to 10 MHz)Supply voltage V DD main supply voltage range:\n1.71 V to 3.6 VV DDIO interface voltage range: 1.2 V to 3.6 VCurrent\nconsumption 2.1 µA at 1 Hz humidity and temperature3.1 µA at 1 Hz pressure and\ntemperature3.7 µA at 1 Hz humidity, pressure and temperature0.09‒12 mA for\np\/h\/T\/gas depending on operation mode0.15 µA in sleep modeOperating range\n-40‒+85 °C, 0‒100% r.H., 300‒1100 hPa Key Parameters: Key parameters for gas\nsensor Response time (𝜏 33−63% ) \u0026lt; 1 s (for new sensors)Power consumption \u0026lt;\n0.1 mA in ultra-low power modeOutput data processing direct indoor air quality\n(IAQ) index output Key parameters for humidity sensor Response time (𝜏 0−63% )\n~8 sAccuracy tolerance ±3% r.H. Hysteresis ±1.5% r.H. Key parameters for\npressure sensor RMS Noise 0.12 Pa, equiv. to 1.7 cmOffset temperature\ncoefficient ±1.3 Pa\/K, equiv. to ±10.9 cm at 1 °C temperature change Typical\nApplications: Home automation and controlInternet of thingsWeather\nforecastIndoor navigation (change of floor detection, elevator\ndetection)Outdoor navigation, leisure and sports applicationsVertical velocity\nindication (rise\/sink speed) Read more\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eHIGH PRECISION AND HIGH SENSITIVITYThe sensor is sensitive, ultra-small pressure height development board.\u003c\/li\u003e\n \u003cli\u003eINSTRUCTIONSThe BME680 sensor is a four-in-one sensor that can measure the four parameters of VOC, temperature, humidity, and air pressure. It is very suitable for detecting air quality.\u003c\/li\u003e\n \u003cli\u003eDURABLEMade of premium electronic components, the sensor is durable.\u003c\/li\u003e\n \u003cli\u003eSMALL SIZE AND LIGHT WEIGHTThis BME680 Sensor is small size and light weight, convenient to use.\u003c\/li\u003e\n \u003cli\u003eEASY TO USEIndividual humidity, pressure and gas sensors can be independently enabled\/disabl.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-06-10T22:33:28+10:00","created_at":"2022-06-10T22:33:37+10:00","vendor":"Hilitand","type":"Temperature Probes \u0026 Sensors","tags":["dingo"],"price":15600,"price_min":15600,"price_max":15600,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42177230012576,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07K1CGQTJ","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"BME680 Sensor, CJMCU-680 BME680 Temperature Humidity Pressure and Gas VoC Sensor Breakout Board Module","public_title":null,"options":["Default Title"],"price":15600,"weight":20,"compare_at_price":null,"inventory_management":null,"barcode":"Hilitandmigoh8ftxs","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/products\/B07K1CGQTJ.jpg?v=1654906497","\/\/dingoship.com.au\/cdn\/shop\/products\/61pXZxQ-HcL_d13ff01d-2987-44ed-8215-9bed10a012a6.jpg?v=1654864417","\/\/dingoship.com.au\/cdn\/shop\/products\/514d4NijDUL_a86820cc-977d-4f1b-86ca-996e280615d4.jpg?v=1654864417","\/\/dingoship.com.au\/cdn\/shop\/products\/611TepxDnzL_3aba5072-8662-4c62-ae55-74f2b396bdcb.jpg?v=1654864417","\/\/dingoship.com.au\/cdn\/shop\/products\/61IBocQW3YL_42076d1d-0252-459f-9b86-b5fbd50c4866.jpg?v=1654864417","\/\/dingoship.com.au\/cdn\/shop\/products\/51CGj5cMPsL_2e506513-e1e8-45cf-9a67-b9a4caf9f383.jpg?v=1654864417","\/\/dingoship.com.au\/cdn\/shop\/products\/619DH1WLUTL_79f2dd6d-513b-45a6-b3dc-cf5458421c61.jpg?v=1654864417","\/\/dingoship.com.au\/cdn\/shop\/products\/61hEIJCc7jL_e36c8c9e-f173-4a24-b95e-ce9f2c50d8b6.jpg?v=1654864417","\/\/dingoship.com.au\/cdn\/shop\/products\/61uzg00b7pL_ea3b536c-31bc-4e7c-a38a-4e225ca7bf7a.jpg?v=1654864417"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/products\/B07K1CGQTJ.jpg?v=1654906497","options":["Title"],"media":[{"alt":null,"id":24837116461216,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B07K1CGQTJ.jpg?v=1654906497"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B07K1CGQTJ.jpg?v=1654906497","width":1001},{"alt":null,"id":24834834596000,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61pXZxQ-HcL_d13ff01d-2987-44ed-8215-9bed10a012a6.jpg?v=1654864417"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61pXZxQ-HcL_d13ff01d-2987-44ed-8215-9bed10a012a6.jpg?v=1654864417","width":1001},{"alt":null,"id":24834834628768,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/514d4NijDUL_a86820cc-977d-4f1b-86ca-996e280615d4.jpg?v=1654864417"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/514d4NijDUL_a86820cc-977d-4f1b-86ca-996e280615d4.jpg?v=1654864417","width":1001},{"alt":null,"id":24834834661536,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/611TepxDnzL_3aba5072-8662-4c62-ae55-74f2b396bdcb.jpg?v=1654864417"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/611TepxDnzL_3aba5072-8662-4c62-ae55-74f2b396bdcb.jpg?v=1654864417","width":1001},{"alt":null,"id":24834834694304,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61IBocQW3YL_42076d1d-0252-459f-9b86-b5fbd50c4866.jpg?v=1654864417"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61IBocQW3YL_42076d1d-0252-459f-9b86-b5fbd50c4866.jpg?v=1654864417","width":1001},{"alt":null,"id":24834834727072,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51CGj5cMPsL_2e506513-e1e8-45cf-9a67-b9a4caf9f383.jpg?v=1654864417"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51CGj5cMPsL_2e506513-e1e8-45cf-9a67-b9a4caf9f383.jpg?v=1654864417","width":1001},{"alt":null,"id":24834834759840,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/619DH1WLUTL_79f2dd6d-513b-45a6-b3dc-cf5458421c61.jpg?v=1654864417"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/619DH1WLUTL_79f2dd6d-513b-45a6-b3dc-cf5458421c61.jpg?v=1654864417","width":1001},{"alt":null,"id":24834834792608,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61hEIJCc7jL_e36c8c9e-f173-4a24-b95e-ce9f2c50d8b6.jpg?v=1654864417"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61hEIJCc7jL_e36c8c9e-f173-4a24-b95e-ce9f2c50d8b6.jpg?v=1654864417","width":1001},{"alt":null,"id":24834834825376,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61uzg00b7pL_ea3b536c-31bc-4e7c-a38a-4e225ca7bf7a.jpg?v=1654864417"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61uzg00b7pL_ea3b536c-31bc-4e7c-a38a-4e225ca7bf7a.jpg?v=1654864417","width":1001}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eBME680 Sensor, CJMCU-680 BME680 Temperature Humidity Pressure and Gas VoC Sensor Breakout Board Module\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eRead more Specifications: Model: CJMCU-680 BME680Type:\nSensorWeight: 5g(approx.)Working voltage: 1.7V-3.6VWorking temperature:\n-40℃~+85℃Communication interface: I2C (up to 3.4 MHz) and SPI (3 and 4 wires,\nup to 10 MHz), humidity, pressure and gas sensors can be individually\nenabled\/disabled.Current consumption: Current consumption at 1 Hz humidity and\ntemperature is 2.1uA, Current consumption at 1 Hz pressure and temperature is\n3.1uA, Current consumption at 1 Hz humidity, pressure and temperature is\n3.7uA.Gas sensor parameters: Response time (33-63%) \u0026lt;1s (for new sensors),\npower consumption in ultra-low power mode \u0026lt;0.1 mA output data processing\ndirect indoor air quality (IAQ) index output.Humidity sensor parameters:\nresponse time (0-63%) ~8s.Accuracy tolerance: ±3%r.h. Hysteresis: ±1.5%r.h.\nRead more Features: The BME680 is a digital 4-in-1 sensor with gas, humidity,\npressure and temperature measurement based on proven sensing principles. Its\nsmall dimensions and its low power consumption enable the integration in\nbattery-powered or frequency-coupled devices, such as handsets or\nwearables.BEM680 environmental sensor adopts 12C interface, onboard power\nsupply voltage regulator chip and level signal conversion chip, which has good\ncompatibility and can be directly compatible with 3.3V and 5V systems; SPI\ninterface is reserved for easy expansion.It is highly integrated and can\ndetect four environmental parameters at the same time. It is an ideal choice\nfor scenarios such as weather stations, smart homes, and the Internet of\nThings. Read more Key Features: Digital interface I²C (up to 3.4 MHz) and SPI\n(3 and 4 wire, up to 10 MHz)Supply voltage V DD main supply voltage range:\n1.71 V to 3.6 VV DDIO interface voltage range: 1.2 V to 3.6 VCurrent\nconsumption 2.1 µA at 1 Hz humidity and temperature3.1 µA at 1 Hz pressure and\ntemperature3.7 µA at 1 Hz humidity, pressure and temperature0.09‒12 mA for\np\/h\/T\/gas depending on operation mode0.15 µA in sleep modeOperating range\n-40‒+85 °C, 0‒100% r.H., 300‒1100 hPa Key Parameters: Key parameters for gas\nsensor Response time (𝜏 33−63% ) \u0026lt; 1 s (for new sensors)Power consumption \u0026lt;\n0.1 mA in ultra-low power modeOutput data processing direct indoor air quality\n(IAQ) index output Key parameters for humidity sensor Response time (𝜏 0−63% )\n~8 sAccuracy tolerance ±3% r.H. Hysteresis ±1.5% r.H. Key parameters for\npressure sensor RMS Noise 0.12 Pa, equiv. to 1.7 cmOffset temperature\ncoefficient ±1.3 Pa\/K, equiv. to ±10.9 cm at 1 °C temperature change Typical\nApplications: Home automation and controlInternet of thingsWeather\nforecastIndoor navigation (change of floor detection, elevator\ndetection)Outdoor navigation, leisure and sports applicationsVertical velocity\nindication (rise\/sink speed) Read more\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eHIGH PRECISION AND HIGH SENSITIVITYThe sensor is sensitive, ultra-small pressure height development board.\u003c\/li\u003e\n \u003cli\u003eINSTRUCTIONSThe BME680 sensor is a four-in-one sensor that can measure the four parameters of VOC, temperature, humidity, and air pressure. It is very suitable for detecting air quality.\u003c\/li\u003e\n \u003cli\u003eDURABLEMade of premium electronic components, the sensor is durable.\u003c\/li\u003e\n \u003cli\u003eSMALL SIZE AND LIGHT WEIGHTThis BME680 Sensor is small size and light weight, convenient to use.\u003c\/li\u003e\n \u003cli\u003eEASY TO USEIndividual humidity, pressure and gas sensors can be independently enabled\/disabl.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
