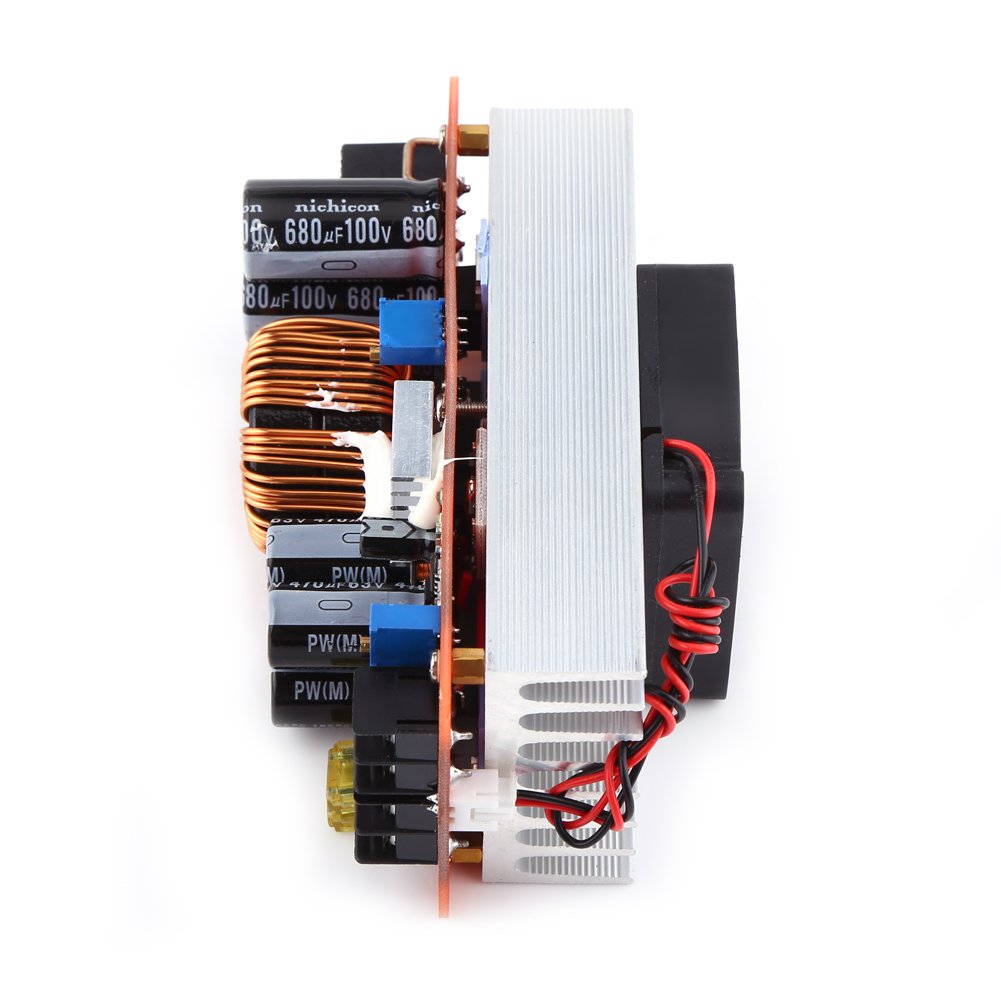

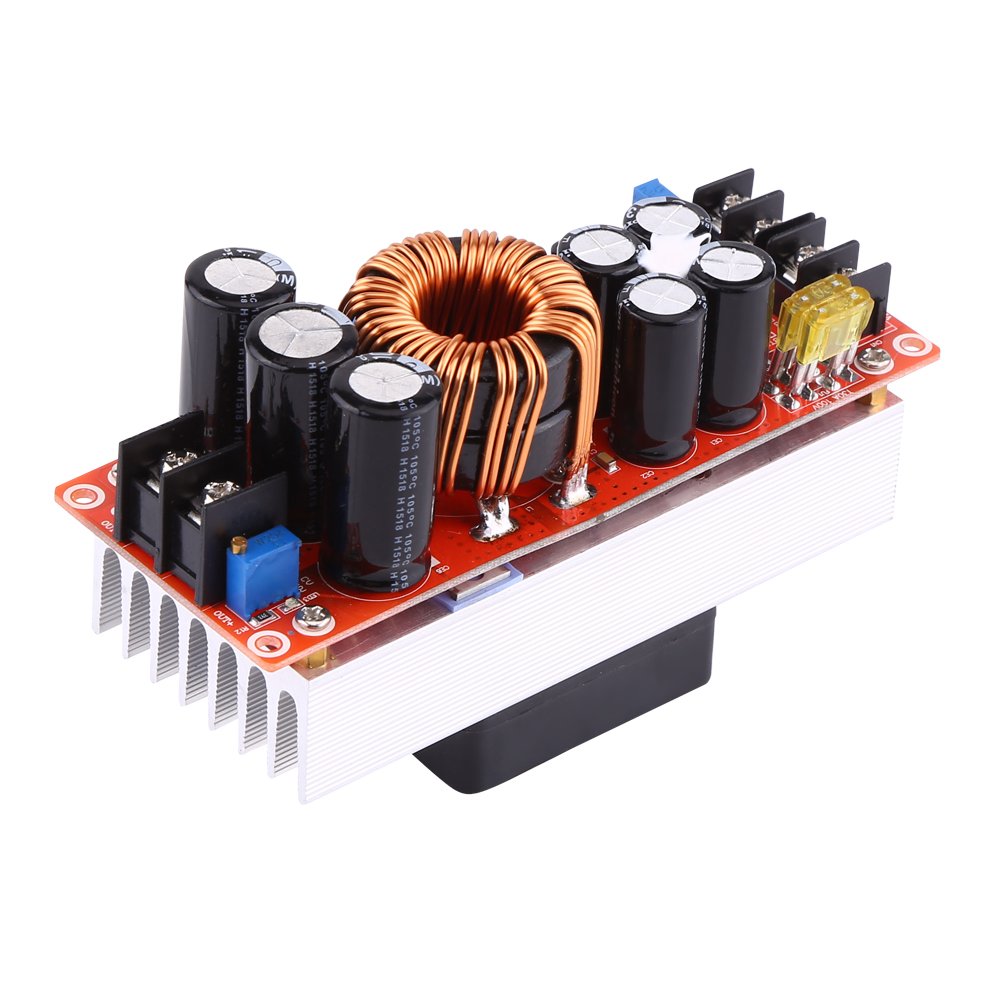

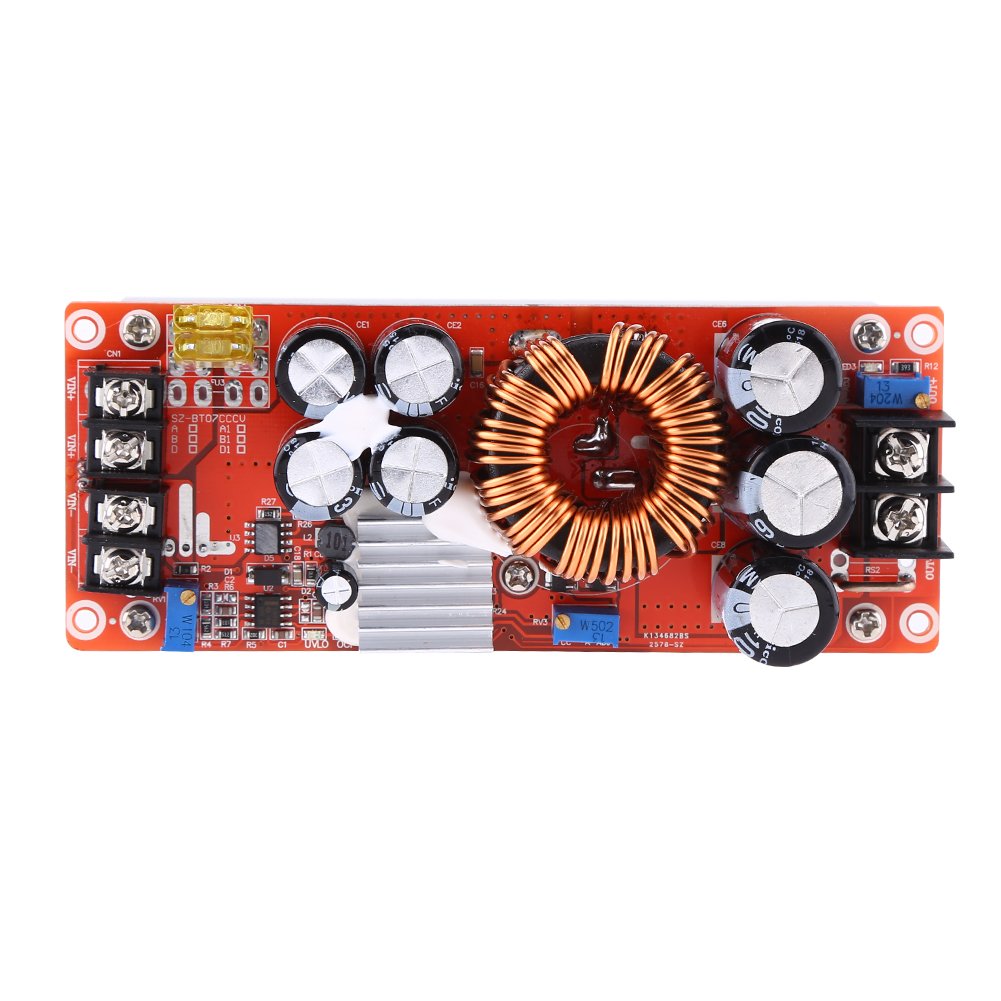

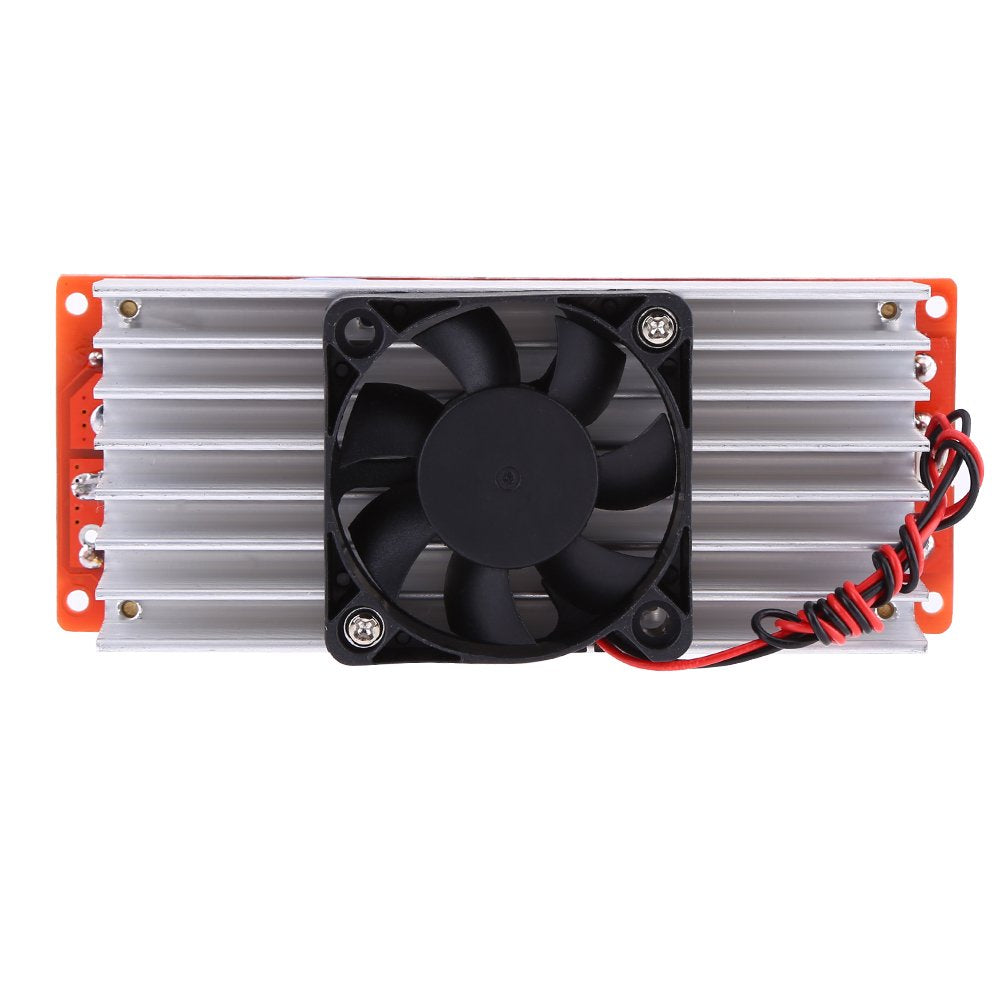

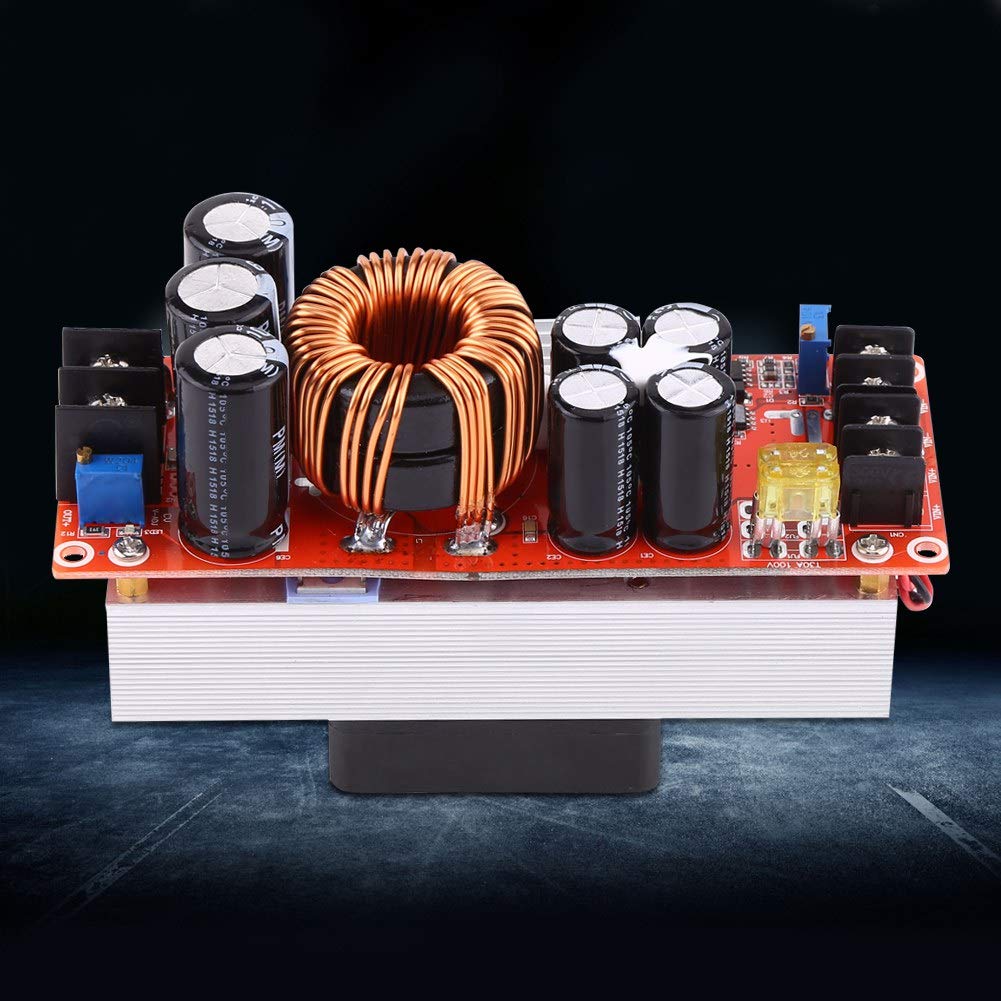

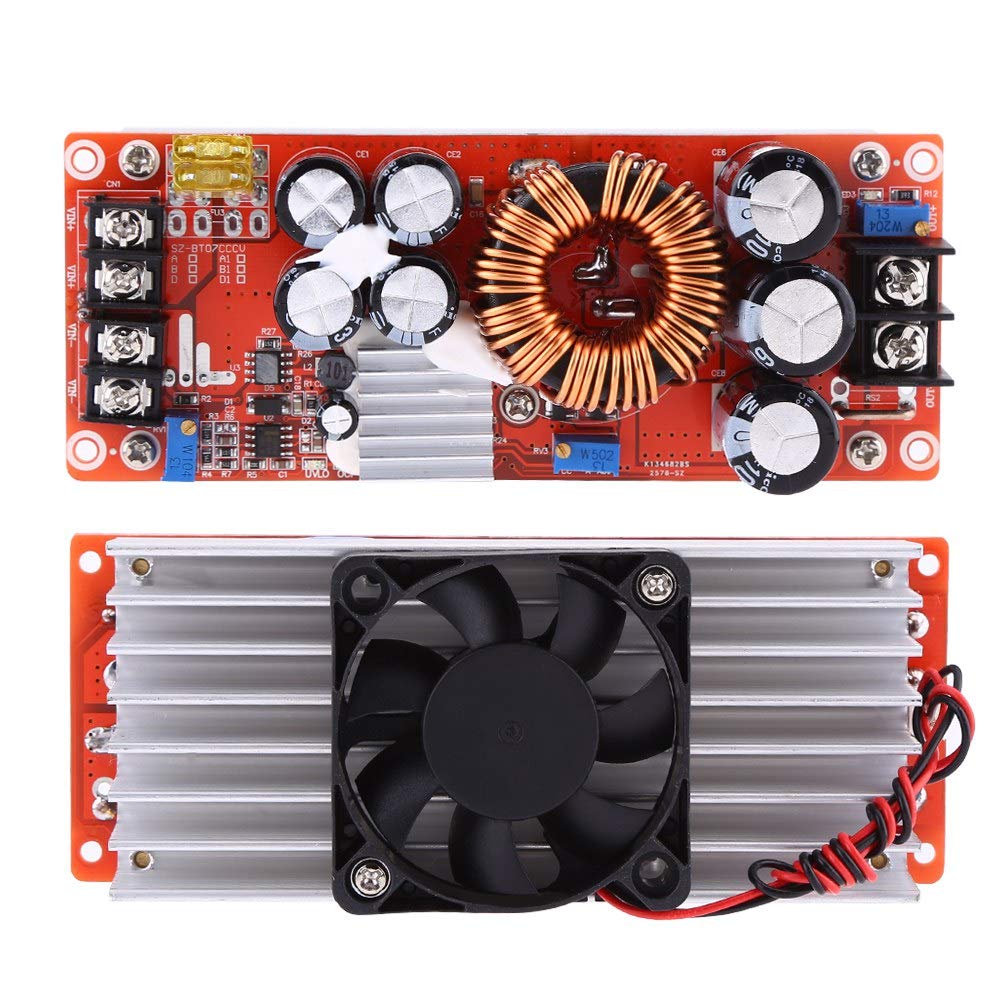

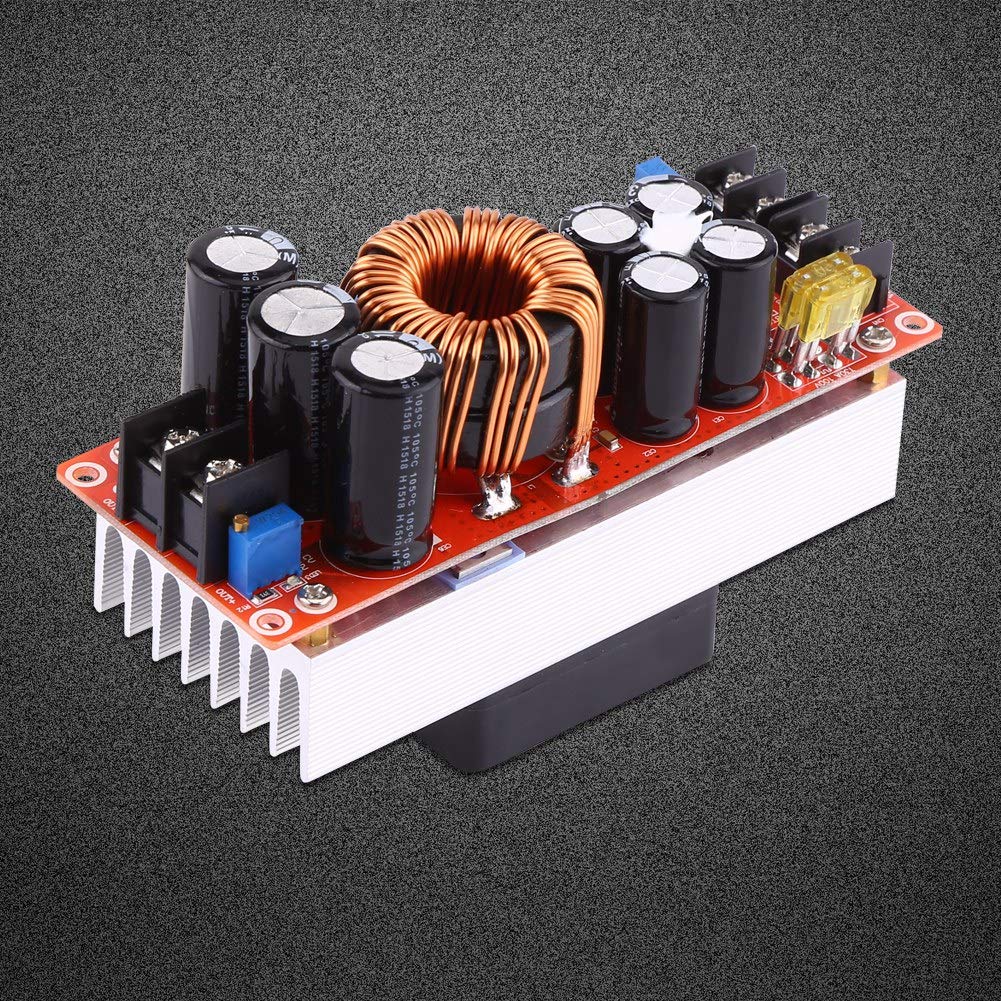

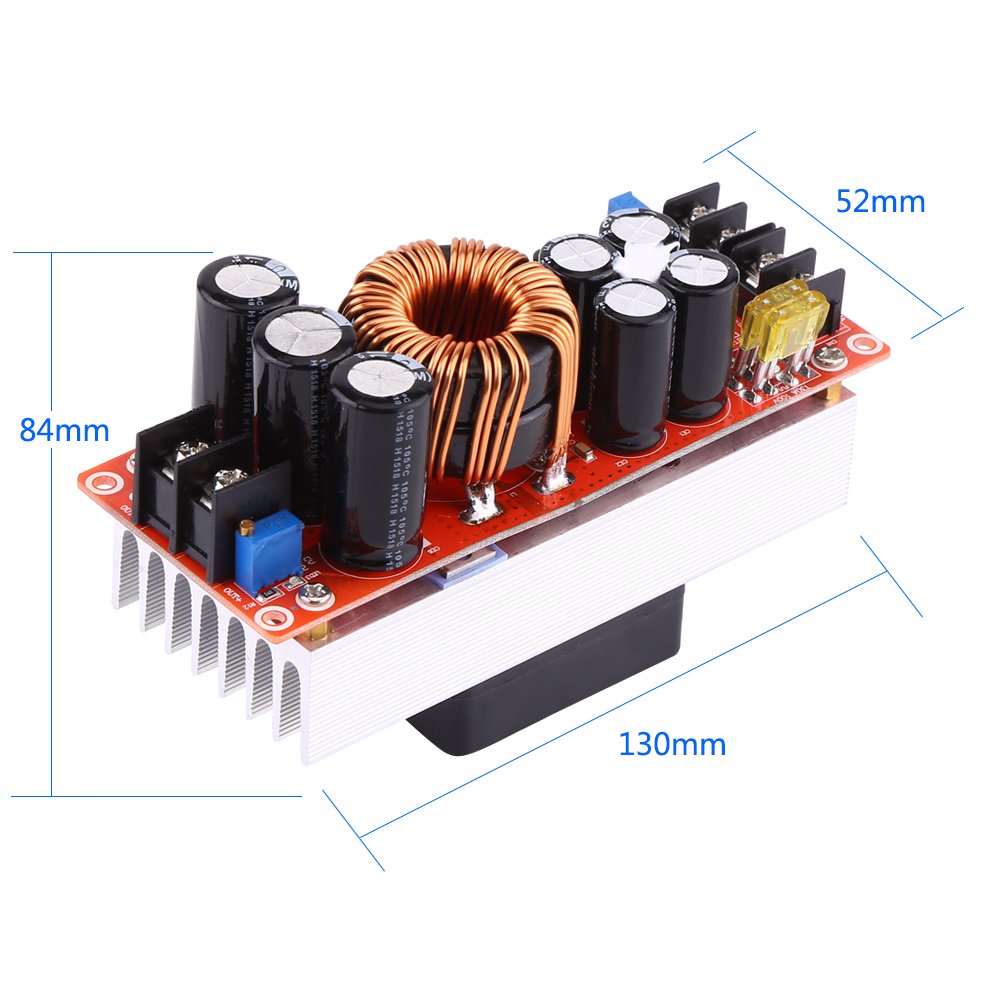

{"id":12648169111712,"title":"Boost converter, DC-DC boost converter module 1500W 30A DC-DC constant current constant voltage boost converter step-up power supply module 10-60V to 12-90V, with 1.2 mm copper wires","handle":"boost-converter-dc-dc-boost-converter-module-1500w-30a-dc-dc-constant-current-constant-voltage-boost-converter-step-up-power-supply-module-10-60v-to-12-90v-with-1-2-mm-copper-wires","description":"\u003ch3\u003eBoost converter, DC-DC boost converter module 1500W 30A DC-DC constant current constant voltage boost converter step-up power supply module 10-60V to 12-90V, with 1.2 mm copper wires\u003c\/h3\u003e \u003cp id=\"b\"\u003eSpecifications: Type: non-isolated step-up module (BOOST) Input voltage: DC 10V to 60V. Maximum input current: 30A (input voltage 10V to 30V). 25A (input voltage 31V to 60V). Quiescent current: 15mA (increases when 12V is converted to 20V). Output voltage: 12V to 90V (adjustable, default is 19V) Maximum output current: 20A (related to the input and output voltage difference, the larger voltage difference, the smaller output current will be. Please improve heat dissipation when current is over 15A. Constant current range: 0.8A to 20A (+ \/-0.3A) Reverse input protection: Yes (150A MOS). Undervoltage protection: Yes (V8 to 50V adjustable, self-recovery). Operating temperature: -40°C to +85°C (if the temperature is too high, please turn off Improve heat dissipation). Frequency: 150 kHz. Conversion efficiency: 92% to 97% (Efficiency depends on input\/output voltage, current and voltage difference. The smaller the difference, the higher efficiency) Input overcurrent protection: Yes (automatic protection when the input is more than 35A, and the voltage of the power supply is not increased). Short circuit protection: Yes (input 30A fuse). Wiring method: terminals (please use large current copper wire). Max. output power = input voltage x max. current (if input 12 V, the maximum output power = 12V x 30A = 360W). Size: 130x84x52mm Note: 1. Output wiring cannot be reversed or short-circuited. 2, When the module is connected to inductive load, the minimum input voltage should be higher (e.g. 24V) and the maximum output power should be lower (e.g. 500W) 3. If a storage battery, power supply, solar panel or electric generator is used as input power, it should the low voltage protection value is set lower\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003e1. The power supply module uses double Sendust magnets wound with 1.2mm copper wires\u003c\/li\u003e \u003cli\u003e2. 100V\/210A low resistance MOS with large power and current input, suitable for large power LEDs, motors\u003c\/li\u003e \u003cli\u003e3. Supports reverse input protection with MOS, so you don't have to worry about wrong input cables and power supply\u003c\/li\u003e \u003cli\u003e4. Low voltage protection protects module and battery from damage caused by over-discharge when a storage battery is used as input\u003c\/li\u003e \u003cli\u003e5. Thickened cooling body and intelligent temperature control coolers dissipate heat better \u003c\/li\u003e\n\u003c\/ul\u003e","published_at":"2024-03-08T03:28:57+11:00","created_at":"2024-03-08T03:29:08+11:00","vendor":"Acogedor","type":"International power adapters","tags":["industryDE"],"price":26300,"price_min":26300,"price_max":26300,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":48983889150112,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B07KLZK3LM","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Boost converter, DC-DC boost converter module 1500W 30A DC-DC constant current constant voltage boost converter step-up power supply module 10-60V to 12-90V, with 1.2 mm copper wires","public_title":null,"options":["Default Title"],"price":26300,"weight":420,"compare_at_price":null,"inventory_management":"shopify","barcode":"794419417251","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/files\/de-B07KLZK3LM.jpg?v=1709854132","\/\/dingoship.com.au\/cdn\/shop\/products\/71-A4bcENuL.jpg?v=1709828948","\/\/dingoship.com.au\/cdn\/shop\/products\/61wrwDNBl9L.jpg?v=1709828948","\/\/dingoship.com.au\/cdn\/shop\/products\/81LzAwpJEfL.jpg?v=1709828948","\/\/dingoship.com.au\/cdn\/shop\/products\/61L9wlPfzQL.jpg?v=1709828948","\/\/dingoship.com.au\/cdn\/shop\/products\/61ckbFrpynL.jpg?v=1709828948","\/\/dingoship.com.au\/cdn\/shop\/products\/61rmXVr6cNL.jpg?v=1709828948","\/\/dingoship.com.au\/cdn\/shop\/products\/61HIjzTJGFL.jpg?v=1709828948"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B07KLZK3LM.jpg?v=1709854132","options":["Title"],"media":[{"alt":null,"id":32697833881760,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B07KLZK3LM.jpg?v=1709854132"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B07KLZK3LM.jpg?v=1709854132","width":1001},{"alt":null,"id":32694032400544,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71-A4bcENuL.jpg?v=1709828948"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71-A4bcENuL.jpg?v=1709828948","width":1001},{"alt":null,"id":32694032433312,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61wrwDNBl9L.jpg?v=1709828948"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61wrwDNBl9L.jpg?v=1709828948","width":1001},{"alt":null,"id":32694032466080,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/81LzAwpJEfL.jpg?v=1709828948"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/81LzAwpJEfL.jpg?v=1709828948","width":1001},{"alt":null,"id":32694032498848,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61L9wlPfzQL.jpg?v=1709828948"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61L9wlPfzQL.jpg?v=1709828948","width":1001},{"alt":null,"id":32694032531616,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61ckbFrpynL.jpg?v=1709828948"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61ckbFrpynL.jpg?v=1709828948","width":1001},{"alt":null,"id":32694032564384,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61rmXVr6cNL.jpg?v=1709828948"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61rmXVr6cNL.jpg?v=1709828948","width":1001},{"alt":null,"id":32694032597152,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61HIjzTJGFL.jpg?v=1709828948"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61HIjzTJGFL.jpg?v=1709828948","width":1001}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eBoost converter, DC-DC boost converter module 1500W 30A DC-DC constant current constant voltage boost converter step-up power supply module 10-60V to 12-90V, with 1.2 mm copper wires\u003c\/h3\u003e \u003cp id=\"b\"\u003eSpecifications: Type: non-isolated step-up module (BOOST) Input voltage: DC 10V to 60V. Maximum input current: 30A (input voltage 10V to 30V). 25A (input voltage 31V to 60V). Quiescent current: 15mA (increases when 12V is converted to 20V). Output voltage: 12V to 90V (adjustable, default is 19V) Maximum output current: 20A (related to the input and output voltage difference, the larger voltage difference, the smaller output current will be. Please improve heat dissipation when current is over 15A. Constant current range: 0.8A to 20A (+ \/-0.3A) Reverse input protection: Yes (150A MOS). Undervoltage protection: Yes (V8 to 50V adjustable, self-recovery). Operating temperature: -40°C to +85°C (if the temperature is too high, please turn off Improve heat dissipation). Frequency: 150 kHz. Conversion efficiency: 92% to 97% (Efficiency depends on input\/output voltage, current and voltage difference. The smaller the difference, the higher efficiency) Input overcurrent protection: Yes (automatic protection when the input is more than 35A, and the voltage of the power supply is not increased). Short circuit protection: Yes (input 30A fuse). Wiring method: terminals (please use large current copper wire). Max. output power = input voltage x max. current (if input 12 V, the maximum output power = 12V x 30A = 360W). Size: 130x84x52mm Note: 1. Output wiring cannot be reversed or short-circuited. 2, When the module is connected to inductive load, the minimum input voltage should be higher (e.g. 24V) and the maximum output power should be lower (e.g. 500W) 3. If a storage battery, power supply, solar panel or electric generator is used as input power, it should the low voltage protection value is set lower\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003e1. The power supply module uses double Sendust magnets wound with 1.2mm copper wires\u003c\/li\u003e \u003cli\u003e2. 100V\/210A low resistance MOS with large power and current input, suitable for large power LEDs, motors\u003c\/li\u003e \u003cli\u003e3. Supports reverse input protection with MOS, so you don't have to worry about wrong input cables and power supply\u003c\/li\u003e \u003cli\u003e4. Low voltage protection protects module and battery from damage caused by over-discharge when a storage battery is used as input\u003c\/li\u003e \u003cli\u003e5. Thickened cooling body and intelligent temperature control coolers dissipate heat better \u003c\/li\u003e\n\u003c\/ul\u003e"}
