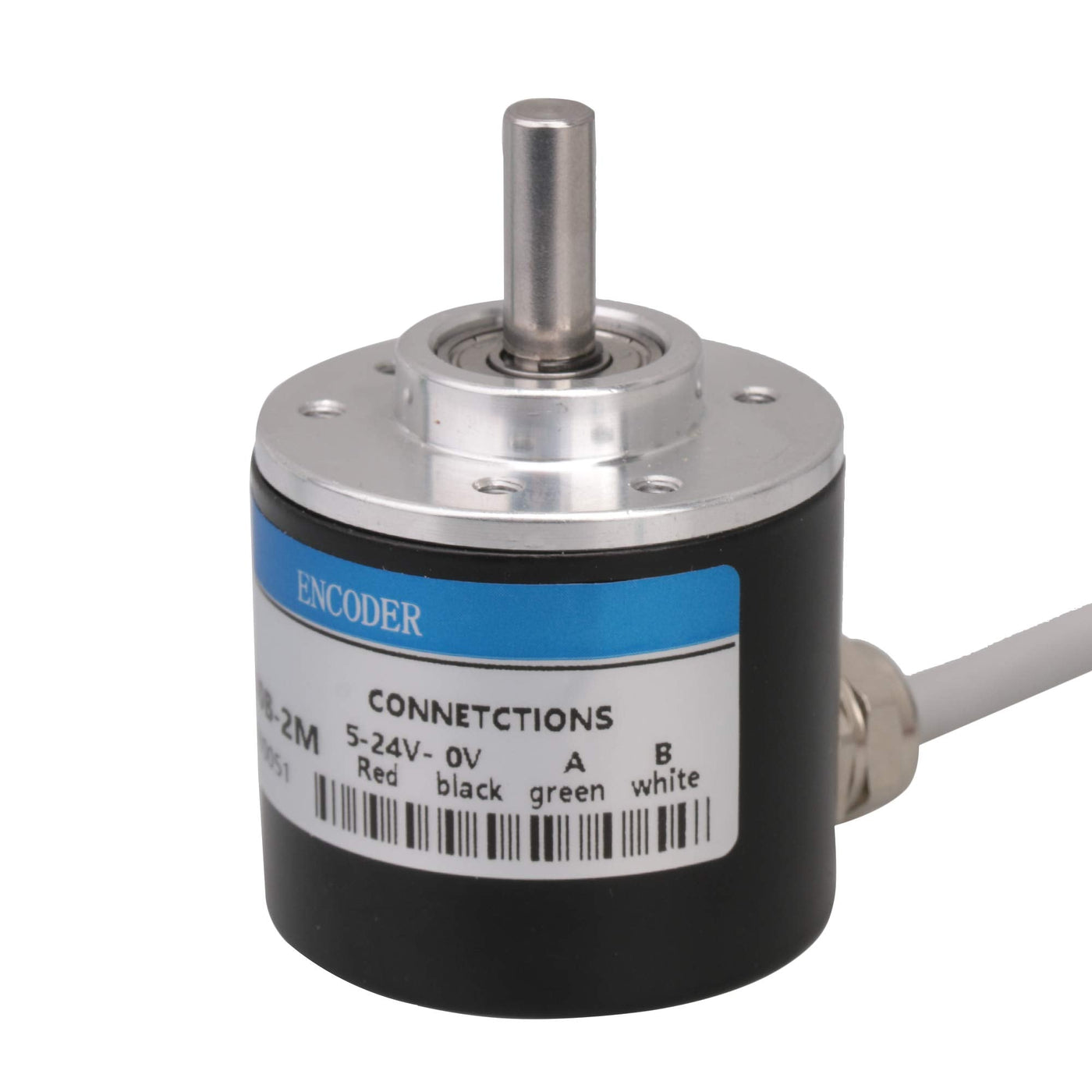

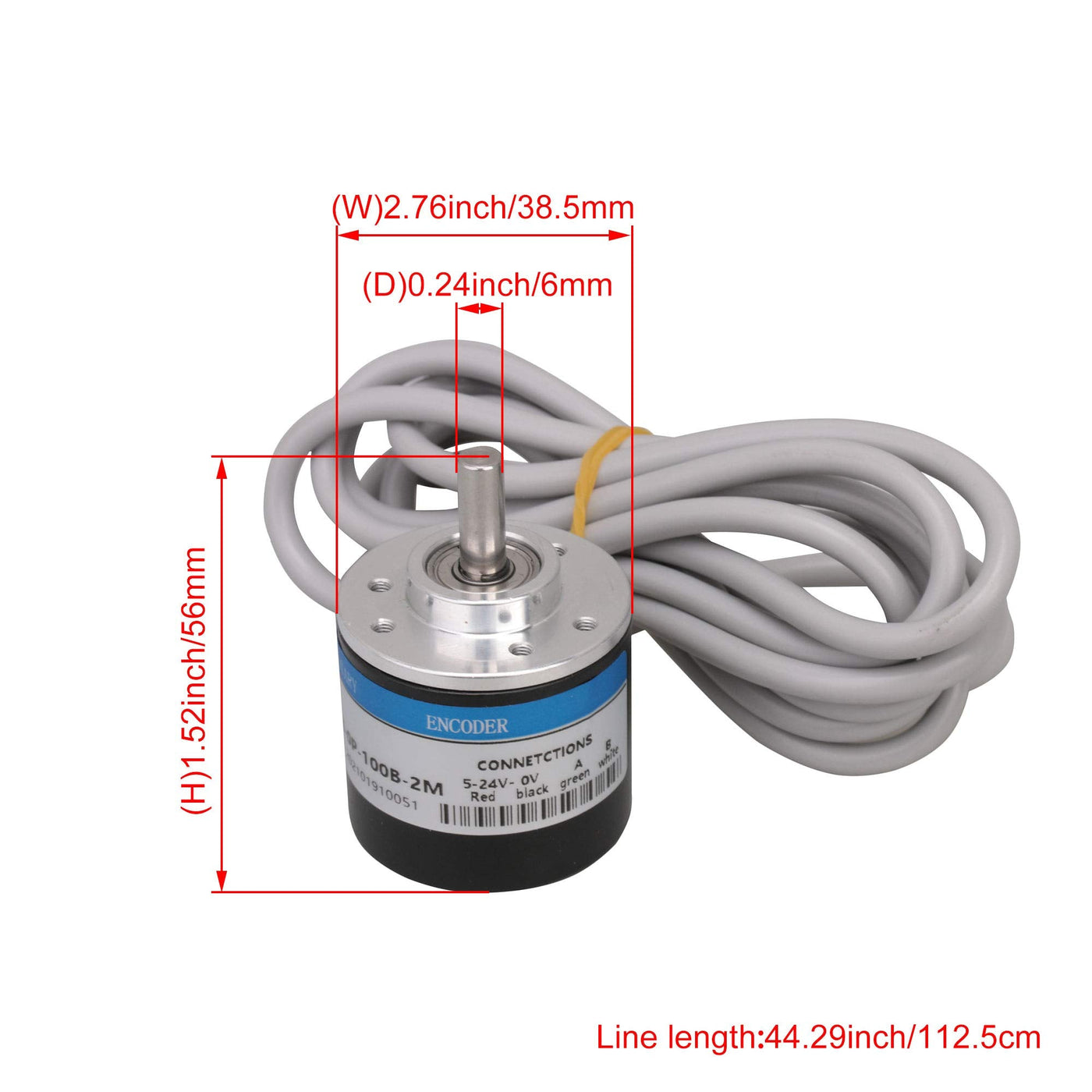

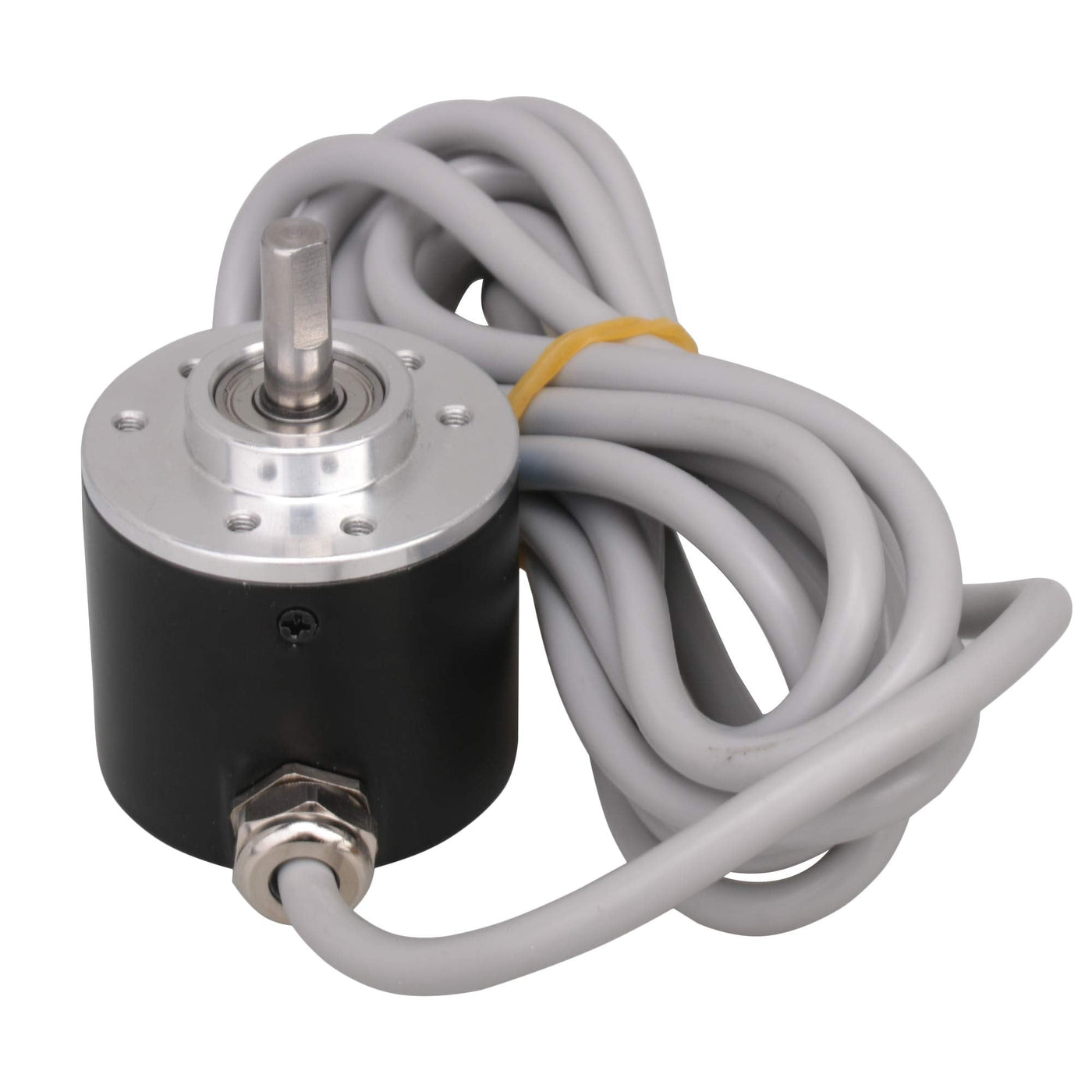

{"id":15193076007072,"title":"BQLZR 6mm Shaft 100P\/R Incremental Rotary Encoder for NPN Open Collector Output Type","handle":"bqlzr-6mm-shaft-100p-r-incremental-rotary-encoder-for-npn-open-collector-output-type","description":"\u003ch3\u003eBQLZR 6mm Shaft 100P\/R Incremental Rotary Encoder for NPN Open Collector Output Type\u003c\/h3\u003e \u003cp id=\"b\"\u003eNote: The color of the item may vary slightly due to photography and your own computer 100 p\/r (single phase 100 pulses \/ R, two-phase 4 frequency doubling up to 400 pulses). With small size, light weight, easy to install, cost effective features. To measure goods angle, acceleration, length measurements and the rotation speed Apply to a variety of displacement measurement intelligent control, measurement of the height of the civil body scale and so on Connection way: red = VCC, black = GND, white = A phase, green = B Phase Note: The AB 2 phase output must not be directly connected to VCC, otherwise the output triode will burn. Specifications: DC5-24V wide voltage power supply Speed: more than 5000rpm Shaft: 6mm\/0.23\" diameter, 13mm\/0.51\" length Size: 39mm\/1.53\" diameter, 36.5mm\/1.43\" length Output: AB 2- Phase square wave square wave pulse output, output for NPN open collector output Package included: 1 x Encoder 100P\/R Incremental Rotary Encoder\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003e100P\/R rotary encoder\u003c\/li\u003e \u003cli\u003eSpeed: more than 5000 r\/min\u003c\/li\u003e \u003cli\u003eConnection type: Red = VCC, Black = GND, White = A phase, Green = B phase li\u0026gt;\u003c\/li\u003e\n\u003c\/ul\u003e","published_at":"2025-10-03T11:21:16+10:00","created_at":"2025-10-03T11:21:13+10:00","vendor":"BQLZR","type":"Switching encoder","tags":["industryDE"],"price":21000,"price_min":21000,"price_max":21000,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":52876563185824,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B00IJ7876U","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"BQLZR 6mm Shaft 100P\/R Incremental Rotary Encoder for NPN Open Collector Output Type","public_title":null,"options":["Default Title"],"price":21000,"weight":700,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/files\/de-B00IJ7876U.jpg?v=1775754626","\/\/dingoship.com.au\/cdn\/shop\/files\/61WpBmBBqVL.jpg?v=1759454475","\/\/dingoship.com.au\/cdn\/shop\/files\/612MuaN4ztL.jpg?v=1759454475","\/\/dingoship.com.au\/cdn\/shop\/files\/71l-W8wo4HL.jpg?v=1759454475","\/\/dingoship.com.au\/cdn\/shop\/files\/61P_aGEsnRL.jpg?v=1759454475","\/\/dingoship.com.au\/cdn\/shop\/files\/71PIIy9iDtL.jpg?v=1759454475","\/\/dingoship.com.au\/cdn\/shop\/files\/61N1xrZht_L.jpg?v=1759454475","\/\/dingoship.com.au\/cdn\/shop\/files\/71zDmbBL5yL.jpg?v=1759454475","\/\/dingoship.com.au\/cdn\/shop\/files\/71zdG_OKqoS.jpg?v=1759454474"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B00IJ7876U.jpg?v=1775754626","options":["Title"],"media":[{"alt":null,"id":38388284817568,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B00IJ7876U.jpg?v=1775754626"},"aspect_ratio":1.0,"height":2000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B00IJ7876U.jpg?v=1775754626","width":2000},{"alt":null,"id":38388284850336,"position":2,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61WpBmBBqVL.jpg?v=1759454475"},"aspect_ratio":1.0,"height":2000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61WpBmBBqVL.jpg?v=1759454475","width":2000},{"alt":null,"id":38388284883104,"position":3,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/612MuaN4ztL.jpg?v=1759454475"},"aspect_ratio":1.0,"height":2000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/612MuaN4ztL.jpg?v=1759454475","width":2000},{"alt":null,"id":38388284915872,"position":4,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71l-W8wo4HL.jpg?v=1759454475"},"aspect_ratio":1.0,"height":2000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71l-W8wo4HL.jpg?v=1759454475","width":2000},{"alt":null,"id":38388284948640,"position":5,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61P_aGEsnRL.jpg?v=1759454475"},"aspect_ratio":1.0,"height":2000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61P_aGEsnRL.jpg?v=1759454475","width":2000},{"alt":null,"id":38388284981408,"position":6,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71PIIy9iDtL.jpg?v=1759454475"},"aspect_ratio":1.0,"height":2000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71PIIy9iDtL.jpg?v=1759454475","width":2000},{"alt":null,"id":38388285014176,"position":7,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61N1xrZht_L.jpg?v=1759454475"},"aspect_ratio":1.0,"height":2000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61N1xrZht_L.jpg?v=1759454475","width":2000},{"alt":null,"id":38388285046944,"position":8,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71zDmbBL5yL.jpg?v=1759454475"},"aspect_ratio":1.0,"height":2000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71zDmbBL5yL.jpg?v=1759454475","width":2000},{"alt":null,"id":38388285079712,"position":9,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71zdG_OKqoS.jpg?v=1759454474"},"aspect_ratio":1.0,"height":2000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71zdG_OKqoS.jpg?v=1759454474","width":2000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eBQLZR 6mm Shaft 100P\/R Incremental Rotary Encoder for NPN Open Collector Output Type\u003c\/h3\u003e \u003cp id=\"b\"\u003eNote: The color of the item may vary slightly due to photography and your own computer 100 p\/r (single phase 100 pulses \/ R, two-phase 4 frequency doubling up to 400 pulses). With small size, light weight, easy to install, cost effective features. To measure goods angle, acceleration, length measurements and the rotation speed Apply to a variety of displacement measurement intelligent control, measurement of the height of the civil body scale and so on Connection way: red = VCC, black = GND, white = A phase, green = B Phase Note: The AB 2 phase output must not be directly connected to VCC, otherwise the output triode will burn. Specifications: DC5-24V wide voltage power supply Speed: more than 5000rpm Shaft: 6mm\/0.23\" diameter, 13mm\/0.51\" length Size: 39mm\/1.53\" diameter, 36.5mm\/1.43\" length Output: AB 2- Phase square wave square wave pulse output, output for NPN open collector output Package included: 1 x Encoder 100P\/R Incremental Rotary Encoder\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003e100P\/R rotary encoder\u003c\/li\u003e \u003cli\u003eSpeed: more than 5000 r\/min\u003c\/li\u003e \u003cli\u003eConnection type: Red = VCC, Black = GND, White = A phase, Green = B phase li\u0026gt;\u003c\/li\u003e\n\u003c\/ul\u003e"}
