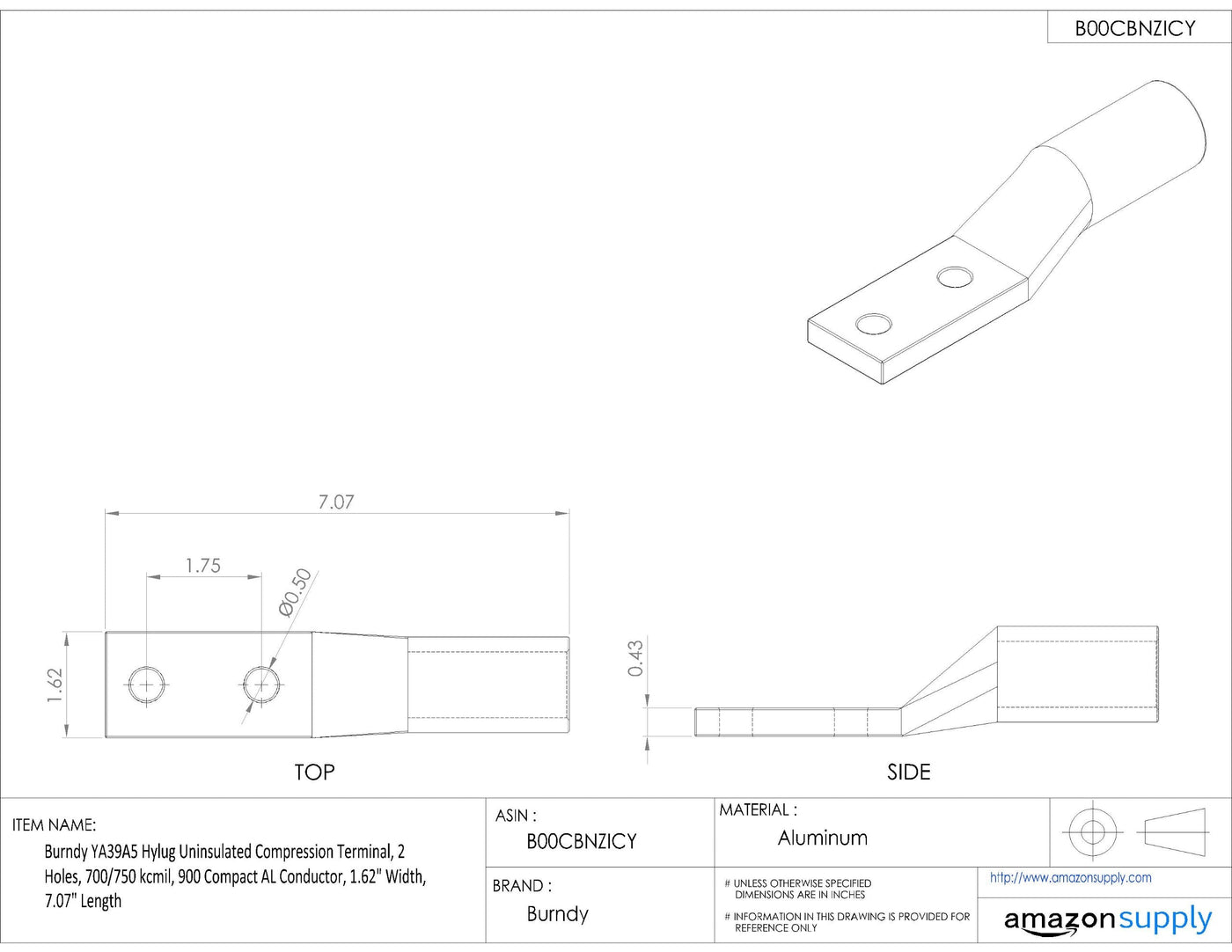

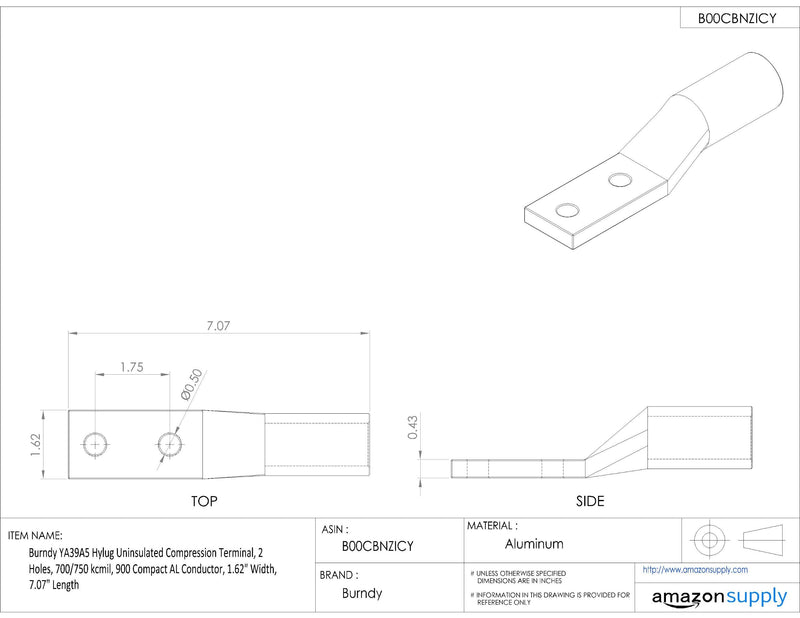

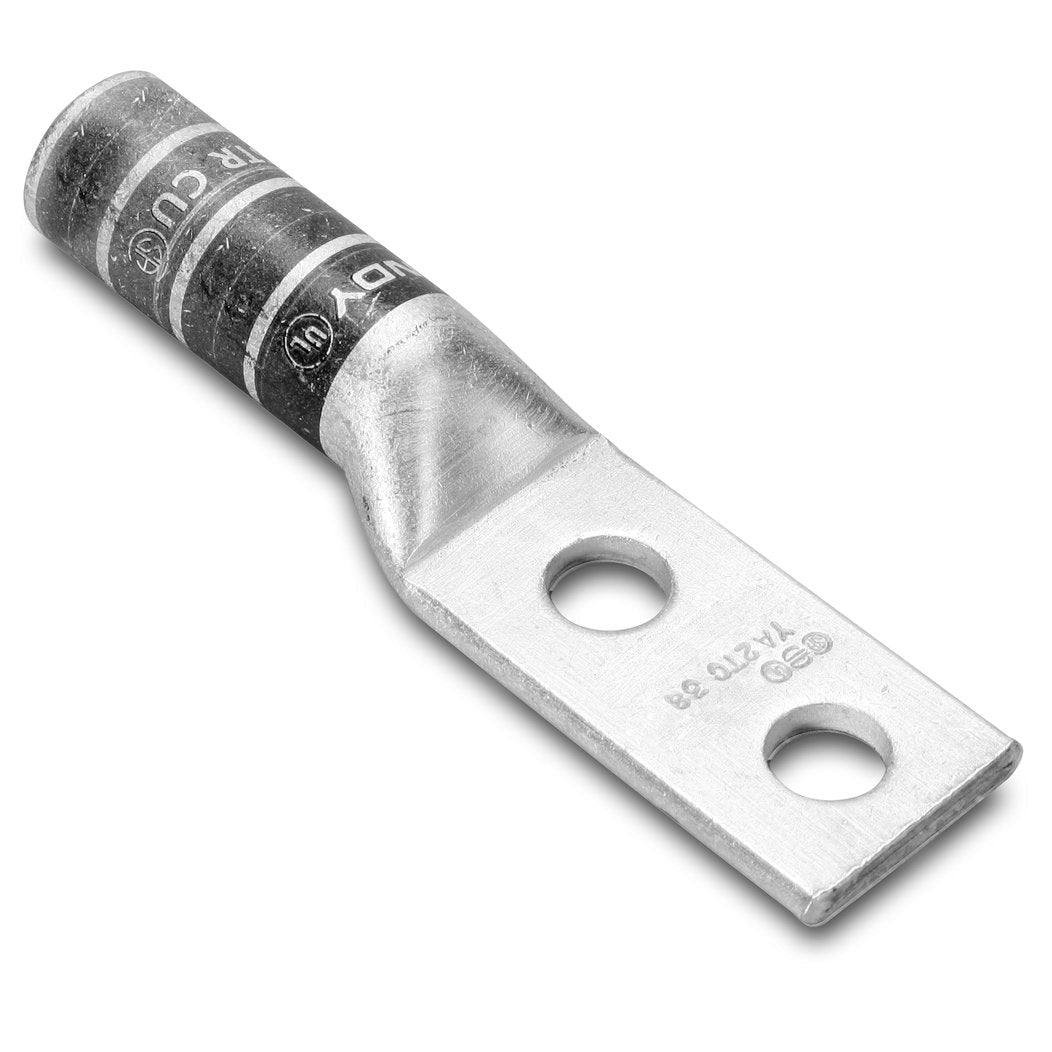

{"id":7566346977440,"title":"Burndy YA39A5 Hylug Uninsulated Compression Terminal, 2 Holes, 700\/750 kcmil, 900 Compact AL Conductor, 1.62\" Width, 7.07\" Length","handle":"burndy-ya39a5-hylug-uninsulated-compression-terminal-2-holes-700-750-kcmil-900-compact-al-conductor-1-62-width-7-07-length","description":"\u003ch3\u003eBurndy YA39A5 Hylug Uninsulated Compression Terminal, 2 Holes, 700\/750 kcmil, 900 Compact AL Conductor, 1.62\" Width, 7.07\" Length\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eType YA-A aluminum tin-plated compression Hylug terminals are dual-rated and\ndesigned for use on both aluminum and copper conductors from 12 sol. Through\n2000 kcmil. 4-hole pads inhibit connector rotation and increase area contact.\nThey are designed for heavy duty applications to 35KV. YA-A terminals are\nprefilled with Penetrox and assembled with color-coded end caps. The aluminum\nHylug terminals are designed for a permanent trouble-free electrical\ntermination. Oxide inhibiting compound contains homogeneously suspended\nmetallic particles to penetrate the wires oxides, establish electrical\ncontinuity and forms an airtight connection. Color-coded end caps inserted in\nbarrel end. Prevents foreign materials from entering and contaminating the\nconnector prior to usage plus identifies the proper color-coded die for a\nreliable connection. 1\/2 Stud size. Number of holes in pad: 2-NEMA.\n2-7\/8-inches wire strip length.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eManufactured from high conductivity, wrought aluminum with heavy duty wall thickness\u003c\/li\u003e\n \u003cli\u003eElectro-tin plated, provides durable long lasting corrosion resistance\u003c\/li\u003e\n \u003cli\u003eInternally beveled barrel, provides easy cable insertion\u003c\/li\u003e\n \u003cli\u003eMeets UL486B 90 degree C requirements provides a quality electrical dual connection\u003c\/li\u003e\n \u003cli\u003eConnector is clearly marked with wire size, die index, color-code and the proper number and location of crimps\u003c\/li\u003e\n \u003c\/ul\u003e\n","published_at":"2022-10-05T16:21:57+11:00","created_at":"2022-10-05T16:22:00+11:00","vendor":"Burndy","type":"Rectangular","tags":["workwarehouse"],"price":22900,"price_min":22900,"price_max":22900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42636726927520,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B00CBNZICY","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Burndy YA39A5 Hylug Uninsulated Compression Terminal, 2 Holes, 700\/750 kcmil, 900 Compact AL Conductor, 1.62\" Width, 7.07\" Length","public_title":null,"options":["Default Title"],"price":22900,"weight":204,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/products\/B00CBNZICY.jpg?v=1664947320","\/\/dingoship.com.au\/cdn\/shop\/products\/81Keg2AM7LL.jpg?v=1664947320"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/products\/B00CBNZICY.jpg?v=1664947320","options":["Title"],"media":[{"alt":null,"id":25599597478048,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1052,"width":1052,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B00CBNZICY.jpg?v=1664947320"},"aspect_ratio":1.0,"height":1052,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B00CBNZICY.jpg?v=1664947320","width":1052},{"alt":null,"id":25599597510816,"position":2,"preview_image":{"aspect_ratio":1.294,"height":1978,"width":2560,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/81Keg2AM7LL.jpg?v=1664947320"},"aspect_ratio":1.294,"height":1978,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/81Keg2AM7LL.jpg?v=1664947320","width":2560}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eBurndy YA39A5 Hylug Uninsulated Compression Terminal, 2 Holes, 700\/750 kcmil, 900 Compact AL Conductor, 1.62\" Width, 7.07\" Length\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eType YA-A aluminum tin-plated compression Hylug terminals are dual-rated and\ndesigned for use on both aluminum and copper conductors from 12 sol. Through\n2000 kcmil. 4-hole pads inhibit connector rotation and increase area contact.\nThey are designed for heavy duty applications to 35KV. YA-A terminals are\nprefilled with Penetrox and assembled with color-coded end caps. The aluminum\nHylug terminals are designed for a permanent trouble-free electrical\ntermination. Oxide inhibiting compound contains homogeneously suspended\nmetallic particles to penetrate the wires oxides, establish electrical\ncontinuity and forms an airtight connection. Color-coded end caps inserted in\nbarrel end. Prevents foreign materials from entering and contaminating the\nconnector prior to usage plus identifies the proper color-coded die for a\nreliable connection. 1\/2 Stud size. Number of holes in pad: 2-NEMA.\n2-7\/8-inches wire strip length.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eManufactured from high conductivity, wrought aluminum with heavy duty wall thickness\u003c\/li\u003e\n \u003cli\u003eElectro-tin plated, provides durable long lasting corrosion resistance\u003c\/li\u003e\n \u003cli\u003eInternally beveled barrel, provides easy cable insertion\u003c\/li\u003e\n \u003cli\u003eMeets UL486B 90 degree C requirements provides a quality electrical dual connection\u003c\/li\u003e\n \u003cli\u003eConnector is clearly marked with wire size, die index, color-code and the proper number and location of crimps\u003c\/li\u003e\n \u003c\/ul\u003e\n"}
