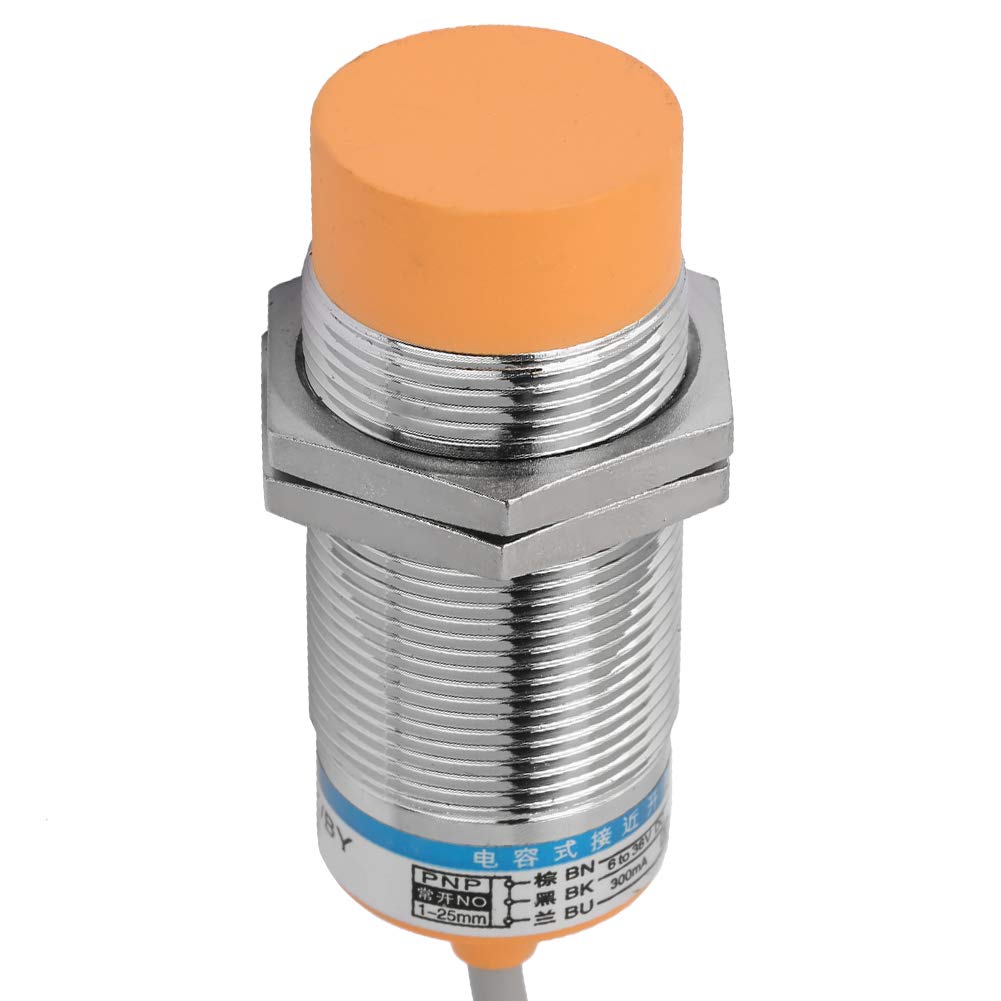

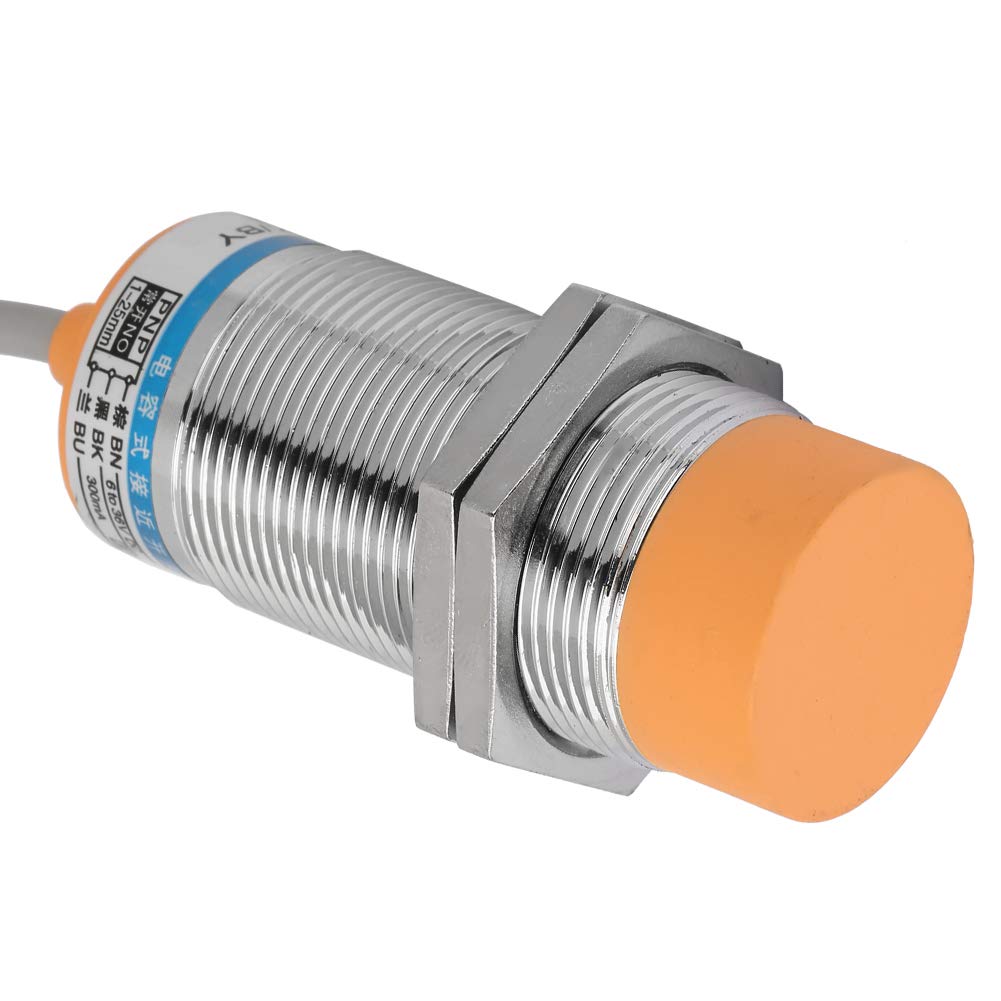

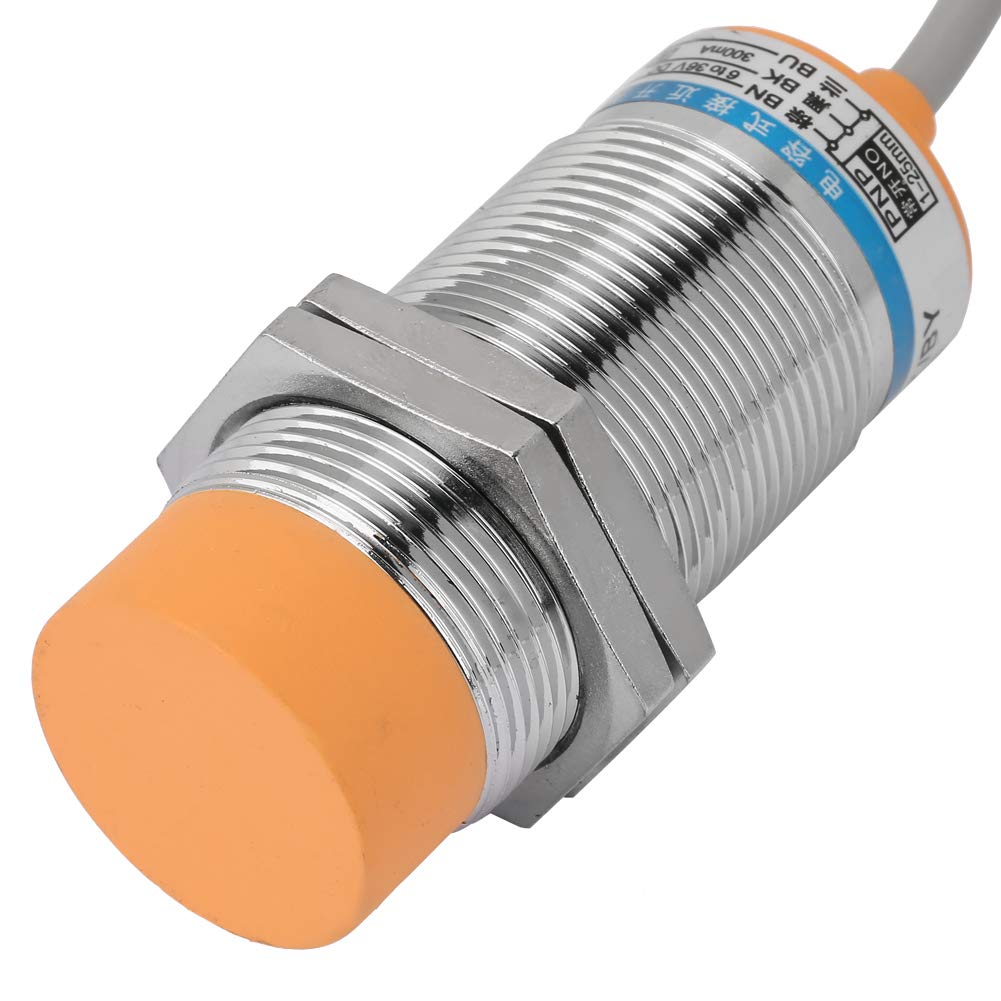

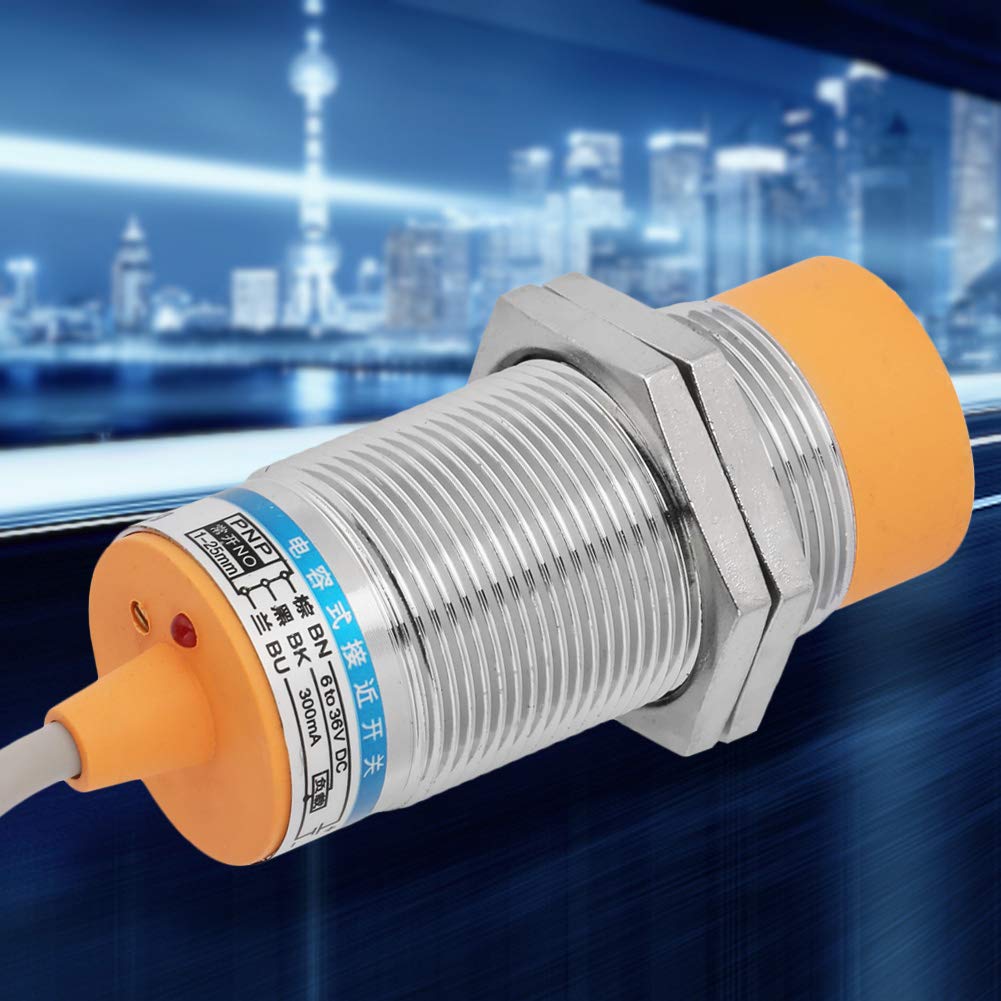

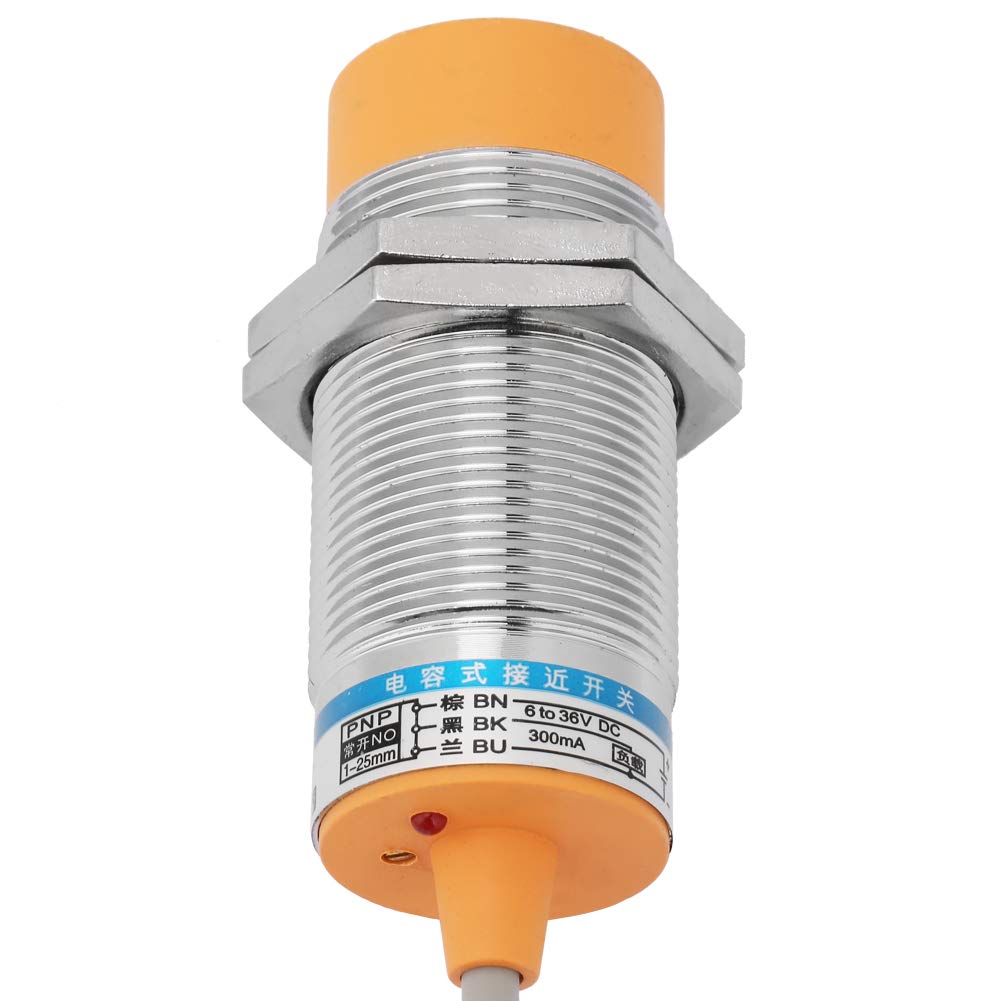

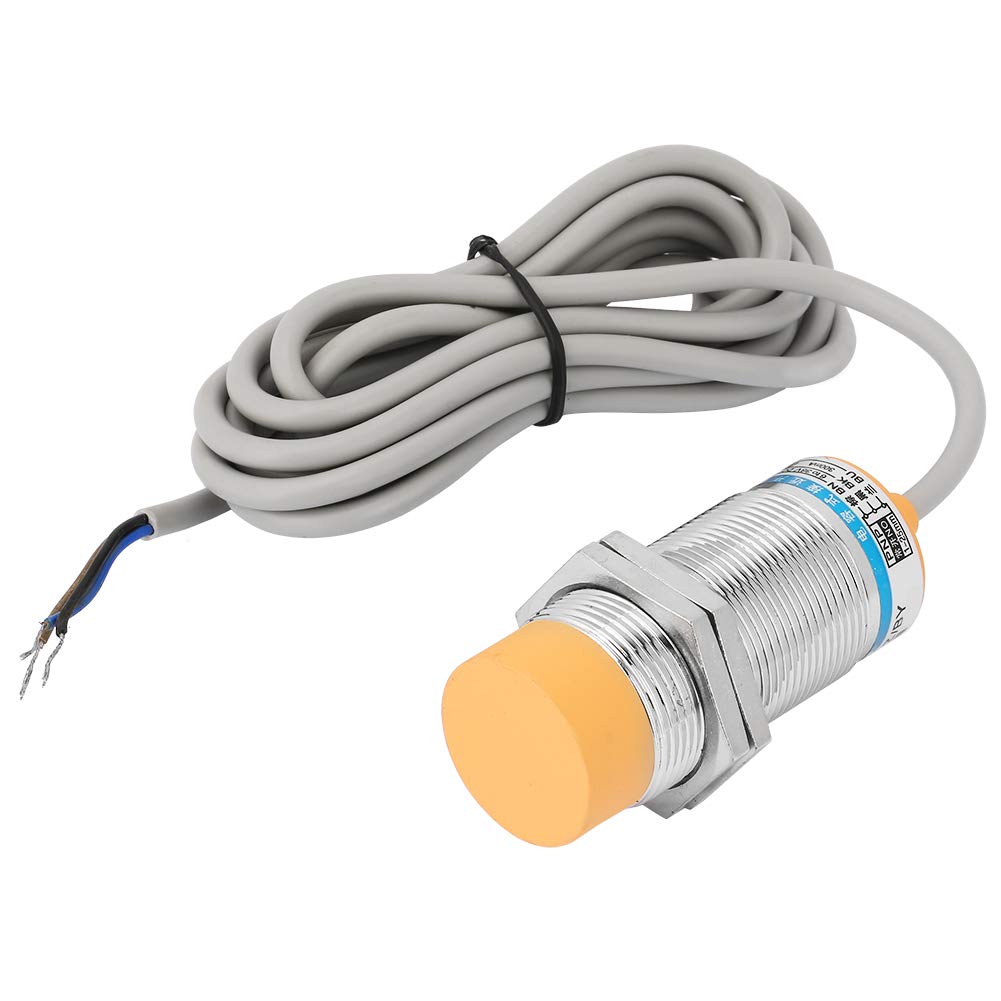

{"id":15190051881120,"title":"Capacitive proximity sensor, LJC30A3-HZ\/BY-DC-PNP 3-wire switch with normally open proximity sensor and 25mm detection distance","handle":"capacitive-proximity-sensor-ljc30a3-hz-by-dc-pnp-3-wire-switch-with-normally-open-proximity-sensor-and-25mm-detection-distance","description":"\u003ch3\u003eCapacitive Proximity Sensor, LJC30A3-HZ\/BY-DC-PNP 3-Wire Switch with Normally Open Proximity Sensor and 25mm Detection Distance\u003c\/h3\u003e \u003cp id=\"b\"\u003eSpecification: Condition: 100% Brand New Material: Brass Plated Nickel shell, ABS detection surface Weight: 165g Detection distance: 25mm ± 10% Adjust distance: 0-18mm Delay distance: less than 10% of detection distance Detection object: any dielectric substance Standard test object: iron SPCC 50 50 1mm Response frequency: DC: 0.5 kHz; AC current: 25Hz Supply voltage: DC 12-24V (6-36V) Ripple (pp) less than 10% (DC type) Withstand voltage: AC1000V 50\/60Hz 1min between the charging part and the shell Voltage influence: Within the voltage range of the rated supply of ±15%, within the detection range of ±10%, when it is the value of the rated supply voltageCurrent consumption: NP type: below 13 mA D type: below 0.8 mA A type: below 1.7 mA Control output: NP -Type: under 300 mA D type: under 200 mA A type: under 400mA Circuit protection: NPD type: reverse polarity protection, over voltage protection, load short circuit protection A type: shock absorption Ambient temperature: -30 to +65 °C each and store humidity: 35-95 each % RH (no ice, no frost) act and saveTemperature influence: Temperature range -30 to +65 ° C, +23 ° C, ± 15% detection distance; Temperature range -25 to +60°C, +23°C, ±10% detection distance. Insulation resistance: More than 50 mΩ (500 Mega DC) charge between parts and housing Package list: 1 x Proximity switch\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eSTABLE AND RELIABLE PERFORMANCE Excellent detection performance, reliable function, stable performance and fast frequency response.\u003c\/li\u003e \u003cli\u003eSEALED STRUCTURE AND GOOD CHARACTERISTICS Sealed structure with shockproof and corrosion-resistant properties, good moisture and dust resistance and high reliability when working.\u003c\/li\u003e \u003cli\u003e IDEAL PROXIMITY SENSOR SWITCH This is a high quality proximity switch, also called non-contact proximity switch, which is an ideal electronic on-off sensor.\u003c\/li\u003e \u003cli\u003eNON-CONTACT DETECTION Non-contact detection with strong anti-interference ability, which does not easily change the operating conditions of the measurement object influenced.\u003c\/li\u003e \u003cli\u003eLONG LIFE \u0026amp; CONTINUED USE No mechanical wear and fatigue damage, long service life, widely used in machine tool, metallurgy, chemical, textile and printing industries.\u003c\/li\u003e\n\u003c\/ul\u003e","published_at":"2025-10-01T15:48:51+10:00","created_at":"2025-10-01T15:48:48+10:00","vendor":"Garosa","type":"Capacitive proximity sensors","tags":["industryDE"],"price":20100,"price_min":20100,"price_max":20100,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":52863903924384,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B0827QTC7S","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Capacitive proximity sensor, LJC30A3-HZ\/BY-DC-PNP 3-wire switch with normally open proximity sensor and 25mm detection distance","public_title":null,"options":["Default Title"],"price":20100,"weight":700,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/files\/de-B0827QTC7S.jpg?v=1775752226","\/\/dingoship.com.au\/cdn\/shop\/files\/61qQkdV-LsL.jpg?v=1759297730","\/\/dingoship.com.au\/cdn\/shop\/files\/61fvtv5FmzL.jpg?v=1759297730","\/\/dingoship.com.au\/cdn\/shop\/files\/61QSOWCrAXL.jpg?v=1759297730","\/\/dingoship.com.au\/cdn\/shop\/files\/61UNFVIOMJL.jpg?v=1759297730","\/\/dingoship.com.au\/cdn\/shop\/files\/61pJCVfPb5L.jpg?v=1759297730"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B0827QTC7S.jpg?v=1775752226","options":["Title"],"media":[{"alt":null,"id":38370384904352,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B0827QTC7S.jpg?v=1775752226"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B0827QTC7S.jpg?v=1775752226","width":1001},{"alt":null,"id":38370384937120,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61qQkdV-LsL.jpg?v=1759297730"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61qQkdV-LsL.jpg?v=1759297730","width":1001},{"alt":null,"id":38370384969888,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61fvtv5FmzL.jpg?v=1759297730"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61fvtv5FmzL.jpg?v=1759297730","width":1001},{"alt":null,"id":38370385002656,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61QSOWCrAXL.jpg?v=1759297730"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61QSOWCrAXL.jpg?v=1759297730","width":1001},{"alt":null,"id":38370385035424,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61UNFVIOMJL.jpg?v=1759297730"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61UNFVIOMJL.jpg?v=1759297730","width":1001},{"alt":null,"id":38370385068192,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61pJCVfPb5L.jpg?v=1759297730"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61pJCVfPb5L.jpg?v=1759297730","width":1001}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eCapacitive Proximity Sensor, LJC30A3-HZ\/BY-DC-PNP 3-Wire Switch with Normally Open Proximity Sensor and 25mm Detection Distance\u003c\/h3\u003e \u003cp id=\"b\"\u003eSpecification: Condition: 100% Brand New Material: Brass Plated Nickel shell, ABS detection surface Weight: 165g Detection distance: 25mm ± 10% Adjust distance: 0-18mm Delay distance: less than 10% of detection distance Detection object: any dielectric substance Standard test object: iron SPCC 50 50 1mm Response frequency: DC: 0.5 kHz; AC current: 25Hz Supply voltage: DC 12-24V (6-36V) Ripple (pp) less than 10% (DC type) Withstand voltage: AC1000V 50\/60Hz 1min between the charging part and the shell Voltage influence: Within the voltage range of the rated supply of ±15%, within the detection range of ±10%, when it is the value of the rated supply voltageCurrent consumption: NP type: below 13 mA D type: below 0.8 mA A type: below 1.7 mA Control output: NP -Type: under 300 mA D type: under 200 mA A type: under 400mA Circuit protection: NPD type: reverse polarity protection, over voltage protection, load short circuit protection A type: shock absorption Ambient temperature: -30 to +65 °C each and store humidity: 35-95 each % RH (no ice, no frost) act and saveTemperature influence: Temperature range -30 to +65 ° C, +23 ° C, ± 15% detection distance; Temperature range -25 to +60°C, +23°C, ±10% detection distance. Insulation resistance: More than 50 mΩ (500 Mega DC) charge between parts and housing Package list: 1 x Proximity switch\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eSTABLE AND RELIABLE PERFORMANCE Excellent detection performance, reliable function, stable performance and fast frequency response.\u003c\/li\u003e \u003cli\u003eSEALED STRUCTURE AND GOOD CHARACTERISTICS Sealed structure with shockproof and corrosion-resistant properties, good moisture and dust resistance and high reliability when working.\u003c\/li\u003e \u003cli\u003e IDEAL PROXIMITY SENSOR SWITCH This is a high quality proximity switch, also called non-contact proximity switch, which is an ideal electronic on-off sensor.\u003c\/li\u003e \u003cli\u003eNON-CONTACT DETECTION Non-contact detection with strong anti-interference ability, which does not easily change the operating conditions of the measurement object influenced.\u003c\/li\u003e \u003cli\u003eLONG LIFE \u0026amp; CONTINUED USE No mechanical wear and fatigue damage, long service life, widely used in machine tool, metallurgy, chemical, textile and printing industries.\u003c\/li\u003e\n\u003c\/ul\u003e"}
