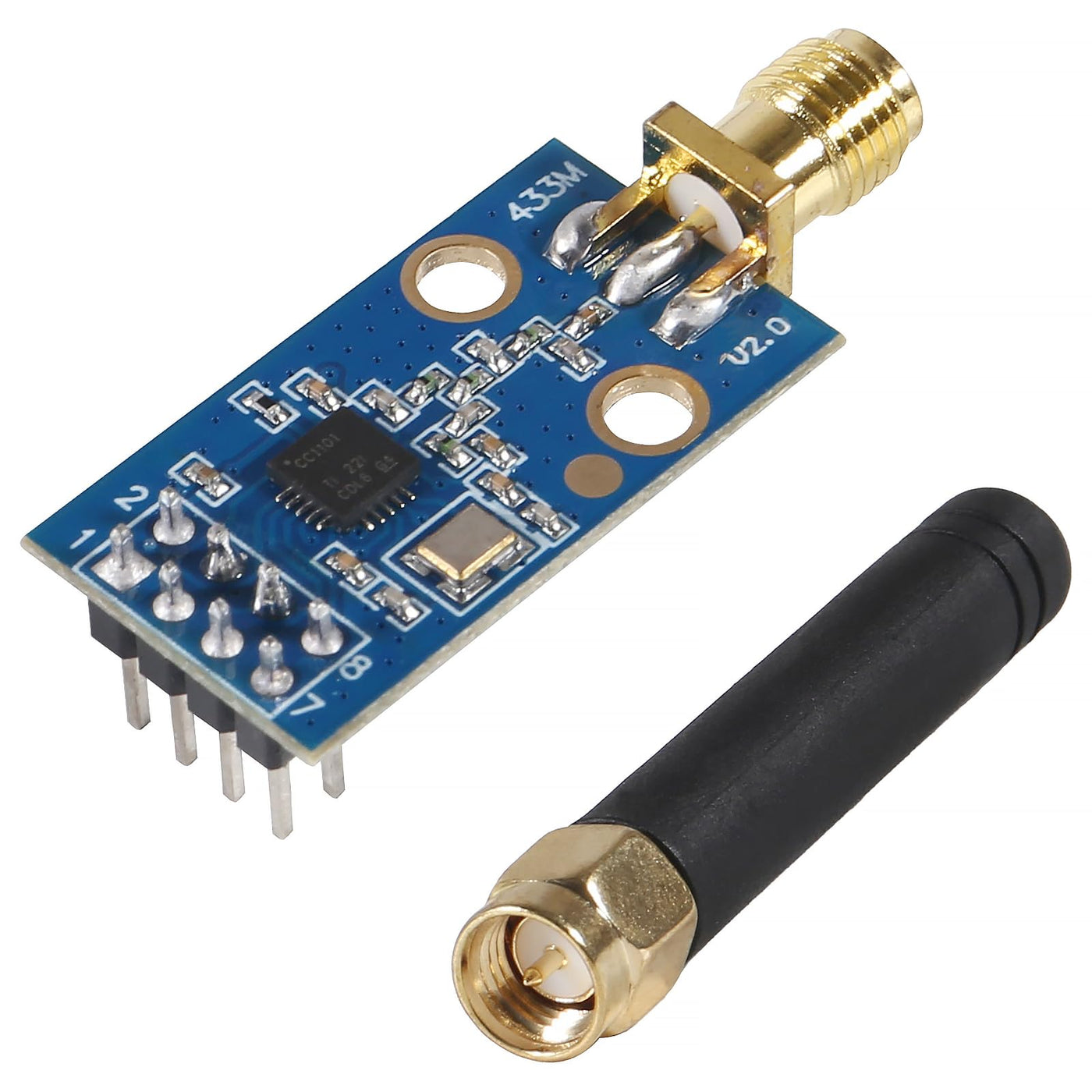

{"id":15199793676448,"title":"CC1101 Wireless Module with SMA Antenna Wireless Transceiver Module 315\/433\/868\/915MHZ 1","handle":"cc1101-wireless-module-with-sma-antenna-wireless-transceiver-module-315-433-868-915mhz-1","description":"\u003ch3\u003eCC1101 Wireless Module with SMA Antenna Wireless Transceiver Module 315\/433\/868\/915MHZ\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eCC1101 wireless RF transceiver 315\/433\/868\/915MHZ + SMA antenna wireless\r\nmodule Continuous frequency band expansion: CC1100: 400-464 MHz and 800-928\r\nMHz CC1101: 387-464 MHz and 779-928 MHz Working voltage: DC 1.8V-3.6V Working\r\nfrequency: (module: 387-464MHZ) Default working frequency: 433Mhz Maximum\r\ninstantaneous working current: \u0026lt;30mA; Maximum transmit power: 10mW (+10dBm)\r\nSupport 2-FSK, GFSK and MSK modulation; Receiver sensitivity -110dBm, 1200\r\nbaud The minimum operating speed is 1.2kbps, the maximum is 500kbps\r\nIndependent 64-byte RX and TX data FIFO buffer Built-in hardware CRC error\r\ndetection to ensure reliable data transmission Support RSSI signal strength\r\ndetection and carrier sensing functions Low power consumption Mailing address\r\n(256) Working frequency can be programmed via SPI Programmable output power,\r\nsupporting all frequencies up to +10 dBm WOR function can be set to standby,\r\nproportional receiving state timing switch machine time, reduce power\r\nconsumption Fast frequency synthesizer with proper frequency hopping system\r\nPackage list: 1 Frequency Transceiver Module CC1101 1 Antenna\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eCC1101 wireless RF transceiver 315\/433\/868\/915MHZ + SMA antenna wireless module made of high-quality materials, durable.\u003c\/li\u003e\r\n \u003cli\u003eCC1101 supports a wide supply voltage range of 1.8V to 3.6VDC, ensuring compatibility with different power sources.\u003c\/li\u003e\r\n \u003cli\u003eInstantaneous maximum working current: \u0026lt;30mA; Maximum transmit power: 10mW (+10dBm).\u003c\/li\u003e\r\n \u003cli\u003eThe CC1101 module has enough transmitting power, good spectrum characteristics, small harmonics, small channel crosstalk and ultra small volume.\u003c\/li\u003e\r\n \u003cli\u003eThis wireless transceiver module is an ideal choice for applications that require wireless connectivity, such as IoT devices, remote control systems, and wireless sensor networks.\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2025-10-14T18:52:37+11:00","created_at":"2025-10-14T18:52:34+11:00","vendor":"AOICRIE","type":"","tags":["electronics_selected_Oct2025"],"price":8800,"price_min":8800,"price_max":8800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":52918372597920,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0D2TMTV5Z","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"CC1101 Wireless Module with SMA Antenna Wireless Transceiver Module 315\/433\/868\/915MHZ 1","public_title":null,"options":["Default Title"],"price":8800,"weight":18,"compare_at_price":null,"inventory_management":"shopify","barcode":"687117711663","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/dingoship.com.au\/cdn\/shop\/files\/71PA89uPiLL.jpg?v=1760428356","\/\/dingoship.com.au\/cdn\/shop\/files\/71W8g_W79yL.jpg?v=1760428356","\/\/dingoship.com.au\/cdn\/shop\/files\/71nBQL4wtQL.jpg?v=1760428356","\/\/dingoship.com.au\/cdn\/shop\/files\/71xNCufQMbL.jpg?v=1760428357","\/\/dingoship.com.au\/cdn\/shop\/files\/71NfjdJ5CnL.jpg?v=1760428357","\/\/dingoship.com.au\/cdn\/shop\/files\/61uQ977LKoL.jpg?v=1760428357","\/\/dingoship.com.au\/cdn\/shop\/files\/61UeaE7LhcL.jpg?v=1760428356"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/files\/71PA89uPiLL.jpg?v=1760428356","options":["Title"],"media":[{"alt":null,"id":38448593666208,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71PA89uPiLL.jpg?v=1760428356"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71PA89uPiLL.jpg?v=1760428356","width":1600},{"alt":null,"id":38448593698976,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71W8g_W79yL.jpg?v=1760428356"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71W8g_W79yL.jpg?v=1760428356","width":1600},{"alt":null,"id":38448593731744,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71nBQL4wtQL.jpg?v=1760428356"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71nBQL4wtQL.jpg?v=1760428356","width":1600},{"alt":null,"id":38448593764512,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71xNCufQMbL.jpg?v=1760428357"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71xNCufQMbL.jpg?v=1760428357","width":1600},{"alt":null,"id":38448593797280,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71NfjdJ5CnL.jpg?v=1760428357"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71NfjdJ5CnL.jpg?v=1760428357","width":1600},{"alt":null,"id":38448593830048,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61uQ977LKoL.jpg?v=1760428357"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61uQ977LKoL.jpg?v=1760428357","width":1600},{"alt":null,"id":38448593862816,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61UeaE7LhcL.jpg?v=1760428356"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61UeaE7LhcL.jpg?v=1760428356","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eCC1101 Wireless Module with SMA Antenna Wireless Transceiver Module 315\/433\/868\/915MHZ\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eCC1101 wireless RF transceiver 315\/433\/868\/915MHZ + SMA antenna wireless\r\nmodule Continuous frequency band expansion: CC1100: 400-464 MHz and 800-928\r\nMHz CC1101: 387-464 MHz and 779-928 MHz Working voltage: DC 1.8V-3.6V Working\r\nfrequency: (module: 387-464MHZ) Default working frequency: 433Mhz Maximum\r\ninstantaneous working current: \u0026lt;30mA; Maximum transmit power: 10mW (+10dBm)\r\nSupport 2-FSK, GFSK and MSK modulation; Receiver sensitivity -110dBm, 1200\r\nbaud The minimum operating speed is 1.2kbps, the maximum is 500kbps\r\nIndependent 64-byte RX and TX data FIFO buffer Built-in hardware CRC error\r\ndetection to ensure reliable data transmission Support RSSI signal strength\r\ndetection and carrier sensing functions Low power consumption Mailing address\r\n(256) Working frequency can be programmed via SPI Programmable output power,\r\nsupporting all frequencies up to +10 dBm WOR function can be set to standby,\r\nproportional receiving state timing switch machine time, reduce power\r\nconsumption Fast frequency synthesizer with proper frequency hopping system\r\nPackage list: 1 Frequency Transceiver Module CC1101 1 Antenna\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eCC1101 wireless RF transceiver 315\/433\/868\/915MHZ + SMA antenna wireless module made of high-quality materials, durable.\u003c\/li\u003e\r\n \u003cli\u003eCC1101 supports a wide supply voltage range of 1.8V to 3.6VDC, ensuring compatibility with different power sources.\u003c\/li\u003e\r\n \u003cli\u003eInstantaneous maximum working current: \u0026lt;30mA; Maximum transmit power: 10mW (+10dBm).\u003c\/li\u003e\r\n \u003cli\u003eThe CC1101 module has enough transmitting power, good spectrum characteristics, small harmonics, small channel crosstalk and ultra small volume.\u003c\/li\u003e\r\n \u003cli\u003eThis wireless transceiver module is an ideal choice for applications that require wireless connectivity, such as IoT devices, remote control systems, and wireless sensor networks.\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
