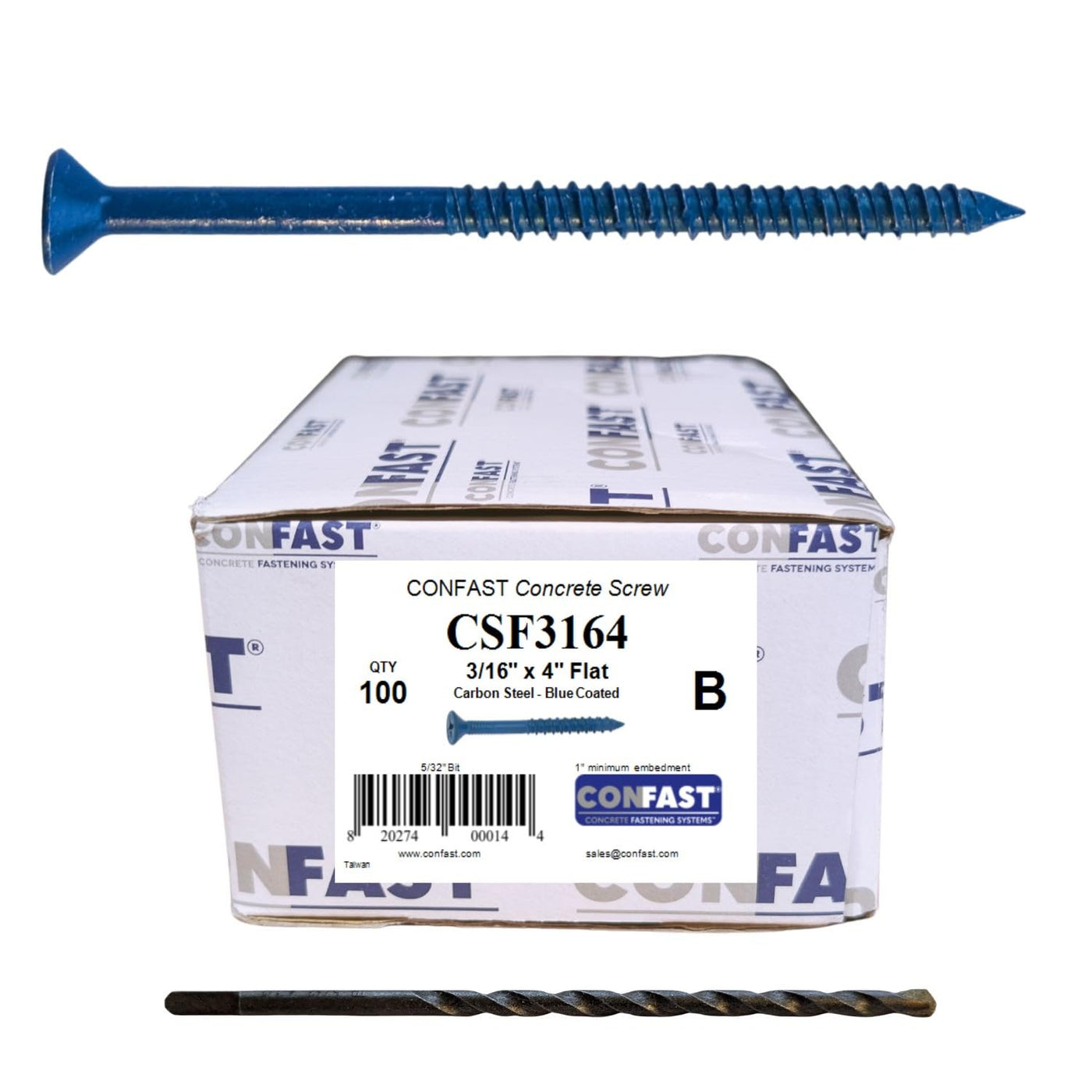

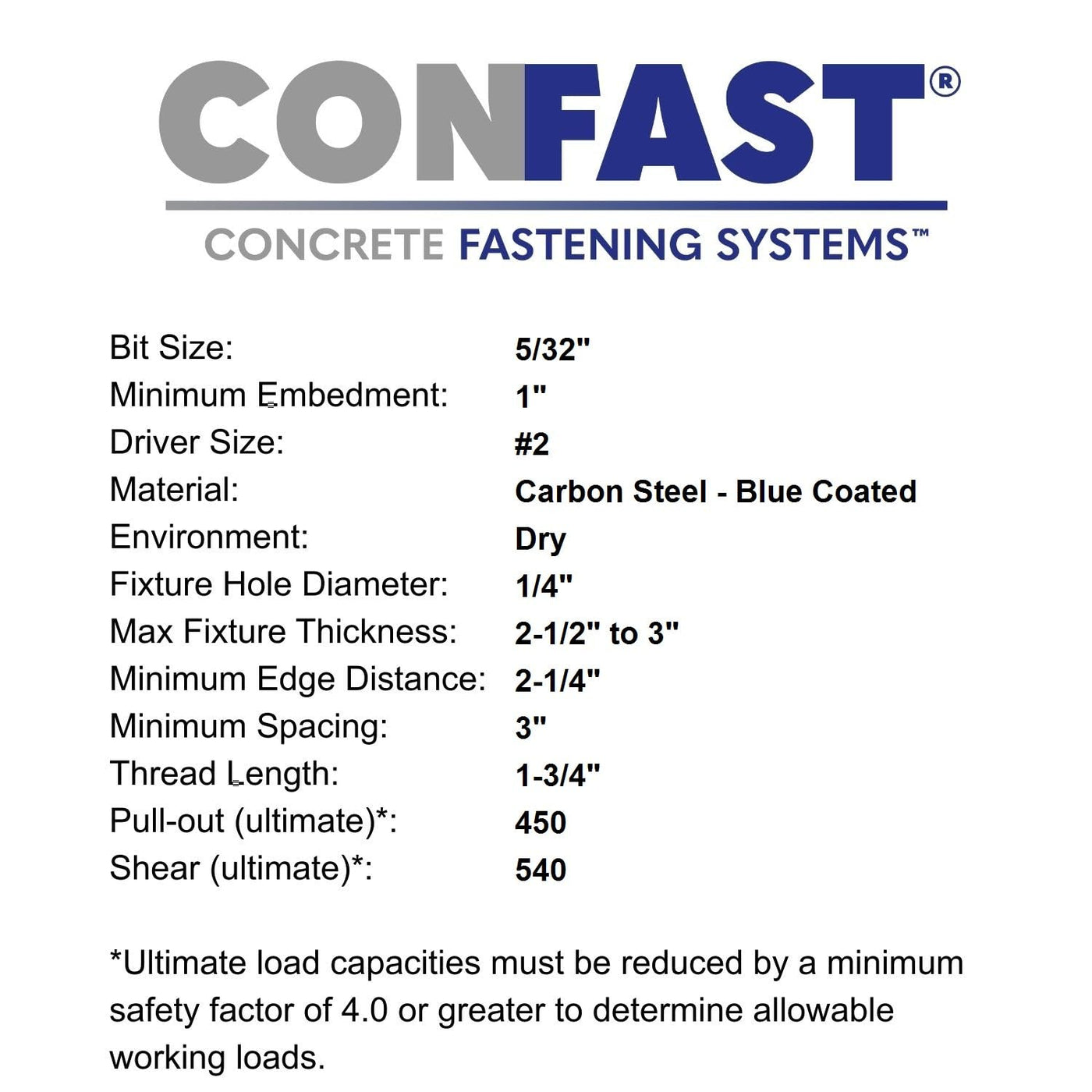

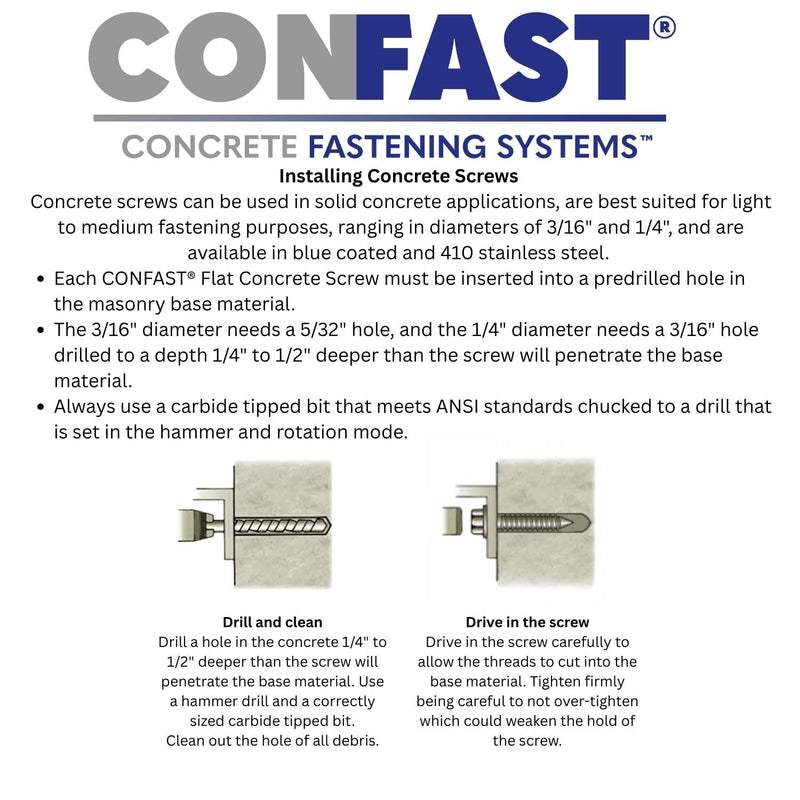

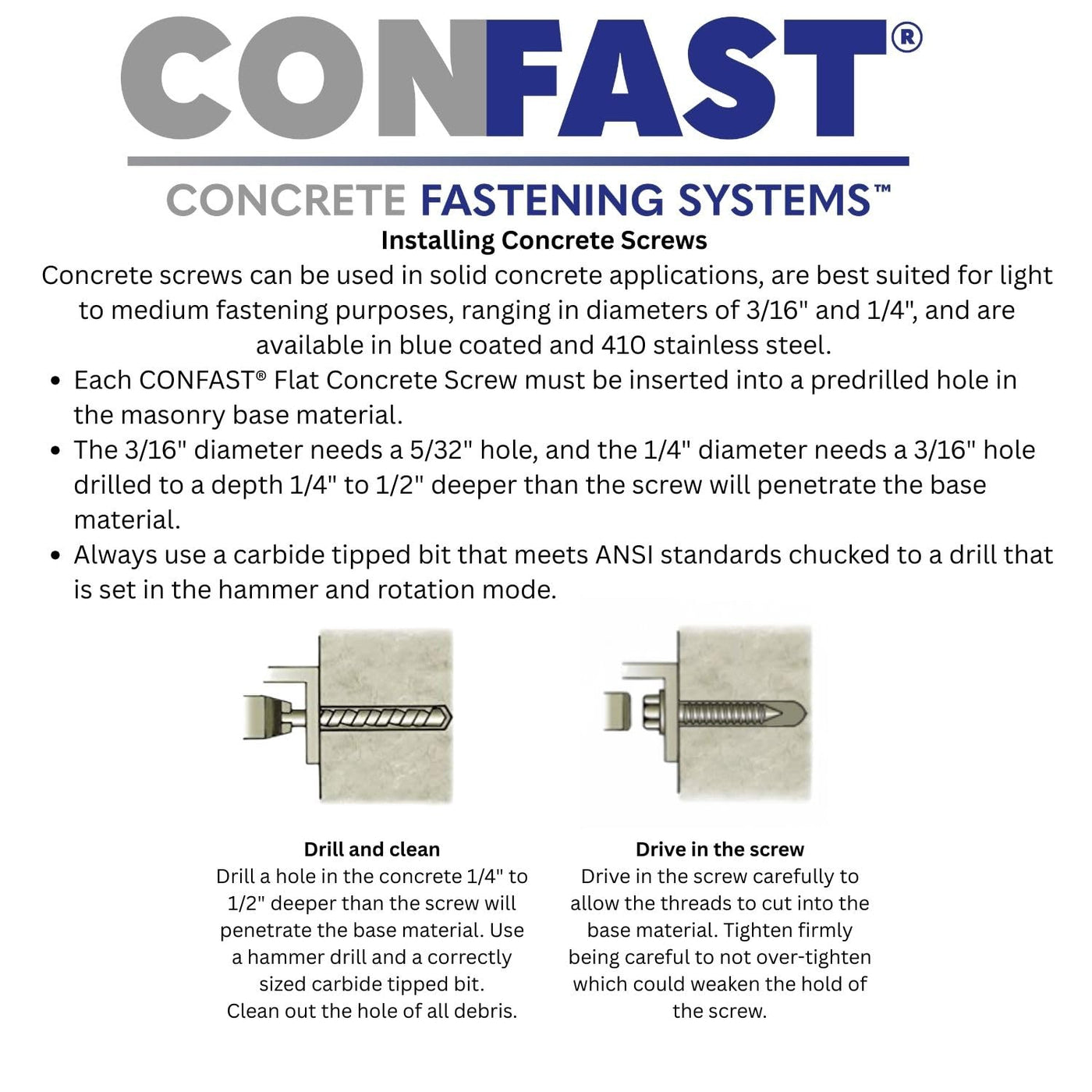

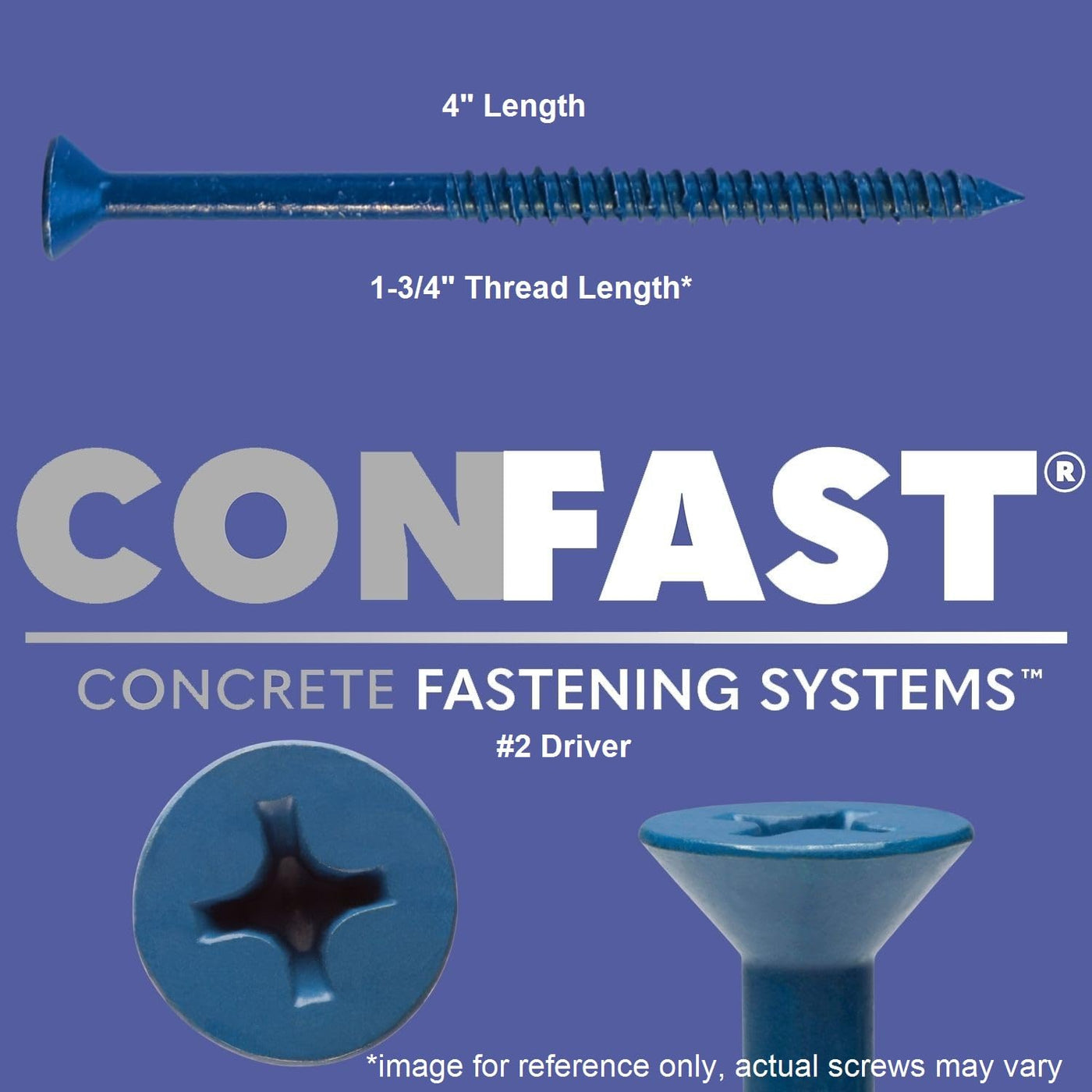

{"id":15790117453984,"title":"CONFAST 3\/16\" x 4\" Blue Flat Phillips Concrete Screw Anchor with Drill Bit for Anchoring to Masonry, Block or Brick (100 per Box) 3\/16\" x 4\"","handle":"confast-3-16-x-4-blue-flat-phillips-concrete-screw-anchor-with-drill-bit-for-anchoring-to-masonry-block-or-brick-100-per-box-3-16-x-4","description":"\u003ch3\u003eCONFAST 3\/16\" x 4\" Blue Flat Phillips Concrete Screw Anchor with Drill Bit for Anchoring to Masonry, Block or Brick (100 per Box)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eApplicationsThe anchor is made from Carbon Steel, and is Blue. This anchor is\ndesigned for use in Concrete, Block, and Brick.EnvironmentThe anchor is\ndesigned for use in a Dry environment.Head Style The anchor is a Flat\nCountersunk Phillips head and is designed to prevent the head from protruding\nabove the surface of the item being attached.Hole Diameter\/Bit DiameterThe\nanchor requires a 5\/32 hole to be drilled in the base material (Concrete,\nBlock, and Brick). The hole should be drilled with carbide tipped bit that\nmeets ANSI standards and used in a hammer drill.Driver RequiredA 2 is\nrequired for driving the anchor into the base material.Diameter of Anchor The\ndiameter of the anchor is 3\/16.Length Anchor The length of the anchor is\n4Thread LengthThe length of the threads on the anchor is 1-3\/4 in\nlength.Minimum EmbedmentThe minimum anchor embedment into the concrete is 1.\nTherefore, the anchor must be installed so that a minimum of 1 of the anchor\nis embedded into the concrete.Maximum Fixture ThicknessThe maximum fixture\nthickness or the maximum thickness of the material being fastened for a anchor\nis 2-1\/2 to 3. This will ensure that the minimum embedment of 1 will be\nmet.Fixture Hole DiameterThe hole in the fixture or material being fastened\nmust be larger than the designated diameter of the anchor. The 3\/16 diameter\nanchor requires the hole in the fixture to be 1\/4.Spacing between AnchorsEach\nanchor must be spaced a minimum distance of 3 from each other when measured\ncenter to center.Edge DistanceIt is very important not to install the anchor\nany closer than 2-1\/4 from an unsupported edge of the concrete.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eBIT INCLUDED IN EACH BOX-Proper bit equals improved holding values and reduced cost\u003c\/li\u003e\n \u003cli\u003eFLAT PHILLIPS HEAD--Can be driven with Phillips Screw Driver\u003c\/li\u003e\n \u003cli\u003eSELF-TAPPING-Taps threads directly into masonry and requires no other anchor\u003c\/li\u003e\n \u003cli\u003eDIAMOND POINT-Easier to drive the screw to save time\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-07-16T17:11:30+10:00","created_at":"2026-07-14T17:49:23+10:00","vendor":"CONFAST","type":"Concrete Screws","tags":["home_improvement_July2026"],"price":17800,"price_min":17800,"price_max":17800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":58176784171168,"title":"3\/16\" x 4\"","option1":"3\/16\" x 4\"","option2":null,"option3":null,"sku":"B08PDRN3M1","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"CONFAST 3\/16\" x 4\" Blue Flat Phillips Concrete Screw Anchor with Drill Bit for Anchoring to Masonry, Block or Brick (100 per Box) 3\/16\" x 4\" - 3\/16\" x 4\"","public_title":"3\/16\" x 4\"","options":["3\/16\" x 4\""],"price":17800,"weight":454,"compare_at_price":null,"inventory_management":"shopify","barcode":"820274000144","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/files\/B08PDRN3M1.jpg?v=1784015366","\/\/dingoship.com.au\/cdn\/shop\/files\/61RPDKnx6LL.jpg?v=1784015366","\/\/dingoship.com.au\/cdn\/shop\/files\/61zyhGLm-0L.jpg?v=1784015365","\/\/dingoship.com.au\/cdn\/shop\/files\/615CEv9UiPL.jpg?v=1784015365","\/\/dingoship.com.au\/cdn\/shop\/files\/71OakBF4tNL_f8ee0102-2529-48bc-925f-4f292a85515c.jpg?v=1784015366","\/\/dingoship.com.au\/cdn\/shop\/files\/71hVwybYSxL_b467a8bd-a9cc-4aa9-89ce-47ef30e29c2b.jpg?v=1784015366","\/\/dingoship.com.au\/cdn\/shop\/files\/71pm_mal9XL_f6a6c1d5-c5ac-460f-baa2-48104260c474.jpg?v=1784015366","\/\/dingoship.com.au\/cdn\/shop\/files\/71i5HWkJeWL_0d64bd19-9bc1-4c65-83b5-e450ff4fc53d.jpg?v=1784015366","\/\/dingoship.com.au\/cdn\/shop\/files\/91AED0z6r7L_034ad356-073b-4ea0-ba1d-bead136f7587.jpg?v=1784015366"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/files\/B08PDRN3M1.jpg?v=1784015366","options":["Size"],"media":[{"alt":null,"id":69751192944800,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/B08PDRN3M1.jpg?v=1784015366"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/B08PDRN3M1.jpg?v=1784015366","width":1500},{"alt":null,"id":69751192977568,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61RPDKnx6LL.jpg?v=1784015366"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61RPDKnx6LL.jpg?v=1784015366","width":1500},{"alt":null,"id":69751193010336,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61zyhGLm-0L.jpg?v=1784015365"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61zyhGLm-0L.jpg?v=1784015365","width":1500},{"alt":null,"id":69751193043104,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/615CEv9UiPL.jpg?v=1784015365"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/615CEv9UiPL.jpg?v=1784015365","width":1500},{"alt":null,"id":69751193075872,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71OakBF4tNL_f8ee0102-2529-48bc-925f-4f292a85515c.jpg?v=1784015366"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71OakBF4tNL_f8ee0102-2529-48bc-925f-4f292a85515c.jpg?v=1784015366","width":1500},{"alt":null,"id":69751193108640,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1080,"width":1080,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71hVwybYSxL_b467a8bd-a9cc-4aa9-89ce-47ef30e29c2b.jpg?v=1784015366"},"aspect_ratio":1.0,"height":1080,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71hVwybYSxL_b467a8bd-a9cc-4aa9-89ce-47ef30e29c2b.jpg?v=1784015366","width":1080},{"alt":null,"id":69751193141408,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1080,"width":1080,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71pm_mal9XL_f6a6c1d5-c5ac-460f-baa2-48104260c474.jpg?v=1784015366"},"aspect_ratio":1.0,"height":1080,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71pm_mal9XL_f6a6c1d5-c5ac-460f-baa2-48104260c474.jpg?v=1784015366","width":1080},{"alt":null,"id":69751193174176,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71i5HWkJeWL_0d64bd19-9bc1-4c65-83b5-e450ff4fc53d.jpg?v=1784015366"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71i5HWkJeWL_0d64bd19-9bc1-4c65-83b5-e450ff4fc53d.jpg?v=1784015366","width":1500},{"alt":null,"id":69751193206944,"position":9,"preview_image":{"aspect_ratio":1.6,"height":1500,"width":2400,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/91AED0z6r7L_034ad356-073b-4ea0-ba1d-bead136f7587.jpg?v=1784015366"},"aspect_ratio":1.6,"height":1500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/91AED0z6r7L_034ad356-073b-4ea0-ba1d-bead136f7587.jpg?v=1784015366","width":2400}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eCONFAST 3\/16\" x 4\" Blue Flat Phillips Concrete Screw Anchor with Drill Bit for Anchoring to Masonry, Block or Brick (100 per Box)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eApplicationsThe anchor is made from Carbon Steel, and is Blue. This anchor is\ndesigned for use in Concrete, Block, and Brick.EnvironmentThe anchor is\ndesigned for use in a Dry environment.Head Style The anchor is a Flat\nCountersunk Phillips head and is designed to prevent the head from protruding\nabove the surface of the item being attached.Hole Diameter\/Bit DiameterThe\nanchor requires a 5\/32 hole to be drilled in the base material (Concrete,\nBlock, and Brick). The hole should be drilled with carbide tipped bit that\nmeets ANSI standards and used in a hammer drill.Driver RequiredA 2 is\nrequired for driving the anchor into the base material.Diameter of Anchor The\ndiameter of the anchor is 3\/16.Length Anchor The length of the anchor is\n4Thread LengthThe length of the threads on the anchor is 1-3\/4 in\nlength.Minimum EmbedmentThe minimum anchor embedment into the concrete is 1.\nTherefore, the anchor must be installed so that a minimum of 1 of the anchor\nis embedded into the concrete.Maximum Fixture ThicknessThe maximum fixture\nthickness or the maximum thickness of the material being fastened for a anchor\nis 2-1\/2 to 3. This will ensure that the minimum embedment of 1 will be\nmet.Fixture Hole DiameterThe hole in the fixture or material being fastened\nmust be larger than the designated diameter of the anchor. The 3\/16 diameter\nanchor requires the hole in the fixture to be 1\/4.Spacing between AnchorsEach\nanchor must be spaced a minimum distance of 3 from each other when measured\ncenter to center.Edge DistanceIt is very important not to install the anchor\nany closer than 2-1\/4 from an unsupported edge of the concrete.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eBIT INCLUDED IN EACH BOX-Proper bit equals improved holding values and reduced cost\u003c\/li\u003e\n \u003cli\u003eFLAT PHILLIPS HEAD--Can be driven with Phillips Screw Driver\u003c\/li\u003e\n \u003cli\u003eSELF-TAPPING-Taps threads directly into masonry and requires no other anchor\u003c\/li\u003e\n \u003cli\u003eDIAMOND POINT-Easier to drive the screw to save time\u003c\/li\u003e\n \u003c\/ul\u003e"}
