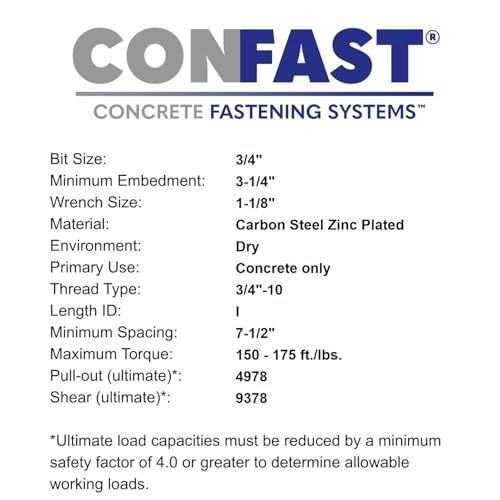

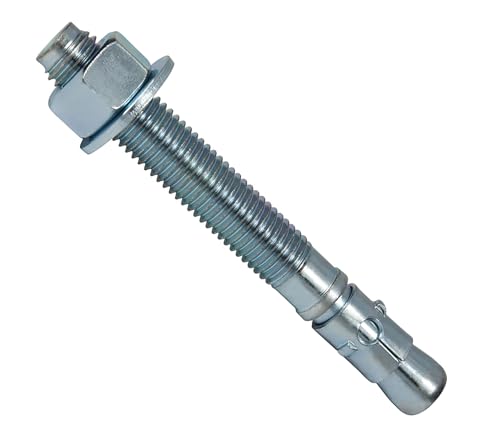

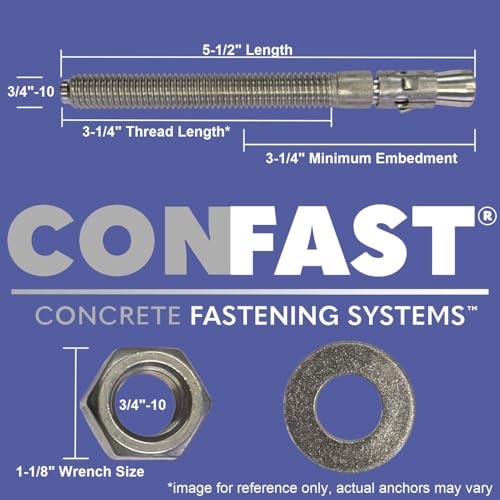

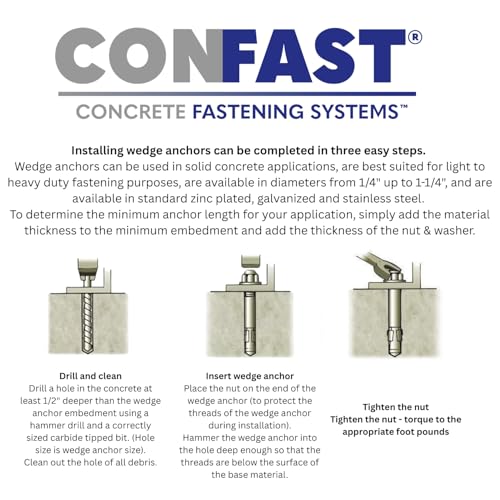

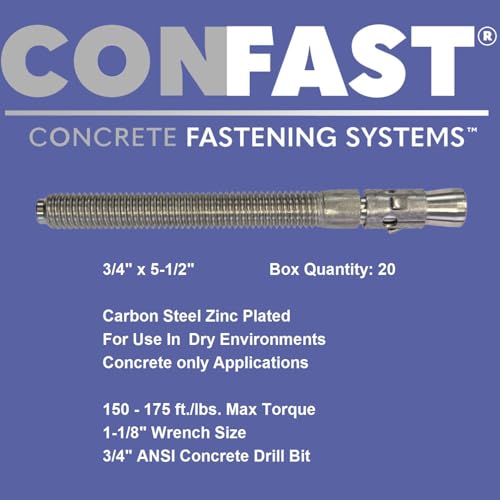

{"id":15863271129248,"title":"CONFAST 3\/4\" x 5-1\/2\" Wedge Anchor Zinc Plated (Box of 20) 3\/4\" x 5-1\/2\"","handle":"confast-3-4-x-5-1-2-wedge-anchor-zinc-plated-box-of-20-3-4-x-5-1-2","description":"\u003ch3\u003eCONFAST 3\/4\" x 5-1\/2\" Wedge Anchor Zinc Plated (Box of 20)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eApplications The anchor is made from Carbon Steel, and is Zinc Plated. This\nanchor is designed for use in Concrete only, and should never be used in block\nor brick base material. Environment The anchor is designed for use in a Dry\nenvironment. Hole Diameter\/Bit Diameter The anchor requires a 3\/4\" hole to be\ndrilled in the base material (Concrete only). The hole should be drilled with\ncarbide tipped bit that meets ANSI standards and used in a hammer drill.\nDiameter of Anchor The diameter of the anchor is 3\/4\". Length Anchor The\nlength of the anchor is 5-1\/2\" Thread Length The length of the threads on the\nanchor is 3-1\/4\" in length. Minimum Embedment The minimum anchor embedment\ninto the concrete is 3-1\/4\". Therefore, the anchor must be installed so that a\nminimum of 3-1\/4\" of the anchor is embedded into the concrete. Maximum Fixture\nThickness The maximum fixture thickness or the maximum thickness of the\nmaterial being fastened for a anchor is 1-1\/2\". This will ensure that the\nminimum embedment of 3-1\/4\" will be met. Fixture Hole Diameter The hole in the\nfixture or material being fastened must be larger than the designated diameter\nof the anchor. The 3\/4\" diameter anchor requires the hole in the fixture to be\n1\". Torque Value To be set properly in the concrete, the anchor must be\ntorqued to between 150 - 175 ft.\/lbs. Spacing between Anchors Each anchor must\nbe spaced a minimum distance of 7-1\/2\" from each other when measured center to\ncenter. Edge Distance It is very important not to install the anchor any\ncloser than 3-3\/4\" from an unsupported edge of the concrete.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eEnvironment: Built for durability, these anchors are designed for use in a dry environment. Their robust construction ensures longevity, making them perfect for projects anchoring to concrete only, not brick, block or grout.\u003c\/li\u003e\n \u003cli\u003eHole Diameter\/Bit Diameter: For optimal installation, use an ANSI imperial bit the same diameter as the diameter of the anchor.\u003c\/li\u003e\n \u003cli\u003eHardware included: Each anchor comes with the required nut and washer to use on the anchor for installation.\u003c\/li\u003e\n \u003cli\u003eSecure Hold: The wedge expansion anchor design ensures a dependable and strong hold, ideal for demanding applications.\u003c\/li\u003e\n \u003cli\u003eDurability: Built tough with rugged steel construction and zinc plating for superior, long-lasting performance.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-12T13:57:11+10:00","created_at":"2026-09-10T10:47:27+10:00","vendor":"CONFAST","type":"Sleeve Anchors","tags":["heavy_industrial_Sep2026"],"price":38400,"price_min":38400,"price_max":38400,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":58889188802720,"title":"20 \/ 3\/4\" x 5-1\/2\"","option1":"20","option2":"3\/4\" x 5-1\/2\"","option3":null,"sku":"B071SDDB2B","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"CONFAST 3\/4\" x 5-1\/2\" Wedge Anchor Zinc Plated (Box of 20) 3\/4\" x 5-1\/2\" - 20 \/ 3\/4\" x 5-1\/2\"","public_title":"20 \/ 3\/4\" x 5-1\/2\"","options":["20","3\/4\" x 5-1\/2\""],"price":38400,"weight":5910,"compare_at_price":null,"inventory_management":"shopify","barcode":"820274002261","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/files\/B071SDDB2B.jpg?v=1789001249","\/\/dingoship.com.au\/cdn\/shop\/files\/41EnhIbwKfL.jpg?v=1789001250","\/\/dingoship.com.au\/cdn\/shop\/files\/414Ajo4bcJL.jpg?v=1789001250","\/\/dingoship.com.au\/cdn\/shop\/files\/51ihozJc7AL.jpg?v=1789001250","\/\/dingoship.com.au\/cdn\/shop\/files\/41QuML8rNuL.jpg?v=1789001250","\/\/dingoship.com.au\/cdn\/shop\/files\/51xQ13-VXeL.jpg?v=1789001249","\/\/dingoship.com.au\/cdn\/shop\/files\/51NJWed-JKL.jpg?v=1789001250"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/files\/B071SDDB2B.jpg?v=1789001249","options":["Number of Items","Size"],"media":[{"alt":null,"id":70278637256864,"position":1,"preview_image":{"aspect_ratio":1.129,"height":443,"width":500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/B071SDDB2B.jpg?v=1789001249"},"aspect_ratio":1.129,"height":443,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/B071SDDB2B.jpg?v=1789001249","width":500},{"alt":null,"id":70278637289632,"position":2,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/41EnhIbwKfL.jpg?v=1789001250"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/41EnhIbwKfL.jpg?v=1789001250","width":500},{"alt":null,"id":70278637322400,"position":3,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/414Ajo4bcJL.jpg?v=1789001250"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/414Ajo4bcJL.jpg?v=1789001250","width":500},{"alt":null,"id":70278637355168,"position":4,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51ihozJc7AL.jpg?v=1789001250"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51ihozJc7AL.jpg?v=1789001250","width":500},{"alt":null,"id":70278637387936,"position":5,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/41QuML8rNuL.jpg?v=1789001250"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/41QuML8rNuL.jpg?v=1789001250","width":500},{"alt":null,"id":70278637420704,"position":6,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51xQ13-VXeL.jpg?v=1789001249"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51xQ13-VXeL.jpg?v=1789001249","width":500},{"alt":null,"id":70278637453472,"position":7,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51NJWed-JKL.jpg?v=1789001250"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51NJWed-JKL.jpg?v=1789001250","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eCONFAST 3\/4\" x 5-1\/2\" Wedge Anchor Zinc Plated (Box of 20)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eApplications The anchor is made from Carbon Steel, and is Zinc Plated. This\nanchor is designed for use in Concrete only, and should never be used in block\nor brick base material. Environment The anchor is designed for use in a Dry\nenvironment. Hole Diameter\/Bit Diameter The anchor requires a 3\/4\" hole to be\ndrilled in the base material (Concrete only). The hole should be drilled with\ncarbide tipped bit that meets ANSI standards and used in a hammer drill.\nDiameter of Anchor The diameter of the anchor is 3\/4\". Length Anchor The\nlength of the anchor is 5-1\/2\" Thread Length The length of the threads on the\nanchor is 3-1\/4\" in length. Minimum Embedment The minimum anchor embedment\ninto the concrete is 3-1\/4\". Therefore, the anchor must be installed so that a\nminimum of 3-1\/4\" of the anchor is embedded into the concrete. Maximum Fixture\nThickness The maximum fixture thickness or the maximum thickness of the\nmaterial being fastened for a anchor is 1-1\/2\". This will ensure that the\nminimum embedment of 3-1\/4\" will be met. Fixture Hole Diameter The hole in the\nfixture or material being fastened must be larger than the designated diameter\nof the anchor. The 3\/4\" diameter anchor requires the hole in the fixture to be\n1\". Torque Value To be set properly in the concrete, the anchor must be\ntorqued to between 150 - 175 ft.\/lbs. Spacing between Anchors Each anchor must\nbe spaced a minimum distance of 7-1\/2\" from each other when measured center to\ncenter. Edge Distance It is very important not to install the anchor any\ncloser than 3-3\/4\" from an unsupported edge of the concrete.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eEnvironment: Built for durability, these anchors are designed for use in a dry environment. Their robust construction ensures longevity, making them perfect for projects anchoring to concrete only, not brick, block or grout.\u003c\/li\u003e\n \u003cli\u003eHole Diameter\/Bit Diameter: For optimal installation, use an ANSI imperial bit the same diameter as the diameter of the anchor.\u003c\/li\u003e\n \u003cli\u003eHardware included: Each anchor comes with the required nut and washer to use on the anchor for installation.\u003c\/li\u003e\n \u003cli\u003eSecure Hold: The wedge expansion anchor design ensures a dependable and strong hold, ideal for demanding applications.\u003c\/li\u003e\n \u003cli\u003eDurability: Built tough with rugged steel construction and zinc plating for superior, long-lasting performance.\u003c\/li\u003e\n \u003c\/ul\u003e"}
