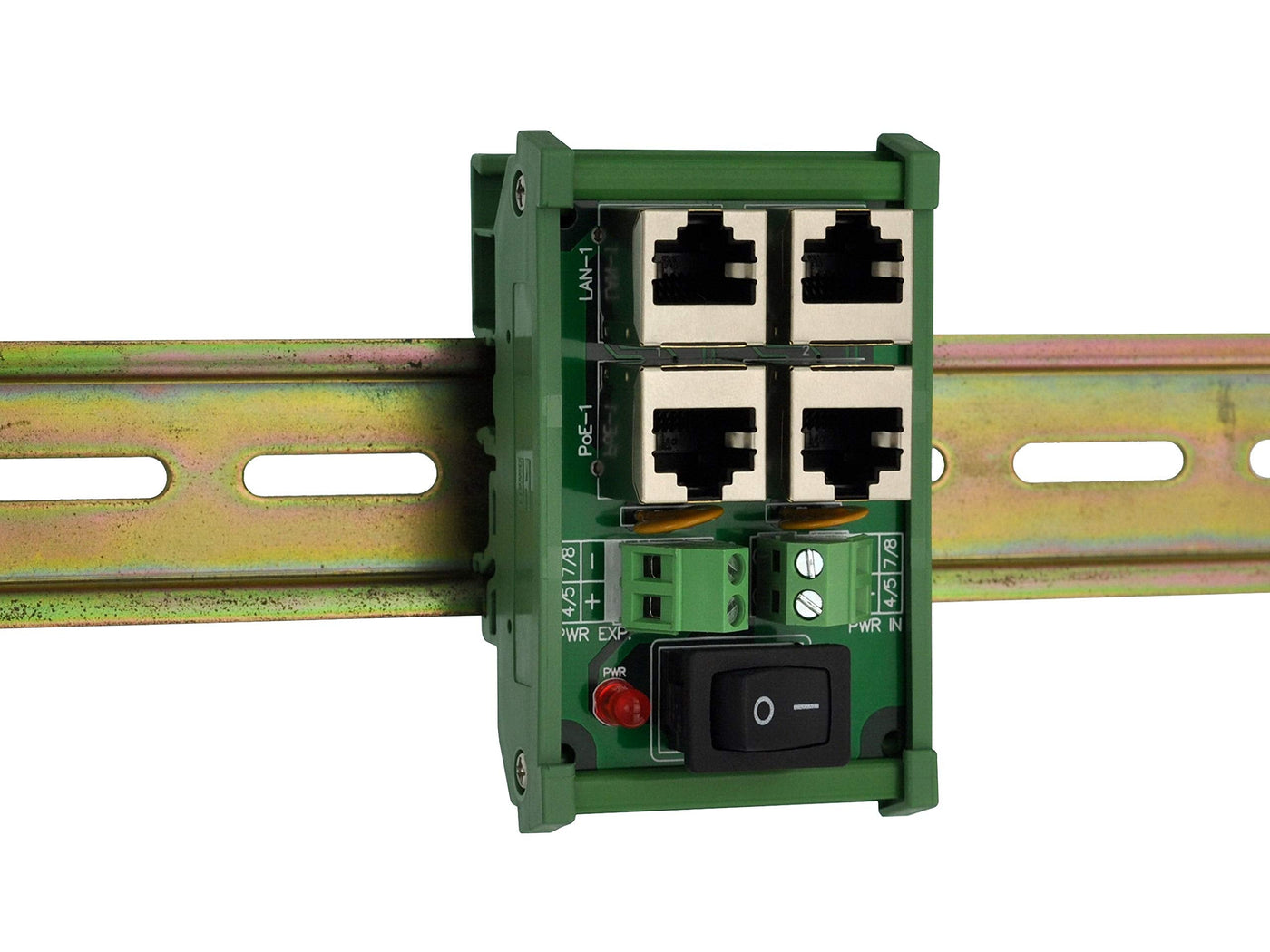

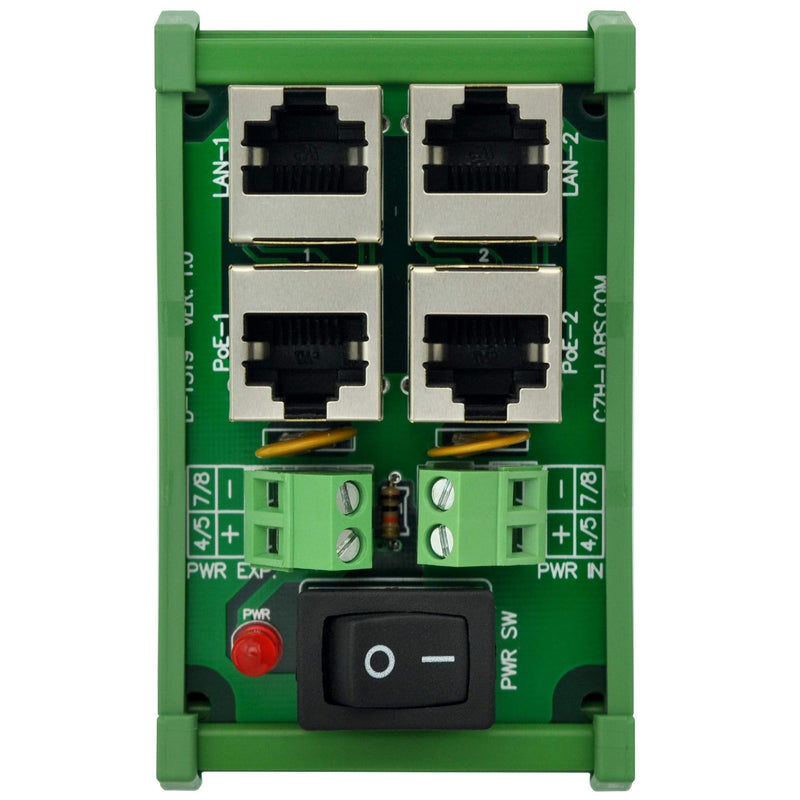

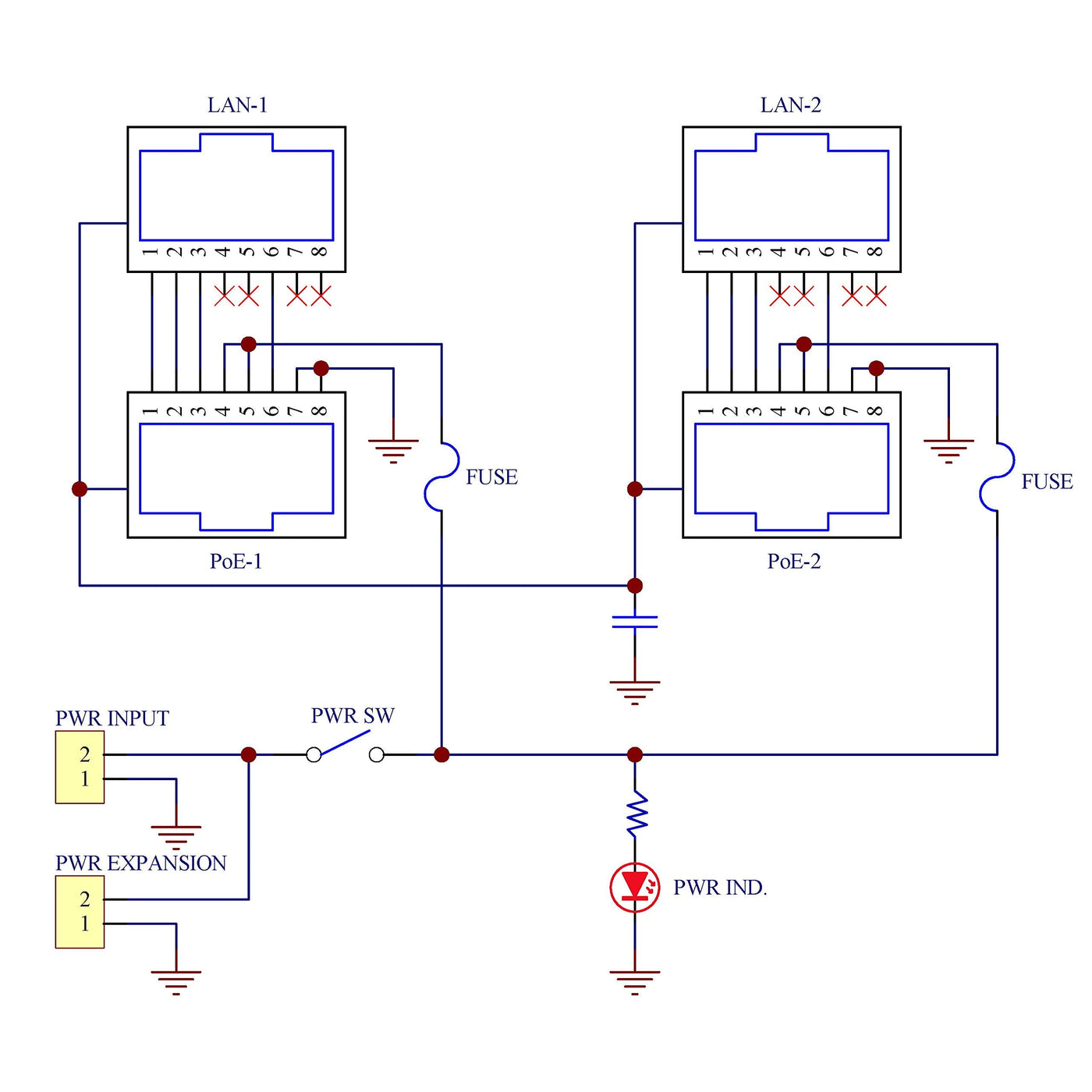

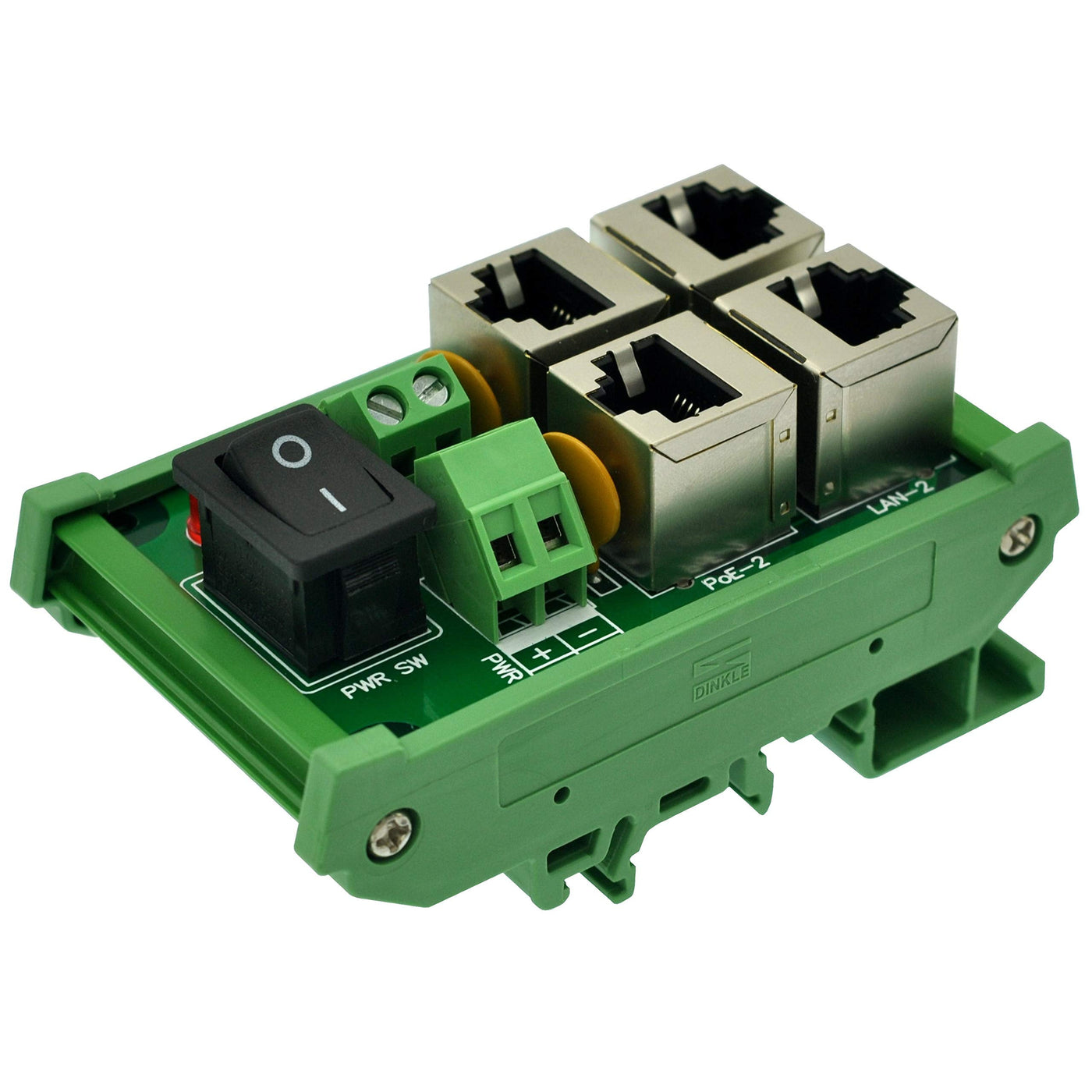

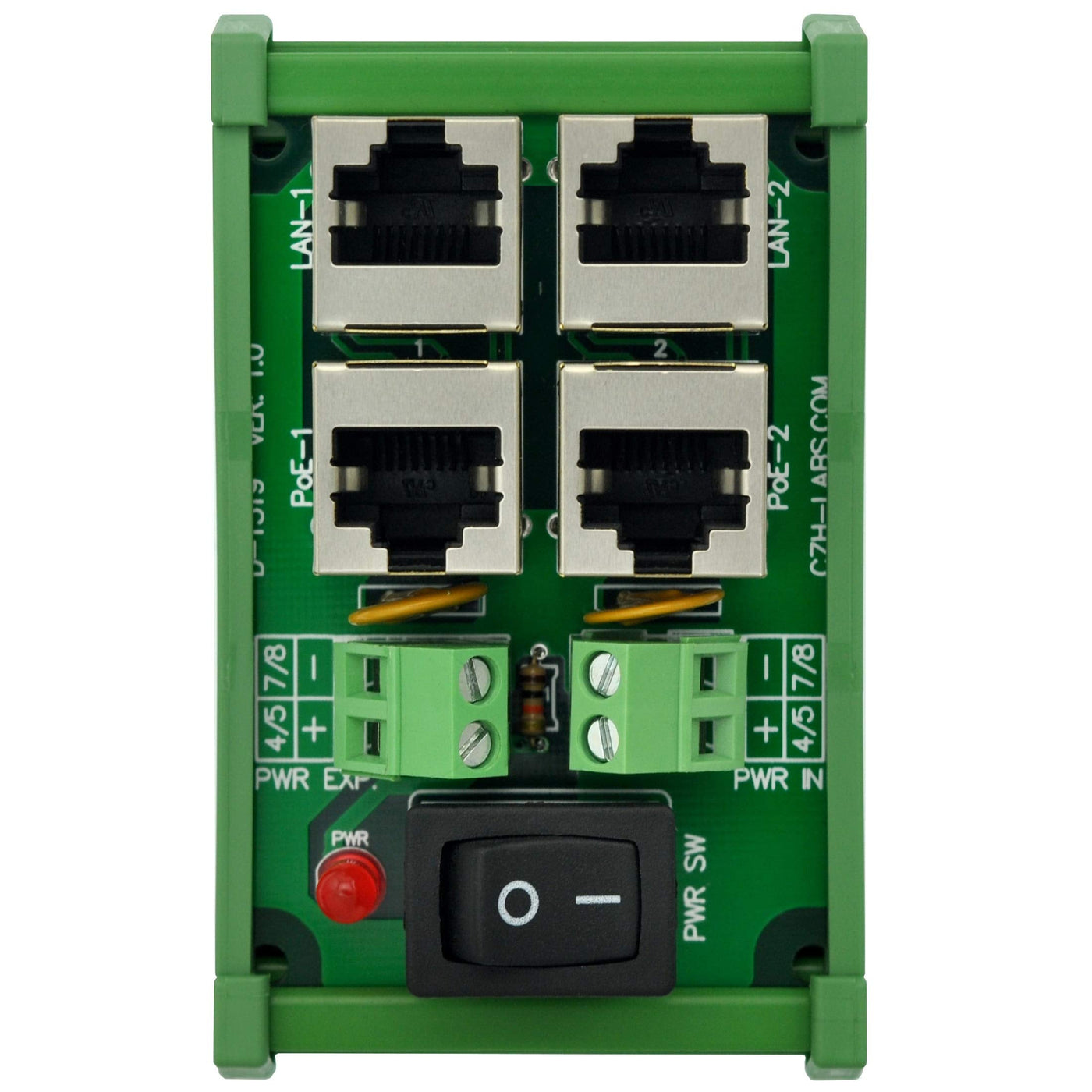

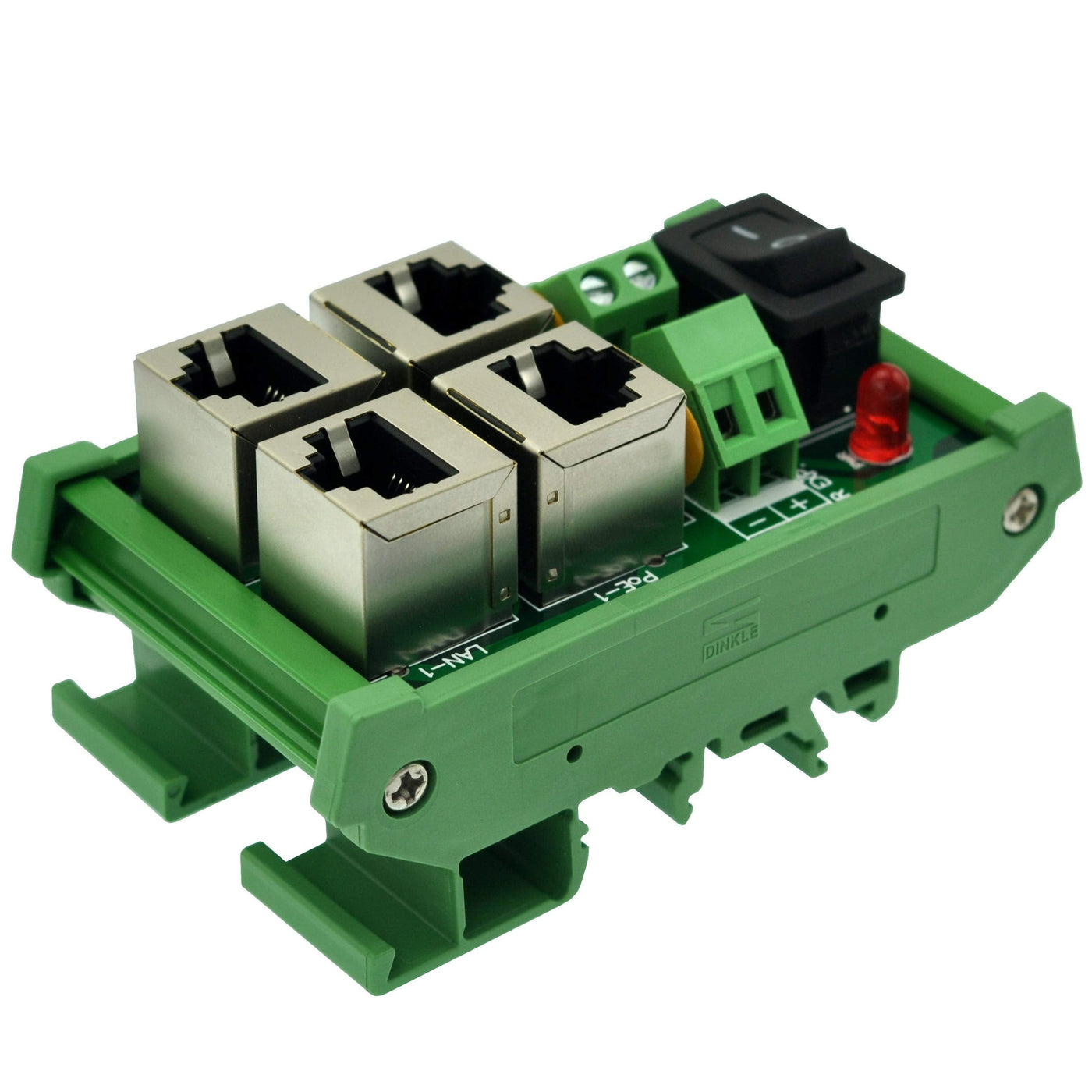

{"id":7410681708704,"title":"CZH-LABS DIN Rail Mount 2 Ports Passive RJ45 PoE Power Injection Board, Power Over Ethernet Injector Module.","handle":"czh-labs-din-rail-mount-2-ports-passive-rj45-poe-power-injection-board-power-over-ethernet-injector-module","description":"\u003ch3\u003eCZH-LABS DIN Rail Mount 2 Ports Passive RJ45 PoE Power Injection Board, Power Over Ethernet Injector Module.\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e1, Simple Power up 2 Passive 10\/100Mbps PoE devices by one power source\nApplication use for Access Points, IP cameras, IP phones, etc. 2, Power Input\nterminal block for all PoE power supply, each port serial a recoverable\nfuse(fuse value 1.1Amp \/ 72V). Power Expansion Output terminal block can\nconnect power supply to next device. 3, Switch On\/Off to save electricity\nwhile not use, LED indication for switch On\/Off status. 4, Specifications:\nTerminal Block Power Input: 12VDC - 60VDC, maximum current 10Amp; Termianl\nBlock Expansion Output: maximum current 10Amp; LIN-X Input: RJ45 1 \/ 2 \/ 3 \/ 6\npins(data), 4 \/ 5 \/ 7 \/ 8 pins not connected; PoE-X Output: RJ45 1 \/ 2 \/ 3 \/ 6\npins(data). 4 \/ 5 pins power +, 7 \/ 8 pins power -; Data Rate: 10 \/ 100Mbps;\nPoE Power Output Maximum Current(per channel): 720mA. 5, High quality\nfireproof nylon material DIN rail mount carrier (not China low quality\ncarrier), can support width 35mm \/ 32mm \/ 15mm rail, and the carrier can be\ntaken apart for PCB screw mount use. Specifications: Terminal Block Power\nInput: 12VDC - 60VDC, maximum current 10Amp. Termianl Block Expansion Output:\nmaximum current 10Amp. LIN-X Input: RJ45 1 \/ 2 \/ 3 \/ 6 pins(data), 4 \/ 5 \/ 7 \/\n8 pins not connected. PoE-X Output: RJ45 1 \/ 2 \/ 3 \/ 6 pins(data). 4 \/ 5 pins\npower +, 7 \/ 8 pins power -. Data Rate: 10 \/ 100Mbps. PoE Power Output Maximum\nCurrent(per channel): 720mA. Terminal blocks: Pitch 5.0mm\/0.197\", Wire range\n28AWG ~ 12AWG \/ 2.5mm square, Strip length 7mm. Screws - M2.5,steel,Cr3+ Zn\nplated. Pin header and Cage - Brass.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eSimple Power up 2 Passive 10\/100Mbps PoE devices by one power source Application use for Access Points, IP cameras, IP phones, etc.\u003c\/li\u003e\n \u003cli\u003ePower Input terminal block for all PoE power supply, each port serial a recoverable fuse(fuse value 1.1Amp \/ 72V). Power Expansion Output terminal block can connect power supply to next device.\u003c\/li\u003e\n \u003cli\u003eSwitch On\/Off to save electricity while not use, LED indication for switch On\/Off status.\u003c\/li\u003e\n \u003cli\u003eSpecifications: Terminal Block Power Input: 12VDC - 60VDC, maximum current 10Amp; Termianl Block Expansion Output: maximum current 10Amp; LIN-X Input: RJ45 1 \/ 2 \/ 3 \/ 6 pins(data), 4 \/ 5 \/ 7 \/ 8 pins not connected; PoE-X Output: RJ45 1 \/ 2 \/ 3 \/ 6 pins(data). 4 \/ 5 pins power +, 7 \/ 8 pins power -; Data Rate: 10 \/ 100Mbps; PoE Power Output Maximum Current(per channel): 720mA.\u003c\/li\u003e\n \u003cli\u003eHigh quality fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm \/ 32mm \/ 15mm rail, and the carrier can be taken apart for PCB screw mount use.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-06-10T21:38:41+10:00","created_at":"2022-06-10T21:38:50+10:00","vendor":"CZH-LABS","type":"Home Security Systems","tags":["dingo"],"price":16200,"price_min":16200,"price_max":16200,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42177143308448,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07X4487K3","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"CZH-LABS DIN Rail Mount 2 Ports Passive RJ45 PoE Power Injection Board, Power Over Ethernet Injector Module.","public_title":null,"options":["Default Title"],"price":16200,"weight":136,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/products\/B07X4487K3.jpg?v=1654904875","\/\/dingoship.com.au\/cdn\/shop\/products\/81fR9nH-FwL.jpg?v=1654861130","\/\/dingoship.com.au\/cdn\/shop\/products\/710msUvoHyL.jpg?v=1654861130","\/\/dingoship.com.au\/cdn\/shop\/products\/81q94J7uJ7L.jpg?v=1654861130","\/\/dingoship.com.au\/cdn\/shop\/products\/71lw4qn4BQL.jpg?v=1654861130","\/\/dingoship.com.au\/cdn\/shop\/products\/81A90Bna0CL.jpg?v=1654861130"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/products\/B07X4487K3.jpg?v=1654904875","options":["Title"],"media":[{"alt":null,"id":24837002920096,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2482,"width":2482,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B07X4487K3.jpg?v=1654904875"},"aspect_ratio":1.0,"height":2482,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B07X4487K3.jpg?v=1654904875","width":2482},{"alt":null,"id":24834528247968,"position":2,"preview_image":{"aspect_ratio":1.0,"height":2560,"width":2560,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/81fR9nH-FwL.jpg?v=1654861130"},"aspect_ratio":1.0,"height":2560,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/81fR9nH-FwL.jpg?v=1654861130","width":2560},{"alt":null,"id":24834528280736,"position":3,"preview_image":{"aspect_ratio":1.0,"height":2199,"width":2199,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/710msUvoHyL.jpg?v=1654861130"},"aspect_ratio":1.0,"height":2199,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/710msUvoHyL.jpg?v=1654861130","width":2199},{"alt":null,"id":24834528313504,"position":4,"preview_image":{"aspect_ratio":1.333,"height":1920,"width":2560,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/81q94J7uJ7L.jpg?v=1654861130"},"aspect_ratio":1.333,"height":1920,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/81q94J7uJ7L.jpg?v=1654861130","width":2560},{"alt":null,"id":24834528346272,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71lw4qn4BQL.jpg?v=1654861130"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71lw4qn4BQL.jpg?v=1654861130","width":1500},{"alt":null,"id":24834528379040,"position":6,"preview_image":{"aspect_ratio":1.0,"height":2560,"width":2560,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/81A90Bna0CL.jpg?v=1654861130"},"aspect_ratio":1.0,"height":2560,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/81A90Bna0CL.jpg?v=1654861130","width":2560}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eCZH-LABS DIN Rail Mount 2 Ports Passive RJ45 PoE Power Injection Board, Power Over Ethernet Injector Module.\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e1, Simple Power up 2 Passive 10\/100Mbps PoE devices by one power source\nApplication use for Access Points, IP cameras, IP phones, etc. 2, Power Input\nterminal block for all PoE power supply, each port serial a recoverable\nfuse(fuse value 1.1Amp \/ 72V). Power Expansion Output terminal block can\nconnect power supply to next device. 3, Switch On\/Off to save electricity\nwhile not use, LED indication for switch On\/Off status. 4, Specifications:\nTerminal Block Power Input: 12VDC - 60VDC, maximum current 10Amp; Termianl\nBlock Expansion Output: maximum current 10Amp; LIN-X Input: RJ45 1 \/ 2 \/ 3 \/ 6\npins(data), 4 \/ 5 \/ 7 \/ 8 pins not connected; PoE-X Output: RJ45 1 \/ 2 \/ 3 \/ 6\npins(data). 4 \/ 5 pins power +, 7 \/ 8 pins power -; Data Rate: 10 \/ 100Mbps;\nPoE Power Output Maximum Current(per channel): 720mA. 5, High quality\nfireproof nylon material DIN rail mount carrier (not China low quality\ncarrier), can support width 35mm \/ 32mm \/ 15mm rail, and the carrier can be\ntaken apart for PCB screw mount use. Specifications: Terminal Block Power\nInput: 12VDC - 60VDC, maximum current 10Amp. Termianl Block Expansion Output:\nmaximum current 10Amp. LIN-X Input: RJ45 1 \/ 2 \/ 3 \/ 6 pins(data), 4 \/ 5 \/ 7 \/\n8 pins not connected. PoE-X Output: RJ45 1 \/ 2 \/ 3 \/ 6 pins(data). 4 \/ 5 pins\npower +, 7 \/ 8 pins power -. Data Rate: 10 \/ 100Mbps. PoE Power Output Maximum\nCurrent(per channel): 720mA. Terminal blocks: Pitch 5.0mm\/0.197\", Wire range\n28AWG ~ 12AWG \/ 2.5mm square, Strip length 7mm. Screws - M2.5,steel,Cr3+ Zn\nplated. Pin header and Cage - Brass.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eSimple Power up 2 Passive 10\/100Mbps PoE devices by one power source Application use for Access Points, IP cameras, IP phones, etc.\u003c\/li\u003e\n \u003cli\u003ePower Input terminal block for all PoE power supply, each port serial a recoverable fuse(fuse value 1.1Amp \/ 72V). Power Expansion Output terminal block can connect power supply to next device.\u003c\/li\u003e\n \u003cli\u003eSwitch On\/Off to save electricity while not use, LED indication for switch On\/Off status.\u003c\/li\u003e\n \u003cli\u003eSpecifications: Terminal Block Power Input: 12VDC - 60VDC, maximum current 10Amp; Termianl Block Expansion Output: maximum current 10Amp; LIN-X Input: RJ45 1 \/ 2 \/ 3 \/ 6 pins(data), 4 \/ 5 \/ 7 \/ 8 pins not connected; PoE-X Output: RJ45 1 \/ 2 \/ 3 \/ 6 pins(data). 4 \/ 5 pins power +, 7 \/ 8 pins power -; Data Rate: 10 \/ 100Mbps; PoE Power Output Maximum Current(per channel): 720mA.\u003c\/li\u003e\n \u003cli\u003eHigh quality fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm \/ 32mm \/ 15mm rail, and the carrier can be taken apart for PCB screw mount use.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
