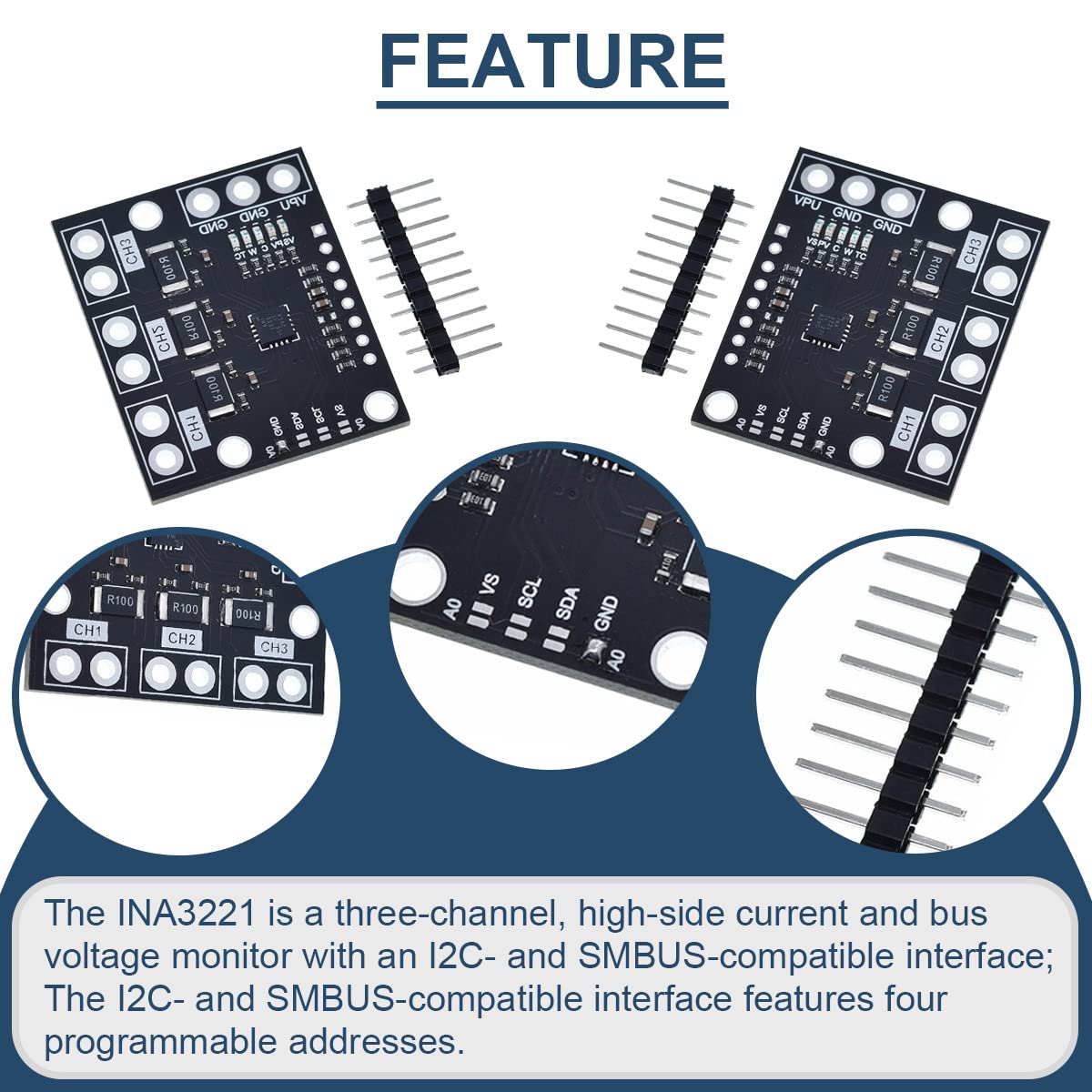

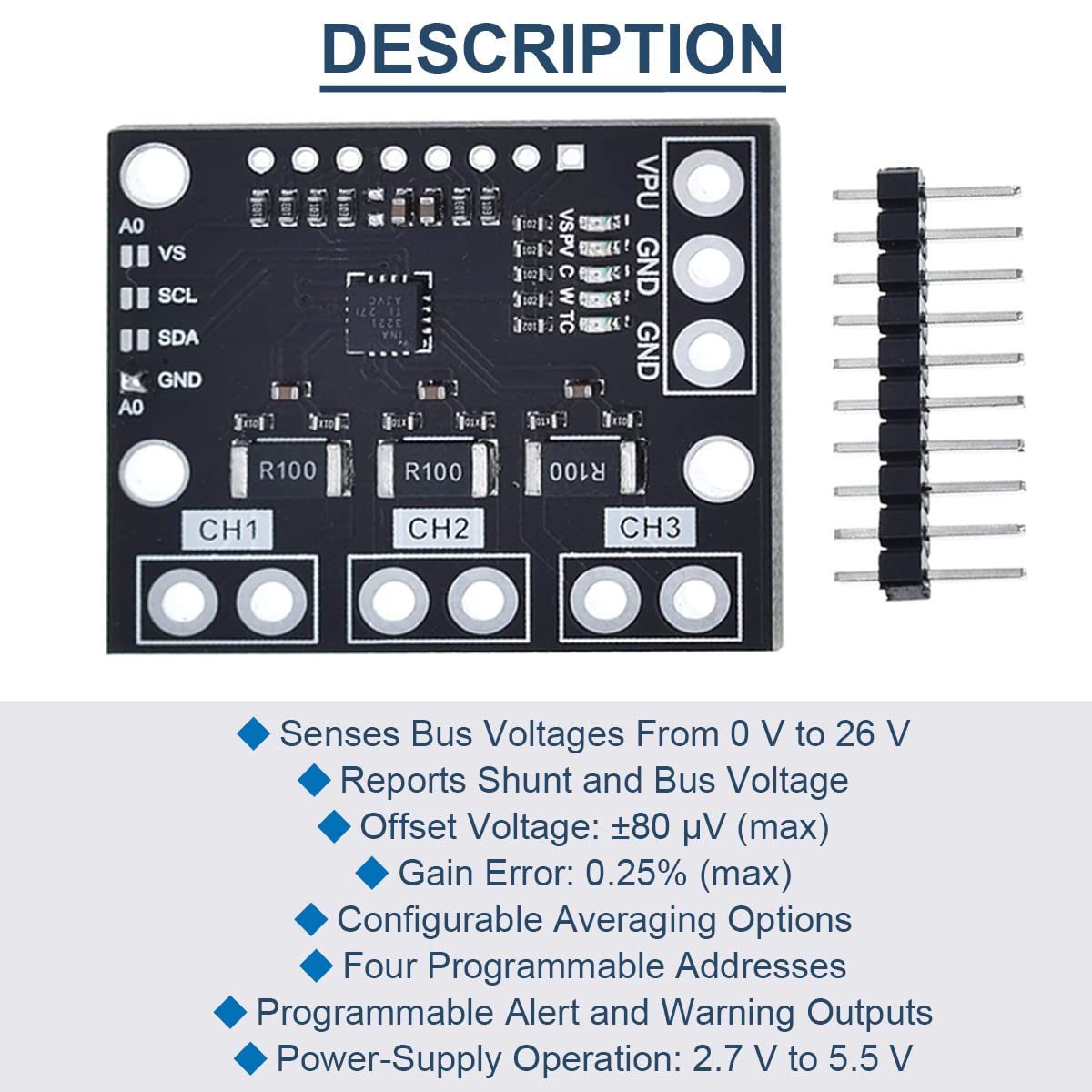

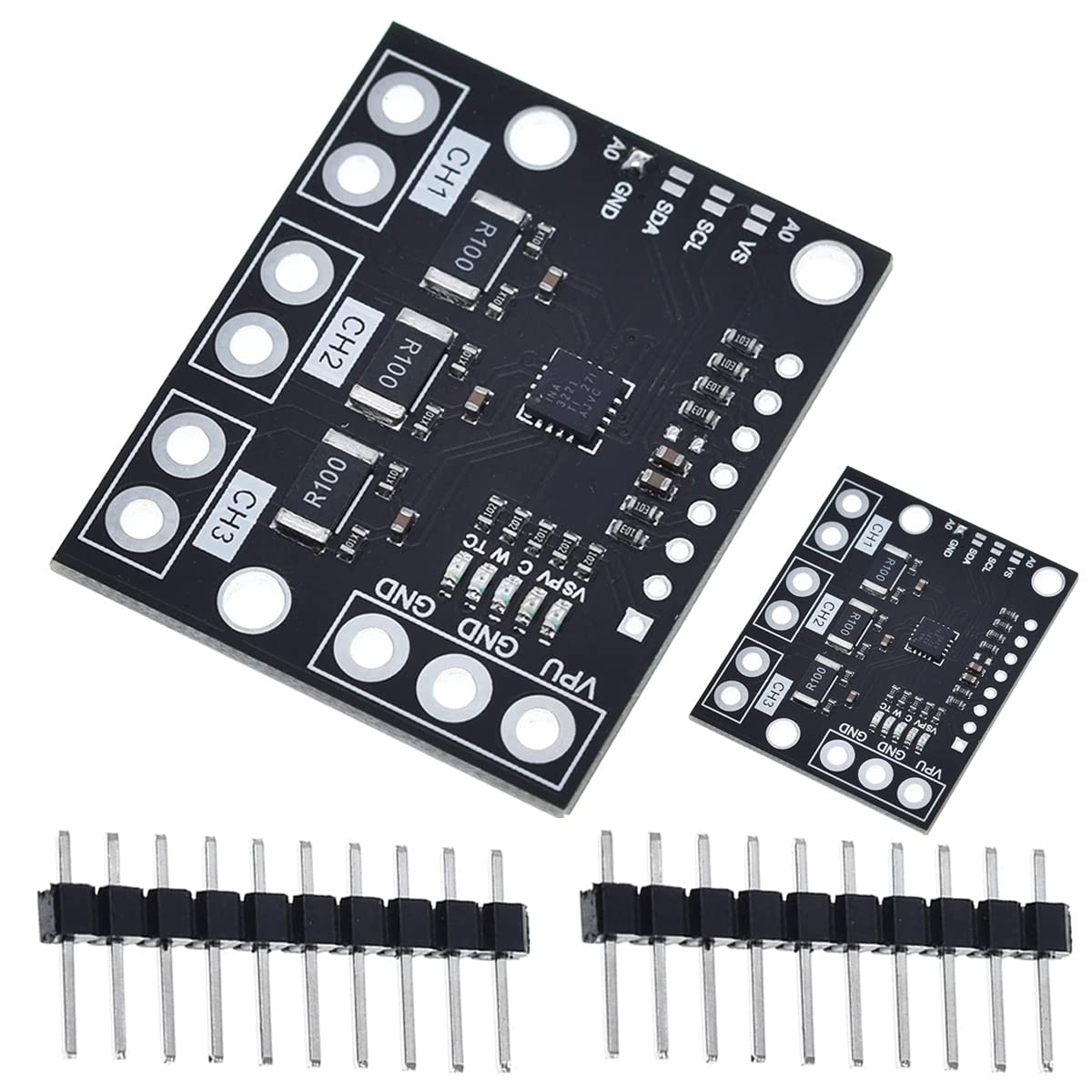

{"id":12982301753504,"title":"DAOKAI 2pcs I2C SMBUS INA3221 3 Channel Shunt Current Voltage Monitor Sensor Module High Side Output Power Control Board Replacement INA219","handle":"daokai-2pcs-i2c-smbus-ina3221-3-channel-shunt-current-voltage-monitor-sensor-module-high-side-output-power-control-board-replacement-ina219","description":"\u003ch3\u003eDAOKAI 2pcs I2C SMBUS INA3221 3 Channel Shunt Current Voltage Monitor Sensor Module High Side Output Power Control Board Replacement INA219\u003c\/h3\u003e \u003cp id=\"b\"\u003eDescription: Senses Bus Voltages From 0V to 26V Reports Shunt and Bus Voltage Offset Voltage: ±80 µV (max) Gain Error: 0.25% (max) Configurable Averaging Options Four Programmable Addresses Programmable Alert and Warning Outputs Power Supply Operation: 2.7 V to 5.5 V Package Included: 2 x INA3221 3 Channel Module\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eParametersDetects current on buses that can vary from 0V to 26V. The device is powered by a single 2.7V to 5.5V supply and draws 350A (typical) supply current.\u003c\/li\u003e \u003cli\u003eInterfaceThe INA3221 is a three-channel high-side current and bus voltage monitor with an I2C and SMBUS compatible interface; The I2C and SMBUS compatible interface has four programmable addresses.\u003c\/li\u003e \u003cli\u003eFunction monitors both shunt voltage drops and bus supply voltages, in addition to programmable conversion times and averaging modes for these signals; The INA3221 provides both critical and warning messages to detect multiple programmable out-of-range conditions for each channel.\u003c\/li\u003e \u003cli\u003eApplication Provides both critical and warning messages to detect multiple programmable out-of-range conditions for each channel detect.\u003c\/li\u003e \u003cli\u003ePackage contentsThe package comes with 2 x INA3221 3-channel module\u003c\/li\u003e \u003c\/ul\u003e","published_at":"2024-04-08T10:23:14+10:00","created_at":"2024-04-08T10:23:24+10:00","vendor":"DAOKAI","type":"Integrated circuits","tags":["industryDE"],"price":16100,"price_min":16100,"price_max":16100,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":49452981518496,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B0B5D3PVFR","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"DAOKAI 2pcs I2C SMBUS INA3221 3 Channel Shunt Current Voltage Monitor Sensor Module High Side Output Power Control Board Replacement INA219","public_title":null,"options":["Default Title"],"price":16100,"weight":700,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/files\/de-B0B5D3PVFR.jpg?v=1712618875","\/\/dingoship.com.au\/cdn\/shop\/files\/71yZFrN6-WL.jpg?v=1712535804","\/\/dingoship.com.au\/cdn\/shop\/files\/71e6AxZiE3L.jpg?v=1712535804","\/\/dingoship.com.au\/cdn\/shop\/files\/616J0GBSm6L.jpg?v=1712535804","\/\/dingoship.com.au\/cdn\/shop\/files\/61vjRXcHWrL.jpg?v=1712535804","\/\/dingoship.com.au\/cdn\/shop\/files\/619uzqTkh9L.jpg?v=1712535804","\/\/dingoship.com.au\/cdn\/shop\/files\/61QSwhDt0AL.jpg?v=1712535805"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B0B5D3PVFR.jpg?v=1712618875","options":["Title"],"media":[{"alt":null,"id":33828938875040,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B0B5D3PVFR.jpg?v=1712618875"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B0B5D3PVFR.jpg?v=1712618875","width":1200},{"alt":null,"id":33811790200992,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71yZFrN6-WL.jpg?v=1712535804"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71yZFrN6-WL.jpg?v=1712535804","width":1200},{"alt":null,"id":33811790233760,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71e6AxZiE3L.jpg?v=1712535804"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71e6AxZiE3L.jpg?v=1712535804","width":1200},{"alt":null,"id":33811790266528,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/616J0GBSm6L.jpg?v=1712535804"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/616J0GBSm6L.jpg?v=1712535804","width":1200},{"alt":null,"id":33811790299296,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61vjRXcHWrL.jpg?v=1712535804"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61vjRXcHWrL.jpg?v=1712535804","width":1000},{"alt":null,"id":33811790332064,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/619uzqTkh9L.jpg?v=1712535804"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/619uzqTkh9L.jpg?v=1712535804","width":1200},{"alt":null,"id":33811790364832,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61QSwhDt0AL.jpg?v=1712535805"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61QSwhDt0AL.jpg?v=1712535805","width":1200}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eDAOKAI 2pcs I2C SMBUS INA3221 3 Channel Shunt Current Voltage Monitor Sensor Module High Side Output Power Control Board Replacement INA219\u003c\/h3\u003e \u003cp id=\"b\"\u003eDescription: Senses Bus Voltages From 0V to 26V Reports Shunt and Bus Voltage Offset Voltage: ±80 µV (max) Gain Error: 0.25% (max) Configurable Averaging Options Four Programmable Addresses Programmable Alert and Warning Outputs Power Supply Operation: 2.7 V to 5.5 V Package Included: 2 x INA3221 3 Channel Module\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eParametersDetects current on buses that can vary from 0V to 26V. The device is powered by a single 2.7V to 5.5V supply and draws 350A (typical) supply current.\u003c\/li\u003e \u003cli\u003eInterfaceThe INA3221 is a three-channel high-side current and bus voltage monitor with an I2C and SMBUS compatible interface; The I2C and SMBUS compatible interface has four programmable addresses.\u003c\/li\u003e \u003cli\u003eFunction monitors both shunt voltage drops and bus supply voltages, in addition to programmable conversion times and averaging modes for these signals; The INA3221 provides both critical and warning messages to detect multiple programmable out-of-range conditions for each channel.\u003c\/li\u003e \u003cli\u003eApplication Provides both critical and warning messages to detect multiple programmable out-of-range conditions for each channel detect.\u003c\/li\u003e \u003cli\u003ePackage contentsThe package comes with 2 x INA3221 3-channel module\u003c\/li\u003e \u003c\/ul\u003e"}
