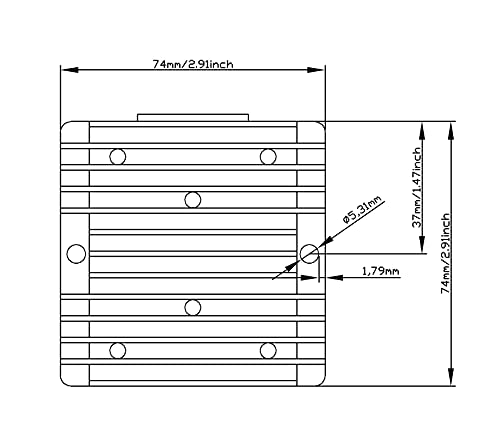

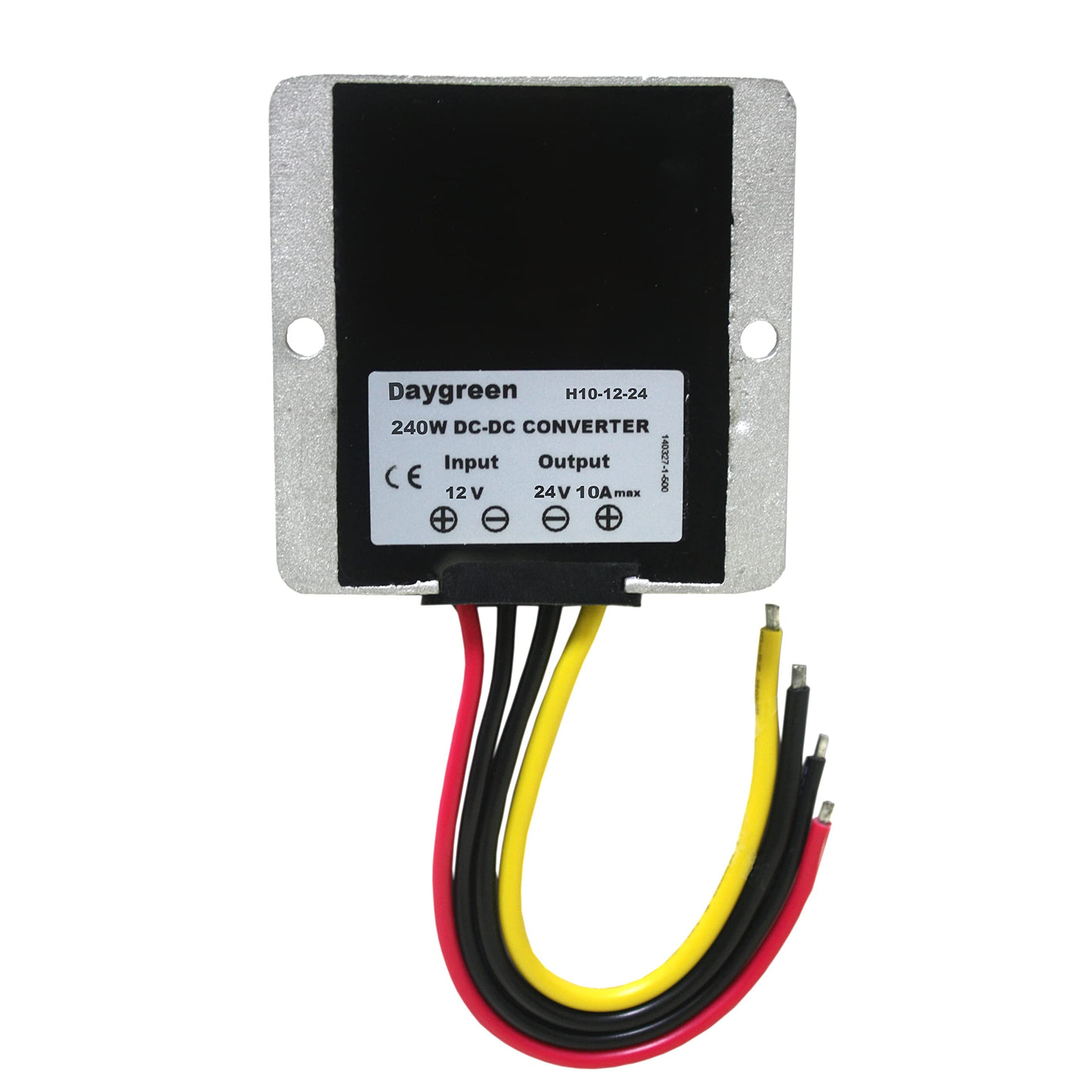

{"id":7118770143392,"title":"Daygreen 12V Step Up 24V 10A Power Module Voltage Regulator DC DC Boost Converter 240W, Non-Isolated 12V TO 24V 10A 240W","handle":"daygreen-12v-step-up-24v-10a-power-module-voltage-regulator-dc-dc-boost-converter-240w-non-isolated-12v-to-24v-10a-240w","description":"\u003ch3\u003eDaygreen 12V Step Up 24V 10A Power Module Voltage Regulator DC DC Boost Converter 240W, Non-Isolated\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSize:12V TO 24V 10A 240W Wiring: INPUT+ to BAT+, INPUT- to BAT-, OUTPUT+ to\nLOAD+, OUTPUT- to LOAD-Reminder: Never reverse the polarity. Use the enough\nbig cable to avoid the voltage drop. Never connect to solar panel or wind\nturbine. Never charge the battery. Keep good air convection. Daygreen P\/N:\nH10-12-24Efficiency: 95% Input Voltage: 11-16VDC Output Voltage: 24VDC Output\nCurrent: 10A Ripple: 200mVp Line Regulation: ±0.2% Load Regulation: ±0.2%\nVoltage Accuracy: ±1.5% Enclosures: IP68 Dimension: 747430mm Net Weight:\n0.28kg Case Operating Temperature: -40~85°C Certificates: CE Rohs Warranty: 1\nyear MTBF: 100,000 hours Application: 12VDC battery of vehicles as input power\nto 24VDC appliances as output load. QuestionsHow to choose the correct current\nfor loads? For example, if the max current of your load device is 10A, then\nchoose 10A\/0.7=14.28A at least for resistive loads according to international\nstandard. If the load device is motor or compressor, then you may choose\n10A\/0.5=20A according to real testing result since the motor and compressor\nstarting current may be 2-3 times than nominal current.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eBetter price for Business customer, ISO 9001: 2015 Certificate, 100% full rated power and stable output voltage\u003c\/li\u003e\n \u003cli\u003e100% burn-in test and 4 times quality inspection\u003c\/li\u003e\n \u003cli\u003eOver current protection, Over voltage protection, Over temperature shutdown, Fuse built\u003c\/li\u003e\n \u003cli\u003eAluminium shell with epoxy potting and waterproof IP68\u003c\/li\u003e\n \u003cli\u003eHigh efficiency up to 97%\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2021-11-08T12:04:38+11:00","created_at":"2021-11-08T02:43:05+11:00","vendor":"Daygreen","type":"Power Converters","tags":["cocoon"],"price":19700,"price_min":19700,"price_max":19700,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41315416342688,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07BKWG9N2","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Daygreen 12V Step Up 24V 10A Power Module Voltage Regulator DC DC Boost Converter 240W, Non-Isolated 12V TO 24V 10A 240W","public_title":null,"options":["Default Title"],"price":19700,"weight":272,"compare_at_price":null,"inventory_management":null,"barcode":"641055151288","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/products\/B07BKWG9N2.jpg?v=1645046890","\/\/dingoship.com.au\/cdn\/shop\/products\/71tq4qMXaRS.jpg?v=1636299785","\/\/dingoship.com.au\/cdn\/shop\/products\/416iscFQW2S.jpg?v=1636299785","\/\/dingoship.com.au\/cdn\/shop\/products\/219IK3rZPxS.jpg?v=1636299785"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/products\/B07BKWG9N2.jpg?v=1645046890","options":["Title"],"media":[{"alt":null,"id":24015632138400,"position":1,"preview_image":{"aspect_ratio":1.366,"height":732,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B07BKWG9N2.jpg?v=1645046890"},"aspect_ratio":1.366,"height":732,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B07BKWG9N2.jpg?v=1645046890","width":1000},{"alt":null,"id":23266077278368,"position":2,"preview_image":{"aspect_ratio":1.0,"height":2560,"width":2560,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71tq4qMXaRS.jpg?v=1636299785"},"aspect_ratio":1.0,"height":2560,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71tq4qMXaRS.jpg?v=1636299785","width":2560},{"alt":null,"id":23266077311136,"position":3,"preview_image":{"aspect_ratio":1.139,"height":439,"width":500,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/416iscFQW2S.jpg?v=1636299785"},"aspect_ratio":1.139,"height":439,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/416iscFQW2S.jpg?v=1636299785","width":500},{"alt":null,"id":23266077343904,"position":4,"preview_image":{"aspect_ratio":2.016,"height":248,"width":500,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/219IK3rZPxS.jpg?v=1636299785"},"aspect_ratio":2.016,"height":248,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/219IK3rZPxS.jpg?v=1636299785","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eDaygreen 12V Step Up 24V 10A Power Module Voltage Regulator DC DC Boost Converter 240W, Non-Isolated\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSize:12V TO 24V 10A 240W Wiring: INPUT+ to BAT+, INPUT- to BAT-, OUTPUT+ to\nLOAD+, OUTPUT- to LOAD-Reminder: Never reverse the polarity. Use the enough\nbig cable to avoid the voltage drop. Never connect to solar panel or wind\nturbine. Never charge the battery. Keep good air convection. Daygreen P\/N:\nH10-12-24Efficiency: 95% Input Voltage: 11-16VDC Output Voltage: 24VDC Output\nCurrent: 10A Ripple: 200mVp Line Regulation: ±0.2% Load Regulation: ±0.2%\nVoltage Accuracy: ±1.5% Enclosures: IP68 Dimension: 747430mm Net Weight:\n0.28kg Case Operating Temperature: -40~85°C Certificates: CE Rohs Warranty: 1\nyear MTBF: 100,000 hours Application: 12VDC battery of vehicles as input power\nto 24VDC appliances as output load. QuestionsHow to choose the correct current\nfor loads? For example, if the max current of your load device is 10A, then\nchoose 10A\/0.7=14.28A at least for resistive loads according to international\nstandard. If the load device is motor or compressor, then you may choose\n10A\/0.5=20A according to real testing result since the motor and compressor\nstarting current may be 2-3 times than nominal current.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eBetter price for Business customer, ISO 9001: 2015 Certificate, 100% full rated power and stable output voltage\u003c\/li\u003e\n \u003cli\u003e100% burn-in test and 4 times quality inspection\u003c\/li\u003e\n \u003cli\u003eOver current protection, Over voltage protection, Over temperature shutdown, Fuse built\u003c\/li\u003e\n \u003cli\u003eAluminium shell with epoxy potting and waterproof IP68\u003c\/li\u003e\n \u003cli\u003eHigh efficiency up to 97%\u003c\/li\u003e\n \u003c\/ul\u003e"}
