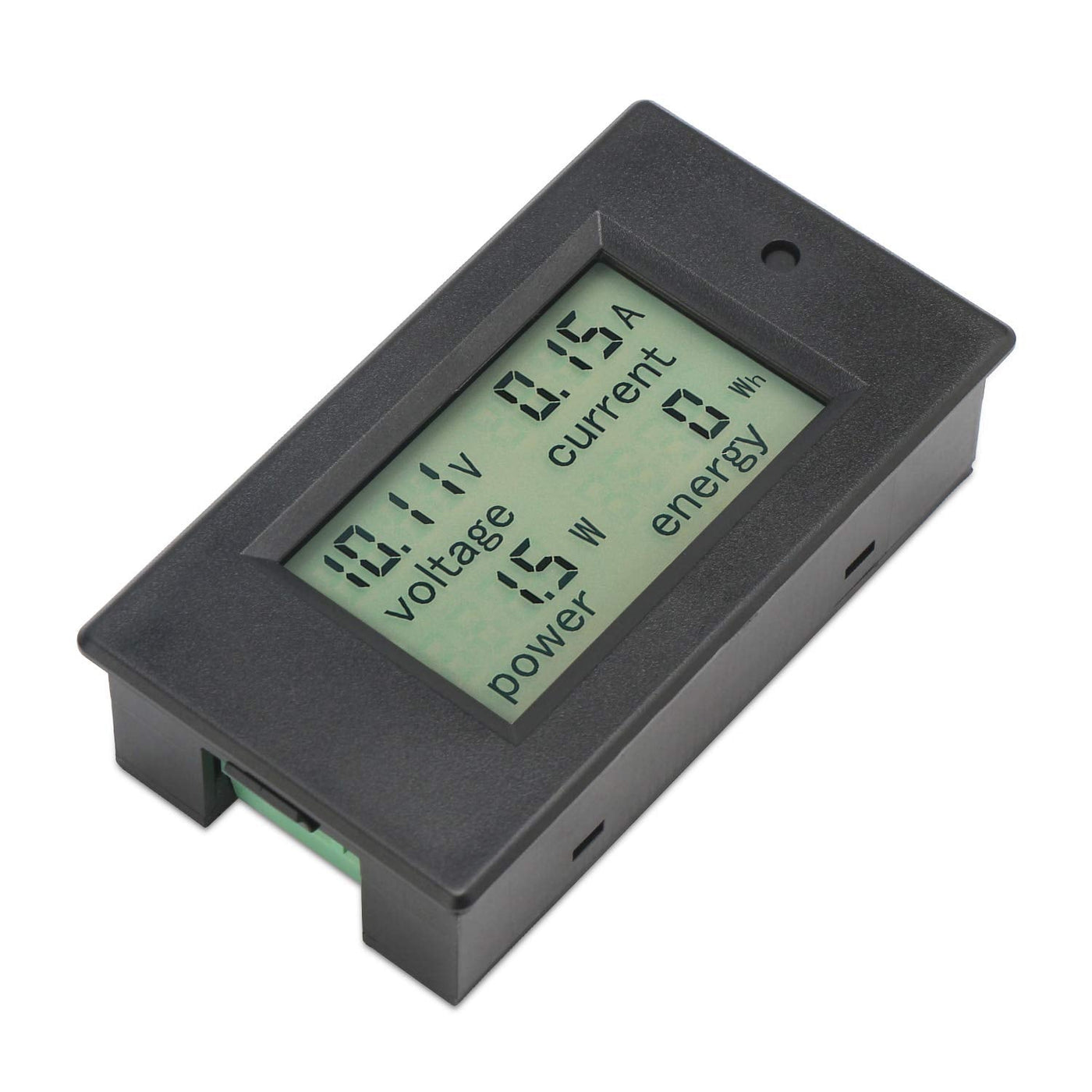

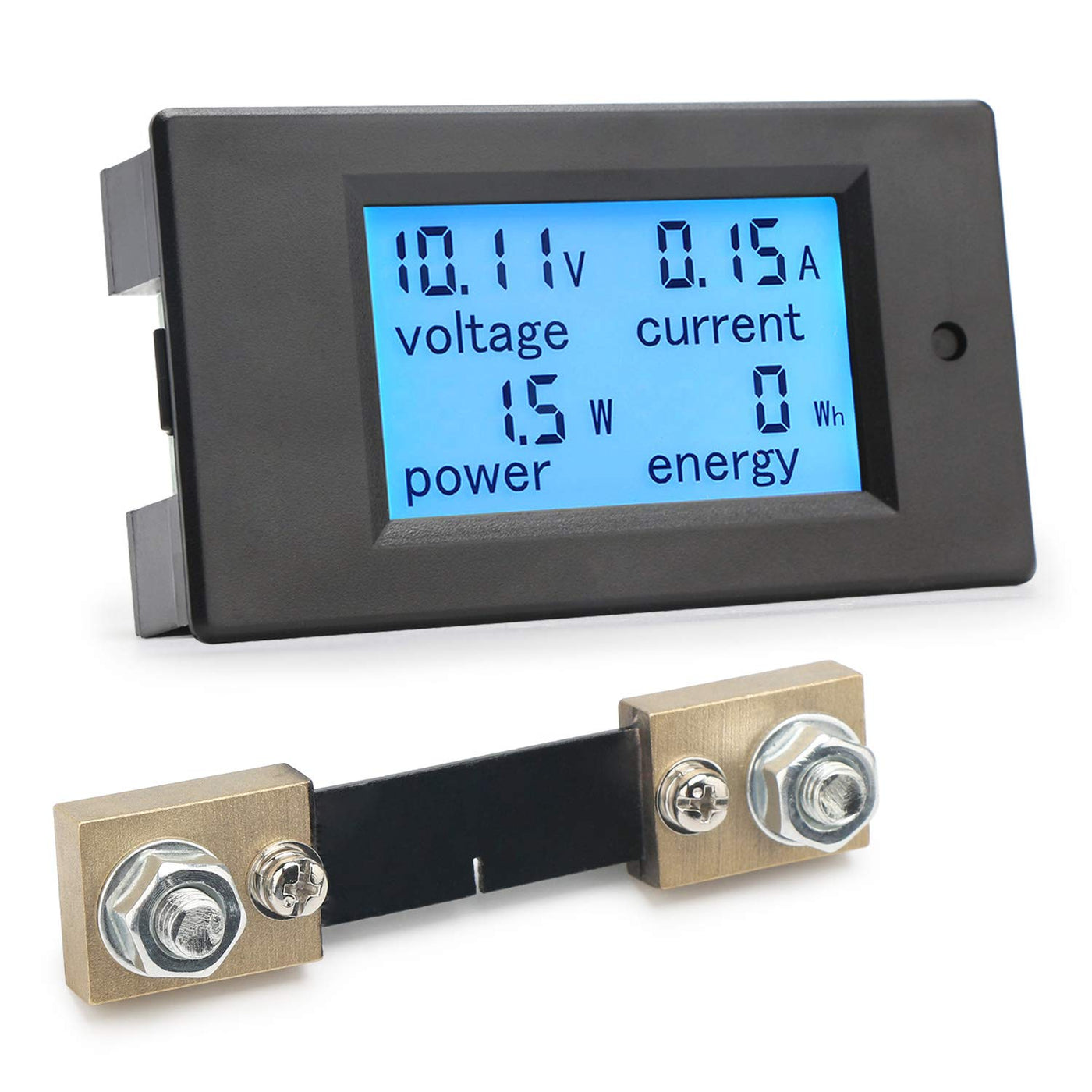

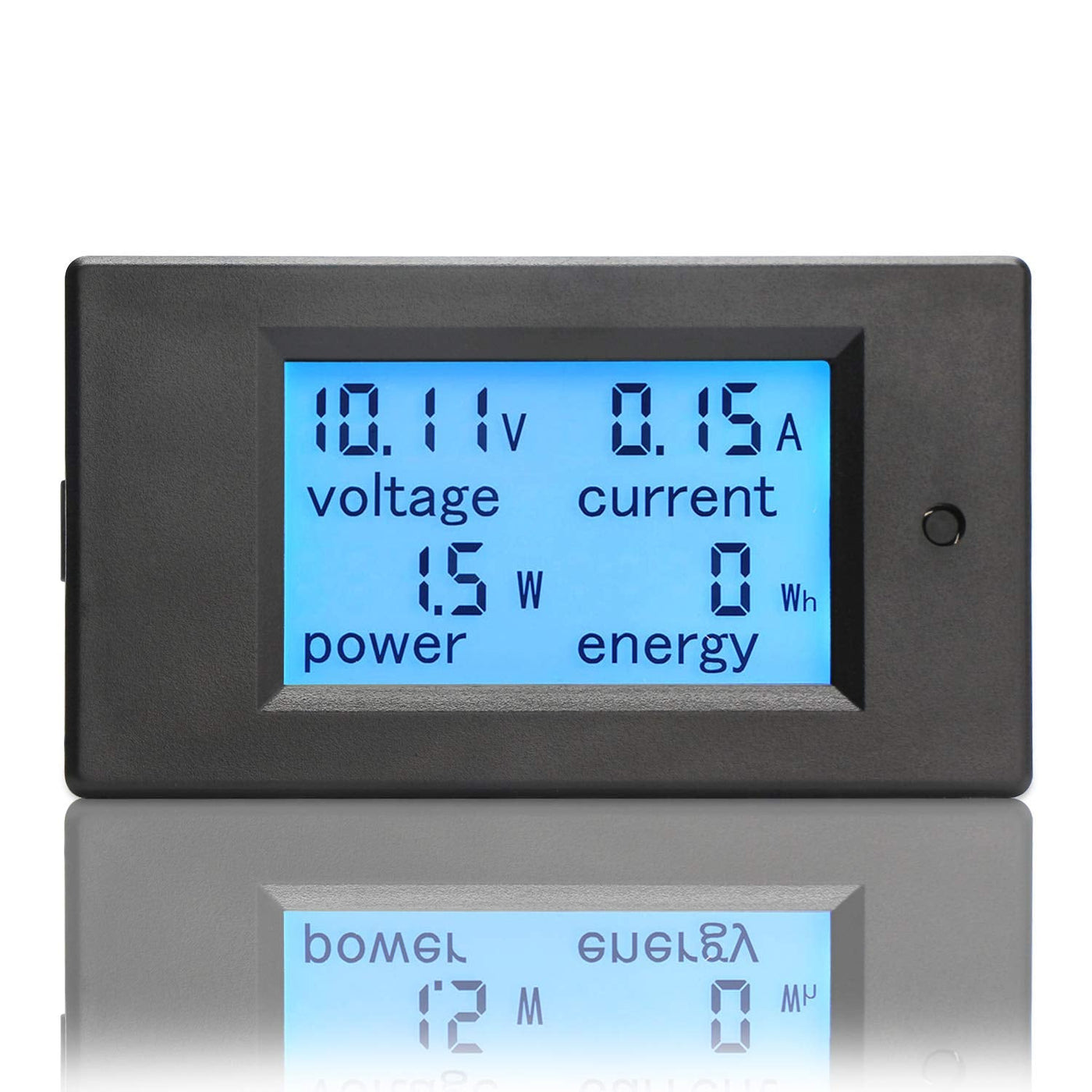

{"id":7412977533088,"title":"DC Battery Monitor, DROK DC Amp Meter 6.5-100V 12V 24V 48V 100A Digital Multimeter, Voltage Current Power Energy 4-in-1 Tester Gauge DC Volt Amp Watt Detector with LCD Display and Shunt","handle":"dc-battery-monitor-drok-dc-amp-meter-6-5-100v-12v-24v-48v-100a-digital-multimeter-voltage-current-power-energy-4-in-1-tester-gauge-dc-volt-amp-watt-detector-with-lcd-display-and-shunt","description":"\u003ch3\u003eDC Battery Monitor, DROK DC Amp Meter 6.5-100V 12V 24V 48V 100A Digital Multimeter, Voltage Current Power Energy 4-in-1 Tester Gauge DC Volt Amp Watt Detector with LCD Display and Shunt\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eParameters: Working Voltage: 6. 5 ~ 100VDC Measuring Range: 6. 5 ~ 100VDC\nRated Power: 100A\/10000W Measuring Accuracy: 1. 0 grade Test range and display\nformat: Power Range: 0~10kW within 1kW, display 0. 0~999. 9W; above 1kW,\ndisplay 1000~9999W. Energy Range: 0~9999kWh within 10KWh, display 0~9999Wh;\nabove 10kWh, display 10~9999kWh. Voltage Range: 6. 5~100V (display 6. 50~99.\n99V) Current Range: 0~100A (display 0. 00~99. 99A) Note: This module is\nsuitable for indoor, please do not use outdoor. Applied load should not exceed\nthe rated voltage or current. Wiring order can't be wrong. Package Includes:\n1x DC Power Multimeter\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThe portable multi-meter has a Large-screen LCD, can display voltage, current, power, energy at the same time, bright and easy to read.\u003c\/li\u003e\n \u003cli\u003eVoltage test range: DC 6.5~100V; Current test range: 0~100A; Power test range: 0~10KW; Energy test range: 0~9999kWh.\u003c\/li\u003e\n \u003cli\u003eMultifunctional: the accumulated energy can be reset by button; Store data when power off; Voltage alarm function (over voltage alarm threshold, backlight and voltage will flash to alarm).\u003c\/li\u003e\n \u003cli\u003eWith external shunt, very accurate to measure electrical parameters, please note when connecting load, the DC power - should go through the shunt to connect the meter -.\u003c\/li\u003e\n \u003cli\u003eThe blue backlight can be turned on\/off by the front accessible recessed switch located on the right side bezel.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-06-13T15:37:26+10:00","created_at":"2022-06-13T15:37:36+10:00","vendor":"DROK","type":"Multi Testers","tags":["dingo"],"price":12900,"price_min":12900,"price_max":12900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42188163252384,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B017BDQHE6","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"DC Battery Monitor, DROK DC Amp Meter 6.5-100V 12V 24V 48V 100A Digital Multimeter, Voltage Current Power Energy 4-in-1 Tester Gauge DC Volt Amp Watt Detector with LCD Display and Shunt","public_title":null,"options":["Default Title"],"price":12900,"weight":136,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/products\/B017BDQHE6.jpg?v=1655166671","\/\/dingoship.com.au\/cdn\/shop\/products\/61SUutqsjEL.jpg?v=1655098656","\/\/dingoship.com.au\/cdn\/shop\/products\/71gD6f6EsaL.jpg?v=1655098656","\/\/dingoship.com.au\/cdn\/shop\/products\/61uMZ_T4JEL.jpg?v=1655098656","\/\/dingoship.com.au\/cdn\/shop\/products\/61vBtZuQ52L.jpg?v=1655098656","\/\/dingoship.com.au\/cdn\/shop\/products\/71gj_ygrtBL.jpg?v=1655098656","\/\/dingoship.com.au\/cdn\/shop\/products\/61w0yy-LZoL.jpg?v=1655098656"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/products\/B017BDQHE6.jpg?v=1655166671","options":["Title"],"media":[{"alt":null,"id":24853103673504,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B017BDQHE6.jpg?v=1655166671"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B017BDQHE6.jpg?v=1655166671","width":1500},{"alt":null,"id":24847586001056,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61SUutqsjEL.jpg?v=1655098656"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61SUutqsjEL.jpg?v=1655098656","width":1500},{"alt":null,"id":24847586033824,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71gD6f6EsaL.jpg?v=1655098656"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71gD6f6EsaL.jpg?v=1655098656","width":1500},{"alt":null,"id":24847586066592,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61uMZ_T4JEL.jpg?v=1655098656"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61uMZ_T4JEL.jpg?v=1655098656","width":1500},{"alt":null,"id":24847586099360,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61vBtZuQ52L.jpg?v=1655098656"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61vBtZuQ52L.jpg?v=1655098656","width":1500},{"alt":null,"id":24847586132128,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71gj_ygrtBL.jpg?v=1655098656"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71gj_ygrtBL.jpg?v=1655098656","width":1500},{"alt":null,"id":24847586164896,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61w0yy-LZoL.jpg?v=1655098656"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61w0yy-LZoL.jpg?v=1655098656","width":1500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eDC Battery Monitor, DROK DC Amp Meter 6.5-100V 12V 24V 48V 100A Digital Multimeter, Voltage Current Power Energy 4-in-1 Tester Gauge DC Volt Amp Watt Detector with LCD Display and Shunt\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eParameters: Working Voltage: 6. 5 ~ 100VDC Measuring Range: 6. 5 ~ 100VDC\nRated Power: 100A\/10000W Measuring Accuracy: 1. 0 grade Test range and display\nformat: Power Range: 0~10kW within 1kW, display 0. 0~999. 9W; above 1kW,\ndisplay 1000~9999W. Energy Range: 0~9999kWh within 10KWh, display 0~9999Wh;\nabove 10kWh, display 10~9999kWh. Voltage Range: 6. 5~100V (display 6. 50~99.\n99V) Current Range: 0~100A (display 0. 00~99. 99A) Note: This module is\nsuitable for indoor, please do not use outdoor. Applied load should not exceed\nthe rated voltage or current. Wiring order can't be wrong. Package Includes:\n1x DC Power Multimeter\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThe portable multi-meter has a Large-screen LCD, can display voltage, current, power, energy at the same time, bright and easy to read.\u003c\/li\u003e\n \u003cli\u003eVoltage test range: DC 6.5~100V; Current test range: 0~100A; Power test range: 0~10KW; Energy test range: 0~9999kWh.\u003c\/li\u003e\n \u003cli\u003eMultifunctional: the accumulated energy can be reset by button; Store data when power off; Voltage alarm function (over voltage alarm threshold, backlight and voltage will flash to alarm).\u003c\/li\u003e\n \u003cli\u003eWith external shunt, very accurate to measure electrical parameters, please note when connecting load, the DC power - should go through the shunt to connect the meter -.\u003c\/li\u003e\n \u003cli\u003eThe blue backlight can be turned on\/off by the front accessible recessed switch located on the right side bezel.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
