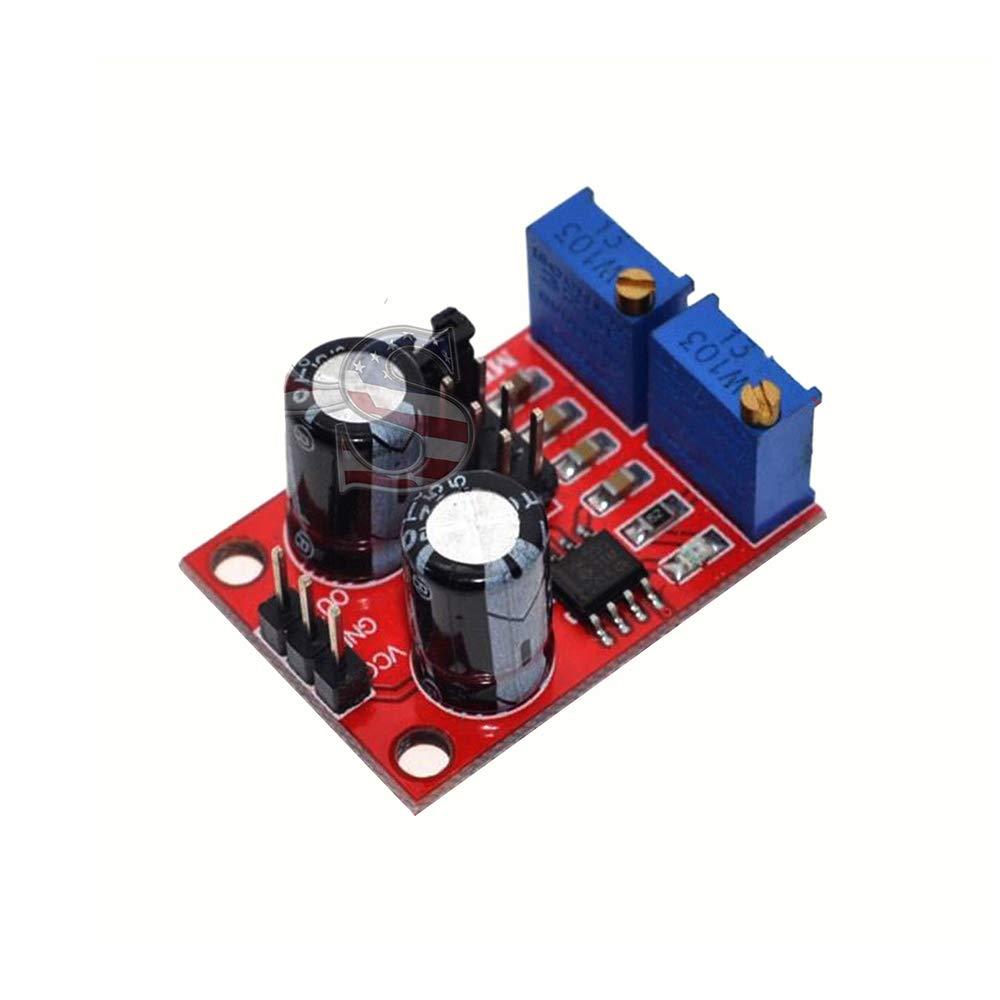

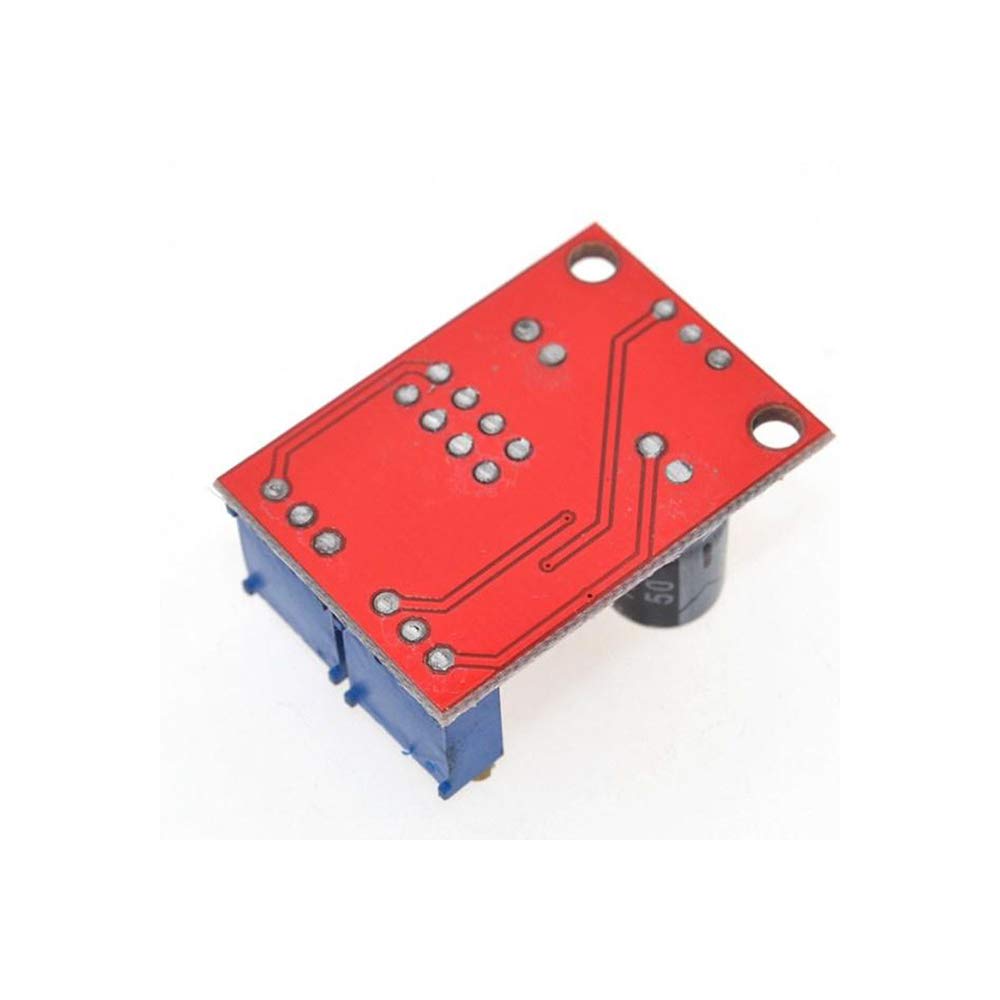

{"id":7417351209120,"title":"DEVMO 2PCS NE555 Pulse Module Frequency Duty Cycle Adjustable Square Signal Generator 2","handle":"devmo-2pcs-ne555-pulse-module-frequency-duty-cycle-adjustable-square-signal-generator-2","description":"\u003ch3\u003eDEVMO 2PCS NE555 Pulse Module Frequency Duty Cycle Adjustable Square Signal Generator\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e- This NE555 square wave pulse generator module can be used to produce square wave signals for experimental development, or in applications such as driving stepper motors, and as an adjustable pulse for microcontroller (MCU) applications.- Only 31mm x 22mm (1.2\" x 0.9\"), the board features an NE555 timer chip configured in four frequency ranges, 1Hz to 50Hz, 50Hz to 1kHz, 1kHz to 10kHz and 10kHz to 200kHz all adjustable with onboard jumpers and two trim-pots to adjust the output frequency and the duty cycle.- Input voltage to the module (VCC) is variable from 5V to 15V DC and draws approximately 15mA at 5v (35mA at 12v) with an output amplitude of 4.2V peak-to-peak to 11.4V peak-to-peak based on the supply voltage.- An indicator LED illuminates on a low-level output and flashes relative to the output frequency. At higher frequencies, the LED will appear to be on solid and without a visible flash.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eAs a square wave signal generator for experimental development\u003c\/li\u003e\n \u003cli\u003eUsed to drive a stepper motor for generating a square wave drive signal\u003c\/li\u003e\n \u003cli\u003eThis NE555 square wave pulse generator module can be used to produce square wave signals for experimental development, or in applications such as driving stepper motors, and as an adjustable pulse for microcontroller (MCU) applications.\u003c\/li\u003e\n \u003cli\u003enput voltage to the module (VCC) is variable from 5V to 15V DC and draws approximately 15mA at 5v (35mA at 12v) with an output amplitude of 4.2V peak-to-peak to 11.4V peak-to-peak based on the supply voltage.\u003c\/li\u003e\n \u003cli\u003ePackage Includes:2PCS NE555 Pulse Module\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-10-26T15:04:55+11:00","created_at":"2022-06-16T21:16:34+10:00","vendor":"DEVMO","type":"Function Generators","tags":["dingo"],"price":10300,"price_min":10300,"price_max":10300,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42210896674976,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07R45229V","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"DEVMO 2PCS NE555 Pulse Module Frequency Duty Cycle Adjustable Square Signal Generator 2","public_title":null,"options":["Default Title"],"price":10300,"weight":51,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/dingoship.com.au\/cdn\/shop\/products\/B07R45229V.jpg?v=1655422587","\/\/dingoship.com.au\/cdn\/shop\/products\/518fmkdKhxL.jpg?v=1655378194","\/\/dingoship.com.au\/cdn\/shop\/products\/51UDzCWl02L.jpg?v=1655378194"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/products\/B07R45229V.jpg?v=1655422587","options":["Title"],"media":[{"alt":null,"id":24872133558432,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B07R45229V.jpg?v=1655422587"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B07R45229V.jpg?v=1655422587","width":1000},{"alt":null,"id":24869050908832,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/518fmkdKhxL.jpg?v=1655378194"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/518fmkdKhxL.jpg?v=1655378194","width":1000},{"alt":null,"id":24869050941600,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51UDzCWl02L.jpg?v=1655378194"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51UDzCWl02L.jpg?v=1655378194","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eDEVMO 2PCS NE555 Pulse Module Frequency Duty Cycle Adjustable Square Signal Generator\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e- This NE555 square wave pulse generator module can be used to produce square wave signals for experimental development, or in applications such as driving stepper motors, and as an adjustable pulse for microcontroller (MCU) applications.- Only 31mm x 22mm (1.2\" x 0.9\"), the board features an NE555 timer chip configured in four frequency ranges, 1Hz to 50Hz, 50Hz to 1kHz, 1kHz to 10kHz and 10kHz to 200kHz all adjustable with onboard jumpers and two trim-pots to adjust the output frequency and the duty cycle.- Input voltage to the module (VCC) is variable from 5V to 15V DC and draws approximately 15mA at 5v (35mA at 12v) with an output amplitude of 4.2V peak-to-peak to 11.4V peak-to-peak based on the supply voltage.- An indicator LED illuminates on a low-level output and flashes relative to the output frequency. At higher frequencies, the LED will appear to be on solid and without a visible flash.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eAs a square wave signal generator for experimental development\u003c\/li\u003e\n \u003cli\u003eUsed to drive a stepper motor for generating a square wave drive signal\u003c\/li\u003e\n \u003cli\u003eThis NE555 square wave pulse generator module can be used to produce square wave signals for experimental development, or in applications such as driving stepper motors, and as an adjustable pulse for microcontroller (MCU) applications.\u003c\/li\u003e\n \u003cli\u003enput voltage to the module (VCC) is variable from 5V to 15V DC and draws approximately 15mA at 5v (35mA at 12v) with an output amplitude of 4.2V peak-to-peak to 11.4V peak-to-peak based on the supply voltage.\u003c\/li\u003e\n \u003cli\u003ePackage Includes:2PCS NE555 Pulse Module\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
