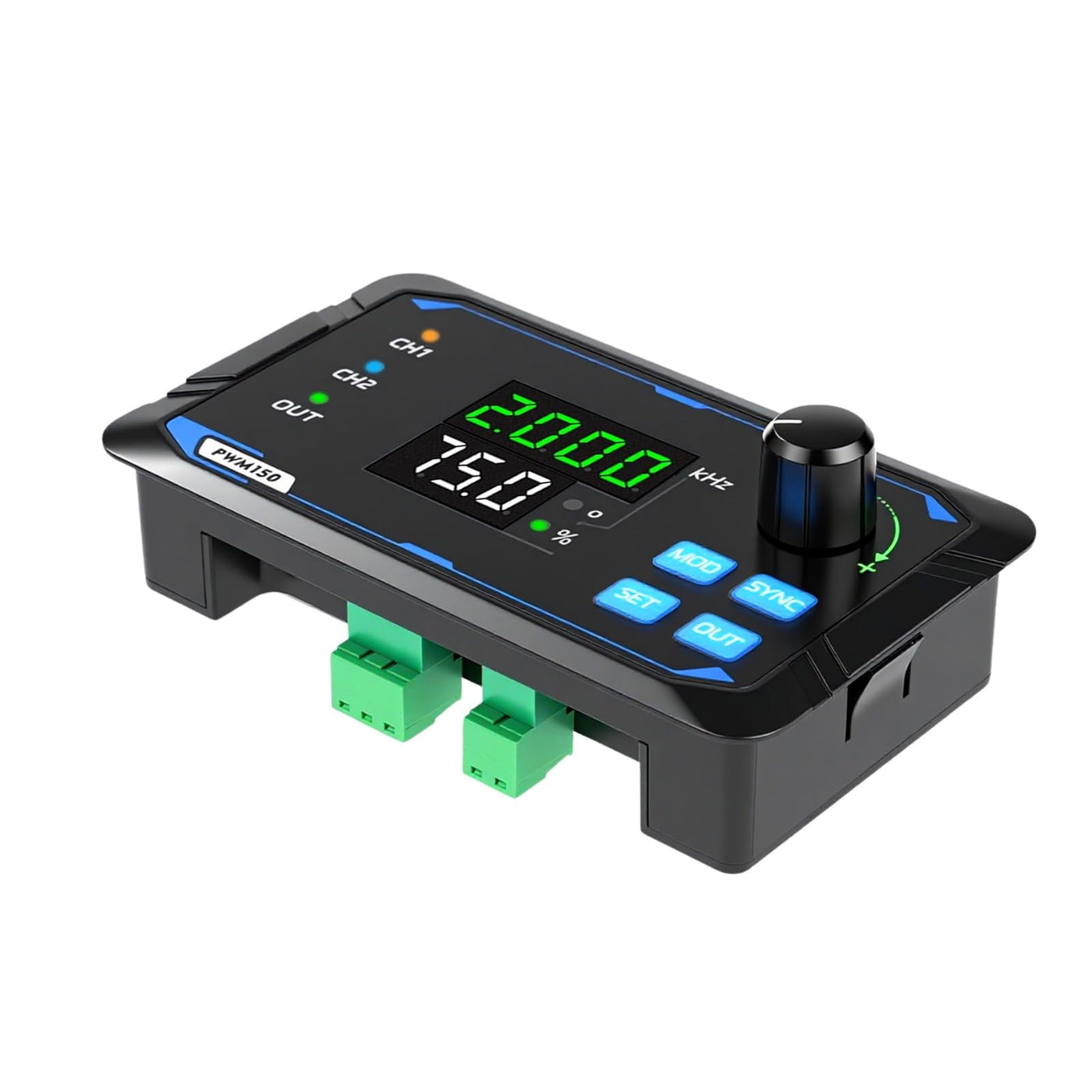

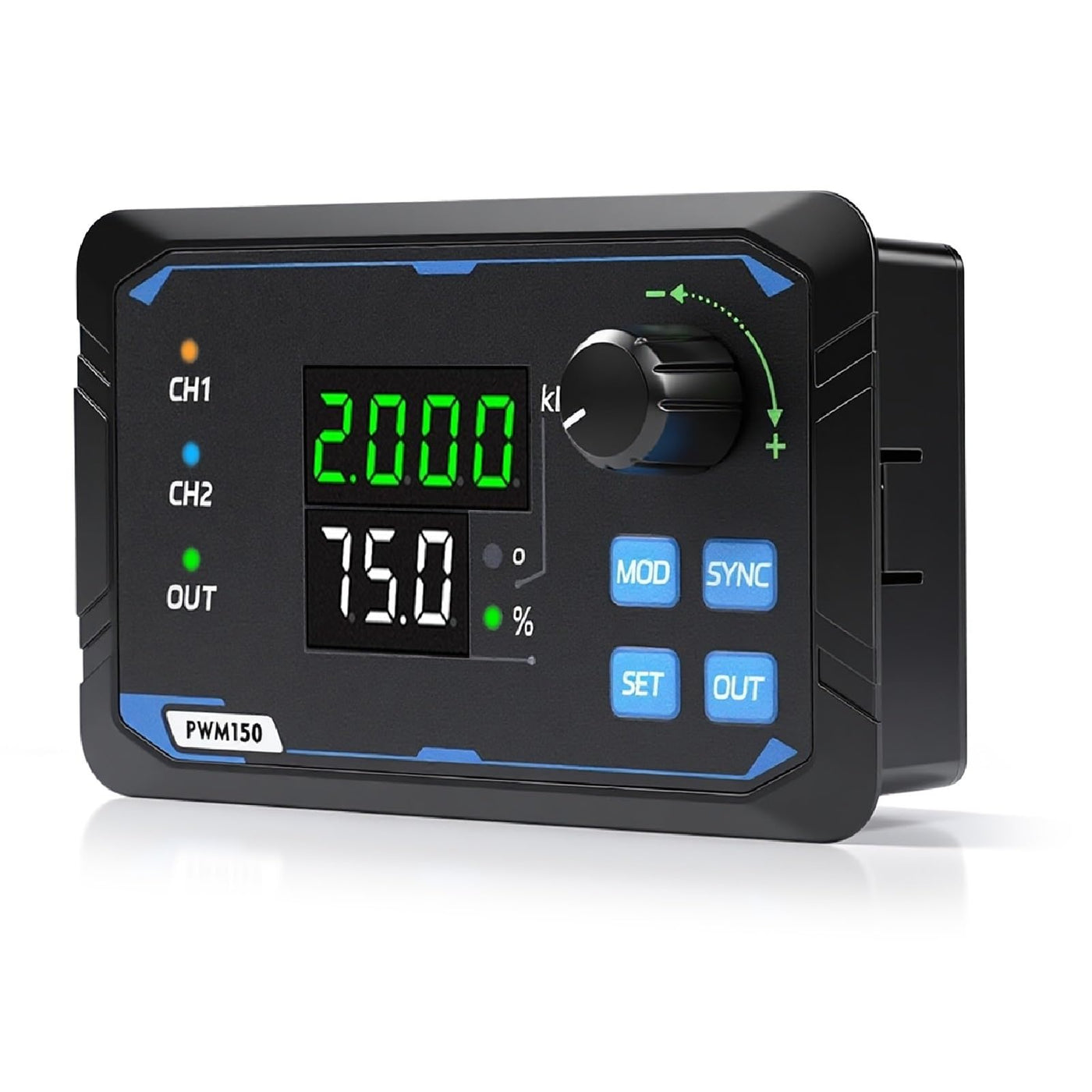

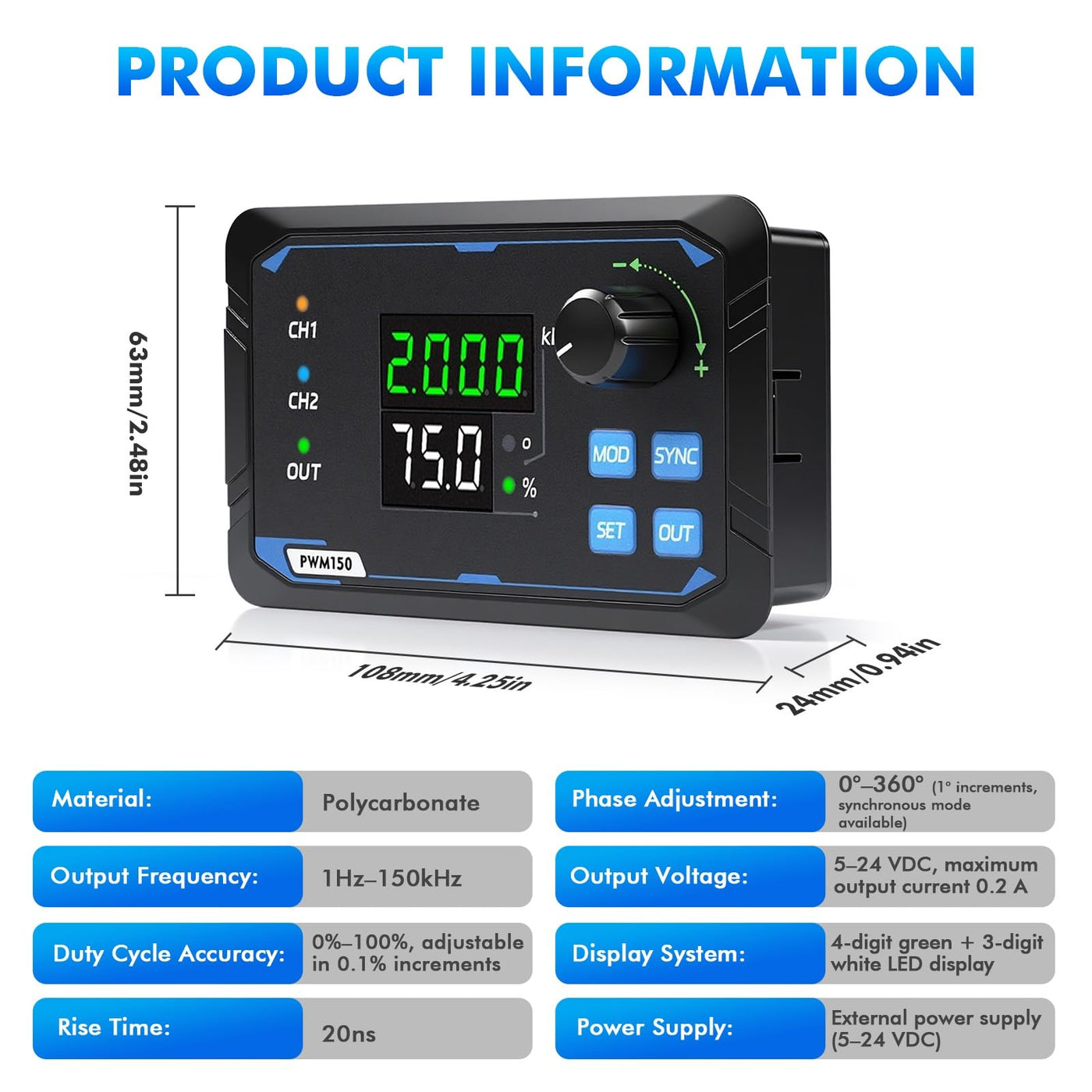

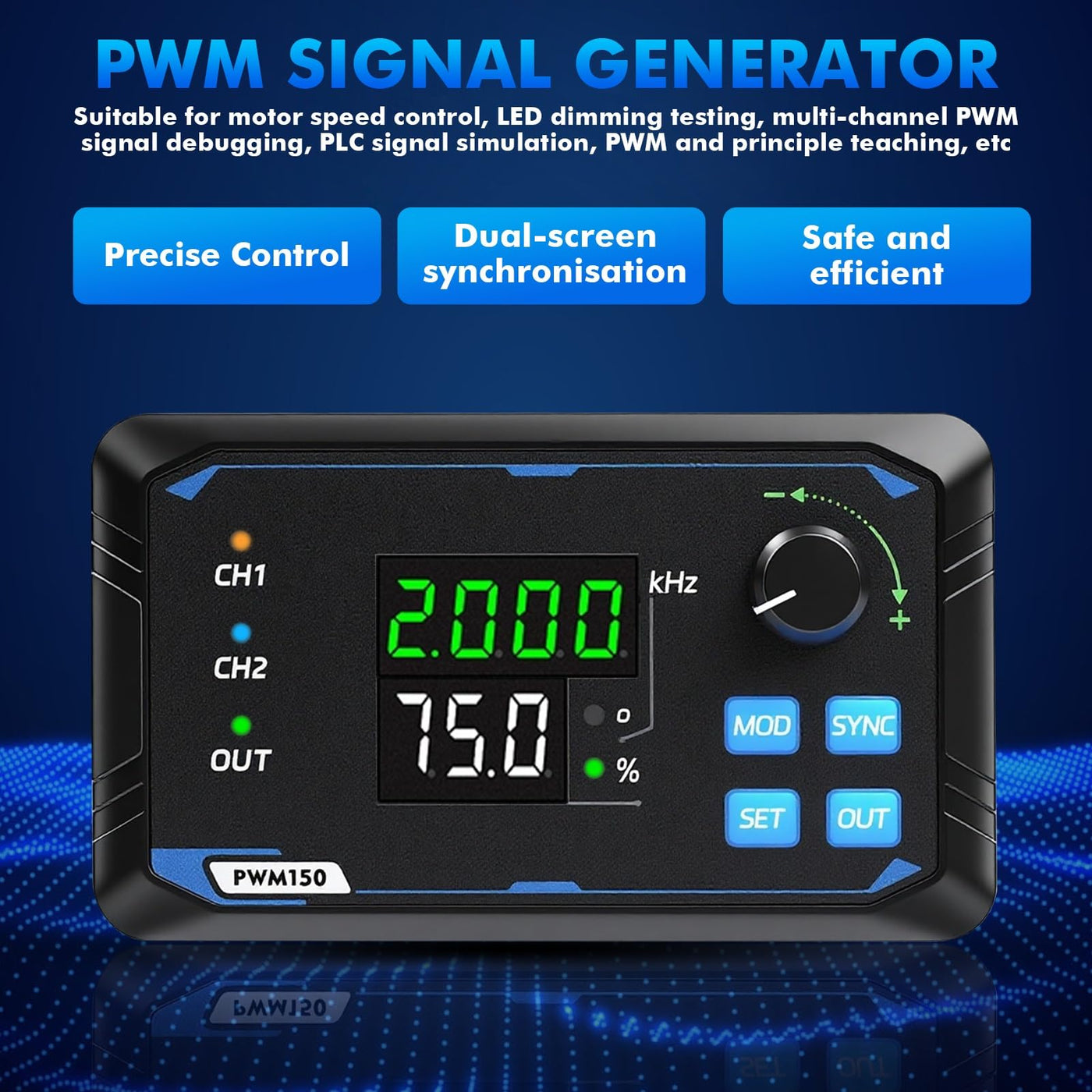

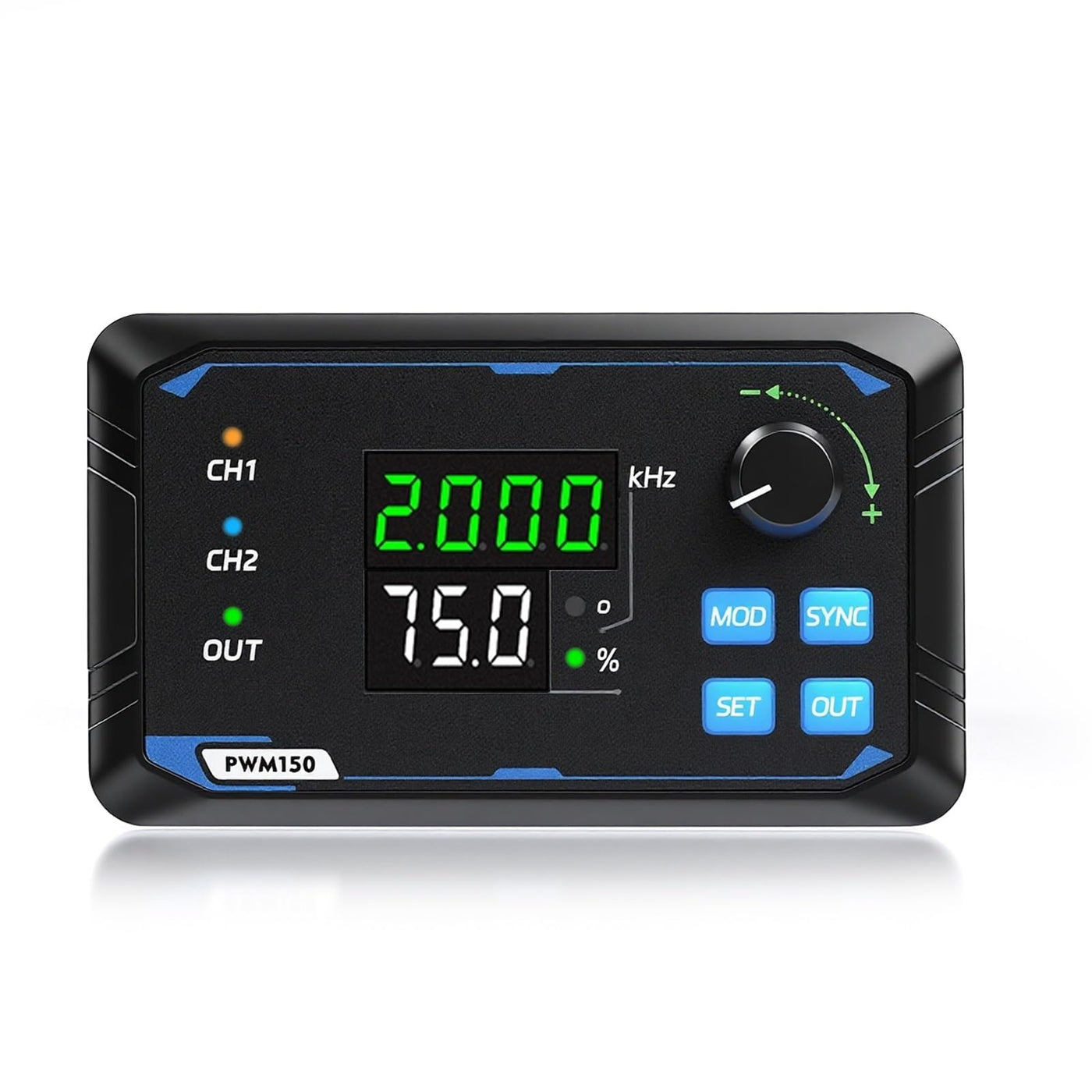

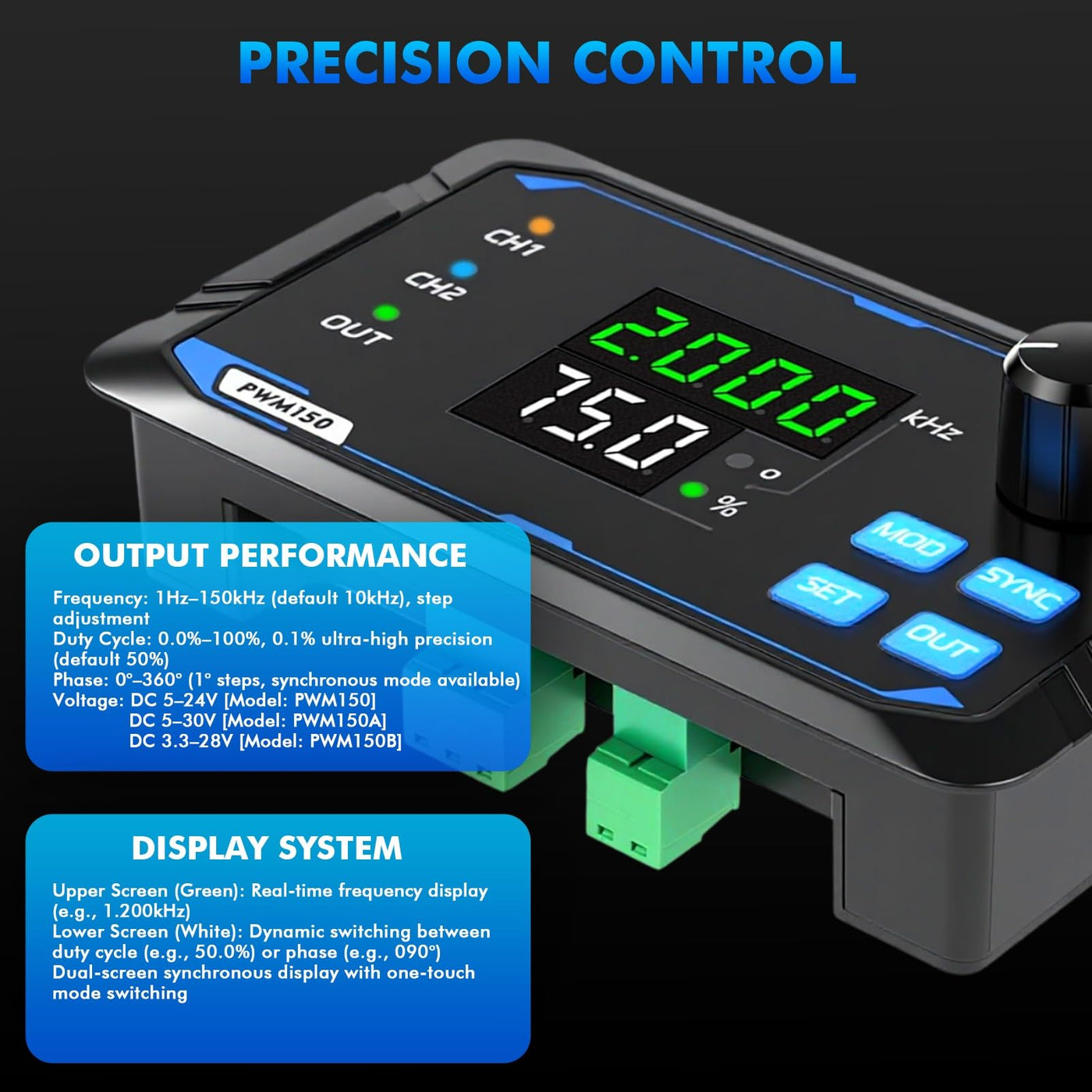

{"id":15859898450080,"title":"DEWIN Signal Generator Module, PWM150 Dual Channel Signal Generator Servo Motor Control Rectangular Pulse with Adjustable Frequency","handle":"dewin-signal-generator-module-pwm150-dual-channel-signal-generator-servo-motor-control-rectangular-pulse-with-adjustable-frequency","description":"\u003ch3\u003eDEWIN Signal Generator Module, PWM150 Dual Channel Signal Generator Servo Motor Control Rectangular Pulse with Adjustable Frequency\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eSignal Generator Module: Adjustable frequency range: 1 Hz150 kHz (default: 10 kHz), Duty Cycle: 0 %100 % (default: 50 %), Phase: 0360, Voltage: 524 V DC, Maximum Output Current: 0.2 A. Digital adjustment for precise control.\u003c\/li\u003e\n \u003cli\u003eLCD Display: The signal generator has a dynamic dual LCD display with a 4-digit green digital display (frequency) and a 3-digit white digital display (duty cycle\/phase). The parameters are displayed in real time and synchronized. The refresh rate is 120 Hz, and the operating state is displayed intuitively.\u003c\/li\u003e\n \u003cli\u003eTwo-channel output: Rotary encoder (with buttons) + four function keys (MOD\/SYNC\/SET\/OUT) support multi-channel switching and synchronization. PWM signal generator, freely switchable between two channels.\u003c\/li\u003e\n \u003cli\u003eFunction: Output short circuit protection effectively prevents component burn-out and system failures. The software soft start eliminates start-up shocks and extends the life of the device.\u003c\/li\u003e\n \u003cli\u003eApplication Area: This PWM signal generator is suitable for motor speed control, LED dimming tests, troubleshooting of multi-channel PWM signals, PLC signal simulation, PWM fundamentals teaching, etc.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-07T14:56:52+10:00","created_at":"2026-09-07T10:51:44+10:00","vendor":"DEWIN","type":"Function Generators","tags":["industrial_DE_Aug2026"],"price":16700,"price_min":16700,"price_max":16700,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":58817132560544,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B0G1SCG47S","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"DEWIN Signal Generator Module, PWM150 Dual Channel Signal Generator Servo Motor Control Rectangular Pulse with Adjustable Frequency","public_title":null,"options":["Default Title"],"price":16700,"weight":92,"compare_at_price":null,"inventory_management":"shopify","barcode":"XQIXYXAIB-99849","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/files\/B0G1SCG47S.jpg?v=1788742307","\/\/dingoship.com.au\/cdn\/shop\/files\/71HYP3K5_yL.jpg?v=1788742307","\/\/dingoship.com.au\/cdn\/shop\/files\/71K0w0RXufL.jpg?v=1788742307","\/\/dingoship.com.au\/cdn\/shop\/files\/71hHn12wePL.jpg?v=1788742306","\/\/dingoship.com.au\/cdn\/shop\/files\/71QslBZT77L.jpg?v=1788742307","\/\/dingoship.com.au\/cdn\/shop\/files\/71cdCJvq5kL.jpg?v=1788742306","\/\/dingoship.com.au\/cdn\/shop\/files\/61Ep_xGmS7L.jpg?v=1788742307","\/\/dingoship.com.au\/cdn\/shop\/files\/61X37WBHLEL.jpg?v=1788742307","\/\/dingoship.com.au\/cdn\/shop\/files\/61c2iMtjaVL.jpg?v=1788742307"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/files\/B0G1SCG47S.jpg?v=1788742307","options":["Title"],"media":[{"alt":null,"id":70257934467232,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/B0G1SCG47S.jpg?v=1788742307"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/B0G1SCG47S.jpg?v=1788742307","width":1601},{"alt":null,"id":70257934500000,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71HYP3K5_yL.jpg?v=1788742307"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71HYP3K5_yL.jpg?v=1788742307","width":1601},{"alt":null,"id":70257934532768,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71K0w0RXufL.jpg?v=1788742307"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71K0w0RXufL.jpg?v=1788742307","width":1601},{"alt":null,"id":70257934565536,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71hHn12wePL.jpg?v=1788742306"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71hHn12wePL.jpg?v=1788742306","width":1601},{"alt":null,"id":70257934598304,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71QslBZT77L.jpg?v=1788742307"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71QslBZT77L.jpg?v=1788742307","width":1601},{"alt":null,"id":70257934631072,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71cdCJvq5kL.jpg?v=1788742306"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71cdCJvq5kL.jpg?v=1788742306","width":1601},{"alt":null,"id":70257934663840,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61Ep_xGmS7L.jpg?v=1788742307"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61Ep_xGmS7L.jpg?v=1788742307","width":1601},{"alt":null,"id":70257934696608,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61X37WBHLEL.jpg?v=1788742307"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61X37WBHLEL.jpg?v=1788742307","width":1601},{"alt":null,"id":70257934729376,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61c2iMtjaVL.jpg?v=1788742307"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61c2iMtjaVL.jpg?v=1788742307","width":1601}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eDEWIN Signal Generator Module, PWM150 Dual Channel Signal Generator Servo Motor Control Rectangular Pulse with Adjustable Frequency\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eSignal Generator Module: Adjustable frequency range: 1 Hz150 kHz (default: 10 kHz), Duty Cycle: 0 %100 % (default: 50 %), Phase: 0360, Voltage: 524 V DC, Maximum Output Current: 0.2 A. Digital adjustment for precise control.\u003c\/li\u003e\n \u003cli\u003eLCD Display: The signal generator has a dynamic dual LCD display with a 4-digit green digital display (frequency) and a 3-digit white digital display (duty cycle\/phase). The parameters are displayed in real time and synchronized. The refresh rate is 120 Hz, and the operating state is displayed intuitively.\u003c\/li\u003e\n \u003cli\u003eTwo-channel output: Rotary encoder (with buttons) + four function keys (MOD\/SYNC\/SET\/OUT) support multi-channel switching and synchronization. PWM signal generator, freely switchable between two channels.\u003c\/li\u003e\n \u003cli\u003eFunction: Output short circuit protection effectively prevents component burn-out and system failures. The software soft start eliminates start-up shocks and extends the life of the device.\u003c\/li\u003e\n \u003cli\u003eApplication Area: This PWM signal generator is suitable for motor speed control, LED dimming tests, troubleshooting of multi-channel PWM signals, PLC signal simulation, PWM fundamentals teaching, etc.\u003c\/li\u003e\n \u003c\/ul\u003e"}
