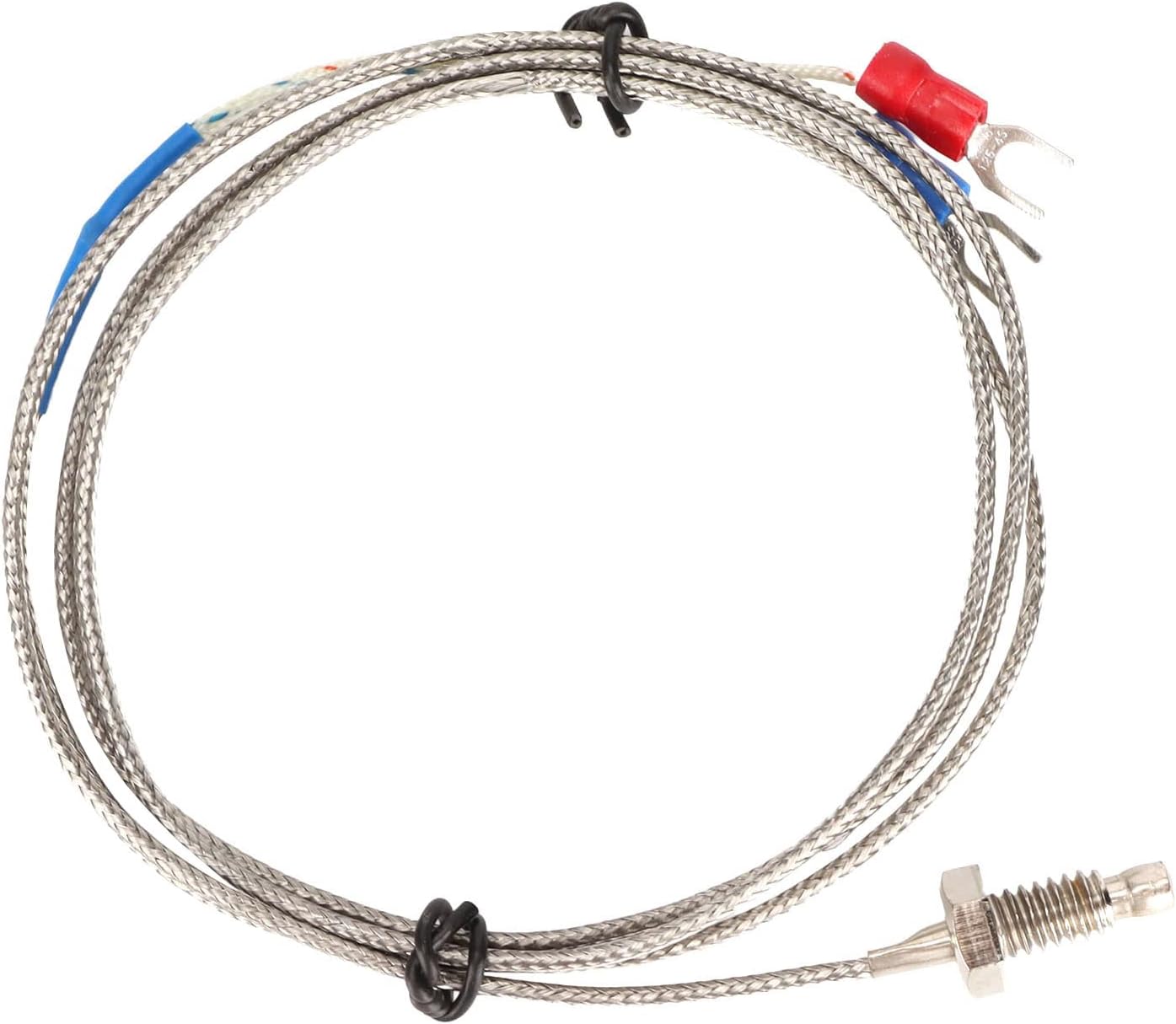

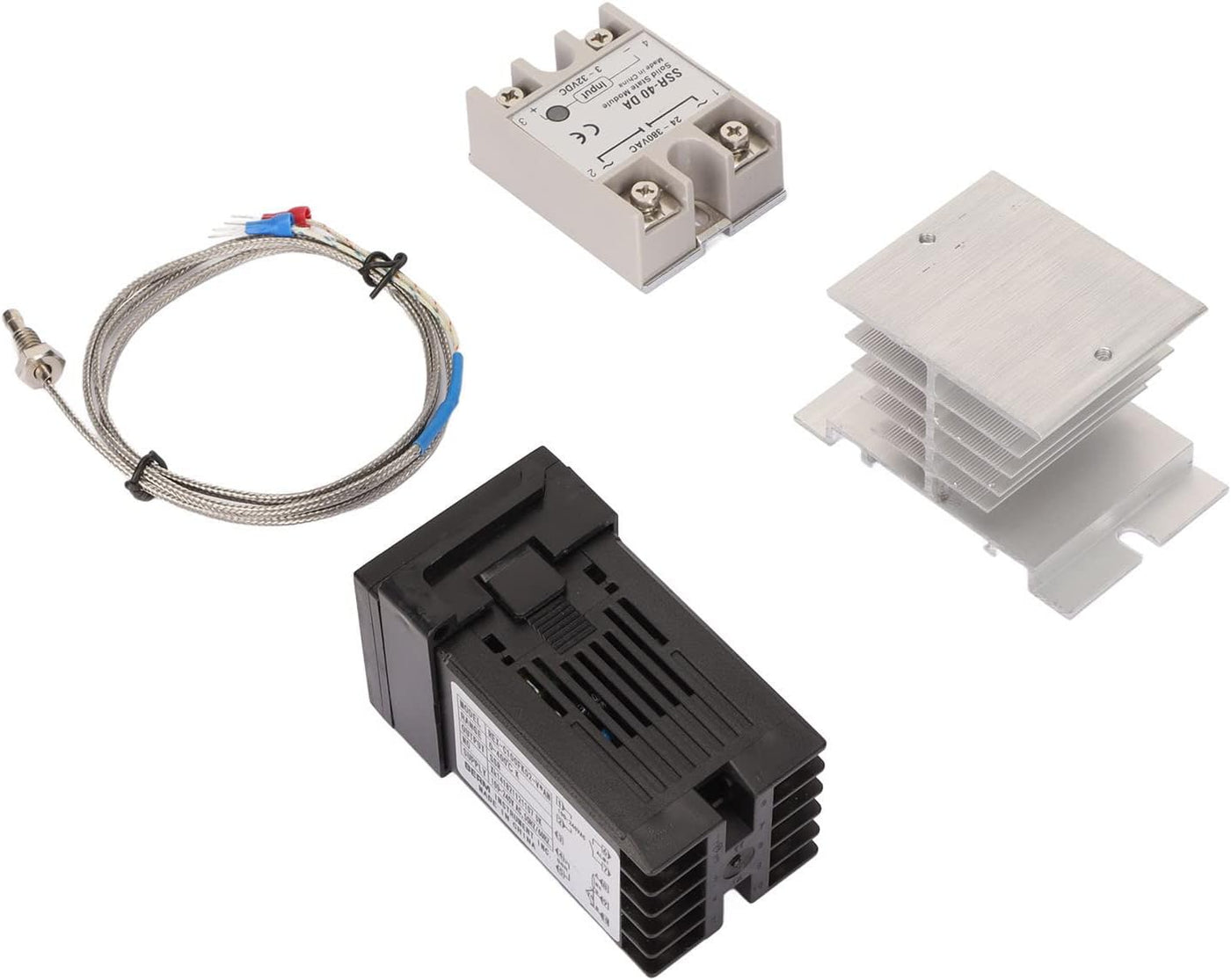

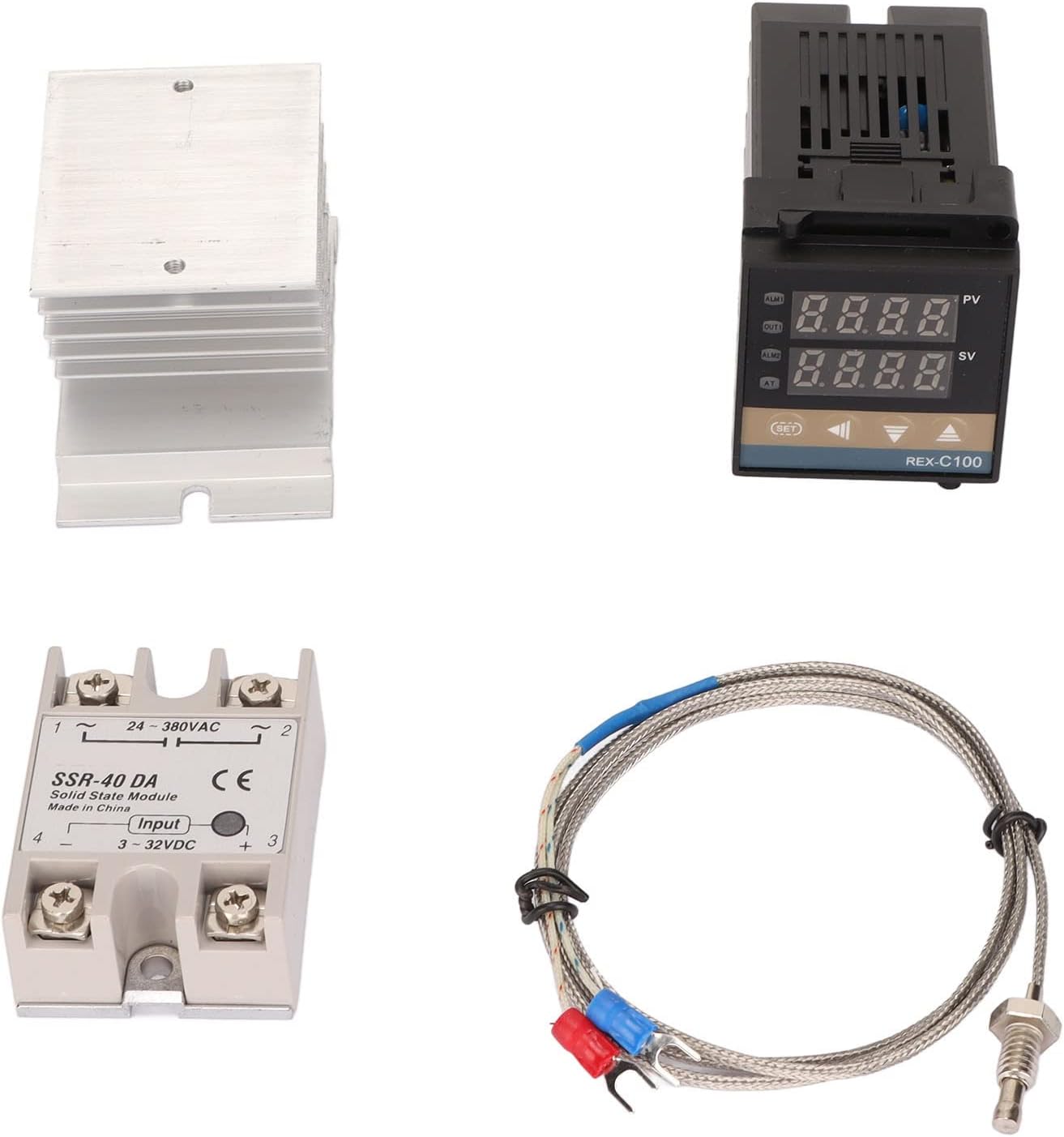

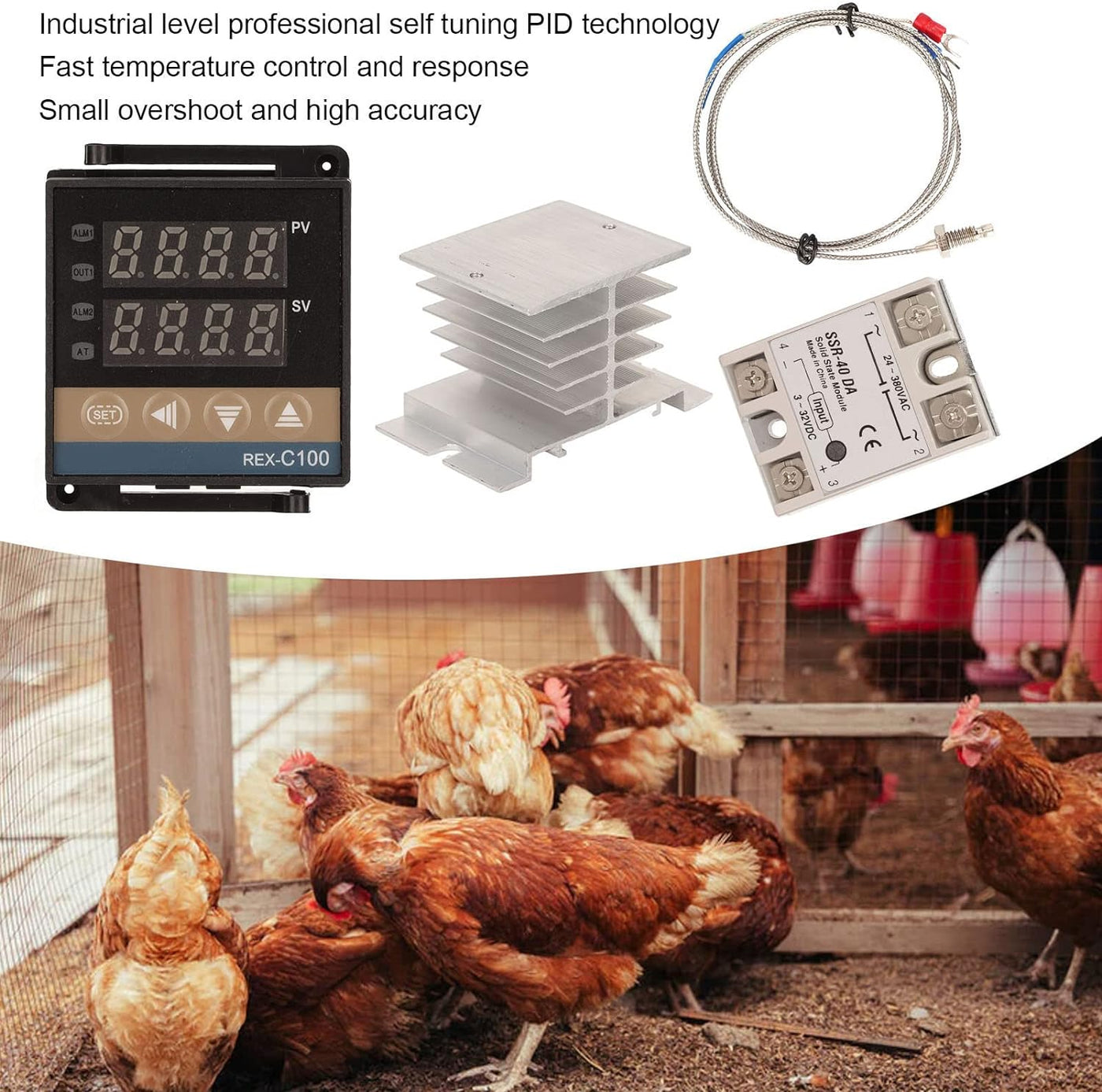

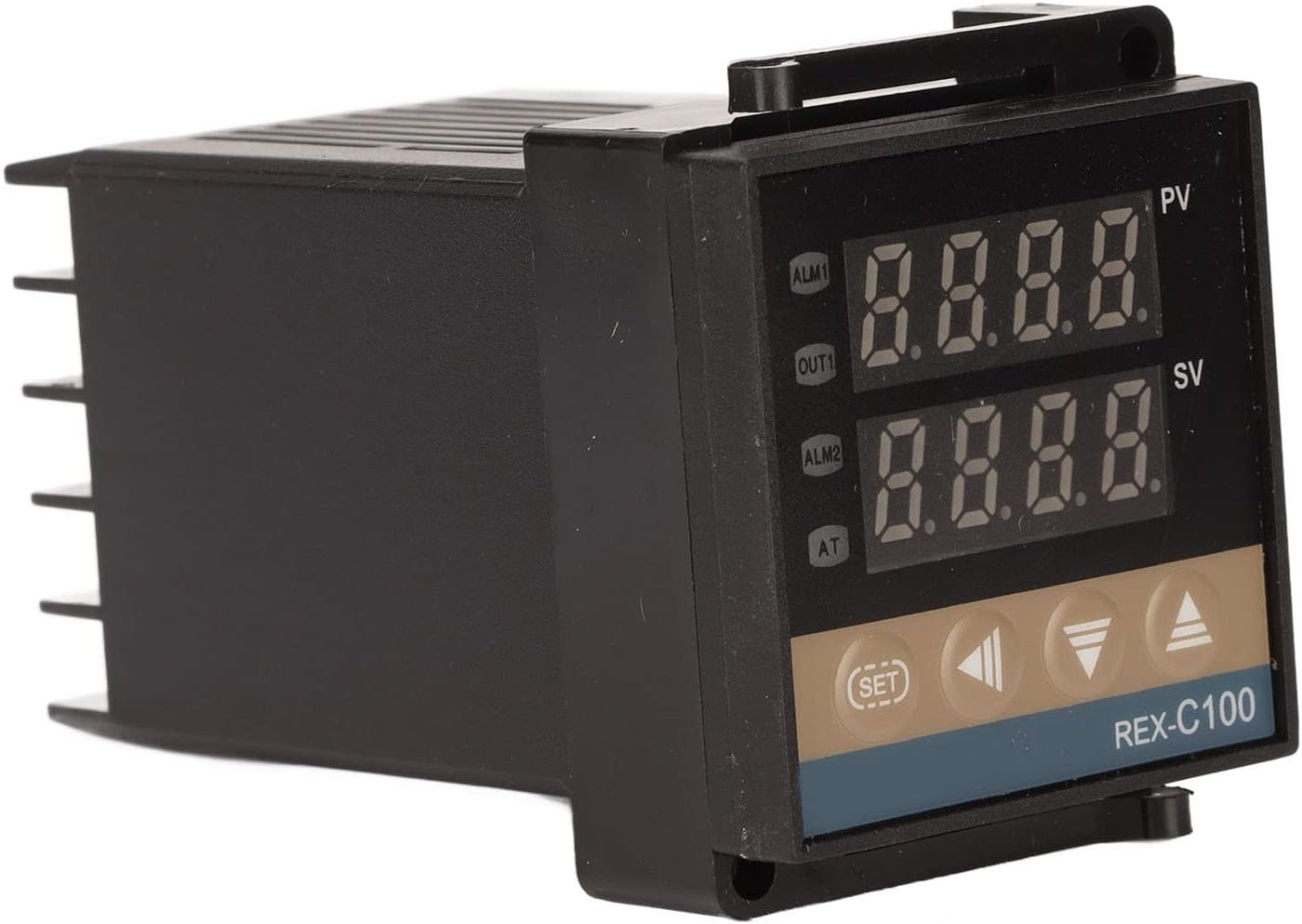

{"id":7565162676384,"title":"Digital PID Temperature Controller REX-C100 REX C100 Thermostat + SSR Relay+ K Thermocouple Thread Probe+Heat Sink","handle":"digital-pid-temperature-controller-rex-c100-rex-c100-thermostat-ssr-relay-k-thermocouple-thread-probe-heat-sink","description":"\u003ch3\u003eDigital PID Temperature Controller REX-C100 REX C100 Thermostat + SSR Relay+ K Thermocouple Thread Probe+Heat Sink\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eMeasuring accuracy: +\/-0.5%FS Cold-end compensation tolerance: +\/-2\nCelsius?can be modified by software in 0~50 Celsius? Resolution: 14 bit\nSampling cycle: 0.5 Sec Power : AC 110-240V 50\/60HZ Process value (PV),\nSetting value (SV) PIN control (including ON\/OFF, step-type PID and continuous\nPID) Self-tuning control Relay output: contact capacity 250V AC 3A (resistive\nload) Proportional band (P): 0~full range (ON\/OFF control when set to 0)\nDetective temperature range: 0 to 400 Celsius Insulation resistance: more than\nthe 50M ohm(500V DC) Insulation resistance : 1500V AC\/min Insulation\nresistance : Power Consumption Less than 10 VA Service environment: 0~50\nCelsius environment with no corrosive gas 30~85% RH Aluminum Alloy Heat Sink\nSpecification: Materail: Aluminium alloy. Size:Roof:50mmX60mm.Foot:80mmX50mm.\nHeight:43mm. Compatible with:Designed specially for single phase solid state\nrelay. Color :Silver Max.40A SSR Output Current:40A Input Voltage:DC 3-32V\nOutput Voltage:24-380V AC Output Voltage Range:Standard Type Package\nIncluded:?as picture shows? 1 x PID Temperature Controller 1 x K Type Probe\nSensor 1 x Max.40A SSR1 X Heat Sink\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003ePackage Contents: 1 x controller;1 x ssr relay; 1 x heater sink;1 x thermocouple\u003c\/li\u003e\n \u003cli\u003eMain control temperature setting, position and hysteresis setting, warning setting;\u003c\/li\u003e\n \u003cli\u003eWarning type conversion, alarm range full range free setting;\u003c\/li\u003e\n \u003cli\u003eThe range of measurement digital display: -1999~9999 and -199~9999;\u003c\/li\u003e\n \u003c\/ul\u003e\n","published_at":"2022-10-04T17:11:53+11:00","created_at":"2022-10-04T17:11:58+11:00","vendor":"TEAMWILL","type":"Temperature Controllers","tags":["sold2024","workwarehouse"],"price":18200,"price_min":18200,"price_max":18200,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42631971045536,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B081CPVP3L","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Digital PID Temperature Controller REX-C100 REX C100 Thermostat + SSR Relay+ K Thermocouple Thread Probe+Heat Sink","public_title":null,"options":["Default Title"],"price":18200,"weight":299,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/files\/B081CPVP3L.jpg?v=1775740332","\/\/dingoship.com.au\/cdn\/shop\/files\/61nCuFWE0rL._AC_SL1500.jpg?v=1707125608","\/\/dingoship.com.au\/cdn\/shop\/files\/61Rw9-sb3WL._AC_SL1500.jpg?v=1707125605","\/\/dingoship.com.au\/cdn\/shop\/files\/61SK822DrNL._AC_SL1500.jpg?v=1707125604","\/\/dingoship.com.au\/cdn\/shop\/files\/81z3iFygXEL._AC_SL1500.jpg?v=1707125605"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/files\/B081CPVP3L.jpg?v=1775740332","options":["Title"],"media":[{"alt":null,"id":32305602003104,"position":1,"preview_image":{"aspect_ratio":0.936,"height":1403,"width":1313,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/B081CPVP3L.jpg?v=1775740332"},"aspect_ratio":0.936,"height":1403,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/B081CPVP3L.jpg?v=1775740332","width":1313},{"alt":null,"id":32305601937568,"position":2,"preview_image":{"aspect_ratio":1.408,"height":1017,"width":1432,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61nCuFWE0rL._AC_SL1500.jpg?v=1707125608"},"aspect_ratio":1.408,"height":1017,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61nCuFWE0rL._AC_SL1500.jpg?v=1707125608","width":1432},{"alt":null,"id":32305602068640,"position":3,"preview_image":{"aspect_ratio":1.148,"height":1215,"width":1395,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61Rw9-sb3WL._AC_SL1500.jpg?v=1707125605"},"aspect_ratio":1.148,"height":1215,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61Rw9-sb3WL._AC_SL1500.jpg?v=1707125605","width":1395},{"alt":null,"id":32305602101408,"position":4,"preview_image":{"aspect_ratio":1.255,"height":1139,"width":1430,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61SK822DrNL._AC_SL1500.jpg?v=1707125604"},"aspect_ratio":1.255,"height":1139,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61SK822DrNL._AC_SL1500.jpg?v=1707125604","width":1430},{"alt":null,"id":32305602134176,"position":5,"preview_image":{"aspect_ratio":1.009,"height":1486,"width":1500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/81z3iFygXEL._AC_SL1500.jpg?v=1707125605"},"aspect_ratio":1.009,"height":1486,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/81z3iFygXEL._AC_SL1500.jpg?v=1707125605","width":1500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eDigital PID Temperature Controller REX-C100 REX C100 Thermostat + SSR Relay+ K Thermocouple Thread Probe+Heat Sink\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eMeasuring accuracy: +\/-0.5%FS Cold-end compensation tolerance: +\/-2\nCelsius?can be modified by software in 0~50 Celsius? Resolution: 14 bit\nSampling cycle: 0.5 Sec Power : AC 110-240V 50\/60HZ Process value (PV),\nSetting value (SV) PIN control (including ON\/OFF, step-type PID and continuous\nPID) Self-tuning control Relay output: contact capacity 250V AC 3A (resistive\nload) Proportional band (P): 0~full range (ON\/OFF control when set to 0)\nDetective temperature range: 0 to 400 Celsius Insulation resistance: more than\nthe 50M ohm(500V DC) Insulation resistance : 1500V AC\/min Insulation\nresistance : Power Consumption Less than 10 VA Service environment: 0~50\nCelsius environment with no corrosive gas 30~85% RH Aluminum Alloy Heat Sink\nSpecification: Materail: Aluminium alloy. Size:Roof:50mmX60mm.Foot:80mmX50mm.\nHeight:43mm. Compatible with:Designed specially for single phase solid state\nrelay. Color :Silver Max.40A SSR Output Current:40A Input Voltage:DC 3-32V\nOutput Voltage:24-380V AC Output Voltage Range:Standard Type Package\nIncluded:?as picture shows? 1 x PID Temperature Controller 1 x K Type Probe\nSensor 1 x Max.40A SSR1 X Heat Sink\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003ePackage Contents: 1 x controller;1 x ssr relay; 1 x heater sink;1 x thermocouple\u003c\/li\u003e\n \u003cli\u003eMain control temperature setting, position and hysteresis setting, warning setting;\u003c\/li\u003e\n \u003cli\u003eWarning type conversion, alarm range full range free setting;\u003c\/li\u003e\n \u003cli\u003eThe range of measurement digital display: -1999~9999 and -199~9999;\u003c\/li\u003e\n \u003c\/ul\u003e\n"}
