Digital Temperature Controller Kit REX-C100 LED PID Temperature Controller Thermostat with K-Type Thermocouple Sensor Input Relay SSR Output (0-400℃) 0-400℃

In Stock. Leaves warehouse within 2 - 3 business days

203.00 AUD
Maximum quantity available reached.
Enter 5DINGO at Checkout for 5% OFF & Free Shipping in Australia
More detailed product descriptions
Free Shipping Australia Wide
100% Safe & Secure Checkout
100 Days Return Policy *
1 Year Warranty *

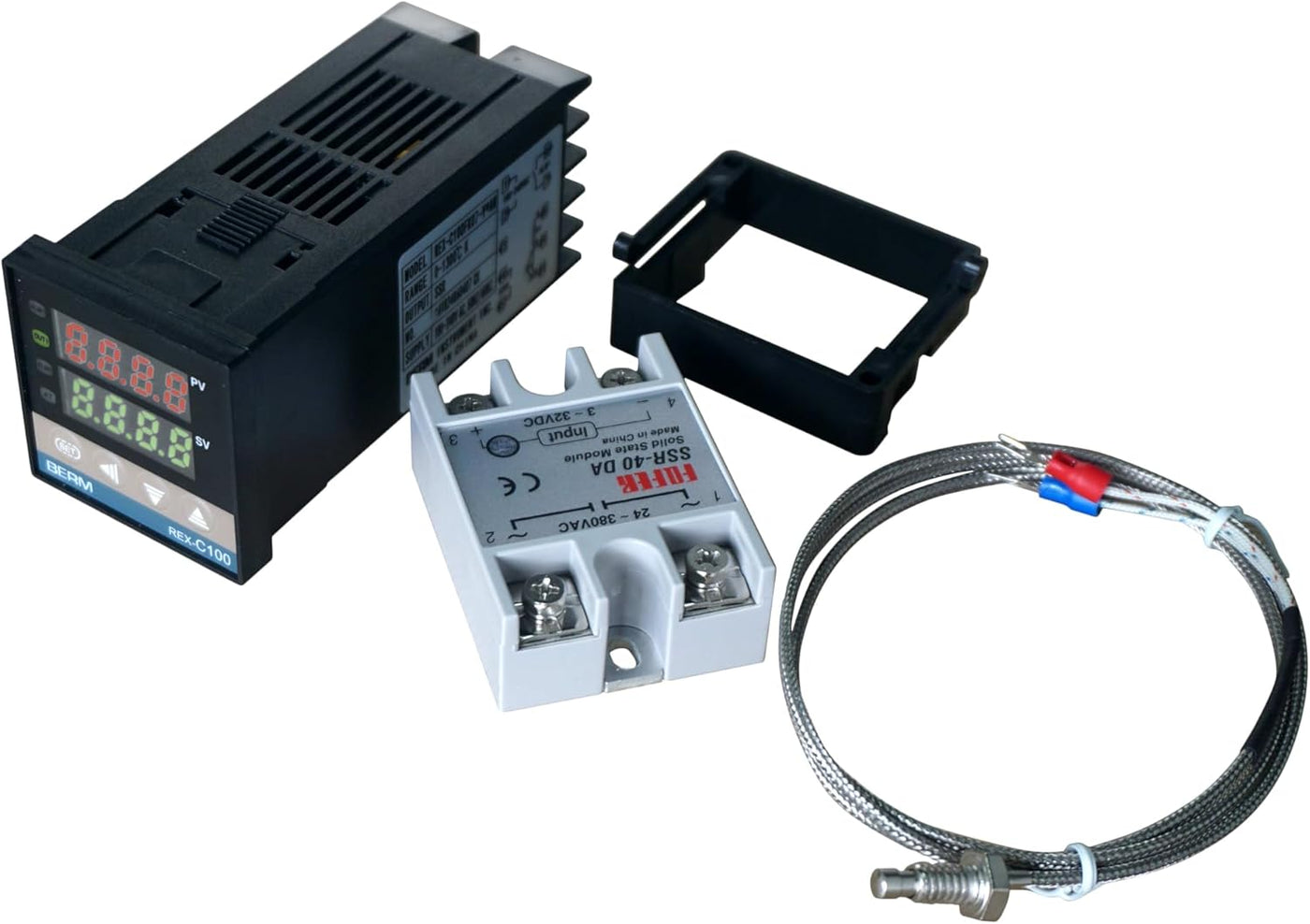

Digital Temperature Controller Kit REX-C100 LED PID Temperature Controller Thermostat with K-Type Thermocouple Sensor Input Relay SSR Output (0-400℃)

Description: Model: REX-C100 Measurement Accuracy: ± 0.5% FS End-to-end compensation tolerance: 0 ~ 50 ℃ can be changed by software to change ± 2 Resolution: 14 bits Sampling cycle: 0.5 seconds Power supply: AC 110-240V 50/60Hz process value (PV), set value (SV) output, alarm and self-tuning can be displayed: by LED PIN control (including ON/OFF, step PID and continuous PID) Delayed output: contact capacity 250V AC 3A (resistive load) Alarm output: none proportional band (P): 0 ~ full range (ON/OFF controller set to 0) Temperature measurement range: 0-400℃ Insulation resistance: > 50M Ohm (500V DC) Insulation resistance: 1500V AC/min Insulation resistance: Power consumption <10VA Ambient temperature: 0 ~ 50 Non-corrosive gas environment: 30 - 85% relative humidity Temperature input type: k type thermocouple K thermocouple probe cable length: 1 m diameter of the Sensors: 4.5 mm Internal insulation: Fiberglass External shielding: Insulation shielding Maximum 40A SSR (solid state relay) Output voltage range: Standard Output current: 40A Input voltage: DC 3-32V Output voltage: 24-380 V AC Delivery: 1 x REX-C100 PID temperature controller 1 x K Thermocouple / Temperature Sensor 1 x Max40A SSR

Product Features

  • Design Conforms to industrial-class professional PID technology, compared to traditional PID control, It has fast temperature control, fast response, low overshoot and high precision, and enables accurate measurement.
  • Material It uses stainless steel material shell and resin sealing treatment, waterproof and does not rust, which has long service life offers reliable quality and enables accurate measurement.
  • FunctionalityThis multi-function controller has a special microprocessor switching power supply and SMT. This PID temperature controller set is a useful temperature controller for intelligent temperature control, which can bring good results to the operator through easy operation.
  • UsageThis temperature controller set is extremely practical and can be widely used for electric power, chemical industry, injection molding, food, incubator , which can bring good results to the operator through simple operation.
