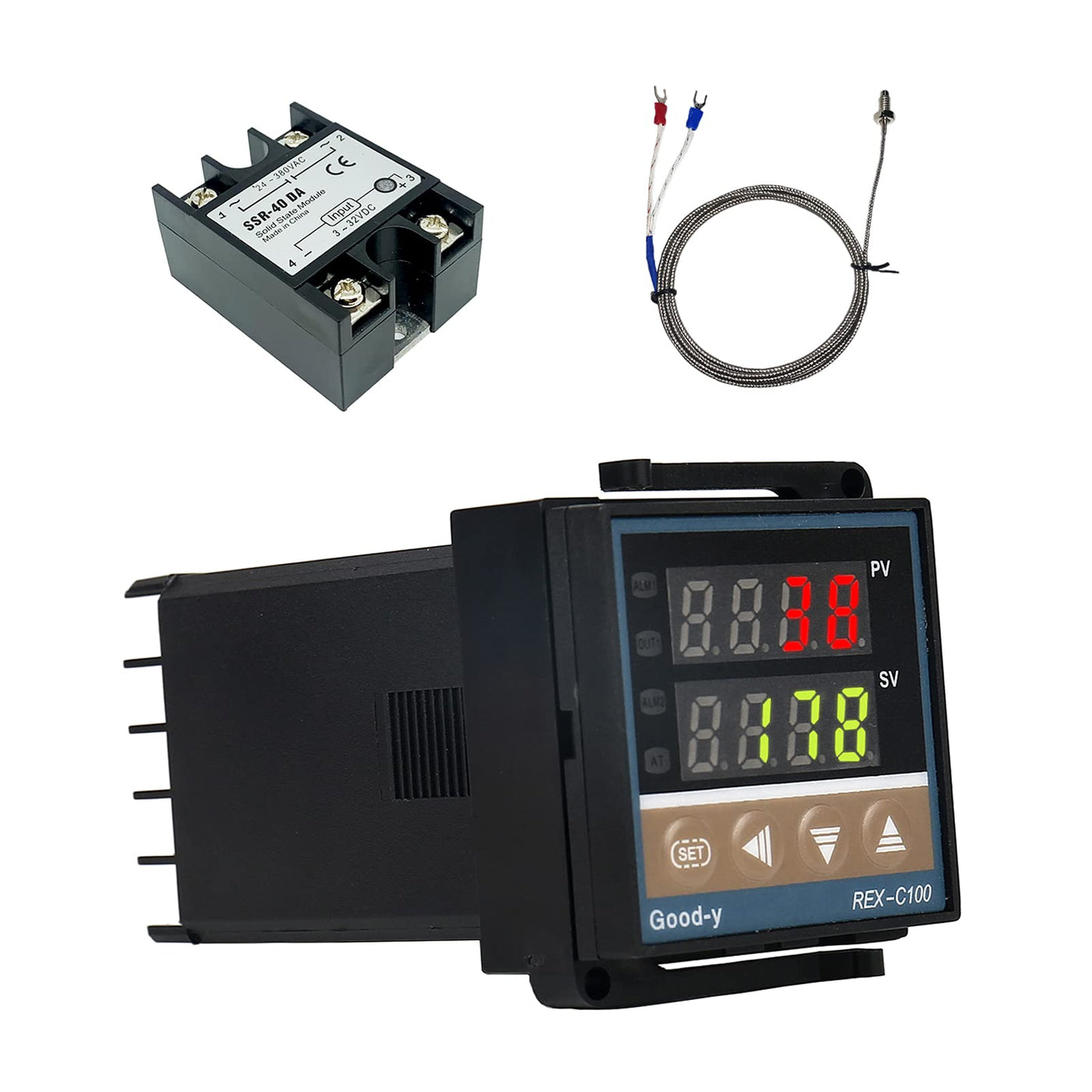

{"id":12648734687392,"title":"Digital Temperature Controller REX-C100, 0℃~1300℃ Alarm PID Temperature Controller Kits Digital Intelligent Thermostat Relay Output with K-Type A","handle":"digital-temperature-controller-rex-c100-0-1300-alarm-pid-temperature-controller-kits-digital-intelligent-thermostat-relay-output-with-k-type-a","description":"\u003ch3\u003eDigital Temperature Controller REX-C100, 0℃~1300℃ Alarm PID Temperature Controller Kits Digital Intelligent Thermostat Relay Output with K-Type\u003c\/h3\u003e \u003cp id=\"b\"\u003eSpecification: Condition: Brand new and high quality Measurement Accuracy: ± 0.5%FS Cold end compensation tolerance: ±2℃ (can be changed to 0~50℃ by software) Resolution: 14 bits Sample cycle: 0.5s Power supply: AC100-240V Process value (PV), setting value (SV) Output and self-tuning can be displayed by: LED PIN control (including ON\/OFF, step PID and continuous PID) Self-tuning Relay output: Contact capacity 250V AC 3A (resistive load) Output contact capacity: 250V AC 3A (resistive load) Setting value (SV ): same as measuring range (PV) Proportional range (P): 0 ~ full range (ON\/OFF control when set to 0) Integral time (I): 0 ~ 3600 sec (No integral action at 0) ✔Derivative time (D) : 0 ~ 3600 seconds (no dissipation at 0) ✔Heat reset proportional cycle: 1 ~ 100 s✔Detector temperature range: 0 to 1000 ℃ Insulation resistance: \u0026gt; 500M Ohm (500V DC) Insulation resistance: 1500V AC\/min Power consumption: 10VA Service environment: 0~50℃ Non-corrosive gas environment 30~85% RH K thermocouple probe cable Length: 1M Sensor diameter: 4.5mm Temperature rang: 0- 400℃ Internal Insulation: Fiberglass External Shielding: Insulated Shield Output Voltage Range: Standard Type Output Current: 40A SSR Input Voltage: DC 3-32V Output Voltage: 24-380VAC Package Included: 1 x PID Temperature Controller1 x K Type Probe Sensor 1 x SSR\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003ePID Temperature ControllerAdopts industrial professional self-optimization PID technology, Built-in high-precision chip for high sensitivity and accurate temperature control. Alarming: High or Low value adjustment and error of the sensor.\u003c\/li\u003e \u003cli\u003eProduct informationVoltage: 100240V AC, support multi-sensor input (K, S, Wre, T, E, J, B, N, CU50 , PT100), Dimensions of operating temperature range: 0 C ~ 1000 C, Accuracy: 1 C.\u003c\/li\u003e \u003cli\u003eThermostat DigitalSSR output, need to work with solid state relay, high-power calibration of temperature protection, delay for compressor.\u0026lt; \/li\u0026gt; \u003c\/li\u003e\n\u003cli\u003eWidely ApplicationWidely used on electric power, chemical industry, injection molding, food, incubator, oven and many other appliances. The overall picture is simple and easy to understand, the internal work is good and reliable.\u003c\/li\u003e \u003cli\u003eGUARANTEECustomer satisfaction is our top priority! If you have any problems, please feel free to contact us, our customer service will solve any problem for you.\u003c\/li\u003e \u003c\/ul\u003e","published_at":"2024-03-08T05:33:22+11:00","created_at":"2024-03-08T05:33:33+11:00","vendor":"CABINA HOME","type":"Temperature controller","tags":["industryDE"],"price":23600,"price_min":23600,"price_max":23600,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":48984695144608,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B081F7ZL2H","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Digital Temperature Controller REX-C100, 0℃~1300℃ Alarm PID Temperature Controller Kits Digital Intelligent Thermostat Relay Output with K-Type A","public_title":null,"options":["Default Title"],"price":23600,"weight":245,"compare_at_price":null,"inventory_management":"shopify","barcode":"717049968290","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/dingoship.com.au\/cdn\/shop\/files\/de-B081F7ZL2H.jpg?v=1709857333","\/\/dingoship.com.au\/cdn\/shop\/products\/81tb8o4LlBL.jpg?v=1709836413","\/\/dingoship.com.au\/cdn\/shop\/products\/614--f7gA1S.jpg?v=1709836413","\/\/dingoship.com.au\/cdn\/shop\/products\/71eOi21jE5L.jpg?v=1709836413","\/\/dingoship.com.au\/cdn\/shop\/products\/716VW9liAoL.jpg?v=1709836413","\/\/dingoship.com.au\/cdn\/shop\/products\/61EyFpOkclL.jpg?v=1709836413","\/\/dingoship.com.au\/cdn\/shop\/products\/71hWKI3XlEL.jpg?v=1709836413","\/\/dingoship.com.au\/cdn\/shop\/products\/71maAL9KjWL.jpg?v=1709836413"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B081F7ZL2H.jpg?v=1709857333","options":["Title"],"media":[{"alt":null,"id":32698723172512,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B081F7ZL2H.jpg?v=1709857333"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B081F7ZL2H.jpg?v=1709857333","width":1600},{"alt":null,"id":32694954623136,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/81tb8o4LlBL.jpg?v=1709836413"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/81tb8o4LlBL.jpg?v=1709836413","width":1600},{"alt":null,"id":32694954655904,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/614--f7gA1S.jpg?v=1709836413"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/614--f7gA1S.jpg?v=1709836413","width":1600},{"alt":null,"id":32694954688672,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71eOi21jE5L.jpg?v=1709836413"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71eOi21jE5L.jpg?v=1709836413","width":1600},{"alt":null,"id":32694954721440,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/716VW9liAoL.jpg?v=1709836413"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/716VW9liAoL.jpg?v=1709836413","width":1600},{"alt":null,"id":32694954754208,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61EyFpOkclL.jpg?v=1709836413"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61EyFpOkclL.jpg?v=1709836413","width":1600},{"alt":null,"id":32694954786976,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71hWKI3XlEL.jpg?v=1709836413"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71hWKI3XlEL.jpg?v=1709836413","width":1600},{"alt":null,"id":32694954819744,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71maAL9KjWL.jpg?v=1709836413"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71maAL9KjWL.jpg?v=1709836413","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eDigital Temperature Controller REX-C100, 0℃~1300℃ Alarm PID Temperature Controller Kits Digital Intelligent Thermostat Relay Output with K-Type\u003c\/h3\u003e \u003cp id=\"b\"\u003eSpecification: Condition: Brand new and high quality Measurement Accuracy: ± 0.5%FS Cold end compensation tolerance: ±2℃ (can be changed to 0~50℃ by software) Resolution: 14 bits Sample cycle: 0.5s Power supply: AC100-240V Process value (PV), setting value (SV) Output and self-tuning can be displayed by: LED PIN control (including ON\/OFF, step PID and continuous PID) Self-tuning Relay output: Contact capacity 250V AC 3A (resistive load) Output contact capacity: 250V AC 3A (resistive load) Setting value (SV ): same as measuring range (PV) Proportional range (P): 0 ~ full range (ON\/OFF control when set to 0) Integral time (I): 0 ~ 3600 sec (No integral action at 0) ✔Derivative time (D) : 0 ~ 3600 seconds (no dissipation at 0) ✔Heat reset proportional cycle: 1 ~ 100 s✔Detector temperature range: 0 to 1000 ℃ Insulation resistance: \u0026gt; 500M Ohm (500V DC) Insulation resistance: 1500V AC\/min Power consumption: 10VA Service environment: 0~50℃ Non-corrosive gas environment 30~85% RH K thermocouple probe cable Length: 1M Sensor diameter: 4.5mm Temperature rang: 0- 400℃ Internal Insulation: Fiberglass External Shielding: Insulated Shield Output Voltage Range: Standard Type Output Current: 40A SSR Input Voltage: DC 3-32V Output Voltage: 24-380VAC Package Included: 1 x PID Temperature Controller1 x K Type Probe Sensor 1 x SSR\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003ePID Temperature ControllerAdopts industrial professional self-optimization PID technology, Built-in high-precision chip for high sensitivity and accurate temperature control. Alarming: High or Low value adjustment and error of the sensor.\u003c\/li\u003e \u003cli\u003eProduct informationVoltage: 100240V AC, support multi-sensor input (K, S, Wre, T, E, J, B, N, CU50 , PT100), Dimensions of operating temperature range: 0 C ~ 1000 C, Accuracy: 1 C.\u003c\/li\u003e \u003cli\u003eThermostat DigitalSSR output, need to work with solid state relay, high-power calibration of temperature protection, delay for compressor.\u0026lt; \/li\u0026gt; \u003c\/li\u003e\n\u003cli\u003eWidely ApplicationWidely used on electric power, chemical industry, injection molding, food, incubator, oven and many other appliances. The overall picture is simple and easy to understand, the internal work is good and reliable.\u003c\/li\u003e \u003cli\u003eGUARANTEECustomer satisfaction is our top priority! If you have any problems, please feel free to contact us, our customer service will solve any problem for you.\u003c\/li\u003e \u003c\/ul\u003e"}
