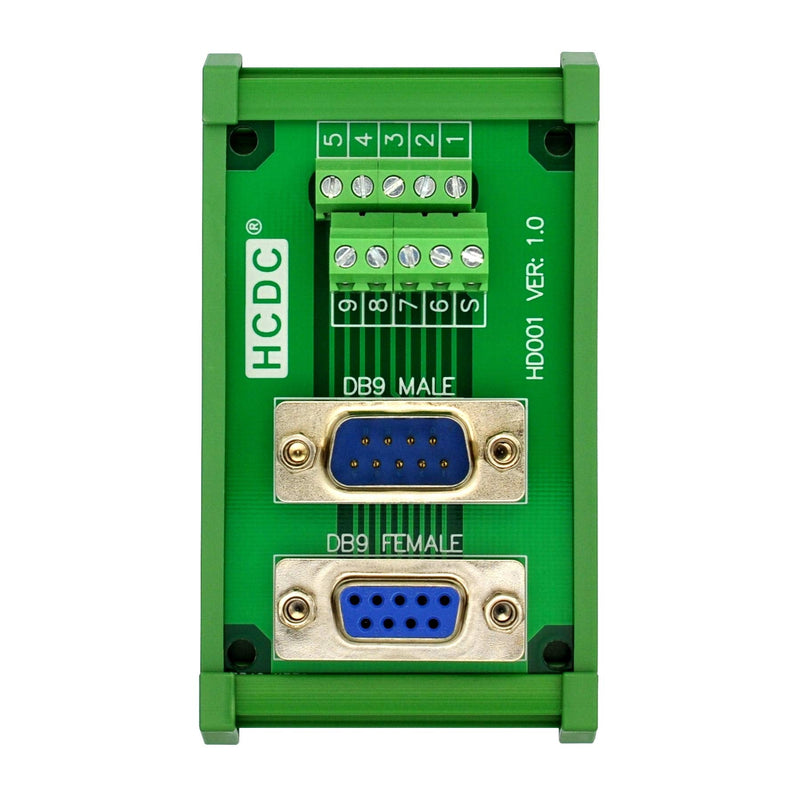

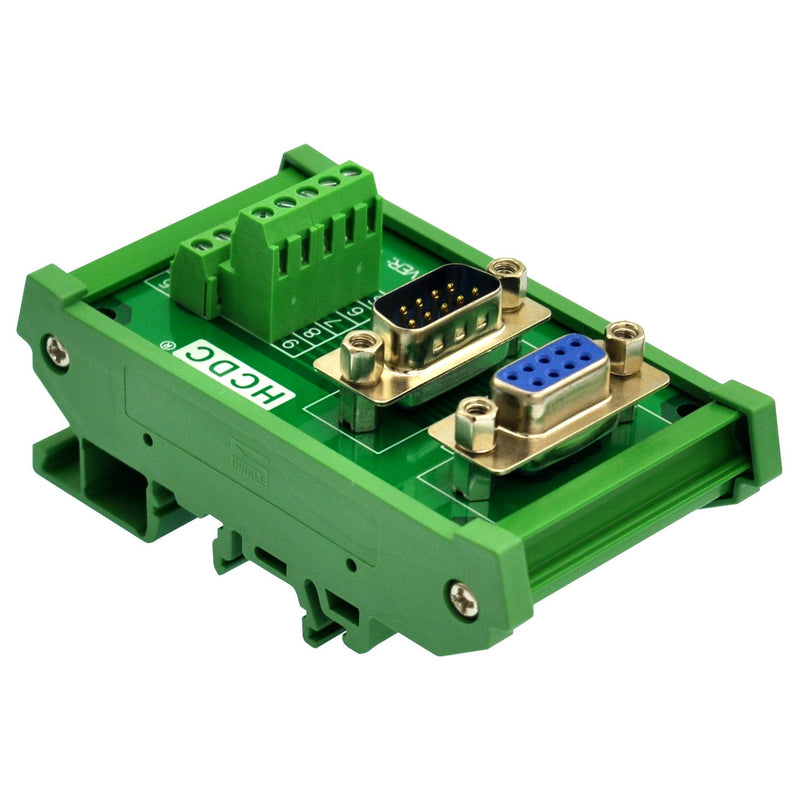

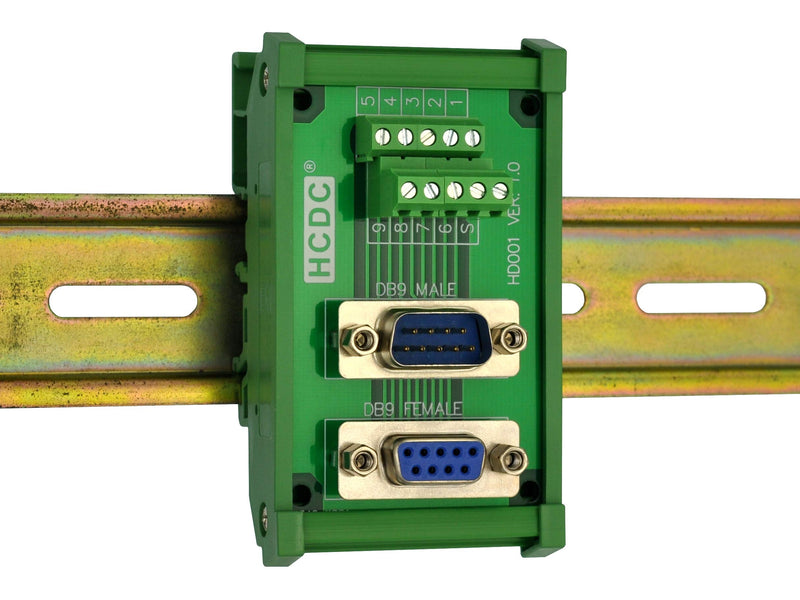

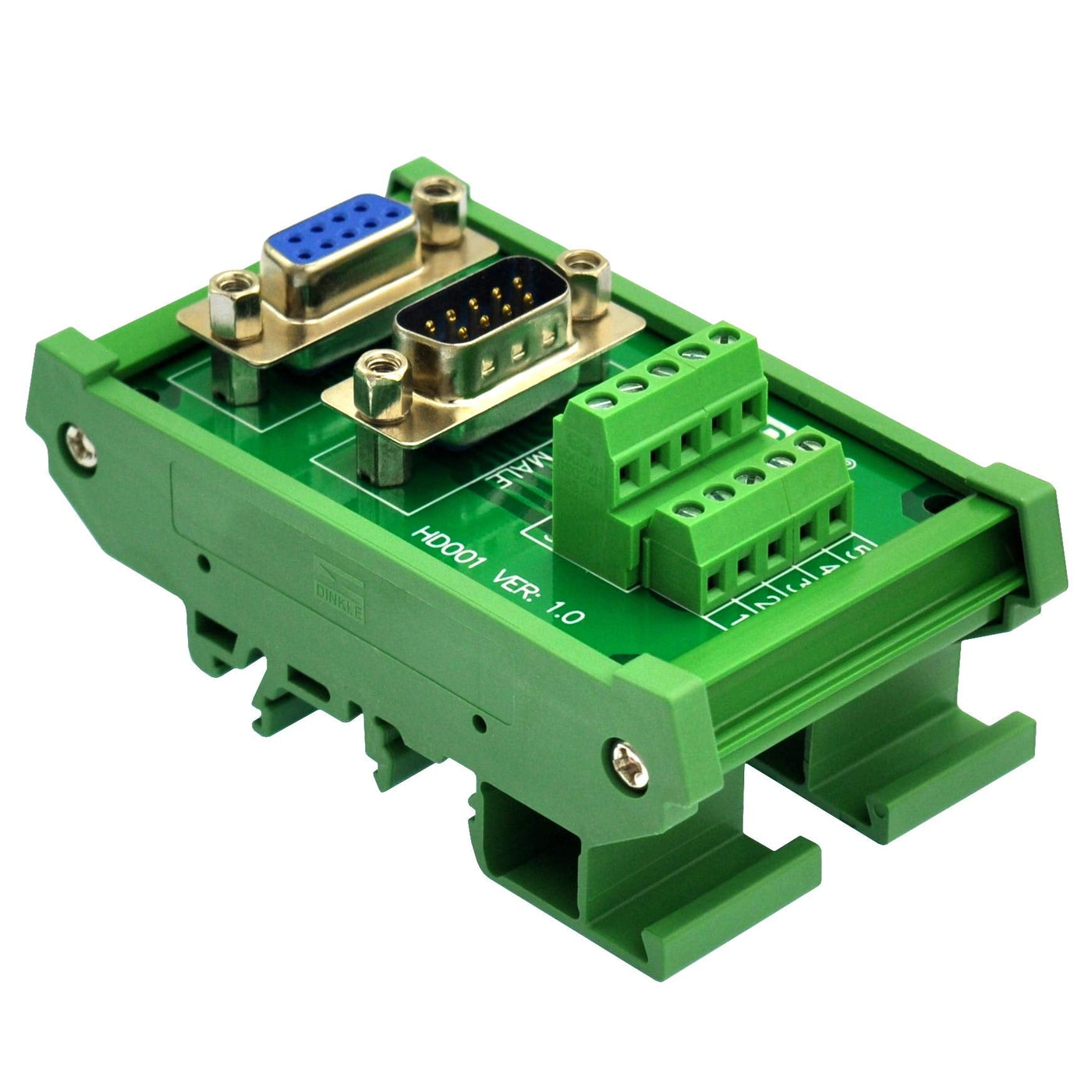

{"id":7411715932320,"title":"DIN Rail Mount D-SUB Male-Female Interface Module Terminal Block Breakout Board (DB9) DB9","handle":"din-rail-mount-d-sub-male-female-interface-module-terminal-block-breakout-board-db9-db9","description":"\u003ch3\u003eDIN Rail Mount D-SUB Male-Female Interface Module Terminal Block Breakout Board (DB9)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e1, Standard D-SUB Male\/Female header connectors. Male header, female header\nand screw terminal 1:1:1 connects for per line. 2, Rated voltage: 60V. Rated\ncurrent: 1Amp \/ per pin. Operating Temperature: -20C to 50C 3, Terminal block:\nPitch 3.81mm\/0.15\" miniaturization screw terminal block. Wire range -\n26-16AWG. Strip length - 5mm. Screws - M2, steel, Cr3+ Zn plated. Torque -\n0.2Nm (1.7Lb-In.). Pin header and Cage - Brass. 4, FR-4 fiber glass PCB, dual\ncopper layers.5, Taiwan DINKLE fireproof nylon material DIN rail mount carrier\n(not China low quality carrier), can support width 35mm \/ 32mm \/ 15mm rail,\nand the carrier can be taken apart for panel mount use.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eStandard D-SUB Male\/Female header connectors. Male header, female header and screw terminal 1:1:1 connects for per line.\u003c\/li\u003e\n \u003cli\u003eRated voltage: 60V. Rated current: 1Amp \/ per pin. Operating Temperature: -20C to 50C\u003c\/li\u003e\n \u003cli\u003eTerminal block: Pitch 3.81mm\/0.15\" miniaturization screw terminal block. Wire range - 26-16AWG. Strip length - 5mm. Screws - M2,steel,Cr3+ Zn plated. Torque - 0.2Nm (1.7Lb-In.). Pin header and Cage - Brass. FR-4 fiber glass PCB, dual copper layers.\u003c\/li\u003e\n \u003cli\u003eTaiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm \/ 32mm \/ 15mm rail, and the carrier can be taken apart for panel mount use.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-06-12T04:38:06+10:00","created_at":"2022-06-12T04:38:13+10:00","vendor":"HCDC","type":"IO Modules","tags":["dingo"],"price":13200,"price_min":13200,"price_max":13200,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42180530765984,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B08GFN7RVN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"DIN Rail Mount D-SUB Male-Female Interface Module Terminal Block Breakout Board (DB9) DB9","public_title":null,"options":["Default Title"],"price":13200,"weight":98,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/dingoship.com.au\/cdn\/shop\/products\/B08GFN7RVN.jpg?v=1654993722","\/\/dingoship.com.au\/cdn\/shop\/products\/71OSESGCJBL.jpg?v=1654972694","\/\/dingoship.com.au\/cdn\/shop\/products\/71upWzoWYuL.jpg?v=1654972694","\/\/dingoship.com.au\/cdn\/shop\/products\/815gXgp-jcL.jpg?v=1654972694","\/\/dingoship.com.au\/cdn\/shop\/products\/81OtNf8ASSL.jpg?v=1654972694","\/\/dingoship.com.au\/cdn\/shop\/products\/71e8LTq1ziL.jpg?v=1654972694"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/products\/B08GFN7RVN.jpg?v=1654993722","options":["Title"],"media":[{"alt":null,"id":24842033528992,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1872,"width":1872,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B08GFN7RVN.jpg?v=1654993722"},"aspect_ratio":1.0,"height":1872,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B08GFN7RVN.jpg?v=1654993722","width":1872},{"alt":null,"id":24840296104096,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1743,"width":1743,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71OSESGCJBL.jpg?v=1654972694"},"aspect_ratio":1.0,"height":1743,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71OSESGCJBL.jpg?v=1654972694","width":1743},{"alt":null,"id":24840296136864,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1798,"width":1798,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71upWzoWYuL.jpg?v=1654972694"},"aspect_ratio":1.0,"height":1798,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71upWzoWYuL.jpg?v=1654972694","width":1798},{"alt":null,"id":24840296169632,"position":4,"preview_image":{"aspect_ratio":1.333,"height":1823,"width":2430,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/815gXgp-jcL.jpg?v=1654972694"},"aspect_ratio":1.333,"height":1823,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/815gXgp-jcL.jpg?v=1654972694","width":2430},{"alt":null,"id":24840296202400,"position":5,"preview_image":{"aspect_ratio":1.333,"height":1920,"width":2560,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/81OtNf8ASSL.jpg?v=1654972694"},"aspect_ratio":1.333,"height":1920,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/81OtNf8ASSL.jpg?v=1654972694","width":2560},{"alt":null,"id":24840296235168,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1851,"width":1851,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71e8LTq1ziL.jpg?v=1654972694"},"aspect_ratio":1.0,"height":1851,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71e8LTq1ziL.jpg?v=1654972694","width":1851}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eDIN Rail Mount D-SUB Male-Female Interface Module Terminal Block Breakout Board (DB9)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e1, Standard D-SUB Male\/Female header connectors. Male header, female header\nand screw terminal 1:1:1 connects for per line. 2, Rated voltage: 60V. Rated\ncurrent: 1Amp \/ per pin. Operating Temperature: -20C to 50C 3, Terminal block:\nPitch 3.81mm\/0.15\" miniaturization screw terminal block. Wire range -\n26-16AWG. Strip length - 5mm. Screws - M2, steel, Cr3+ Zn plated. Torque -\n0.2Nm (1.7Lb-In.). Pin header and Cage - Brass. 4, FR-4 fiber glass PCB, dual\ncopper layers.5, Taiwan DINKLE fireproof nylon material DIN rail mount carrier\n(not China low quality carrier), can support width 35mm \/ 32mm \/ 15mm rail,\nand the carrier can be taken apart for panel mount use.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eStandard D-SUB Male\/Female header connectors. Male header, female header and screw terminal 1:1:1 connects for per line.\u003c\/li\u003e\n \u003cli\u003eRated voltage: 60V. Rated current: 1Amp \/ per pin. Operating Temperature: -20C to 50C\u003c\/li\u003e\n \u003cli\u003eTerminal block: Pitch 3.81mm\/0.15\" miniaturization screw terminal block. Wire range - 26-16AWG. Strip length - 5mm. Screws - M2,steel,Cr3+ Zn plated. Torque - 0.2Nm (1.7Lb-In.). Pin header and Cage - Brass. FR-4 fiber glass PCB, dual copper layers.\u003c\/li\u003e\n \u003cli\u003eTaiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm \/ 32mm \/ 15mm rail, and the carrier can be taken apart for panel mount use.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
