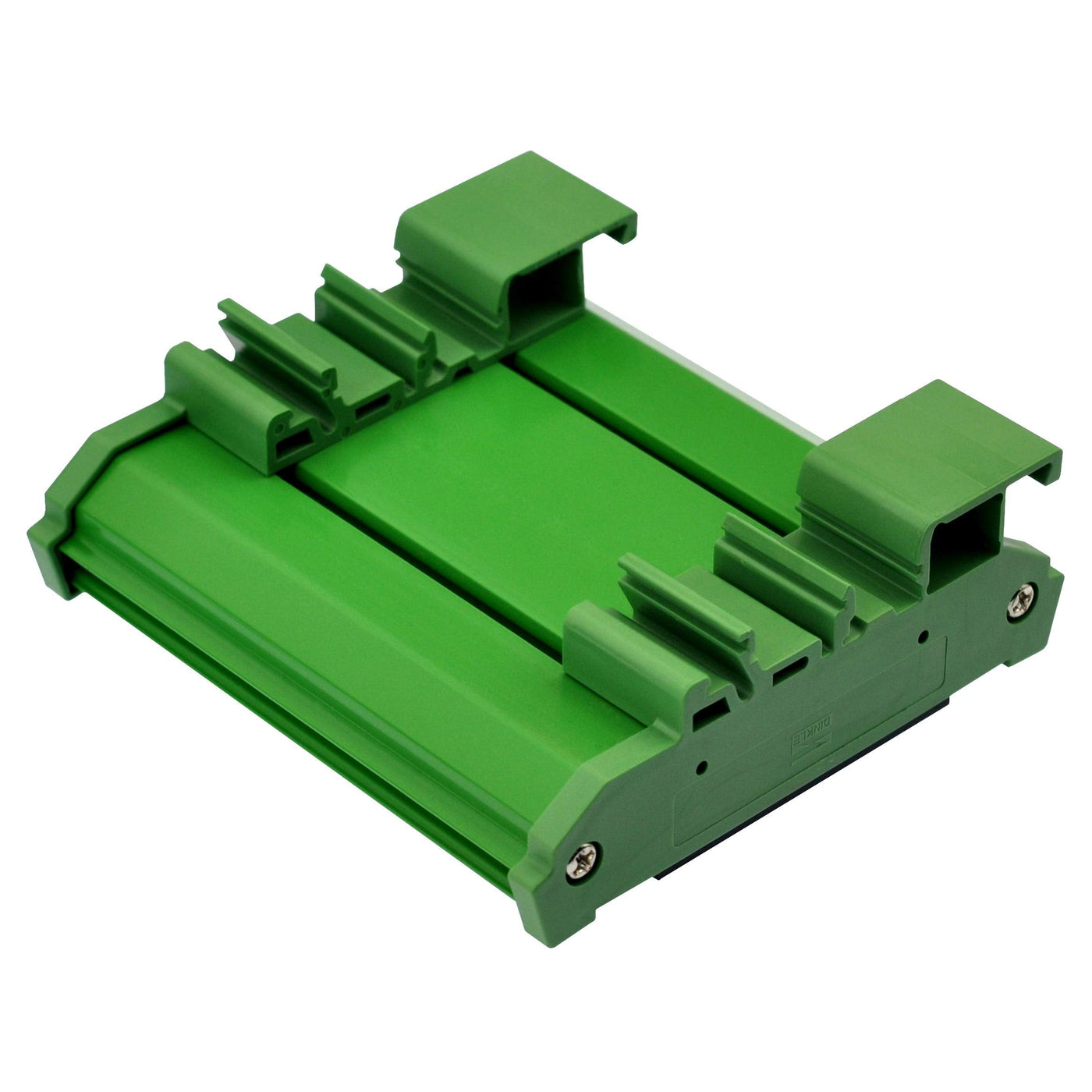

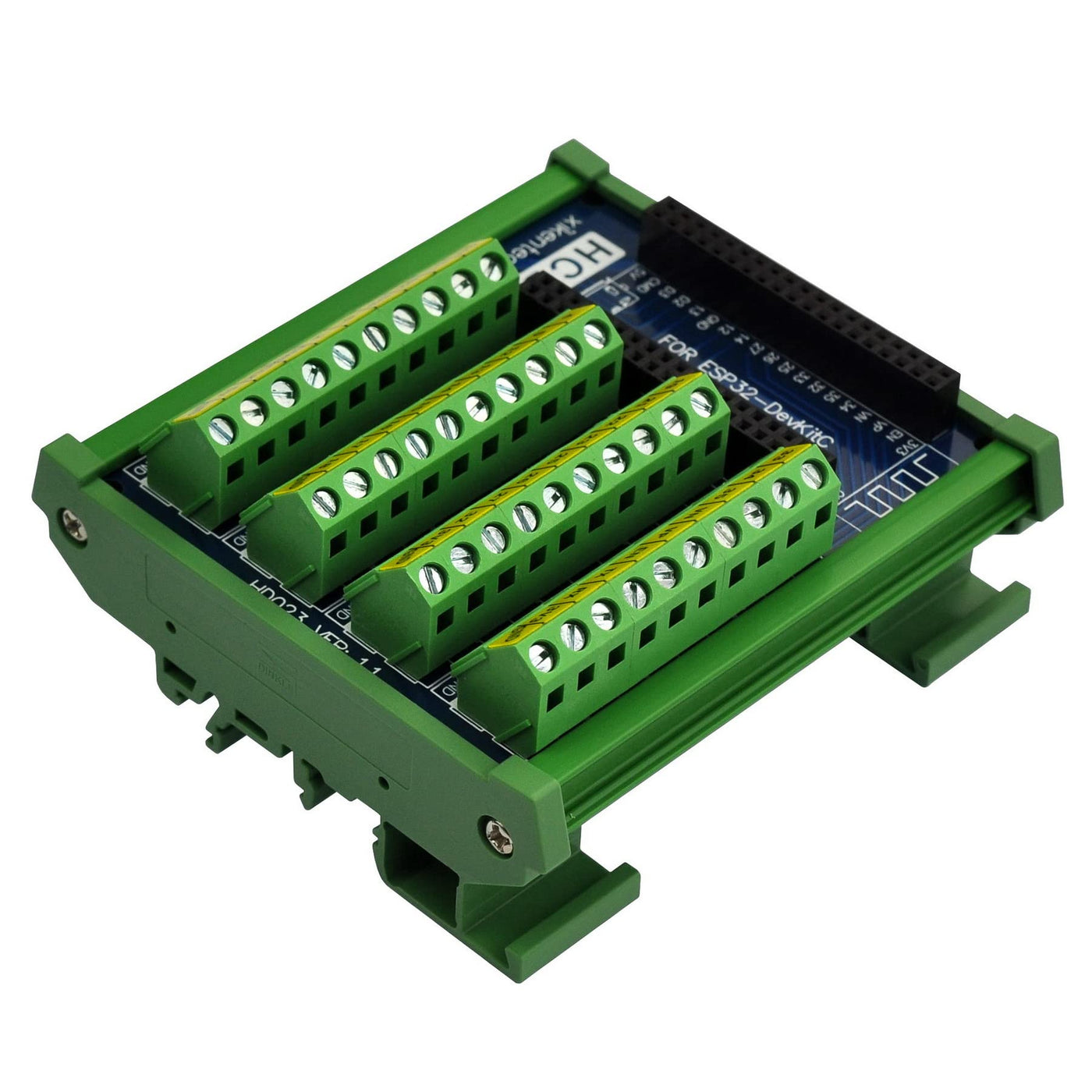

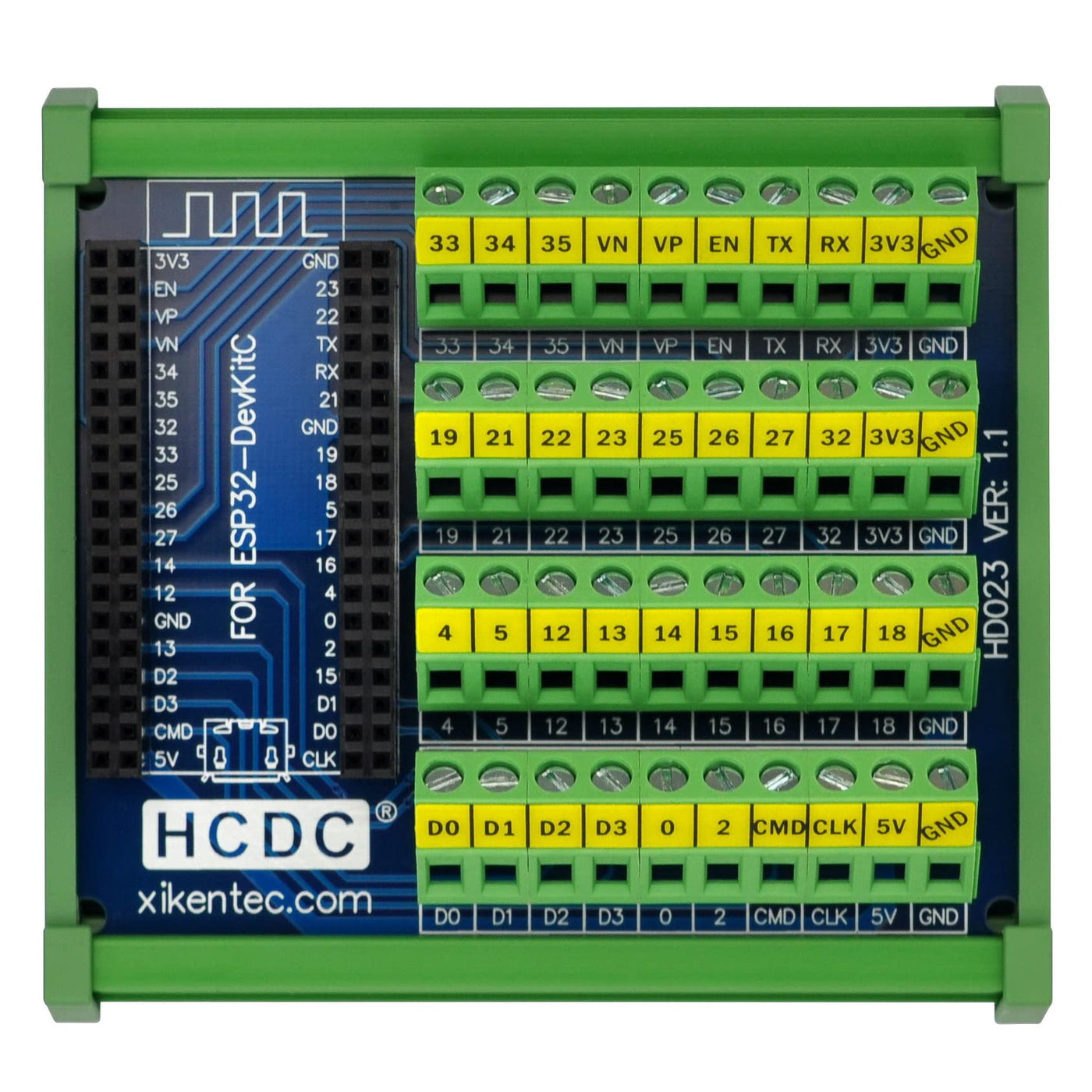

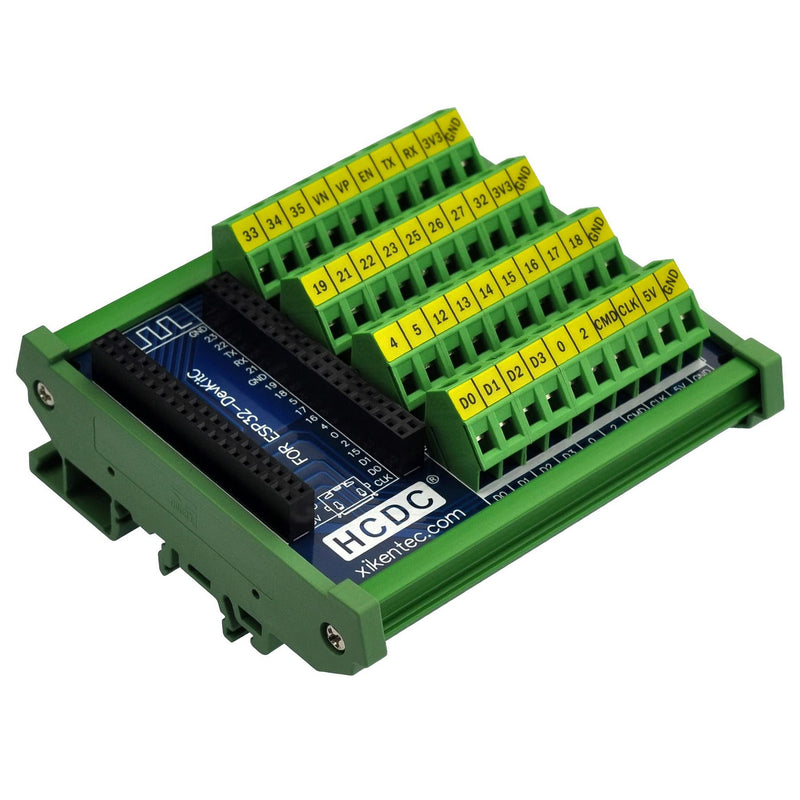

{"id":7409522344096,"title":"DIN Rail Mount Screw Terminal Block Breakout Module Board for ESP32-DevKitC","handle":"din-rail-mount-screw-terminal-block-breakout-module-board-for-esp32-devkitc","description":"\u003ch3\u003eDIN Rail Mount Screw Terminal Block Breakout Module Board for ESP32-DevKitC\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDIN Rail Mount Screw Terminal Block Breakout Board for ESP32-DevKitC. With the\nbreakout board, you can easily extend ESP32-DevKitC projects to industrial\ncontrol applications. High quality Taiwan DINKLE Fireproof nylon material DIN\nrail mount carrier, can support width 35mm \/ 32mm \/ 15mm rail, and the carrier\ncan be taken apart for panel mount use. FR-4 fiber glass PCB, dual copper\nlayers. PCB mount Terminal Block: pitch 5.0mm\/0.197\", strip length 7mm, screws\n- M2.5, steel, Cr3+ Zn plated. pin header and cage - brass. Wire range 28AWG ~\n12AWG \/ 2.5mm square. Note: the item not include ESP32-DevKitC module. The\nbreakour board supports ESPRESSIF official ESP32-DevKitC, but we do not\nguarantee whether to support third-party modules, you can check the ESPRESSIF\nofficial website for more information before buying.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eDIN Rail Mount Screw Terminal Block Breakout Board for ESP32-DevKitC. With the breakout board, you can easily extend ESP32-DevKitC projects to industrial control applications.\u003c\/li\u003e\n \u003cli\u003eHigh quality Taiwan DINKLE Fireproof nylon material DIN rail mount carrier, can support width 35mm \/ 32mm \/ 15mm rail, and the carrier can be taken apart for panel mount use. FR-4 fiber glass PCB, dual copper layers.\u003c\/li\u003e\n \u003cli\u003ePCB mount Terminal Block: pitch 5.0mm\/0.197\", strip length 7mm, screws - M2.5, steel, Cr3+ Zn plated. pin header and cage - brass. Wire range 28AWG ~ 12AWG \/ 2.5mm square.\u003c\/li\u003e\n \u003cli\u003eNote: the item not include ESP32-DevKitC module. The breakour board supports ESPRESSIF official ESP32-DevKitC, but we do not guarantee whether to support third-party modules, you can check the ESPRESSIF official website for more information before buying.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-06-09T20:04:39+10:00","created_at":"2022-06-09T20:04:49+10:00","vendor":"HCDC","type":"IO Modules","tags":["dingo"],"price":19200,"price_min":19200,"price_max":19200,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42172999729312,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B08LGQ2H72","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"DIN Rail Mount Screw Terminal Block Breakout Module Board for ESP32-DevKitC","public_title":null,"options":["Default Title"],"price":19200,"weight":182,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/dingoship.com.au\/cdn\/shop\/products\/B08LGQ2H72.jpg?v=1654820411","\/\/dingoship.com.au\/cdn\/shop\/products\/71PXro8gxgL.jpg?v=1654769090","\/\/dingoship.com.au\/cdn\/shop\/products\/71MCF-jnz2L.jpg?v=1654769090","\/\/dingoship.com.au\/cdn\/shop\/products\/81LVNkMQhRL.jpg?v=1654769090","\/\/dingoship.com.au\/cdn\/shop\/products\/71BZsRbgk9L.jpg?v=1654769090","\/\/dingoship.com.au\/cdn\/shop\/products\/71A9UZ_ww3L.jpg?v=1654769090","\/\/dingoship.com.au\/cdn\/shop\/products\/71kelYqDBzL.jpg?v=1654769090","\/\/dingoship.com.au\/cdn\/shop\/products\/71ldJtEXb8L.jpg?v=1654769090"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/products\/B08LGQ2H72.jpg?v=1654820411","options":["Title"],"media":[{"alt":null,"id":24832160891040,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1800,"width":1800,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B08LGQ2H72.jpg?v=1654820411"},"aspect_ratio":1.0,"height":1800,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B08LGQ2H72.jpg?v=1654820411","width":1800},{"alt":null,"id":24827614167200,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1800,"width":1800,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71PXro8gxgL.jpg?v=1654769090"},"aspect_ratio":1.0,"height":1800,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71PXro8gxgL.jpg?v=1654769090","width":1800},{"alt":null,"id":24827614199968,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1688,"width":1688,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71MCF-jnz2L.jpg?v=1654769090"},"aspect_ratio":1.0,"height":1688,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71MCF-jnz2L.jpg?v=1654769090","width":1688},{"alt":null,"id":24827614232736,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1715,"width":1715,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/81LVNkMQhRL.jpg?v=1654769090"},"aspect_ratio":1.0,"height":1715,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/81LVNkMQhRL.jpg?v=1654769090","width":1715},{"alt":null,"id":24827614265504,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1800,"width":1800,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71BZsRbgk9L.jpg?v=1654769090"},"aspect_ratio":1.0,"height":1800,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71BZsRbgk9L.jpg?v=1654769090","width":1800},{"alt":null,"id":24827614298272,"position":6,"preview_image":{"aspect_ratio":1.333,"height":1350,"width":1800,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71A9UZ_ww3L.jpg?v=1654769090"},"aspect_ratio":1.333,"height":1350,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71A9UZ_ww3L.jpg?v=1654769090","width":1800},{"alt":null,"id":24827614331040,"position":7,"preview_image":{"aspect_ratio":1.333,"height":1350,"width":1800,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71kelYqDBzL.jpg?v=1654769090"},"aspect_ratio":1.333,"height":1350,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71kelYqDBzL.jpg?v=1654769090","width":1800},{"alt":null,"id":24827614363808,"position":8,"preview_image":{"aspect_ratio":1.0,"height":2330,"width":2330,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71ldJtEXb8L.jpg?v=1654769090"},"aspect_ratio":1.0,"height":2330,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71ldJtEXb8L.jpg?v=1654769090","width":2330}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eDIN Rail Mount Screw Terminal Block Breakout Module Board for ESP32-DevKitC\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDIN Rail Mount Screw Terminal Block Breakout Board for ESP32-DevKitC. With the\nbreakout board, you can easily extend ESP32-DevKitC projects to industrial\ncontrol applications. High quality Taiwan DINKLE Fireproof nylon material DIN\nrail mount carrier, can support width 35mm \/ 32mm \/ 15mm rail, and the carrier\ncan be taken apart for panel mount use. FR-4 fiber glass PCB, dual copper\nlayers. PCB mount Terminal Block: pitch 5.0mm\/0.197\", strip length 7mm, screws\n- M2.5, steel, Cr3+ Zn plated. pin header and cage - brass. Wire range 28AWG ~\n12AWG \/ 2.5mm square. Note: the item not include ESP32-DevKitC module. The\nbreakour board supports ESPRESSIF official ESP32-DevKitC, but we do not\nguarantee whether to support third-party modules, you can check the ESPRESSIF\nofficial website for more information before buying.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eDIN Rail Mount Screw Terminal Block Breakout Board for ESP32-DevKitC. With the breakout board, you can easily extend ESP32-DevKitC projects to industrial control applications.\u003c\/li\u003e\n \u003cli\u003eHigh quality Taiwan DINKLE Fireproof nylon material DIN rail mount carrier, can support width 35mm \/ 32mm \/ 15mm rail, and the carrier can be taken apart for panel mount use. FR-4 fiber glass PCB, dual copper layers.\u003c\/li\u003e\n \u003cli\u003ePCB mount Terminal Block: pitch 5.0mm\/0.197\", strip length 7mm, screws - M2.5, steel, Cr3+ Zn plated. pin header and cage - brass. Wire range 28AWG ~ 12AWG \/ 2.5mm square.\u003c\/li\u003e\n \u003cli\u003eNote: the item not include ESP32-DevKitC module. The breakour board supports ESPRESSIF official ESP32-DevKitC, but we do not guarantee whether to support third-party modules, you can check the ESPRESSIF official website for more information before buying.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
