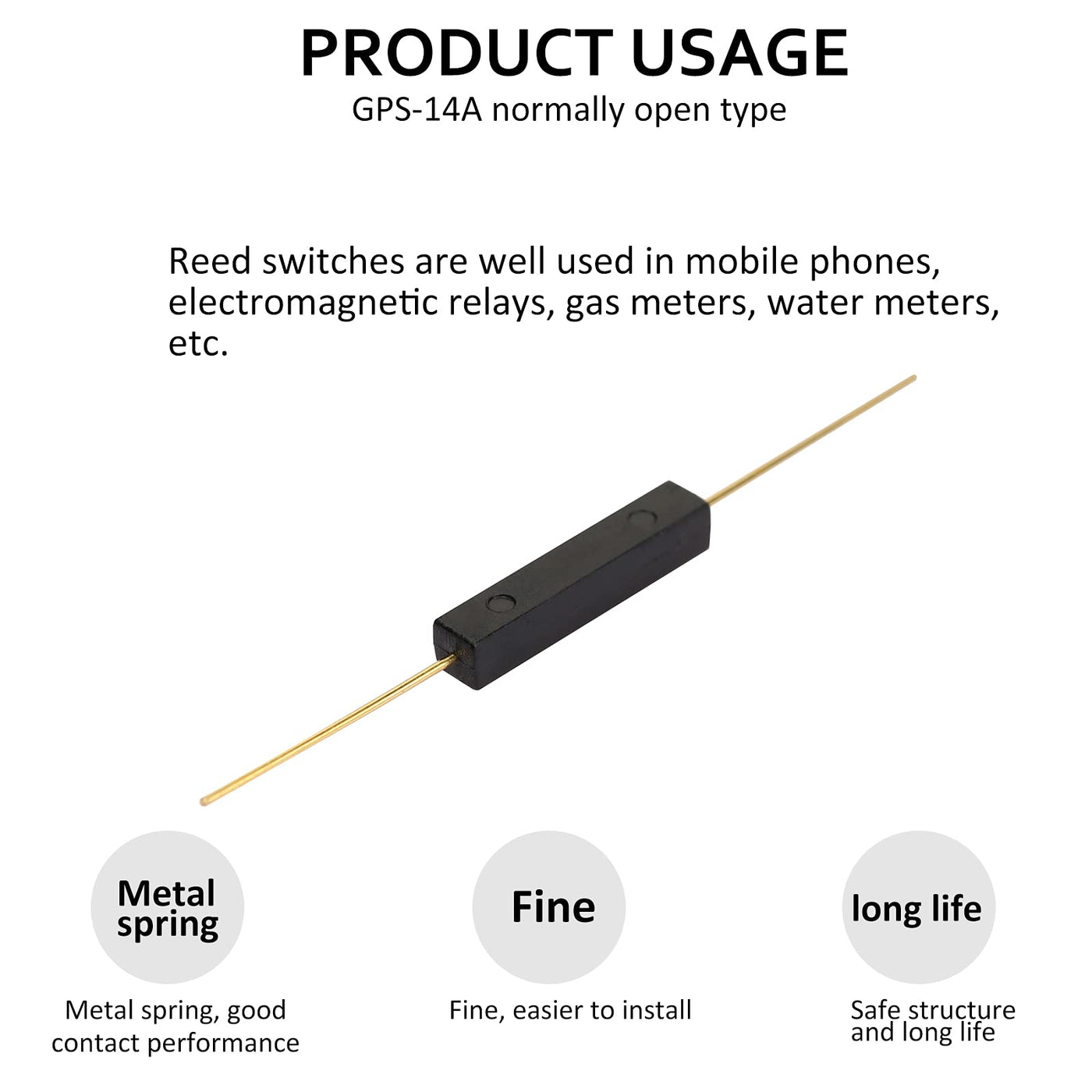

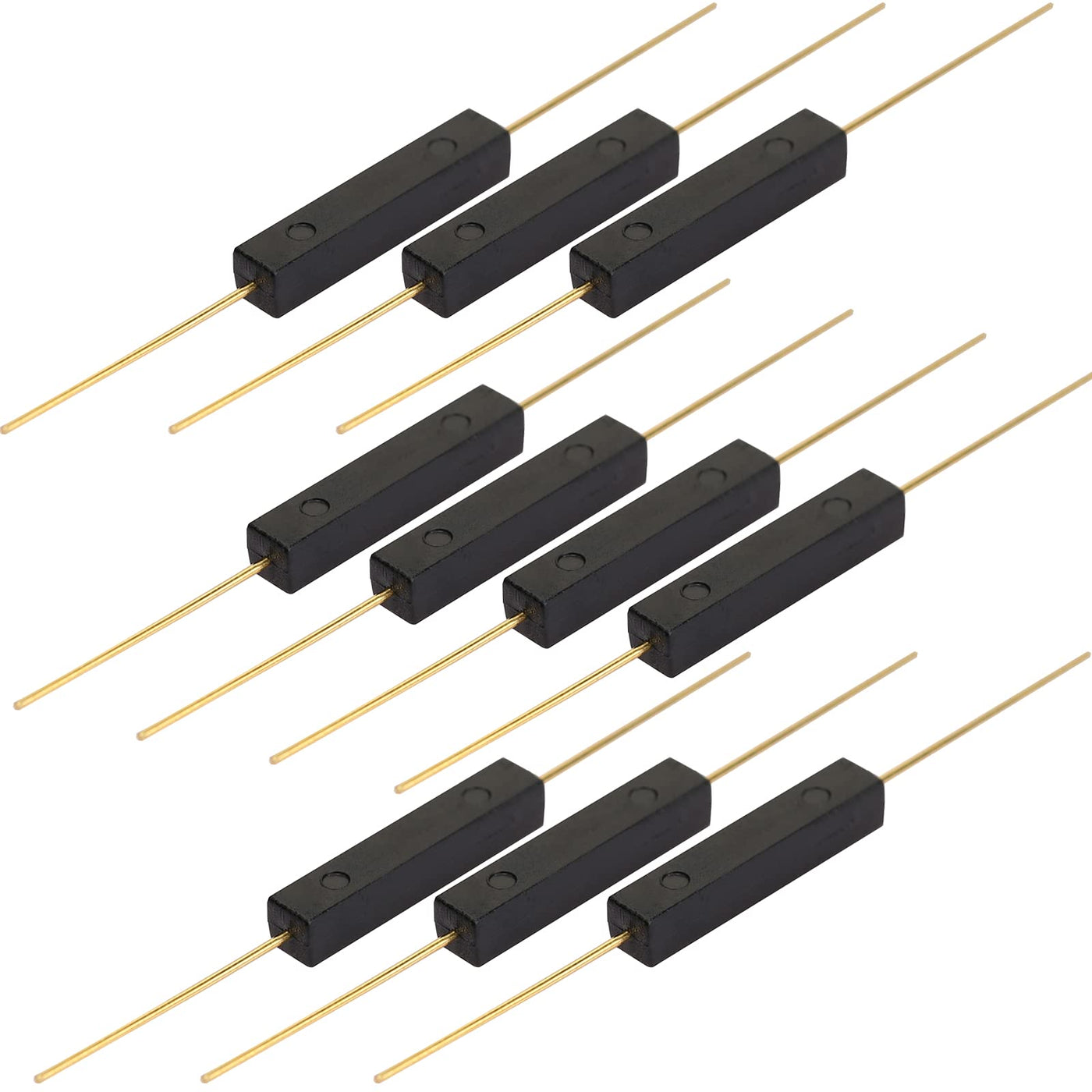

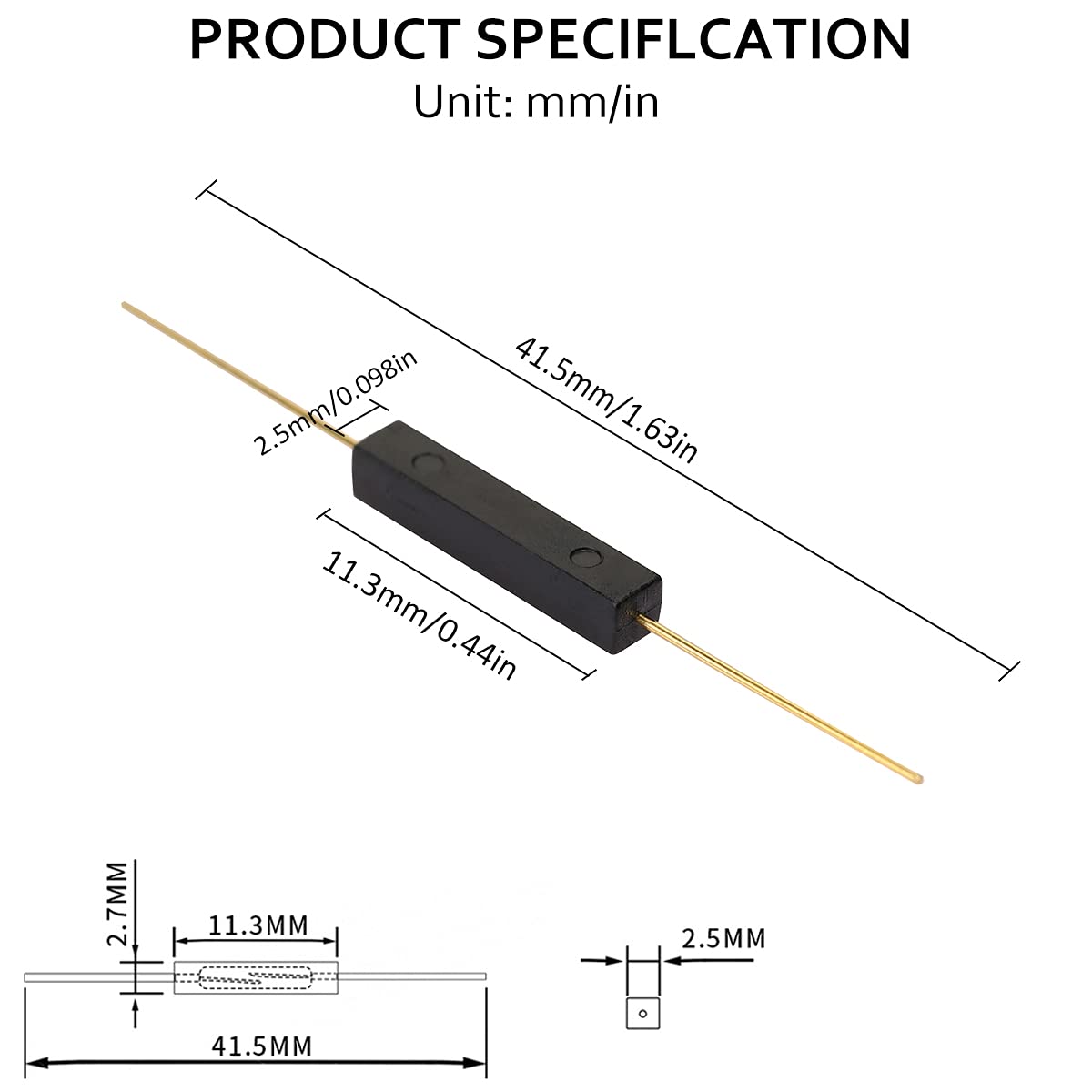

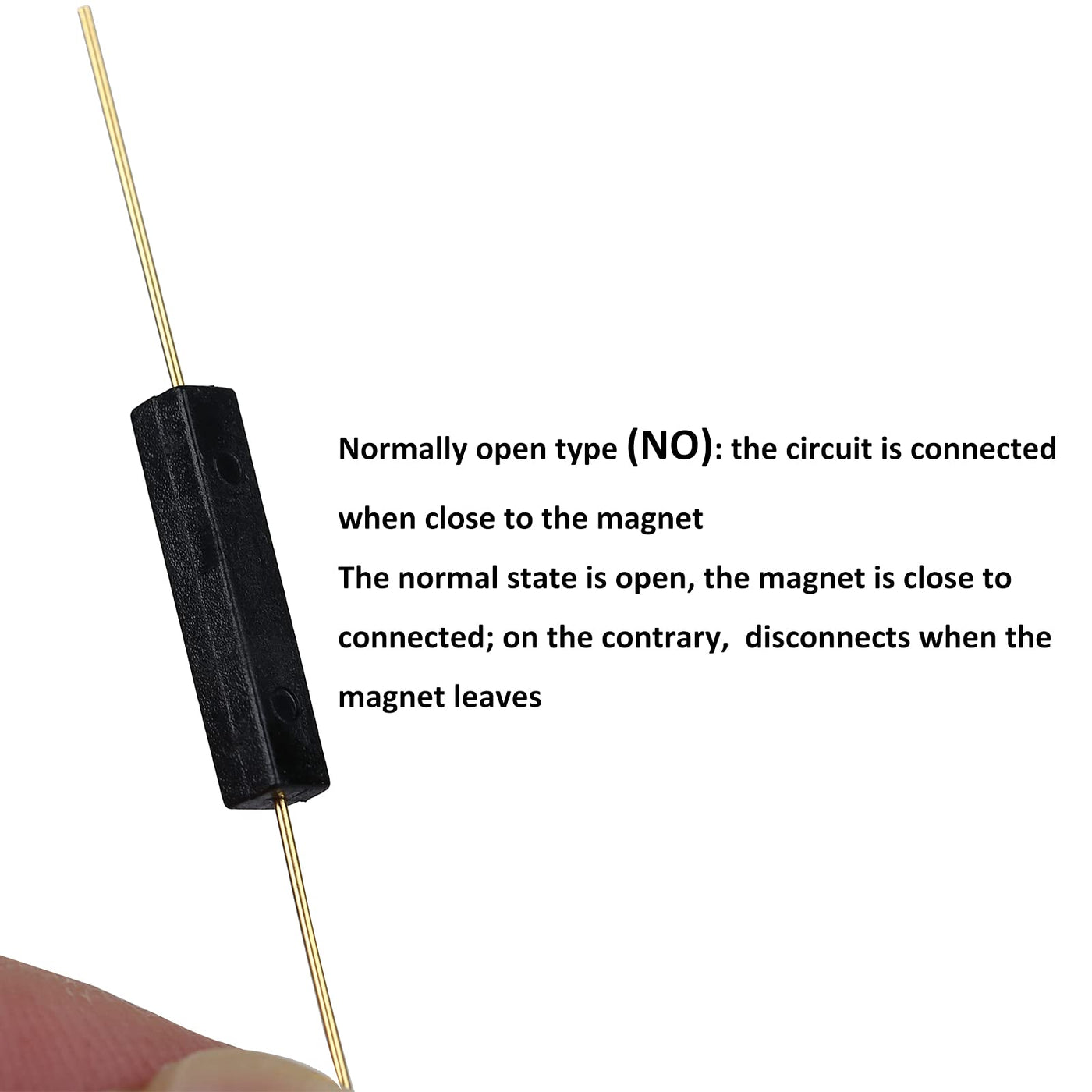

{"id":7417415991456,"title":"DIYhz Reed Switch GPS-14A 14mm Plastic Anti-Interference Normally Open Magnetic Control Switch 10PCS","handle":"diyhz-reed-switch-gps-14a-14mm-plastic-anti-interference-normally-open-magnetic-control-switch-10pcs","description":"\u003ch3\u003eDIYhz Reed Switch GPS-14A 14mm Plastic Anti-Interference Normally Open Magnetic Control Switch 10PCS\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eReed Switch - Contact Type : Normal Open - Total Length (Approx.) : 42mm\/ 1.7\"\n- Tube Size (Approx.) : 14 x 3mm\/ 0.57\" x 0.12\" (LD) - Lead Terminal\nSize(Each Side) : 14 x 0.4mm\/ 0.57\" x 0.016\"(LD) ★ The reeds are hermetically\nsealed in opposite ends of a tubular plastic envelope. ★ The reed switch\ncontains a pair (or more) of magnetizable, flexible, metal reeds whose end\nportions are separated by a small gap when the switch is open. ★ The reed\nswitch's application is to detect the opening of a door, when used as a\nproximity switch for a burglar alarm. ★ Reed switch pipe can be used as a\nsensor, counter, limit, and door magnetic, magnetic window in the security\nsystem. Package Content: 10 x Reed Switch\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eProduct Name : Reed Switch;Model : GPS-14A;Contact Type : NO(Normal Open);Max. Contact Rating : 10W\u003c\/li\u003e\n \u003cli\u003eMax. Switching Voltage : DC 100V;Max. Switching Current : 0.5A;Min. Breakdown Voltage : DC 150V;Max. Initial Contact Resistance : 100mOhm\u003c\/li\u003e\n \u003cli\u003eMin. Insulation Resistance : 109Ohm;Max. Release Time : 0.1ms;Max.OperateTime : 0.4ms;Tube Size (Approx.) : 14 x 3mm\/ 0.57\" x 0.12\" (L*D)\u003c\/li\u003e\n \u003cli\u003eLead Terminal Size(Each Side) : 14 x 0.4mm\/ 0.57\" x 0.016\"(L*D);Total Length (Approx.) : 42mm\/ 1.7\";Material : Plastic, Metal\u003c\/li\u003e\n \u003cli\u003eColor : Gold Tone, Black;Weight : 1g;Package Content : 10 x Reed Switch\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-10-26T14:53:37+11:00","created_at":"2022-06-16T22:32:38+10:00","vendor":"DIYhz","type":"Amplifier Installation","tags":["dingo"],"price":10900,"price_min":10900,"price_max":10900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42211085418656,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07MLZHWLY","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"DIYhz Reed Switch GPS-14A 14mm Plastic Anti-Interference Normally Open Magnetic Control Switch 10PCS","public_title":null,"options":["Default Title"],"price":10900,"weight":18,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/products\/B07MLZHWLY.jpg?v=1655426254","\/\/dingoship.com.au\/cdn\/shop\/products\/51qPtL4DscS.jpg?v=1655382759","\/\/dingoship.com.au\/cdn\/shop\/products\/61_bkM1N4-S.jpg?v=1655382759","\/\/dingoship.com.au\/cdn\/shop\/products\/61BZw8cg5jS.jpg?v=1655382759","\/\/dingoship.com.au\/cdn\/shop\/products\/61lPM2B6WlS.jpg?v=1655382759"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/products\/B07MLZHWLY.jpg?v=1655426254","options":["Title"],"media":[{"alt":null,"id":24872277639328,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B07MLZHWLY.jpg?v=1655426254"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B07MLZHWLY.jpg?v=1655426254","width":1600},{"alt":null,"id":24869432950944,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51qPtL4DscS.jpg?v=1655382759"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51qPtL4DscS.jpg?v=1655382759","width":1200},{"alt":null,"id":24869432983712,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61_bkM1N4-S.jpg?v=1655382759"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61_bkM1N4-S.jpg?v=1655382759","width":1600},{"alt":null,"id":24869433016480,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61BZw8cg5jS.jpg?v=1655382759"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61BZw8cg5jS.jpg?v=1655382759","width":1600},{"alt":null,"id":24869433049248,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61lPM2B6WlS.jpg?v=1655382759"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61lPM2B6WlS.jpg?v=1655382759","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eDIYhz Reed Switch GPS-14A 14mm Plastic Anti-Interference Normally Open Magnetic Control Switch 10PCS\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eReed Switch - Contact Type : Normal Open - Total Length (Approx.) : 42mm\/ 1.7\"\n- Tube Size (Approx.) : 14 x 3mm\/ 0.57\" x 0.12\" (LD) - Lead Terminal\nSize(Each Side) : 14 x 0.4mm\/ 0.57\" x 0.016\"(LD) ★ The reeds are hermetically\nsealed in opposite ends of a tubular plastic envelope. ★ The reed switch\ncontains a pair (or more) of magnetizable, flexible, metal reeds whose end\nportions are separated by a small gap when the switch is open. ★ The reed\nswitch's application is to detect the opening of a door, when used as a\nproximity switch for a burglar alarm. ★ Reed switch pipe can be used as a\nsensor, counter, limit, and door magnetic, magnetic window in the security\nsystem. Package Content: 10 x Reed Switch\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eProduct Name : Reed Switch;Model : GPS-14A;Contact Type : NO(Normal Open);Max. Contact Rating : 10W\u003c\/li\u003e\n \u003cli\u003eMax. Switching Voltage : DC 100V;Max. Switching Current : 0.5A;Min. Breakdown Voltage : DC 150V;Max. Initial Contact Resistance : 100mOhm\u003c\/li\u003e\n \u003cli\u003eMin. Insulation Resistance : 109Ohm;Max. Release Time : 0.1ms;Max.OperateTime : 0.4ms;Tube Size (Approx.) : 14 x 3mm\/ 0.57\" x 0.12\" (L*D)\u003c\/li\u003e\n \u003cli\u003eLead Terminal Size(Each Side) : 14 x 0.4mm\/ 0.57\" x 0.016\"(L*D);Total Length (Approx.) : 42mm\/ 1.7\";Material : Plastic, Metal\u003c\/li\u003e\n \u003cli\u003eColor : Gold Tone, Black;Weight : 1g;Package Content : 10 x Reed Switch\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
