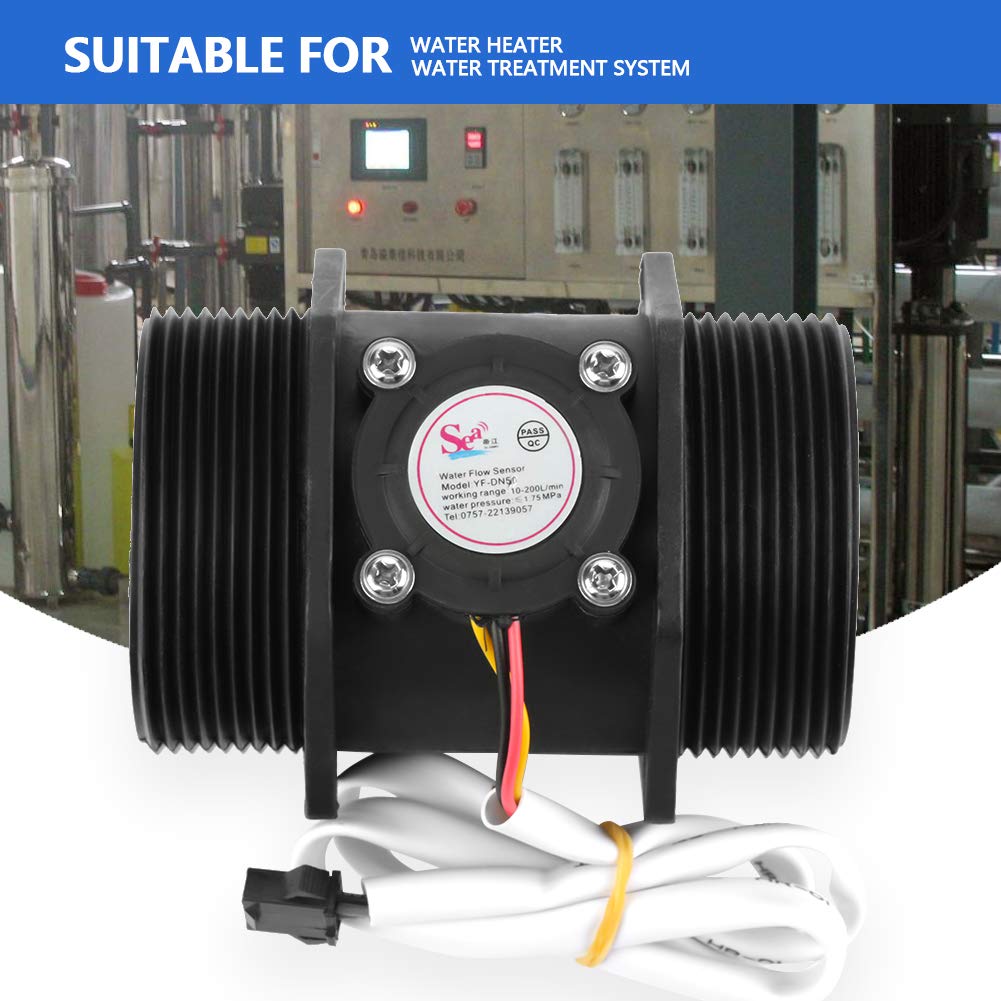

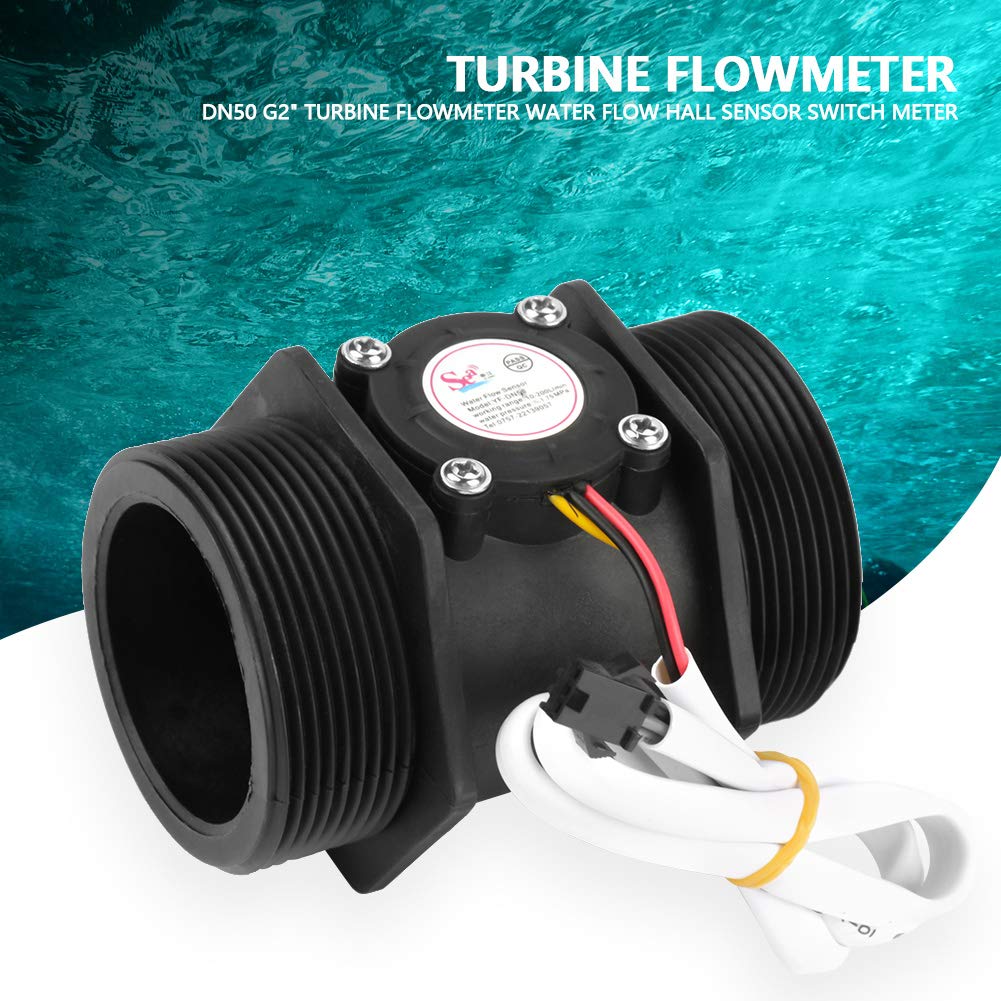

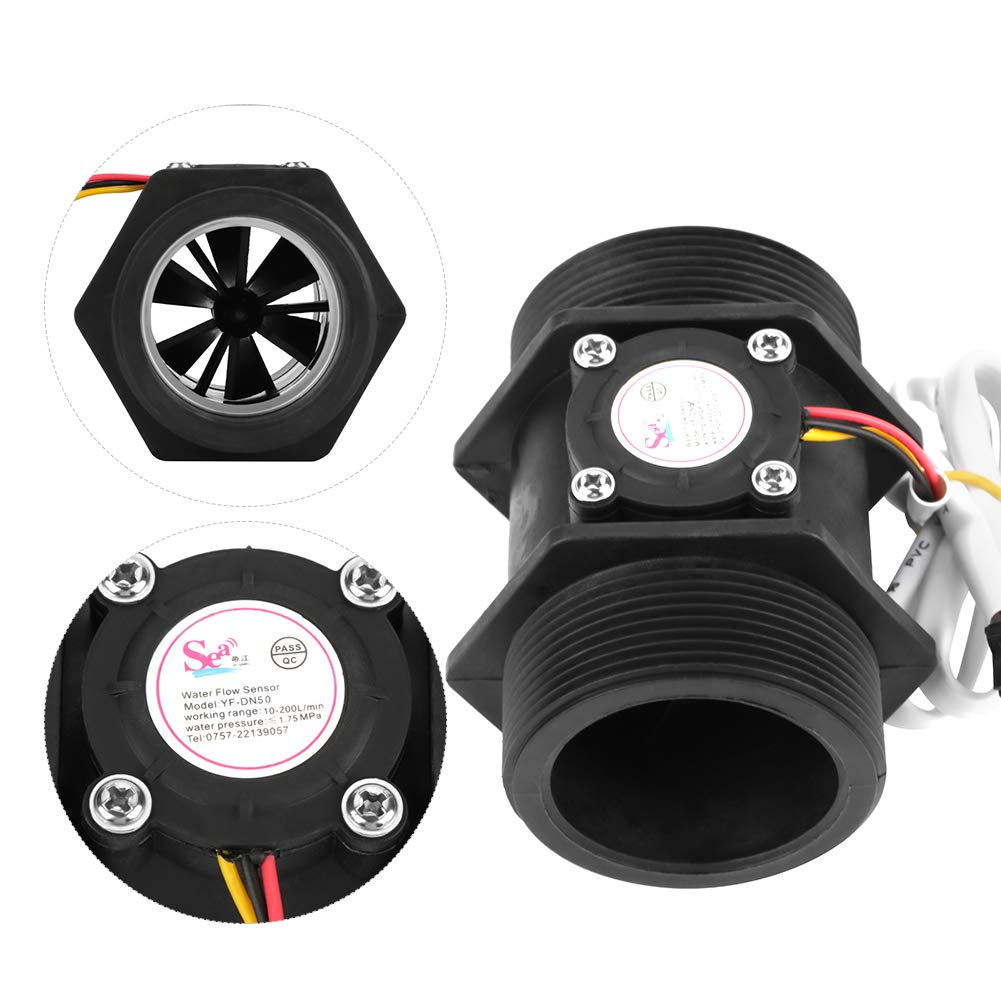

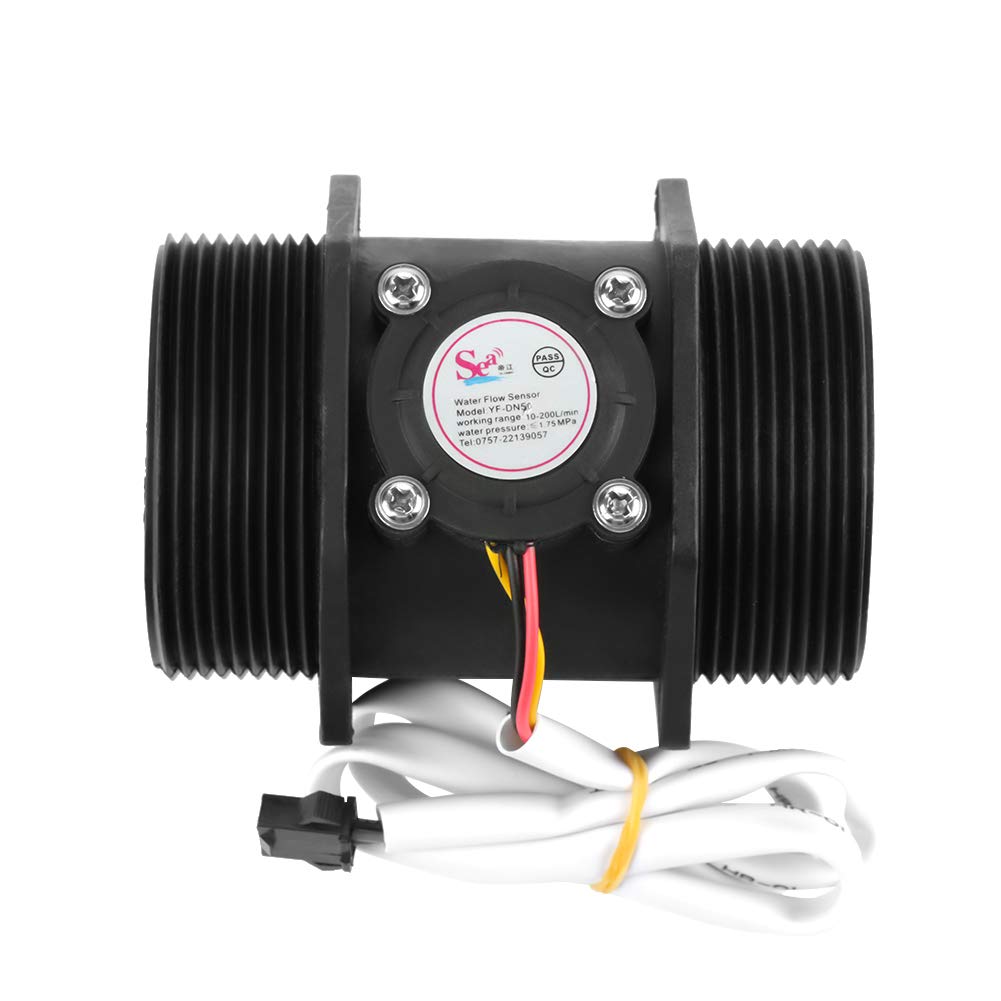

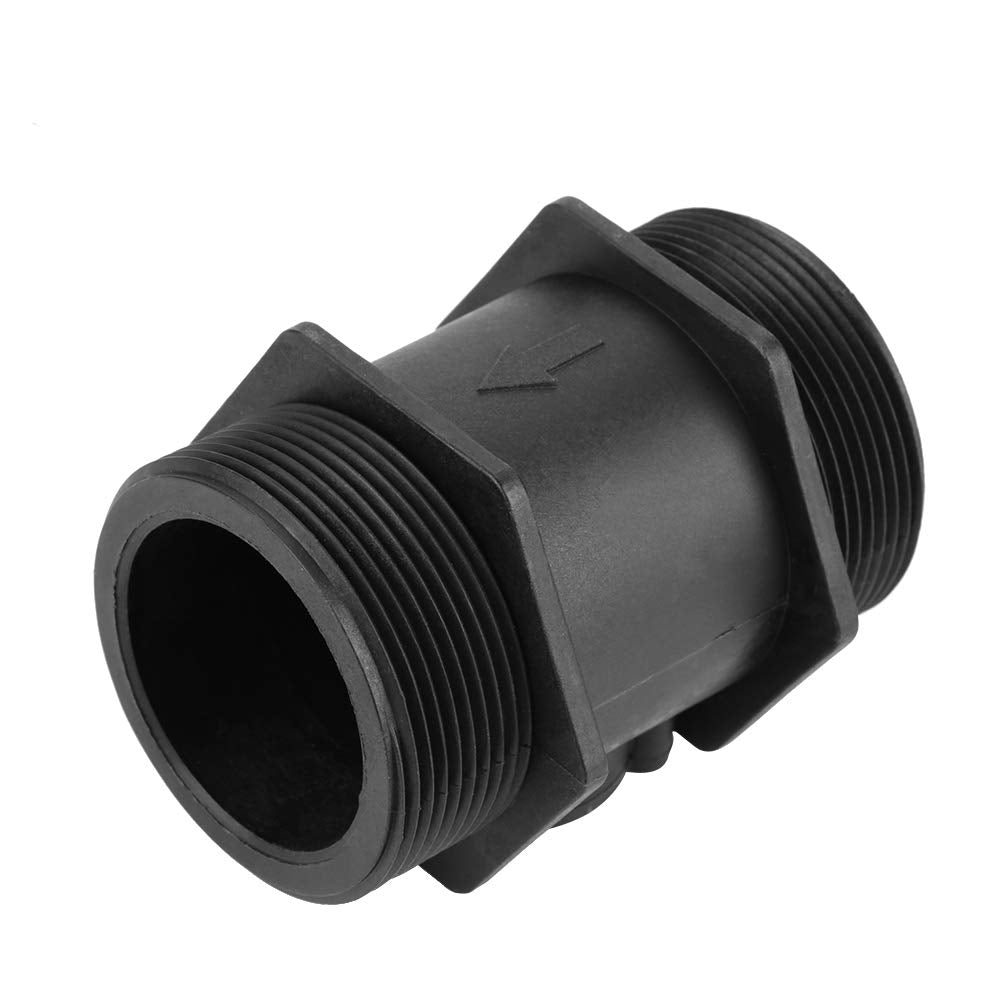

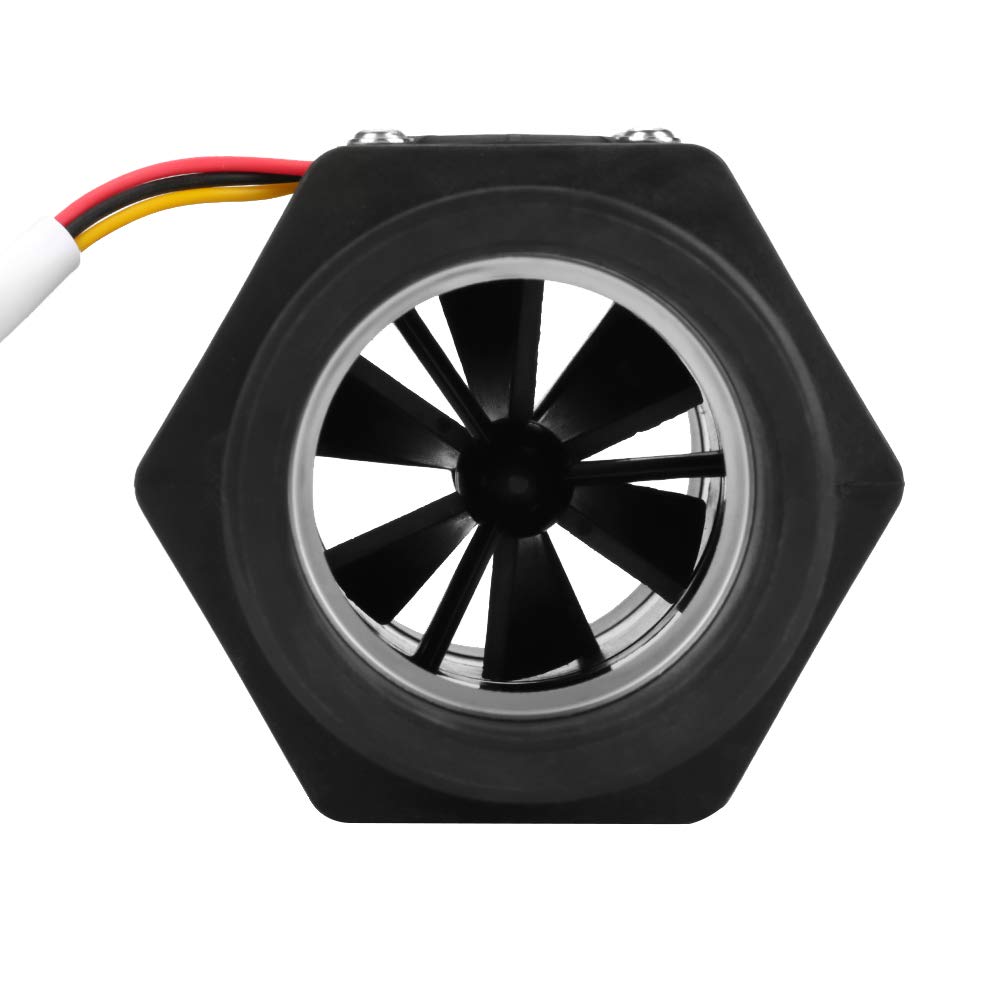

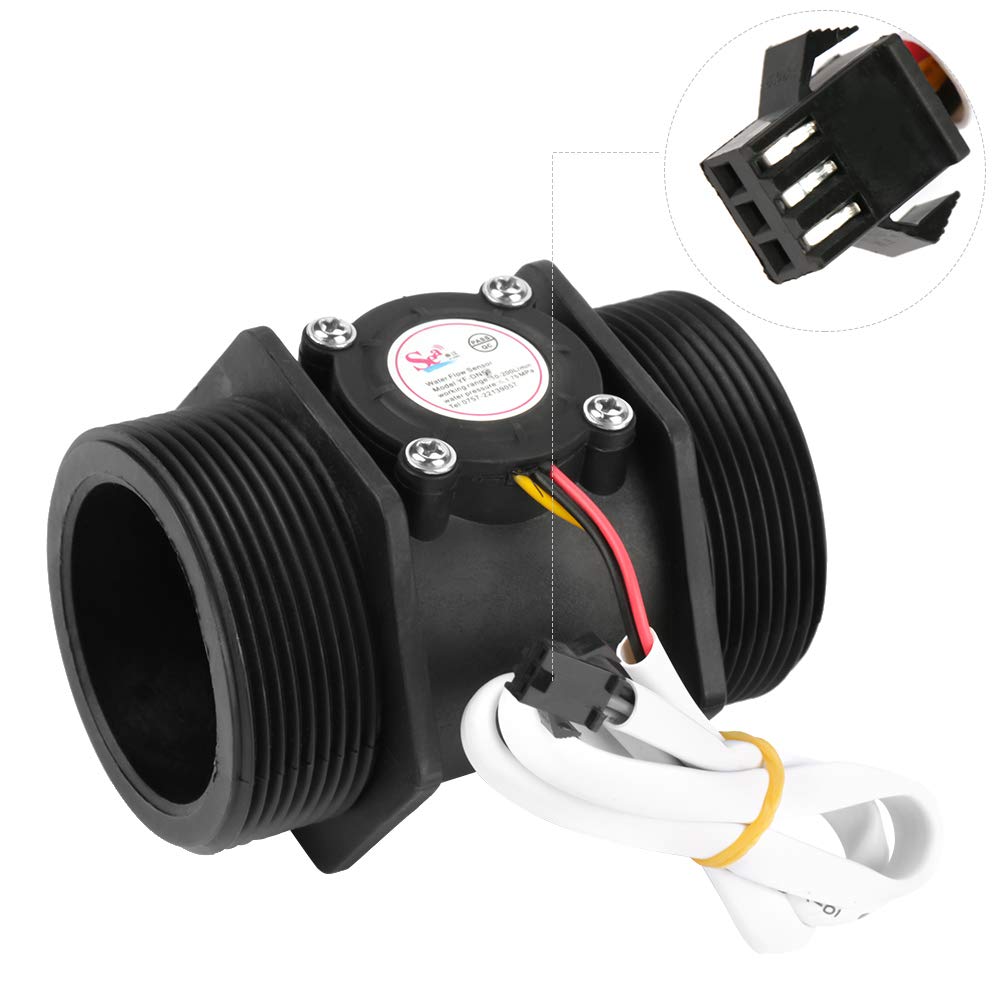

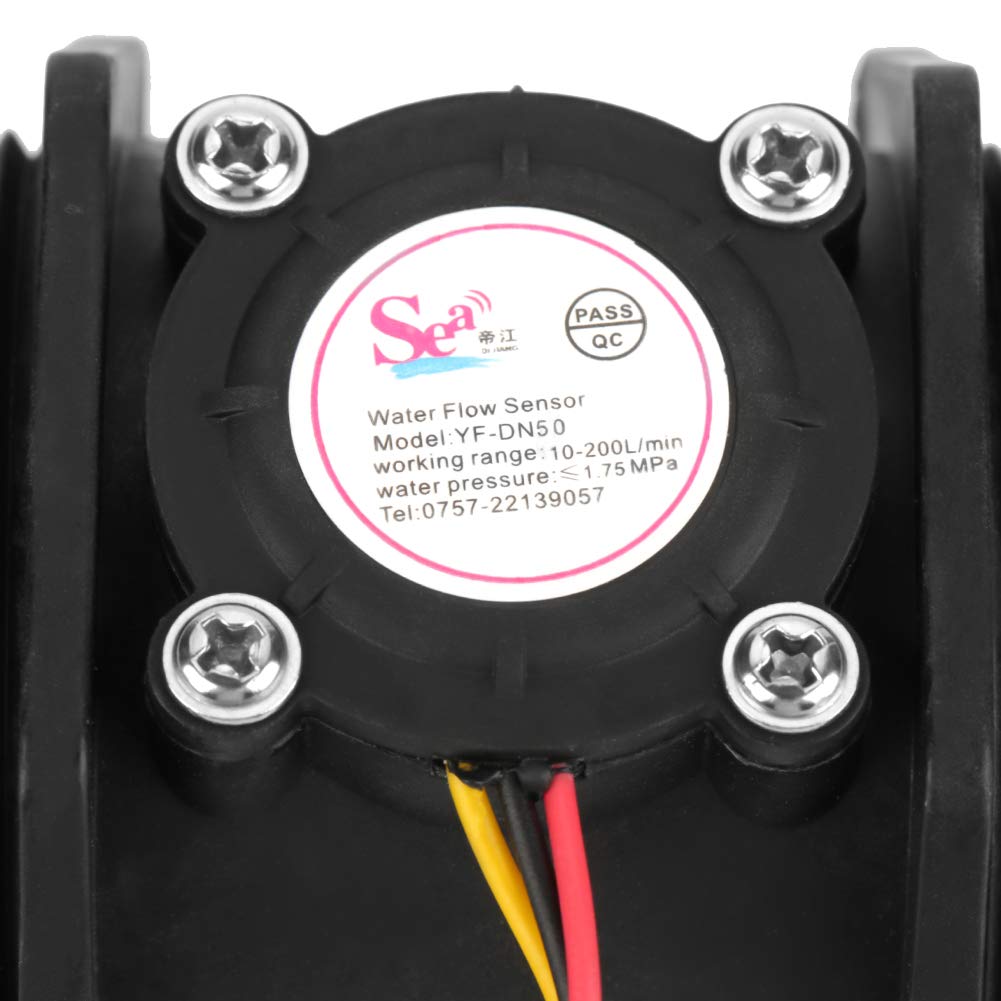

{"id":15190102081696,"title":"DN50 G2\" Turbine Flow Meter Water Flow Hall Sensor Switch Meter Sensor for Water Control for Water Heater Flow Meter Counter 10-200L\/min","handle":"dn50-g2-turbine-flow-meter-water-flow-hall-sensor-switch-meter-sensor-for-water-control-for-water-heater-flow-meter-counter-10-200l-min","description":"\u003ch3\u003eDN50 G2\" Turbine Flow Meter Water Flow Hall Sensor Switch Meter Sensor for Water Control for Water Heater Flow Meter Counter 10-200L\/min\u003c\/h3\u003e \u003cp id=\"b\"\u003eFeatures: The turbine flow meter is made of high quality material, with a long service life. This turbine flow meter is suitable for water heater, water treatment system. The flow meter is shockproof, heat-resistant, cold-resistant, moisture-proof, durable. This turbine flow meter is used to control liquid supply. Compact size and easy to install. Specifications: Thread size: DN50 G2 \" Flow rate: 10-200 l\/min. Working voltage range: DC 4.5 ~ 12V Charging capacity: ≤10mA (DC 5V) Operating temperature: ≤80℃ Humidity: 35% ~ 90% RH (without frosting status). Water pressure resistance: ≤ 1.75 Mpa Storage temperature: -25 ~ 80 ℃ Storage humidity: 25% -95% RH. High output level: \u0026gt; DC 4.5V (Input voltage DC 5V) Low pulse output: Accuracy (Flow - Pulse output: 10 ~ 300L\/min. ± 5%. Output pulse output: 50 ± 10%. Production rise time: 0.04μS Output time: 0.18μS Insulation resistance: \u0026gt; 100 mΩ Fluid pulse characteristic: Frequency of pulse level (Hz) = (0.5 Q) ± 5% (horizontal test) (Q is flow L \/ min) Size: 9.2 cm Weight: 206 g Box contents: 1 × turbine flow meter.\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eHigh-quality materials The turbine flow meter is made of high-quality material, with a long service life li\u0026gt; \u003c\/li\u003e\n\u003cli\u003eAPPLICABLE OBJECT -- This turbine flow meter is suitable for water heater, water treatment system\u003c\/li\u003e \u003cli\u003eFeatures -- The meter is shockproof, heat-resistant, cold-resistant, moisture-resistant, durable\u003c\/li\u003e \u003cli\u003eEffect - - This turbine flow meter is used to control the flow rate of liquid\u003c\/li\u003e \u003cli\u003eFORM -- Small size and easy to install\u003c\/li\u003e \u003c\/ul\u003e","published_at":"2025-10-01T16:38:00+10:00","created_at":"2025-10-01T16:37:57+10:00","vendor":"Walfront","type":"Infrared thermometer","tags":["industryDE"],"price":22600,"price_min":22600,"price_max":22600,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":52864131236000,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B07GCCCMK8","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"DN50 G2\" Turbine Flow Meter Water Flow Hall Sensor Switch Meter Sensor for Water Control for Water Heater Flow Meter Counter 10-200L\/min","public_title":null,"options":["Default Title"],"price":22600,"weight":700,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/files\/de-B07GCCCMK8.jpg?v=1775753376","\/\/dingoship.com.au\/cdn\/shop\/files\/61hhqPjP2_L_289ceb41-e2c6-443b-8af8-e63d78cfa023.jpg?v=1759300679","\/\/dingoship.com.au\/cdn\/shop\/files\/61b3rKsbnuL_9cbfd766-c446-4c7f-bd7b-11e7a66203fb.jpg?v=1759300679","\/\/dingoship.com.au\/cdn\/shop\/files\/51IzVd4RA8L_f64de468-9fd0-4b9a-8841-018d410524fe.jpg?v=1759300679","\/\/dingoship.com.au\/cdn\/shop\/files\/61u6rB1JTlL.jpg?v=1759300679","\/\/dingoship.com.au\/cdn\/shop\/files\/41EGz5_KVYL.jpg?v=1759300679","\/\/dingoship.com.au\/cdn\/shop\/files\/51EVt7WrR3L.jpg?v=1759300679","\/\/dingoship.com.au\/cdn\/shop\/files\/71VhERx9yzL_22267969-ce83-4e10-8cb5-0677f87f7b4c.jpg?v=1759300679","\/\/dingoship.com.au\/cdn\/shop\/files\/61z5NzrB2YL_34d7ac27-e3eb-4c76-8e71-37443d7512f4.jpg?v=1759300679"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B07GCCCMK8.jpg?v=1775753376","options":["Title"],"media":[{"alt":null,"id":38370792669344,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B07GCCCMK8.jpg?v=1775753376"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B07GCCCMK8.jpg?v=1775753376","width":1001},{"alt":null,"id":38370792702112,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61hhqPjP2_L_289ceb41-e2c6-443b-8af8-e63d78cfa023.jpg?v=1759300679"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61hhqPjP2_L_289ceb41-e2c6-443b-8af8-e63d78cfa023.jpg?v=1759300679","width":1001},{"alt":null,"id":38370792734880,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61b3rKsbnuL_9cbfd766-c446-4c7f-bd7b-11e7a66203fb.jpg?v=1759300679"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61b3rKsbnuL_9cbfd766-c446-4c7f-bd7b-11e7a66203fb.jpg?v=1759300679","width":1001},{"alt":null,"id":38370792767648,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51IzVd4RA8L_f64de468-9fd0-4b9a-8841-018d410524fe.jpg?v=1759300679"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51IzVd4RA8L_f64de468-9fd0-4b9a-8841-018d410524fe.jpg?v=1759300679","width":1001},{"alt":null,"id":38370792800416,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61u6rB1JTlL.jpg?v=1759300679"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61u6rB1JTlL.jpg?v=1759300679","width":1001},{"alt":null,"id":38370792833184,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/41EGz5_KVYL.jpg?v=1759300679"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/41EGz5_KVYL.jpg?v=1759300679","width":1001},{"alt":null,"id":38370792865952,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51EVt7WrR3L.jpg?v=1759300679"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51EVt7WrR3L.jpg?v=1759300679","width":1001},{"alt":null,"id":38370792898720,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71VhERx9yzL_22267969-ce83-4e10-8cb5-0677f87f7b4c.jpg?v=1759300679"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71VhERx9yzL_22267969-ce83-4e10-8cb5-0677f87f7b4c.jpg?v=1759300679","width":1001},{"alt":null,"id":38370792931488,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61z5NzrB2YL_34d7ac27-e3eb-4c76-8e71-37443d7512f4.jpg?v=1759300679"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61z5NzrB2YL_34d7ac27-e3eb-4c76-8e71-37443d7512f4.jpg?v=1759300679","width":1001}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eDN50 G2\" Turbine Flow Meter Water Flow Hall Sensor Switch Meter Sensor for Water Control for Water Heater Flow Meter Counter 10-200L\/min\u003c\/h3\u003e \u003cp id=\"b\"\u003eFeatures: The turbine flow meter is made of high quality material, with a long service life. This turbine flow meter is suitable for water heater, water treatment system. The flow meter is shockproof, heat-resistant, cold-resistant, moisture-proof, durable. This turbine flow meter is used to control liquid supply. Compact size and easy to install. Specifications: Thread size: DN50 G2 \" Flow rate: 10-200 l\/min. Working voltage range: DC 4.5 ~ 12V Charging capacity: ≤10mA (DC 5V) Operating temperature: ≤80℃ Humidity: 35% ~ 90% RH (without frosting status). Water pressure resistance: ≤ 1.75 Mpa Storage temperature: -25 ~ 80 ℃ Storage humidity: 25% -95% RH. High output level: \u0026gt; DC 4.5V (Input voltage DC 5V) Low pulse output: Accuracy (Flow - Pulse output: 10 ~ 300L\/min. ± 5%. Output pulse output: 50 ± 10%. Production rise time: 0.04μS Output time: 0.18μS Insulation resistance: \u0026gt; 100 mΩ Fluid pulse characteristic: Frequency of pulse level (Hz) = (0.5 Q) ± 5% (horizontal test) (Q is flow L \/ min) Size: 9.2 cm Weight: 206 g Box contents: 1 × turbine flow meter.\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eHigh-quality materials The turbine flow meter is made of high-quality material, with a long service life li\u0026gt; \u003c\/li\u003e\n\u003cli\u003eAPPLICABLE OBJECT -- This turbine flow meter is suitable for water heater, water treatment system\u003c\/li\u003e \u003cli\u003eFeatures -- The meter is shockproof, heat-resistant, cold-resistant, moisture-resistant, durable\u003c\/li\u003e \u003cli\u003eEffect - - This turbine flow meter is used to control the flow rate of liquid\u003c\/li\u003e \u003cli\u003eFORM -- Small size and easy to install\u003c\/li\u003e \u003c\/ul\u003e"}
