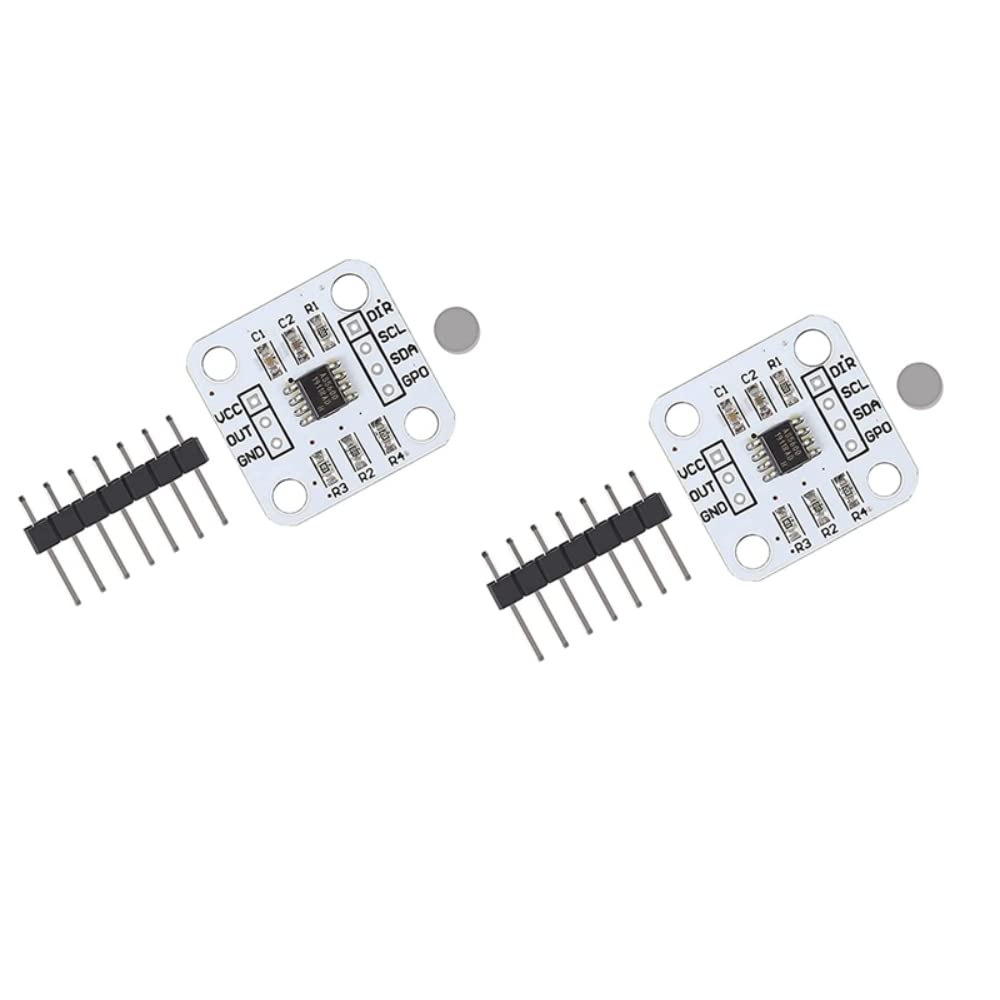

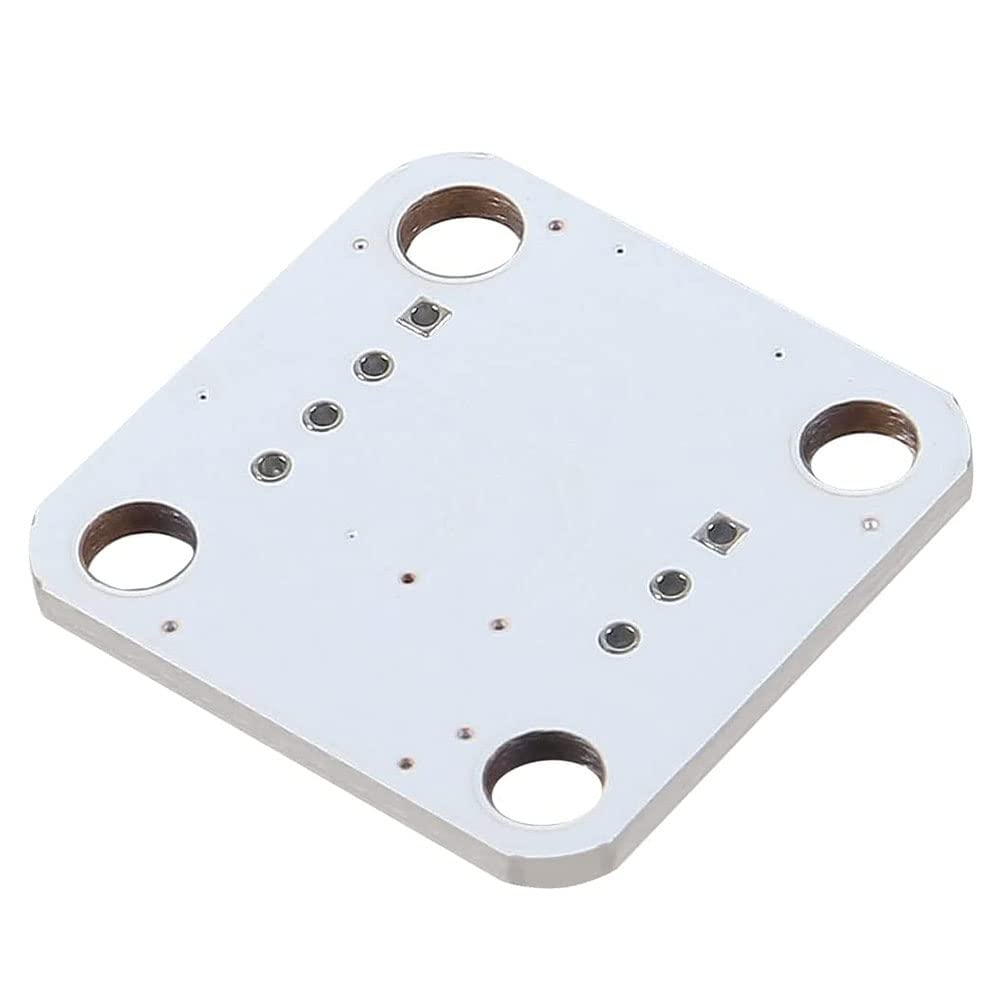

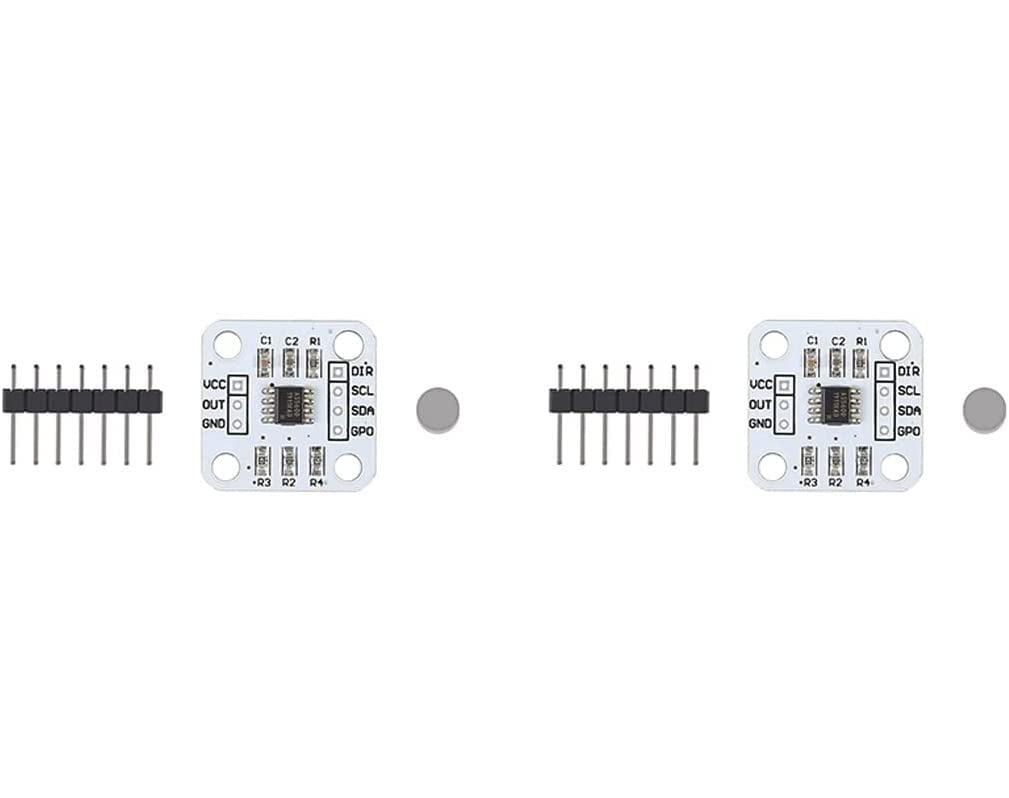

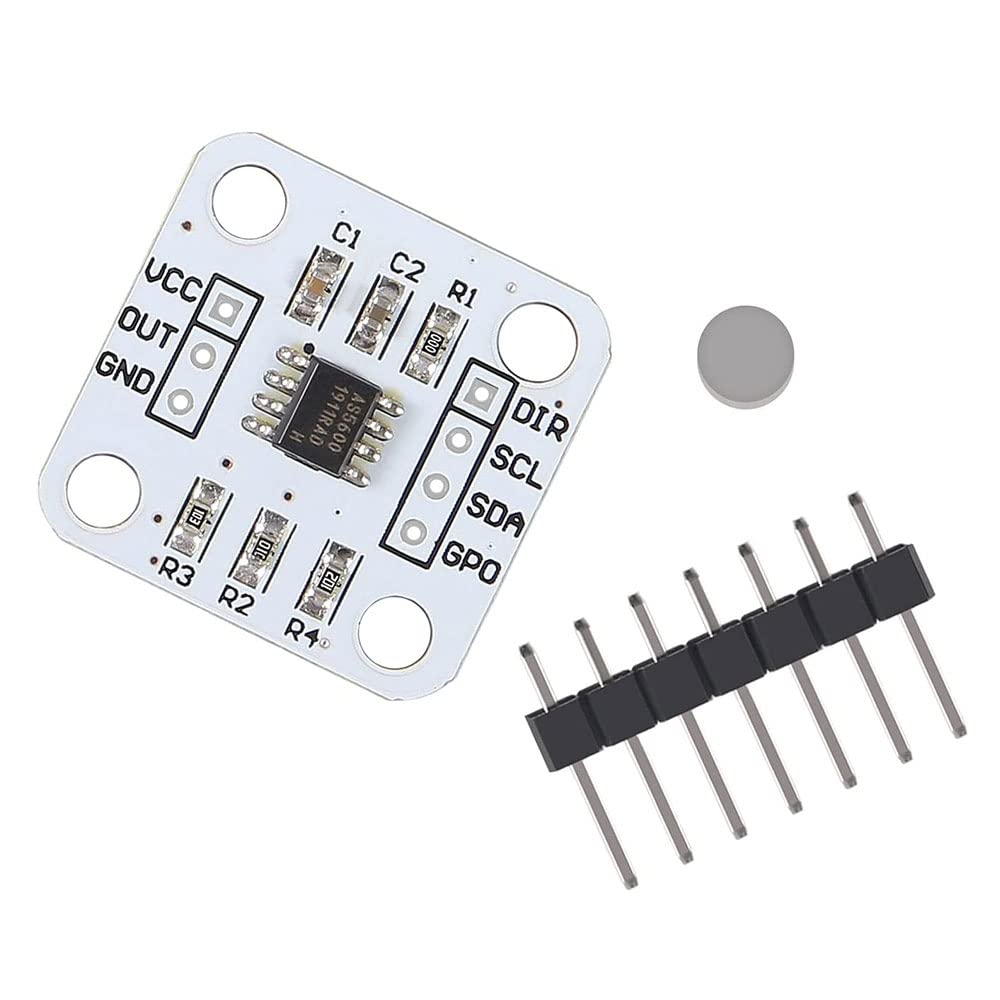

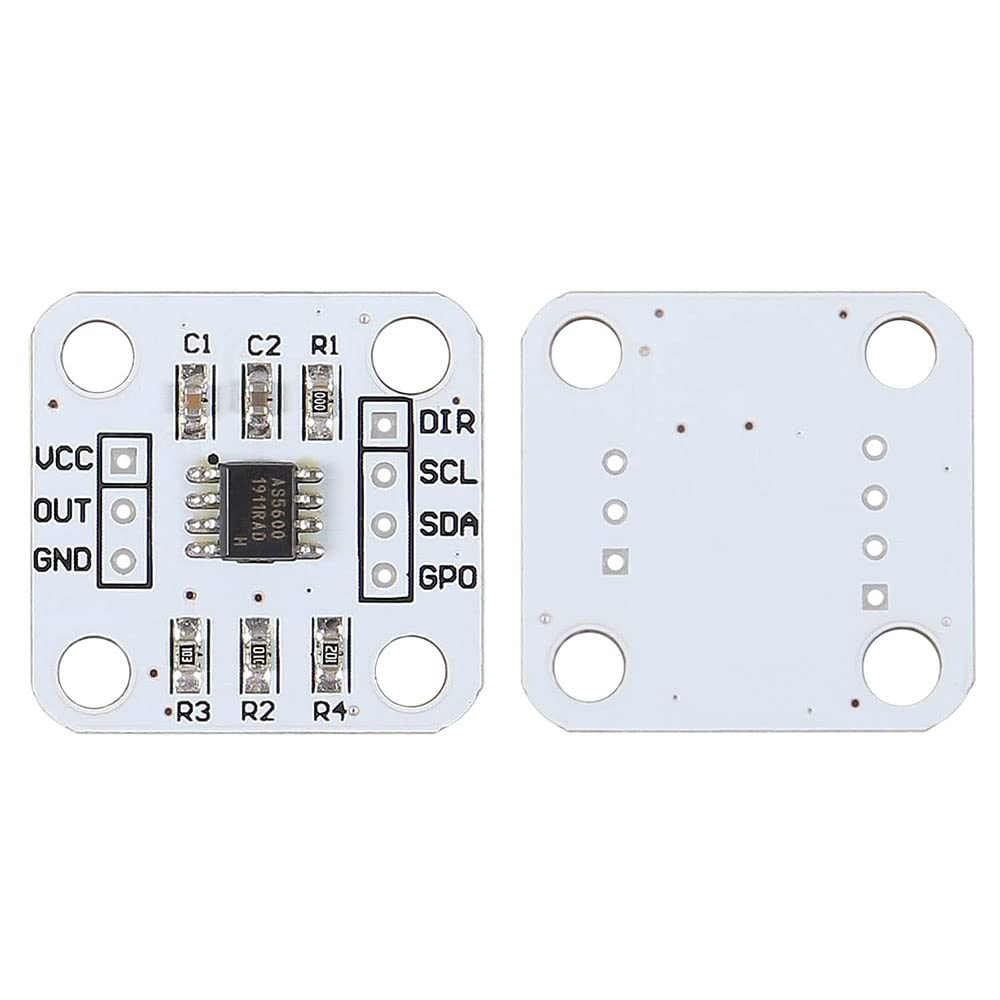

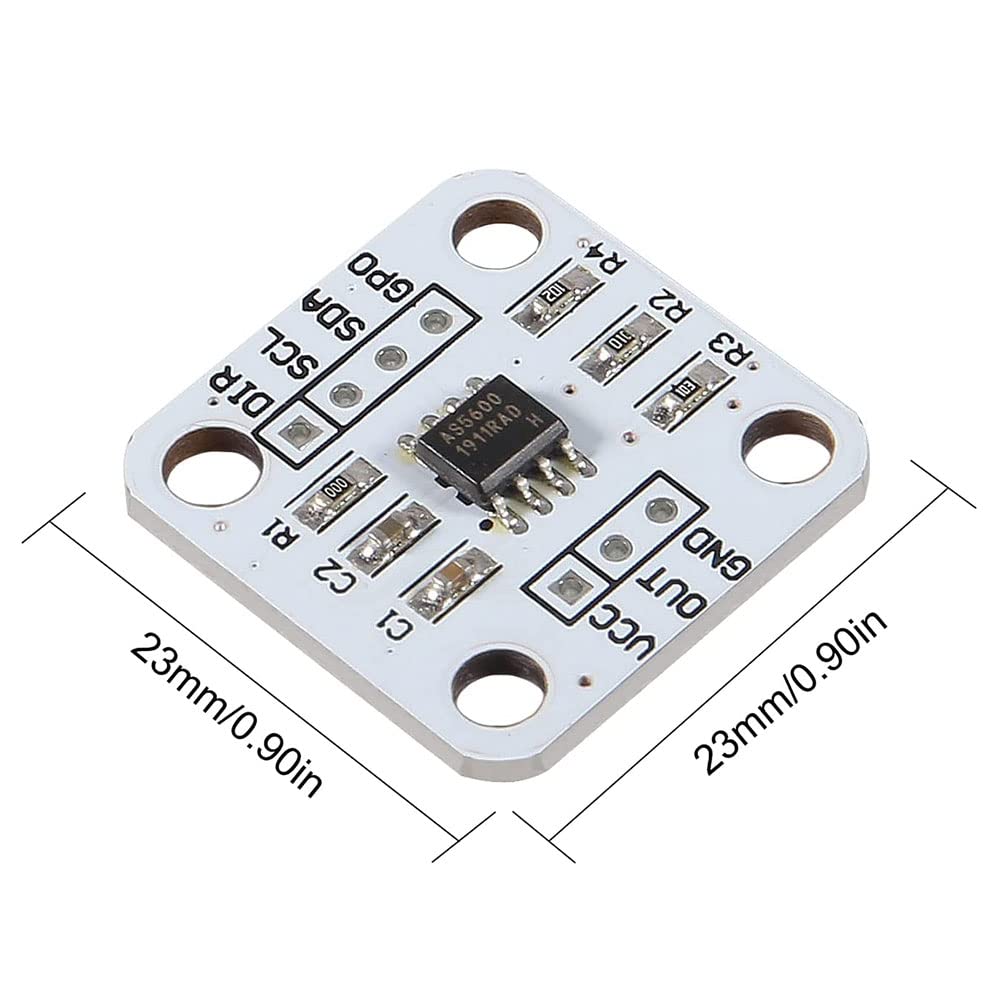

{"id":12966079692960,"title":"DollaTek 2Pcs AS5600 Magnetic Encoder Magnetic Induction Angle Measurement Sensor Module 12bit High Precision","handle":"dollatek-2pcs-as5600-magnetic-encoder-magnetic-induction-angle-measurement-sensor-module-12bit-high-precision","description":"\u003ch3\u003eDollaTek 2Pcs AS5600 Magnetic Encoder Magnetic Induction Angle Measurement Sensor Module 12bit High Precision\u003c\/h3\u003e \u003cp id=\"b\"\u003eInterface description: VCC: 3.3 V GND: current ground Out: PWM \/ analog voltage output DIR: direction of rotation ( Ground = clockwise value increases ; connection to VCC = clockwise value decreases) SCL: IIC communication clock line SDA: IIC communication data line GPO: mode selection (internal pull-up, ground = programming mode B) Feature: 1. It is made of class fiber optic panels KB-A FR-4 with a thickness of 1.6 mm. The plate surface is flat and not easy to bend. Every circuit board has been tested with flying probes before leaving the factory, and you can rely on the quality. 2. Non-contact magnetic induction angle measuring module. High precision, multiple output modes, IIC, PWM, voltage, etc. 3.AS5600 is also equipped with an intelligent power saving mode that automatically reduces power consumption. The input pin (DIP) selects the direction of rotation of the output polarity. Package includes: 2 x AS5600 Magnetic Encoder\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eThis module is mainly placed behind the stepper motor to obtain the rotation angle of the stepper motor. li\u0026gt; \u003c\/li\u003e\n\u003cli\u003eAS5600 high precision magnetic encoder, a variety of output modes: IIC, PWM and voltage. Non-contact magnetic induction angle measuring module.\u003c\/li\u003e \u003cli\u003eMade of high quality material, the module is durable and has a long service life.\u003c\/li\u003e \u003cli\u003eIt is made of KB-A FR-4 class fiberglass board with thickness of 1.6 mm. The plate surface is flat and not easy to bend.\u003c\/li\u003e \u003cli\u003eAS5600 is also equipped with an intelligent power saving mode that automatically reduces power consumption. The input pin (DIP) selects the direction of rotation of the output polarity.\u003c\/li\u003e \u003c\/ul\u003e","published_at":"2024-04-07T03:58:49+10:00","created_at":"2024-04-07T03:58:57+10:00","vendor":"DollaTek","type":"Switching encoder","tags":["industryDE"],"price":16800,"price_min":16800,"price_max":16800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":49430761144480,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B0BGPF3WT3","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"DollaTek 2Pcs AS5600 Magnetic Encoder Magnetic Induction Angle Measurement Sensor Module 12bit High Precision","public_title":null,"options":["Default Title"],"price":16800,"weight":700,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/files\/de-B0BGPF3WT3.jpg?v=1712447080","\/\/dingoship.com.au\/cdn\/shop\/files\/51XGhhZVUML.jpg?v=1712426337","\/\/dingoship.com.au\/cdn\/shop\/files\/51wV7qRGZVL.jpg?v=1712426337","\/\/dingoship.com.au\/cdn\/shop\/files\/418vtEcHtcL.jpg?v=1712426337","\/\/dingoship.com.au\/cdn\/shop\/files\/51T7Sl47obL.jpg?v=1712426337","\/\/dingoship.com.au\/cdn\/shop\/files\/6137ZNNQouL.jpg?v=1712426337"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B0BGPF3WT3.jpg?v=1712447080","options":["Title"],"media":[{"alt":null,"id":33793782907040,"position":1,"preview_image":{"aspect_ratio":1.264,"height":798,"width":1009,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B0BGPF3WT3.jpg?v=1712447080"},"aspect_ratio":1.264,"height":798,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B0BGPF3WT3.jpg?v=1712447080","width":1009},{"alt":null,"id":33789857169568,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51XGhhZVUML.jpg?v=1712426337"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51XGhhZVUML.jpg?v=1712426337","width":1000},{"alt":null,"id":33789857202336,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51wV7qRGZVL.jpg?v=1712426337"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51wV7qRGZVL.jpg?v=1712426337","width":1000},{"alt":null,"id":33789857235104,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/418vtEcHtcL.jpg?v=1712426337"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/418vtEcHtcL.jpg?v=1712426337","width":1000},{"alt":null,"id":33789857267872,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51T7Sl47obL.jpg?v=1712426337"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51T7Sl47obL.jpg?v=1712426337","width":1000},{"alt":null,"id":33789857300640,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/6137ZNNQouL.jpg?v=1712426337"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/6137ZNNQouL.jpg?v=1712426337","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eDollaTek 2Pcs AS5600 Magnetic Encoder Magnetic Induction Angle Measurement Sensor Module 12bit High Precision\u003c\/h3\u003e \u003cp id=\"b\"\u003eInterface description: VCC: 3.3 V GND: current ground Out: PWM \/ analog voltage output DIR: direction of rotation ( Ground = clockwise value increases ; connection to VCC = clockwise value decreases) SCL: IIC communication clock line SDA: IIC communication data line GPO: mode selection (internal pull-up, ground = programming mode B) Feature: 1. It is made of class fiber optic panels KB-A FR-4 with a thickness of 1.6 mm. The plate surface is flat and not easy to bend. Every circuit board has been tested with flying probes before leaving the factory, and you can rely on the quality. 2. Non-contact magnetic induction angle measuring module. High precision, multiple output modes, IIC, PWM, voltage, etc. 3.AS5600 is also equipped with an intelligent power saving mode that automatically reduces power consumption. The input pin (DIP) selects the direction of rotation of the output polarity. Package includes: 2 x AS5600 Magnetic Encoder\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eThis module is mainly placed behind the stepper motor to obtain the rotation angle of the stepper motor. li\u0026gt; \u003c\/li\u003e\n\u003cli\u003eAS5600 high precision magnetic encoder, a variety of output modes: IIC, PWM and voltage. Non-contact magnetic induction angle measuring module.\u003c\/li\u003e \u003cli\u003eMade of high quality material, the module is durable and has a long service life.\u003c\/li\u003e \u003cli\u003eIt is made of KB-A FR-4 class fiberglass board with thickness of 1.6 mm. The plate surface is flat and not easy to bend.\u003c\/li\u003e \u003cli\u003eAS5600 is also equipped with an intelligent power saving mode that automatically reduces power consumption. The input pin (DIP) selects the direction of rotation of the output polarity.\u003c\/li\u003e \u003c\/ul\u003e"}
