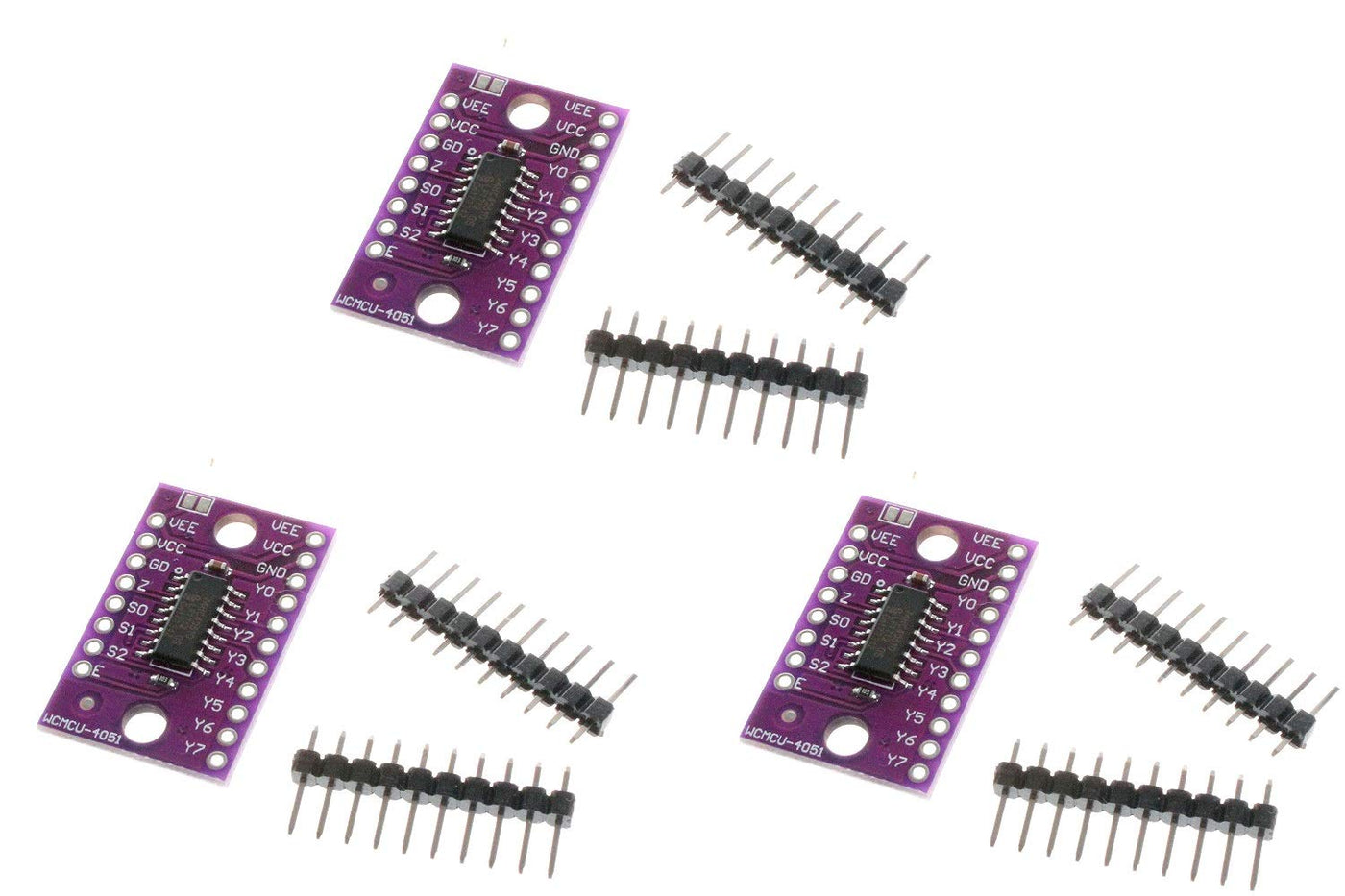

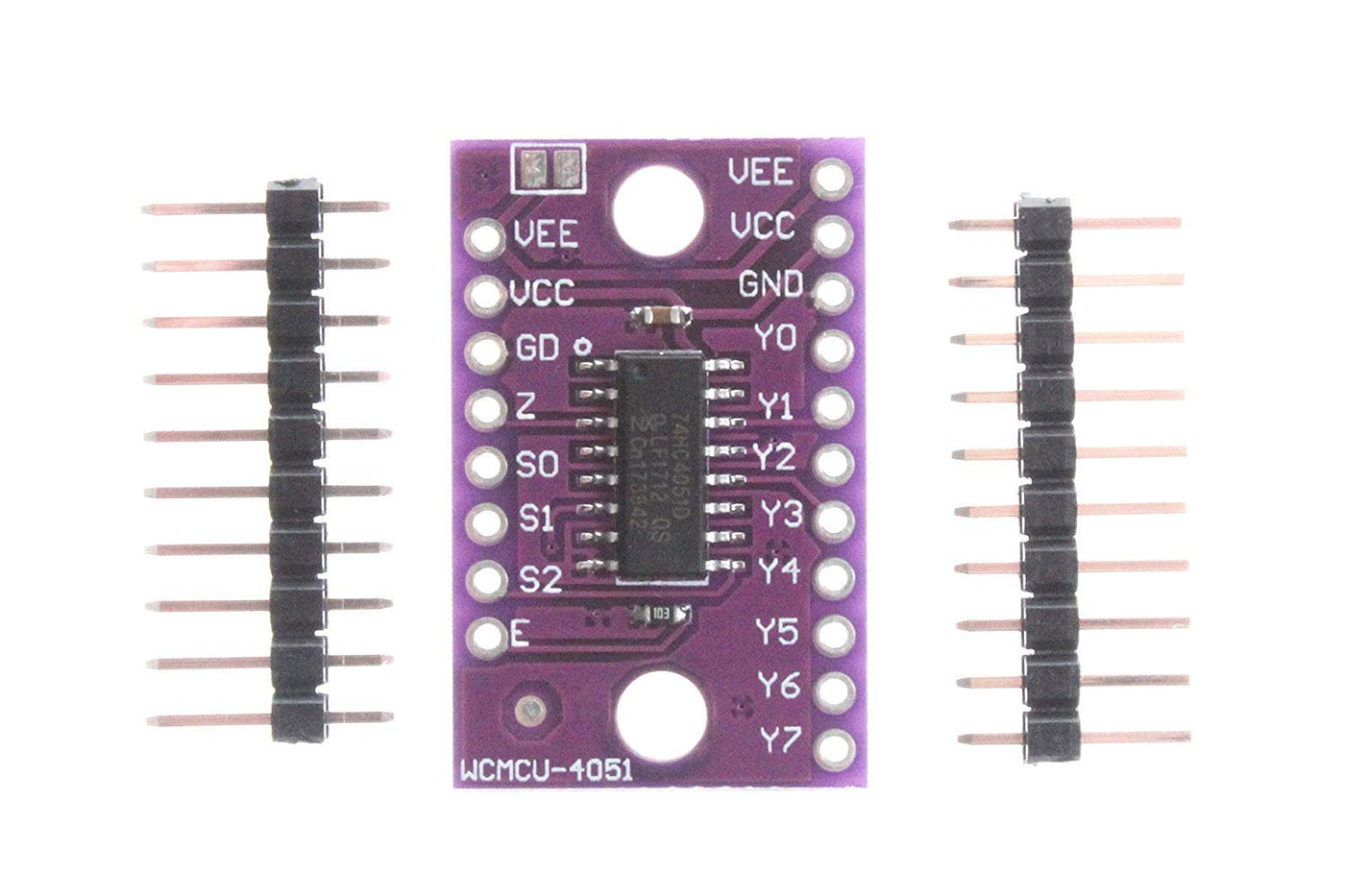

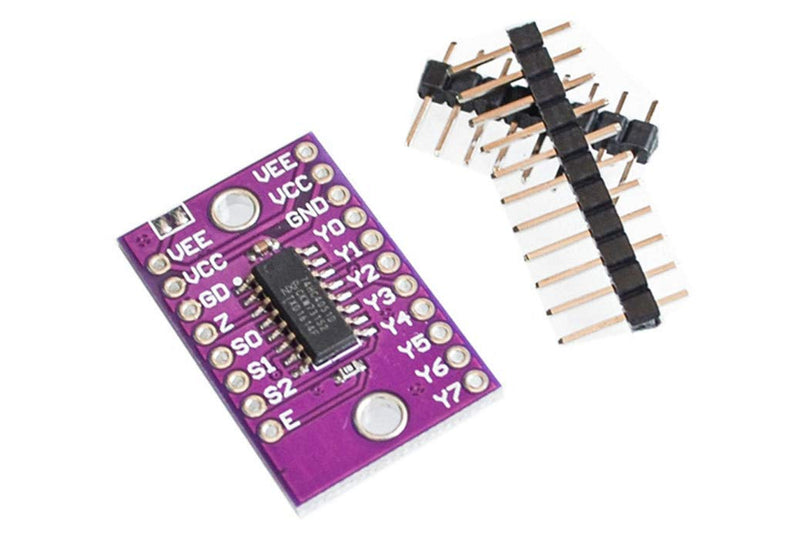

{"id":12982498754720,"title":"DollaTek 3Pcs 74HC4051 8 Channel Multiplexer Multiplexer Select Module","handle":"dollatek-3pcs-74hc4051-8-channel-multiplexer-multiplexer-select-module","description":"\u003ch3\u003eDollaTek 3Pcs 74HC4051 8-Channel Multiplexer Multiplexer Select Module\u003c\/h3\u003e \u003cp id=\"b\"\u003eDescription: The 74HC4051 is a single-pole analog octal switch (SP8T) designed for analog or digital 8:1 multiplexers \/ Demultiplexer applications. The switch has three digital select inputs (S0, S1 and S2), eight independent inputs\/outputs (Yn), one common input\/output (Z) and one digital enable input (E). When E is HIGH, the switches are off. The inputs contain clamping diodes. This allows the use of current limiting resistors to connect inputs to voltages above VCC. Features: Wide analog input voltage range from -5V to +5V Complies with JEDEC Standard #7A Low on-resistance: 80 ohms (typical) at VCC - VEE = 4.5V 70 ohms (typical) at VCC - VEE = 6.0V 60 ohms (typical) at VCC - VEE = 9.0V Logic level translation: Allows communication of 5V logic with analog ± 5V signals Typical integrated \"pause before make\" ESD protection: HBM JESD22-A114F exceeds 2000V MM JESD22-A115 -A exceeds 200V CDM JESD22-C101E exceeds 1000V Specified from -40℃ to +85 and -40 to +125 Package Included: 3 x 74HC4051 8 Channel Mux Analog Multiplexer Selection Module\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eWhen E is low, one of the 8 switches from S0-S2 is selected (low impedance state). When E is high, all switches go to a high impedance state\u003c\/li\u003e \u003cli\u003eVCC and GND are the supply pins for the digital control connections (S0-S2, E). The VCC to GND range of the 74HC4051 is 2.0V-10.0V.\u003c\/li\u003e \u003cli\u003eAs a digital multiplexer\/demultiplexer, the VEE is connected to GND (usually grounded).\u003c\/li\u003e ul\u0026gt;\u003c\/ul\u003e","published_at":"2024-04-08T10:40:28+10:00","created_at":"2024-04-08T10:40:35+10:00","vendor":"DollaTek","type":"Analog multiplexers","tags":["industryDE"],"price":14900,"price_min":14900,"price_max":14900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":49453204504736,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B07MPB4VZL","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"DollaTek 3Pcs 74HC4051 8 Channel Multiplexer Multiplexer Select Module","public_title":null,"options":["Default Title"],"price":14900,"weight":700,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/dingoship.com.au\/cdn\/shop\/files\/de-B07MPB4VZL.jpg?v=1712619344","\/\/dingoship.com.au\/cdn\/shop\/files\/51dsMMkxZlL.jpg?v=1712536835","\/\/dingoship.com.au\/cdn\/shop\/files\/61mnFqSBY5L.jpg?v=1712536835","\/\/dingoship.com.au\/cdn\/shop\/files\/61D8_5uq3RL.jpg?v=1712536835","\/\/dingoship.com.au\/cdn\/shop\/files\/61bKEA1krIL.jpg?v=1712536835"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B07MPB4VZL.jpg?v=1712619344","options":["Title"],"media":[{"alt":null,"id":33829083873440,"position":1,"preview_image":{"aspect_ratio":1.5,"height":1000,"width":1500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B07MPB4VZL.jpg?v=1712619344"},"aspect_ratio":1.5,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B07MPB4VZL.jpg?v=1712619344","width":1500},{"alt":null,"id":33812052836512,"position":2,"preview_image":{"aspect_ratio":1.5,"height":692,"width":1038,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51dsMMkxZlL.jpg?v=1712536835"},"aspect_ratio":1.5,"height":692,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51dsMMkxZlL.jpg?v=1712536835","width":1038},{"alt":null,"id":33812052869280,"position":3,"preview_image":{"aspect_ratio":1.5,"height":1000,"width":1500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61mnFqSBY5L.jpg?v=1712536835"},"aspect_ratio":1.5,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61mnFqSBY5L.jpg?v=1712536835","width":1500},{"alt":null,"id":33812052902048,"position":4,"preview_image":{"aspect_ratio":1.5,"height":1000,"width":1500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61D8_5uq3RL.jpg?v=1712536835"},"aspect_ratio":1.5,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61D8_5uq3RL.jpg?v=1712536835","width":1500},{"alt":null,"id":33812052934816,"position":5,"preview_image":{"aspect_ratio":1.5,"height":1000,"width":1500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61bKEA1krIL.jpg?v=1712536835"},"aspect_ratio":1.5,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61bKEA1krIL.jpg?v=1712536835","width":1500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eDollaTek 3Pcs 74HC4051 8-Channel Multiplexer Multiplexer Select Module\u003c\/h3\u003e \u003cp id=\"b\"\u003eDescription: The 74HC4051 is a single-pole analog octal switch (SP8T) designed for analog or digital 8:1 multiplexers \/ Demultiplexer applications. The switch has three digital select inputs (S0, S1 and S2), eight independent inputs\/outputs (Yn), one common input\/output (Z) and one digital enable input (E). When E is HIGH, the switches are off. The inputs contain clamping diodes. This allows the use of current limiting resistors to connect inputs to voltages above VCC. Features: Wide analog input voltage range from -5V to +5V Complies with JEDEC Standard #7A Low on-resistance: 80 ohms (typical) at VCC - VEE = 4.5V 70 ohms (typical) at VCC - VEE = 6.0V 60 ohms (typical) at VCC - VEE = 9.0V Logic level translation: Allows communication of 5V logic with analog ± 5V signals Typical integrated \"pause before make\" ESD protection: HBM JESD22-A114F exceeds 2000V MM JESD22-A115 -A exceeds 200V CDM JESD22-C101E exceeds 1000V Specified from -40℃ to +85 and -40 to +125 Package Included: 3 x 74HC4051 8 Channel Mux Analog Multiplexer Selection Module\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eWhen E is low, one of the 8 switches from S0-S2 is selected (low impedance state). When E is high, all switches go to a high impedance state\u003c\/li\u003e \u003cli\u003eVCC and GND are the supply pins for the digital control connections (S0-S2, E). The VCC to GND range of the 74HC4051 is 2.0V-10.0V.\u003c\/li\u003e \u003cli\u003eAs a digital multiplexer\/demultiplexer, the VEE is connected to GND (usually grounded).\u003c\/li\u003e ul\u0026gt;\u003c\/ul\u003e"}
