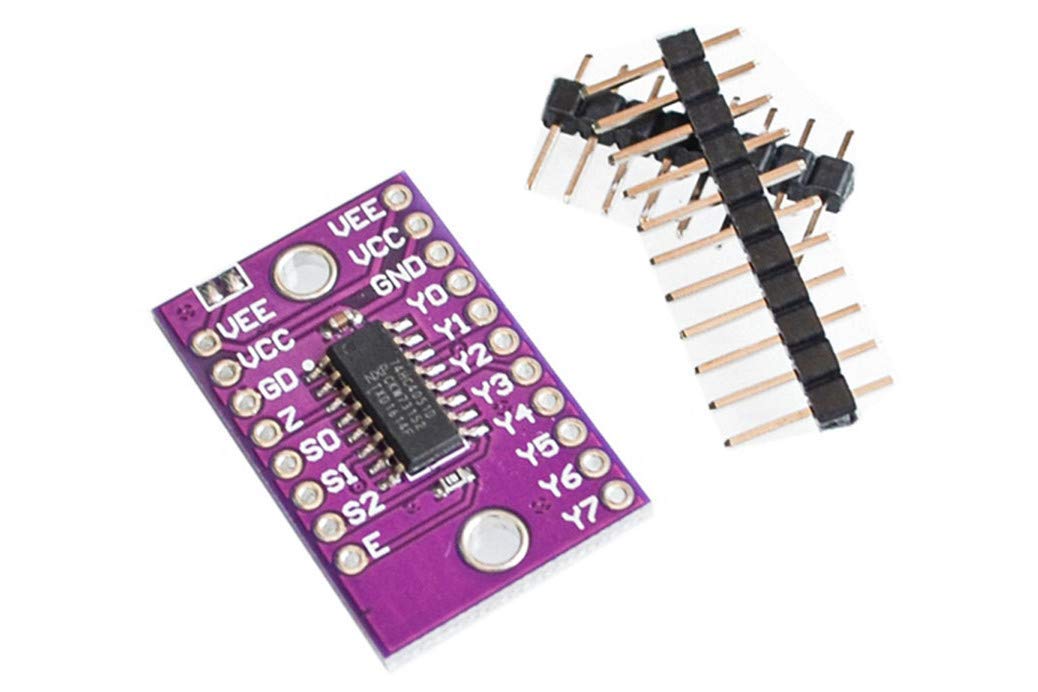

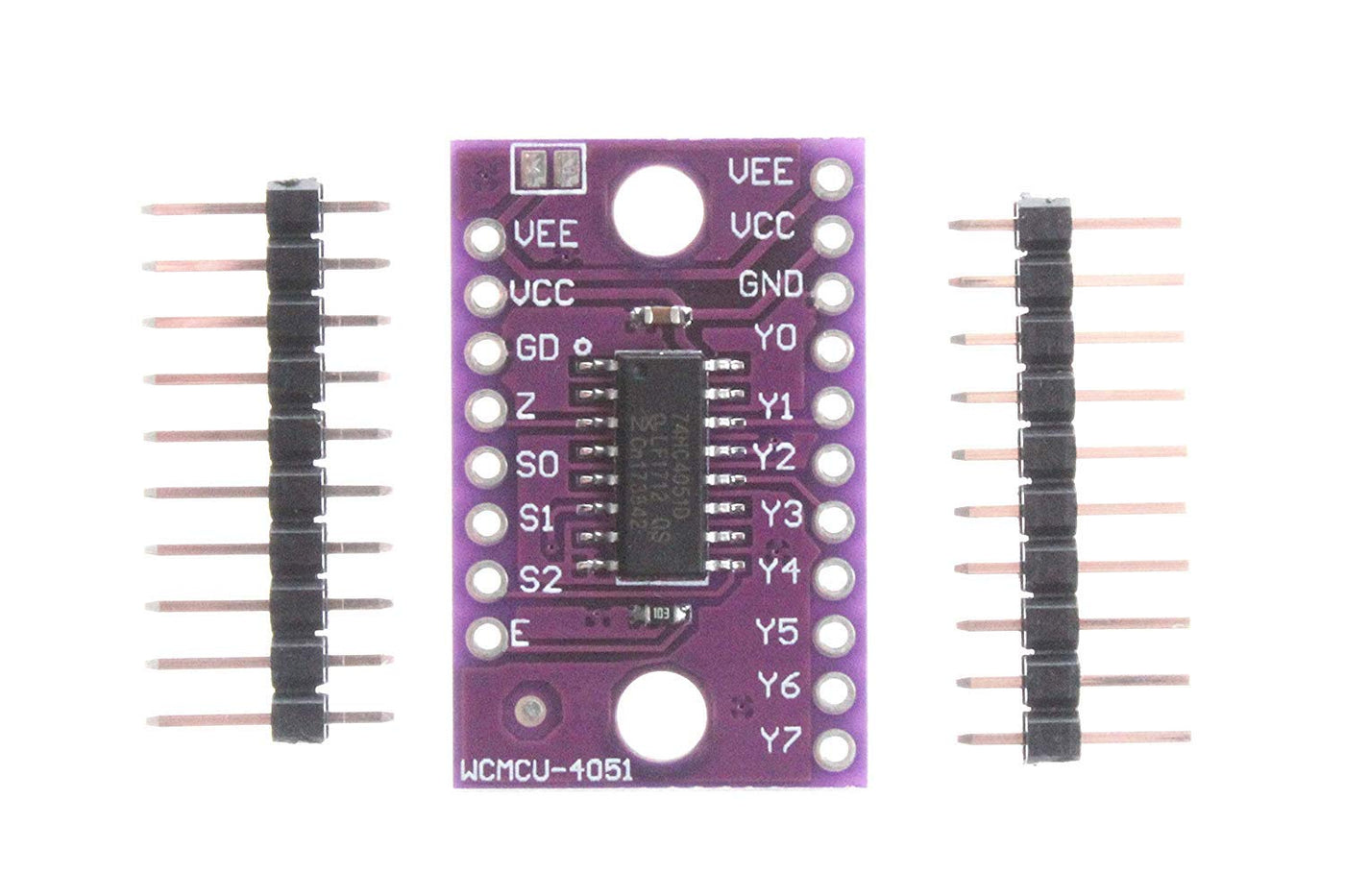

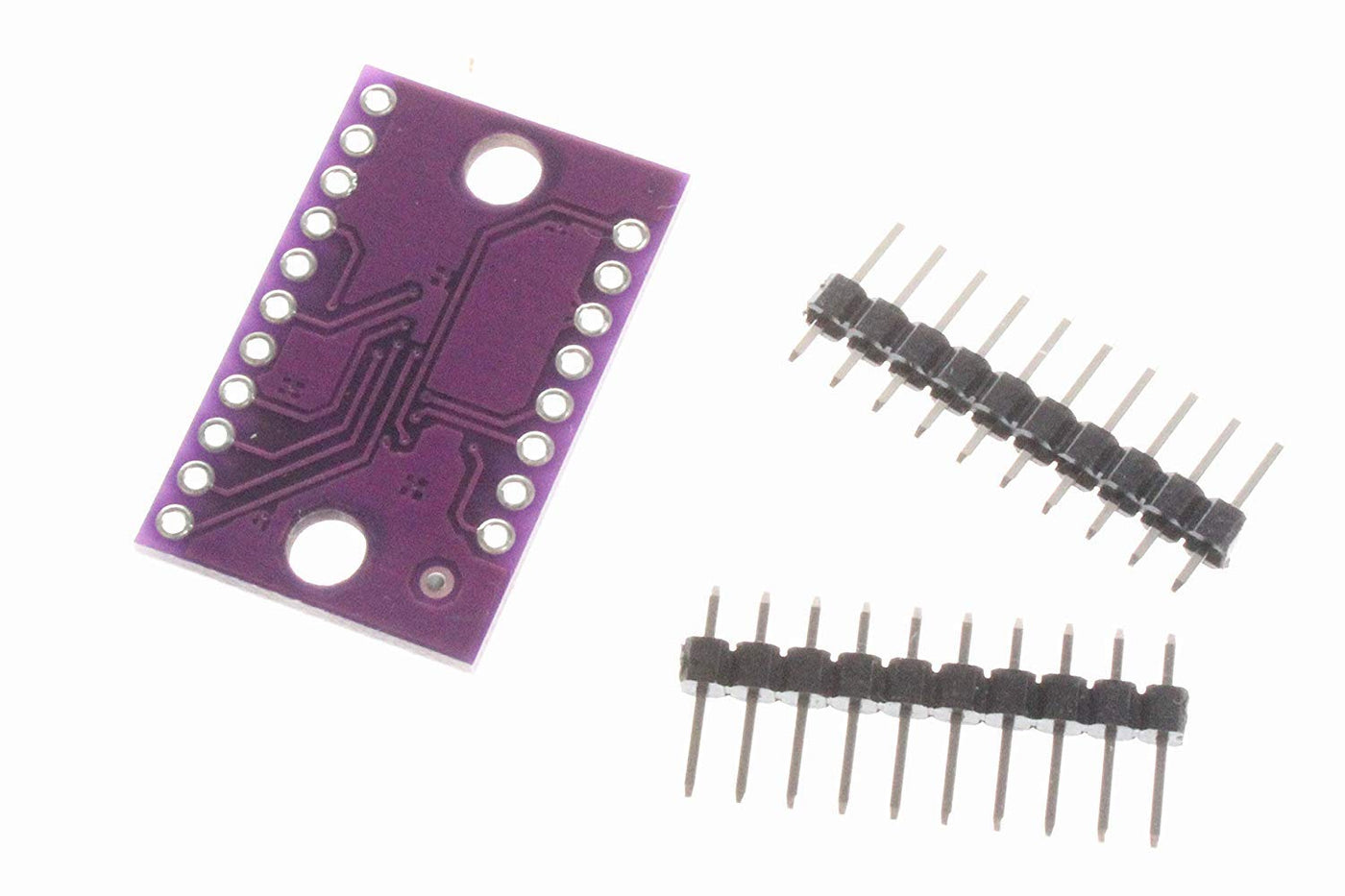

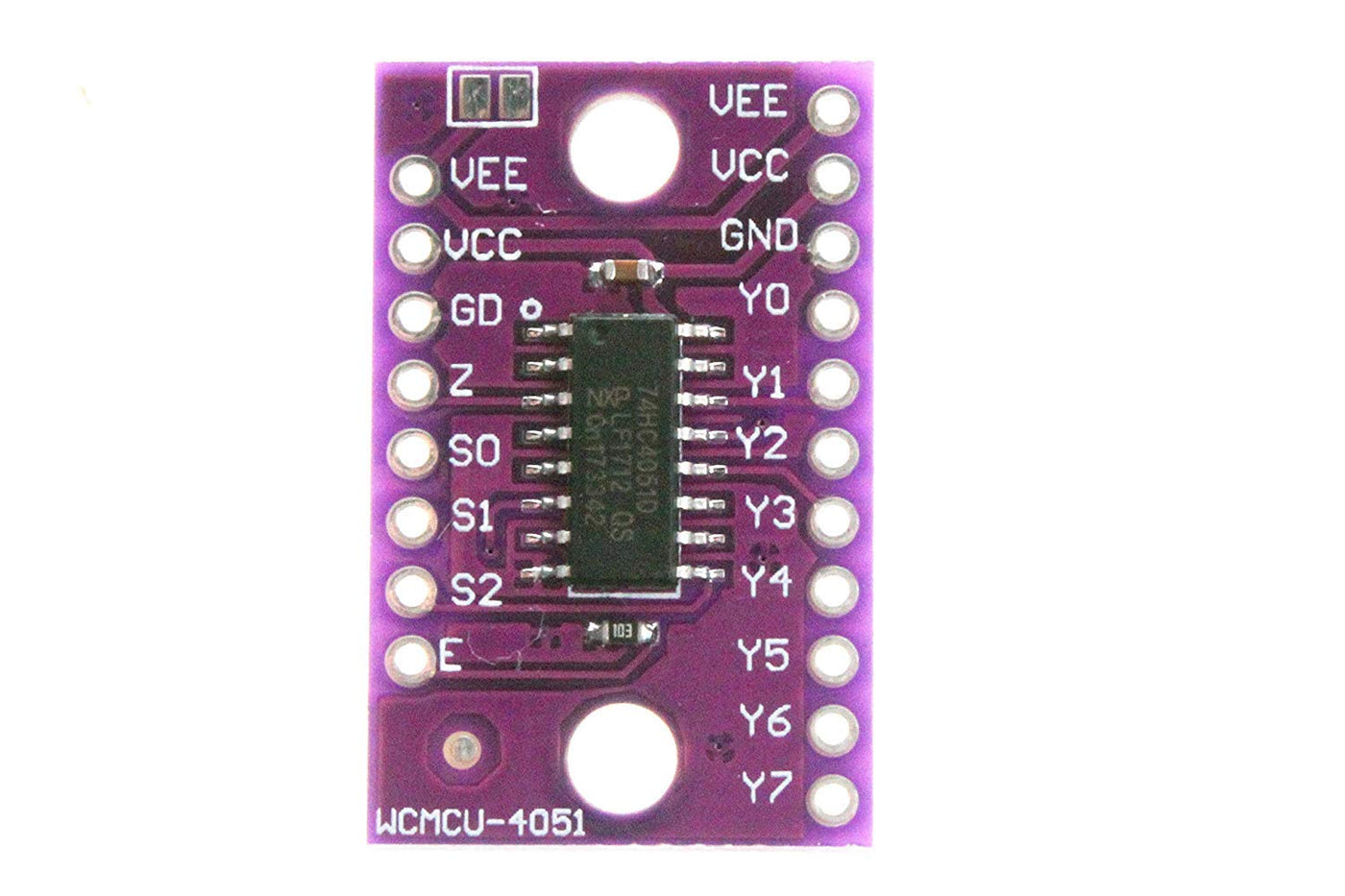

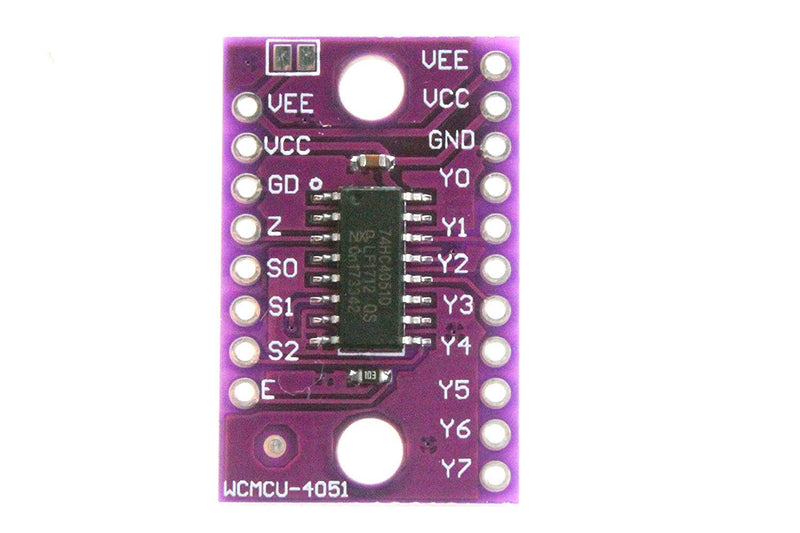

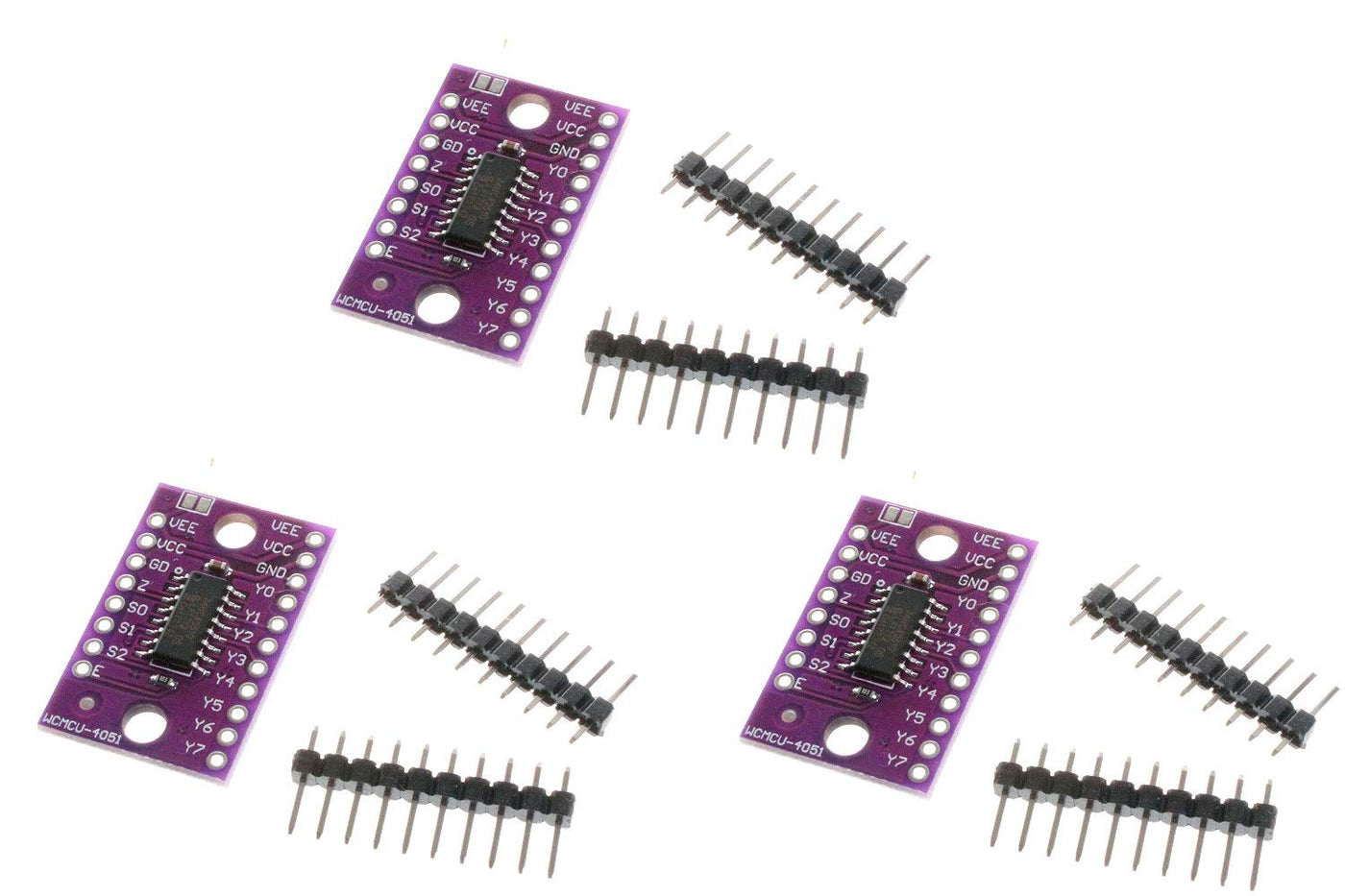

{"id":15859918143648,"title":"DollaTek 3pcs 74HC4051 8-Channel Multiplexer Multiplexer Selection Module","handle":"dollatek-3pcs-74hc4051-8-channel-multiplexer-multiplexer-selection-module","description":"\u003ch3\u003eDollaTek 3pcs 74HC4051 8-Channel Multiplexer Multiplexer Selection Module\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: The 74HC4051 is a single pole analog octal switch (SP8T) suitable\nfor analog or digital 8:1 multiplexer\/demultiplexer applications. The switch\nhas three digital selection inputs (S0, S1 and S2), eight independent\ninput\/outputs (Yn), one common input\/output (Z) and one digital release input\n(E). When E is high, the switches are off. The inputs contain clamping diodes.\nThis allows the use of current limiting resistors to connect inputs to\nvoltages via VCC. Features: Wide analogue input voltage range from -5V to +5V\nComplies with JEDEC standard 7A Low duty resistance: 80 Ohm (typical) at VCC\n- VEE = 4.5 V. 70 Ohm (typical) at VCC - VEE = 6.0 V. 60 Ohm (typical) at VCC\n- VEE = 9.0 V. Logic level conversion: allows communication of 5V logic with\nanalog ± 5V signals Typical built-in \"break before make\" ESD protection: HBM\nJESD22-A114F exceeds 2000V MM JESD22-A115-A exceeds 200V CDM JESD22-C101E\nexceeds 1000V Rated from -40°C to + 85°C and -40°C to +125°C. Box contents: 3\nx 74HC4051 8 Channel Mux-Analog Multiplexer Selection Module\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eWhen E is low, one of the 8 switches of S0-S2 is selected (low impedance state). When E is high, all switches change to a high impedance state\u003c\/li\u003e\n \u003cli\u003eVCC and GND are the supply pins for the digital control ports (S0-S2, E). The VCC to GND range of the 74HC4051 is 2.0V-10.0V.\u003c\/li\u003e\n \u003cli\u003eAs a digital multiplexer\/demultiplexer, the VEE is connected to GND (usually grounded).\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-07T14:50:00+10:00","created_at":"2026-09-07T10:59:45+10:00","vendor":"DollaTek","type":"Analog Multiplexers","tags":["industrial_DE_Aug2026"],"price":9000,"price_min":9000,"price_max":9000,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":58817159823520,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B07MPB4VZL","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"DollaTek 3pcs 74HC4051 8-Channel Multiplexer Multiplexer Selection Module","public_title":null,"options":["Default Title"],"price":9000,"weight":20,"compare_at_price":null,"inventory_management":"shopify","barcode":"725835035415","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/files\/de-B07MPB4VZL_8381c2aa-dd4a-4753-a6af-2c87ebcdf11c.jpg?v=1788742787","\/\/dingoship.com.au\/cdn\/shop\/files\/51dsMMkxZlL_63a5cd83-353a-41c1-a1bb-183fe42a1bf4.jpg?v=1788742787","\/\/dingoship.com.au\/cdn\/shop\/files\/61mnFqSBY5L_49e9e7c4-10be-4150-b78a-e184db52e46d.jpg?v=1788742787","\/\/dingoship.com.au\/cdn\/shop\/files\/61D8_5uq3RL_7d40a385-6d49-4661-87f0-3d877d642eb9.jpg?v=1788742787","\/\/dingoship.com.au\/cdn\/shop\/files\/61bKEA1krIL_e4e47ec8-f6df-42f0-b402-43143e61d502.jpg?v=1788742788"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B07MPB4VZL_8381c2aa-dd4a-4753-a6af-2c87ebcdf11c.jpg?v=1788742787","options":["Title"],"media":[{"alt":null,"id":70258064228512,"position":1,"preview_image":{"aspect_ratio":1.5,"height":1000,"width":1500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B07MPB4VZL_8381c2aa-dd4a-4753-a6af-2c87ebcdf11c.jpg?v=1788742787"},"aspect_ratio":1.5,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B07MPB4VZL_8381c2aa-dd4a-4753-a6af-2c87ebcdf11c.jpg?v=1788742787","width":1500},{"alt":null,"id":70258064261280,"position":2,"preview_image":{"aspect_ratio":1.5,"height":692,"width":1038,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51dsMMkxZlL_63a5cd83-353a-41c1-a1bb-183fe42a1bf4.jpg?v=1788742787"},"aspect_ratio":1.5,"height":692,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51dsMMkxZlL_63a5cd83-353a-41c1-a1bb-183fe42a1bf4.jpg?v=1788742787","width":1038},{"alt":null,"id":70258064294048,"position":3,"preview_image":{"aspect_ratio":1.5,"height":1000,"width":1500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61mnFqSBY5L_49e9e7c4-10be-4150-b78a-e184db52e46d.jpg?v=1788742787"},"aspect_ratio":1.5,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61mnFqSBY5L_49e9e7c4-10be-4150-b78a-e184db52e46d.jpg?v=1788742787","width":1500},{"alt":null,"id":70258064326816,"position":4,"preview_image":{"aspect_ratio":1.5,"height":1000,"width":1500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61D8_5uq3RL_7d40a385-6d49-4661-87f0-3d877d642eb9.jpg?v=1788742787"},"aspect_ratio":1.5,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61D8_5uq3RL_7d40a385-6d49-4661-87f0-3d877d642eb9.jpg?v=1788742787","width":1500},{"alt":null,"id":70258064359584,"position":5,"preview_image":{"aspect_ratio":1.5,"height":1000,"width":1500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61bKEA1krIL_e4e47ec8-f6df-42f0-b402-43143e61d502.jpg?v=1788742788"},"aspect_ratio":1.5,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61bKEA1krIL_e4e47ec8-f6df-42f0-b402-43143e61d502.jpg?v=1788742788","width":1500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eDollaTek 3pcs 74HC4051 8-Channel Multiplexer Multiplexer Selection Module\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: The 74HC4051 is a single pole analog octal switch (SP8T) suitable\nfor analog or digital 8:1 multiplexer\/demultiplexer applications. The switch\nhas three digital selection inputs (S0, S1 and S2), eight independent\ninput\/outputs (Yn), one common input\/output (Z) and one digital release input\n(E). When E is high, the switches are off. The inputs contain clamping diodes.\nThis allows the use of current limiting resistors to connect inputs to\nvoltages via VCC. Features: Wide analogue input voltage range from -5V to +5V\nComplies with JEDEC standard 7A Low duty resistance: 80 Ohm (typical) at VCC\n- VEE = 4.5 V. 70 Ohm (typical) at VCC - VEE = 6.0 V. 60 Ohm (typical) at VCC\n- VEE = 9.0 V. Logic level conversion: allows communication of 5V logic with\nanalog ± 5V signals Typical built-in \"break before make\" ESD protection: HBM\nJESD22-A114F exceeds 2000V MM JESD22-A115-A exceeds 200V CDM JESD22-C101E\nexceeds 1000V Rated from -40°C to + 85°C and -40°C to +125°C. Box contents: 3\nx 74HC4051 8 Channel Mux-Analog Multiplexer Selection Module\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eWhen E is low, one of the 8 switches of S0-S2 is selected (low impedance state). When E is high, all switches change to a high impedance state\u003c\/li\u003e\n \u003cli\u003eVCC and GND are the supply pins for the digital control ports (S0-S2, E). The VCC to GND range of the 74HC4051 is 2.0V-10.0V.\u003c\/li\u003e\n \u003cli\u003eAs a digital multiplexer\/demultiplexer, the VEE is connected to GND (usually grounded).\u003c\/li\u003e\n \u003c\/ul\u003e"}
