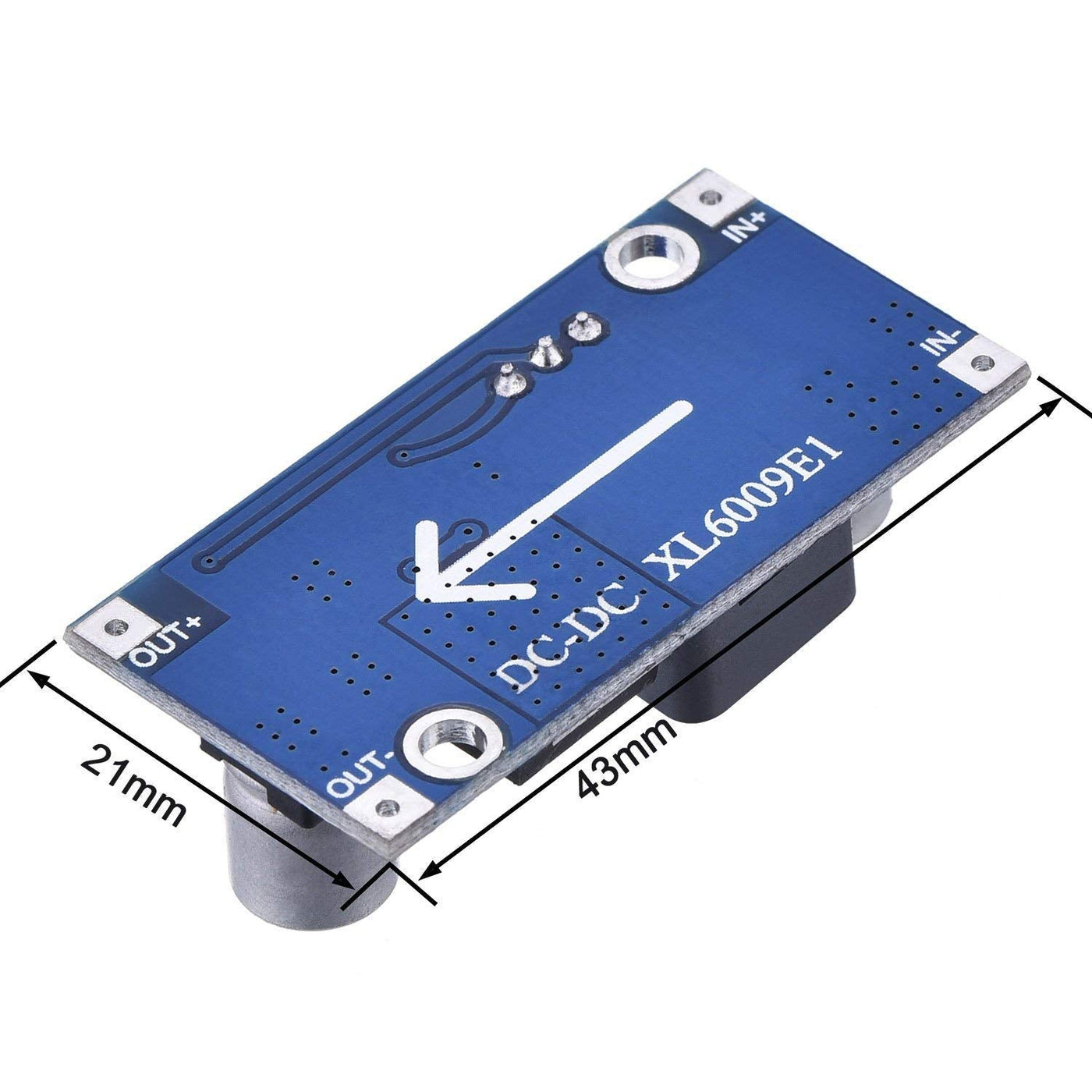

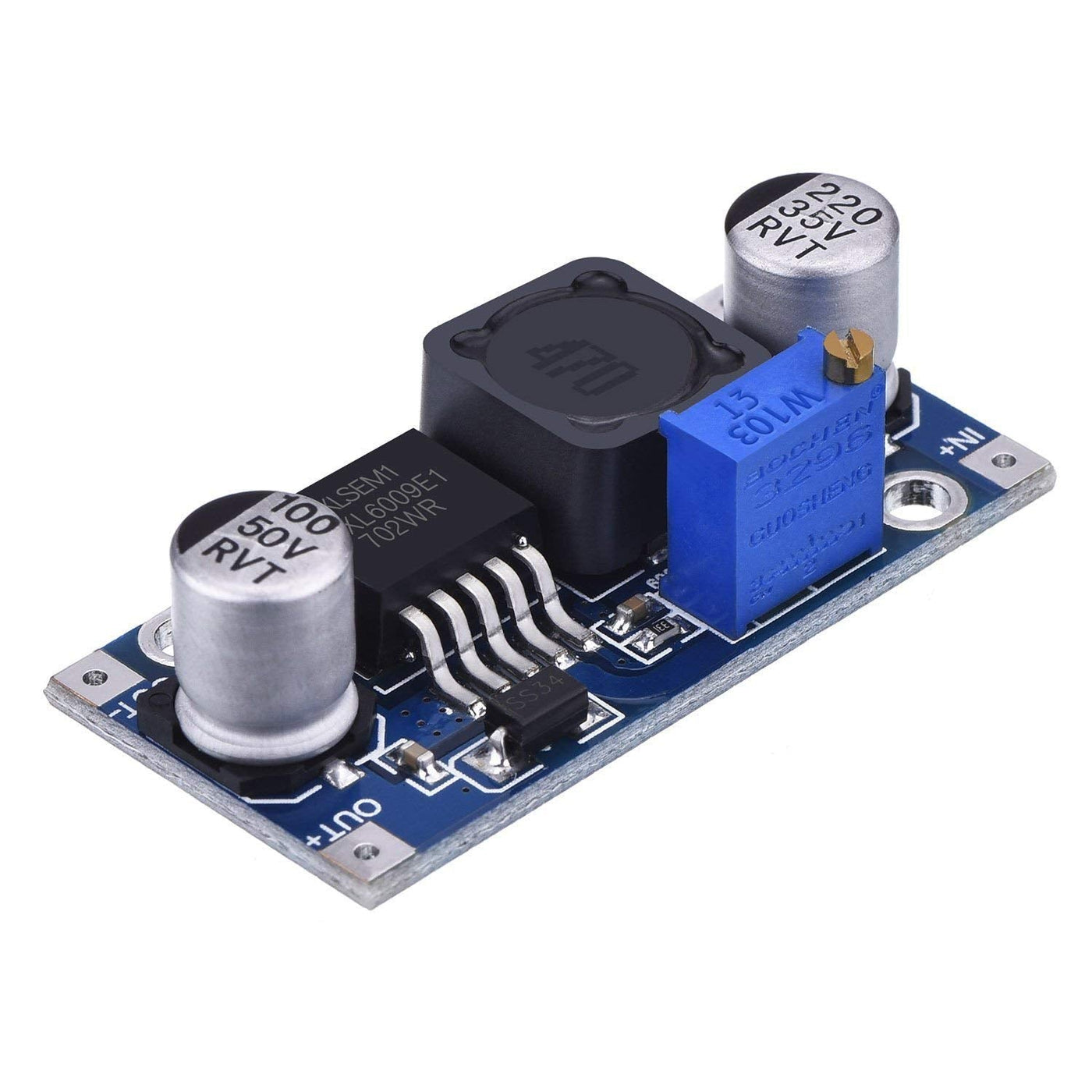

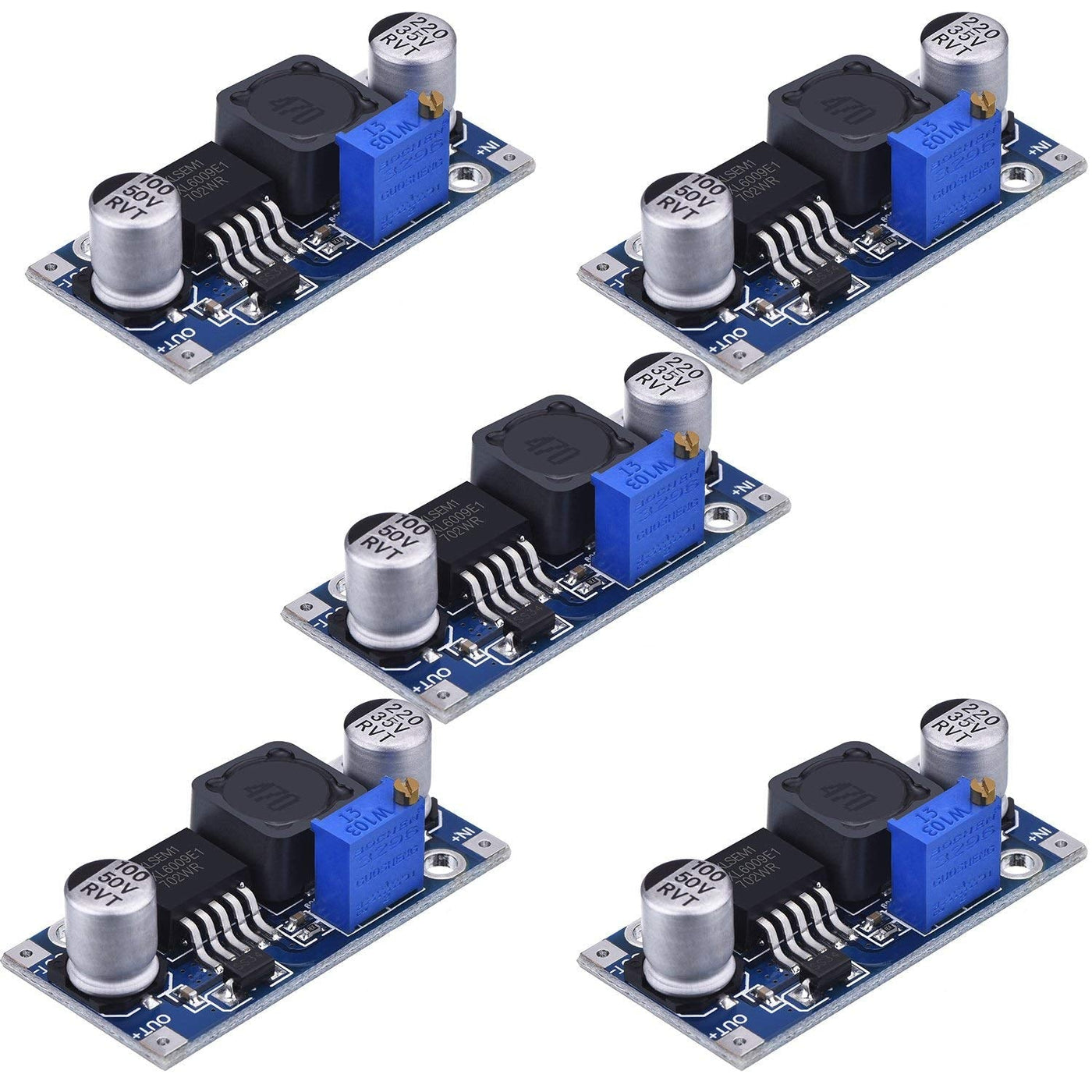

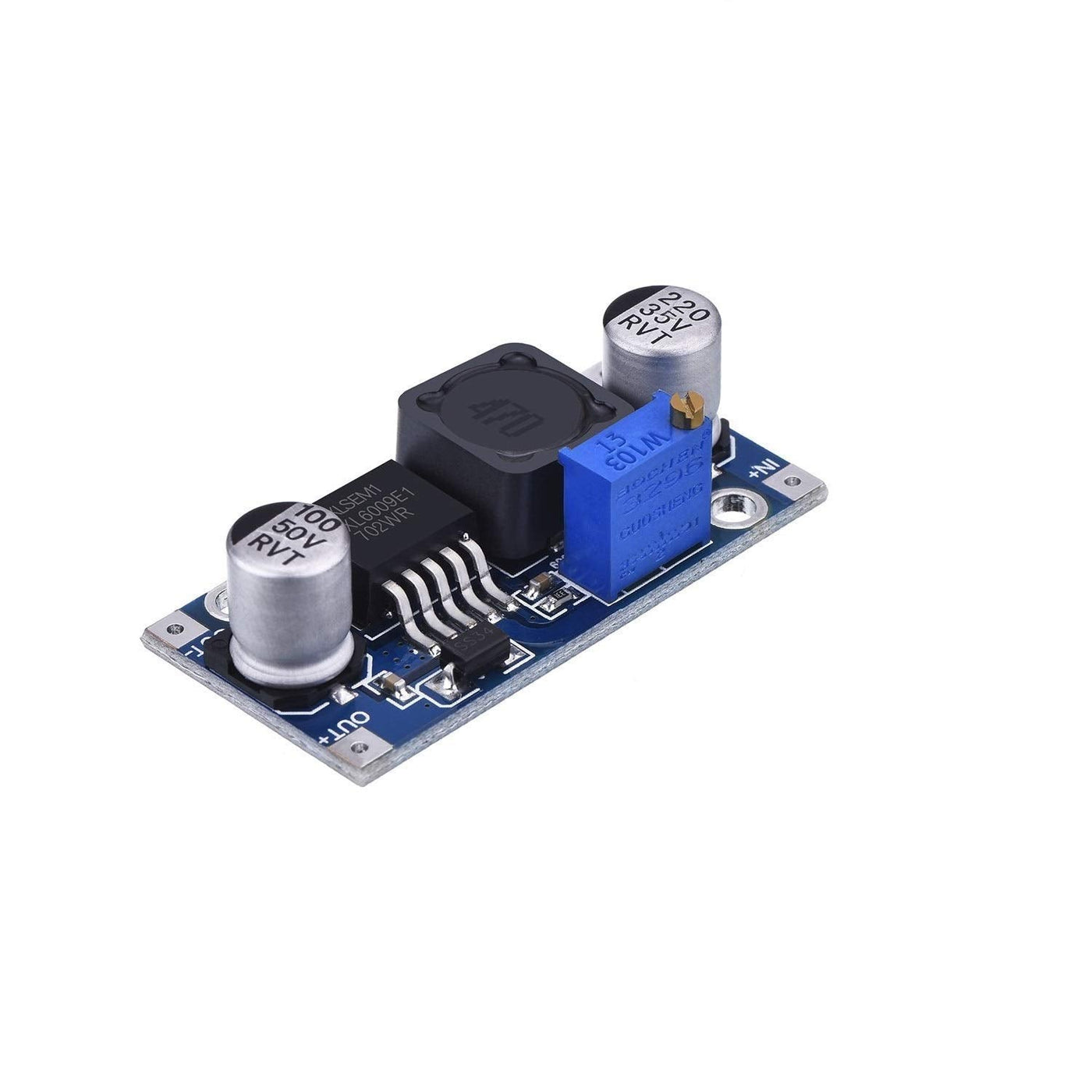

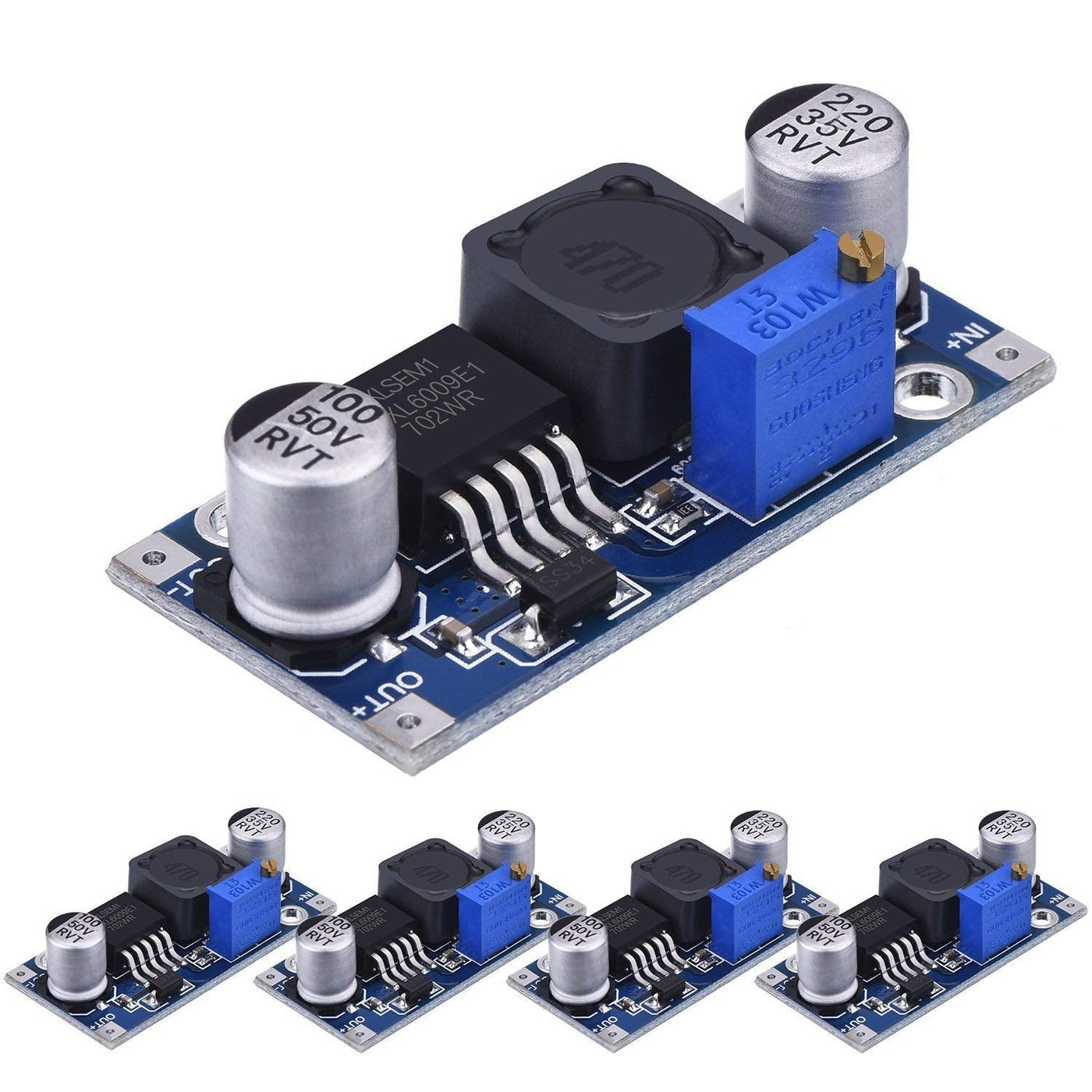

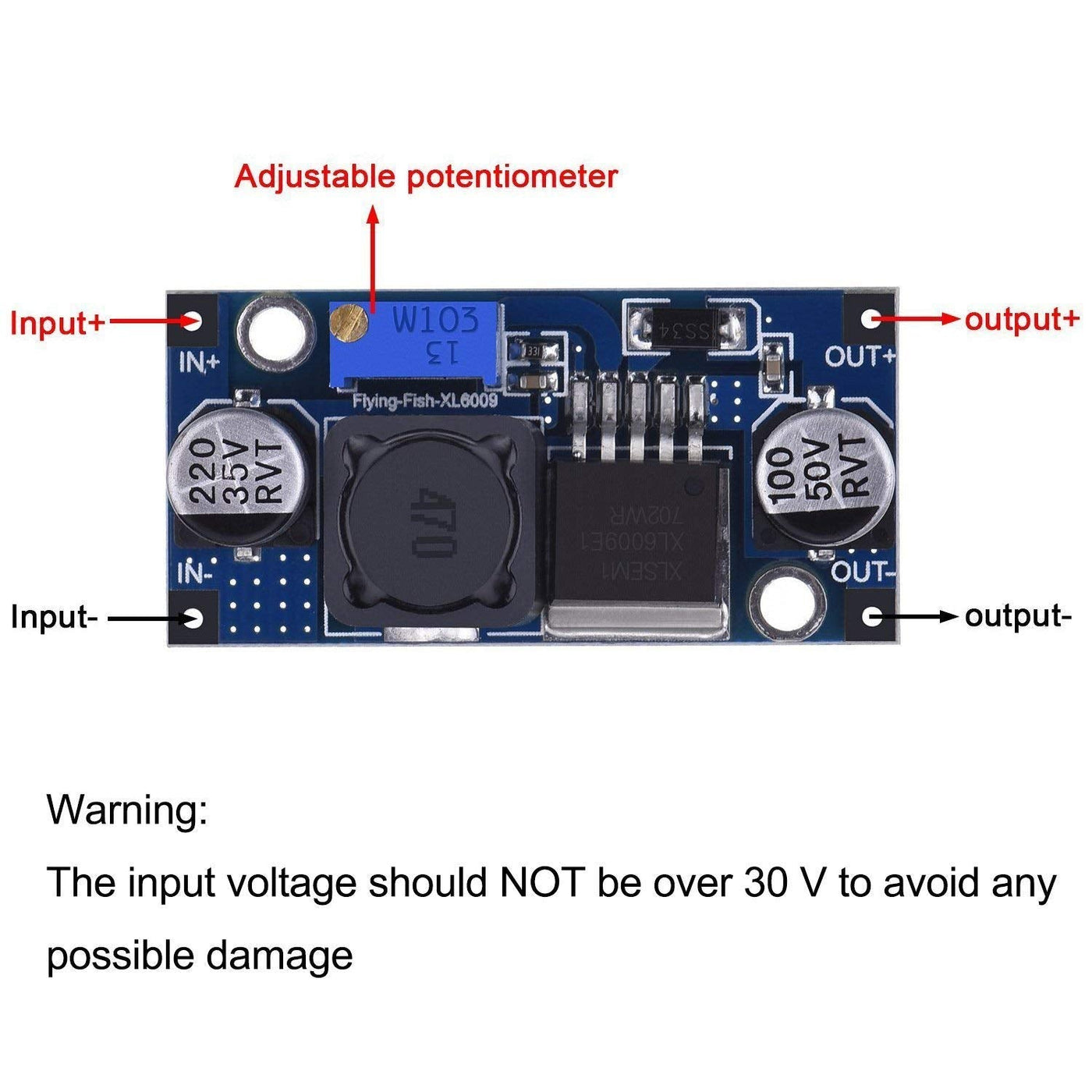

{"id":15193046745248,"title":"DollaTek 5Pcs Boost Converter Module XL6009 DC-DC 3.0-30V to 5-35V Output Voltage Adjustable Step-up Circuit Board","handle":"dollatek-5pcs-boost-converter-module-xl6009-dc-dc-3-0-30v-to-5-35v-output-voltage-adjustable-step-up-circuit-board","description":"\u003ch3\u003eDollaTek 5Pcs Boost Converter Module XL6009 DC-DC 3.0-30V to 5-35V Output Voltage Adjustable Step-up Circuit Board\u003c\/h3\u003e \u003cp id=\"b\"\u003eSpecifications Type of module: unfenced upward movement (boost ) Rectifier way: synchronous rectifier Input range: 3V to 32V Output range: 5V to 35V Input current 4A (maximum), idle 18mA (5V input, 8V output, idle less than 18mA. The higher the voltage, the larger the no-load current) Conversion efficiency: \u0026lt;94% (the larger the pressure difference, the lower the efficiency) Switching frequency: 400 kHz Output ripple: 50 mV (the higher the voltage, the current, the larger the ripple) Load regulation: plus or minus 0 .5% Voltage regulation: plus or minus 0.5% Working temperature: - 40 °C to + 85 °C Overall dimensions: 43 mm x 21 mm to 14 mm (length x width x height) Attention: Do not connect this booster to your project before you have adjusted the potentiometer. Package includes: 5 x DC-DC Boost Module\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eXL6009 DC-DC Adjustable Boost Converter Module. The boost converter card is a non-isolated boost converter module with good efficiency \u003c\/li\u003e \u003cli\u003eInput: DC 3V to 30V, optimal operating voltage range: 5V to 30V; Output: DC 5V to 35V Voltage continuously adjustable, maximum output current 4A\u003c\/li\u003e \u003cli\u003eBoost converter module: You can attach to the emergency light lamp or other electronic devices between the appropriate voltage range, DIY output and adjustable mobile power, charger, etc .\u003c\/li\u003e \u003cli\u003eThis is a powerful 400KHz 4A step-up module for switch currencies. This XL6009E1 module comes with the 3rd generation high frequency switch technology as the core chip, the performance is significantly higher than LM2577\u003c\/li\u003e \u003cli\u003eAttention: This only applies to the increasing output voltage; The input voltage should not exceed 30 V to avoid possible damage\u003c\/li\u003e\n\u003c\/ul\u003e","published_at":"2025-10-03T10:46:51+10:00","created_at":"2025-10-03T10:46:47+10:00","vendor":"DollaTek","type":"Power input modules","tags":["industryDE"],"price":15700,"price_min":15700,"price_max":15700,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":52876497551520,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B081JNVGFZ","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"DollaTek 5Pcs Boost Converter Module XL6009 DC-DC 3.0-30V to 5-35V Output Voltage Adjustable Step-up Circuit Board","public_title":null,"options":["Default Title"],"price":15700,"weight":700,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/files\/de-B081JNVGFZ.jpg?v=1775753891","\/\/dingoship.com.au\/cdn\/shop\/files\/61rVkPpRljL.jpg?v=1759452410","\/\/dingoship.com.au\/cdn\/shop\/files\/71Ywe8dBxWL.jpg?v=1759452410","\/\/dingoship.com.au\/cdn\/shop\/files\/711fja4SmqL.jpg?v=1759452410","\/\/dingoship.com.au\/cdn\/shop\/files\/71hUo1hNxLL.jpg?v=1759452410","\/\/dingoship.com.au\/cdn\/shop\/files\/71-6AB3PzyL.jpg?v=1759452410"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B081JNVGFZ.jpg?v=1775753891","options":["Title"],"media":[{"alt":null,"id":38388105609376,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B081JNVGFZ.jpg?v=1775753891"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B081JNVGFZ.jpg?v=1775753891","width":1500},{"alt":null,"id":38388105642144,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61rVkPpRljL.jpg?v=1759452410"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61rVkPpRljL.jpg?v=1759452410","width":1500},{"alt":null,"id":38388105674912,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71Ywe8dBxWL.jpg?v=1759452410"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71Ywe8dBxWL.jpg?v=1759452410","width":1500},{"alt":null,"id":38388105707680,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/711fja4SmqL.jpg?v=1759452410"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/711fja4SmqL.jpg?v=1759452410","width":1500},{"alt":null,"id":38388105740448,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71hUo1hNxLL.jpg?v=1759452410"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71hUo1hNxLL.jpg?v=1759452410","width":1500},{"alt":null,"id":38388105773216,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71-6AB3PzyL.jpg?v=1759452410"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71-6AB3PzyL.jpg?v=1759452410","width":1500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eDollaTek 5Pcs Boost Converter Module XL6009 DC-DC 3.0-30V to 5-35V Output Voltage Adjustable Step-up Circuit Board\u003c\/h3\u003e \u003cp id=\"b\"\u003eSpecifications Type of module: unfenced upward movement (boost ) Rectifier way: synchronous rectifier Input range: 3V to 32V Output range: 5V to 35V Input current 4A (maximum), idle 18mA (5V input, 8V output, idle less than 18mA. The higher the voltage, the larger the no-load current) Conversion efficiency: \u0026lt;94% (the larger the pressure difference, the lower the efficiency) Switching frequency: 400 kHz Output ripple: 50 mV (the higher the voltage, the current, the larger the ripple) Load regulation: plus or minus 0 .5% Voltage regulation: plus or minus 0.5% Working temperature: - 40 °C to + 85 °C Overall dimensions: 43 mm x 21 mm to 14 mm (length x width x height) Attention: Do not connect this booster to your project before you have adjusted the potentiometer. Package includes: 5 x DC-DC Boost Module\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eXL6009 DC-DC Adjustable Boost Converter Module. The boost converter card is a non-isolated boost converter module with good efficiency \u003c\/li\u003e \u003cli\u003eInput: DC 3V to 30V, optimal operating voltage range: 5V to 30V; Output: DC 5V to 35V Voltage continuously adjustable, maximum output current 4A\u003c\/li\u003e \u003cli\u003eBoost converter module: You can attach to the emergency light lamp or other electronic devices between the appropriate voltage range, DIY output and adjustable mobile power, charger, etc .\u003c\/li\u003e \u003cli\u003eThis is a powerful 400KHz 4A step-up module for switch currencies. This XL6009E1 module comes with the 3rd generation high frequency switch technology as the core chip, the performance is significantly higher than LM2577\u003c\/li\u003e \u003cli\u003eAttention: This only applies to the increasing output voltage; The input voltage should not exceed 30 V to avoid possible damage\u003c\/li\u003e\n\u003c\/ul\u003e"}
