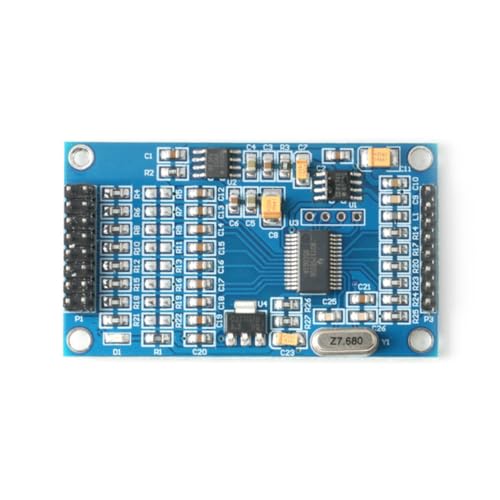

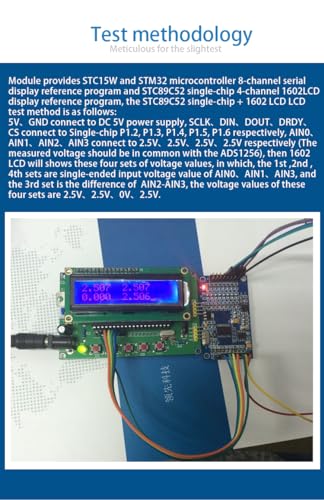

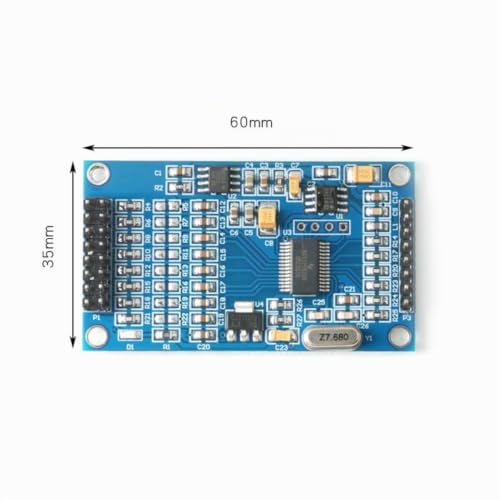

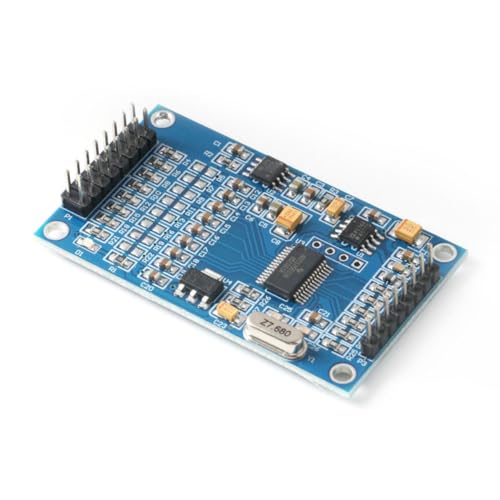

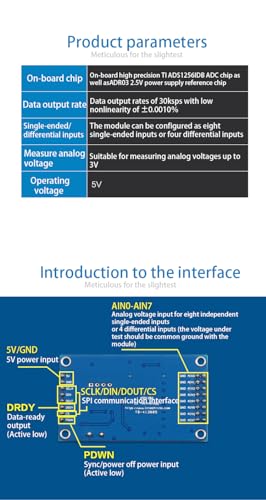

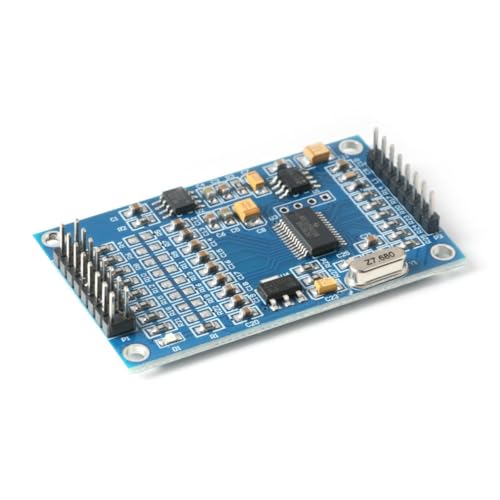

{"id":15859833634976,"title":"DollaTek ADS1256 24bit 8channel ADC AD Module High Precision ADC Acquisition Data","handle":"dollatek-ads1256-24bit-8channel-adc-ad-module-high-precision-adc-acquisition-data","description":"\u003ch3\u003eDollaTek ADS1256 24bit 8channel ADC AD Module High Precision ADC Acquisition Data\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDollaTek trademark reg.NO:013726393 DollaTek ADS1256 24bit 8channel ADC AD\nModule High Precision ADC Capture Data Overview: ADS1256 8 street 24-bit ADC\nmodule mounted TI ADS1256IDB, minimum power consumption, high-precision ADC\nchips and 2.5V zero point source, with SPI interface communication protocol,\ndata output rates up to 30ksps, support single-ended input and differential\ninput. Instructions: 5 V, GND: 5 V power consumption. SCLK, DIN, DOUT, CS: SPI\ncommunication interface DRDY: ADS1256 data are ready output (Active Low Level)\nPDWN: ADS1256 Sync \/ Power Off (Active Low Level) AIN0-AIN7: Analog voltage\ninput, can be configured as 8 single-ended inputs or 4 differential inputs\n(the measured voltage should be shared with the module) Interface description:\nVCC, RXD, TXD, GND: UART interface VCC, SDA, SCL, GND: I2C interface. MISO,\nMOSI, SCK, CS2, CS1, CS0, GND, VCC: SPI interface Precautions: Since the\nvoltage of ADS1256 is 5V and the measured voltage is 2V below the supply\nvoltage, the module is only suitable for measuring analogue voltages within\n3V. Box contents: 1 x DollaTek ADS1256 24bit 8channel ADC AD module high-\nprecision ADC acquisition data\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eOn-board high precision TI ADS1256IDB ADC chips\u003c\/li\u003e\n \u003cli\u003eOn-board ADR03 2.5V date source source chips\u003c\/li\u003e\n \u003cli\u003eData output rates up to 30ksps, non-linearity is low to 0.0010%\u003c\/li\u003e\n \u003cli\u003eThe module can be configured as either 8 single-ended inputs or 4 differential inputs. ADS1256 module is suitable for measuring the analogue voltage within 3 V\u003c\/li\u003e\n \u003cli\u003eModule operating voltage is 5 V. Size: 35 x 60 mm\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-07T15:13:45+10:00","created_at":"2026-09-07T10:31:23+10:00","vendor":"DollaTek","type":"Function Generators","tags":["industrial_DE_Aug2026"],"price":13700,"price_min":13700,"price_max":13700,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":58816986087584,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B07DK5GC9H","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"DollaTek ADS1256 24bit 8channel ADC AD Module High Precision ADC Acquisition Data","public_title":null,"options":["Default Title"],"price":13700,"weight":20,"compare_at_price":null,"inventory_management":"shopify","barcode":"742548979577","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/files\/de-B07DK5GC9H.jpg?v=1788741086","\/\/dingoship.com.au\/cdn\/shop\/files\/41WY6ahswIL.jpg?v=1788741085","\/\/dingoship.com.au\/cdn\/shop\/files\/413JqmaH1DL.jpg?v=1788741085","\/\/dingoship.com.au\/cdn\/shop\/files\/41uaZUYIGIL.jpg?v=1788741085","\/\/dingoship.com.au\/cdn\/shop\/files\/41apBfYIdZL.jpg?v=1788741085","\/\/dingoship.com.au\/cdn\/shop\/files\/51HqVDEN3RL.jpg?v=1788741087"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B07DK5GC9H.jpg?v=1788741086","options":["Title"],"media":[{"alt":null,"id":70257539809440,"position":1,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B07DK5GC9H.jpg?v=1788741086"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B07DK5GC9H.jpg?v=1788741086","width":500},{"alt":null,"id":70257539842208,"position":2,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/41WY6ahswIL.jpg?v=1788741085"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/41WY6ahswIL.jpg?v=1788741085","width":500},{"alt":null,"id":70257539874976,"position":3,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/413JqmaH1DL.jpg?v=1788741085"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/413JqmaH1DL.jpg?v=1788741085","width":500},{"alt":null,"id":70257539907744,"position":4,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/41uaZUYIGIL.jpg?v=1788741085"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/41uaZUYIGIL.jpg?v=1788741085","width":500},{"alt":null,"id":70257539940512,"position":5,"preview_image":{"aspect_ratio":0.532,"height":500,"width":266,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/41apBfYIdZL.jpg?v=1788741085"},"aspect_ratio":0.532,"height":500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/41apBfYIdZL.jpg?v=1788741085","width":266},{"alt":null,"id":70257539973280,"position":6,"preview_image":{"aspect_ratio":0.648,"height":500,"width":324,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51HqVDEN3RL.jpg?v=1788741087"},"aspect_ratio":0.648,"height":500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51HqVDEN3RL.jpg?v=1788741087","width":324}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eDollaTek ADS1256 24bit 8channel ADC AD Module High Precision ADC Acquisition Data\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDollaTek trademark reg.NO:013726393 DollaTek ADS1256 24bit 8channel ADC AD\nModule High Precision ADC Capture Data Overview: ADS1256 8 street 24-bit ADC\nmodule mounted TI ADS1256IDB, minimum power consumption, high-precision ADC\nchips and 2.5V zero point source, with SPI interface communication protocol,\ndata output rates up to 30ksps, support single-ended input and differential\ninput. Instructions: 5 V, GND: 5 V power consumption. SCLK, DIN, DOUT, CS: SPI\ncommunication interface DRDY: ADS1256 data are ready output (Active Low Level)\nPDWN: ADS1256 Sync \/ Power Off (Active Low Level) AIN0-AIN7: Analog voltage\ninput, can be configured as 8 single-ended inputs or 4 differential inputs\n(the measured voltage should be shared with the module) Interface description:\nVCC, RXD, TXD, GND: UART interface VCC, SDA, SCL, GND: I2C interface. MISO,\nMOSI, SCK, CS2, CS1, CS0, GND, VCC: SPI interface Precautions: Since the\nvoltage of ADS1256 is 5V and the measured voltage is 2V below the supply\nvoltage, the module is only suitable for measuring analogue voltages within\n3V. Box contents: 1 x DollaTek ADS1256 24bit 8channel ADC AD module high-\nprecision ADC acquisition data\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eOn-board high precision TI ADS1256IDB ADC chips\u003c\/li\u003e\n \u003cli\u003eOn-board ADR03 2.5V date source source chips\u003c\/li\u003e\n \u003cli\u003eData output rates up to 30ksps, non-linearity is low to 0.0010%\u003c\/li\u003e\n \u003cli\u003eThe module can be configured as either 8 single-ended inputs or 4 differential inputs. ADS1256 module is suitable for measuring the analogue voltage within 3 V\u003c\/li\u003e\n \u003cli\u003eModule operating voltage is 5 V. Size: 35 x 60 mm\u003c\/li\u003e\n \u003c\/ul\u003e"}
