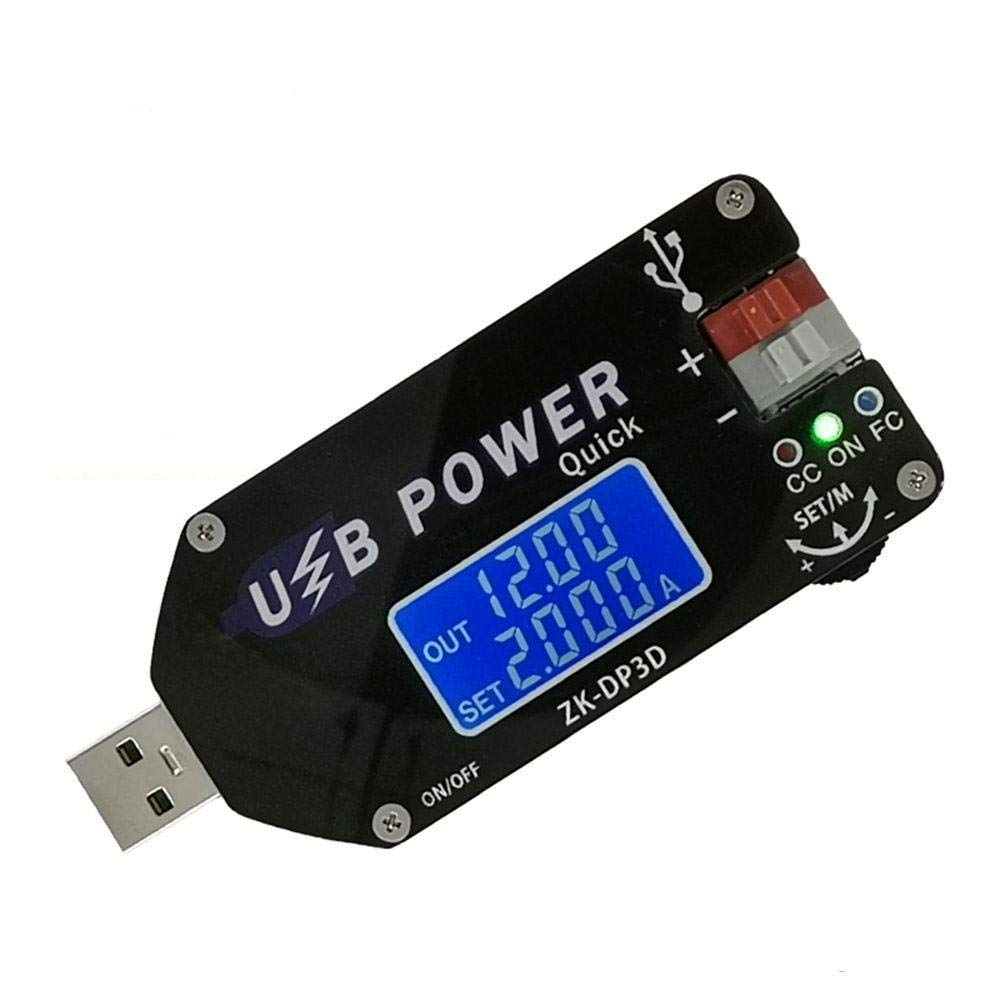

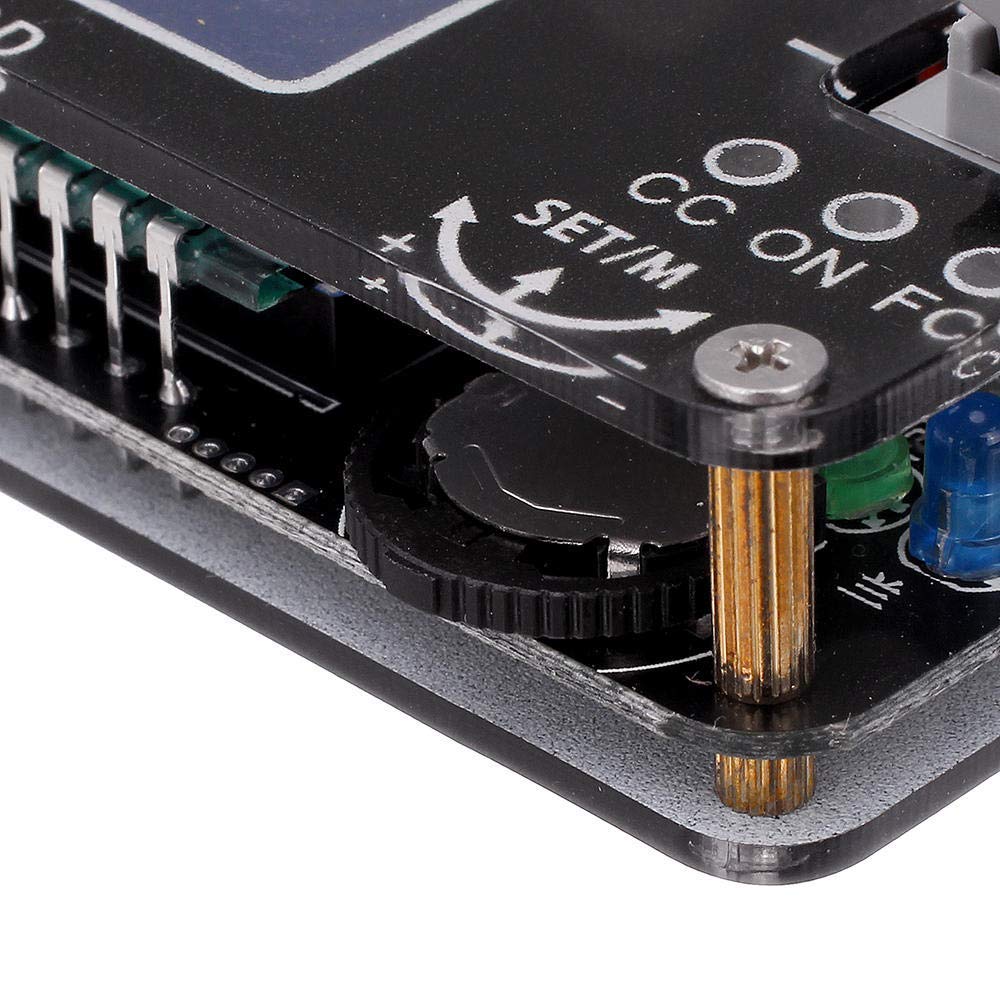

{"id":15190099558560,"title":"DollaTek CNC USB TYPE-C DC DC Converter CC CV 4-13V to 1-30V 2A 15W Power Module Adjustable Regulated Power Supply QC2.0 3.0","handle":"dollatek-cnc-usb-type-c-dc-dc-converter-cc-cv-4-13v-to-1-30v-2a-15w-power-module-adjustable-regulated-power-supply-qc2-0-3-0","description":"\u003ch3\u003eDollaTek CNC USB TYPE-C DC DC Converter CC CV 4-13V to 1-30V 2A 15W Power Module Adjustable Regulated Power Supply QC2.0 3.0\u003c\/h3\u003e \u003cp id=\"b\"\u003eSpecifications: Fit as USB Charging cable adjusts the charging voltage and the maximum charging current as desired. Multiple protection output voltage: 1-30V, output current: 0-2A output power: less than 15W. If the input current is too large, it may not be long-term due to temperature protection. Work with 10W or more. Voltage display: resolution 0.01V; Current display: Resolution 0.001A, range 0-2A Power display: 0.00W-15.00W Temperature protection: When the power component temperature is above 110°C, enter OTP protection, reduce the load power and press ON to release \/ Off-button. If the input current is greater than 3A.) Over-temperature protection may occur during long-term work. Even if it does not reach 15W, it is recommended to use the adapter with fast charging function. Working current: about 30mA Fast charging deception 1. Press and hold the main SET\/M button of the dial button for more than 3 seconds to automatically enter the fast charging protocol selection interface. The protocol name is displayed on the LCD. 2. Press the + and - buttons of the selector button to select QC2.0, QC3.0, AFC, FCP, SCP, AUTO and OFF. Short press the SET\/M button to trigger the protocol. If the trigger is successful, OK is displayed, FC blue light is always on, otherwise Err is displayed, FC blue light is off. Or after selecting the protocol, pressing the SET\/M key will trigger spoofing and directly exit the fast charging protocol interface. The protocol is triggered every time you turn it on. Package Included: 1 x CNC USB TYEPE-C DC DC converter\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eThe digital control regulates voltage and current (current limit), the voltage level is 0.01V\/0.1V, the current level is 0.001A\/0.01A, the accurate setting, the accurate display.\u003c\/li\u003e \u003cli\u003eLCD display input voltage, output voltage, temperature, current, power, Capacity statistics, time statistics.\u003c\/li\u003e \u003cli\u003eWith USB socket, easy to connect USB interface devices such as USB fans.Free screw quick connection, push type cable pull, no need to screw, convenient and fast.\u003c\/li\u003e \u003cli\u003eSolve the problem of insufficient power to the USB input with a smart fast charging swap. Support mainstream fast charging protocol, QC2.0 3.0, FCP SCP AFC, you can also choose not to swap or automatically choose swap mode.\u003c\/li\u003e \u003cli\u003eHigh power 15W, 2A current can be used for fan speed control, desktop -Power supply, adjustable charger, router power supply, output voltage etc.Adjust can be used arbitrarily, limit the current 0-2A\u003c\/li\u003e\n\u003c\/ul\u003e","published_at":"2025-10-01T16:36:41+10:00","created_at":"2025-10-01T16:36:37+10:00","vendor":"DollaTek","type":"Industrial power supply","tags":["industryDE"],"price":19300,"price_min":19300,"price_max":19300,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":52864112033952,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B081JNM3KS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"DollaTek CNC USB TYPE-C DC DC Converter CC CV 4-13V to 1-30V 2A 15W Power Module Adjustable Regulated Power Supply QC2.0 3.0","public_title":null,"options":["Default Title"],"price":19300,"weight":700,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/files\/de-B081JNM3KS.jpg?v=1775753352","\/\/dingoship.com.au\/cdn\/shop\/files\/610pZv9vslL.jpg?v=1759300599","\/\/dingoship.com.au\/cdn\/shop\/files\/519wjDEwZEL.jpg?v=1759300599","\/\/dingoship.com.au\/cdn\/shop\/files\/51NhULIpGHL.jpg?v=1759300600","\/\/dingoship.com.au\/cdn\/shop\/files\/51aD8J_h0KL.jpg?v=1759300599","\/\/dingoship.com.au\/cdn\/shop\/files\/616LO-_GE5L.jpg?v=1759300600","\/\/dingoship.com.au\/cdn\/shop\/files\/612Uznozf0L.jpg?v=1759300600","\/\/dingoship.com.au\/cdn\/shop\/files\/61APUCh3XnL.jpg?v=1759300600","\/\/dingoship.com.au\/cdn\/shop\/files\/61cfJU35uOL.jpg?v=1759300600"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B081JNM3KS.jpg?v=1775753352","options":["Title"],"media":[{"alt":null,"id":38370769436832,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B081JNM3KS.jpg?v=1775753352"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B081JNM3KS.jpg?v=1775753352","width":1000},{"alt":null,"id":38370769469600,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/610pZv9vslL.jpg?v=1759300599"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/610pZv9vslL.jpg?v=1759300599","width":1000},{"alt":null,"id":38370769502368,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/519wjDEwZEL.jpg?v=1759300599"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/519wjDEwZEL.jpg?v=1759300599","width":1000},{"alt":null,"id":38370769535136,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51NhULIpGHL.jpg?v=1759300600"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51NhULIpGHL.jpg?v=1759300600","width":1000},{"alt":null,"id":38370769567904,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51aD8J_h0KL.jpg?v=1759300599"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51aD8J_h0KL.jpg?v=1759300599","width":1000},{"alt":null,"id":38370769600672,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/616LO-_GE5L.jpg?v=1759300600"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/616LO-_GE5L.jpg?v=1759300600","width":1000},{"alt":null,"id":38370769633440,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/612Uznozf0L.jpg?v=1759300600"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/612Uznozf0L.jpg?v=1759300600","width":1000},{"alt":null,"id":38370769666208,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61APUCh3XnL.jpg?v=1759300600"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61APUCh3XnL.jpg?v=1759300600","width":1000},{"alt":null,"id":38370769698976,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61cfJU35uOL.jpg?v=1759300600"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61cfJU35uOL.jpg?v=1759300600","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eDollaTek CNC USB TYPE-C DC DC Converter CC CV 4-13V to 1-30V 2A 15W Power Module Adjustable Regulated Power Supply QC2.0 3.0\u003c\/h3\u003e \u003cp id=\"b\"\u003eSpecifications: Fit as USB Charging cable adjusts the charging voltage and the maximum charging current as desired. Multiple protection output voltage: 1-30V, output current: 0-2A output power: less than 15W. If the input current is too large, it may not be long-term due to temperature protection. Work with 10W or more. Voltage display: resolution 0.01V; Current display: Resolution 0.001A, range 0-2A Power display: 0.00W-15.00W Temperature protection: When the power component temperature is above 110°C, enter OTP protection, reduce the load power and press ON to release \/ Off-button. If the input current is greater than 3A.) Over-temperature protection may occur during long-term work. Even if it does not reach 15W, it is recommended to use the adapter with fast charging function. Working current: about 30mA Fast charging deception 1. Press and hold the main SET\/M button of the dial button for more than 3 seconds to automatically enter the fast charging protocol selection interface. The protocol name is displayed on the LCD. 2. Press the + and - buttons of the selector button to select QC2.0, QC3.0, AFC, FCP, SCP, AUTO and OFF. Short press the SET\/M button to trigger the protocol. If the trigger is successful, OK is displayed, FC blue light is always on, otherwise Err is displayed, FC blue light is off. Or after selecting the protocol, pressing the SET\/M key will trigger spoofing and directly exit the fast charging protocol interface. The protocol is triggered every time you turn it on. Package Included: 1 x CNC USB TYEPE-C DC DC converter\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eThe digital control regulates voltage and current (current limit), the voltage level is 0.01V\/0.1V, the current level is 0.001A\/0.01A, the accurate setting, the accurate display.\u003c\/li\u003e \u003cli\u003eLCD display input voltage, output voltage, temperature, current, power, Capacity statistics, time statistics.\u003c\/li\u003e \u003cli\u003eWith USB socket, easy to connect USB interface devices such as USB fans.Free screw quick connection, push type cable pull, no need to screw, convenient and fast.\u003c\/li\u003e \u003cli\u003eSolve the problem of insufficient power to the USB input with a smart fast charging swap. Support mainstream fast charging protocol, QC2.0 3.0, FCP SCP AFC, you can also choose not to swap or automatically choose swap mode.\u003c\/li\u003e \u003cli\u003eHigh power 15W, 2A current can be used for fan speed control, desktop -Power supply, adjustable charger, router power supply, output voltage etc.Adjust can be used arbitrarily, limit the current 0-2A\u003c\/li\u003e\n\u003c\/ul\u003e"}
