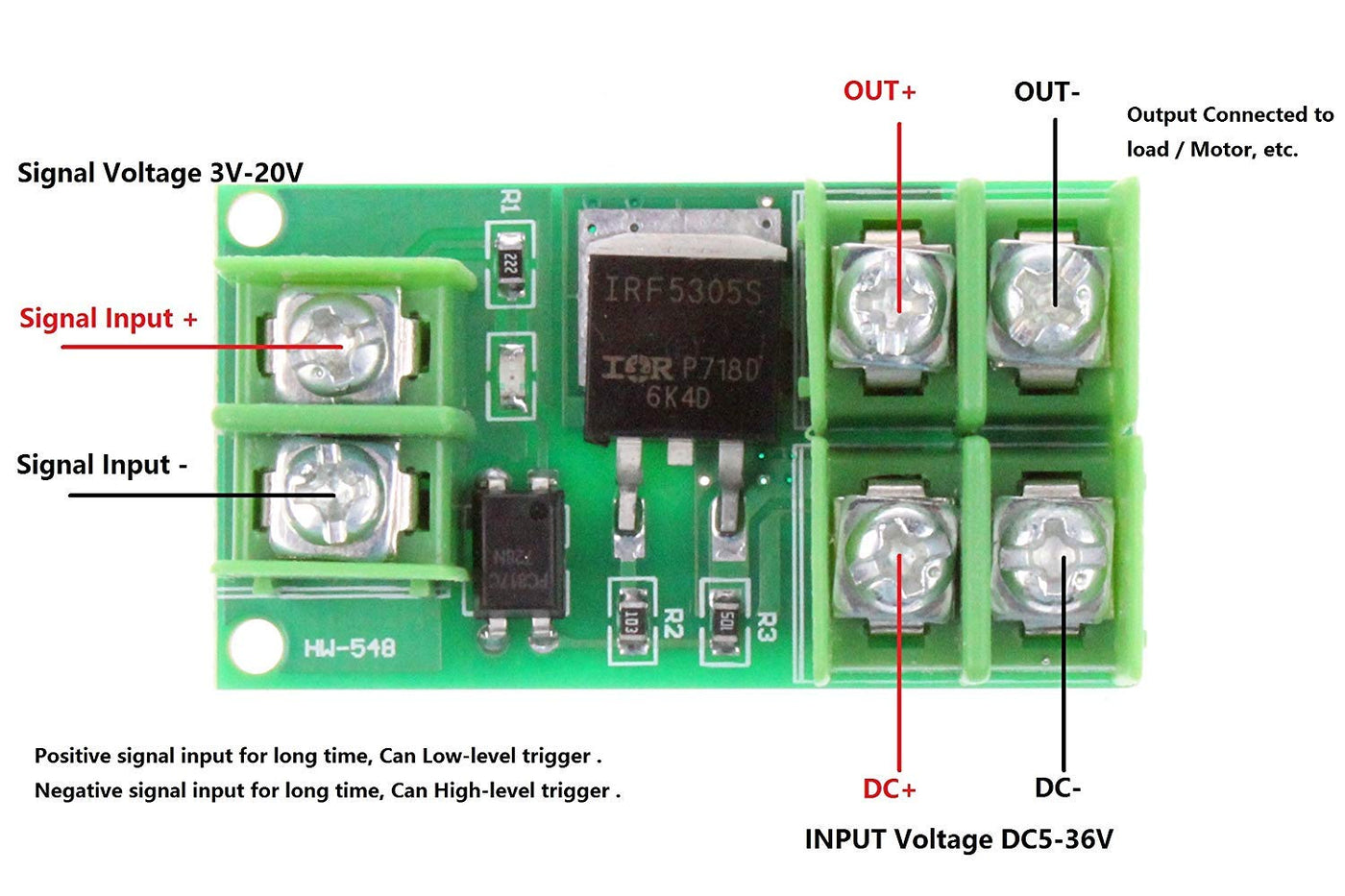

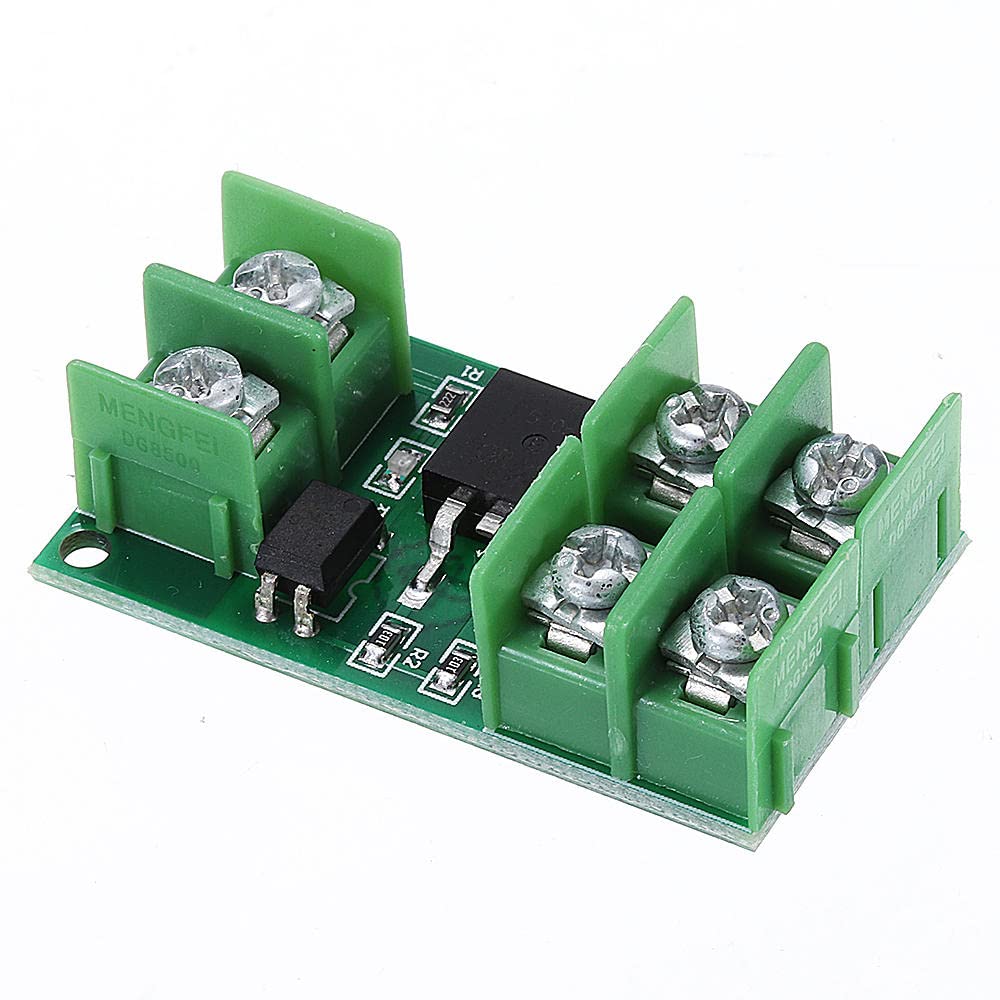

{"id":12983030710432,"title":"DollaTek Input 3V-24V Output 5V-36V Electronic Switch Control Board Pulse Trigger Switch Module DC Control MOSFET Optocoupler","handle":"dollatek-input-3v-24v-output-5v-36v-electronic-switch-control-board-pulse-trigger-switch-module-dc-control-mosfet-optocoupler","description":"\u003ch3\u003eDollaTek Input 3V-24V Output 5V-36V Electronic Switch Control Board Pulse Trigger Switch Module DC Control MOSFET Optocoupler\u003c\/h3\u003e \u003cp id=\"b\"\u003eProduct Description: FET module, input and output are complete isolated. Signal trigger side: Digital high and low level. Can be connected to MCU port, PLC interface, DC power supply, etc. Input signal voltage: 3V-24V; Current: about 5mA. The output can control high power devices, motors, light bulbs, LED strips, DC motors, micro pumps, solenoid valves, etc. Output controlled voltage: 5V ~ 36V. Current: less than 5A (more than 5A need to add heat sink, the maximum cannot exceed 20A). Adopts F5305S power MOSFET can be used to input PWM, control motor speed, lamp brightness and so on. Packag included: 1 x Electronic Switch Control Board Isolation MOS FET Pulse Trigger Switch Control Module\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eFET module, input and output are completely isolated. li\u0026gt; \u003c\/li\u003e\n\u003cli\u003eInput signal voltage: 3V-24V; Current: about 5 mA.\u003c\/li\u003e \u003cli\u003eOutput controlled voltage: 5V ~ 36V. Current: less than 5A (more than 5A need to add heat sink, the maximum cannot exceed 20A).\u003c\/li\u003e \u003cli\u003eThe output can control high power devices, motors, light bulbs, LED strips, DC motors, micro pumps, solenoid valves, etc. \u003c\/li\u003e \u003cli\u003eSignal trigger side: Digital high and low level. Can be connected to MCU port, PLC interface, DC power supply, etc. [You can view the product's circuit diagram in the product image on the left.\u003c\/li\u003e\n\u003c\/ul\u003e","published_at":"2024-04-08T11:30:50+10:00","created_at":"2024-04-08T11:31:01+10:00","vendor":"DollaTek","type":"optocoupler","tags":["industryDE"],"price":15500,"price_min":15500,"price_max":15500,"available":false,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":49453875986592,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B07HBQ2SZR","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"DollaTek Input 3V-24V Output 5V-36V Electronic Switch Control Board Pulse Trigger Switch Module DC Control MOSFET Optocoupler","public_title":null,"options":["Default Title"],"price":15500,"weight":700,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/files\/de-B07HBQ2SZR.jpg?v=1712620712","\/\/dingoship.com.au\/cdn\/shop\/files\/61BFrxAt1IL.jpg?v=1712539861","\/\/dingoship.com.au\/cdn\/shop\/files\/619WyGDKGVL.jpg?v=1712539861","\/\/dingoship.com.au\/cdn\/shop\/files\/71wKXpUCN7L.jpg?v=1712539861","\/\/dingoship.com.au\/cdn\/shop\/files\/61nAX2Uk88L.jpg?v=1712539861","\/\/dingoship.com.au\/cdn\/shop\/files\/51kARK9tXCL.jpg?v=1712539861","\/\/dingoship.com.au\/cdn\/shop\/files\/61dCFyLWMwL.jpg?v=1712539861","\/\/dingoship.com.au\/cdn\/shop\/files\/61l-hSETu-L.jpg?v=1712539861"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B07HBQ2SZR.jpg?v=1712620712","options":["Title"],"media":[{"alt":null,"id":33829415780512,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B07HBQ2SZR.jpg?v=1712620712"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B07HBQ2SZR.jpg?v=1712620712","width":1000},{"alt":null,"id":33812785954976,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61BFrxAt1IL.jpg?v=1712539861"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61BFrxAt1IL.jpg?v=1712539861","width":1000},{"alt":null,"id":33812785987744,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/619WyGDKGVL.jpg?v=1712539861"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/619WyGDKGVL.jpg?v=1712539861","width":1000},{"alt":null,"id":33812786020512,"position":4,"preview_image":{"aspect_ratio":1.5,"height":1000,"width":1500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71wKXpUCN7L.jpg?v=1712539861"},"aspect_ratio":1.5,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71wKXpUCN7L.jpg?v=1712539861","width":1500},{"alt":null,"id":33812786053280,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61nAX2Uk88L.jpg?v=1712539861"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61nAX2Uk88L.jpg?v=1712539861","width":1000},{"alt":null,"id":33812786086048,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51kARK9tXCL.jpg?v=1712539861"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51kARK9tXCL.jpg?v=1712539861","width":1000},{"alt":null,"id":33812786118816,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61dCFyLWMwL.jpg?v=1712539861"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61dCFyLWMwL.jpg?v=1712539861","width":1000},{"alt":null,"id":33812786151584,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61l-hSETu-L.jpg?v=1712539861"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61l-hSETu-L.jpg?v=1712539861","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eDollaTek Input 3V-24V Output 5V-36V Electronic Switch Control Board Pulse Trigger Switch Module DC Control MOSFET Optocoupler\u003c\/h3\u003e \u003cp id=\"b\"\u003eProduct Description: FET module, input and output are complete isolated. Signal trigger side: Digital high and low level. Can be connected to MCU port, PLC interface, DC power supply, etc. Input signal voltage: 3V-24V; Current: about 5mA. The output can control high power devices, motors, light bulbs, LED strips, DC motors, micro pumps, solenoid valves, etc. Output controlled voltage: 5V ~ 36V. Current: less than 5A (more than 5A need to add heat sink, the maximum cannot exceed 20A). Adopts F5305S power MOSFET can be used to input PWM, control motor speed, lamp brightness and so on. Packag included: 1 x Electronic Switch Control Board Isolation MOS FET Pulse Trigger Switch Control Module\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eFET module, input and output are completely isolated. li\u0026gt; \u003c\/li\u003e\n\u003cli\u003eInput signal voltage: 3V-24V; Current: about 5 mA.\u003c\/li\u003e \u003cli\u003eOutput controlled voltage: 5V ~ 36V. Current: less than 5A (more than 5A need to add heat sink, the maximum cannot exceed 20A).\u003c\/li\u003e \u003cli\u003eThe output can control high power devices, motors, light bulbs, LED strips, DC motors, micro pumps, solenoid valves, etc. \u003c\/li\u003e \u003cli\u003eSignal trigger side: Digital high and low level. Can be connected to MCU port, PLC interface, DC power supply, etc. [You can view the product's circuit diagram in the product image on the left.\u003c\/li\u003e\n\u003c\/ul\u003e"}
