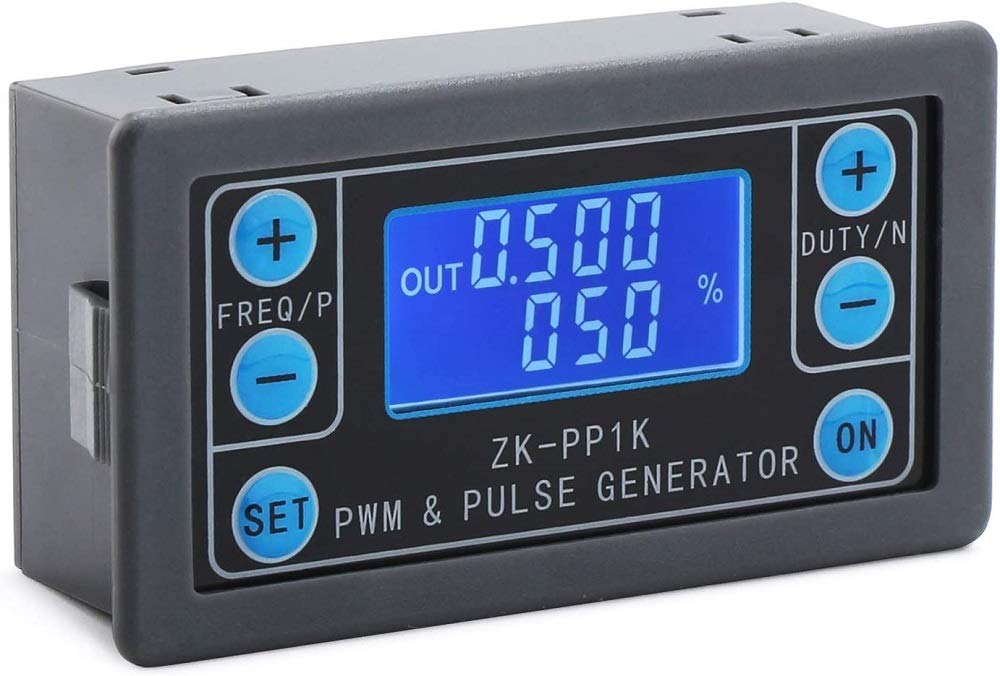

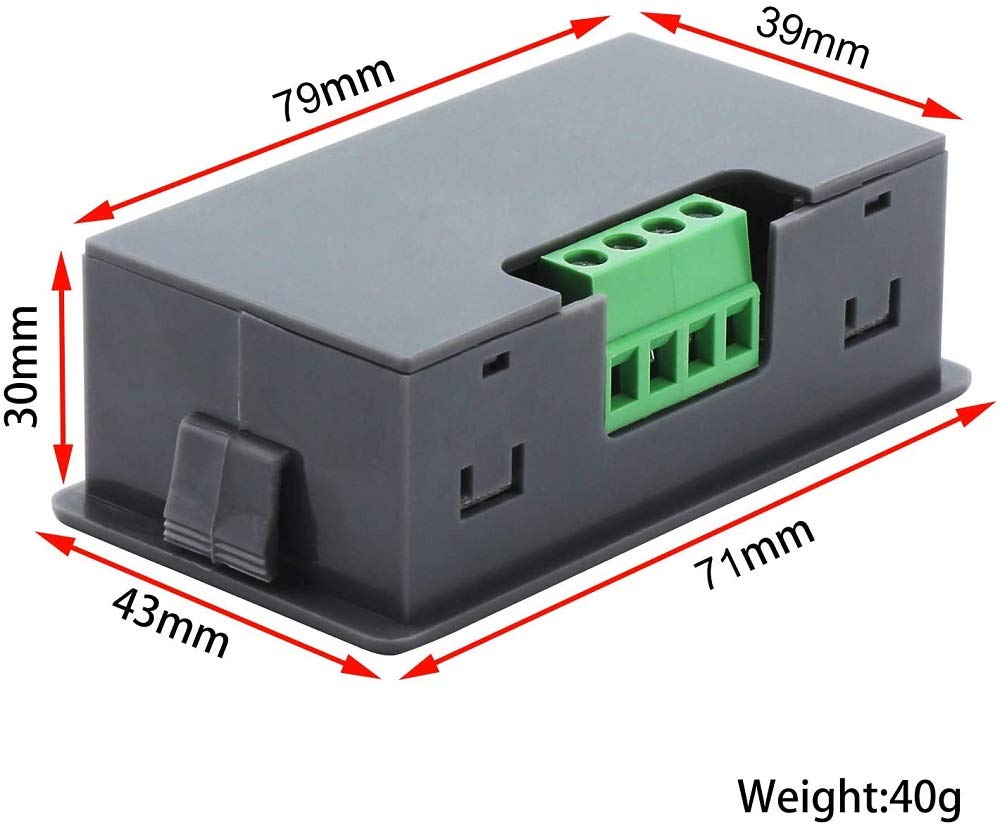

{"id":12640204718240,"title":"DollaTek PWM Signal Generator 1Hz -150kHz Dual Mode Generator Adjustable Pulse Frequency Duty Ratio Duty Rectangular Square Wave Module with Case","handle":"dollatek-pwm-signal-generator-1hz-150khz-dual-mode-generator-adjustable-pulse-frequency-duty-ratio-duty-rectangular-square-wave-module-with-case","description":"\u003ch3\u003eDollaTek PWM Signal Generator 1Hz -150kHz Dual Mode Generator Adjustable Pulse Frequency Duty Ratio Duty Rectangular Square Wave Module with Case\u003c\/h3\u003e \u003cp id=\"b\"\u003eParameters: Working Voltage: 3.3V ~ 30V, with kickback protection. Frequency range: 1Hz ~ 150kHz, accuracy about 1%. Working range: 0-100%, 1% step. Number of pulses: 1-9999 or infinity (display '----' stands for infinity). Delay output time: 0.000s-9999s, the minimum can be set to 1ms. positive and negative pulse width length: 0.000s-9999s, the minimum can be set to 1ms. Signal loading capacity: less than 30mA. Output signal amplitude: The amplitude corresponds to the supply voltage. Product Size: 79mm 43mm 30mm Feature: PWM Mode - Frequency (Continuous), Duty Cycle. Note that the number of pulses cannot be adjusted in this mode and the pulse is always sent. PULSE mode - Positive pulse width time, negative pulse width time, delay start time and number of pulses are adjustable. Package includes: 1x PWM signal generator\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eParameters ---- Working voltage: 3.3V ~ 30V, frequency range: 1Hz ~ 150 kHz, signal loading capacity: less than 30 mA.\u003c\/li\u003e \u003cli\u003eDual Mode ---- The signal generator has two modes, PWM and pulse.\u003c\/li\u003e \u003cli\u003eProtection ---- With kickback protection, 5.08mm terminal wiring.\u003c\/li\u003e \u003cli\u003eEasy operation ---- The signal generator with button can control start or stop and connect the external switch to control the output signal ON\/OFF.\u003c\/li\u003e \u003cli\u003e Application ---- The generator module can be used to generate square wave square signals to control DC motors or stepper motor drivers. for servo motors, stepper motors, electric jaws instead of PLC pulses, etc. \u003c\/li\u003e \u003c\/ul\u003e","published_at":"2024-03-07T02:17:14+11:00","created_at":"2024-03-07T02:17:22+11:00","vendor":"DollaTek","type":"Function generator","tags":["industryDE"],"price":13500,"price_min":13500,"price_max":13500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":48972363464864,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B08P36752V","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"DollaTek PWM Signal Generator 1Hz -150kHz Dual Mode Generator Adjustable Pulse Frequency Duty Ratio Duty Rectangular Square Wave Module with Case","public_title":null,"options":["Default Title"],"price":13500,"weight":40,"compare_at_price":null,"inventory_management":"shopify","barcode":"ELA13302","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/dingoship.com.au\/cdn\/shop\/files\/de-B08P36752V.jpg?v=1709769328","\/\/dingoship.com.au\/cdn\/shop\/products\/61BC87QwMeL.jpg?v=1709738242","\/\/dingoship.com.au\/cdn\/shop\/products\/61IMrWOamUL.jpg?v=1709738242","\/\/dingoship.com.au\/cdn\/shop\/products\/61SlaF4jc0L.jpg?v=1709738242","\/\/dingoship.com.au\/cdn\/shop\/products\/61SORJp8OPL.jpg?v=1709738242","\/\/dingoship.com.au\/cdn\/shop\/products\/613yLWpO3SL.jpg?v=1709738242"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B08P36752V.jpg?v=1709769328","options":["Title"],"media":[{"alt":null,"id":32683561353376,"position":1,"preview_image":{"aspect_ratio":1.479,"height":676,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B08P36752V.jpg?v=1709769328"},"aspect_ratio":1.479,"height":676,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B08P36752V.jpg?v=1709769328","width":1000},{"alt":null,"id":32676534616224,"position":2,"preview_image":{"aspect_ratio":1.825,"height":548,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61BC87QwMeL.jpg?v=1709738242"},"aspect_ratio":1.825,"height":548,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61BC87QwMeL.jpg?v=1709738242","width":1000},{"alt":null,"id":32676534648992,"position":3,"preview_image":{"aspect_ratio":1.179,"height":848,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61IMrWOamUL.jpg?v=1709738242"},"aspect_ratio":1.179,"height":848,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61IMrWOamUL.jpg?v=1709738242","width":1000},{"alt":null,"id":32676534681760,"position":4,"preview_image":{"aspect_ratio":1.087,"height":920,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61SlaF4jc0L.jpg?v=1709738242"},"aspect_ratio":1.087,"height":920,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61SlaF4jc0L.jpg?v=1709738242","width":1000},{"alt":null,"id":32676534714528,"position":5,"preview_image":{"aspect_ratio":1.333,"height":750,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61SORJp8OPL.jpg?v=1709738242"},"aspect_ratio":1.333,"height":750,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61SORJp8OPL.jpg?v=1709738242","width":1000},{"alt":null,"id":32676534747296,"position":6,"preview_image":{"aspect_ratio":1.212,"height":825,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/613yLWpO3SL.jpg?v=1709738242"},"aspect_ratio":1.212,"height":825,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/613yLWpO3SL.jpg?v=1709738242","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eDollaTek PWM Signal Generator 1Hz -150kHz Dual Mode Generator Adjustable Pulse Frequency Duty Ratio Duty Rectangular Square Wave Module with Case\u003c\/h3\u003e \u003cp id=\"b\"\u003eParameters: Working Voltage: 3.3V ~ 30V, with kickback protection. Frequency range: 1Hz ~ 150kHz, accuracy about 1%. Working range: 0-100%, 1% step. Number of pulses: 1-9999 or infinity (display '----' stands for infinity). Delay output time: 0.000s-9999s, the minimum can be set to 1ms. positive and negative pulse width length: 0.000s-9999s, the minimum can be set to 1ms. Signal loading capacity: less than 30mA. Output signal amplitude: The amplitude corresponds to the supply voltage. Product Size: 79mm 43mm 30mm Feature: PWM Mode - Frequency (Continuous), Duty Cycle. Note that the number of pulses cannot be adjusted in this mode and the pulse is always sent. PULSE mode - Positive pulse width time, negative pulse width time, delay start time and number of pulses are adjustable. Package includes: 1x PWM signal generator\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eParameters ---- Working voltage: 3.3V ~ 30V, frequency range: 1Hz ~ 150 kHz, signal loading capacity: less than 30 mA.\u003c\/li\u003e \u003cli\u003eDual Mode ---- The signal generator has two modes, PWM and pulse.\u003c\/li\u003e \u003cli\u003eProtection ---- With kickback protection, 5.08mm terminal wiring.\u003c\/li\u003e \u003cli\u003eEasy operation ---- The signal generator with button can control start or stop and connect the external switch to control the output signal ON\/OFF.\u003c\/li\u003e \u003cli\u003e Application ---- The generator module can be used to generate square wave square signals to control DC motors or stepper motor drivers. for servo motors, stepper motors, electric jaws instead of PLC pulses, etc. \u003c\/li\u003e \u003c\/ul\u003e"}
