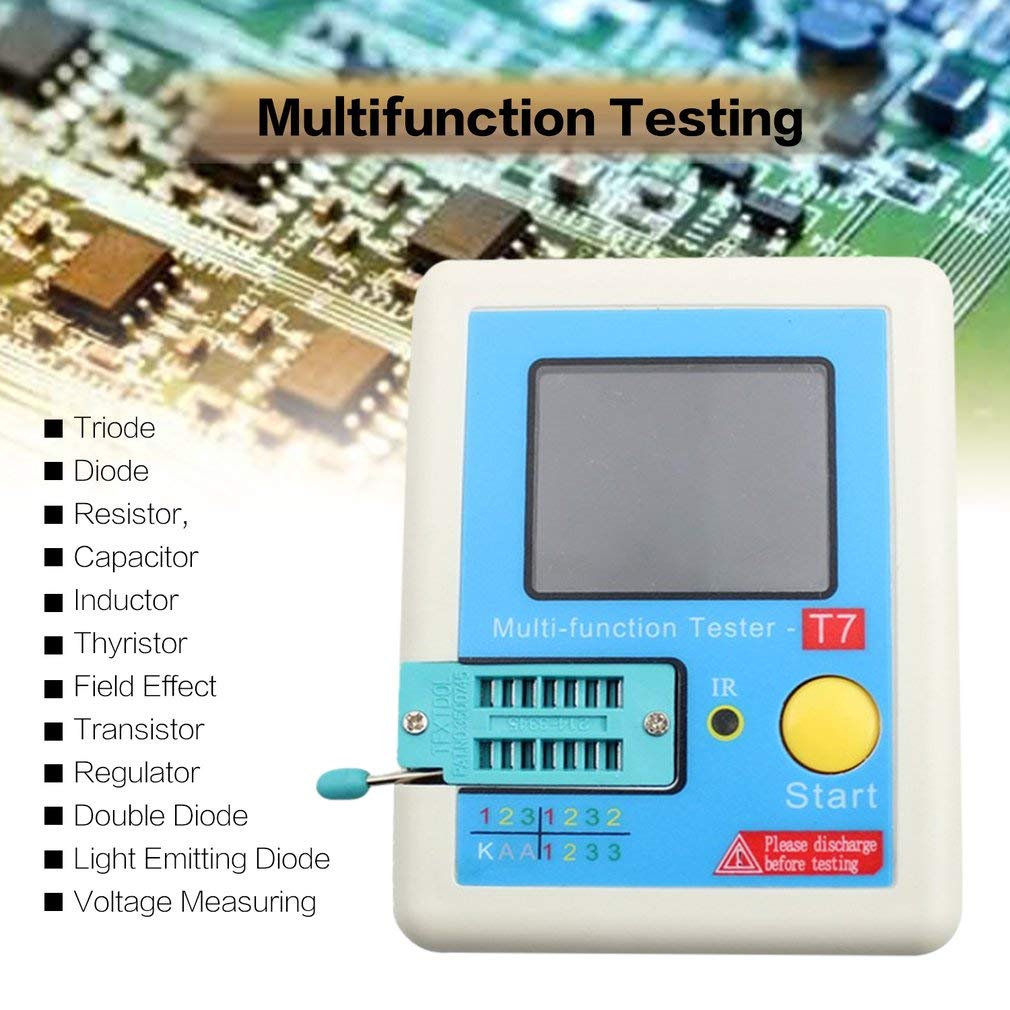

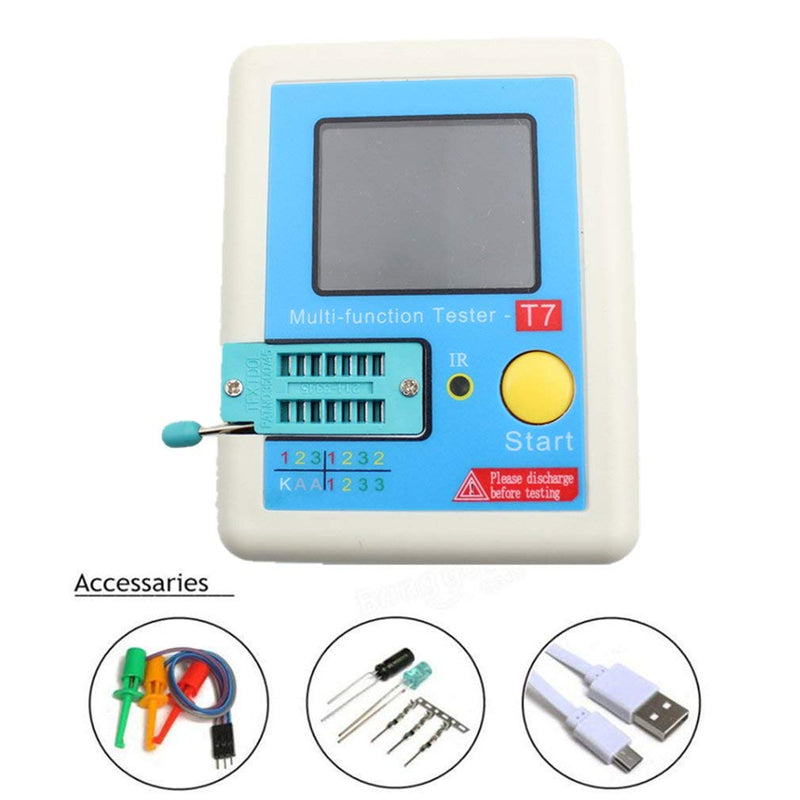

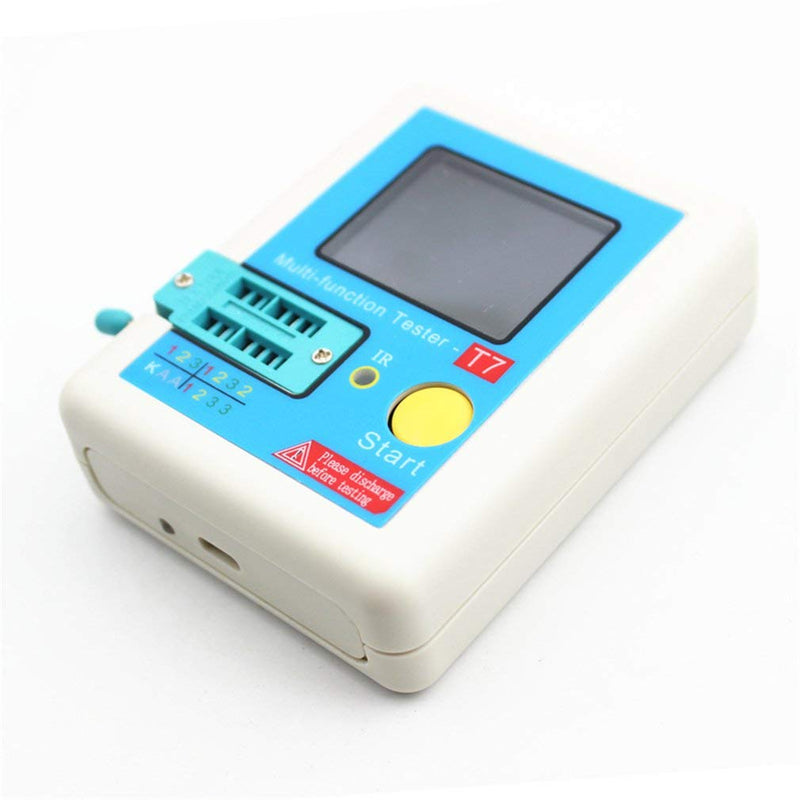

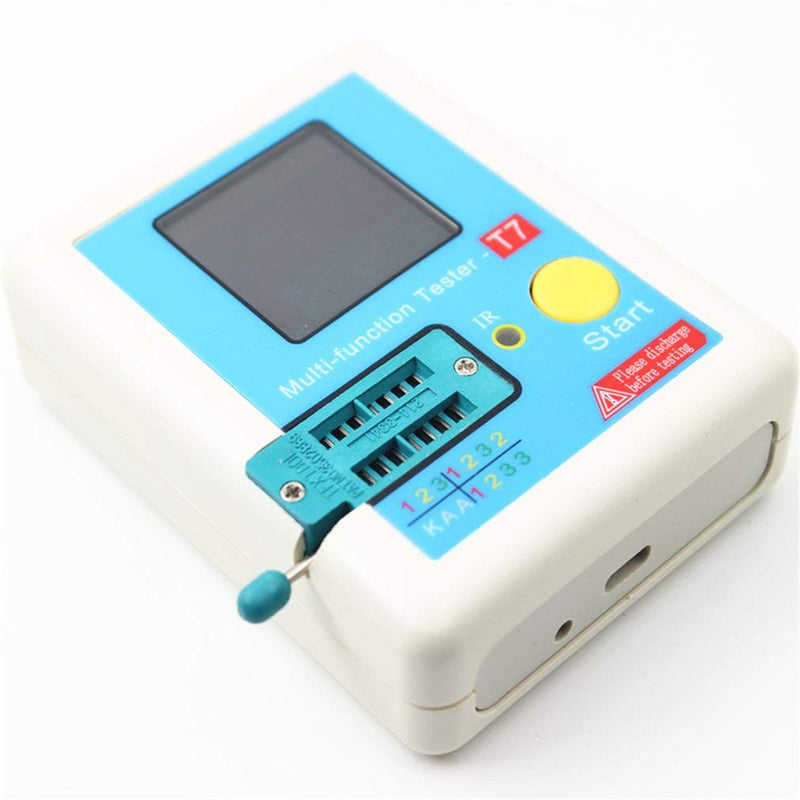

{"id":12640202588320,"title":"DollaTek Transistor Multifunction Tester TFT Diode Triode Capacitance Meter LCR ESR Meter NPN PNP MOSFET IR Tester","handle":"dollatek-transistor-multifunction-tester-tft-diode-triode-capacitance-meter-lcr-esr-meter-npn-pnp-mosfet-ir-tester","description":"\u003ch3\u003eDollaTek Transistor Multifunctional Tester TFT Diode Triode Capacitance Meter LCR ESR Meter NPN PNP MOSFET IR Tester\u003c\/h3\u003e \u003cp id=\"b\"\u003eDescription: Multi-functional TFT transistor tester for diode-triode-capacitor-resistance Transistor LCR ESR NPN PNP MOSFET Features: Place the component's pins in the corresponding area, then select the small handle and the detector will test it automatically. Finally, the results are clearly displayed on the backlight TFT screen. Unlike standard black and white displays, this detector shows results in color. Specifications: Display: 3.5 inch TFT screen. Diode range: \u0026lt;4.5V. Zener diode: Transistor detection range: 0.01-4.5V. Zener diode detection range: 0.01-30V. Triac range: IGT \u0026lt;6 mA. Capacitance: 25pF-100mF Resistance: 0.01-50MΩ Inductance: 0.01mH-20H Battery: 0.1 - 4.5 V. Product size: 8.8 x 8 x 2.8 cm. Product weight: 111.5g Packaging size: 14.5 x 12 x 2.7 cm. Packaging weight: 114g Package Included: 1 x Tester.\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eIt can be widely used to test NPN and PNP transistor, capacitor, resistor, diode, Triode, N-channel and P-channel MOSFET, IGBT, JFET, triac and battery etc. to detect.\u003c\/li\u003e \u003cli\u003eIt can also be used to detect infrared waveforms.\u003c\/li\u003e \u003cli\u003eIt can also detect Zener diode and has the function of self-calibration.\u003c\/li\u003e \u003cli\u003eAfter detection, align the infrared remote control with the \"IR\" light, then press the button in the remote control when the detector decrypts successfully , it will display the data code and infrared waveform.\u003c\/li\u003e \u003cli\u003eOne button operation, automatically detect and shut down, and you can press the multi-function button to close the detector.\u003c\/li\u003e \u003c\/ul\u003e","published_at":"2024-03-07T02:16:53+11:00","created_at":"2024-03-07T02:17:00+11:00","vendor":"DollaTek","type":"MOSFET transistors","tags":["industryDE"],"price":16100,"price_min":16100,"price_max":16100,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":48972359762080,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B09CFVNVKQ","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"DollaTek Transistor Multifunction Tester TFT Diode Triode Capacitance Meter LCR ESR Meter NPN PNP MOSFET IR Tester","public_title":null,"options":["Default Title"],"price":16100,"weight":110,"compare_at_price":null,"inventory_management":"shopify","barcode":"ELA19368","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/dingoship.com.au\/cdn\/shop\/files\/de-B09CFVNVKQ.jpg?v=1709769316","\/\/dingoship.com.au\/cdn\/shop\/products\/51VfrL-3WCL.jpg?v=1709738221","\/\/dingoship.com.au\/cdn\/shop\/products\/61bXyixrXwL.jpg?v=1709738221","\/\/dingoship.com.au\/cdn\/shop\/products\/61o9e1TYHaL.jpg?v=1709738221","\/\/dingoship.com.au\/cdn\/shop\/products\/61GykMELsoL.jpg?v=1709738221","\/\/dingoship.com.au\/cdn\/shop\/products\/610_w_cpaHL.jpg?v=1709738221"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B09CFVNVKQ.jpg?v=1709769316","options":["Title"],"media":[{"alt":null,"id":32683556929696,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1010,"width":1010,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B09CFVNVKQ.jpg?v=1709769316"},"aspect_ratio":1.0,"height":1010,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B09CFVNVKQ.jpg?v=1709769316","width":1010},{"alt":null,"id":32676529275040,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1010,"width":1010,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51VfrL-3WCL.jpg?v=1709738221"},"aspect_ratio":1.0,"height":1010,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51VfrL-3WCL.jpg?v=1709738221","width":1010},{"alt":null,"id":32676529307808,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1010,"width":1010,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61bXyixrXwL.jpg?v=1709738221"},"aspect_ratio":1.0,"height":1010,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61bXyixrXwL.jpg?v=1709738221","width":1010},{"alt":null,"id":32676529340576,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1010,"width":1010,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61o9e1TYHaL.jpg?v=1709738221"},"aspect_ratio":1.0,"height":1010,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61o9e1TYHaL.jpg?v=1709738221","width":1010},{"alt":null,"id":32676529373344,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1010,"width":1010,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61GykMELsoL.jpg?v=1709738221"},"aspect_ratio":1.0,"height":1010,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61GykMELsoL.jpg?v=1709738221","width":1010},{"alt":null,"id":32676529406112,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1010,"width":1010,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/610_w_cpaHL.jpg?v=1709738221"},"aspect_ratio":1.0,"height":1010,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/610_w_cpaHL.jpg?v=1709738221","width":1010}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eDollaTek Transistor Multifunctional Tester TFT Diode Triode Capacitance Meter LCR ESR Meter NPN PNP MOSFET IR Tester\u003c\/h3\u003e \u003cp id=\"b\"\u003eDescription: Multi-functional TFT transistor tester for diode-triode-capacitor-resistance Transistor LCR ESR NPN PNP MOSFET Features: Place the component's pins in the corresponding area, then select the small handle and the detector will test it automatically. Finally, the results are clearly displayed on the backlight TFT screen. Unlike standard black and white displays, this detector shows results in color. Specifications: Display: 3.5 inch TFT screen. Diode range: \u0026lt;4.5V. Zener diode: Transistor detection range: 0.01-4.5V. Zener diode detection range: 0.01-30V. Triac range: IGT \u0026lt;6 mA. Capacitance: 25pF-100mF Resistance: 0.01-50MΩ Inductance: 0.01mH-20H Battery: 0.1 - 4.5 V. Product size: 8.8 x 8 x 2.8 cm. Product weight: 111.5g Packaging size: 14.5 x 12 x 2.7 cm. Packaging weight: 114g Package Included: 1 x Tester.\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eIt can be widely used to test NPN and PNP transistor, capacitor, resistor, diode, Triode, N-channel and P-channel MOSFET, IGBT, JFET, triac and battery etc. to detect.\u003c\/li\u003e \u003cli\u003eIt can also be used to detect infrared waveforms.\u003c\/li\u003e \u003cli\u003eIt can also detect Zener diode and has the function of self-calibration.\u003c\/li\u003e \u003cli\u003eAfter detection, align the infrared remote control with the \"IR\" light, then press the button in the remote control when the detector decrypts successfully , it will display the data code and infrared waveform.\u003c\/li\u003e \u003cli\u003eOne button operation, automatically detect and shut down, and you can press the multi-function button to close the detector.\u003c\/li\u003e \u003c\/ul\u003e"}
