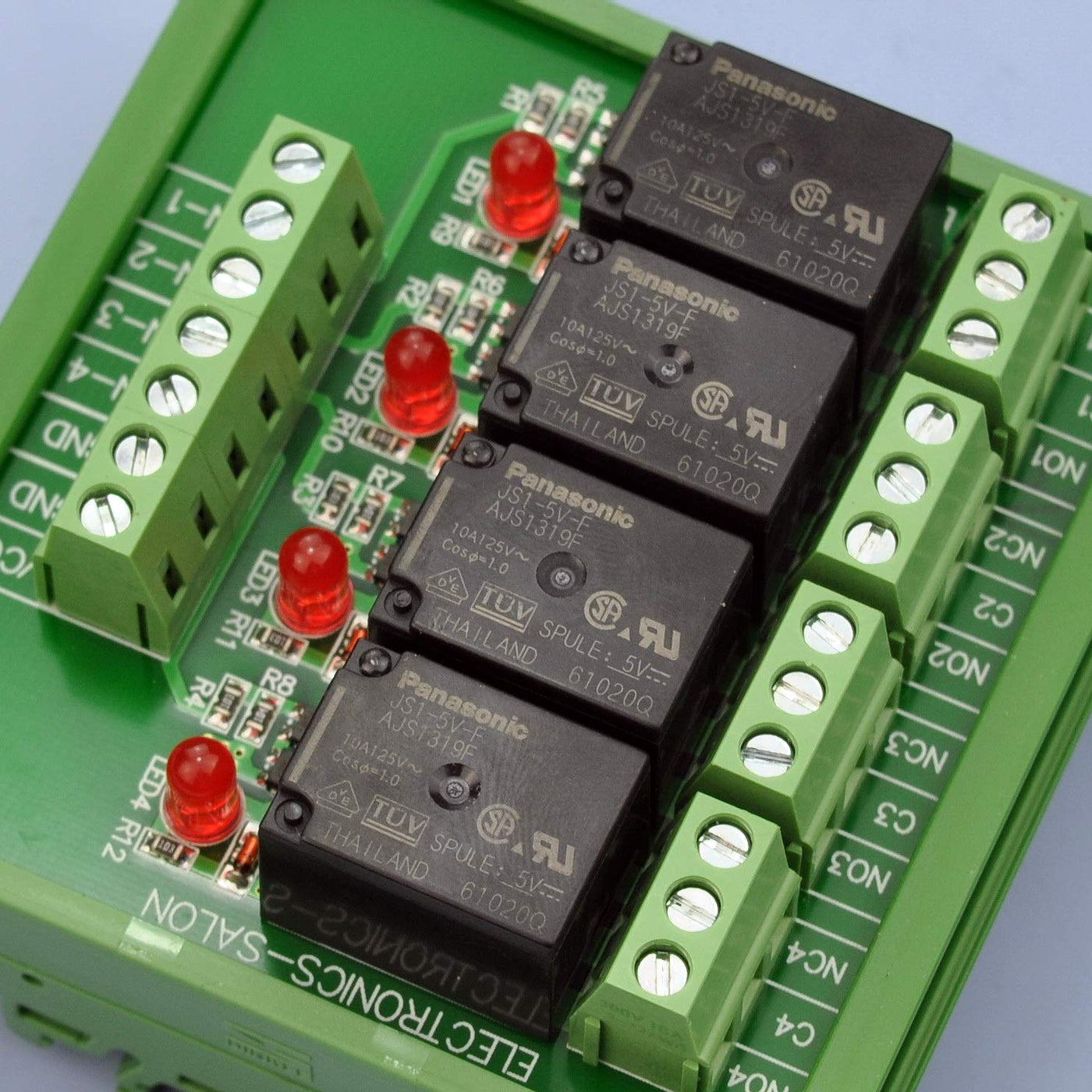

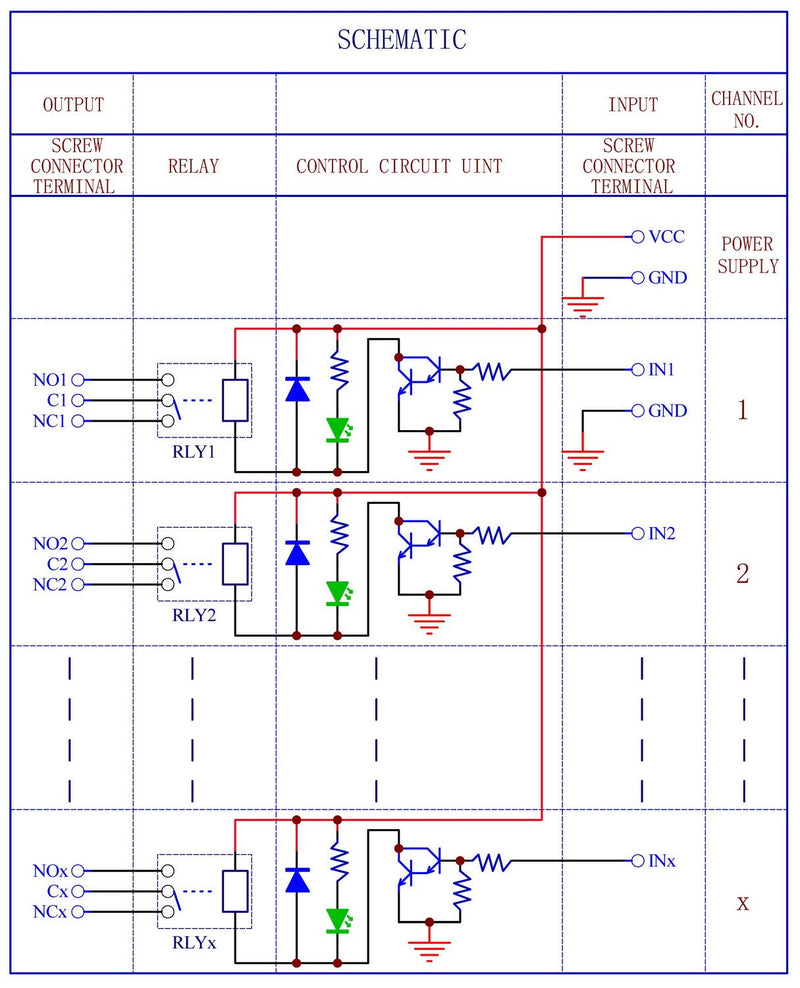

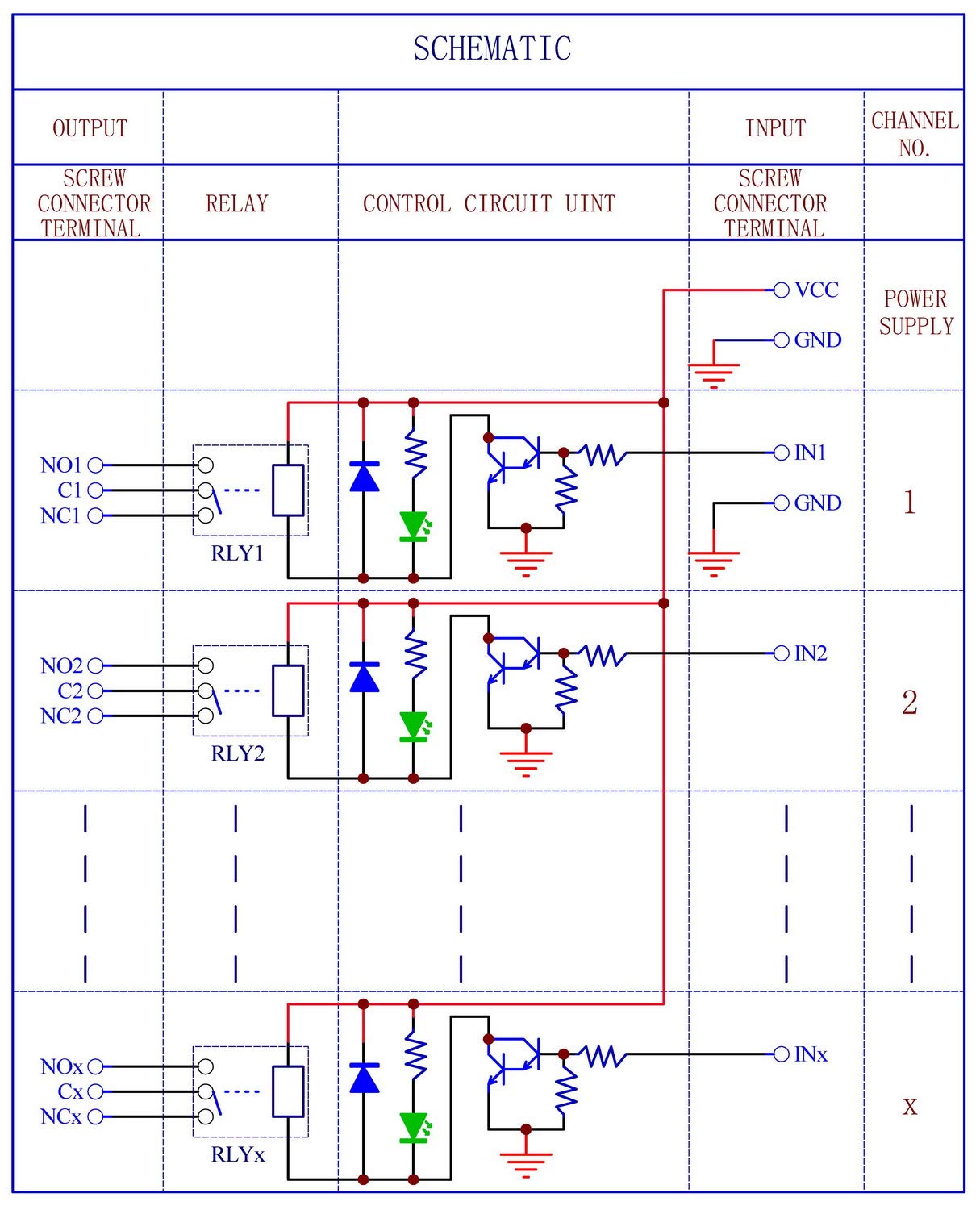

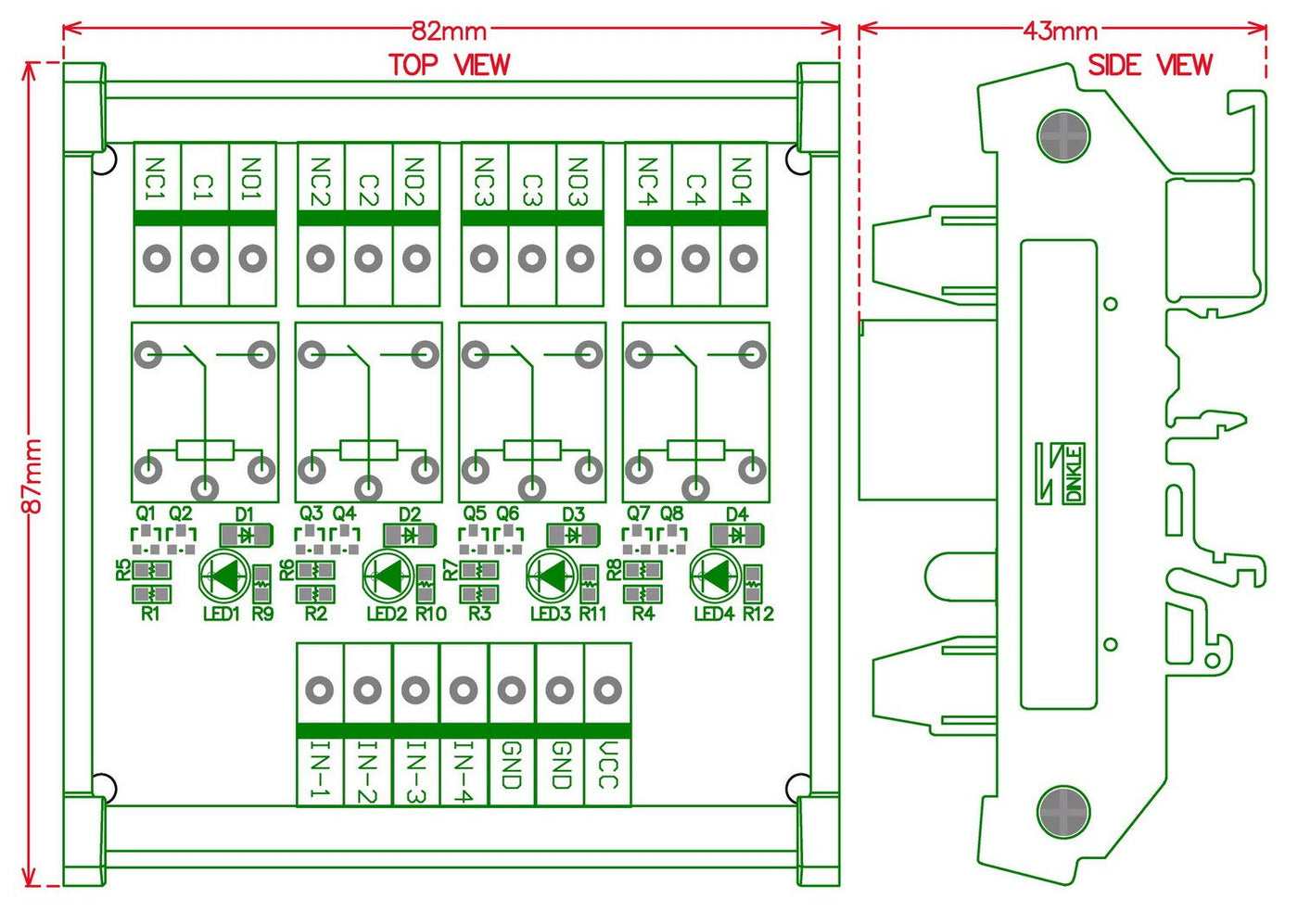

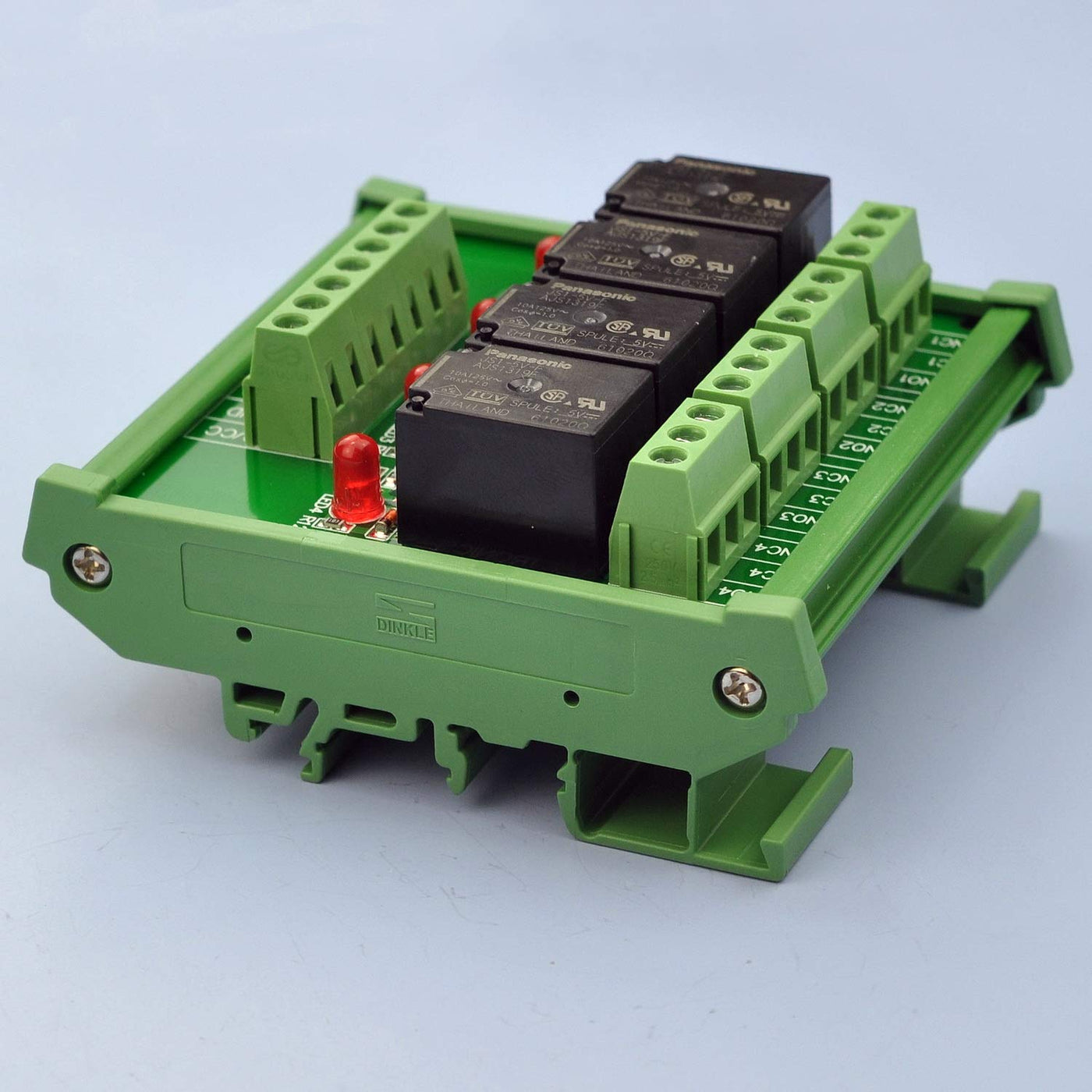

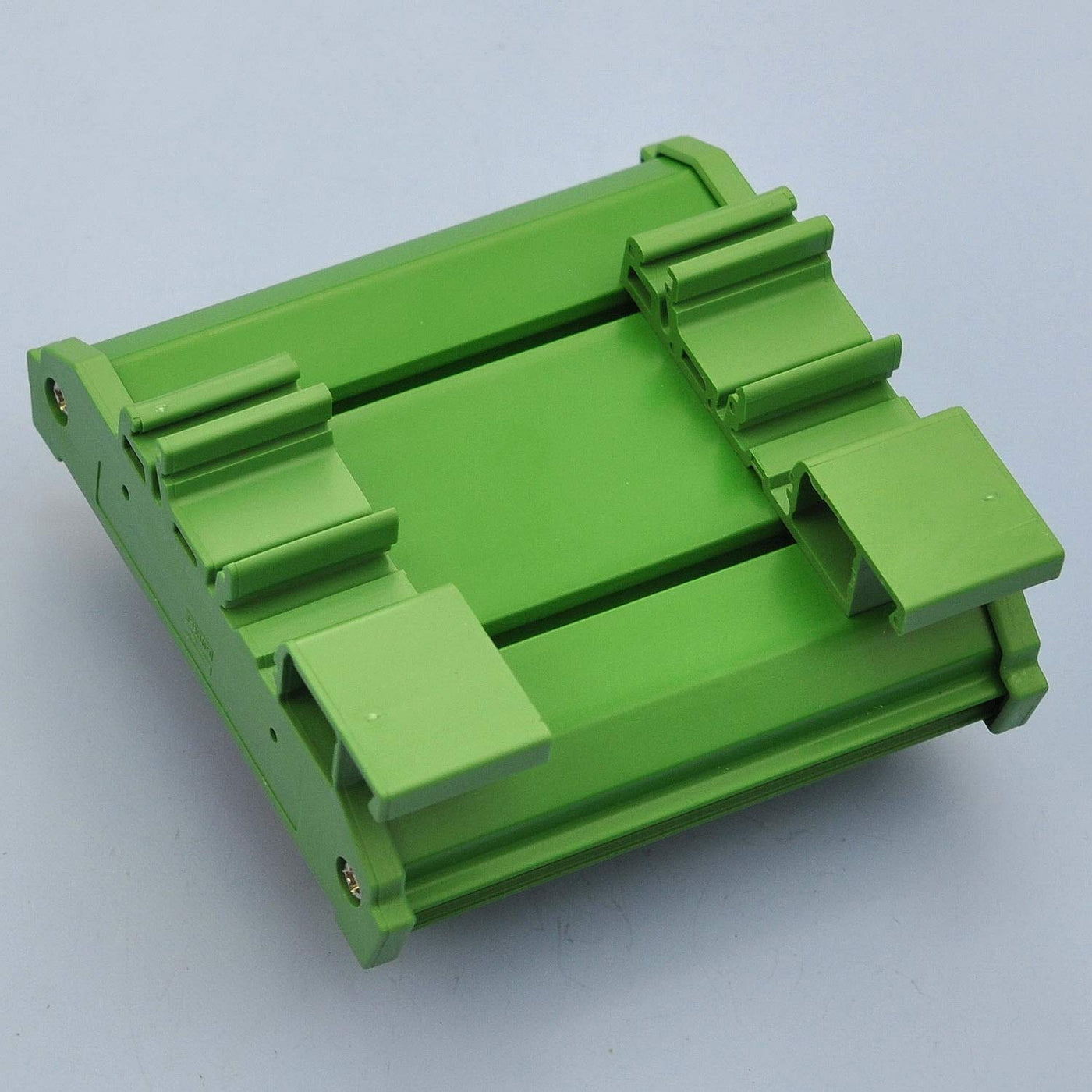

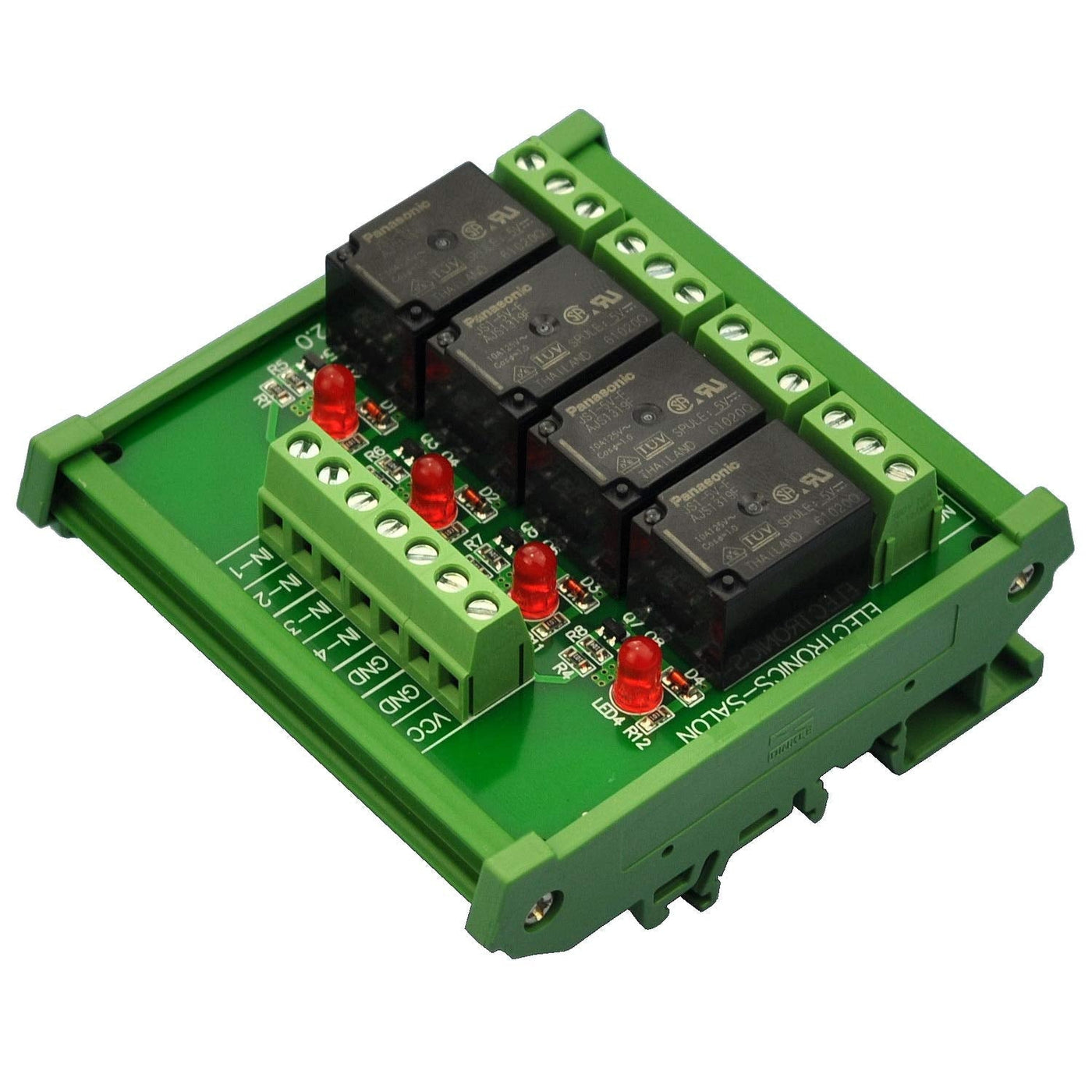

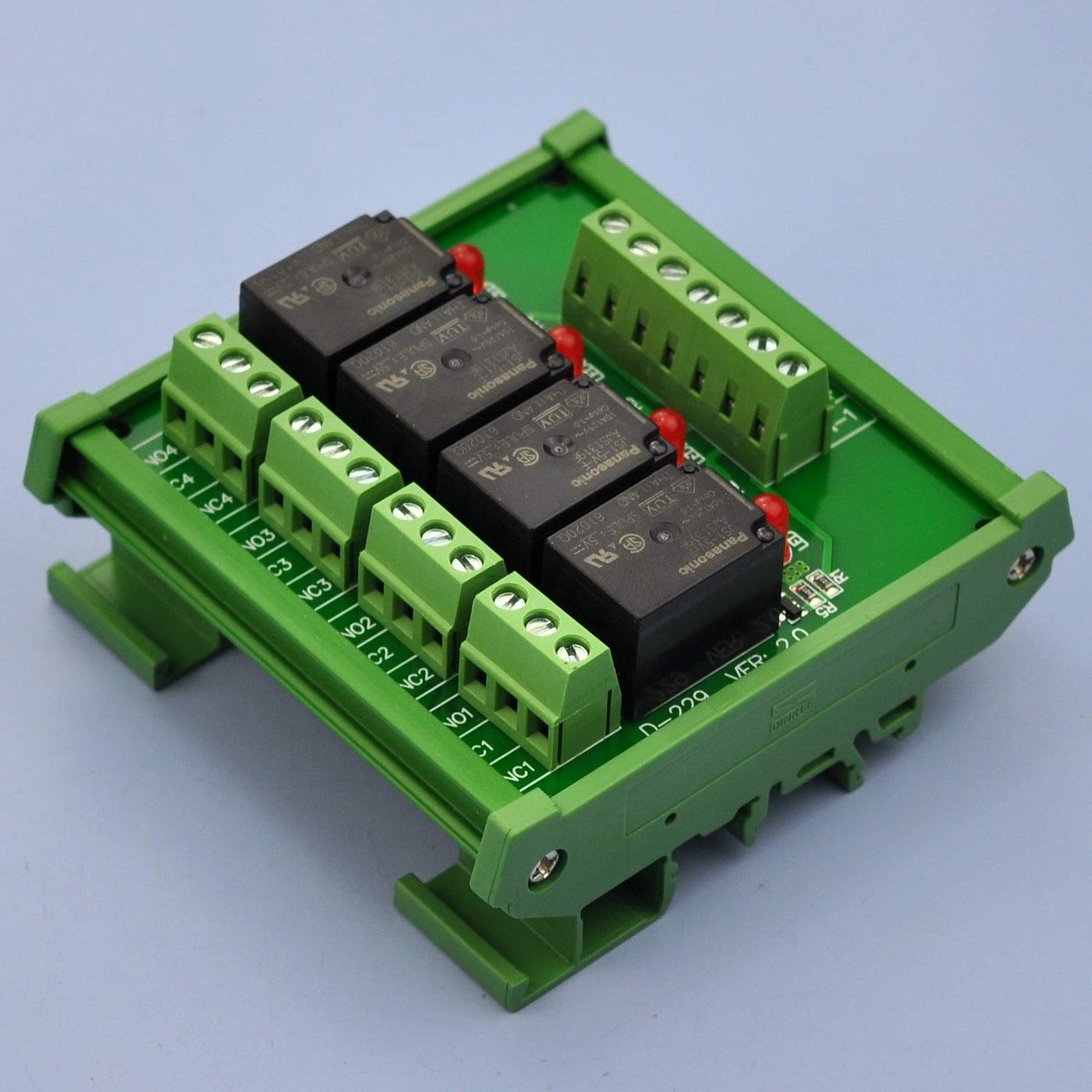

{"id":7409501307040,"title":"Electronics-Salon DIN Rail Mount 4 SPDT 10Amp Power Relay Interface Module, DC 5V Version.","handle":"electronics-salon-din-rail-mount-4-spdt-10amp-power-relay-interface-module-dc-5v-version","description":"\u003ch3\u003eElectronics-Salon DIN Rail Mount 4 SPDT 10Amp Power Relay Interface Module, DC 5V Version.\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e4 Channel SPDT power relay interface module, high quality JS1-5V-F 10Amp\nrelays. Darlington transistor circuits drive relay coil, LED indicator for\neach relay channel. High quality screw terminal block. FR-4 fiber glass PCB,\ndual copper layers. Taiwan DINKLE fireproof nylon material DIN rail mount\ncarrier (not China low quality carrier), can support width 35mm \/ 32mm \/ 15mm\nrail, and the carrier can be taken apart for panel mount use.Operating Voltage\n\/ Current (VCC): 3.8 to 7.5VDC \/ 350mA(at 5VDC). Control signal voltage\n(IN-X): 0V - 0.5Vdc (low level), relay not action. 2.5V - 24Vdc (high level),\nrelay action.Output (relay switch) contact rating for each channel: For AC,\n125 \/ 250 VAC, 10Amp For DC, 30 VDC, 5AmpExternal dimensions: L82mm x W87mm x\nH43mm. PCB dimensions: L80mm x W72mm x H15.5mmThe item no paper\nspecifications, before buy please download the PDF datasheet: https:\/\/images-\nna.ssl-images-amazon.com\/images\/I\/91NGZd-qx9L.pdf\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e4 Channel SPDT power relay interface module, high quality JS1-5V-F 10Amp relays.\u003c\/li\u003e\n \u003cli\u003eDarlington transistor circuits drive relay coil, LED indicator for each relay channel.\u003c\/li\u003e\n \u003cli\u003eHigh quality screw terminal block, FR-4 fiber glass PCB, dual copper layers.\u003c\/li\u003e\n \u003cli\u003eTaiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm \/ 32mm \/ 15mm rail, and the carrier can be taken apart for panel mount use.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-06-09T19:53:58+10:00","created_at":"2022-06-09T19:54:06+10:00","vendor":"Electronics-Salon","type":"IO Modules","tags":["dingo"],"price":19500,"price_min":19500,"price_max":19500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42172965224608,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B00M1MW5BW","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Electronics-Salon DIN Rail Mount 4 SPDT 10Amp Power Relay Interface Module, DC 5V Version.","public_title":null,"options":["Default Title"],"price":19500,"weight":159,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/dingoship.com.au\/cdn\/shop\/products\/B00M1MW5BW.jpg?v=1654820052","\/\/dingoship.com.au\/cdn\/shop\/products\/712HADS54xL.jpg?v=1654768446","\/\/dingoship.com.au\/cdn\/shop\/products\/71tLTTfqCYL.jpg?v=1654768446","\/\/dingoship.com.au\/cdn\/shop\/products\/71edZc0lffL.jpg?v=1654768446","\/\/dingoship.com.au\/cdn\/shop\/products\/71DIN4F3XeL.jpg?v=1654768446","\/\/dingoship.com.au\/cdn\/shop\/products\/71Xoix2rNsL.jpg?v=1654768446","\/\/dingoship.com.au\/cdn\/shop\/products\/71Rz9W6lw9L.jpg?v=1654768446"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/products\/B00M1MW5BW.jpg?v=1654820052","options":["Title"],"media":[{"alt":null,"id":24832150667424,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B00M1MW5BW.jpg?v=1654820052"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B00M1MW5BW.jpg?v=1654820052","width":1500},{"alt":null,"id":24827544567968,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/712HADS54xL.jpg?v=1654768446"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/712HADS54xL.jpg?v=1654768446","width":1500},{"alt":null,"id":24827544600736,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1488,"width":1488,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71tLTTfqCYL.jpg?v=1654768446"},"aspect_ratio":1.0,"height":1488,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71tLTTfqCYL.jpg?v=1654768446","width":1488},{"alt":null,"id":24827544633504,"position":4,"preview_image":{"aspect_ratio":0.81,"height":1500,"width":1215,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71edZc0lffL.jpg?v=1654768446"},"aspect_ratio":0.81,"height":1500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71edZc0lffL.jpg?v=1654768446","width":1215},{"alt":null,"id":24827544666272,"position":5,"preview_image":{"aspect_ratio":1.404,"height":1068,"width":1500,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71DIN4F3XeL.jpg?v=1654768446"},"aspect_ratio":1.404,"height":1068,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71DIN4F3XeL.jpg?v=1654768446","width":1500},{"alt":null,"id":24827544699040,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71Xoix2rNsL.jpg?v=1654768446"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71Xoix2rNsL.jpg?v=1654768446","width":1500},{"alt":null,"id":24827544731808,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71Rz9W6lw9L.jpg?v=1654768446"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71Rz9W6lw9L.jpg?v=1654768446","width":1500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eElectronics-Salon DIN Rail Mount 4 SPDT 10Amp Power Relay Interface Module, DC 5V Version.\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e4 Channel SPDT power relay interface module, high quality JS1-5V-F 10Amp\nrelays. Darlington transistor circuits drive relay coil, LED indicator for\neach relay channel. High quality screw terminal block. FR-4 fiber glass PCB,\ndual copper layers. Taiwan DINKLE fireproof nylon material DIN rail mount\ncarrier (not China low quality carrier), can support width 35mm \/ 32mm \/ 15mm\nrail, and the carrier can be taken apart for panel mount use.Operating Voltage\n\/ Current (VCC): 3.8 to 7.5VDC \/ 350mA(at 5VDC). Control signal voltage\n(IN-X): 0V - 0.5Vdc (low level), relay not action. 2.5V - 24Vdc (high level),\nrelay action.Output (relay switch) contact rating for each channel: For AC,\n125 \/ 250 VAC, 10Amp For DC, 30 VDC, 5AmpExternal dimensions: L82mm x W87mm x\nH43mm. PCB dimensions: L80mm x W72mm x H15.5mmThe item no paper\nspecifications, before buy please download the PDF datasheet: https:\/\/images-\nna.ssl-images-amazon.com\/images\/I\/91NGZd-qx9L.pdf\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e4 Channel SPDT power relay interface module, high quality JS1-5V-F 10Amp relays.\u003c\/li\u003e\n \u003cli\u003eDarlington transistor circuits drive relay coil, LED indicator for each relay channel.\u003c\/li\u003e\n \u003cli\u003eHigh quality screw terminal block, FR-4 fiber glass PCB, dual copper layers.\u003c\/li\u003e\n \u003cli\u003eTaiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm \/ 32mm \/ 15mm rail, and the carrier can be taken apart for panel mount use.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
