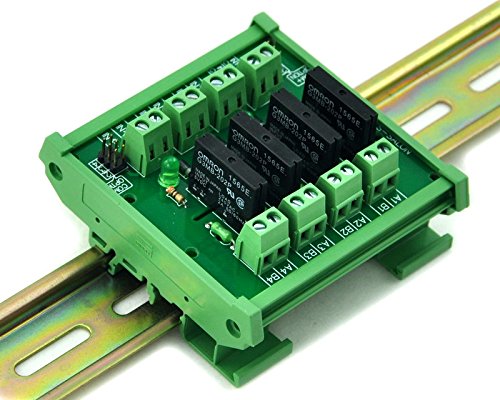

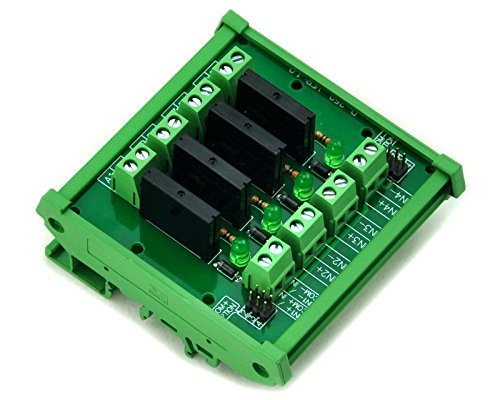

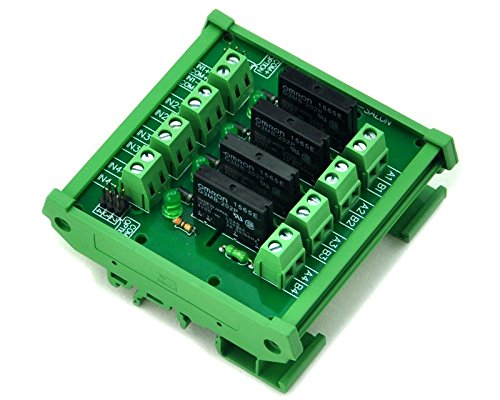

{"id":7410666143904,"title":"Electronics-Salon DIN Rail Mount DC5V 4 Channels DC-AC 2Amp G3MB-202P Solid State Relay SSR Module Board.","handle":"electronics-salon-din-rail-mount-dc5v-4-channels-dc-ac-2amp-g3mb-202p-solid-state-relay-ssr-module-board","description":"\u003ch3\u003eElectronics-Salon DIN Rail Mount DC5V 4 Channels DC-AC 2Amp G3MB-202P Solid State Relay SSR Module Board.\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eElectronics-Salon DC5V 4 Channels DC-AC 2Amp G3MB-202P Solid State Relay SSR\nModule Board. Input control voltage DC 5V, Current 20mA for each channel. LED\nindicator for SSR each channel action. Rated output voltage: AC 100 ~\n240V(50\/60Hz). Applicable load current: 0.1 ~ 2Amp(each channel). Pin Jumper\noption for control mode configurations in common positive or common negative.\nSSR output series 3Amp fuse to protect your equipment. G3MB-202P 5VDC SSR,\nIsolation: Phototriac. Zero cross: Yes. Rated output load: 2A at 100 to 240VAC\n(50\/60Hz). Load type: General purpose. DINKLE Fireproof nylon material DIN\nrail mount carrier (not China low quality carrier), can support width 35mm \/\n32mm \/ 15mm rail, and the carrier can be taken apart for panel mount use. High\nquality terminal blocks. Wire range: 24 ~ 12 AWG. Strip length: 7mm. Screws -\nM2.5 steel, Cr3+ Zn plated. Pin header and Cage - Brass. High quality FR-4\nfiber glass PCB.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eInput control voltage DC 5V, Current 20mA for each channel. LED indicator for SSR each channel action.\u003c\/li\u003e\n \u003cli\u003eRated output voltage: AC 100 ~ 240V(50\/60Hz). Applicable load current: 0.1 ~ 2Amp(each channel).\u003c\/li\u003e\n \u003cli\u003ePin Jumper option for control mode configurations in common positive or common negative. SSR output series 3Amp fuse to protect your equipment. G3MB-202P 5VDC SSR, Isolation: Phototriac. Zero cross: Yes. Rated output load: 2A at 100 to 240VAC (50\/60Hz). Load type: General purpose.\u003c\/li\u003e\n \u003cli\u003eDINKLE Fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm \/ 32mm \/ 15mm rail, and the carrier can be taken apart for panel mount use.\u003c\/li\u003e\n \u003cli\u003eHigh quality terminal blocks. Wire range: 24 ~ 12 AWG. Strip length: 7mm. Screws - M2.5 steel, Cr3+ Zn plated. Pin header and Cage - Brass.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-06-10T21:04:22+10:00","created_at":"2022-06-10T21:04:27+10:00","vendor":"Electronics-Salon","type":"Solid State Relays","tags":["dingo"],"price":18500,"price_min":18500,"price_max":18500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42177086947488,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B00M7V0WQW","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Electronics-Salon DIN Rail Mount DC5V 4 Channels DC-AC 2Amp G3MB-202P Solid State Relay SSR Module Board.","public_title":null,"options":["Default Title"],"price":18500,"weight":204,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/dingoship.com.au\/cdn\/shop\/products\/B00M7V0WQW.jpg?v=1654903841","\/\/dingoship.com.au\/cdn\/shop\/products\/5114rJ_sZBL.jpg?v=1654859067","\/\/dingoship.com.au\/cdn\/shop\/products\/51EQRrnxUYL.jpg?v=1654859067","\/\/dingoship.com.au\/cdn\/shop\/products\/71eRJmgnF-L.jpg?v=1654859067","\/\/dingoship.com.au\/cdn\/shop\/products\/71yth8NmK5L.jpg?v=1654859067","\/\/dingoship.com.au\/cdn\/shop\/products\/316-ECzgIQL.jpg?v=1654859067"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/products\/B00M7V0WQW.jpg?v=1654903841","options":["Title"],"media":[{"alt":null,"id":24836980244640,"position":1,"preview_image":{"aspect_ratio":1.25,"height":400,"width":500,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B00M7V0WQW.jpg?v=1654903841"},"aspect_ratio":1.25,"height":400,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B00M7V0WQW.jpg?v=1654903841","width":500},{"alt":null,"id":24834407956640,"position":2,"preview_image":{"aspect_ratio":1.25,"height":400,"width":500,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/5114rJ_sZBL.jpg?v=1654859067"},"aspect_ratio":1.25,"height":400,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/5114rJ_sZBL.jpg?v=1654859067","width":500},{"alt":null,"id":24834407989408,"position":3,"preview_image":{"aspect_ratio":1.25,"height":400,"width":500,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51EQRrnxUYL.jpg?v=1654859067"},"aspect_ratio":1.25,"height":400,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51EQRrnxUYL.jpg?v=1654859067","width":500},{"alt":null,"id":24834408022176,"position":4,"preview_image":{"aspect_ratio":1.144,"height":1049,"width":1200,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71eRJmgnF-L.jpg?v=1654859067"},"aspect_ratio":1.144,"height":1049,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71eRJmgnF-L.jpg?v=1654859067","width":1200},{"alt":null,"id":24834408054944,"position":5,"preview_image":{"aspect_ratio":1.487,"height":807,"width":1200,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71yth8NmK5L.jpg?v=1654859067"},"aspect_ratio":1.487,"height":807,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71yth8NmK5L.jpg?v=1654859067","width":1200},{"alt":null,"id":24834408087712,"position":6,"preview_image":{"aspect_ratio":2.415,"height":207,"width":500,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/316-ECzgIQL.jpg?v=1654859067"},"aspect_ratio":2.415,"height":207,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/316-ECzgIQL.jpg?v=1654859067","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eElectronics-Salon DIN Rail Mount DC5V 4 Channels DC-AC 2Amp G3MB-202P Solid State Relay SSR Module Board.\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eElectronics-Salon DC5V 4 Channels DC-AC 2Amp G3MB-202P Solid State Relay SSR\nModule Board. Input control voltage DC 5V, Current 20mA for each channel. LED\nindicator for SSR each channel action. Rated output voltage: AC 100 ~\n240V(50\/60Hz). Applicable load current: 0.1 ~ 2Amp(each channel). Pin Jumper\noption for control mode configurations in common positive or common negative.\nSSR output series 3Amp fuse to protect your equipment. G3MB-202P 5VDC SSR,\nIsolation: Phototriac. Zero cross: Yes. Rated output load: 2A at 100 to 240VAC\n(50\/60Hz). Load type: General purpose. DINKLE Fireproof nylon material DIN\nrail mount carrier (not China low quality carrier), can support width 35mm \/\n32mm \/ 15mm rail, and the carrier can be taken apart for panel mount use. High\nquality terminal blocks. Wire range: 24 ~ 12 AWG. Strip length: 7mm. Screws -\nM2.5 steel, Cr3+ Zn plated. Pin header and Cage - Brass. High quality FR-4\nfiber glass PCB.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eInput control voltage DC 5V, Current 20mA for each channel. LED indicator for SSR each channel action.\u003c\/li\u003e\n \u003cli\u003eRated output voltage: AC 100 ~ 240V(50\/60Hz). Applicable load current: 0.1 ~ 2Amp(each channel).\u003c\/li\u003e\n \u003cli\u003ePin Jumper option for control mode configurations in common positive or common negative. SSR output series 3Amp fuse to protect your equipment. G3MB-202P 5VDC SSR, Isolation: Phototriac. Zero cross: Yes. Rated output load: 2A at 100 to 240VAC (50\/60Hz). Load type: General purpose.\u003c\/li\u003e\n \u003cli\u003eDINKLE Fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm \/ 32mm \/ 15mm rail, and the carrier can be taken apart for panel mount use.\u003c\/li\u003e\n \u003cli\u003eHigh quality terminal blocks. Wire range: 24 ~ 12 AWG. Strip length: 7mm. Screws - M2.5 steel, Cr3+ Zn plated. Pin header and Cage - Brass.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
