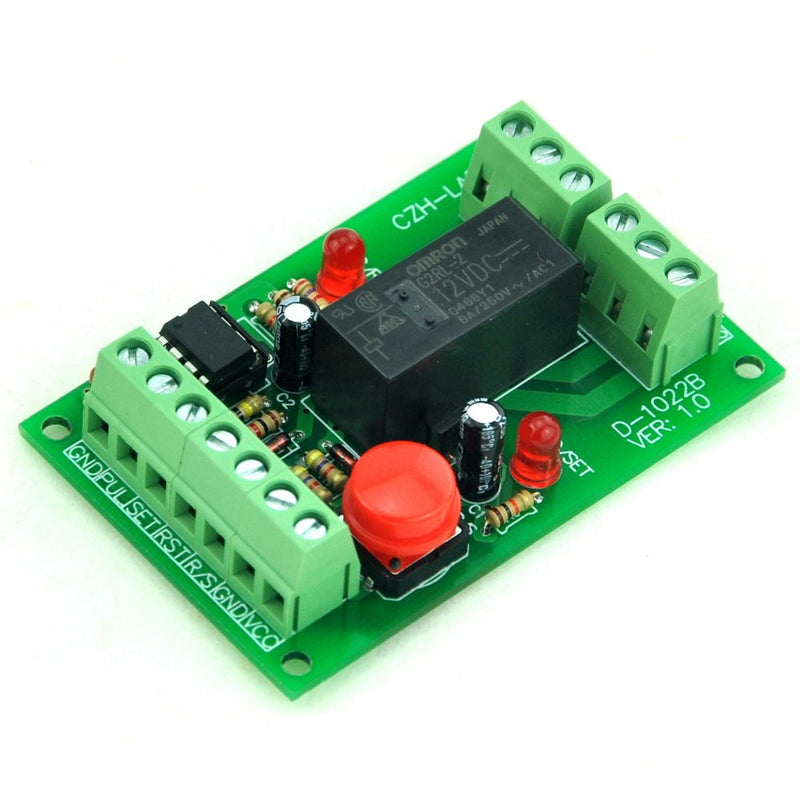

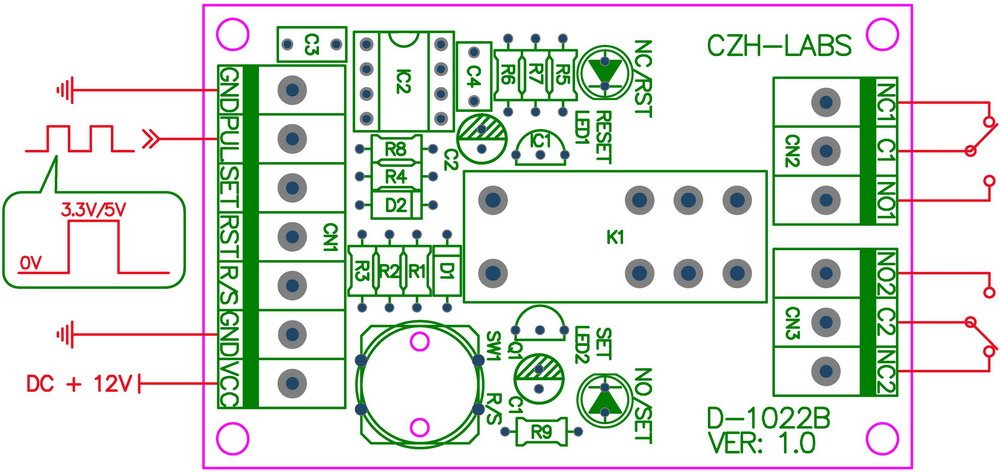

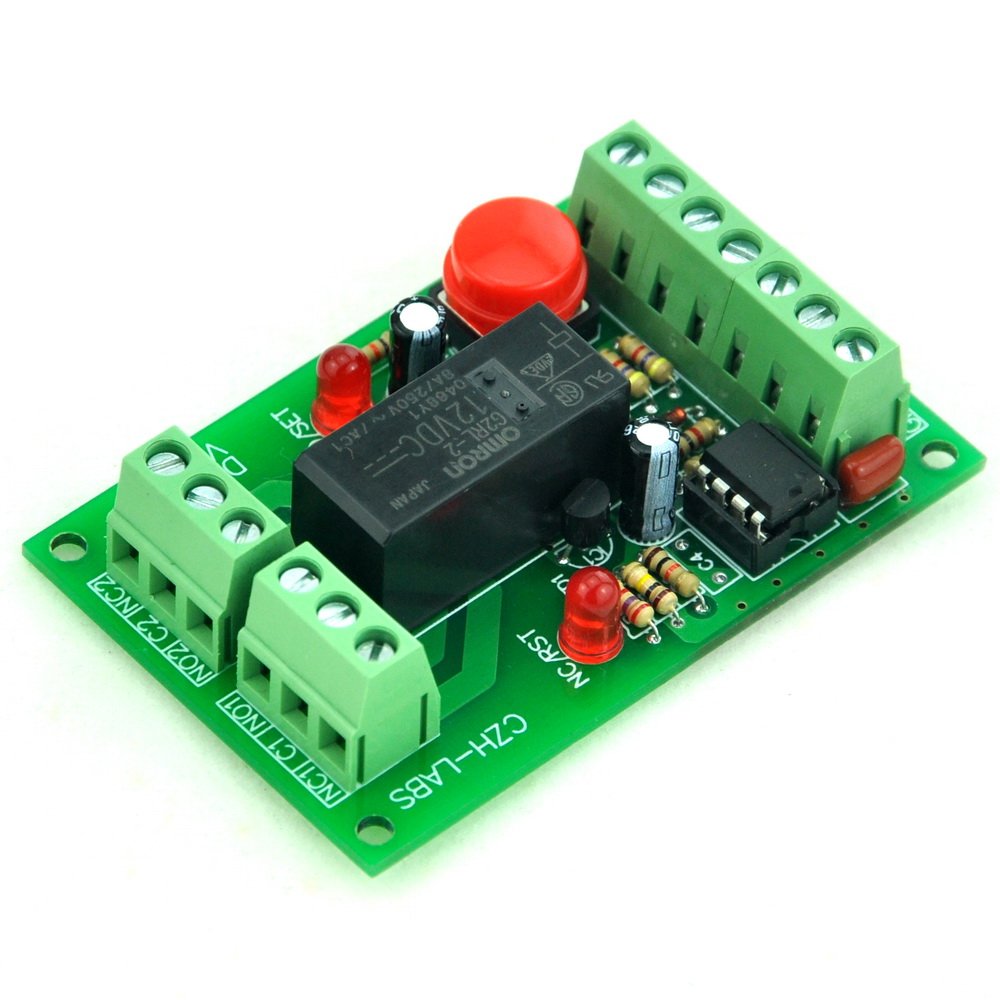

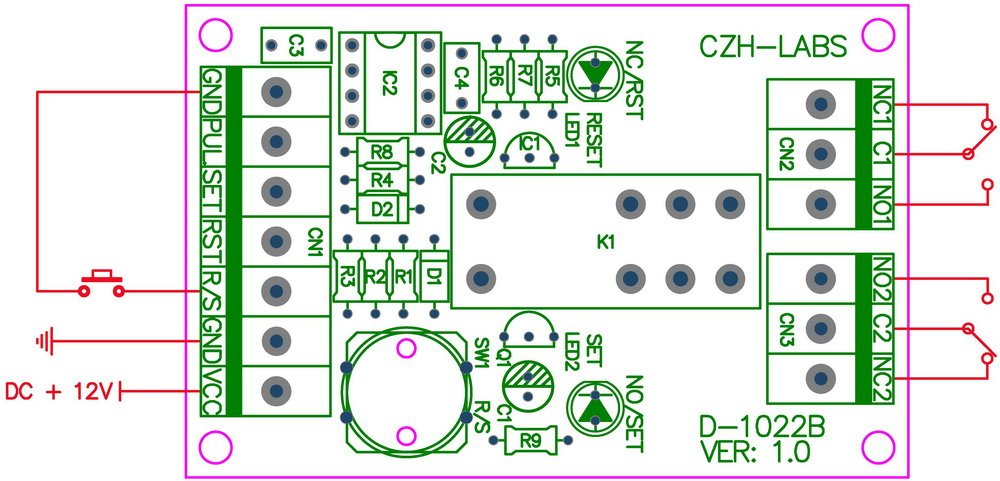

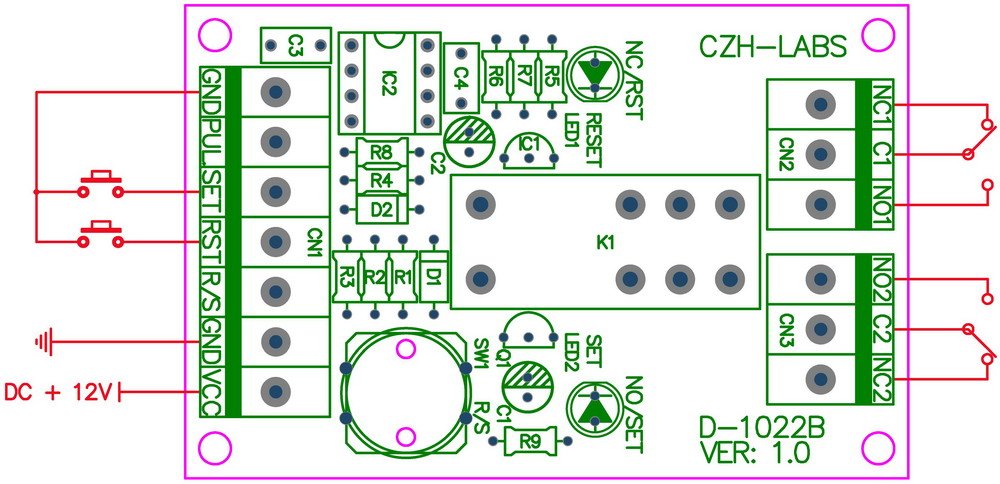

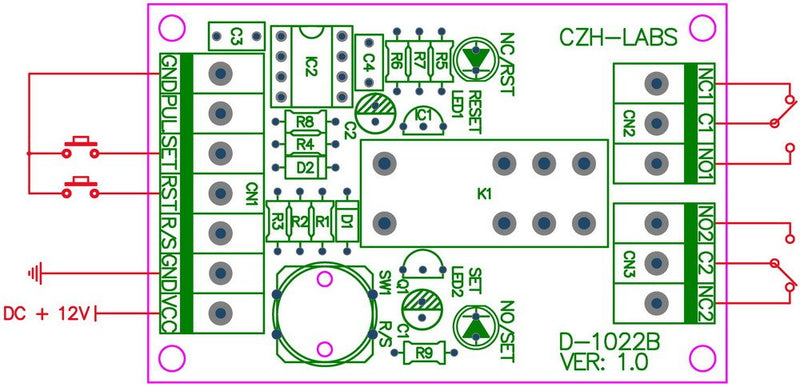

{"id":7412990148768,"title":"ELECTRONICS-SALON Panel Mount Momentary-Switch\/Pulse-Signal Control Latching DPDT Relay Module,12V","handle":"electronics-salon-panel-mount-momentary-switch-pulse-signal-control-latching-dpdt-relay-module-12v","description":"\u003ch3\u003eELECTRONICS-SALON Panel Mount Momentary-Switch\/Pulse-Signal Control Latching DPDT Relay Module,12V\u003c\/h3\u003e\n\u003cp id=\"b\"\u003ePanel Mount Momentary-Switch \/ Pulse-Signal Control Latching DPDT Relay\nModule. Part Number: MD-D1022B\/12V Features: This item has been assembled, and\nelectrical test passed. Support on board momentary switch, single external\nmomentary switch, double external momentary switches and pulse signal, four\ncontrol modes. LED indication for relay set and reset action. G2RL-2 8 Amp\nDPDT power relay. Power off relay state memory, when the power on again, relay\nswitch will revert to its previous state. The control program based on MCU\nPIC12F675, this is a flash microcontroller, if you are familiar PIC firmware,\nyou can redesign the program. Panel mount version, size: 72.5 x 47.4 x 18mm (L\nx W x H) Electrical Parameters: Operating voltage: 9 to 15.6VDC. Operating\ncurrent: 50mA, at 12VDC. Relay number: G2RL-2 12VDC. Relay switch type: DPDT.\nRelay switch capacity: 8Amp at 250VAC\/30VDC. Pulse mode signal level: High\n3~5V, Low 0V. Pulse signal must hold time: High level 1mS minimum, Low level\n1000mS minimum. Pulse rising is valid. Terminal block characteristic: Wire\nrange 26-12AWG Mechanical Torque 0.4Nm(3.5Lb-In.) Strip length 7mm Dimensions\nPitch 5.0mm(.197\") Screws M2.5\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eSupport on board momentary switch, single external momentary switch, double external momentary switches and pulse signal, four control modes.\u003c\/li\u003e\n \u003cli\u003eLED indication for relay set and reset action.\u003c\/li\u003e\n \u003cli\u003eG2RL-2 8 Amp DPDT power relay.\u003c\/li\u003e\n \u003cli\u003ePower off relay state memory, when the power on again, relay switch will revert to its previous state.\u003c\/li\u003e\n \u003cli\u003eThe control program based on MCU PIC12F675, this is a flash microcontroller, if you are familiar PIC firmware, you can redesign the program. Panel mount version.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-06-13T15:55:15+10:00","created_at":"2022-06-13T15:55:23+10:00","vendor":"Electronics-Salon","type":"Relays","tags":["dingo"],"price":11900,"price_min":11900,"price_max":11900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42188294258848,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B015MSYQ8Q","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELECTRONICS-SALON Panel Mount Momentary-Switch\/Pulse-Signal Control Latching DPDT Relay Module,12V","public_title":null,"options":["Default Title"],"price":11900,"weight":23,"compare_at_price":null,"inventory_management":null,"barcode":"MD-D1022B\/12V-1","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/dingoship.com.au\/cdn\/shop\/products\/B015MSYQ8Q.jpg?v=1655167400","\/\/dingoship.com.au\/cdn\/shop\/products\/61V3ZkAbl1L.jpg?v=1655099723","\/\/dingoship.com.au\/cdn\/shop\/products\/61S-_SRJYSL.jpg?v=1655099723","\/\/dingoship.com.au\/cdn\/shop\/products\/615IzDm8SqL.jpg?v=1655099723","\/\/dingoship.com.au\/cdn\/shop\/products\/61O75JydowL.jpg?v=1655099723","\/\/dingoship.com.au\/cdn\/shop\/products\/61GyA-5_klL.jpg?v=1655099723","\/\/dingoship.com.au\/cdn\/shop\/products\/612wS_Pg7NL.jpg?v=1655099723","\/\/dingoship.com.au\/cdn\/shop\/products\/711UPnRH1sL.jpg?v=1655099723"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/products\/B015MSYQ8Q.jpg?v=1655167400","options":["Title"],"media":[{"alt":null,"id":24853142339744,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B015MSYQ8Q.jpg?v=1655167400"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B015MSYQ8Q.jpg?v=1655167400","width":1000},{"alt":null,"id":24847676309664,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61V3ZkAbl1L.jpg?v=1655099723"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61V3ZkAbl1L.jpg?v=1655099723","width":1000},{"alt":null,"id":24847676342432,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61S-_SRJYSL.jpg?v=1655099723"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61S-_SRJYSL.jpg?v=1655099723","width":1000},{"alt":null,"id":24847676375200,"position":4,"preview_image":{"aspect_ratio":1.89,"height":529,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/615IzDm8SqL.jpg?v=1655099723"},"aspect_ratio":1.89,"height":529,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/615IzDm8SqL.jpg?v=1655099723","width":1000},{"alt":null,"id":24847676407968,"position":5,"preview_image":{"aspect_ratio":2.066,"height":484,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61O75JydowL.jpg?v=1655099723"},"aspect_ratio":2.066,"height":484,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61O75JydowL.jpg?v=1655099723","width":1000},{"alt":null,"id":24847676440736,"position":6,"preview_image":{"aspect_ratio":2.119,"height":472,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61GyA-5_klL.jpg?v=1655099723"},"aspect_ratio":2.119,"height":472,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61GyA-5_klL.jpg?v=1655099723","width":1000},{"alt":null,"id":24847676473504,"position":7,"preview_image":{"aspect_ratio":2.079,"height":481,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/612wS_Pg7NL.jpg?v=1655099723"},"aspect_ratio":2.079,"height":481,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/612wS_Pg7NL.jpg?v=1655099723","width":1000},{"alt":null,"id":24847676506272,"position":8,"preview_image":{"aspect_ratio":1.294,"height":773,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/711UPnRH1sL.jpg?v=1655099723"},"aspect_ratio":1.294,"height":773,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/711UPnRH1sL.jpg?v=1655099723","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eELECTRONICS-SALON Panel Mount Momentary-Switch\/Pulse-Signal Control Latching DPDT Relay Module,12V\u003c\/h3\u003e\n\u003cp id=\"b\"\u003ePanel Mount Momentary-Switch \/ Pulse-Signal Control Latching DPDT Relay\nModule. Part Number: MD-D1022B\/12V Features: This item has been assembled, and\nelectrical test passed. Support on board momentary switch, single external\nmomentary switch, double external momentary switches and pulse signal, four\ncontrol modes. LED indication for relay set and reset action. G2RL-2 8 Amp\nDPDT power relay. Power off relay state memory, when the power on again, relay\nswitch will revert to its previous state. The control program based on MCU\nPIC12F675, this is a flash microcontroller, if you are familiar PIC firmware,\nyou can redesign the program. Panel mount version, size: 72.5 x 47.4 x 18mm (L\nx W x H) Electrical Parameters: Operating voltage: 9 to 15.6VDC. Operating\ncurrent: 50mA, at 12VDC. Relay number: G2RL-2 12VDC. Relay switch type: DPDT.\nRelay switch capacity: 8Amp at 250VAC\/30VDC. Pulse mode signal level: High\n3~5V, Low 0V. Pulse signal must hold time: High level 1mS minimum, Low level\n1000mS minimum. Pulse rising is valid. Terminal block characteristic: Wire\nrange 26-12AWG Mechanical Torque 0.4Nm(3.5Lb-In.) Strip length 7mm Dimensions\nPitch 5.0mm(.197\") Screws M2.5\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eSupport on board momentary switch, single external momentary switch, double external momentary switches and pulse signal, four control modes.\u003c\/li\u003e\n \u003cli\u003eLED indication for relay set and reset action.\u003c\/li\u003e\n \u003cli\u003eG2RL-2 8 Amp DPDT power relay.\u003c\/li\u003e\n \u003cli\u003ePower off relay state memory, when the power on again, relay switch will revert to its previous state.\u003c\/li\u003e\n \u003cli\u003eThe control program based on MCU PIC12F675, this is a flash microcontroller, if you are familiar PIC firmware, you can redesign the program. Panel mount version.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
